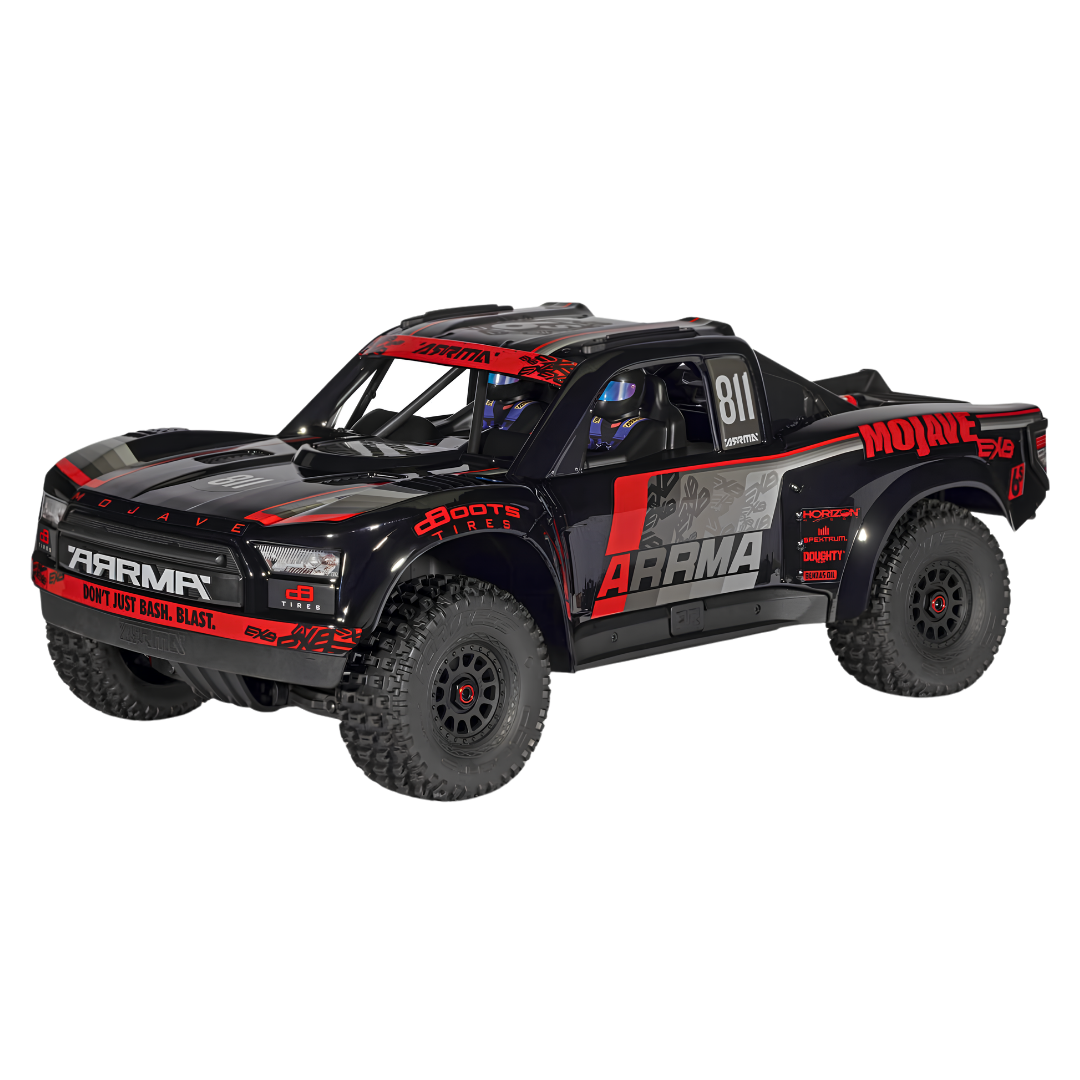

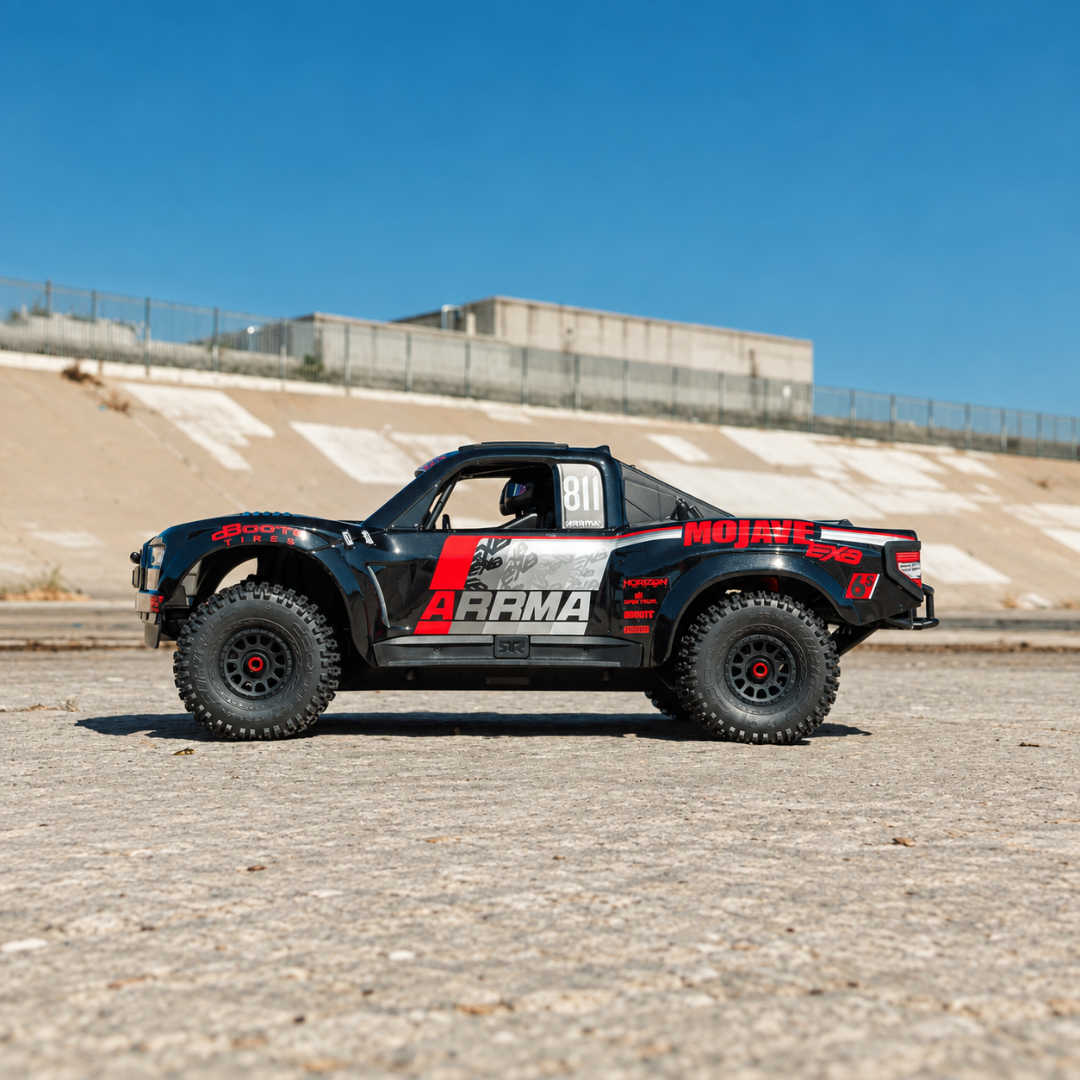

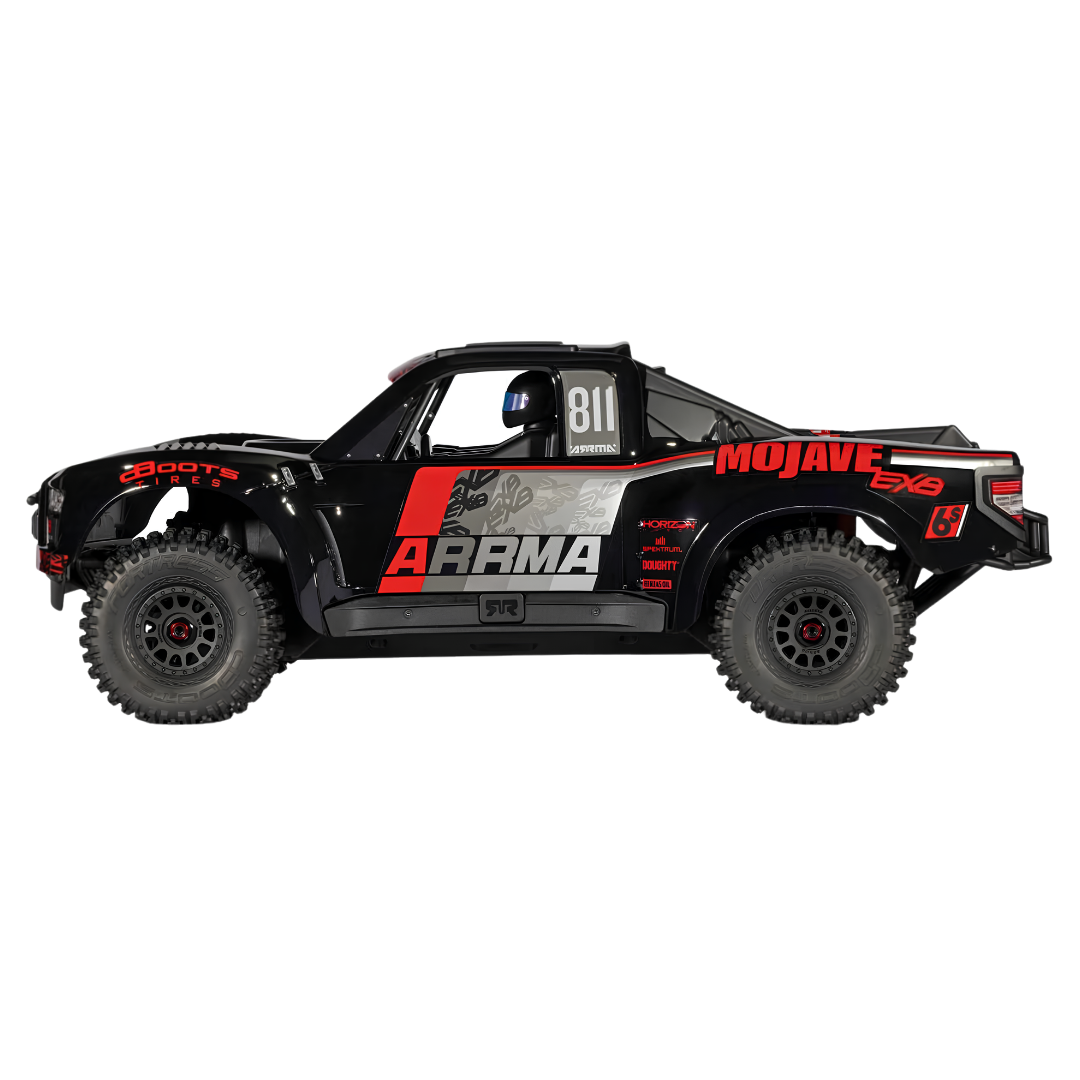

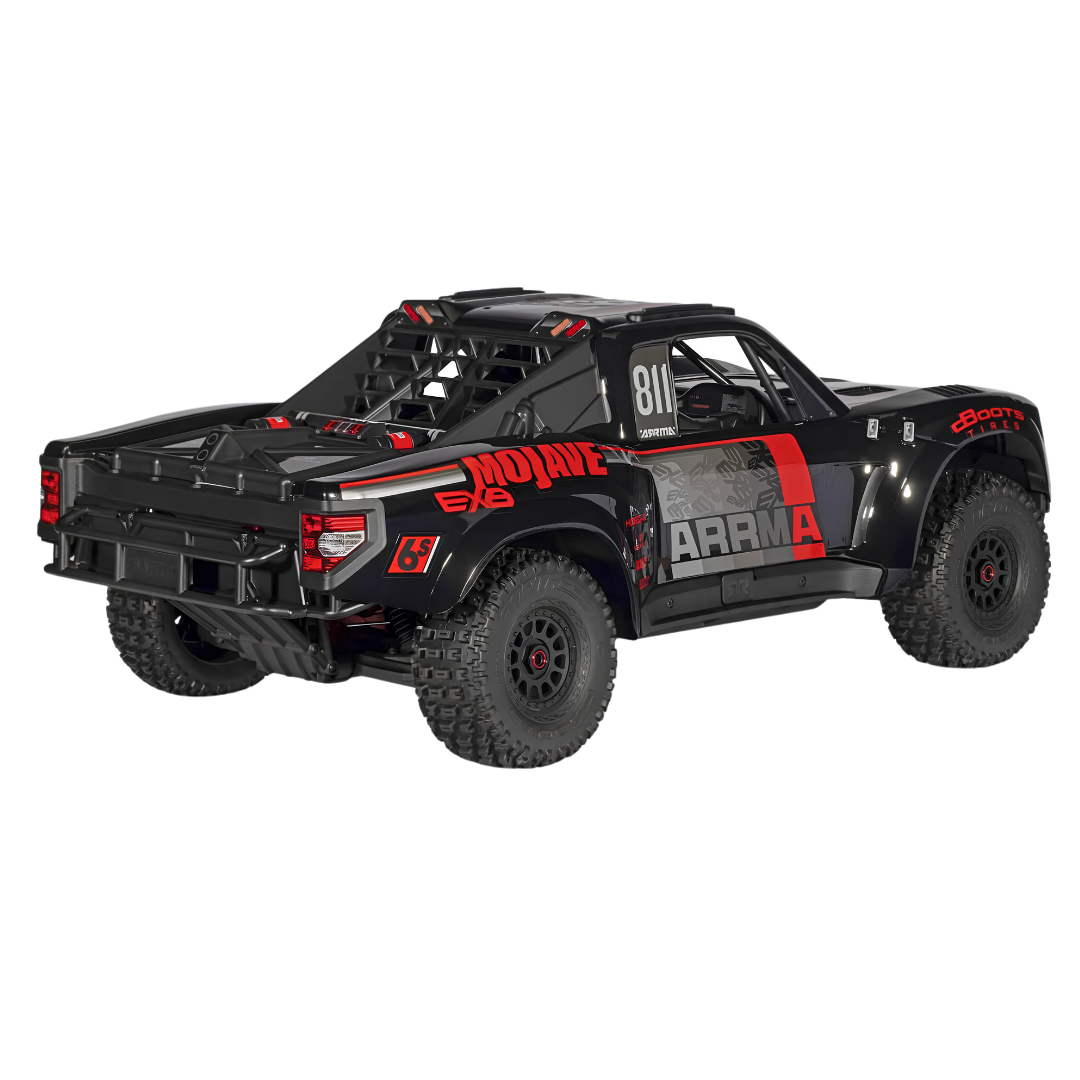

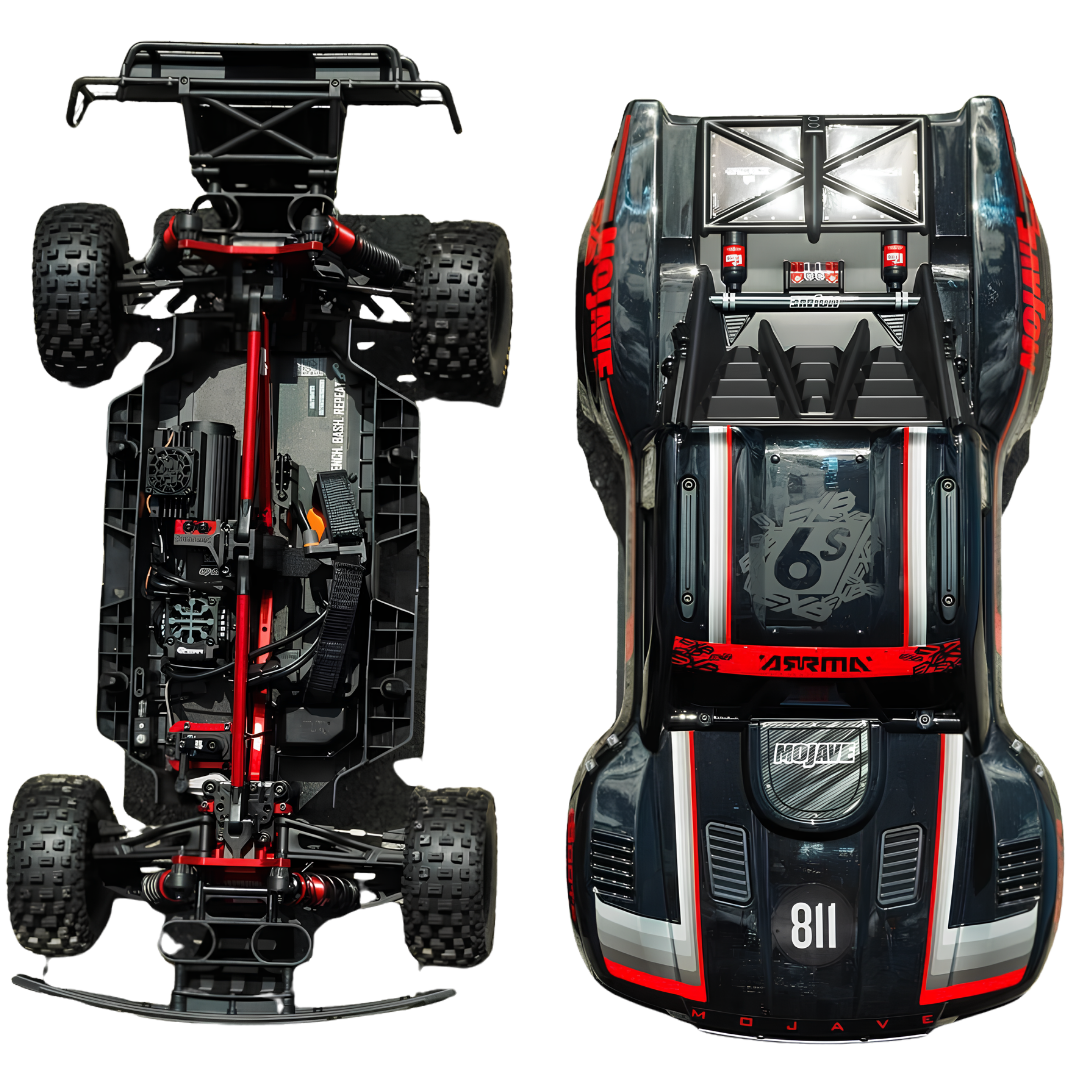

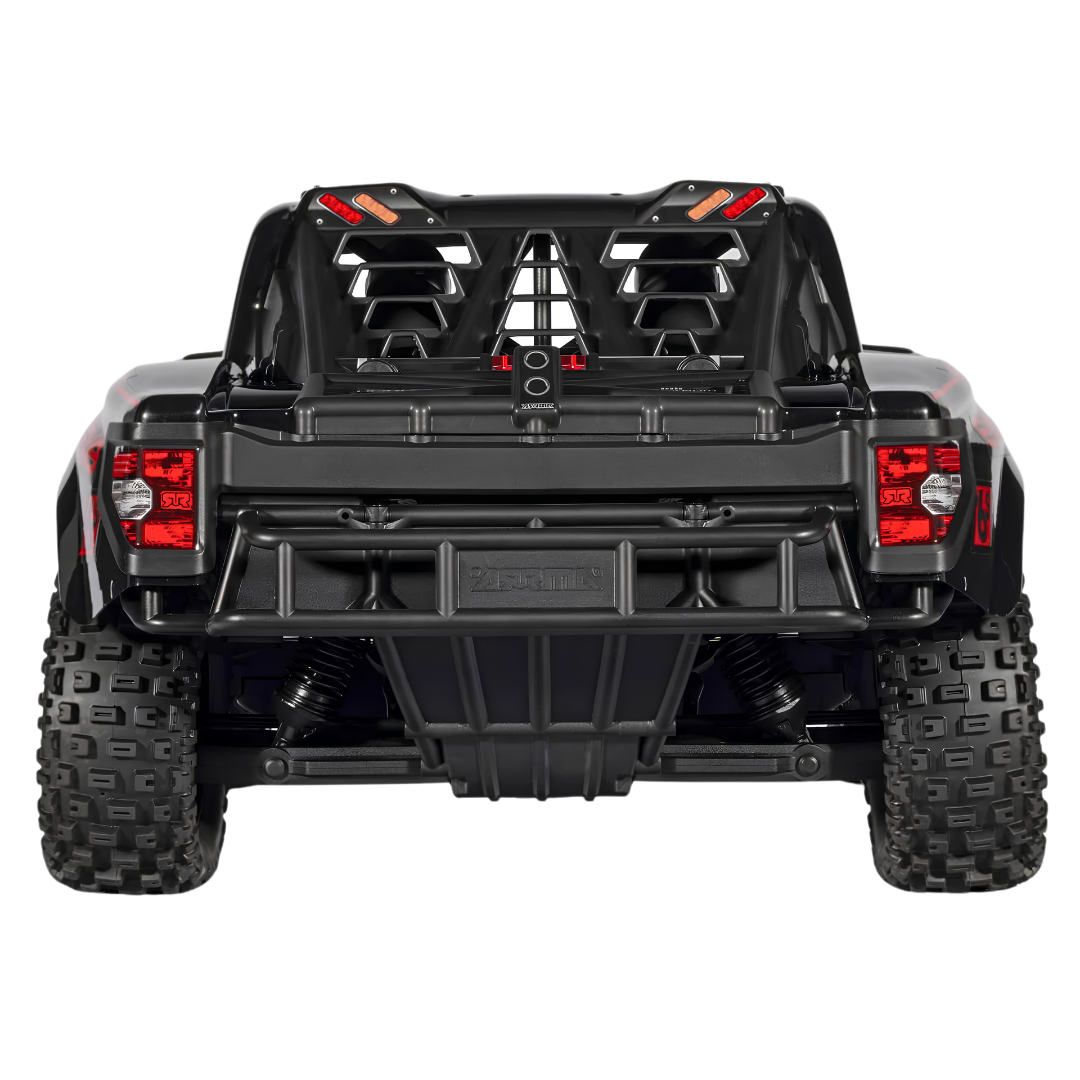

Arrma Mojave 6S EXB RC Desert Truck 1/7 4WD RTR Black Red ARA7704V3T1

The Arrma Mojave 6S EXB is a 1/7 scale 4WD RTR brushless RC desert truck designed for high-speed off-road bashing, combining 4S or 6S power with reinforced EXB chassis, suspension and drivetrain components for demanding terrain and repeated jumps.

The Spektrum Firma 150A Smart V2 ESC and Firma 4074 2050Kv brushless motor provide 4S and 6S compatibility, with 60+ mph capability when using a suitable 6S LiPo setup. Updated ESC firmware provides smoother throttle response, while the heavy-duty 4WD drivetrain transfers power through steel driveshafts and metal differential and gearbox components.

Extreme Bash upgrades include machined aluminium front and rear gearboxes, red-anodised 7075 aluminium shock towers and a rigid 7075 T6 aluminium chassis. Reinforced bulkheads and chassis braces add support for hard off-road use while maintaining the long-wheelbase desert truck handling characteristics of the Mojave platform.

Upgraded EXB oil-filled shocks use machined pistons, precision shaft guides, X-ring seals and emulsion-style components for consistent damping over rough terrain. A clipless body mounting system provides quick access to the chassis, while integrated inner arches help reduce dirt, sand and debris entering beneath the body.

Features

• Extreme Bash EXB specification with reinforced chassis, suspension and drivetrain components
• 60+ mph capability on a suitable 6S LiPo setup
• Spektrum Firma 150A Smart V2 waterproof ESC
• Spektrum Firma 4074 2050Kv brushless motor
• Compatible with 4S or 6S LiPo power
• Machined aluminium front and rear gearboxes
• Red-anodised 7075 aluminium front and rear shock towers
• 7075 T6 aluminium EXB chassis
• Reinforced bulkheads and split centre chassis brace
• EXB oil-filled adjustable shocks with machined pistons
• Precision shock shaft guides and X-ring seals
• EXB emulsion shock caps and internals
• All-steel driveshafts
• All-metal differential outdrives and gearbox internals

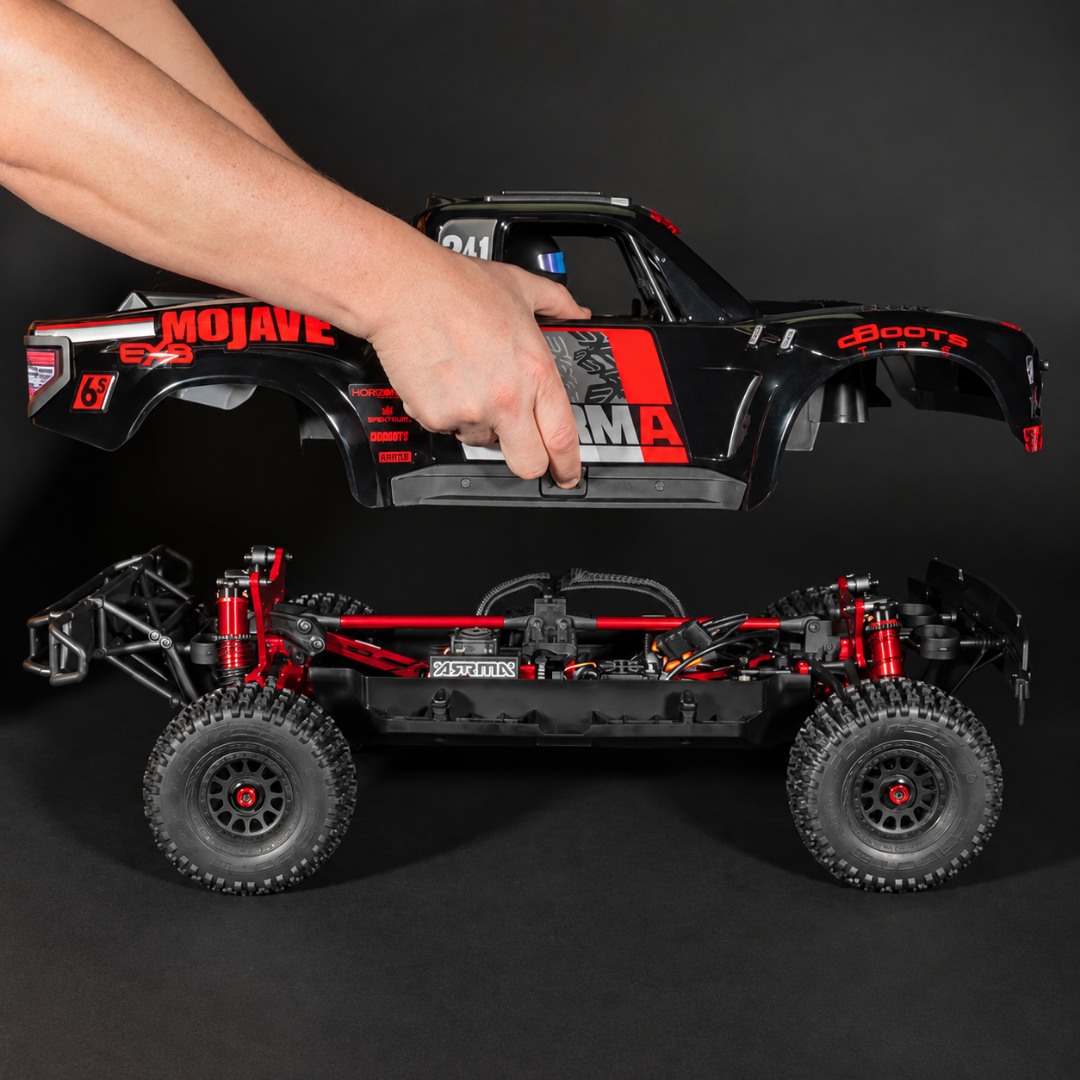

• Clipless body retention with quick-release access
• Inner arches help reduce dirt and debris entering the chassis
• dBoots Fortress tyres for off-road traction
• 17 mm wheel hexes
• Spektrum S665 waterproof digital steering servo
• Spektrum SR315 3-channel dual-protocol receiver
• Spektrum SLT3 2.4GHz 3-channel transmitter

Specifications

• Brand: Arrma
• Model: Mojave 6S EXB V3
• Manufacturer Part Number: ARA7704V3T1
• UPC: 5052127054775
• Scale: 1/7
• Vehicle Type: RC Desert Truck
• Completion Level: Ready-To-Run
• Drivetrain: 4WD
• Power Type: Brushless electric
• Battery Compatibility: 4S or 6S LiPo
• Battery Connector: IC5
• Motor: Spektrum Firma 4074 2050Kv brushless
• ESC: Spektrum Firma 150A Smart V2 waterproof
• Steering Servo: Spektrum S665 waterproof digital servo
• Receiver: Spektrum SR315 3-channel dual-protocol
• Transmitter: Spektrum SLT3 2.4GHz 3-channel
• Top Speed: 60+ mph on a suitable 6S setup
• Chassis: 7075 T6 anodised aluminium
• Length: 715 mm
• Width: 355 mm
• Height: 270 mm
• Wheelbase: 420 mm
• Weight: 6.49 kg with electronics
• Wheel Hex: 17 mm
• Gear Pitch: Mod 1
• Internal Gear Ratio: 4.3:1
• Final Drive Ratio: 11.94:1
• Differential Type: Gear differential
• Shock Type: EXB oil-filled adjustable
• Tyres: dBoots Fortress
• Drive Functions: Forward, brake and reverse
• Body: Painted and decorated clipless desert truck body
• Colour: Black with red details

Includes

• 1 x Arrma Mojave 6S EXB 1/7 4WD RTR Brushless RC Desert Truck
• 1 x Spektrum Firma 4074 2050Kv brushless motor
• 1 x Spektrum Firma 150A Smart V2 waterproof ESC
• 1 x Spektrum S665 waterproof digital steering servo
• 1 x Spektrum SR315 3-channel dual-protocol receiver
• 1 x Spektrum SLT3 2.4GHz 3-channel transmitter
• 1 x Pinion gear
• 4 x AA transmitter batteries
• 1 x Instruction manual

FAQ

Does the Arrma Mojave 6S EXB include a battery and charger? No. A suitable hardcase LiPo battery setup and compatible LiPo charger are required separately.

Can the Arrma Mojave 6S EXB run on both 4S and 6S? Yes. The installed Spektrum Firma brushless power system supports both 4S and 6S LiPo operation, allowing the power level to be selected to suit the driver's setup.

What battery setup does the Mojave 6S EXB require? Compatible configurations include one 4S hardcase LiPo, one 6S hardcase LiPo, two 2S hardcase LiPo batteries or two 3S hardcase LiPo batteries. OZRC recommends confirming battery dimensions and IC5 or EC5-compatible connections before purchase.

Is this Mojave EXB a roller or a complete RTR model? The ARA7704V3T1 is the RTR version and includes the brushless motor, ESC, steering servo, receiver and transmitter. The battery and charger are purchased separately.

Important Notes

• LiPo drive battery is not included.
• LiPo battery charger is not included.
• A LiPo-safe charging and storage bag is recommended.
• 60+ mph capability requires an appropriate 6S LiPo setup and suitable operating conditions.
• Always confirm battery dimensions, voltage and connector compatibility before installation.
