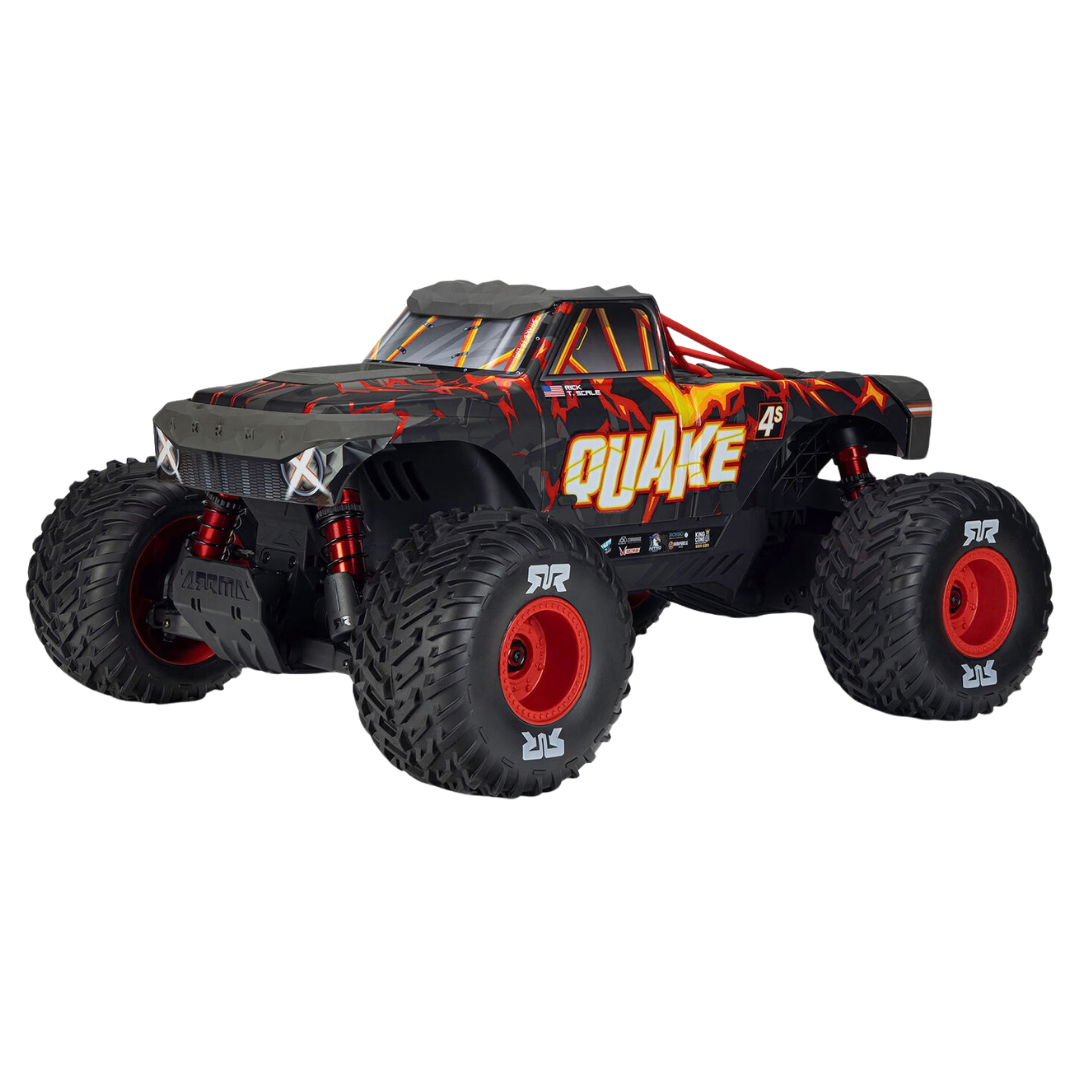

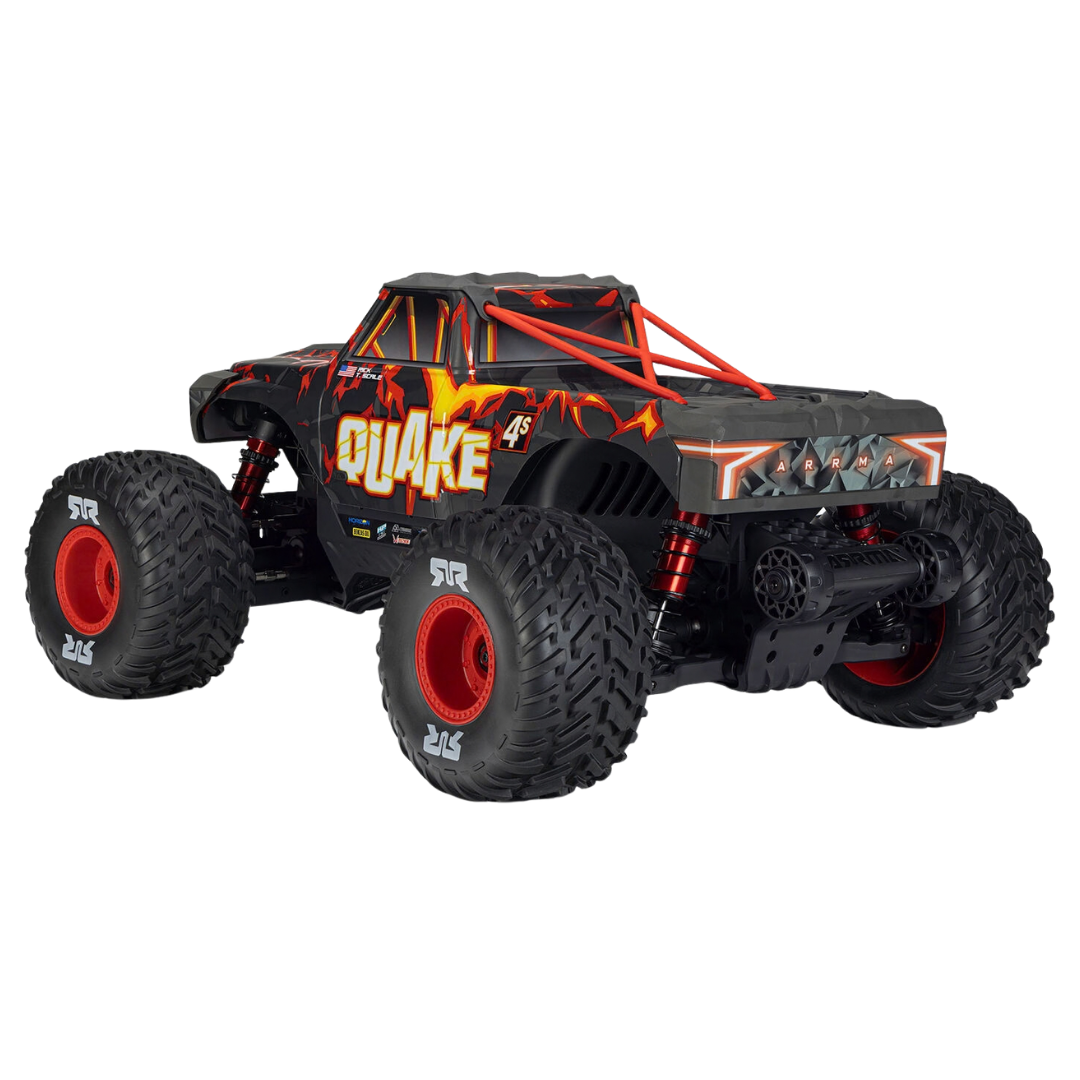

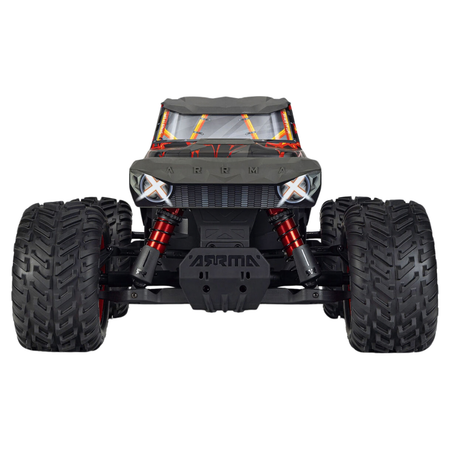

ARRMA QUAKE 4S DSC RC Monster Truck 1/8 Brushless 4WD RTR Black/Red ARA4437T1

The ARRMA QUAKE 4S DSC is a 1/8 scale 4WD brushless RC monster truck designed for off-road bashing, wheelies and jumps, combining 3S/4S LiPo power with Spektrum Dynamic Stability Control for more manageable handling. Supplied Ready-To-Run in Black/Red, it features ARRMA's Next Gen 4S platform, a high centre-of-gravity chassis, three-differential drivetrain and simplified maintenance design.

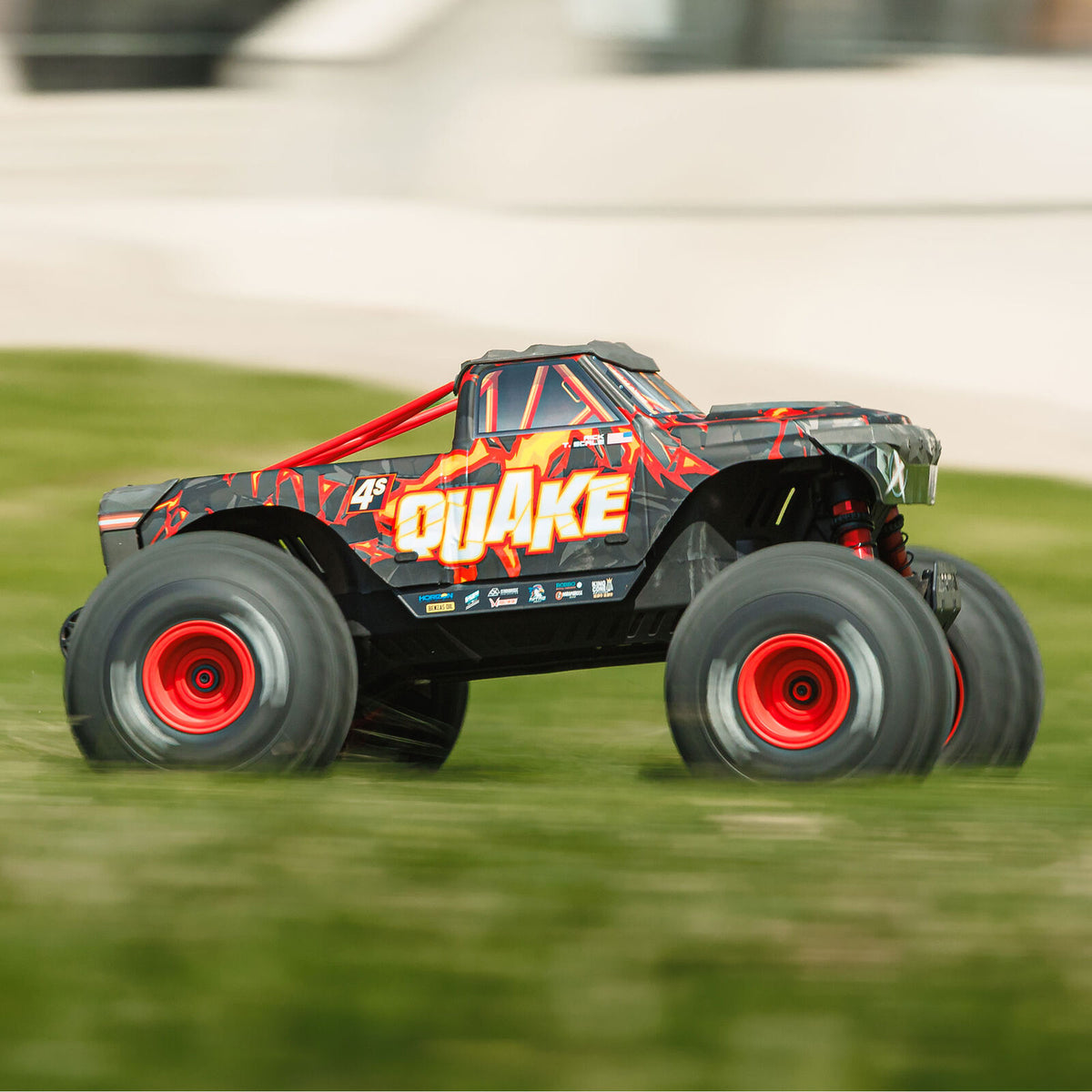

The high-mounted chassis delivers traditional monster truck handling, with noticeable body lean, increased ground clearance and a raised front end under acceleration. Cut chevron tyres provide traction across dirt, grass and gravel, while threaded aluminium shocks and an integrated wheelie bar help manage rough terrain, jumps and landings. A separate Spektrum Firma 150A Smart V2 ESC and 2300Kv brushless motor deliver 3S or 4S performance, supported by active motor cooling.

Spektrum Dynamic Stability Control (DSC) automatically applies steering corrections when oversteer is detected, helping drivers manage slides and maintain directional control. Four selectable DSC modes allow the assistance level to be adjusted, while transmitter throttle limiting makes the QUAKE more approachable for drivers building confidence with brushless RC trucks.

Features

• Next Gen 4S Platform: A 1/8 scale monster truck chassis with fewer components, improved maintenance access and a deep composite tub construction.
• 3S/4S Brushless Power: Spektrum Firma 3674 2300Kv motor paired with a Firma 150A Smart V2 waterproof ESC for selectable 3S or 4S LiPo operation.
• Dynamic Stability Control: Spektrum DSC detects oversteer and applies automatic countersteering, with four selectable assistance modes.
• Adjustable Throttle Limiting: Spektrum SLT3 transmitter allows drivers to manage throttle output while developing driving skills.
• Three-Differential 4WD: Front, centre and rear gear differentials distribute drive to all four wheels for off-road traction and handling.
• High Centre-of-Gravity Chassis: Designed for realistic monster truck body movement, wheelies and stunt-oriented driving.
• Raised Ground Clearance: Elevated chassis layout helps the truck navigate uneven off-road surfaces.

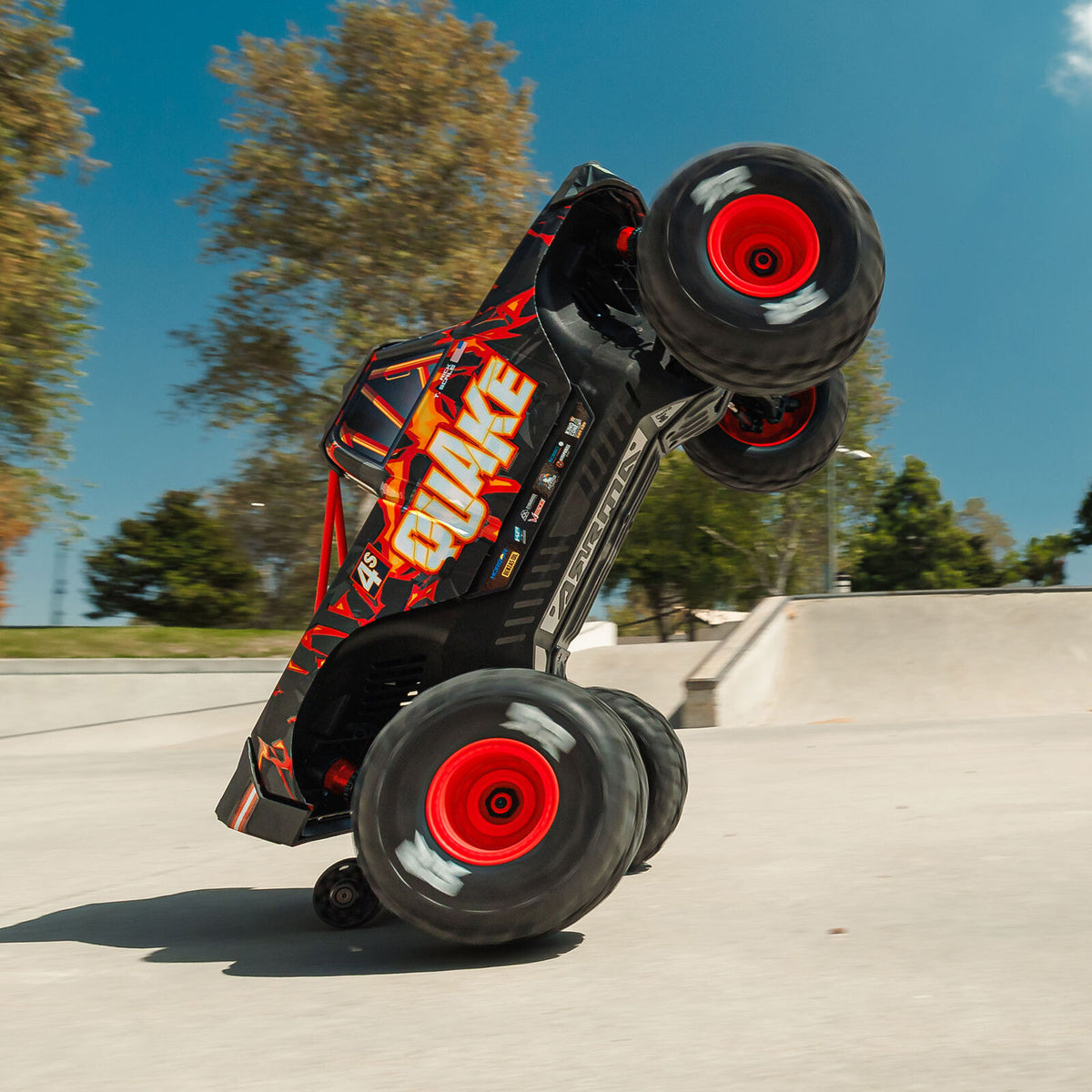

• Integrated Wheelie Bar: High-angle rear wheelie bar supports wheelie manoeuvres and helps protect the rear of the truck.
• Threaded Aluminium Shocks: Adjustable aluminium shock absorbers with large-diameter shafts help absorb impacts from rough terrain and jumps.
• Reinforced Chassis Protection: Deep composite tub, interlocking shock towers, protective body structure and shock-absorbing bumper braces improve impact resistance.
• Heavy-Duty Steering: Spektrum S662 waterproof metal-geared digital servo, aluminium 25T servo horn and sliding-ramp servo saver.
• Cut Chevron Tyres: Aggressive monster truck tread pattern designed to provide grip on dirt, grass and gravel.

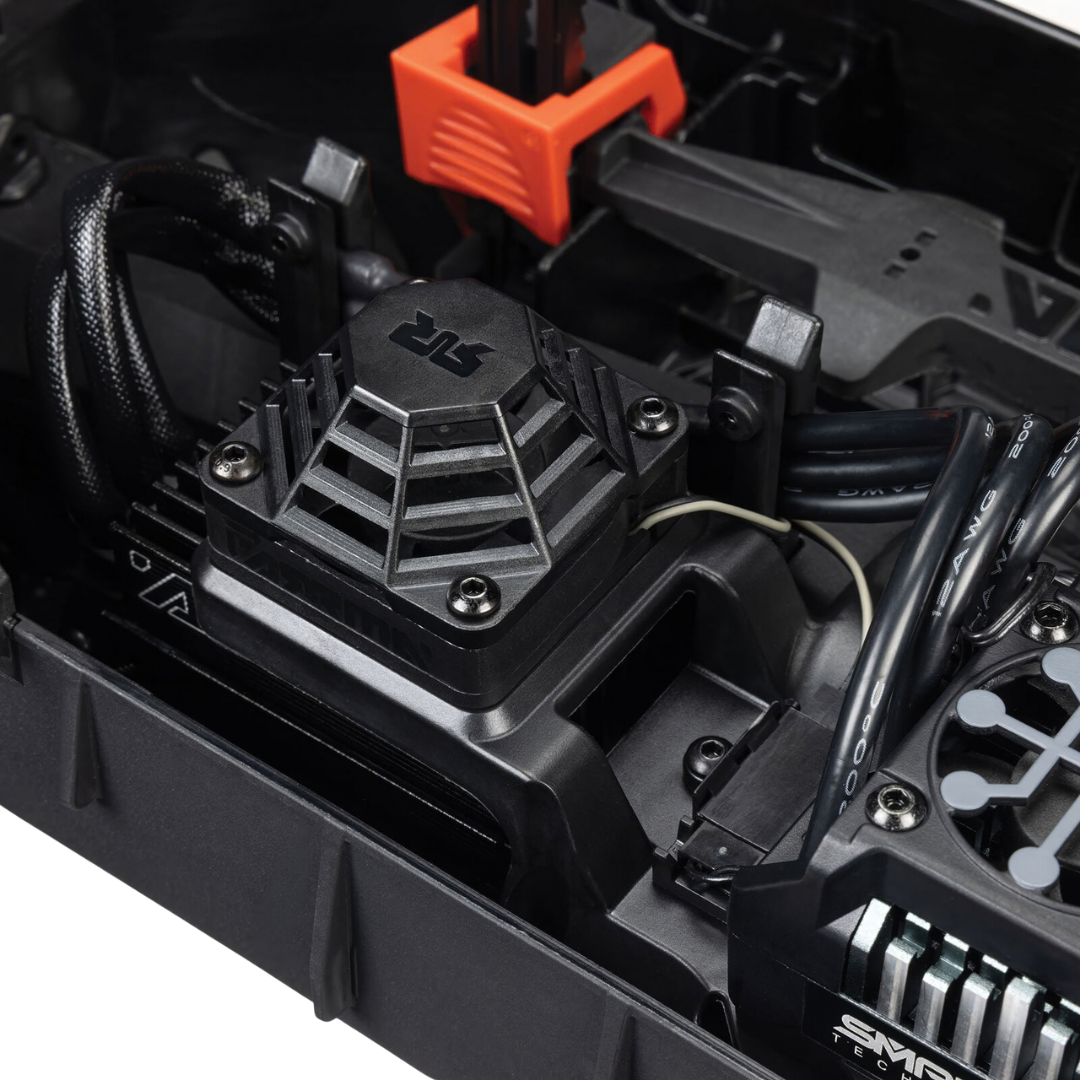

• Motor Cooling System: Heatsink, cooling fan, high-airflow fan cover and integrated chassis ventilation help manage operating temperatures.
• Clipless Body Retention: Hidden body mounting system provides convenient access without traditional body clips.
• Quick Battery Access: Large battery compartment with removable sizing inserts, ratcheting retention strap and captive battery wiring.
• Simplified Maintenance: Reduced component count and accessible chassis layout make routine cleaning, inspection and servicing easier.
• Suspension Dirt Guards: Rear wishbone guards help reduce debris entering suspension components.
• Ready-To-Run Assembly: Factory-assembled vehicle with installed electronics, painted body and included radio system.

Specifications

• Brand: ARRMA
• Model: QUAKE 4S DSC 4X4
• Manufacturer Part Number: ARA4437T1
• GTIN: 5052127053488
• Scale: 1/8
• Vehicle Type: RC Monster Truck
• Completion Level: Ready-To-Run (RTR)
• Colour: Black/Red
• Power Type: Electric Brushless
• Drivetrain: 4WD
• Chassis: Moulded Composite Deep Tub
• Motor: Spektrum Firma 3674 2300Kv Brushless
• ESC: Spektrum Firma 150A Smart V2 CP Waterproof, 3S/4S
• Servo: Spektrum S662 Waterproof Metal-Geared Digital
• Receiver: Spektrum SLR370 DSC SLT Protocol
• Transmitter: Spektrum SLT3 2.4GHz 3-Channel with DSC
• Steering Technology: Spektrum Dynamic Stability Control
• DSC Settings: 4 Selectable Modes
• Battery Compatibility: 3S or 4S Hardcase LiPo
• Battery Connector: IC5
• Maximum Battery Dimensions: 160 x 50 x 70mm
• Differentials: 3 Gear Differentials
• Gear Pitch: Mod 0.8
• Spur Gear: 63T
• Internal Gear Ratio: 2.85
• Wheel Hex: 17mm
• Suspension: Threaded Aluminium Shock Absorbers
• Drive Functions: Forward, Brake and Reverse
• Length: 580mm
• Width: 414mm
• Height: 280mm
• Wheelbase: 367mm
• Product Weight: 6.12kg
• Body: Pre-Painted, Trimmed and Decaled
• Assembly Required: No
• Battery: Sold Separately
• Charger: Sold Separately

Includes

• 1 x ARRMA QUAKE 4S DSC 4X4 RTR Brushless RC Monster Truck Black/Red
• 1 x Spektrum Firma 150A Smart V2 CP Waterproof ESC (Installed)
• 1 x Spektrum Firma 3674 2300Kv Brushless Motor (Installed)
• 1 x Spektrum S662 Waterproof Metal-Geared Digital Servo (Installed)
• 1 x Spektrum SLR370 DSC SLT Receiver (Installed)
• 1 x Spektrum SLT3 2.4GHz 3-Channel Transmitter with DSC
• 4 x AA Transmitter Batteries
• 1 x Instruction Manual

FAQ

What battery does the ARRMA QUAKE 4S DSC use? The ARRMA QUAKE 4S DSC operates with one compatible 3S or 4S hardcase LiPo battery using an IC5 connection. The battery compartment accommodates packs up to 160 x 50 x 70mm. OZRC recommends checking battery dimensions and connector compatibility before purchasing. Softcase LiPo batteries must not be used.

Does the ARRMA QUAKE 4S come with a battery and charger? No. The QUAKE 4S is supplied with the assembled truck, installed electronics, transmitter and AA transmitter batteries. A compatible 3S or 4S hardcase LiPo battery, suitable LiPo charger and LiPo charging safety bag are required separately.

What does Spektrum DSC do on the ARRMA QUAKE 4S? Spektrum Dynamic Stability Control detects vehicle oversteer and automatically applies countersteering to help reduce unwanted spins. The QUAKE 4S provides four selectable DSC modes so drivers can adjust the amount of steering assistance.

Is the ARRMA QUAKE 4S suitable for beginners? The ARRMA QUAKE 4S includes adjustable transmitter throttle limiting and selectable DSC assistance to help less experienced drivers manage the truck. However, it is a large, heavy 1/8 scale brushless model with substantial acceleration. OZRC recommends beginning with reduced throttle output in a spacious, clear driving area.

Important Notes

• Requires one compatible 3S or 4S hardcase LiPo battery, sold separately.
• Softcase LiPo batteries are not suitable for this vehicle.
• Requires a compatible LiPo battery charger and LiPo charging safety bag, sold separately.
• Maximum battery dimensions are 160 x 50 x 70mm. Check the battery's overall dimensions and connector before purchase.
• Although the ESC and steering servo are specified as waterproof, the vehicle should be cleaned and dried after use in wet or muddy conditions to avoid rust and water damage.
• Always follow the manufacturer's instructions for LiPo battery charging, handling, storage and operation.
