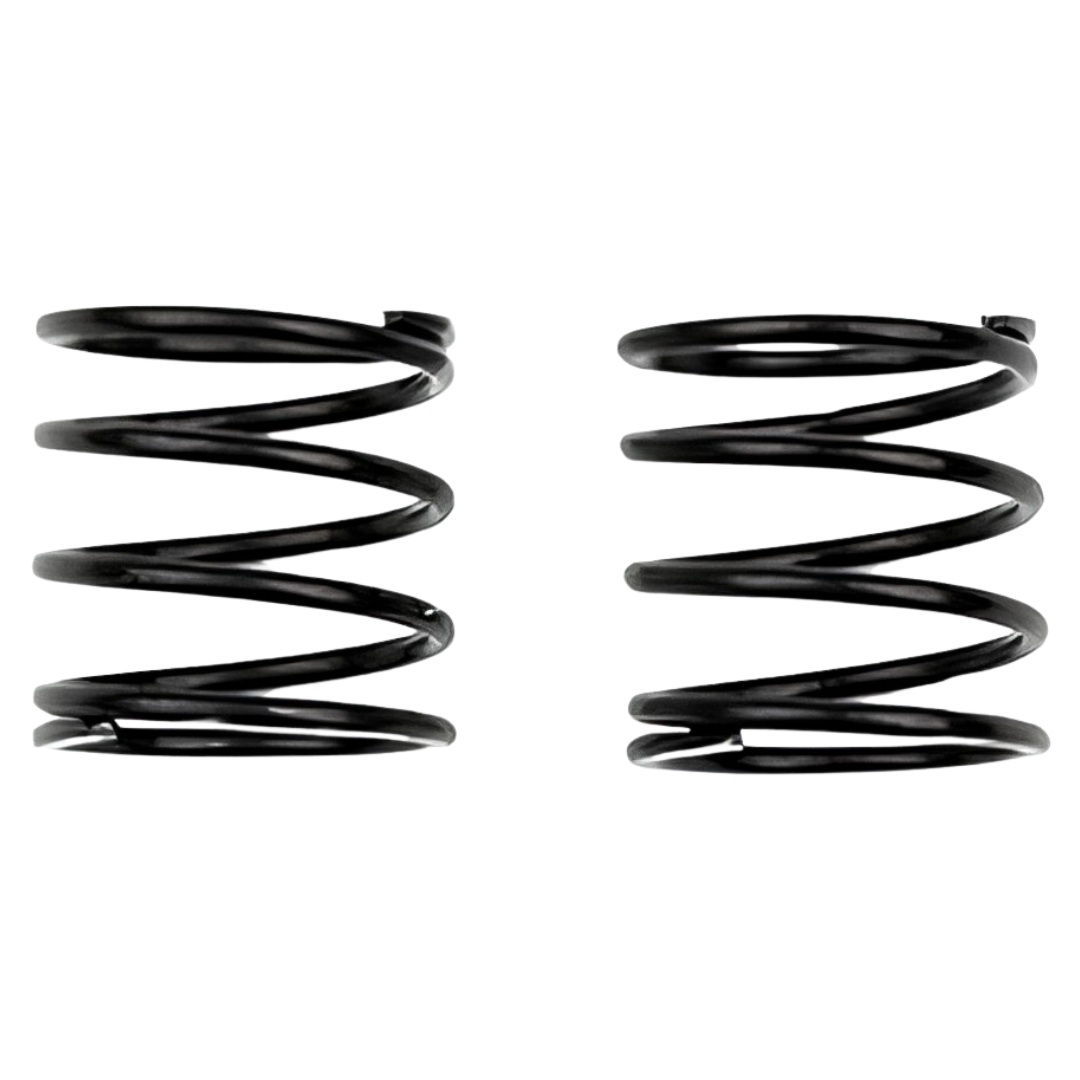

Team Associated LP Progressive Springs Gray 14.1-16.5lb L17 4.5T 32056

The Team Associated LP Progressive Springs 32056 are low-profile suspension tuning springs featuring a progressive 14.1 to 16.5 lb/in spring rate. Finished with a grey identification colour, these springs provide racers with a progressive-rate alternative when tuning compatible Team Associated low-profile shock systems.

Unlike a linear-rate spring, the progressive design changes spring rate as the suspension compresses. Part 32056 is specified at L17 with 4.5 turns and 1.3mm wire diameter, making it one of several Team Associated LP spring options available for fine suspension setup adjustments on compatible touring car platforms.

Features

• Progressive Spring Rate: Rated from 14.1 to 16.5 lb/in
• Low-Profile Design: LP configuration designed for compatible Team Associated low-profile shock systems
• Progressive Suspension Tuning: Spring rate increases through compression rather than remaining at one fixed linear rate
• Grey Identification Colour: Makes the spring specification easier to identify during setup changes
• L17 Specification: Team Associated L17 low-profile spring configuration
• 4.5-Turn Design: Manufactured with the specified 4.5-turn configuration
• 1.3mm Wire Diameter: Uses 1.3mm diameter spring wire
• Touring Car Setup Option: Suitable for suspension tuning on compatible Team Associated touring car applications
• Pair Pack: Supplied as two matching suspension springs

Specifications

• Brand: Team Associated
• Manufacturer Part Number: 32056
• SKU: ASS32056
• Product Type: Low-Profile Progressive Shock Springs
• Spring Type: Progressive
• Spring Rate: 14.1-16.5 lb/in
• Length Specification: L17
• Turns: 4.5T
• Wire Diameter: 1.3mm
• Colour: Grey
• Quantity: 2 Springs

Compatibility

• Team Associated RC10TC8 Graphite-Spec
• Team Associated RC10TC8 Steel-Spec
• Compatible Team Associated applications using this L17 low-profile spring specification

Includes

• 2 × Team Associated LP Progressive Springs – Grey 14.1-16.5 lb/in

FAQ

What is the spring rate of Team Associated 32056? Part 32056 has a progressive spring rate ranging from 14.1 to 16.5 lb/in.

What does progressive spring rate mean? A progressive spring does not maintain one constant rate throughout its compression. Its effective rate increases as it compresses, giving racers a different suspension response compared with a conventional linear spring.

What colour is spring 32056? Team Associated identifies this spring as grey.

What does L17 mean on this spring? L17 is Team Associated's length specification for this low-profile spring. It is important to match the correct spring specification to the compatible shock and vehicle setup.

How many turns does 32056 have? Team Associated specifies 4.5 turns.

What is the wire diameter? The spring uses 1.3mm diameter wire.

Does 32056 fit the RC10TC8? Yes. Team Associated lists part 32056 among the related suspension components for both the RC10TC8 Graphite-Spec and RC10TC8 Steel-Spec.

Are other progressive rates available? Yes. Team Associated also lists Blue 32057 at 14.9-17.3 lb/in and Yellow 32058 at 15.7-18.1 lb/in, providing additional progressive spring options for suspension tuning.

How many springs are included? The package contains two matching springs.

Important Notes

• This listing is specifically for Team Associated part 32056 / ASS32056
• Progressive spring rate: 14.1-16.5 lb/in
• Colour identification: Grey
• Specification: L17, 4.5T, 1.3mm wire diameter
• Supplied as a pair of springs
• Shocks and other suspension components are not included
• Changing spring rates affects suspension behaviour and should be evaluated as part of the complete chassis setup
• Front and rear spring selection can be changed independently to alter chassis balance
• Confirm compatibility with your vehicle and shock configuration before installation
