Axial AX24 XC-1 4WS 1/24 4X4 RTR RC Rock Crawler Green AXI00003T1

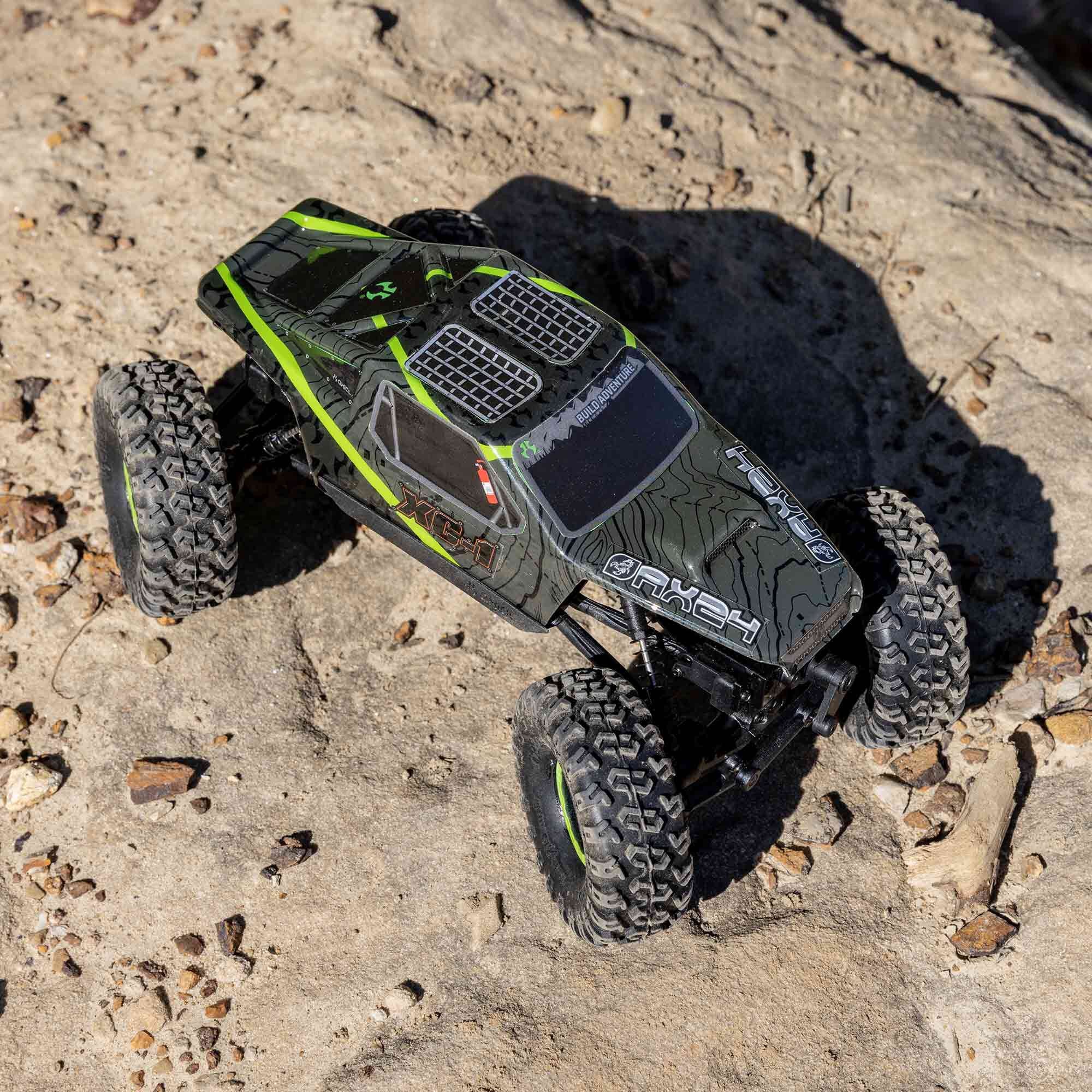

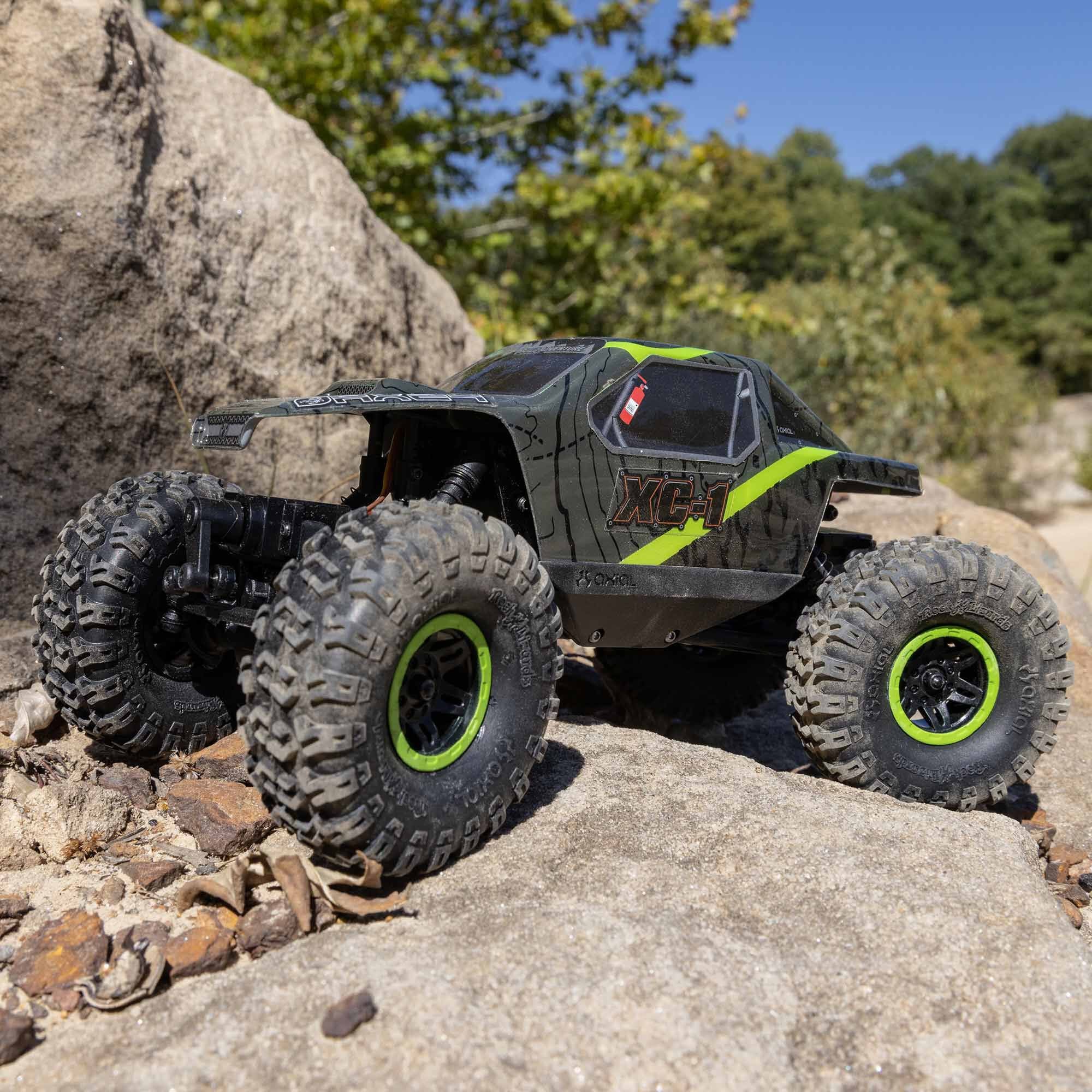

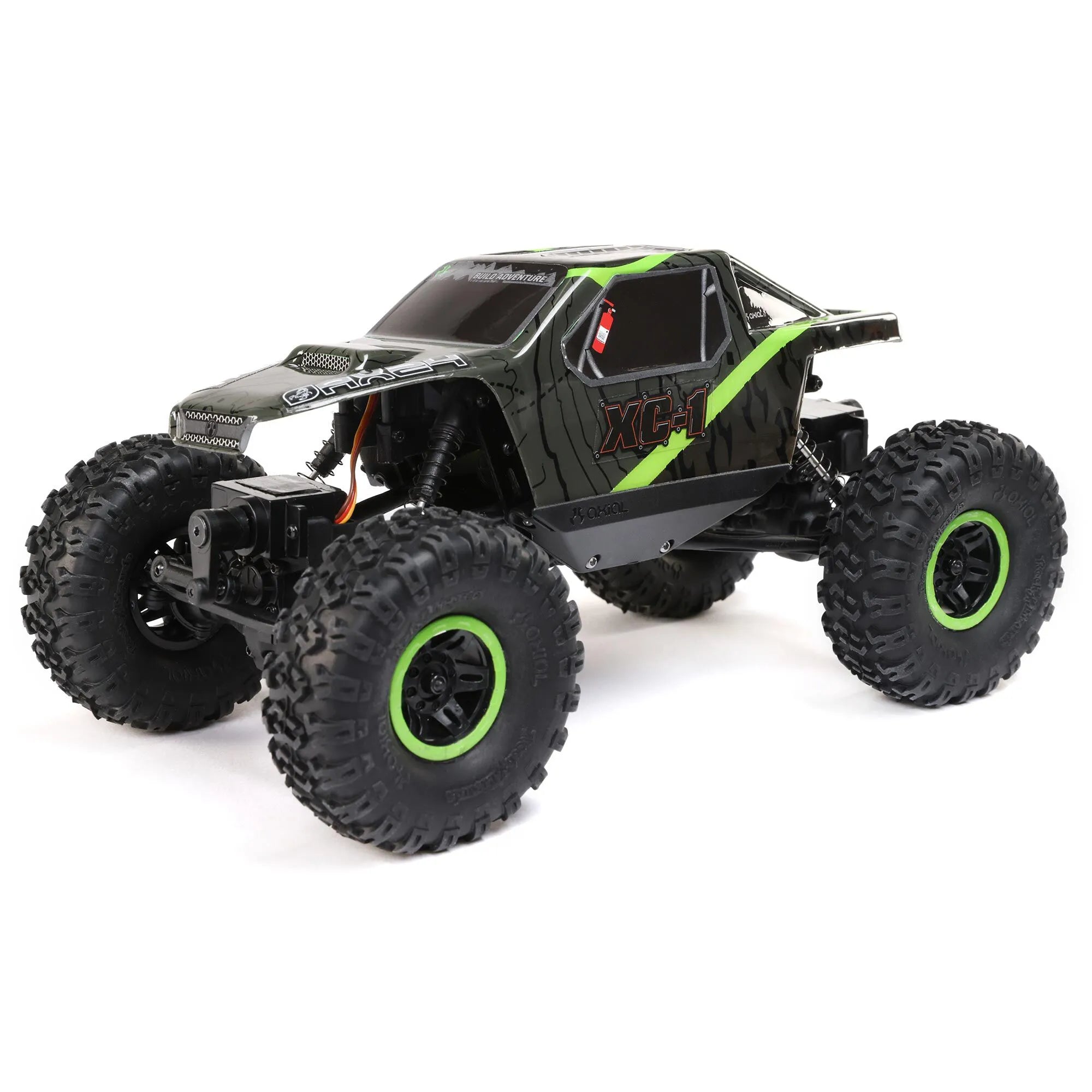

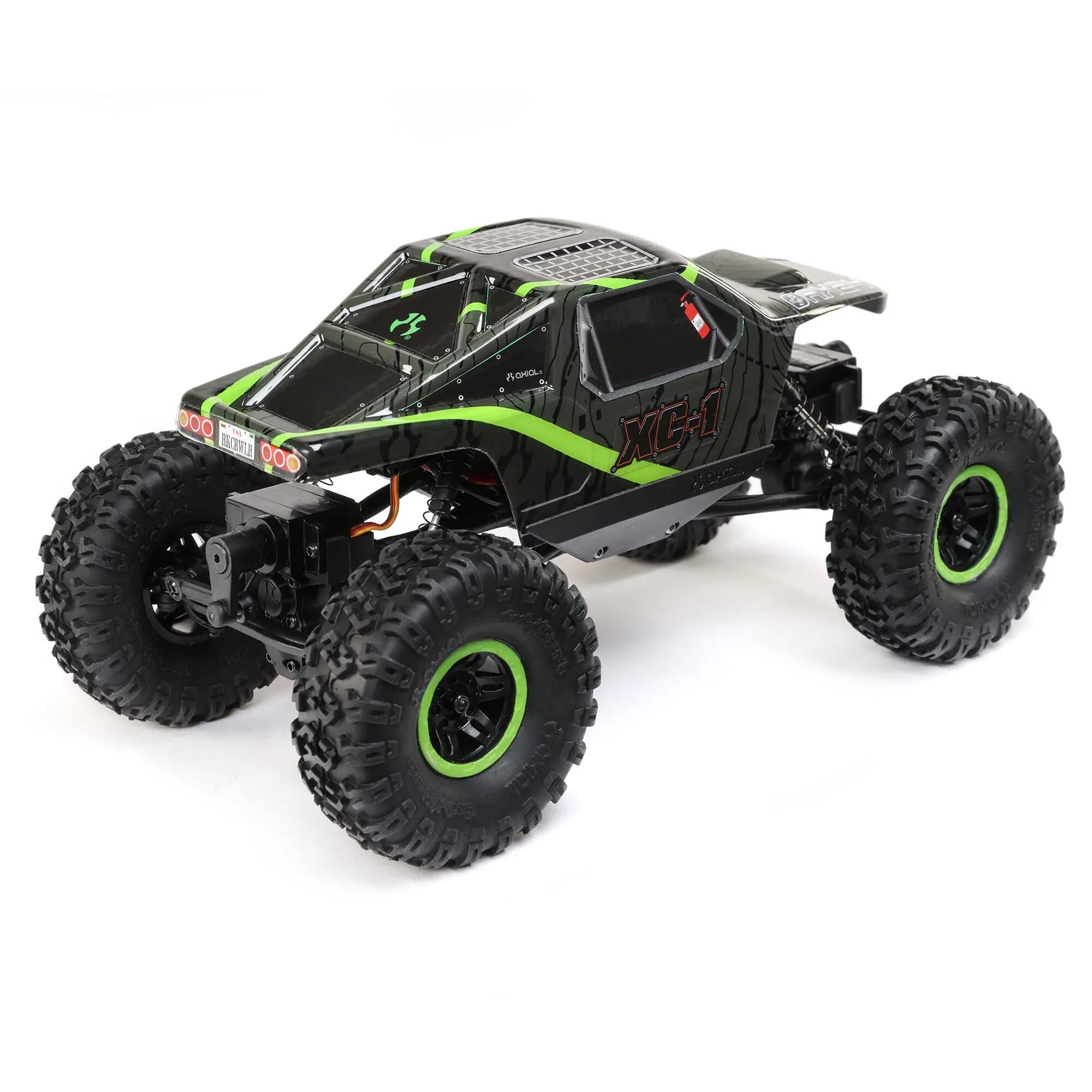

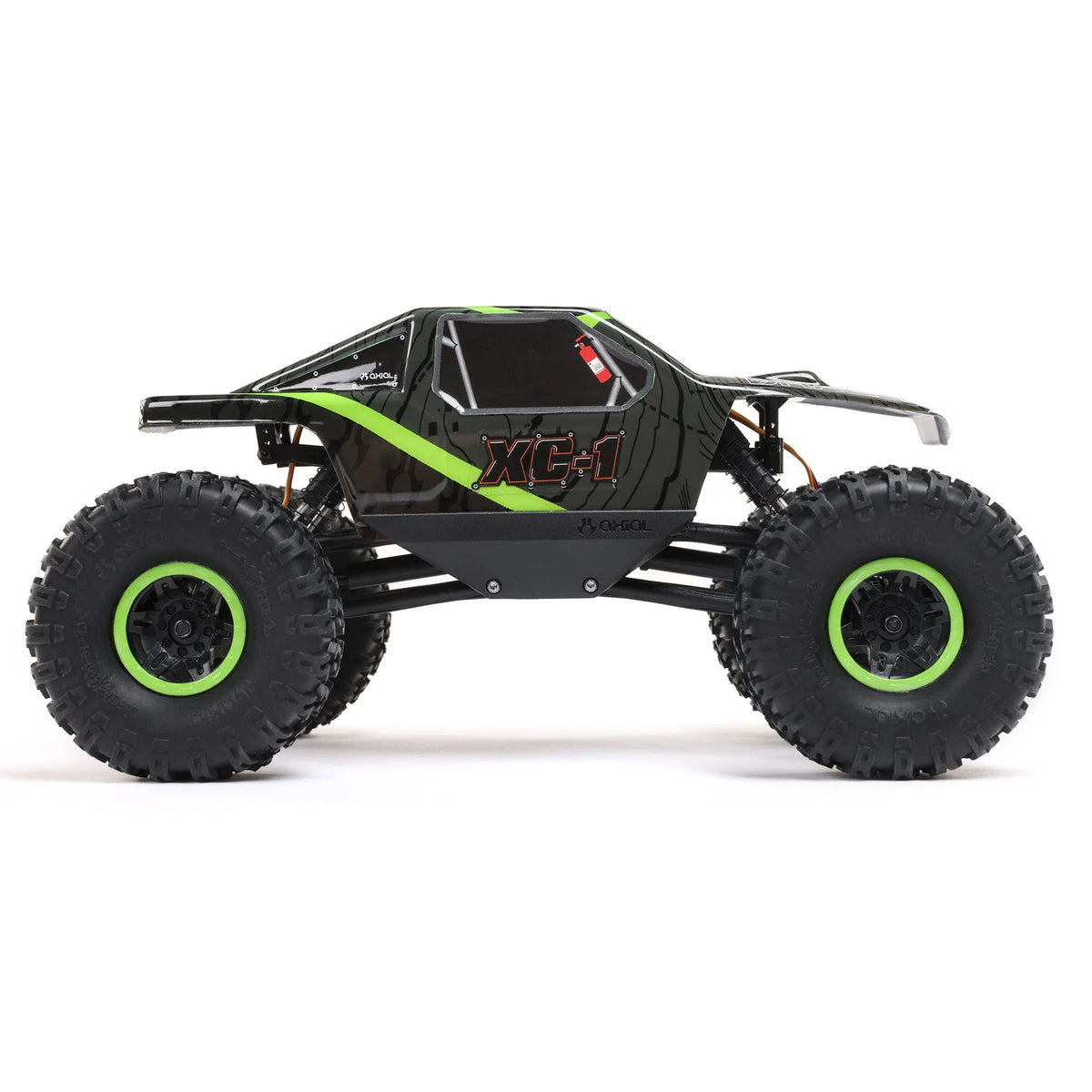

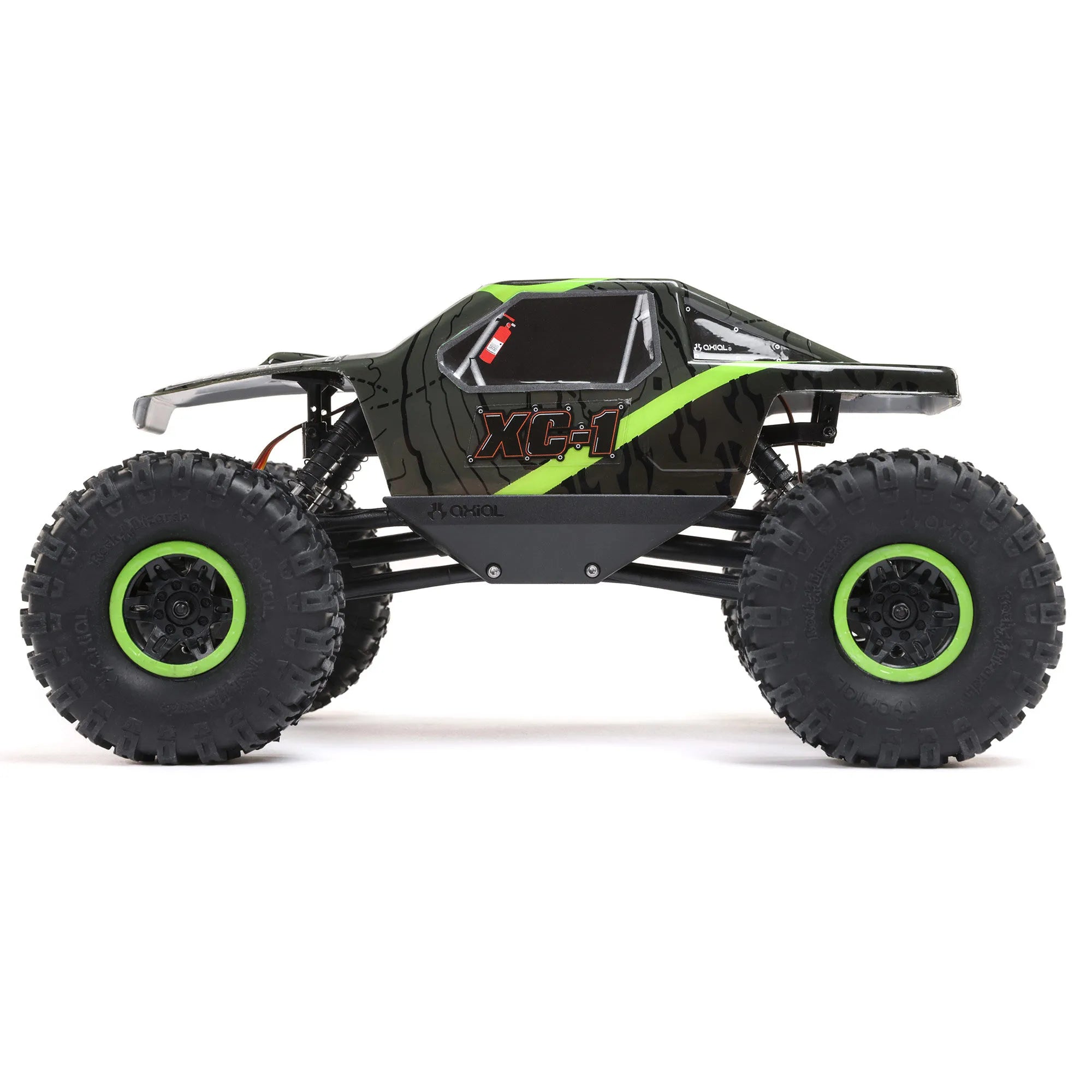

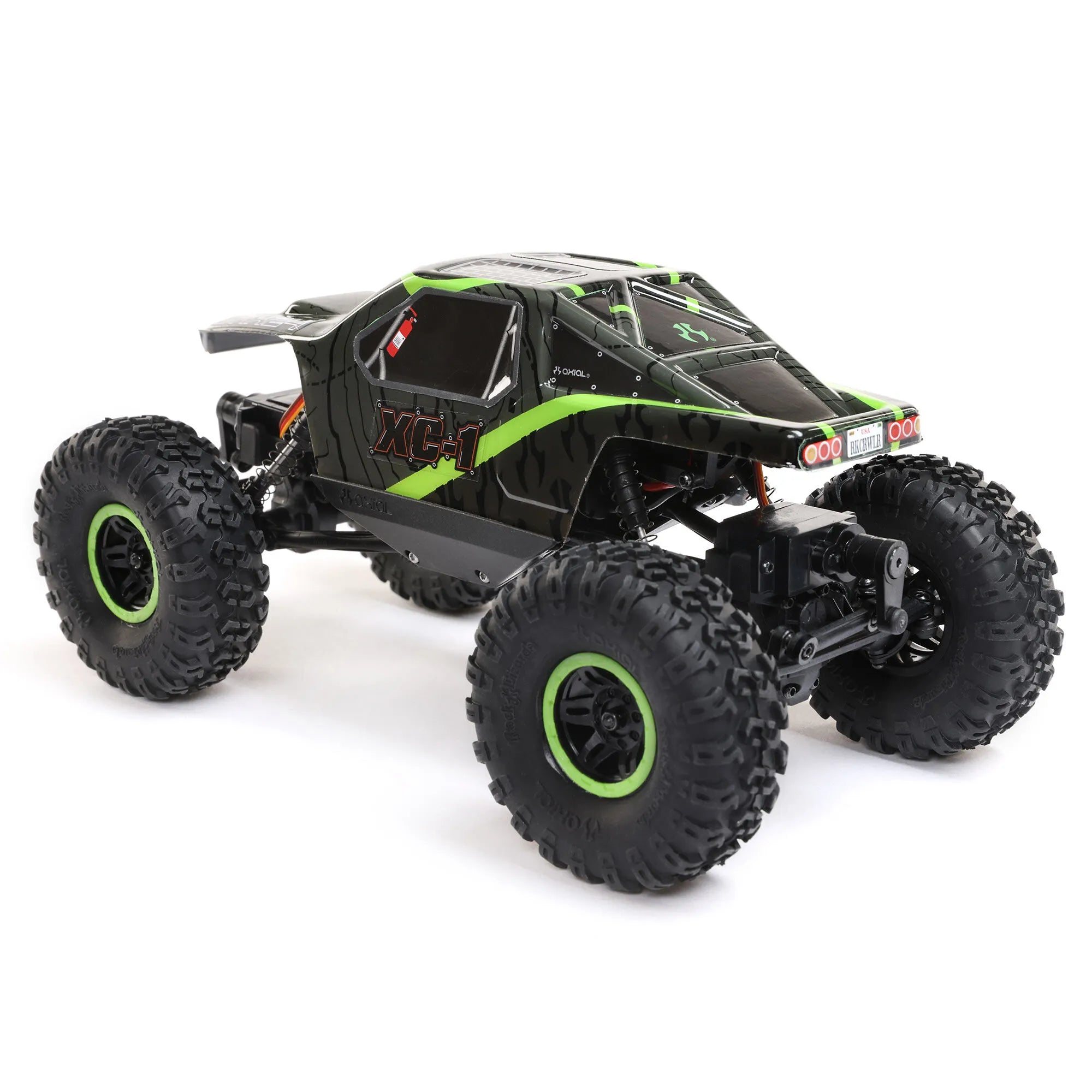

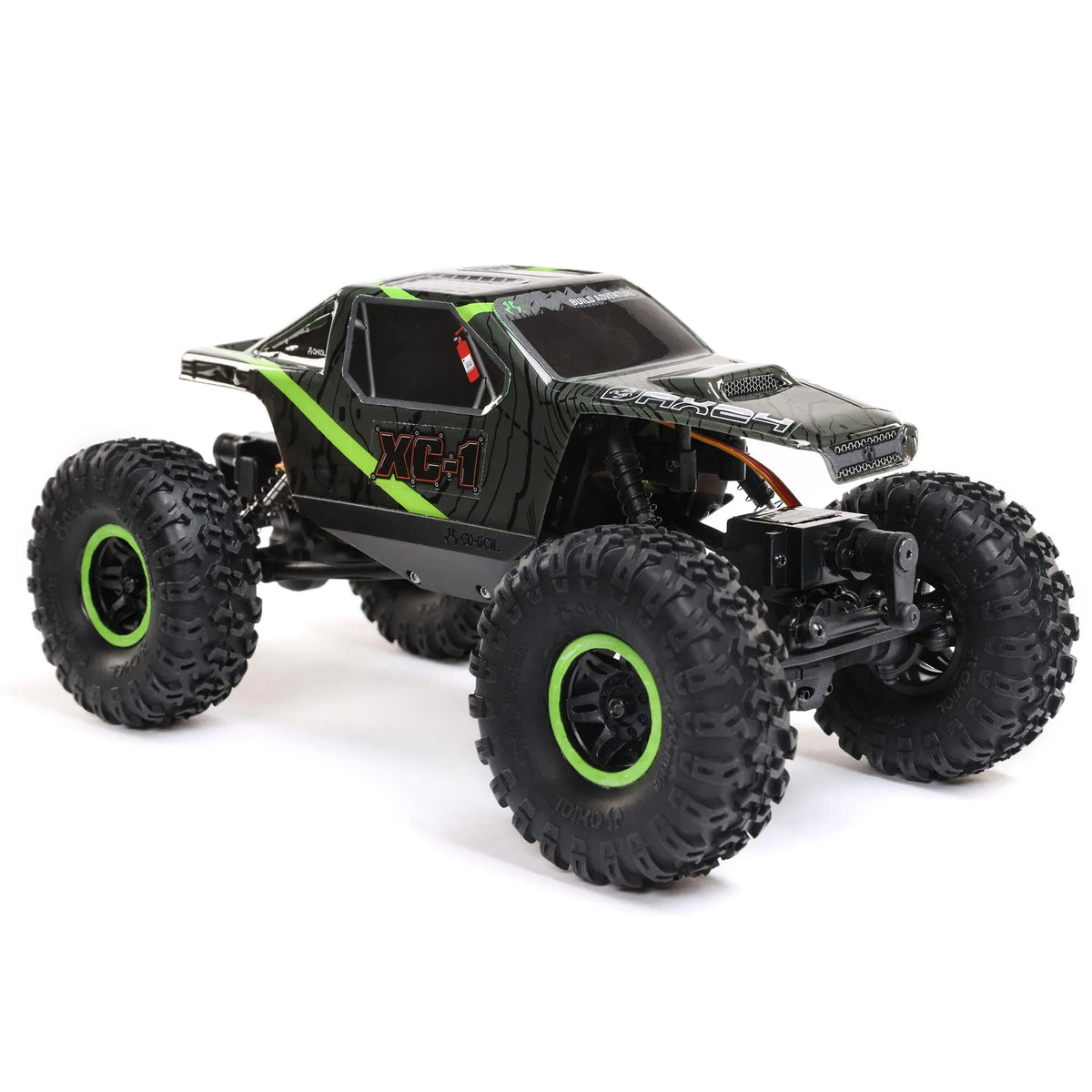

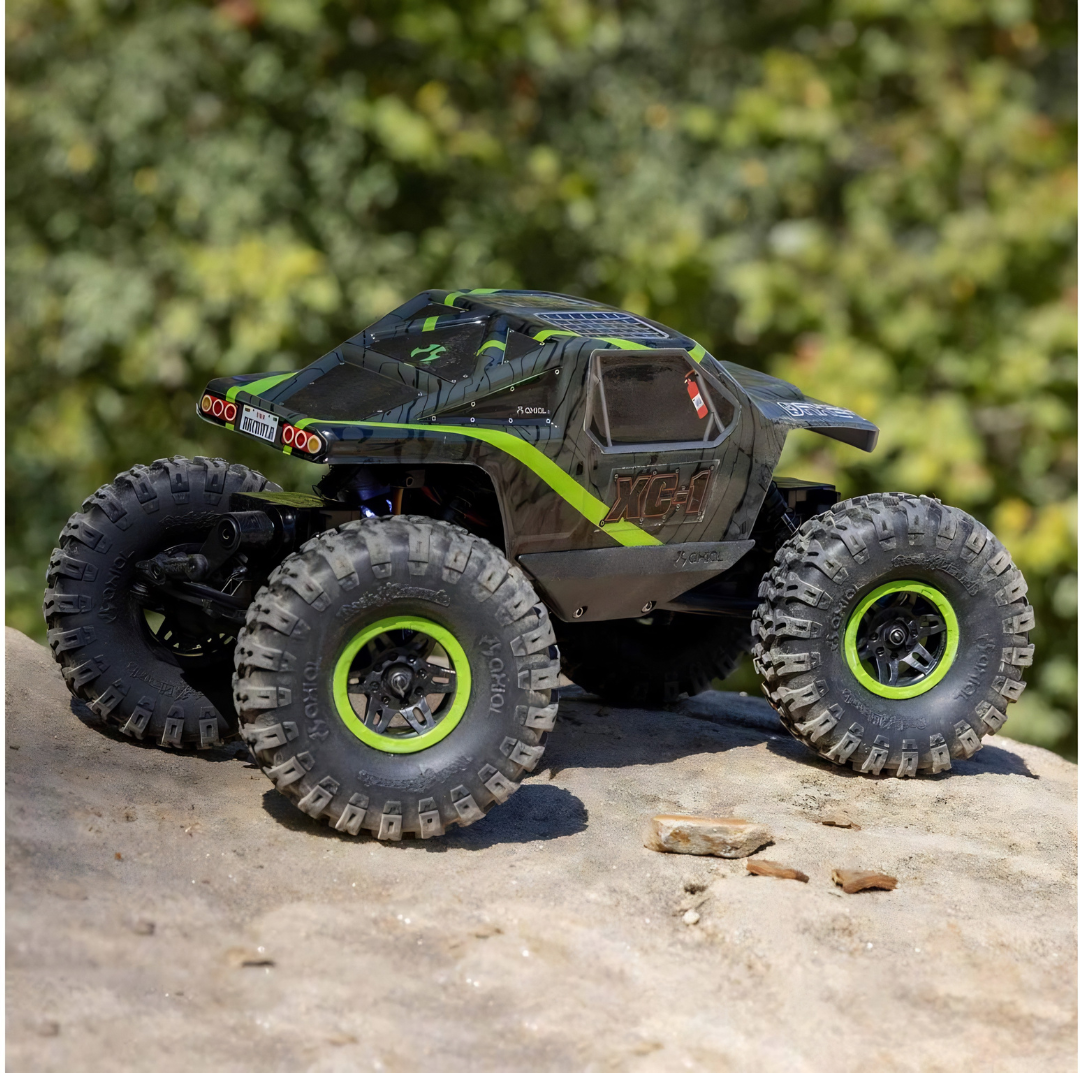

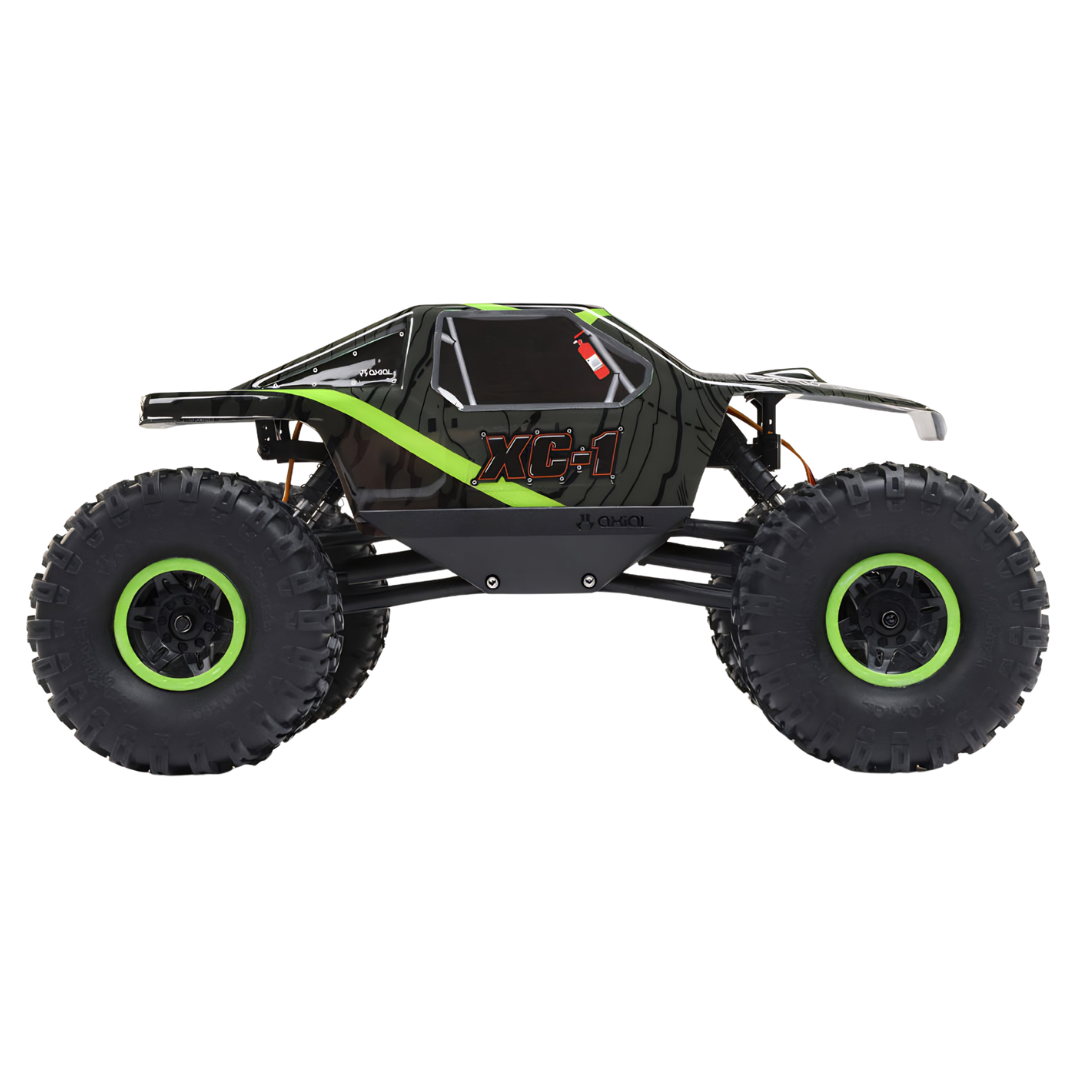

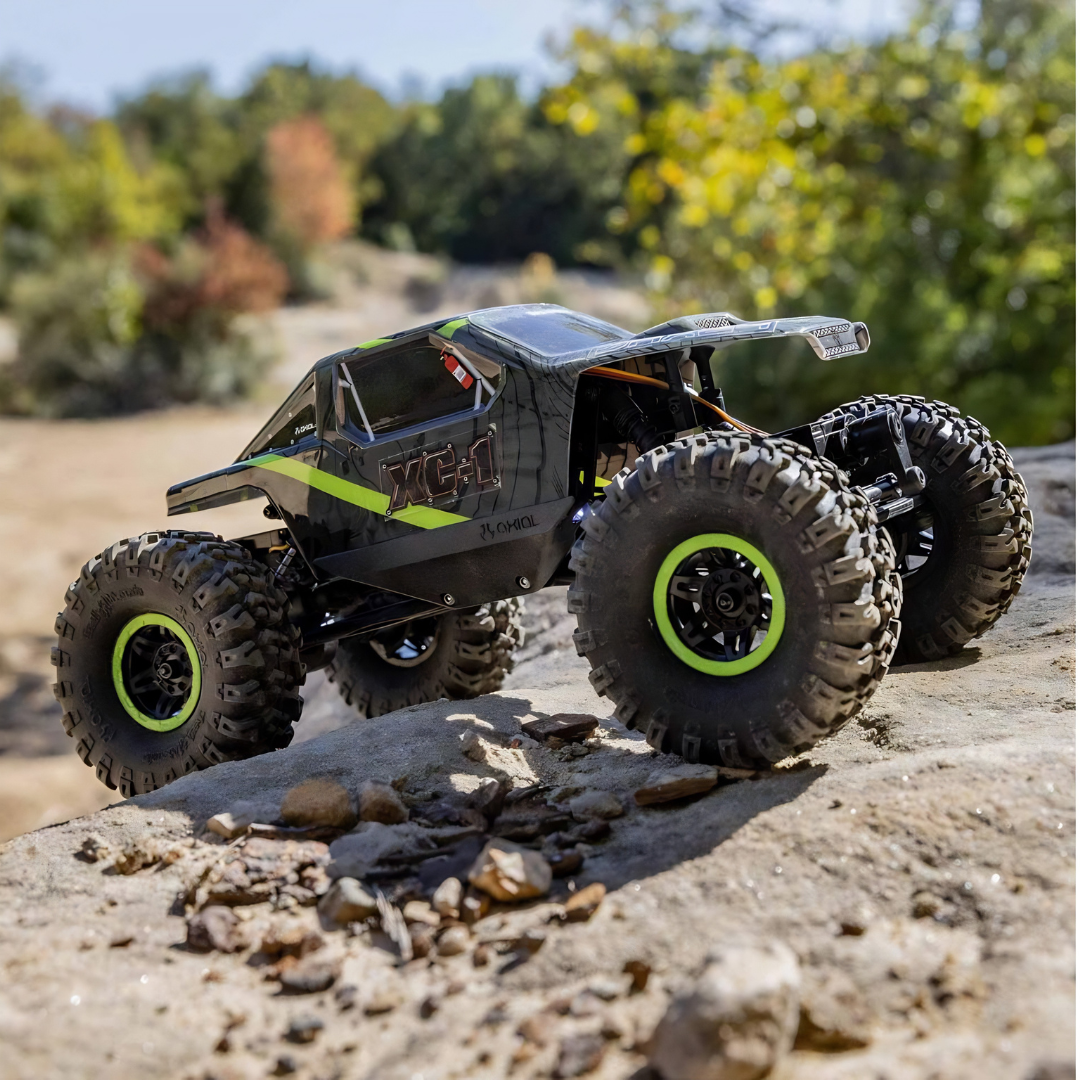

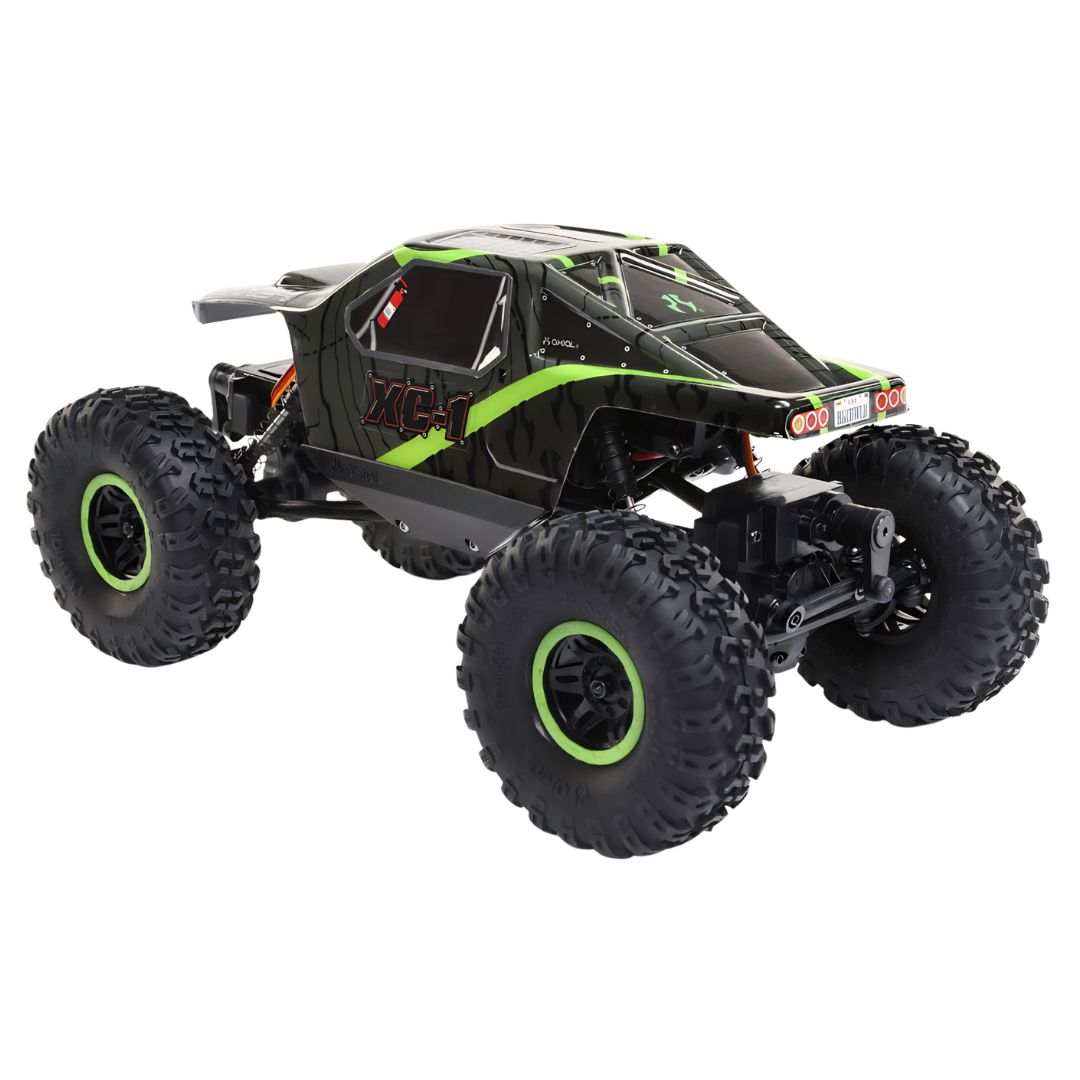

The Axial AX24 XC-1 is a highly articulated 1/24 scale RC rock crawler featuring selectable four-wheel steering for exceptional manoeuvrability on technical terrain. Finished in green, AXI00003T1 combines a purpose-built side plate chassis, long-travel suspension, worm-drive axles and front and rear steering to tackle challenging indoor courses and outdoor crawling obstacles.

Three transmitter-selectable steering modes let you choose front-wheel steering, mirrored 4WS for a tighter turning radius, or crab steering where the front and rear wheels turn in the same direction. Longer 51mm coil-over shocks and 4-link suspension at both ends provide generous articulation, while LED rock lights, Rockster wheels and oversized Rock Lizards tyres complete the distinctive AX24 package.

The AX24 XC-1 arrives completely Ready-to-Run with Spektrum SLT3 radio equipment, dual Axial AS-1 steering servos, a Dynamite 88T brushed motor, 350mAh 2S LiPo battery, USB charger and AA transmitter batteries included.

Features

• Selectable 4-Wheel Steering: Front and rear steering provides outstanding manoeuvrability on technical crawling obstacles
• Three Steering Modes: Choose front steering only, mirrored 4WS for tight turns, or crab steering for lateral manoeuvrability

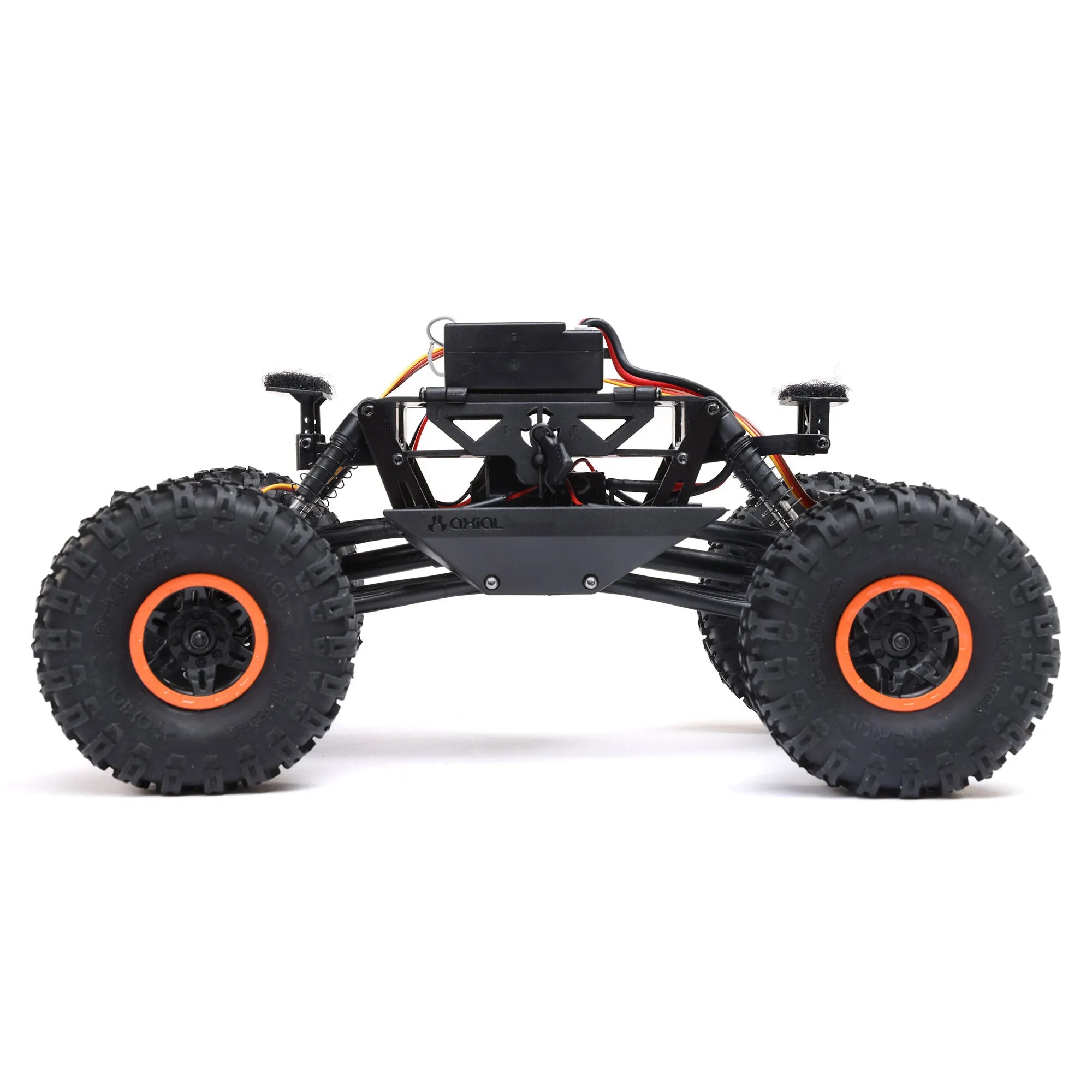

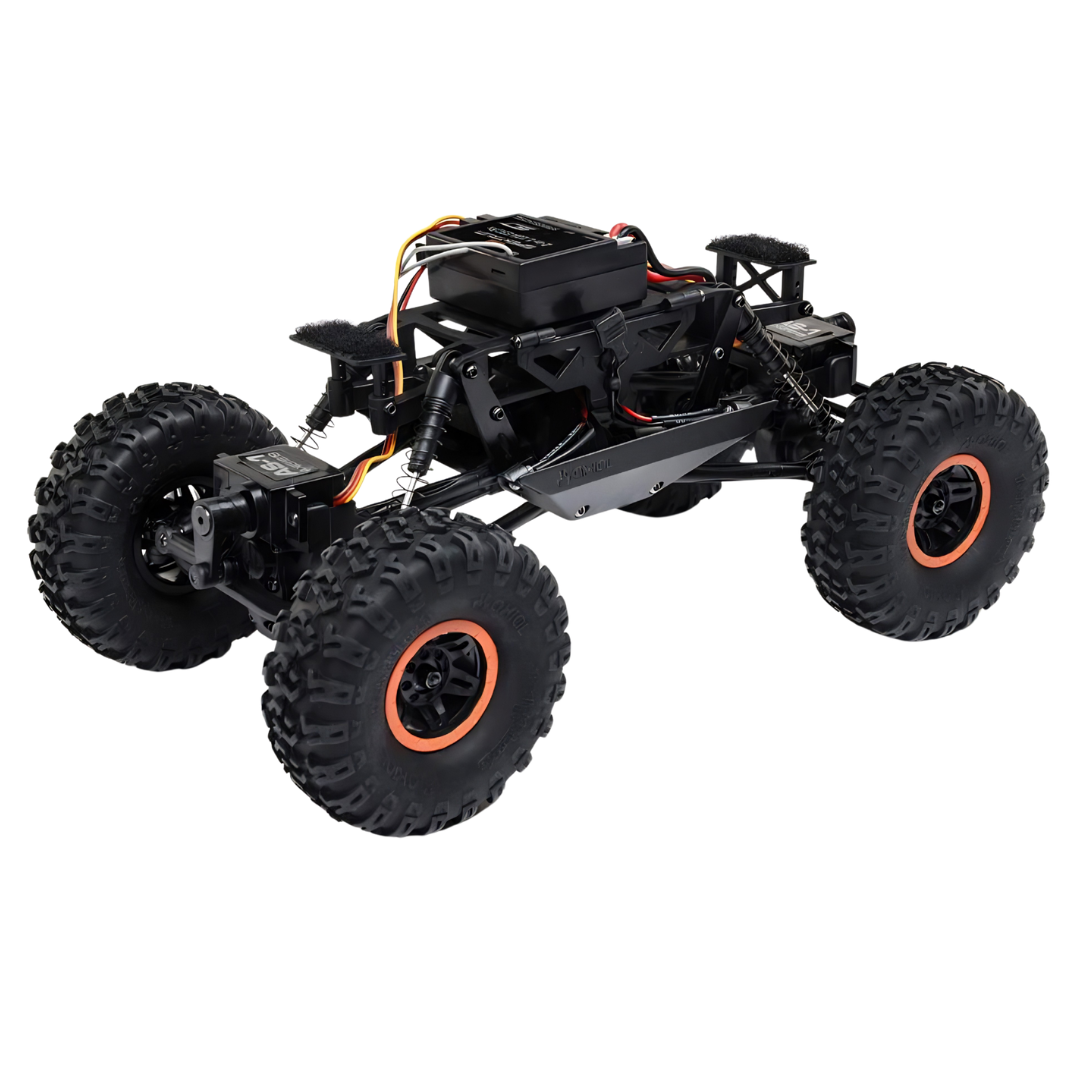

• High-Articulation Side Plate Chassis: Designed for generous suspension movement and obstacle clearance
• 51mm Coil-Over Shocks: Long-travel shocks are mounted at a laid-back angle to increase articulation
• 4-Link Front and Rear Suspension: Helps reduce axle steer and torque twist while maintaining traction
• Worm-Gear Axles: Front and rear worm drives provide substantial gear reduction and increased ground clearance
• Steel Drivetrain Components: Steel axles, stub axles and dogbones provide durability for demanding crawling
• Splined Driveshafts: Allow the drivetrain to accommodate the AX24's generous suspension travel

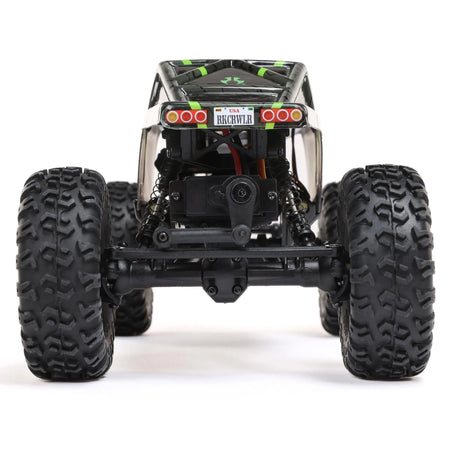

• LED Rock Lights: Rock-slider-mounted LEDs illuminate obstacles during low-light crawling
• Rockster Wheels: 1.0" wheels recreate the styling of the original Axial AX10 crawler
• Rock Lizards Tyres: Oversized 2.44" crawler tyres provide traction and a distinctive scale appearance
• Full Ball Bearings: Sealed bearings are used throughout the drivetrain for smooth operation

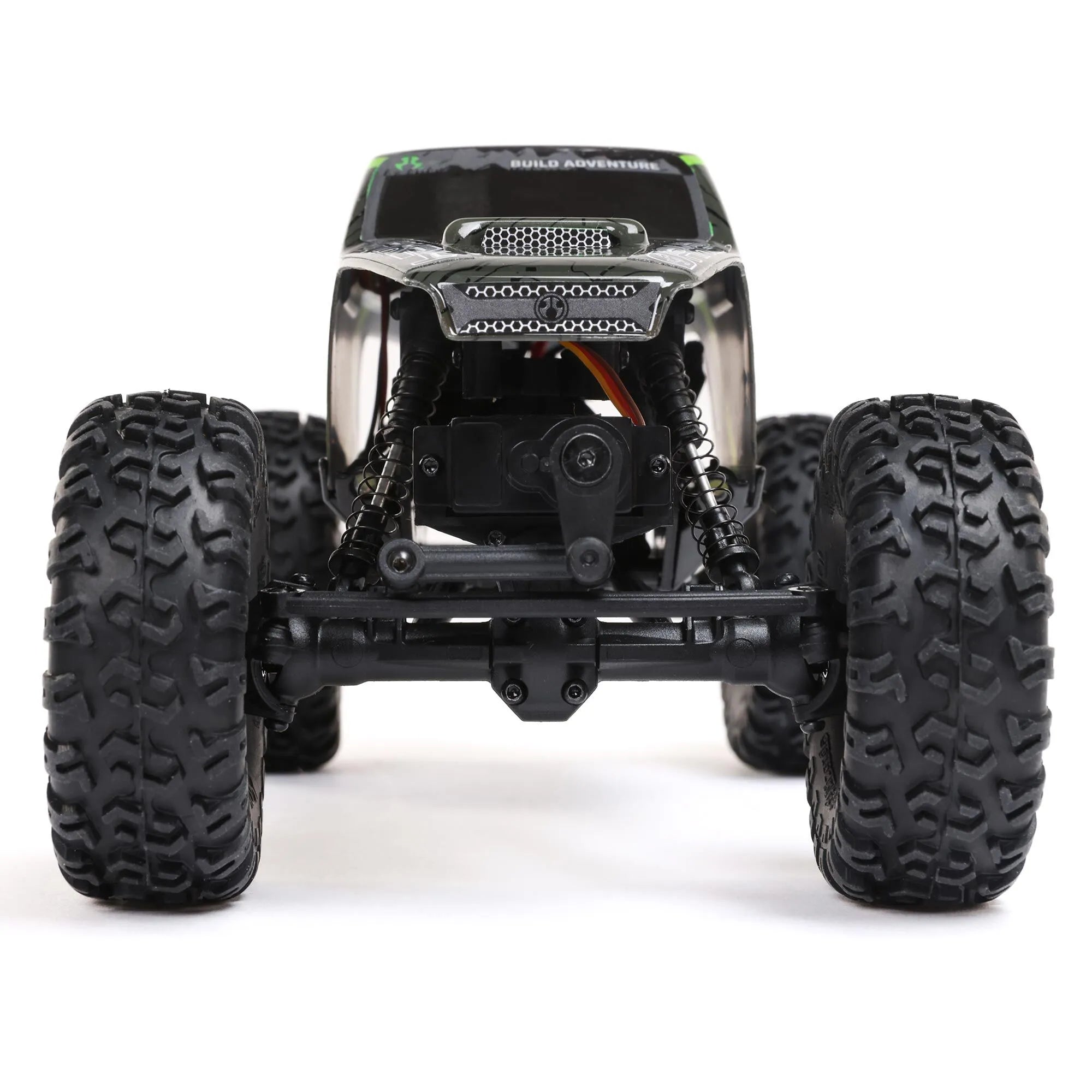

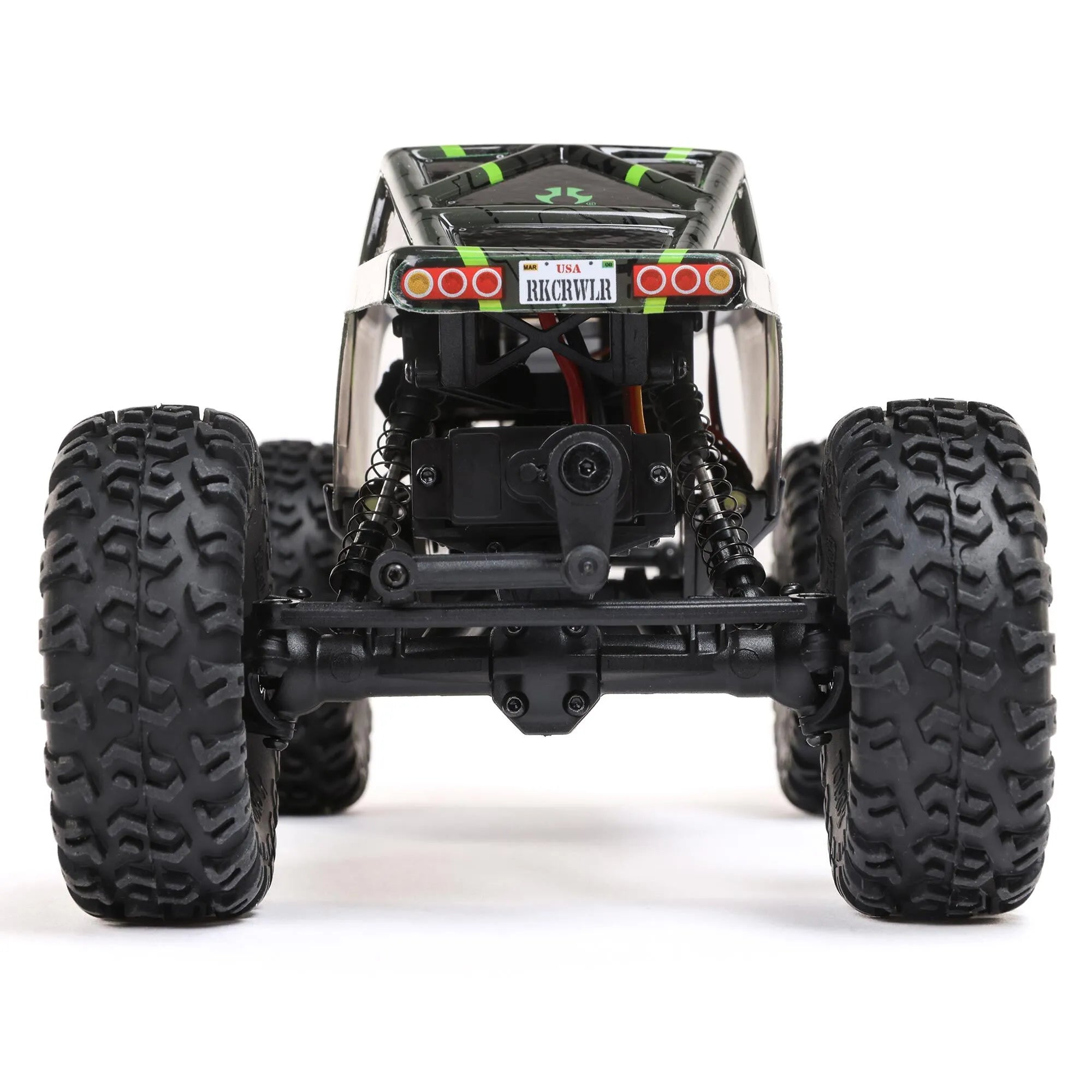

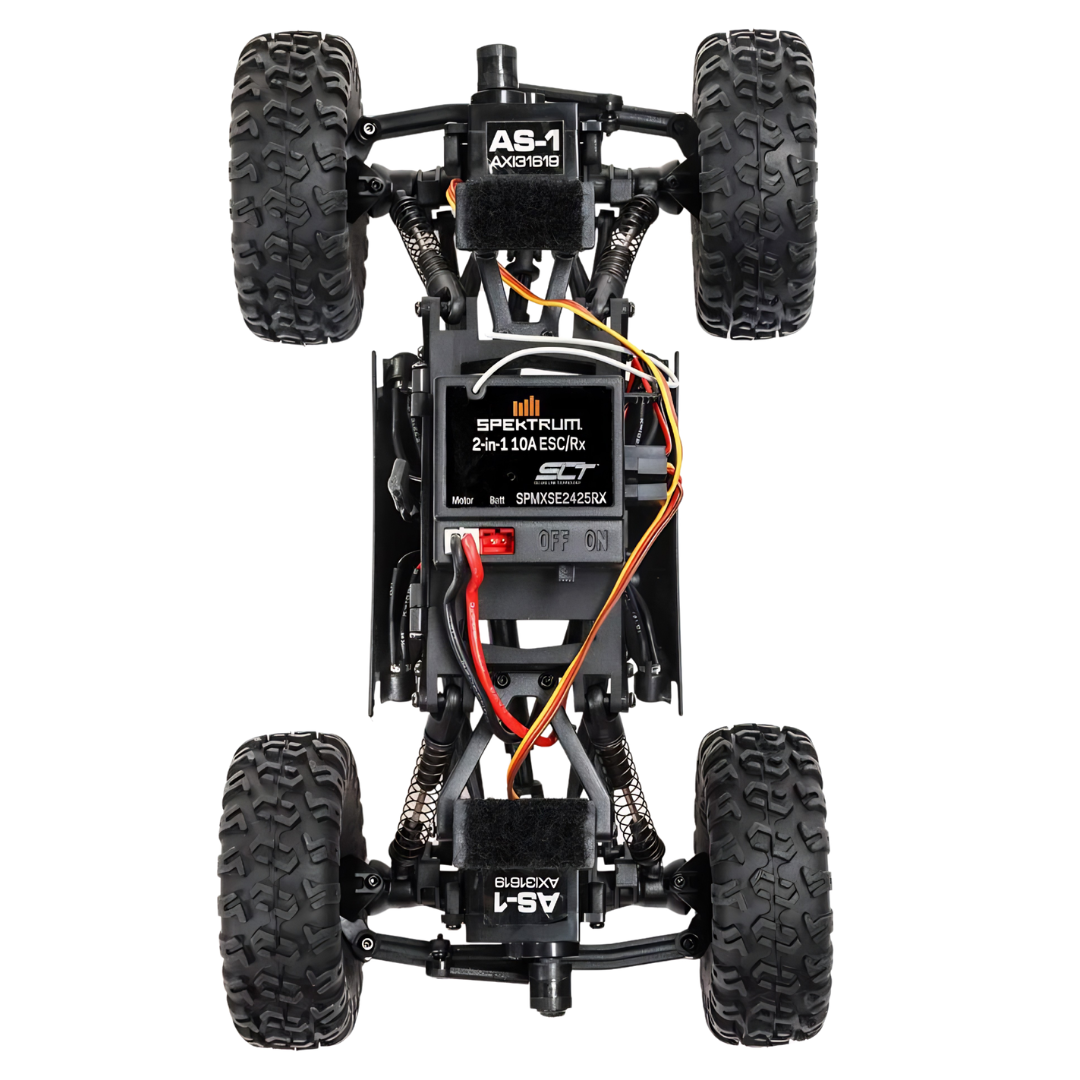

• Dual Axial AS-1 Servos: Separate front and rear steering servos enable the 4WS system
• Dynamite 88T Brushed Motor: Provides controllable torque for steep climbs and technical crawling

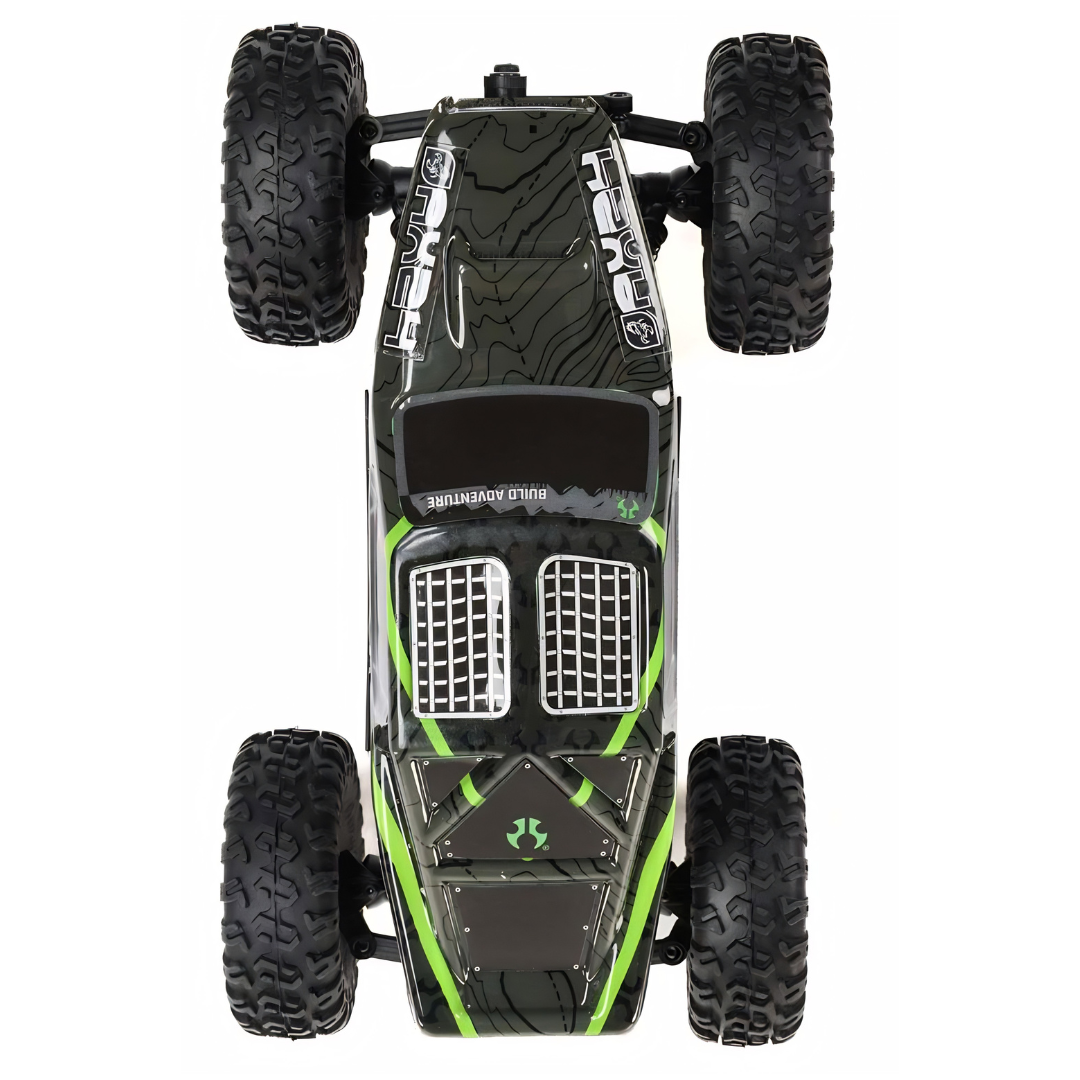

• Hinged Body System: Allows quick access to the battery and onboard electronics
• Ready-to-Run Package: Vehicle, transmitter, battery, charger and transmitter batteries are included

Specifications

• Brand: Axial
• Model: AX24 XC-1
• Manufacturer Part Number: AXI00003T1
• Colour: Green
• Scale: 1/24
• Vehicle Type: RC Rock Crawler
• Completion Level: Ready-to-Run (RTR)
• Drivetrain: 4WD
• Steering: 4-Wheel Steering (4WS)
• Steering Modes: Front Only / Mirrored 4WS / Crab Steering
• Radio System: Spektrum SLT3 2.4GHz 3-Channel

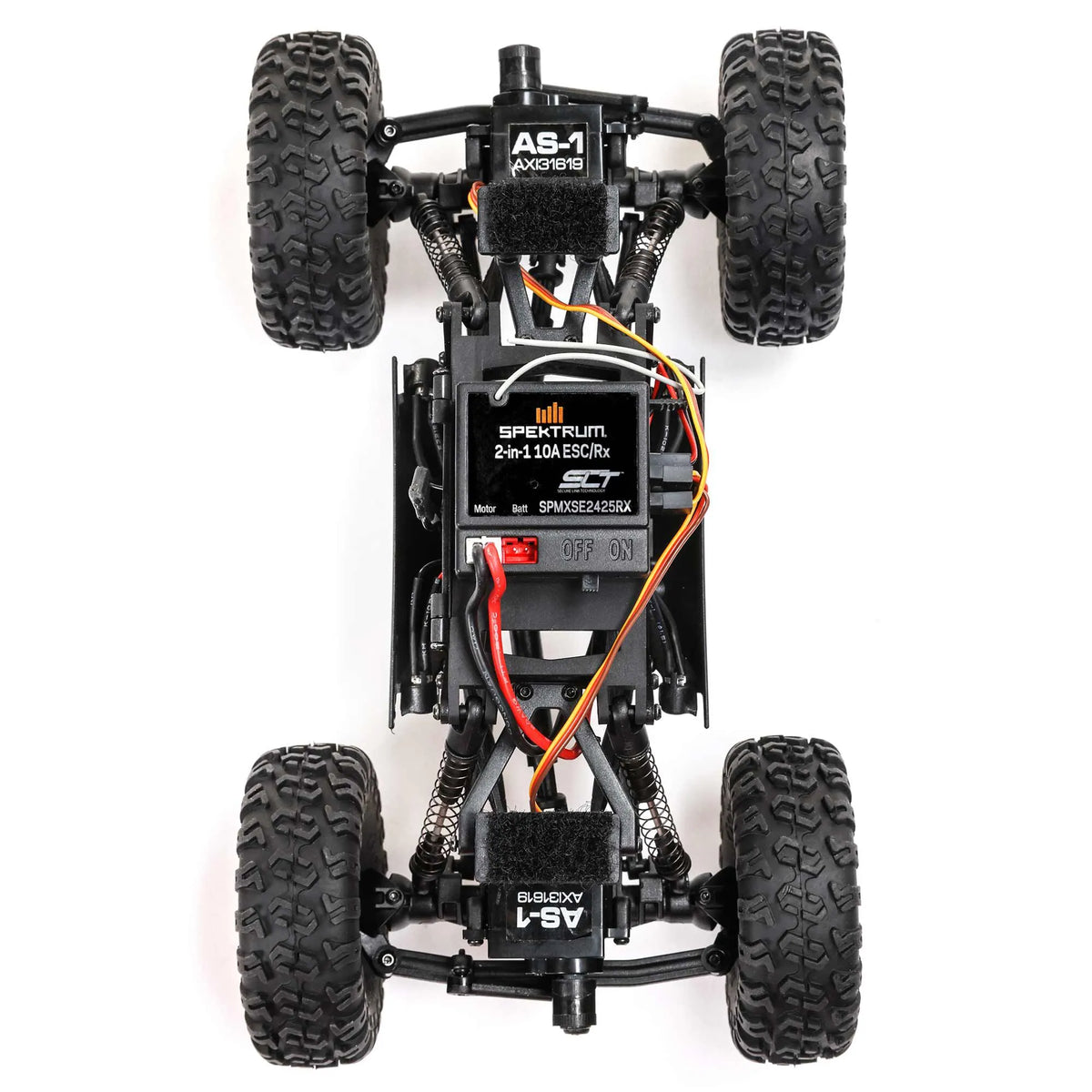

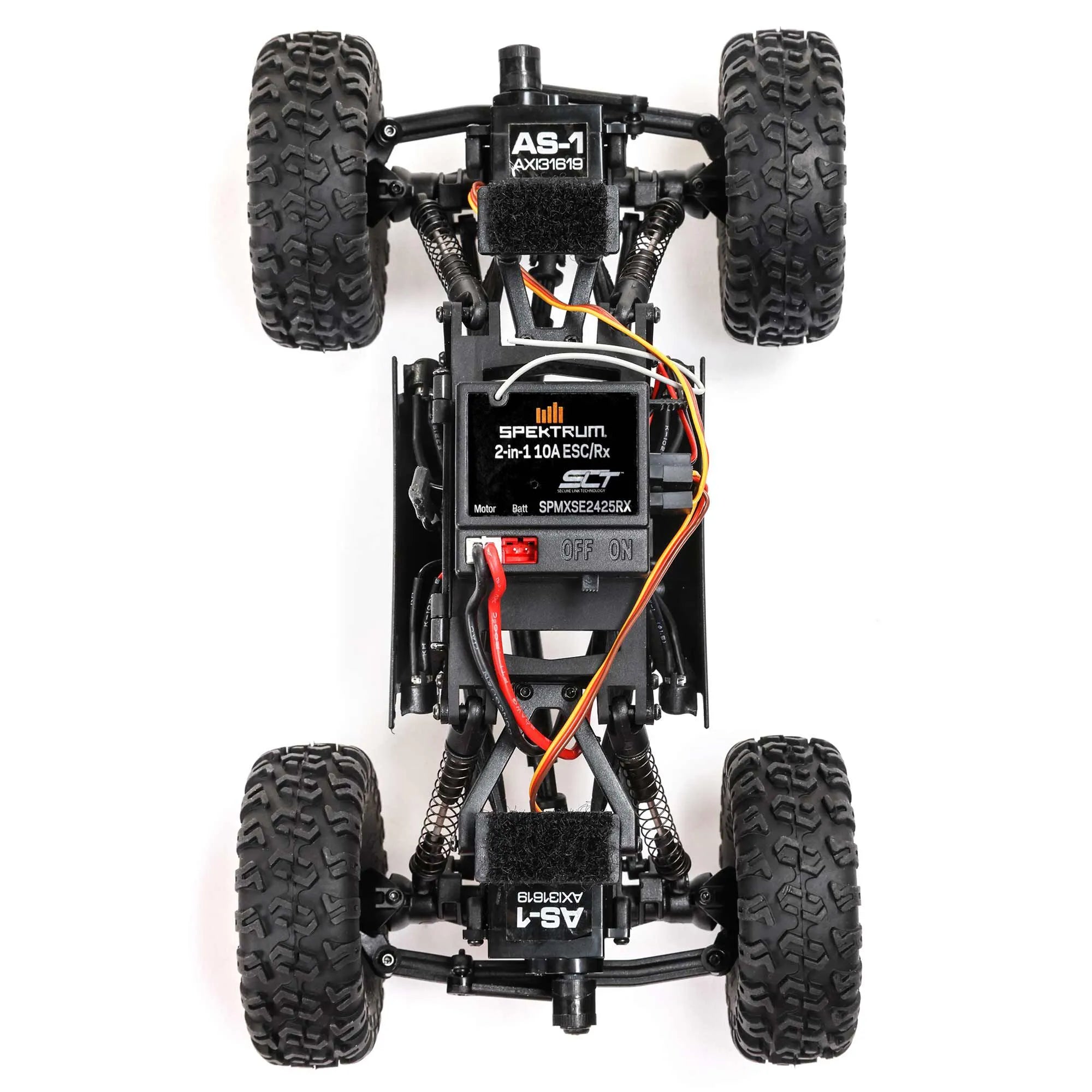

• Steering Servos: 2 × Axial AS-1 Micro Servos
• ESC / Receiver: Spektrum 2-in-1 ESC / Receiver
• Motor: Dynamite 88T Brushed
• Motor Type: Brushed
• Battery: Dynamite 7.4V 350mAh 2S LiPo
• Battery Connector: PH 2.0
• Charger: 0.5A USB LiPo Charger
• Suspension: 4-Link Front and Rear
• Shock Type: 51mm Coil-Over
• Axles: Solid Front and Rear with Worm Gears
• Bearings: Full Sealed Ball Bearings
• Wheels: 1.0" Rockster
• Tyres: 2.44" Rock Lizards
• Length: 220mm / 8.6"
• Width: 100mm / 3.9"
• Height: 93mm / 3.6"
• Operating Weight: Approximately 226.8g / 8oz

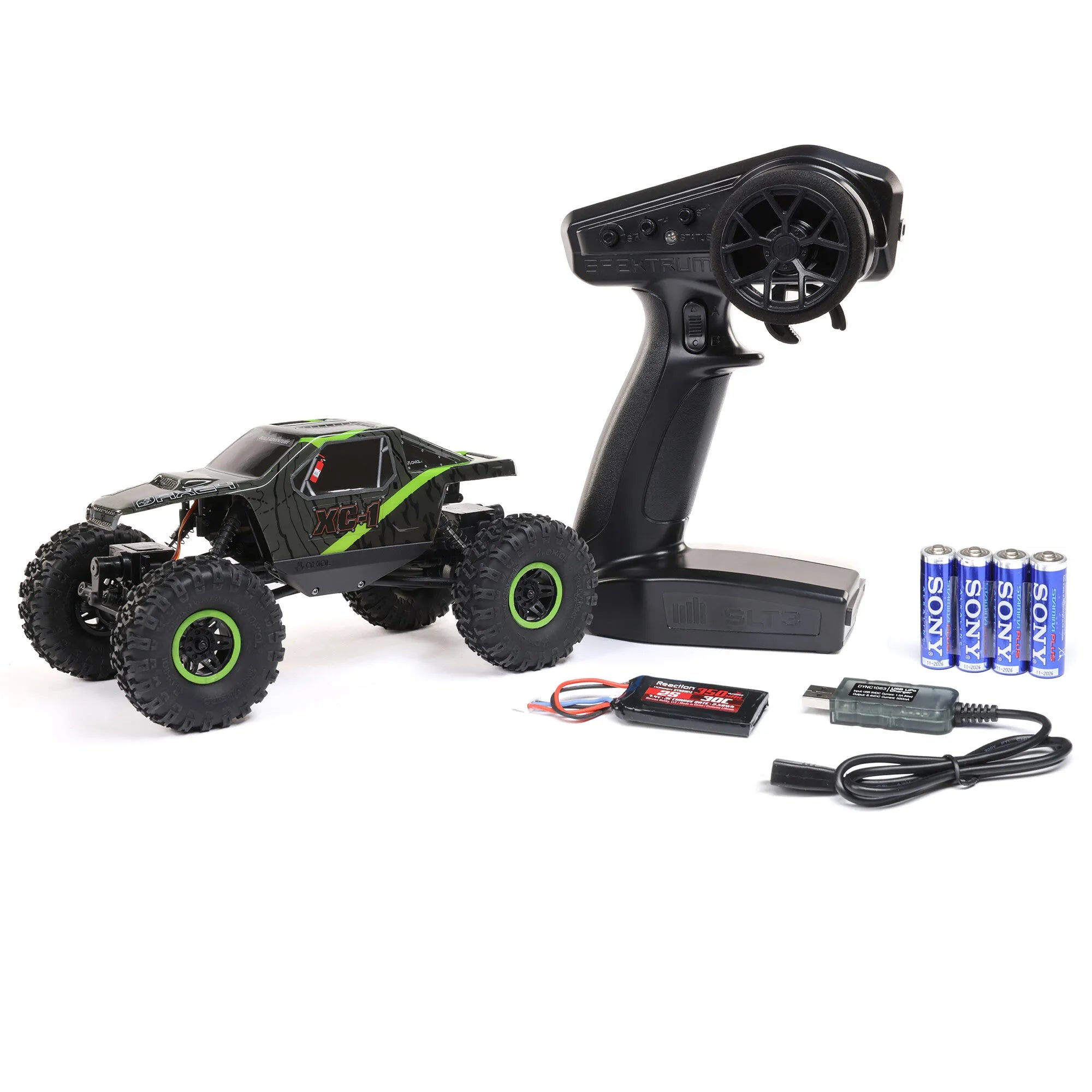

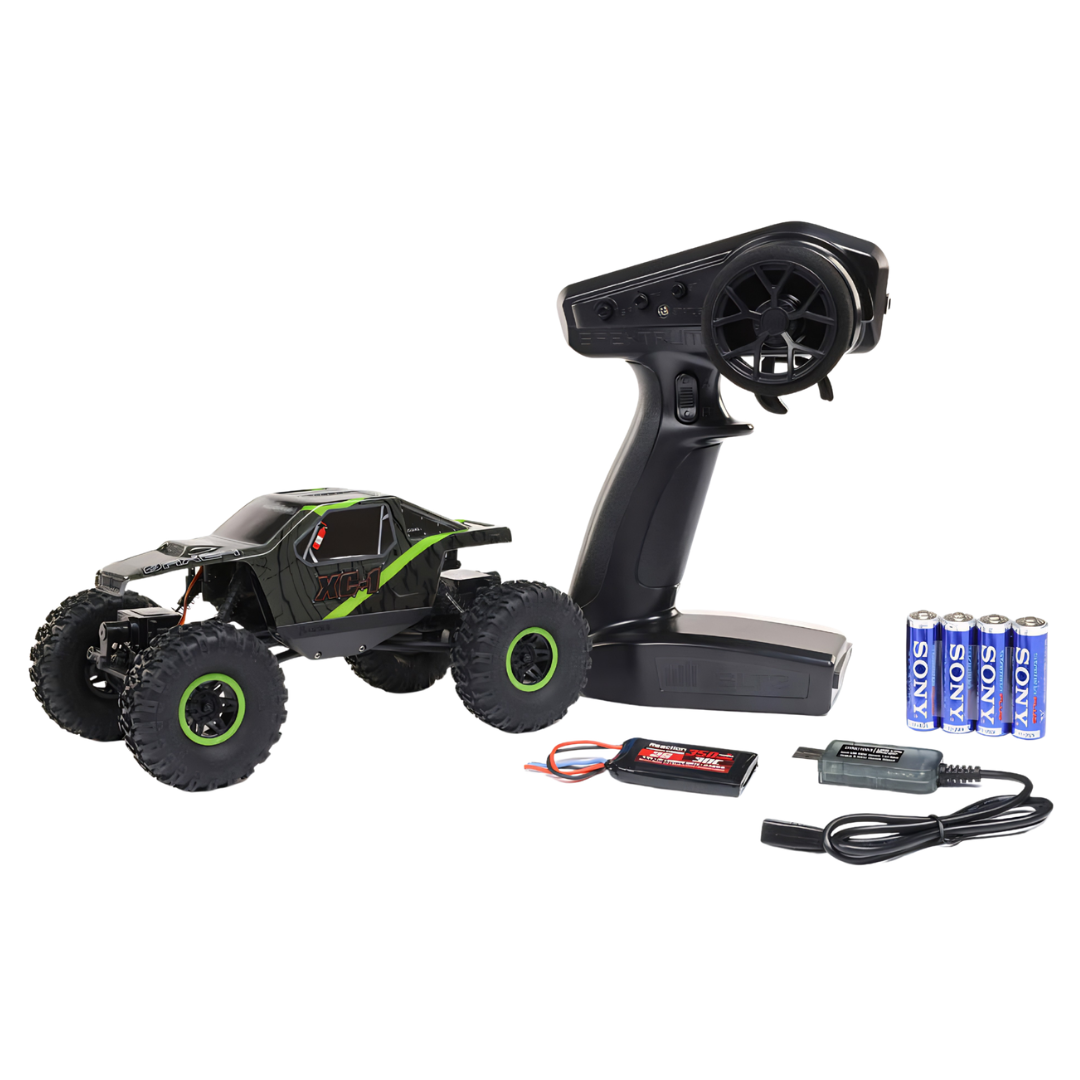

Includes

• 1 × Axial AX24 XC-1 1/24 4WS 4X4 RTR Rock Crawler – Green
• 1 × Spektrum SLT3 2.4GHz 3-Channel Transmitter
• 2 × Axial AS-1 Micro Steering Servos – Installed
• 1 × Spektrum 2-in-1 ESC / Receiver – Installed
• 1 × Dynamite 88T Brushed Motor – Installed
• 1 × Dynamite 7.4V 350mAh 2S LiPo Battery
• 1 × 0.5A USB LiPo Charger
• 4 × AA Transmitter Batteries
• Miscellaneous Tools
• 1 × AX24 XC-1 Instruction Manual

Needed to Complete

• Nothing – everything required to begin driving is included

FAQ

What are the three steering modes on the AX24 XC-1? The transmitter lets you select front steering only, mirrored 4-wheel steering where the rear wheels turn opposite the front for a tighter turning radius, or crab steering where the front and rear wheels steer in the same direction.

Is the Axial AX24 XC-1 fully Ready-to-Run? Yes. The vehicle includes the transmitter, 350mAh 2S LiPo battery, USB charger and four AA transmitter batteries, so no additional RC equipment is required to begin driving.

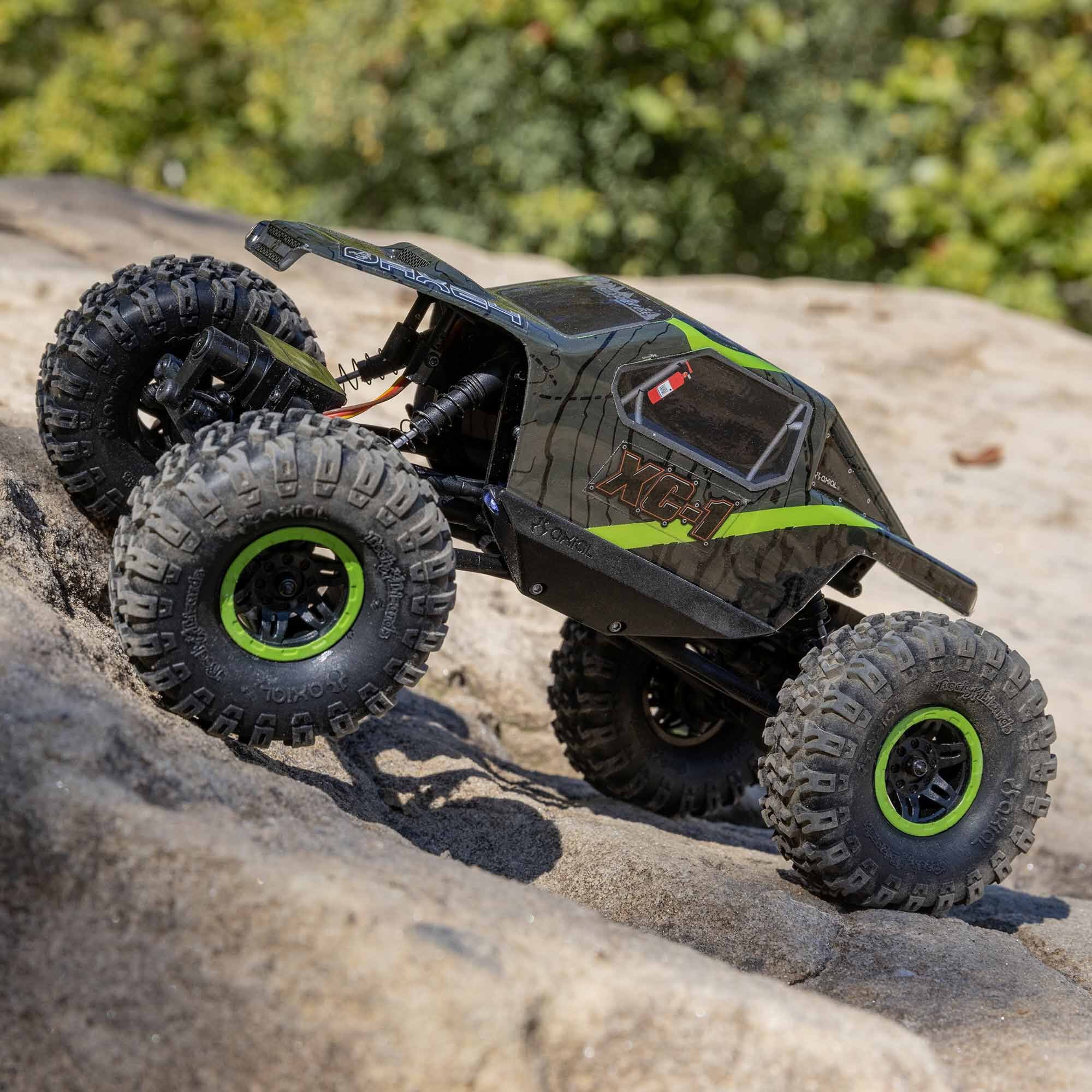

Can the AX24 be used indoors? Yes. Its compact 1/24 scale makes it ideal for desktop courses, homemade indoor obstacles and small crawling areas. It can also be used outdoors on appropriately scaled rocks and trails.

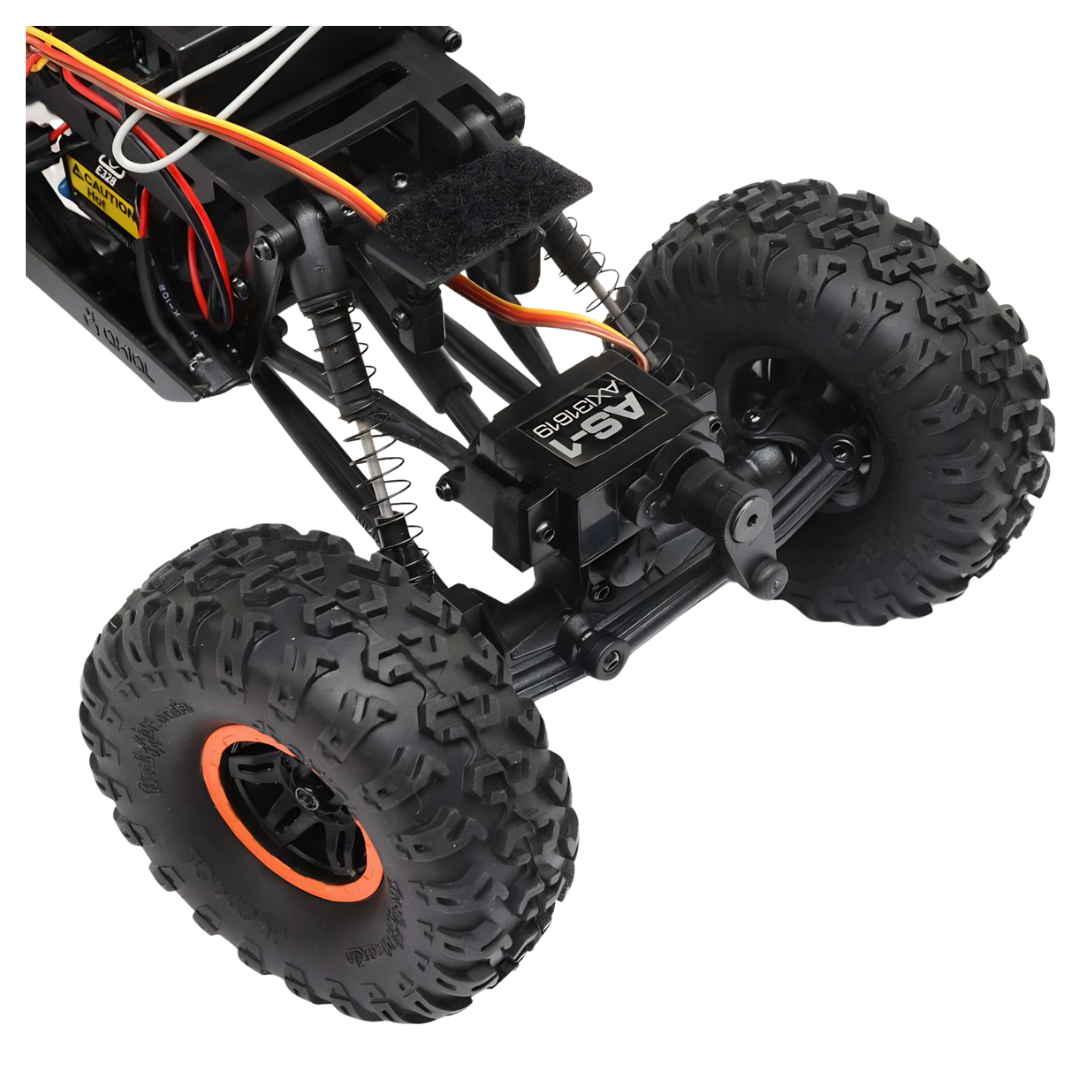

Does the AX24 have front and rear steering servos? Yes. Two Axial AS-1 micro servos are installed, with separate servos operating the front and rear steering axles.

What is the advantage of crab steering? Crab mode turns the front and rear wheels in the same direction. This allows the crawler to move diagonally while remaining relatively parallel to its original direction, which can help reposition the vehicle around certain obstacles.

Does the AX24 have oil-filled shocks? The standard AX24 XC-1 uses 51mm coil-over shocks. Oil-filled aftermarket shocks are available for owners wanting additional suspension damping and tuning options.

Can the AX24 XC-1 be upgraded? Yes. The AX24 shares some components with Axial's popular small-scale crawler ecosystem, and aftermarket options are available for shocks, steering servos, wheels, tyres, links and drivetrain components. When fitting larger servos, pay particular attention to rear servo clearance because space around the AX24's 4WS chassis is limited.

Important Notes

• This listing is for the green AXI00003T1 version
• Battery, charger and transmitter batteries are included
• The factory shocks are 51mm coil-over units
• Use only a suitable charger for the supplied 2S LiPo battery
• Never leave LiPo batteries unattended while charging
• Check both front and rear steering systems for free movement before driving
• Avoid excessive steering travel that causes the steering linkage or servos to bind
• When installing aftermarket steering servos, check rear servo and chassis clearance carefully
• Adding heavy wheels or brass components increases load on the steering servos and drivetrain
