Axial SCX24 Lexus GX 470 1/24 4WD RTR Rock Crawler Black AXI-1532T3

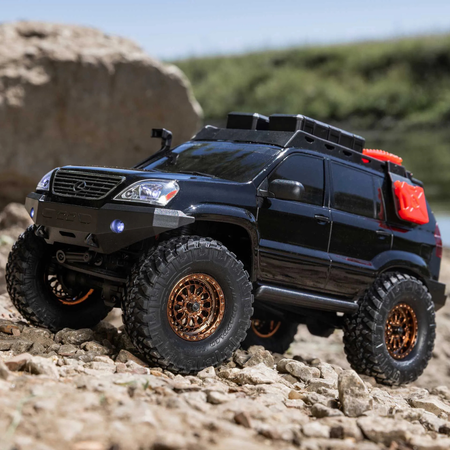

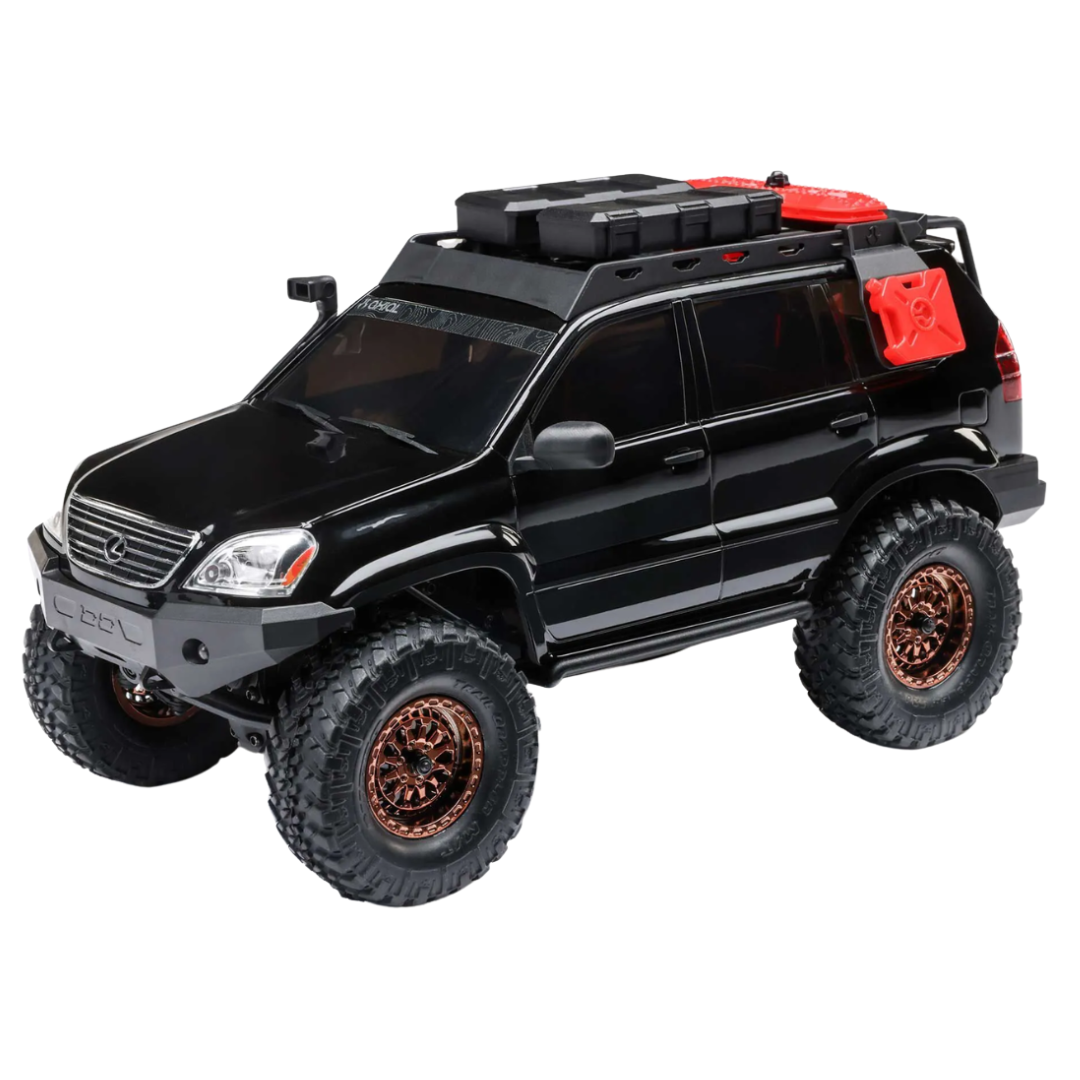

Experience detailed overland styling and capable micro-scale crawling with the Axial SCX24 Lexus GX 470 RTR. This officially licensed 1/24 scale crawler arrives fully assembled with a factory-finished black ABS hard body, working lights and a complete Spektrum radio, battery and charging package.

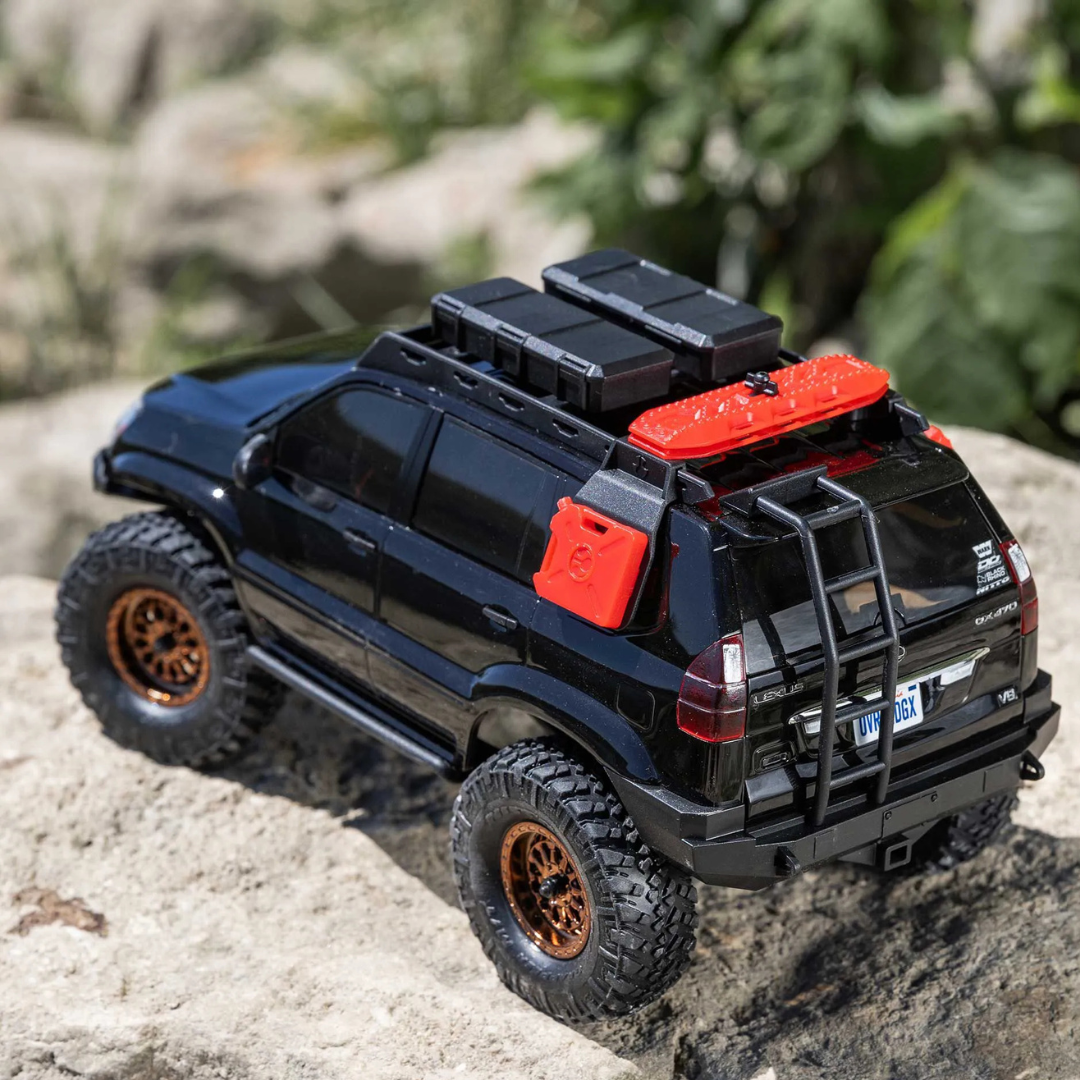

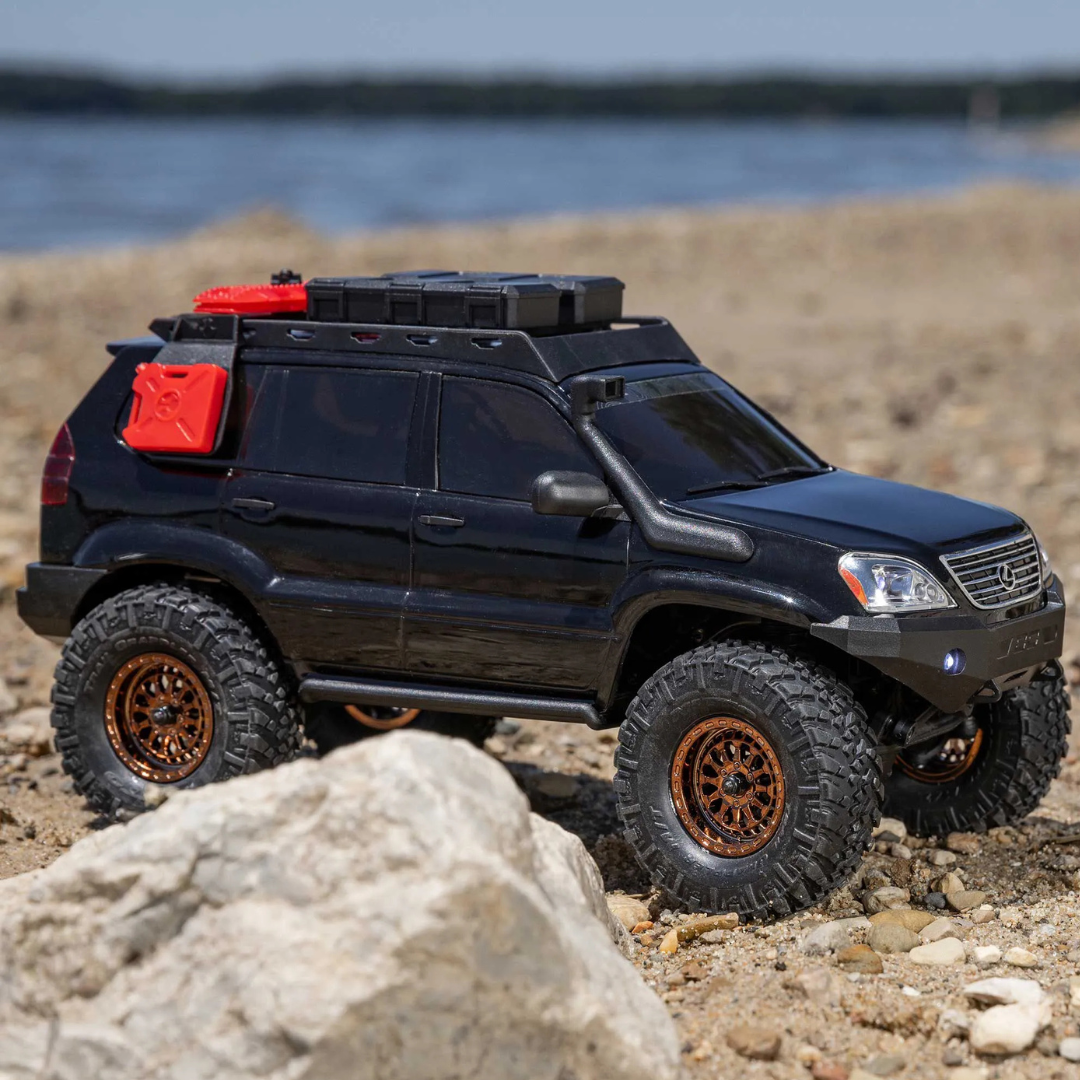

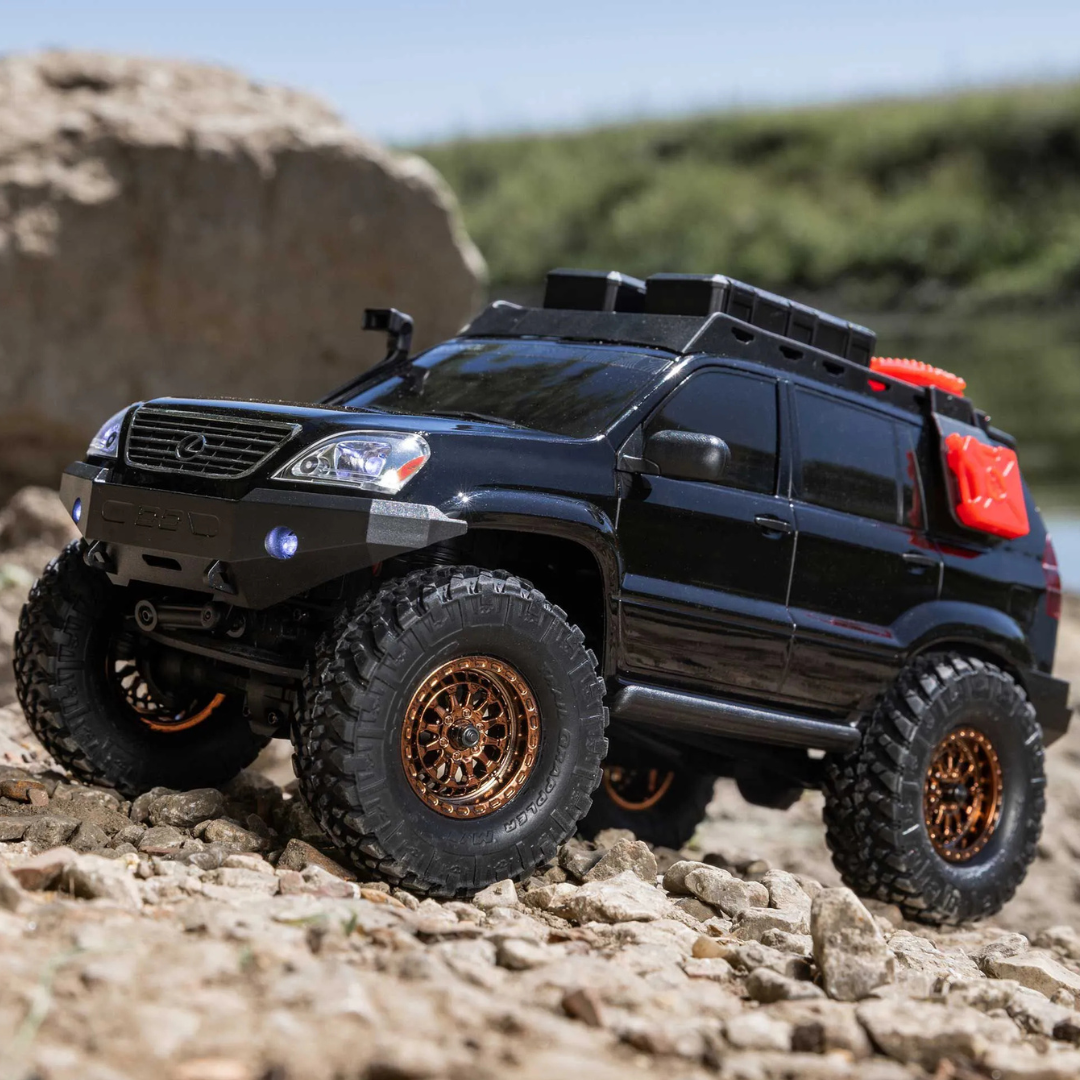

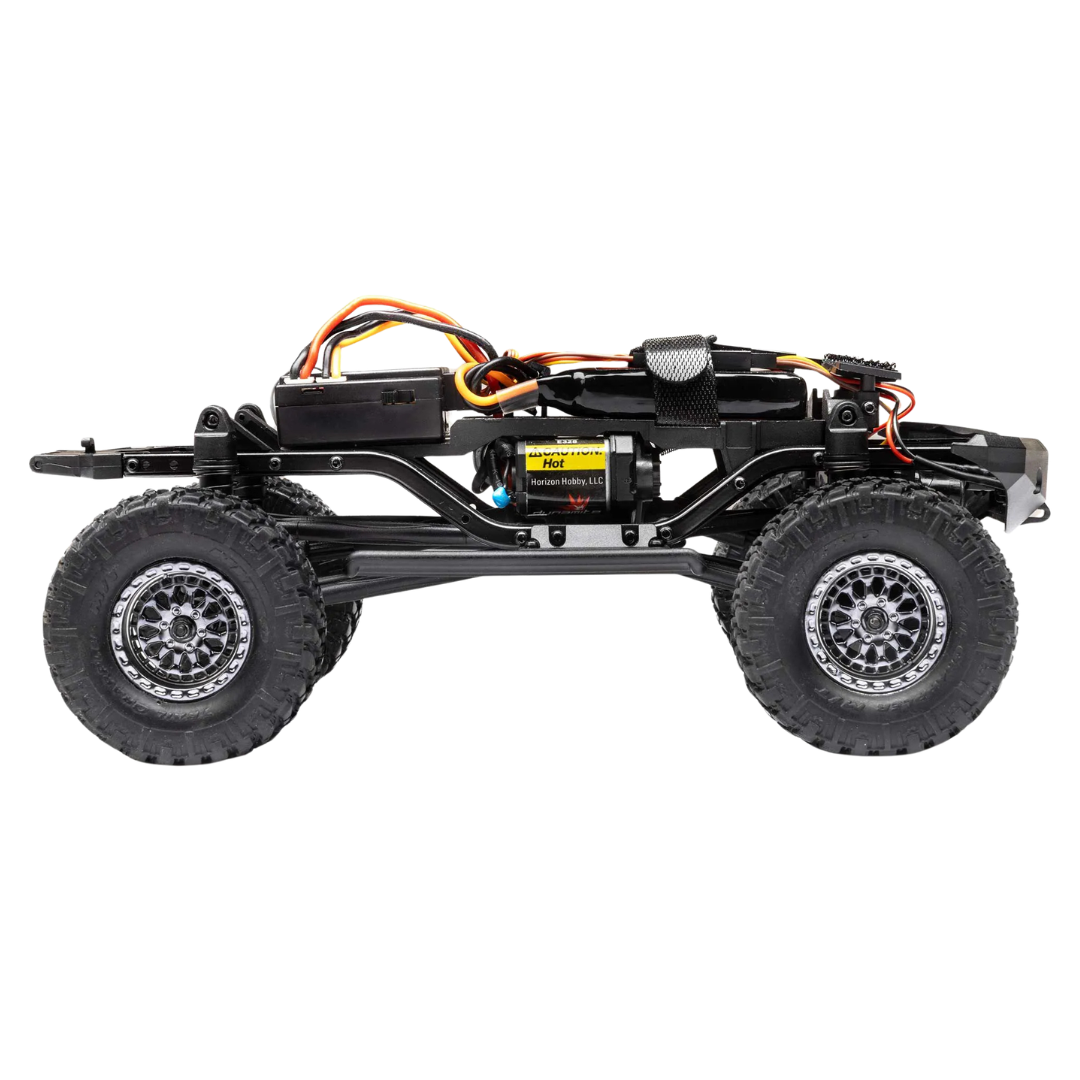

Beneath the realistic Lexus body is the proven SCX24 platform, featuring steel C-channel frame rails, full-time four-wheel drive, worm-gear axles and oil-filled shocks. Licensed Nitto Trail Grappler M/T tyres mounted on Black Rhino Raid wheels complete the scale appearance while providing useful grip across rocks, dirt and indoor crawling courses.

Features

• Fully assembled and ready to run

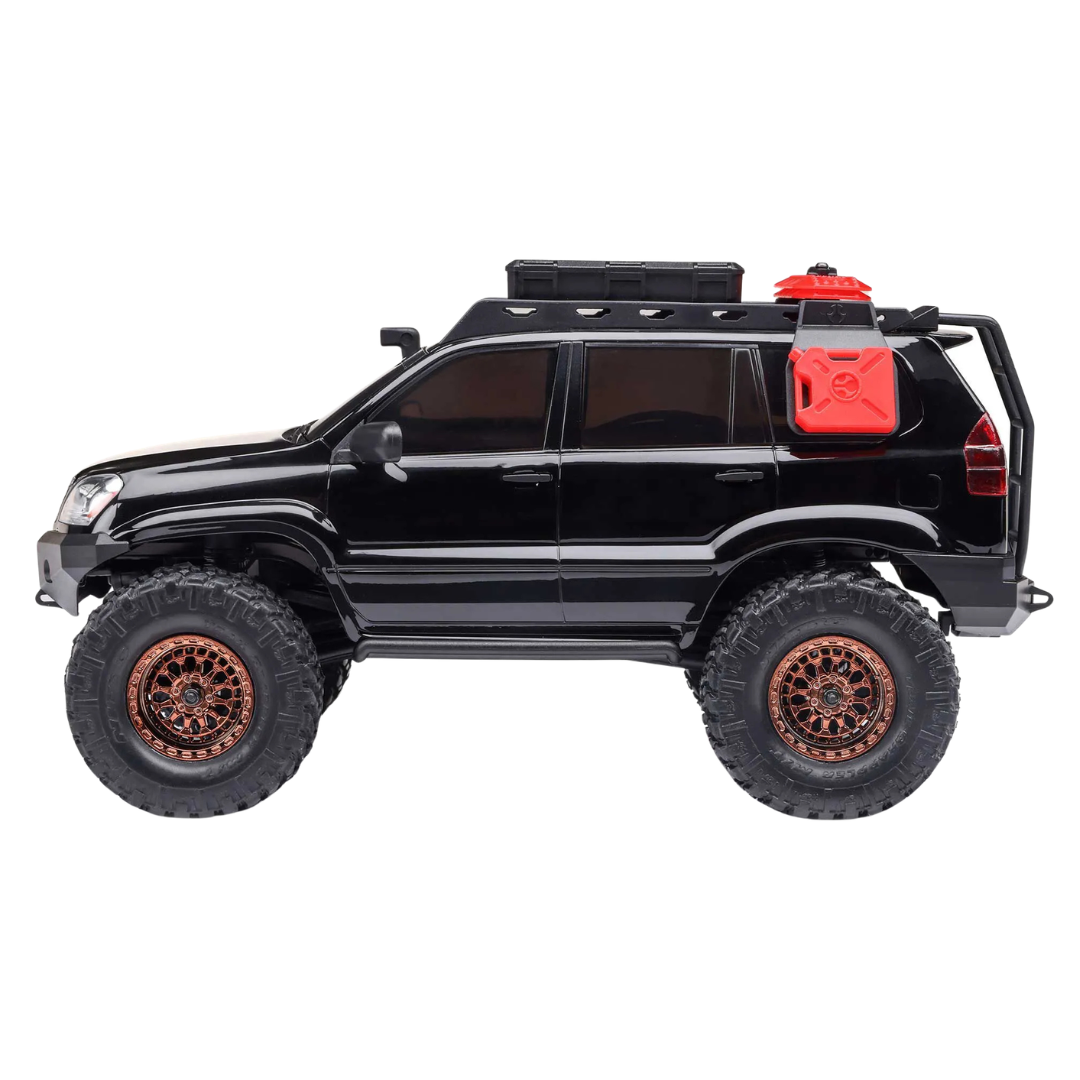

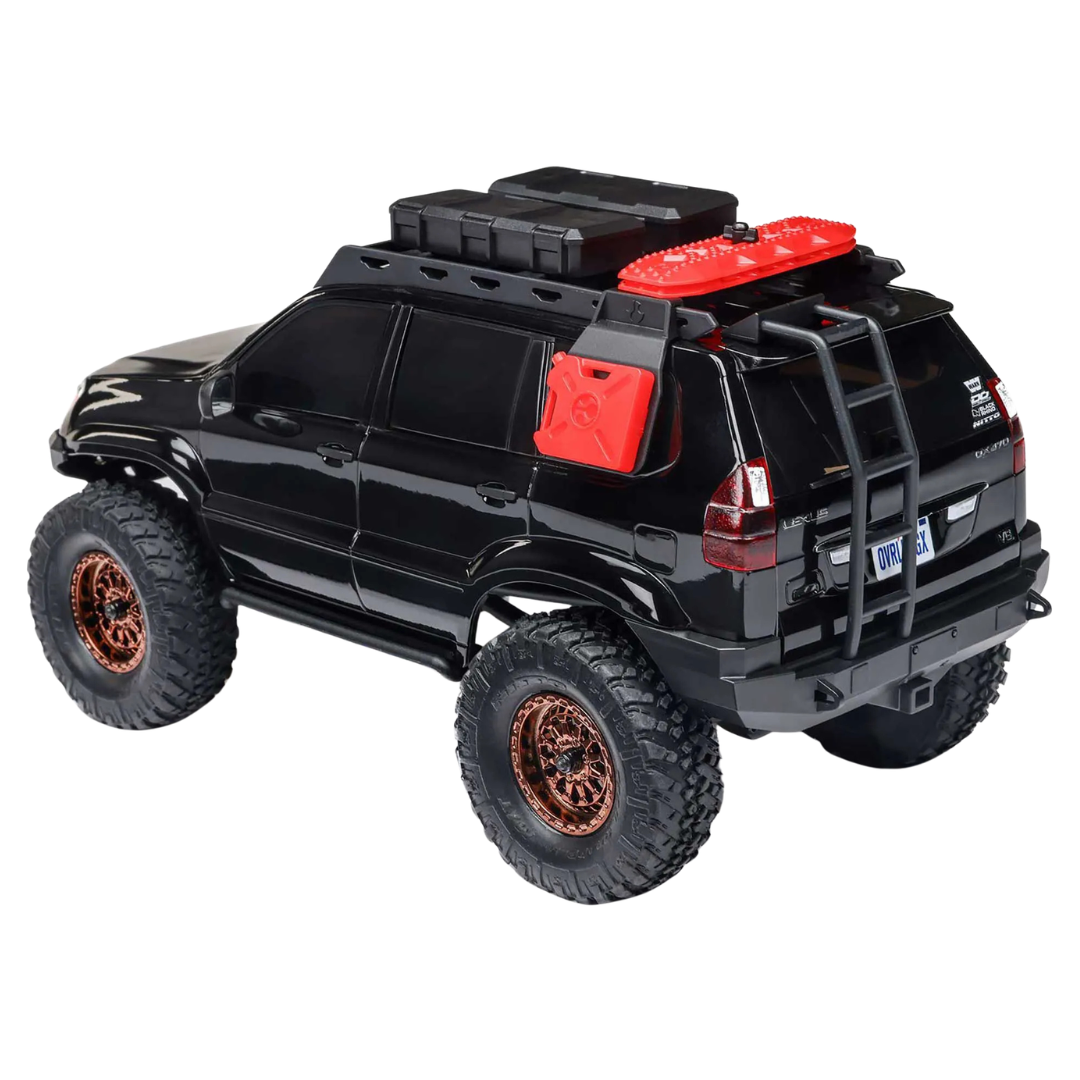

• Officially licensed Lexus GX 470 ABS hard body
• Factory-finished black body with detailed scale accessories

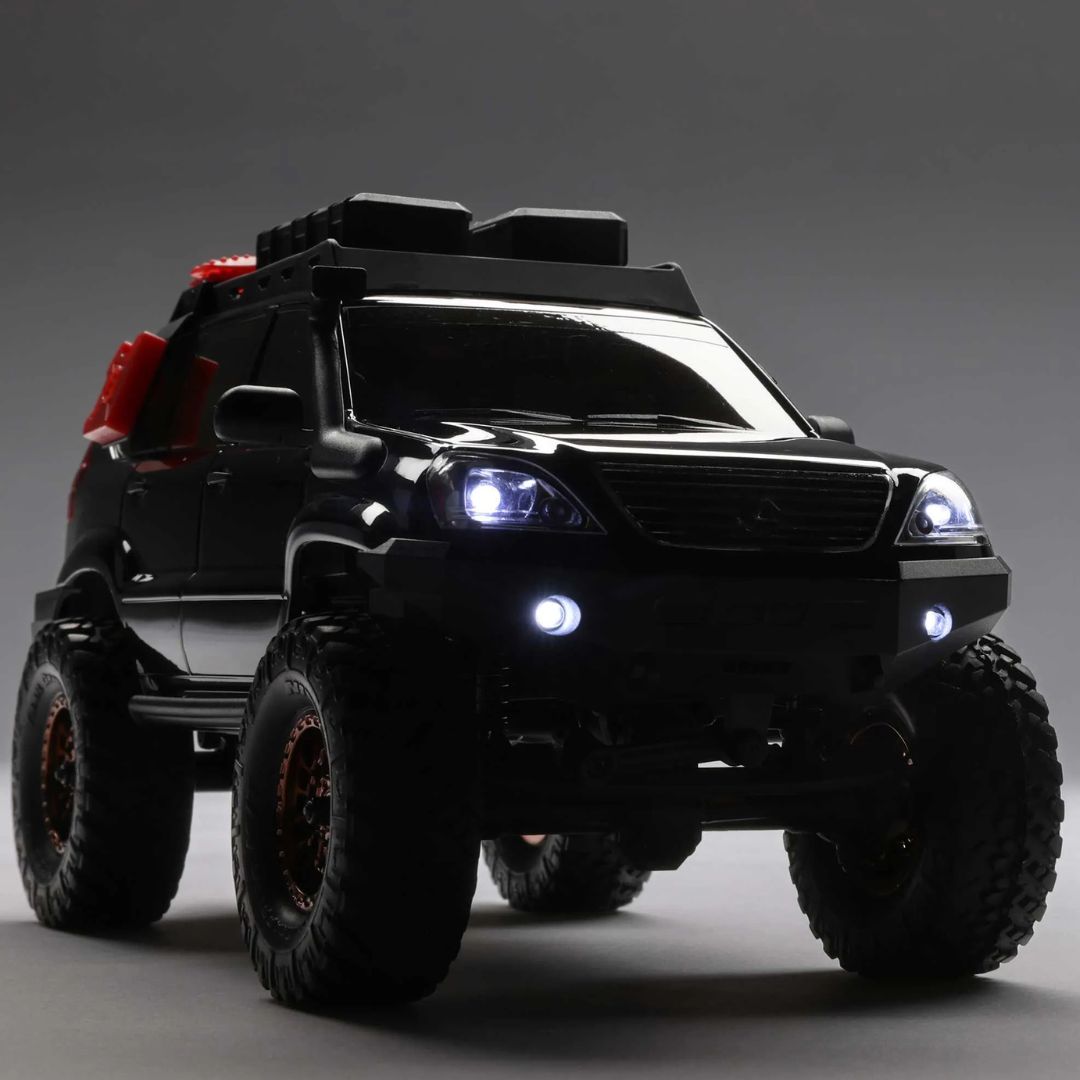

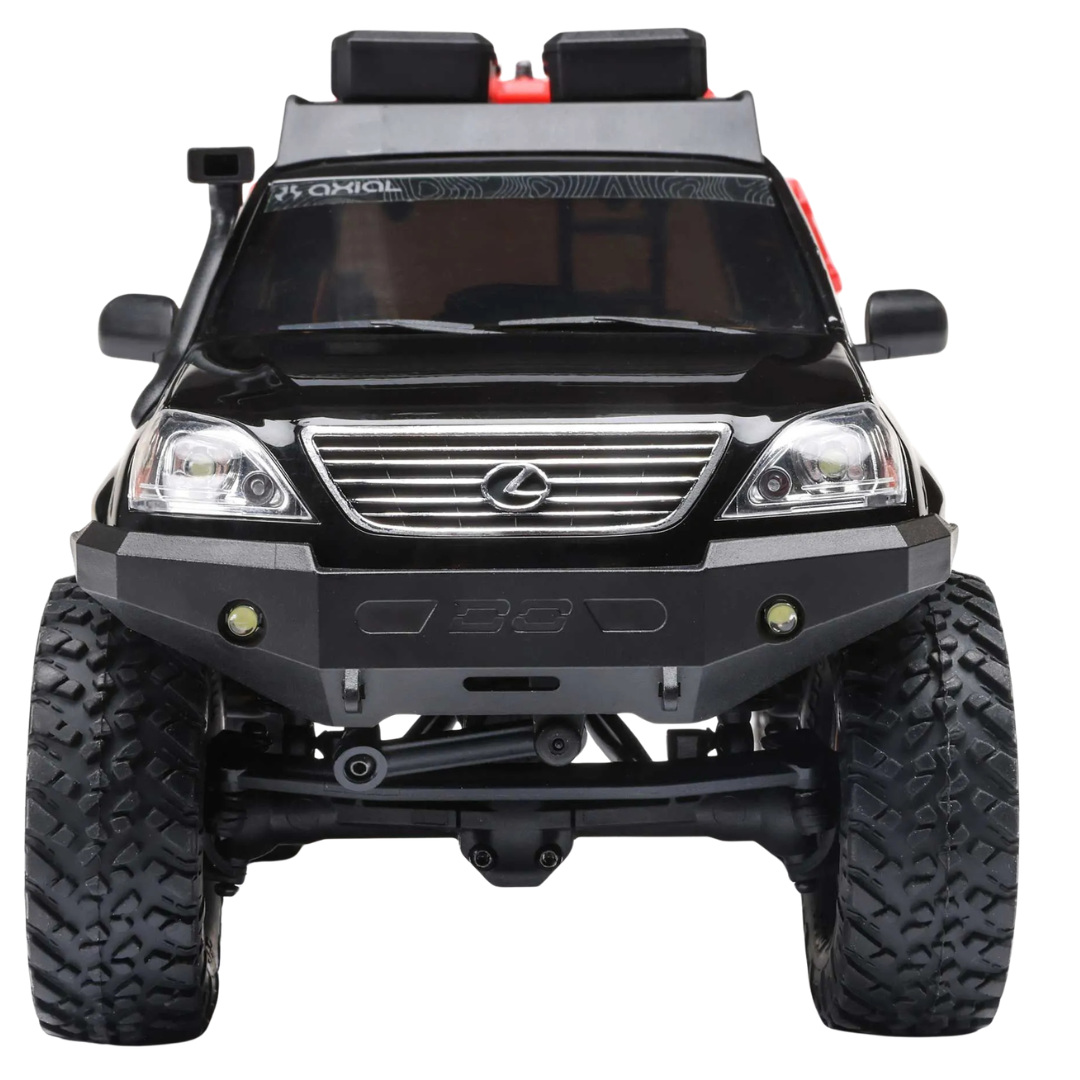

• Working front-corner and front-bumper LED lights
• Clipless hinged body system for convenient chassis access
• Officially licensed Black Rhino Raid wheels
• Officially licensed Nitto Trail Grappler M/T tyres

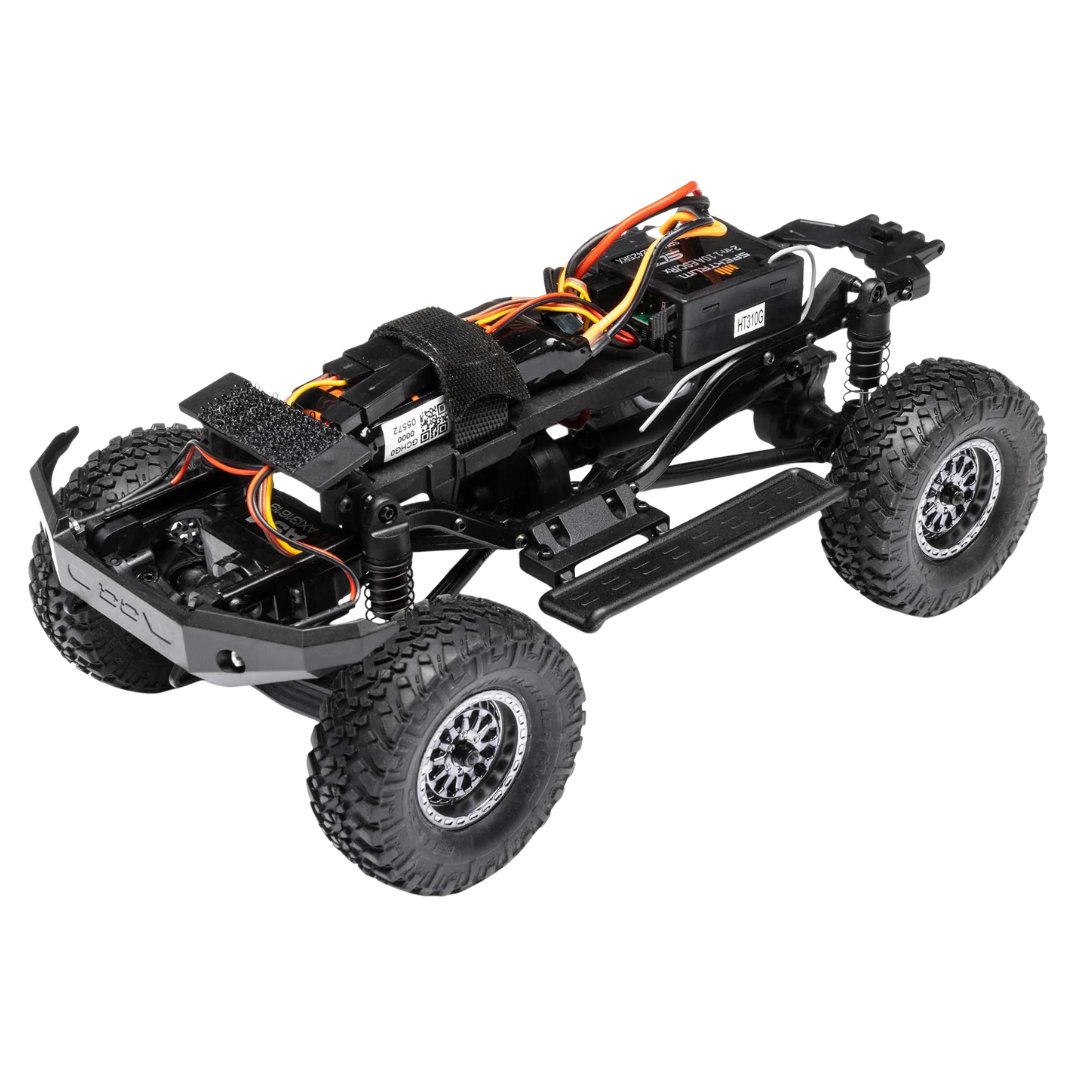

• Realistic steel C-channel chassis frame rails
• True full-time four-wheel-drive drivetrain
• Steel front and rear axles, stub axles and dogbones
• Front and rear worm-gear differentials for increased ground clearance
• Three-link front and four-link rear suspension
• Oil-filled shocks with adjustable spring preload
• Full sealed ball-bearing drivetrain
• Dynamite 88-turn brushed motor with aluminium motor mount
• Spektrum SLT2 2.4GHz radio system
• Transmitter-adjustable steering and throttle travel
• Selectable throttle limiting for improved low-speed control
• Spektrum 350mAh 2S LiPo battery and USB-C charger included
• Four AA transmitter batteries included

Specifications

• Brand: Axial
• Model: SCX24 Lexus GX 470
• Manufacturer Part Number: AXI-1532T3
• Colour: Black
• Vehicle Type: Rock crawler
• Scale: 1/24
• Completion Level: Ready-to-run
• Drivetrain: Full-time 4WD
• Drive Type: Forward, brake and reverse
• Chassis: Steel C-channel frame rails
• Body: Painted ABS hard body
• Motor: Dynamite 88-turn brushed motor
• Motor Type: Brushed
• Radio: Spektrum SLT2 2-channel 2.4GHz
• Receiver: Included
• Electronic Speed Control: Included
• Steering Servo: Included
• Battery: Spektrum 350mAh 2S LiPo
• Battery Connector: PH 2.0 High-Current Ultra Micro
• Maximum Battery Dimensions: 56 × 30 × 9mm
• Charger: Spektrum USB-C LiPo charger
• Differentials: Worm-gear type
• Spur Gear: 55T
• Pinion Gear: 10T
• Shock Type: Oil-filled with 80wt oil
• Wheel Hex Size: 7mm
• Wheelbase: 127mm
• Length: 210mm
• Width: 99mm
• Height: 114mm
• Weight with Battery: Approximately 283g
• Weight without Battery: Approximately 257g
• Assembly Time: No assembly required

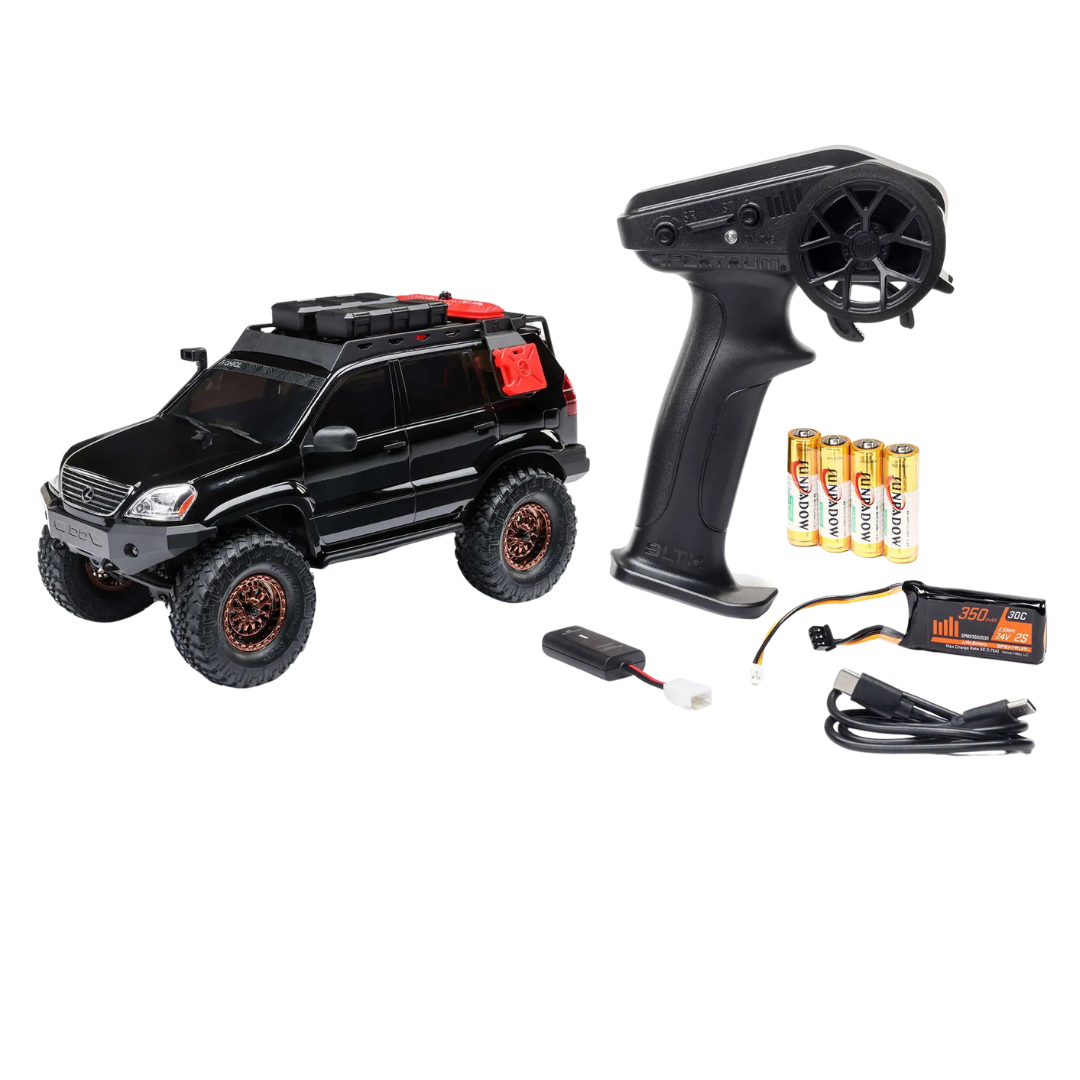

Includes

• 1 × Axial SCX24 Lexus GX 470 1/24 4WD RTR crawler in black
• 1 × Fully assembled SCX24 chassis, drivetrain and suspension
• 1 × Spektrum SLT2 2.4GHz transmitter
• 1 × Spektrum 350mAh 2S LiPo battery
• 1 × Spektrum USB-C LiPo charger
• 4 × AA transmitter batteries
• 1 × Instruction manual

FAQ

Is the Axial SCX24 Lexus GX 470 ready to run? Yes. The crawler is fully assembled and includes the radio system, vehicle battery, USB-C charger and AA transmitter batteries.

Is the Lexus body officially licensed? Yes. The ABS hard body is officially licensed by Lexus and includes moulded details, scale accessories and working lights.

Is the body plastic or polycarbonate? The GX 470 uses a rigid painted ABS hard body rather than a flexible polycarbonate shell. This provides excellent scale detail but also adds more upper-body weight than a lightweight crawler body.

How does the body open? The GX 470 uses a hinged, clipless body system. The body swings upward to provide convenient access to the battery and electronics without removing traditional body clips.

How long does the included battery run? Axial states that the included 350mAh LiPo battery can provide more than 30 minutes of runtime. Actual runtime varies with terrain, throttle use, battery condition and vehicle setup.

Can the SCX24 Lexus GX 470 be used indoors? Yes. Its compact size and low-speed control make it suitable for indoor courses as well as outdoor rocks, dirt and trail obstacles.

Is it waterproof? Do not assume the complete vehicle is waterproof. Avoid submerging the crawler and protect the electronics from excessive water, mud and moisture. Dry and maintain the vehicle after damp use.

Does it use oil-filled shocks? Yes. The factory shocks are oil-filled with 80wt oil and include adjustable spring preload.

What battery connector does it use? The vehicle uses a PH 2.0 High-Current Ultra Micro connector. Any replacement battery must also fit within the specified battery tray dimensions and meet the vehicle’s 2S LiPo requirements.

Can it be upgraded with standard SCX24 parts? Many drivetrain and chassis components are based on the SCX24 platform, but the GX 470 has a unique hard body, body-mounting system and wheelbase configuration. Confirm individual upgrade compatibility before ordering.

Does the heavier hard body affect crawling performance? The detailed ABS body raises the vehicle’s centre of gravity compared with a lightweight body. Careful throttle control helps on steep side slopes, while compatible low-mounted weight upgrades may improve stability.

Should a stronger steering servo be installed immediately? The included servo is suitable for the standard RTR configuration. A stronger servo may become useful after adding heavier wheels, brass components or higher-grip tyres, but compatibility and clearance should be checked before upgrading.

Important Notes

• Charge the included LiPo battery only with a compatible LiPo charger and follow all battery safety instructions.
• Never leave a LiPo battery unattended while charging.
• Disconnect the battery from the vehicle after use.
• Do not fully discharge or physically damage the LiPo battery.
• The ABS hard body is detailed and durable but may scratch during rollover or rock contact.
• Check wheel nuts, driveshafts, suspension links and steering components regularly.
• Aftermarket SCX24 parts are not automatically compatible with the GX 470 body and wheelbase.
• USB power supply is required for the included USB-C charger and may not be included.
• Product appearance and included components may vary slightly according to the production batch.
