Axial SCX10 III Jeep Cherokee XJ 1/10 4WD RTR Brushed Rock Crawler – Forest Green Pearl AXI-2037T1

Bring an off-road legend back to the trail with the Axial SCX10 III Jeep Cherokee XJ 1/10 Scale 4WD RTR Brushed Rock Crawler in Forest Green Pearl.

Inspired by the iconic 2001 Jeep Cherokee XJ, this officially licensed scale crawler combines authentic Jeep styling with the rugged capability of Axial's SCX10 III platform. Its factory-painted polycarbonate body, realistic recovery accessories, licensed wheels and tyres, and functional LED lighting recreate the appearance of a classic trail-prepared Cherokee.

The Forest Green Pearl AXI-2037T1 features officially licensed BFGoodrich Krawler T/A KX tyres mounted on KMC KM444 MESA wheels. A DirtBound front bumper, non-functional WARN EVO10-S scale winch and machined aluminium Factor 55 hawse fairlead complete its detailed front end.

Underneath the body, a one-piece steel C-channel chassis supports AR45 straight axles, 6mm stainless steel suspension links, metal pivot balls and adjustable oil-filled shocks with threaded aluminium bodies. The LCXU transmission combines metal internal gears, full ball bearings and a factory-installed DIG system that locks the rear drivetrain for tighter turning manoeuvres.

Power comes from an Axial Slick Rock 35-turn brushed 540-size motor paired with a Spektrum Firma 40A waterproof brushed ESC. The included Spektrum SLT3 3-channel transmitter, SR515 receiver, S683 steering servo and SX108PM DIG servo provide the control needed for technical crawling.

Ready-to-Run: The vehicle arrives assembled with its electronics and radio system installed. A compatible LiPo driving battery and suitable charger are required separately. Four AA transmitter batteries are included.

Key Features

• Officially Licensed Jeep Cherokee XJ – Authentic second-generation Cherokee styling
• Forest Green Pearl Factory Finish – Classic Jeep-inspired colour
• 1/10 Scale SCX10 III Platform – Hobby-grade trail and rock crawling performance
• Full-Time 4WD – Four-wheel traction across challenging terrain
• Factory-Painted Polycarbonate Body – Detailed and ready for the trail
• Licensed BFGoodrich Krawler T/A KX Tyres – Soft-compound crawler traction
• Licensed KMC KM444 MESA Wheels – Realistic off-road wheel styling
• Licensed DirtBound Front Bumper – Authentic trail-built appearance
• WARN EVO10-S Faux Winch – Non-functional scale recovery detail
• Machined Aluminium Factor 55 Hawse Fairlead – Premium front-end detail
• Functional LED Lighting – White headlights, yellow running lights and rear taillights
• LCXU DIG Transmission – Factory-installed rear drivetrain locking feature
• Spektrum SX108PM DIG Servo – Operates DIG from the transmitter's third channel
• Metal Internal Transmission Gears – Durable drivetrain construction
• Full Ball Bearings – Smooth drivetrain operation
• AR45 Straight Axles – Realistic solid-axle design
• One-Piece Steel C-Channel Chassis – Strong and stable frame construction
• Adjustable Metal Panhard Mount – Supports compatible axle configurations
• 6mm Stainless Steel Suspension Links – Durable suspension construction
• Stainless Steel Pivot Balls – Metal suspension articulation points
• Oil-Filled Aluminium-Bodied Shocks – Threaded spring preload adjustment
• Axial Slick Rock 35T Brushed Motor – Smooth low-speed crawling power
• Spektrum Firma 40A Waterproof ESC – Factory-installed brushed speed controller
• Spektrum SLT3 3-Channel Radio – Controls steering, throttle and DIG
• Spektrum SR515 Receiver – Factory-installed DSMR receiver
• Spektrum S683 Steering Servo – Steel output gear with 25T spline
• Compatible with Suitable Shorty Battery Packs – Flexible battery mounting
• Ready-to-Run Assembly – No vehicle assembly required

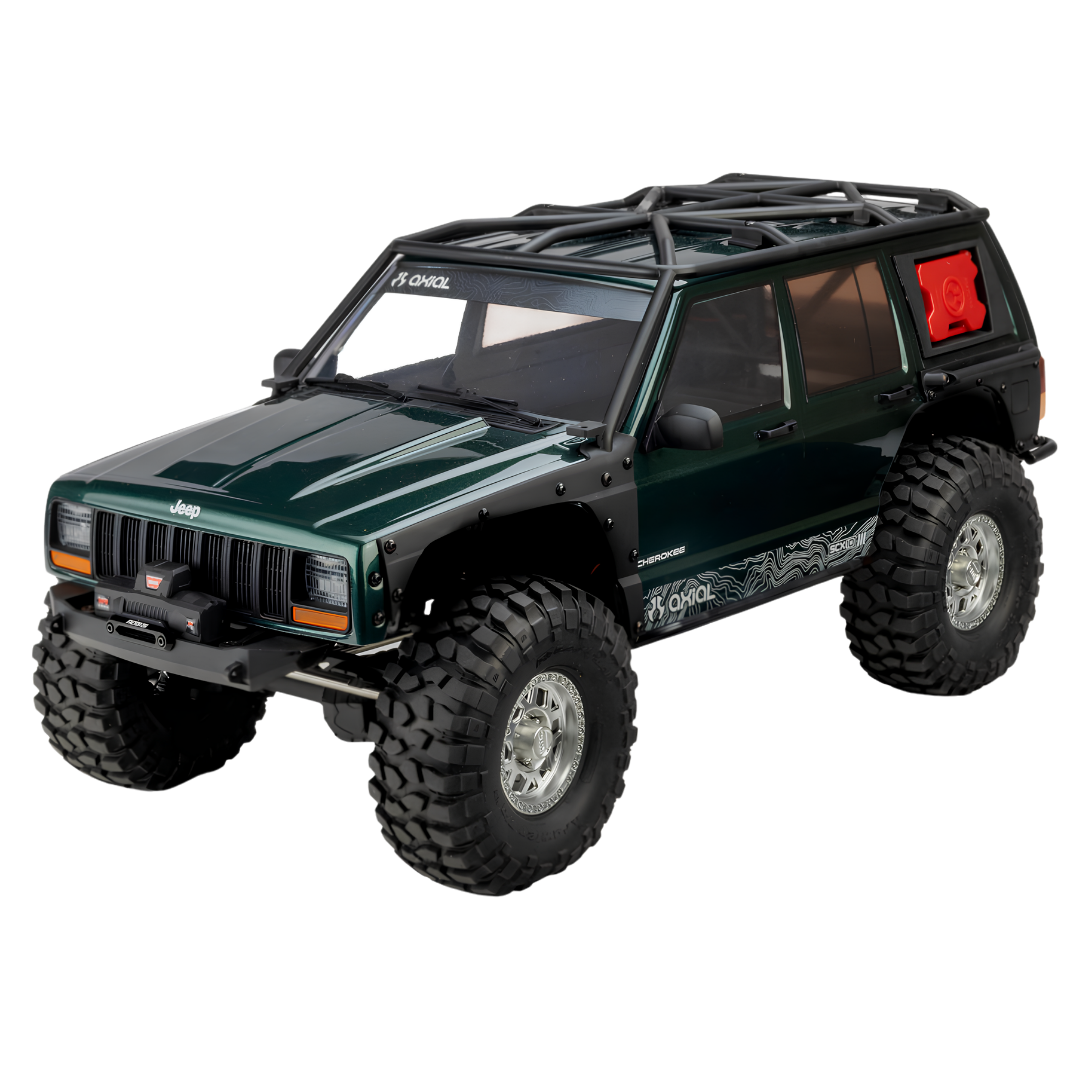

Officially Licensed Jeep Cherokee XJ Body

The Axial SCX10 III Cherokee XJ recreates the recognisable proportions and classic styling of the second-generation Jeep Cherokee.

Its officially licensed polycarbonate body features realistic body lines and a factory-painted Forest Green Pearl finish inspired by the original vehicle.

The body arrives painted and assembled, making this RTR crawler suitable for enthusiasts who want authentic scale Jeep styling without the need for body painting or assembly.

Colour Variant: AXI-2037T1 is Forest Green Pearl. The Stone White version is AXI-2037T2 and is sold separately.

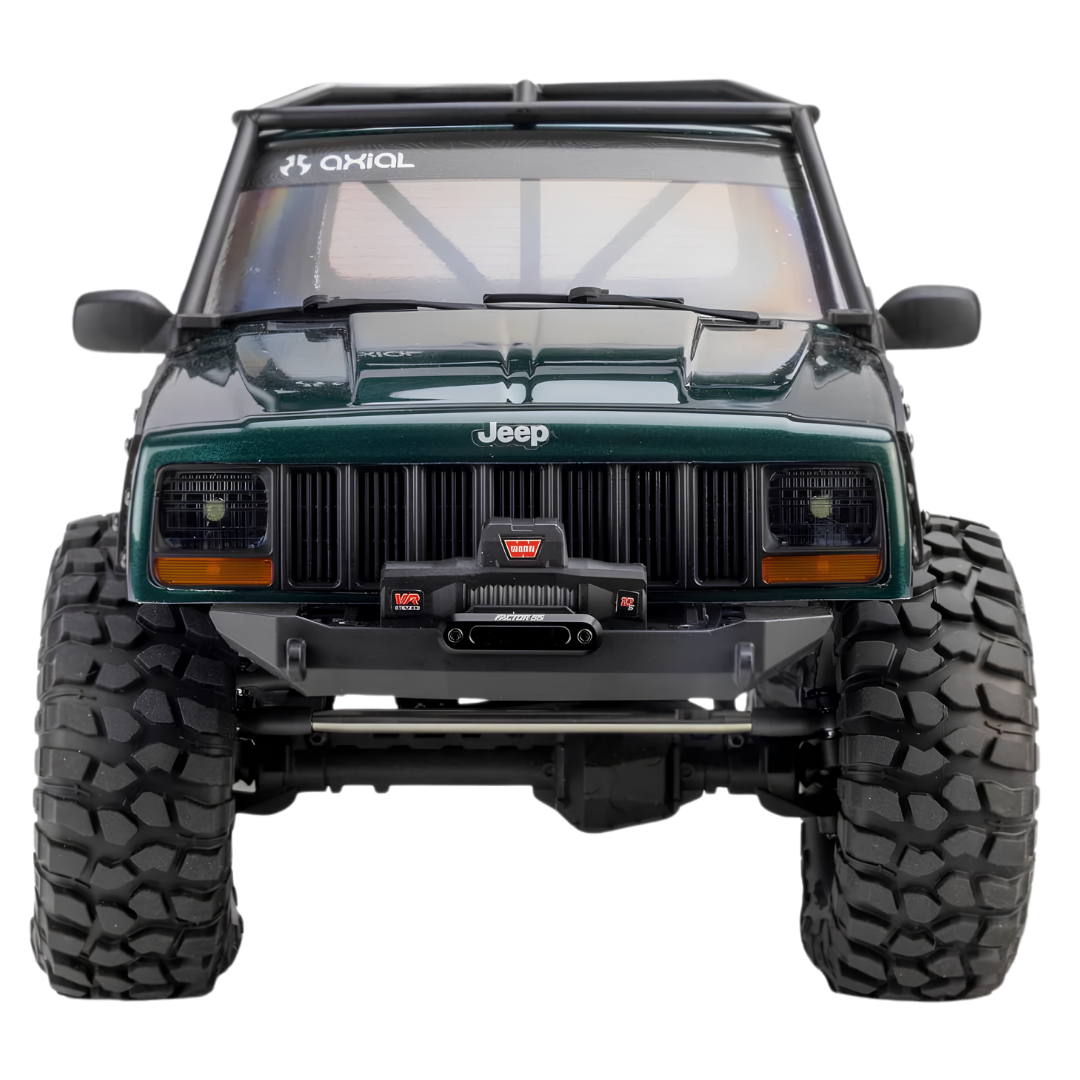

Licensed WARN, DirtBound and Factor 55 Accessories

The Cherokee XJ features a detailed front-end setup with a licensed DirtBound bumper, WARN EVO10-S scale winch and machined aluminium Factor 55 hawse fairlead.

These accessories reproduce the appearance of equipment commonly fitted to full-size off-road Jeeps.

Important: The WARN EVO10-S winch is a non-functional scale accessory. It does not provide powered recovery or winching capability.

BFGoodrich Krawler Tyres and KMC MESA Wheels

Officially licensed BFGoodrich Krawler T/A KX tyres provide an aggressive tread pattern and soft-compound grip for rock crawling and trail driving.

The tyres are mounted on licensed KMC KM444 MESA 1.9-inch wheels, giving the Cherokee a realistic full-size crawler stance.

The wheel and tyre combination is designed to balance scale appearance with traction on rocks, dirt and uneven terrain.

LCXU DIG Transmission with Metal Gears

The LCXU DIG transmission is a key feature of the SCX10 III Jeep Cherokee XJ.

Its factory-installed DIG system allows the rear drivetrain to be locked while the front wheels remain powered, helping the crawler pivot through tighter turns on technical obstacles.

DIG is controlled using the third channel of the included Spektrum SLT3 transmitter and is actuated by the factory-installed Spektrum SX108PM micro servo.

The transmission features metal internal gears and full ball bearings for durability and smooth operation. Its 56-tooth spur gear is composite, so not every transmission component is metal.

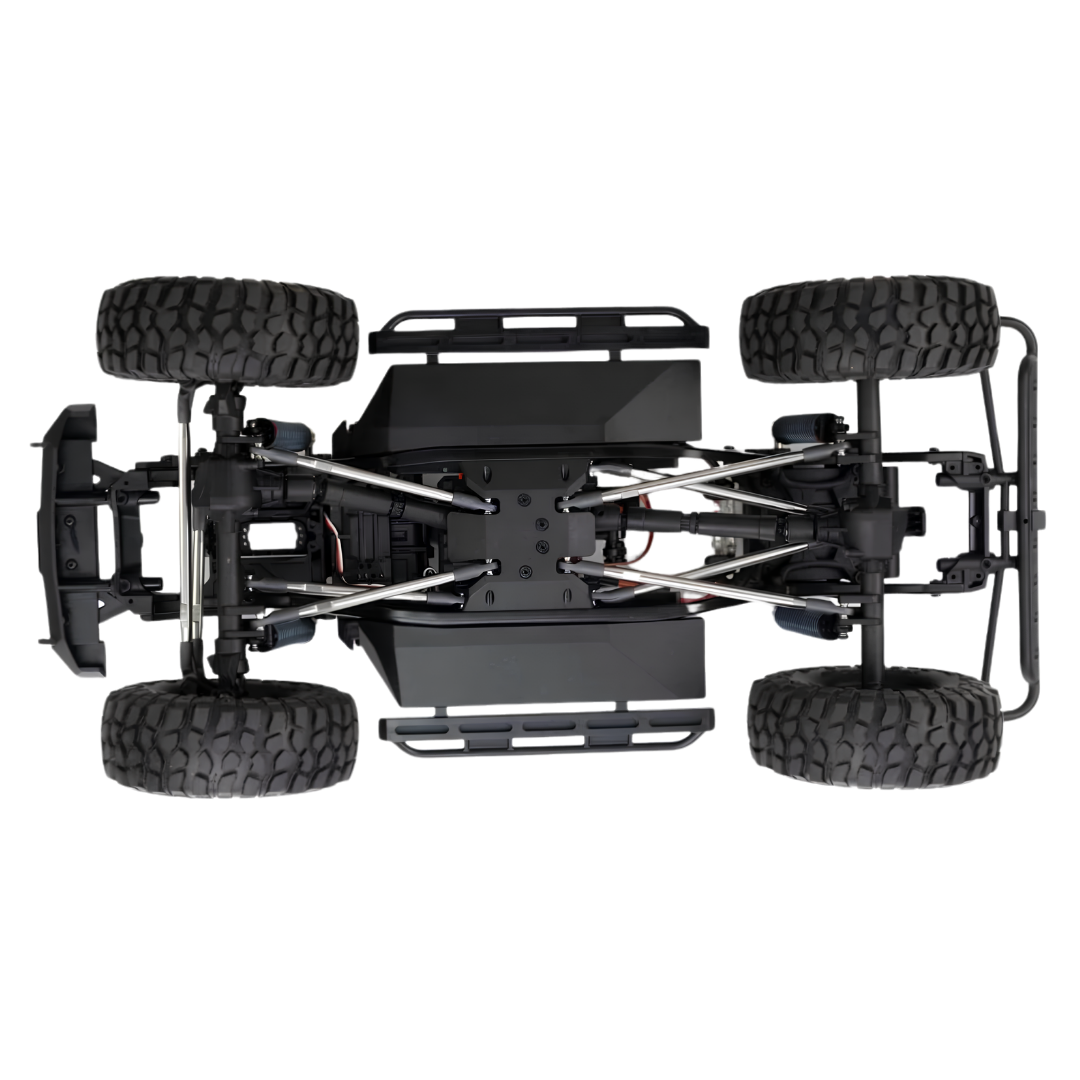

AR45 Straight Axles and Steel C-Channel Chassis

The SCX10 III Cherokee XJ uses AR45 standard straight axles, providing realistic solid-axle construction inspired by full-size off-road vehicles.

The one-piece steel C-channel chassis offers a strong foundation for the drivetrain and suspension, helping maintain predictable handling on uneven terrain.

An adjustable metal Panhard mount can be repositioned to accommodate compatible straight-axle or portal-axle configurations when modifying the vehicle.

Stainless Steel Suspension Links and Oil-Filled Shocks

The suspension features a front three-link and rear four-link layout with 6mm stainless steel links and metal pivot balls.

Oil-filled shocks with threaded aluminium bodies allow spring preload adjustment and damping tuning to suit different terrain and driving preferences.

The published factory shock oil specification is 35wt.

Axial Slick Rock 35T Brushed Power System

The Axial Slick Rock 35-turn brushed 540-size motor provides controlled low-speed torque suited to technical crawling.

It is paired with a Spektrum Firma 40A waterproof brushed ESC for reliable throttle control on the trail.

The factory power system uses an IC3 battery connector. Axial recommends a compatible 11.1V 3S LiPo battery, while suitable 2S packs may also be used where supported by the installed electronics and manufacturer instructions.

Spektrum SLT3 Radio and S683 Steering Servo

The included Spektrum SLT3 3-channel 2.4GHz transmitter provides proportional steering and throttle control, with the third channel assigned to DIG operation.

The factory-installed Spektrum SR515 receiver provides radio reception, while the S683 steering servo features a steel output gear and standard 25T spline.

The S683 is rated for high-voltage input, but the vehicle's operating voltage should remain within the specifications of the complete installed system.

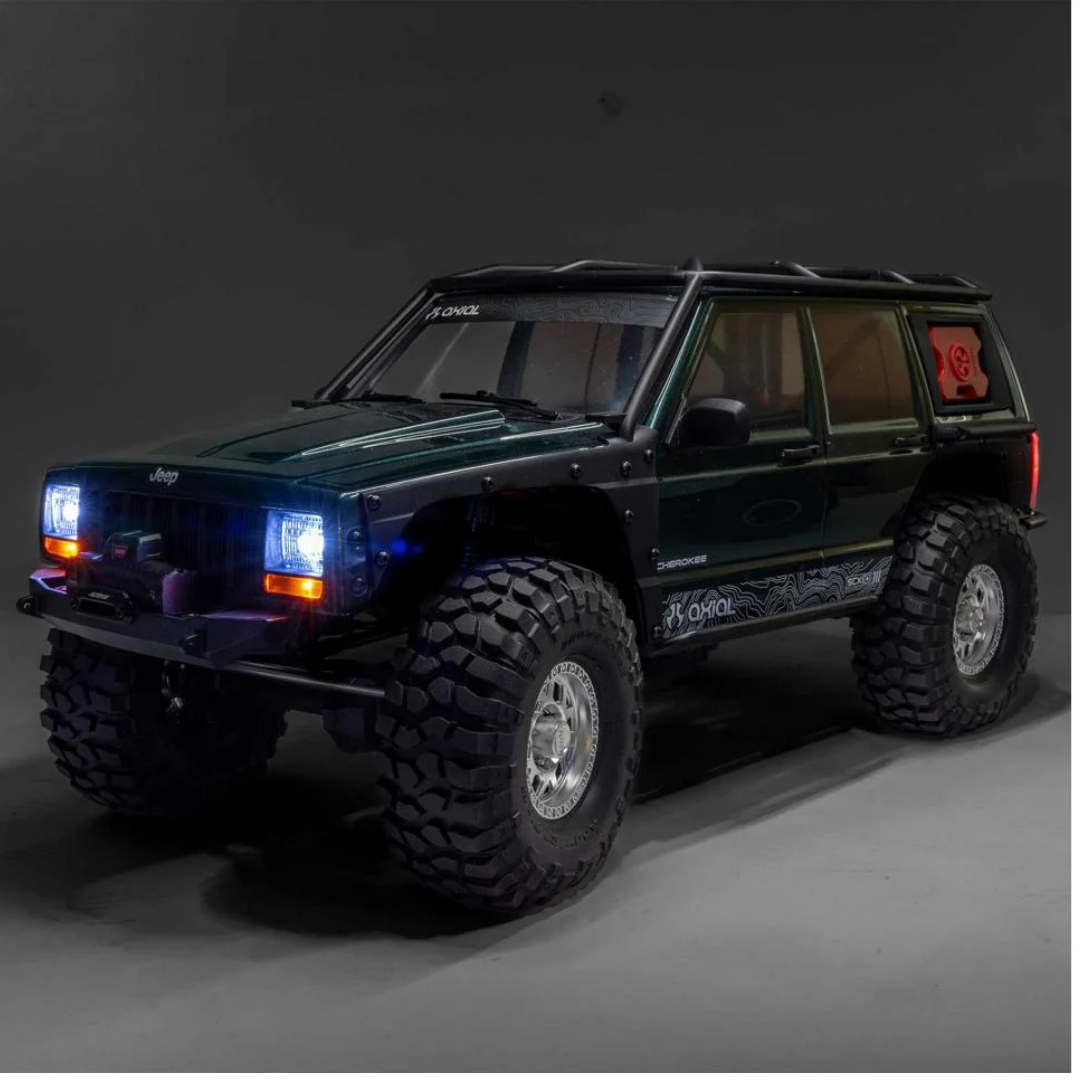

Functional LED Lighting

The Cherokee XJ includes functional LED headlights, yellow running lights and rear taillights.

The lighting enhances the realistic appearance of the vehicle during indoor displays, dusk driving and low-light trail adventures.

Technical Specifications

• Brand: Axial Adventure
• Manufacturer Part Number: AXI-2037T1
• UPC: 660132639389
• Model: SCX10 III Jeep Cherokee XJ
• Colour: Forest Green Pearl
• Scale: 1/10
• Vehicle Type: Rock Crawler / Scale Trail Truck
• Completion Level: Ready-to-Run (RTR)
• Power Type: Electric
• Drivetrain: Full-Time 4WD
• Body: Officially Licensed Jeep Cherokee XJ Polycarbonate
• Body Finish: Factory Painted
• Chassis: One-Piece Steel C-Channel
• Axles: AR45 Straight Axles
• Transmission: LCXU DIG
• Transmission Internal Gears: Metal
• Transmission Bearings: Full Ball Bearings
• Differentials: Spool / Locked
• Front Suspension: 3-Link
• Rear Suspension: 4-Link
• Suspension Links: 6mm Stainless Steel
• Suspension Pivot Balls: Stainless Steel
• Panhard Mount: Adjustable Metal
• Shock Type: Oil-Filled with Threaded Aluminium Bodies
• Factory Shock Oil: 35wt
• Motor: Axial Slick Rock 35T Brushed
• Motor Size: 540
• ESC: Spektrum Firma 40A Waterproof Brushed
• Receiver: Spektrum SR515 DSMR
• Transmitter: Spektrum SLT3 3-Channel 2.4GHz
• Steering Servo: Spektrum S683 with Steel Output Gear
• Steering Servo Spline: 25T
• DIG Servo: Spektrum SX108PM
• DIG System: Factory Installed
• Tyres: Licensed BFGoodrich Krawler T/A KX
• Tyre Compound: Soft
• Wheels: Licensed KMC KM444 MESA
• Wheel Diameter: 1.9 Inches
• Wheel Hex: 12mm
• Pinion Gear: 14T
• Spur Gear: 56T Composite
• Published Gear Pitch: 32-Pitch
• Published Final Drive Ratio: 9.80:1
• Lighting: LED Headlights, Running Lights and Taillights
• Battery Compatibility: Manufacturer-Recommended 3S LiPo
• Battery Connector: IC3
• Maximum Battery Dimensions: 100 x 50 x 31mm
• Product Length: 508mm
• Product Width: 231mm
• Product Height: 246mm
• Wheelbase: 312mm (12.3 Inches)
• Assembly Required: No
• Vehicle Battery Included: No
• Charger Included: No
• Transmitter Batteries: 4 AA Included

What's Included?

• 1 x Axial SCX10 III Jeep Cherokee XJ 4WD RTR Rock Crawler – Forest Green Pearl
• 1 x Factory-Painted Licensed Jeep Cherokee XJ Body
• 1 x Spektrum SLT3 3-Channel Transmitter
• 1 x Spektrum SR515 Receiver (Installed)
• 1 x Spektrum Firma 40A Waterproof Brushed ESC (Installed)
• 1 x Axial Slick Rock 35T Brushed 540 Motor (Installed)
• 1 x Spektrum S683 Steering Servo (Installed)
• 1 x Spektrum SX108PM DIG Servo (Installed)
• 1 x LCXU DIG Transmission (Installed)
• 1 x Factory-Installed LED Lighting System
• 4 x AA Transmitter Batteries
• 1 x Product Manual

Required to Complete

• 1 x Compatible LiPo Driving Battery with IC3 Connector
• 1 x Suitable LiPo Balance Charger

Axial recommends a Spektrum Smart G2 Trail Pro 3400mAh 3S 50C LiPo battery with IC3 connector and a Spektrum S155 55W AC G2 Smart Charger. These are recommended accessories, not included components.

Important: The driving battery and charger are sold separately. Four AA transmitter batteries are included.

Frequently Asked Questions

What is Axial AXI-2037T1? It is the Forest Green Pearl Axial SCX10 III Jeep Cherokee XJ 1/10 scale 4WD RTR brushed rock crawler.

Is this the green version? Yes. AXI-2037T1 is Forest Green Pearl. The Stone White version is AXI-2037T2.

Is the Jeep body officially licensed? Yes. It features an officially licensed second-generation Jeep Cherokee XJ body.

Is the body pre-painted? Yes. The polycarbonate body arrives painted and assembled.

Is this a complete RTR vehicle? Yes. It arrives assembled with radio and electronics installed, but requires a separate driving battery and charger.

Does it include a LiPo battery? No. The driving battery is sold separately.

Does it include a charger? No. A compatible LiPo charger must be purchased separately.

Are transmitter batteries included? Yes. Four AA batteries are supplied.

What battery does Axial recommend? A Spektrum Smart G2 Trail Pro 3400mAh 3S 50C LiPo battery with IC3 connector.

Can I use a 2S LiPo battery? The supplied retailer information lists 2S–3S operation. Verify compatibility with the installed ESC and current manufacturer instructions before use.

Can I use a 3S LiPo battery? Yes. Axial explicitly recommends a compatible 11.1V 3S LiPo battery.

What battery connector does it use? IC3.

What battery dimensions will fit? The published maximum battery dimensions are 100 x 50 x 31mm. Check cable clearance and secure mounting before driving.

Can it accept shorty batteries? Yes, provided the battery meets the voltage, connector and physical fitment requirements.

Is the motor brushless? No. It uses an Axial Slick Rock 35-turn brushed 540-size motor.

What ESC is installed? A Spektrum Firma 40A waterproof brushed ESC.

Does it have DIG? Yes. The LCXU transmission includes a factory-installed DIG system.

What does DIG do? DIG locks the rear drivetrain while the front wheels remain powered, helping the crawler turn more tightly on technical terrain.

How is DIG operated? Through the third channel of the included Spektrum SLT3 transmitter.

Does DIG unlock the differentials? No. DIG is a rear drivetrain locking function rather than a selectable open-differential system.

Does it have portal axles? No. The vehicle is supplied with AR45 straight axles.

Can portal axles be fitted? The platform supports compatible portal conversions, but additional components and setup changes are required.

Are the transmission gears metal? The LCXU has metal internal gears, while the 56-tooth spur gear is composite.

Does it have oil-filled shocks? Yes. The shocks have threaded aluminium bodies and oil damping.

What suspension layout does it use? Three-link front suspension and four-link rear suspension.

What tyres are included? Officially licensed BFGoodrich Krawler T/A KX soft-compound tyres.

What wheels are fitted? Officially licensed KMC KM444 MESA 1.9-inch wheels.

Are the wheels beadlock? The supplied retailer describes them as beadlock wheels. Check the exact wheel construction before purchasing replacement tyre hardware or assuming a particular beadlock assembly design.

Is the WARN winch functional? No. The WARN EVO10-S is a non-functional decorative scale winch.

Is the Factor 55 fairlead made from metal? Yes. It is specified as machined aluminium.

Does it have working lights? Yes. LED headlights, yellow running lights and rear taillights are included.

Is the entire crawler waterproof? The ESC is waterproof-rated, but do not assume every component is waterproof. Follow the manufacturer guidance for each component.

Is it suitable for beginners? Yes. The RTR format is approachable for new drivers, while DIG and suspension tuning provide additional capability for experienced enthusiasts.

Can I fit aftermarket SCX10 III parts? Many aftermarket parts are available, but fitment varies by model and revision. Confirm compatibility with AXI-2037T1.

Can I change the body? Potentially. Check the 312mm wheelbase, body mounting system and wheel clearance before purchasing a replacement body.

Is it designed for high-speed driving? No. The Cherokee XJ is designed primarily for controlled low-speed crawling and trail driving.

Important Notes

• This listing is specifically for Forest Green Pearl AXI-2037T1
• Stone White AXI-2037T2 is a separate colour variant
• Complete RTR crawler with factory-installed radio and electronics
• Driving battery and charger are sold separately
• Four AA transmitter batteries are included
• Manufacturer recommends a compatible 3S LiPo battery with IC3 connector
• Confirm any proposed 2S battery configuration against the installed electronics documentation
• Maximum battery dimensions are 100 x 50 x 31mm
• Factory-installed DIG transmission and DIG servo included
• Uses AR45 straight axles, not portal axles
• WARN EVO10-S scale winch is decorative and non-functional
• Metal internal transmission gears do not mean every transmission component is metal
• Do not assume the entire vehicle is waterproof
• Confirm individual aftermarket parts compatibility before purchase
• Never leave LiPo batteries unattended while charging
• Follow manufacturer instructions for battery care and maintenance
