Axial SCX10 III Motobilt JT Gladiator RC Crawler 1/10 4X4 RTR Tan AXI-2443T1

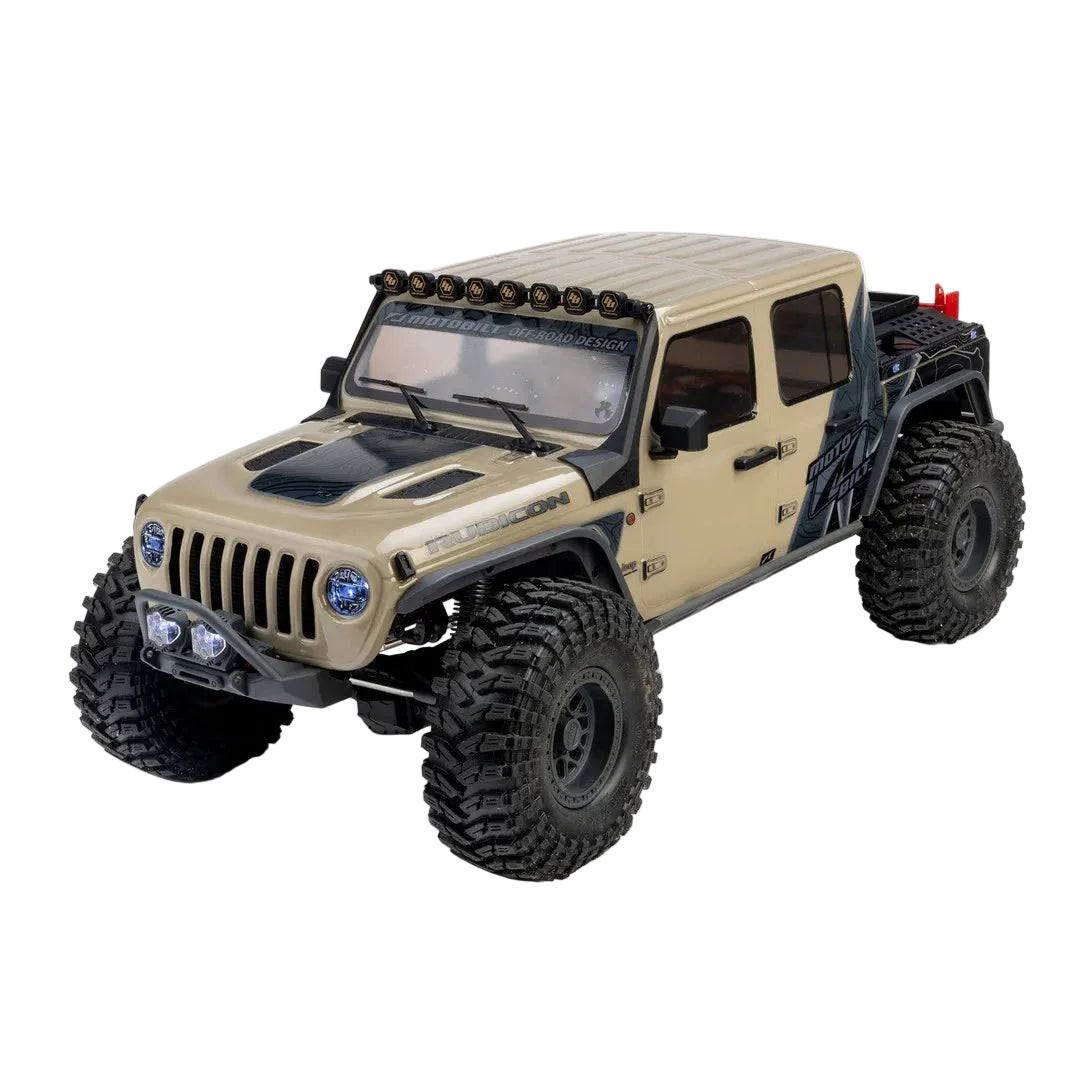

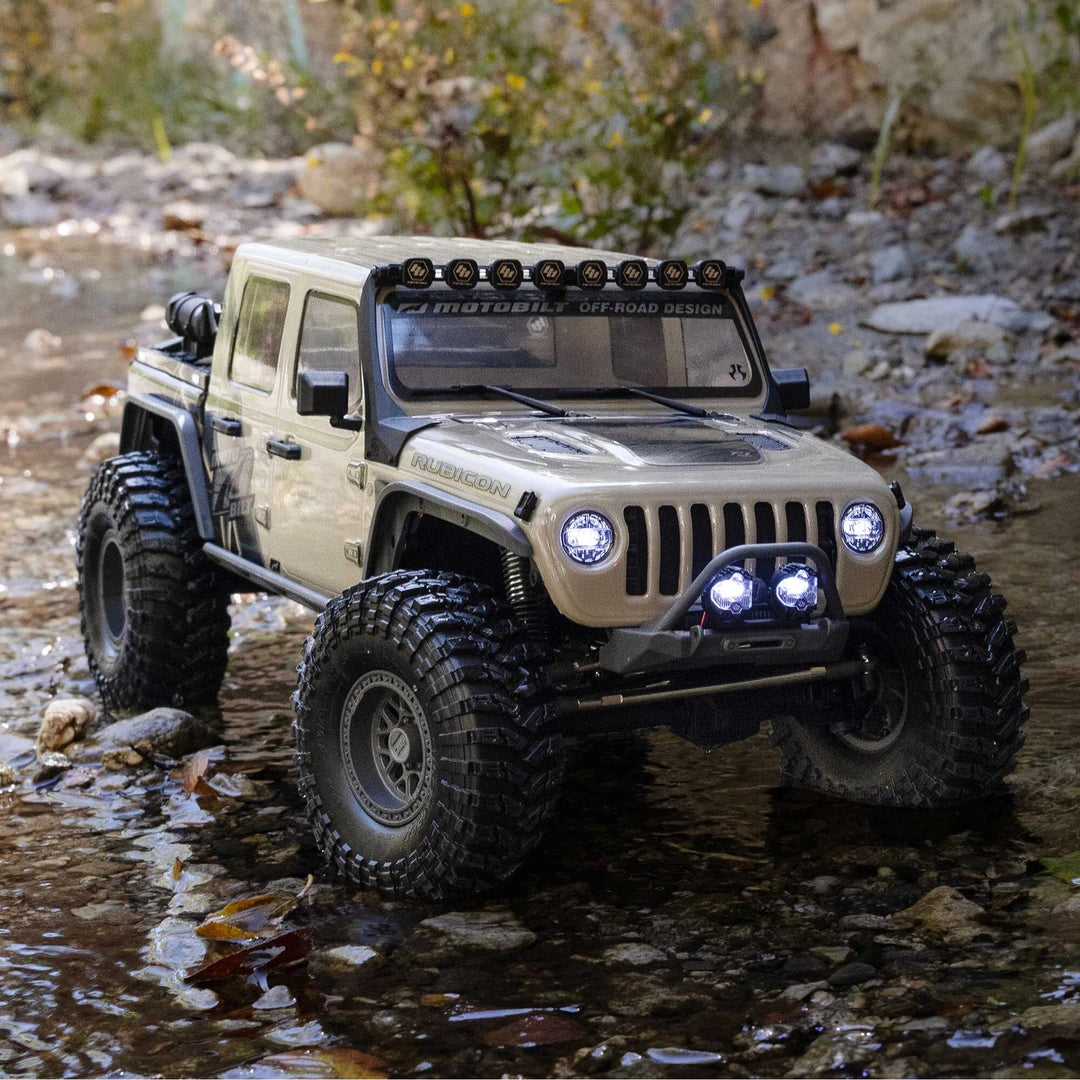

The Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator is a 1/10 scale 4X4 RTR RC rock crawler designed for scale trail driving and technical crawling, combining a licensed Jeep body with the SCX10 III chassis, Dig transmission and ready-fitted electronics.

Features

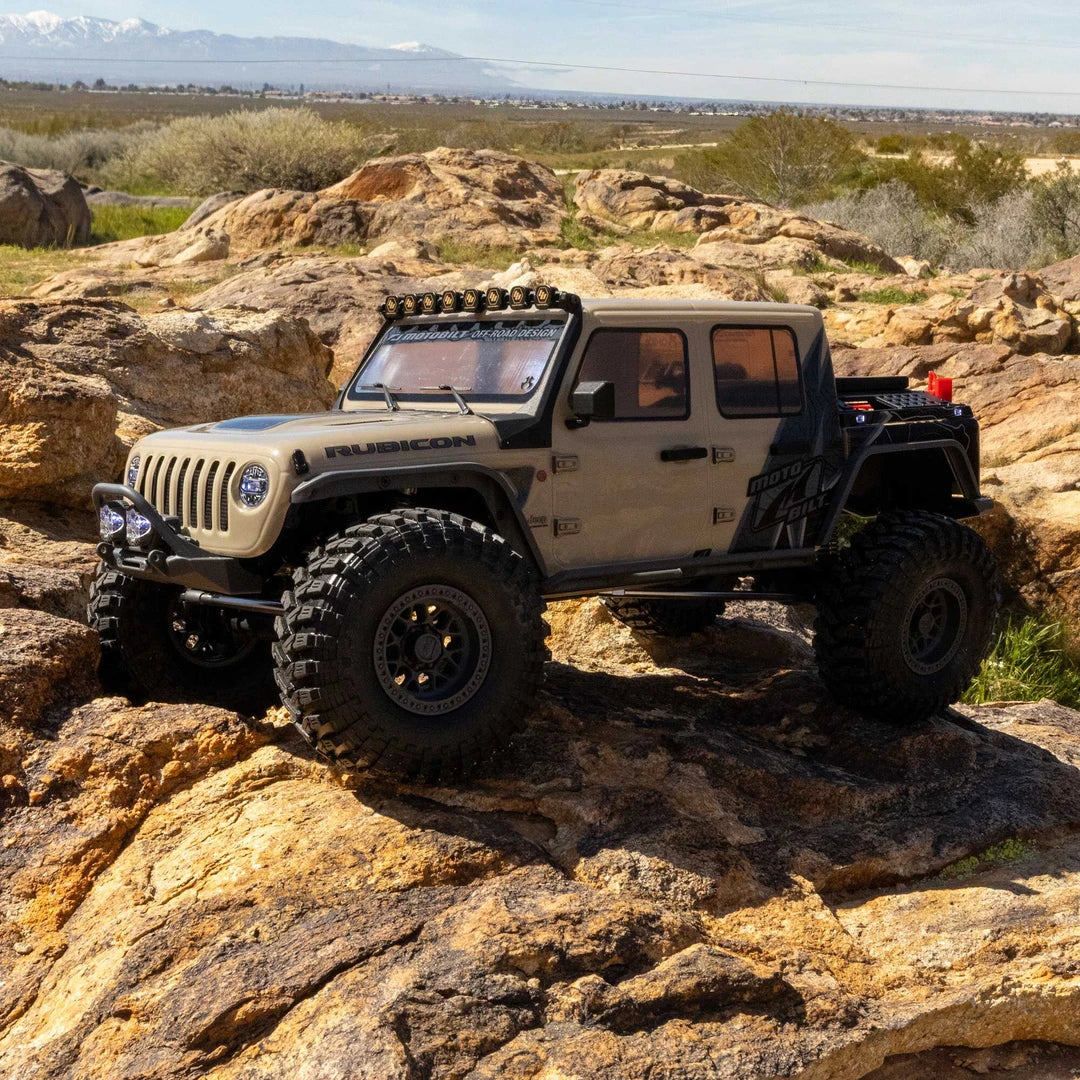

• Motobilt Waypoint Build: Officially licensed Jeep JT Gladiator body recreates the distinctive Motobilt Waypoint off-road build
• Ready-To-Run: Fully assembled crawler with radio system, motor, ESC and steering and Dig servos installed

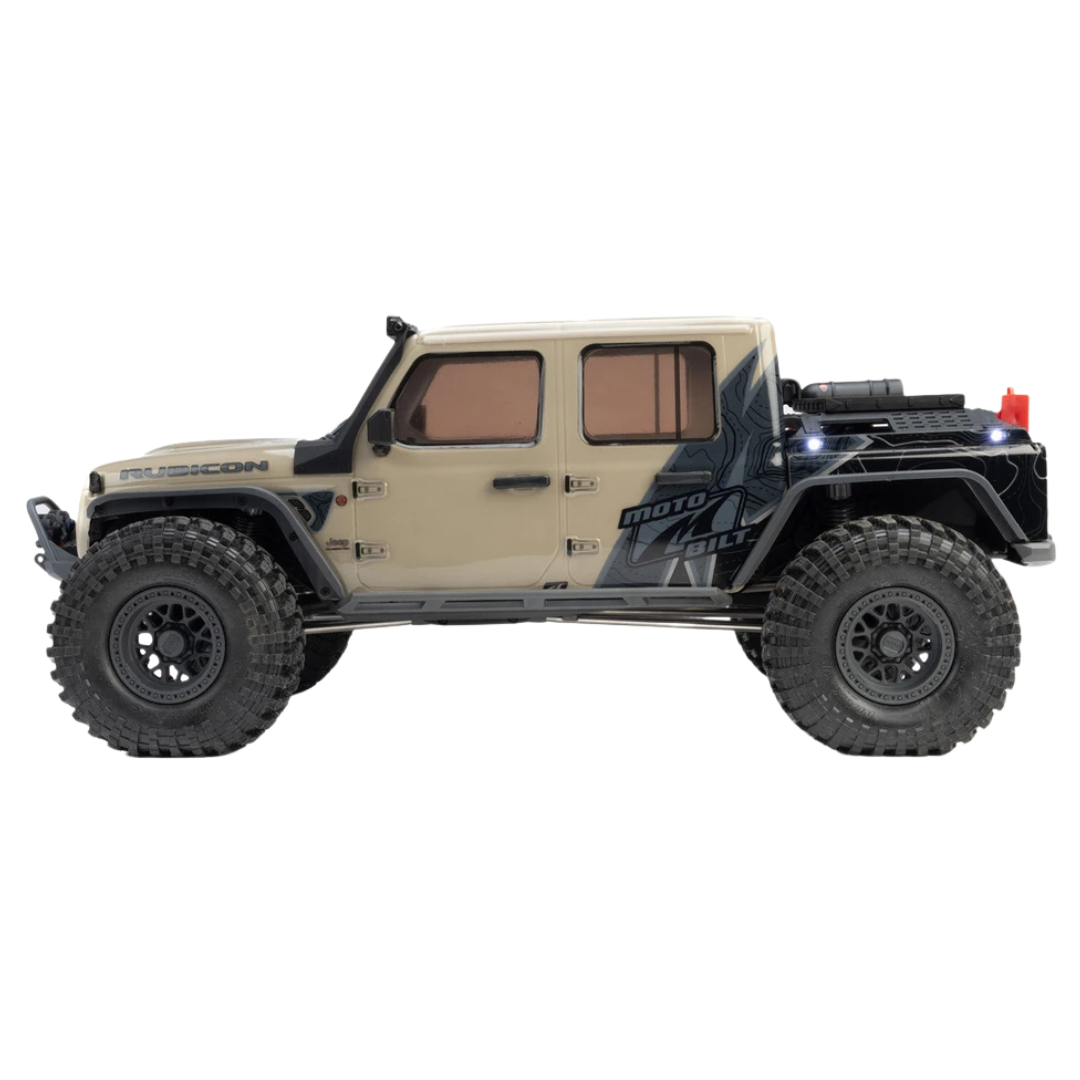

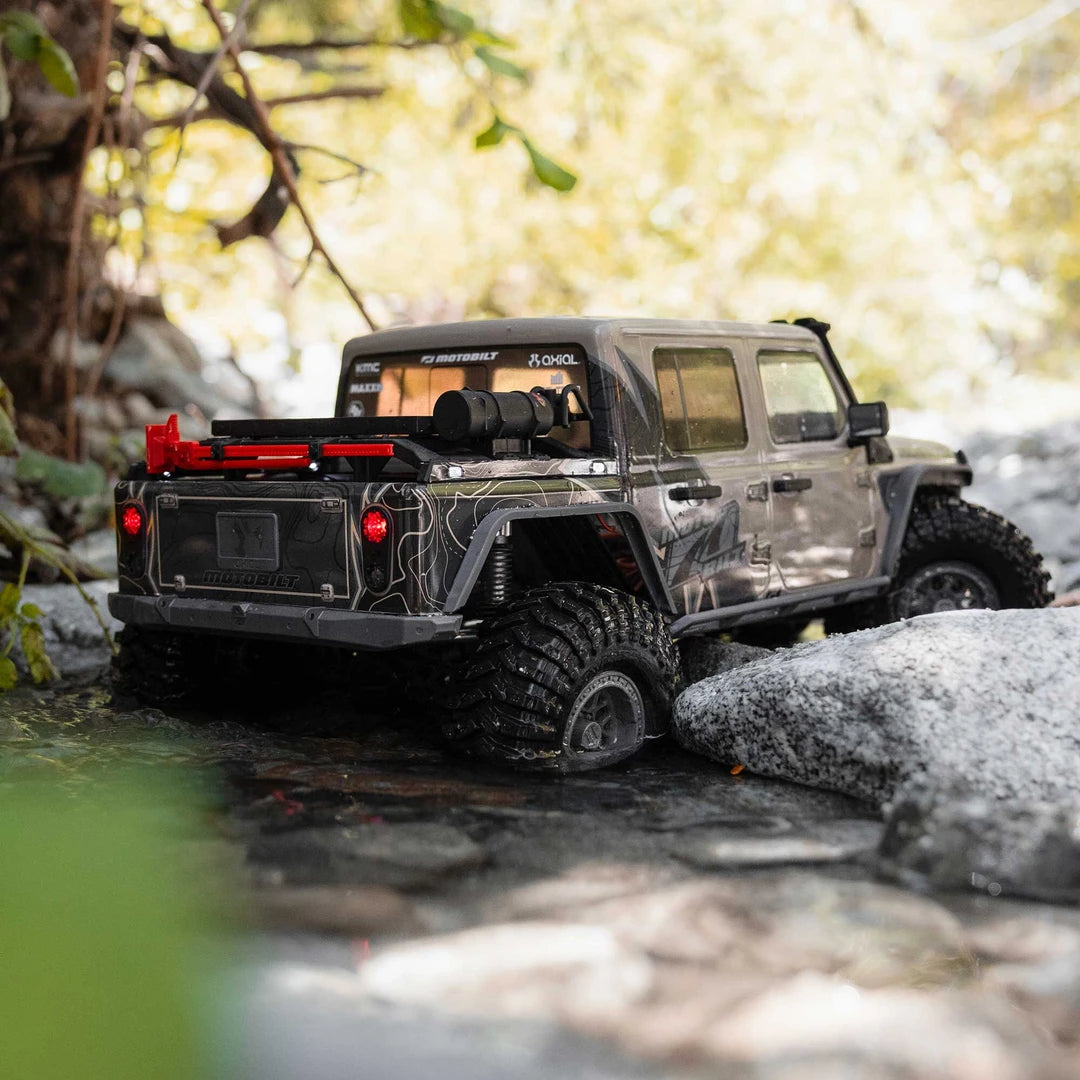

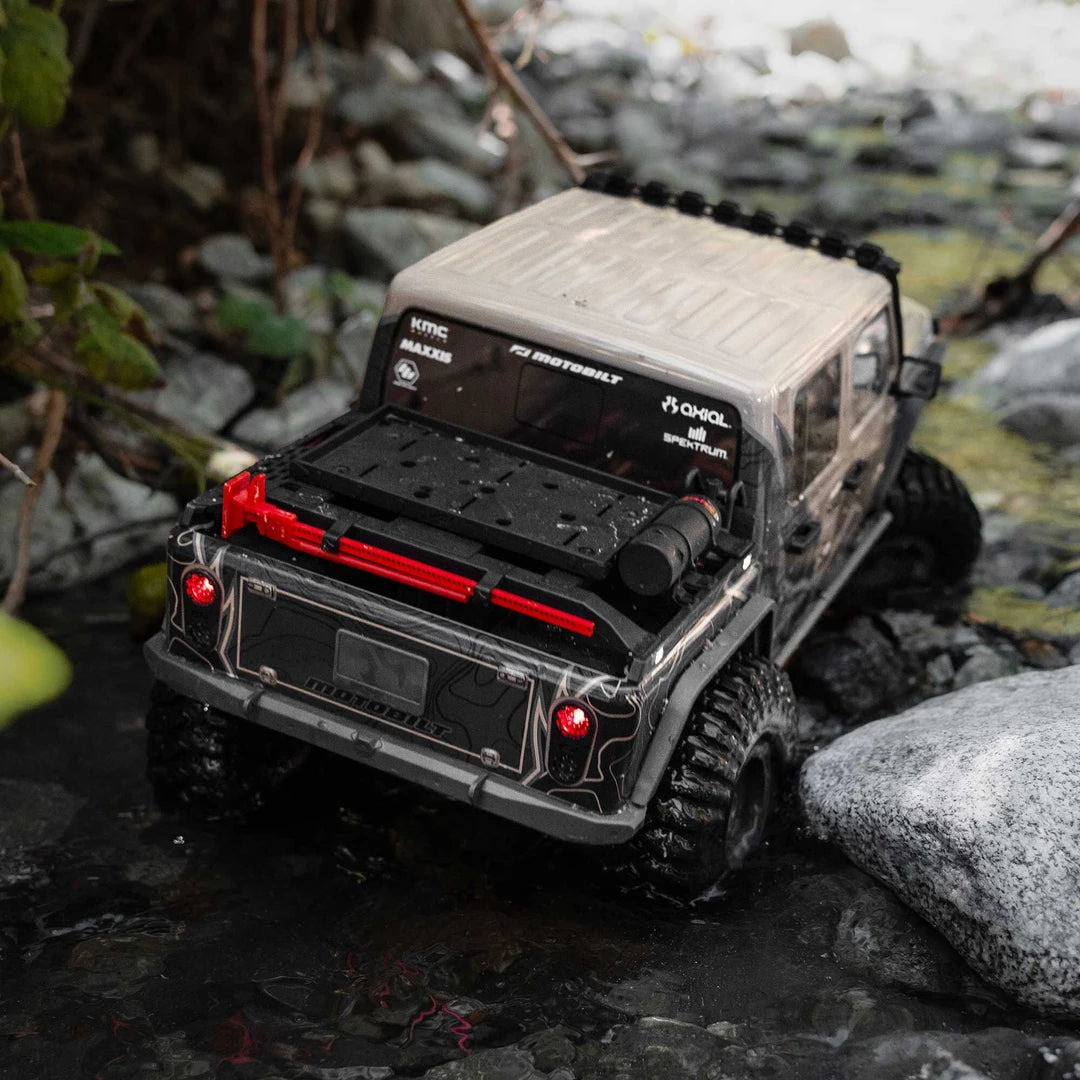

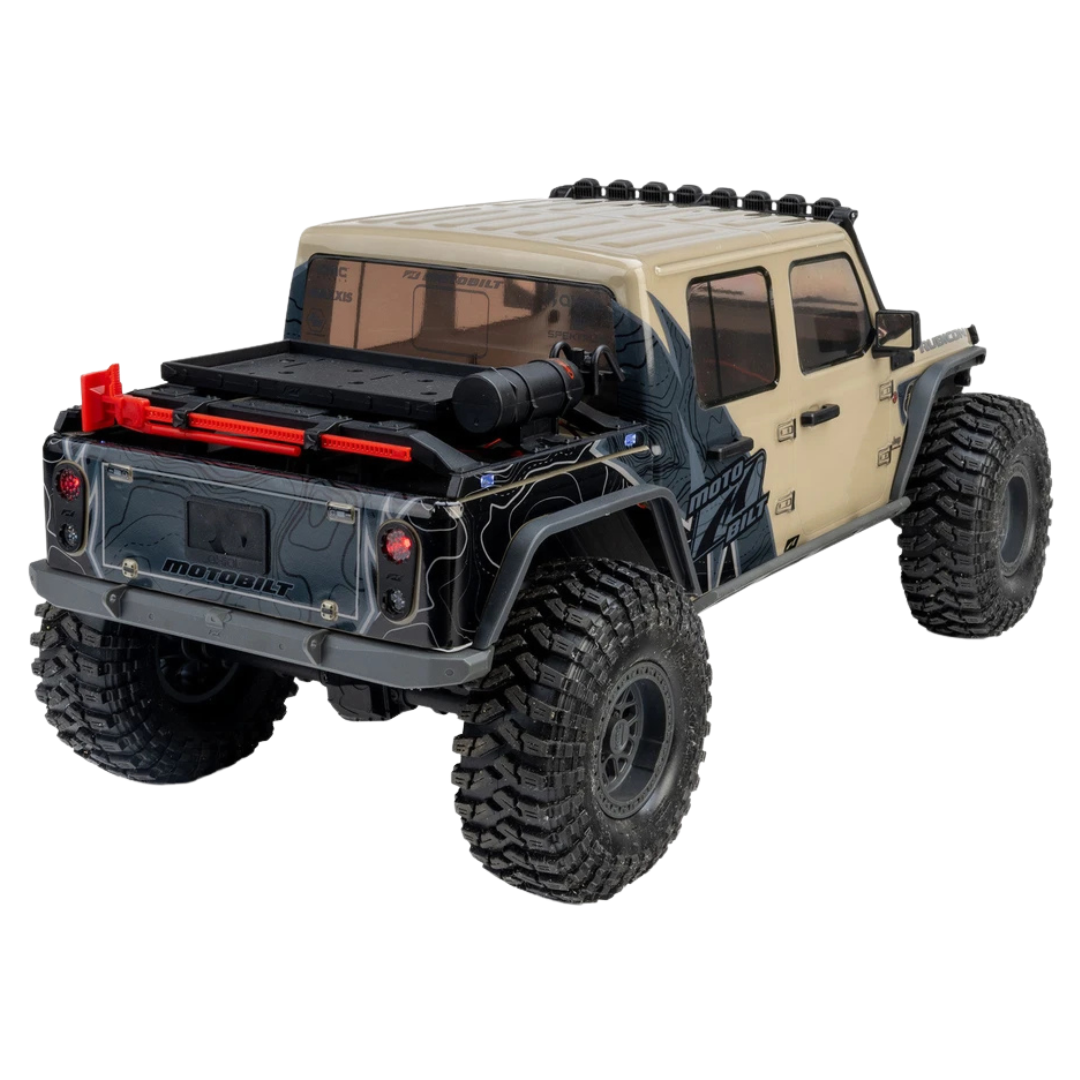

• Bobbed Bed: Shortened rear body design improves departure clearance when negotiating rocks and steep trail obstacles

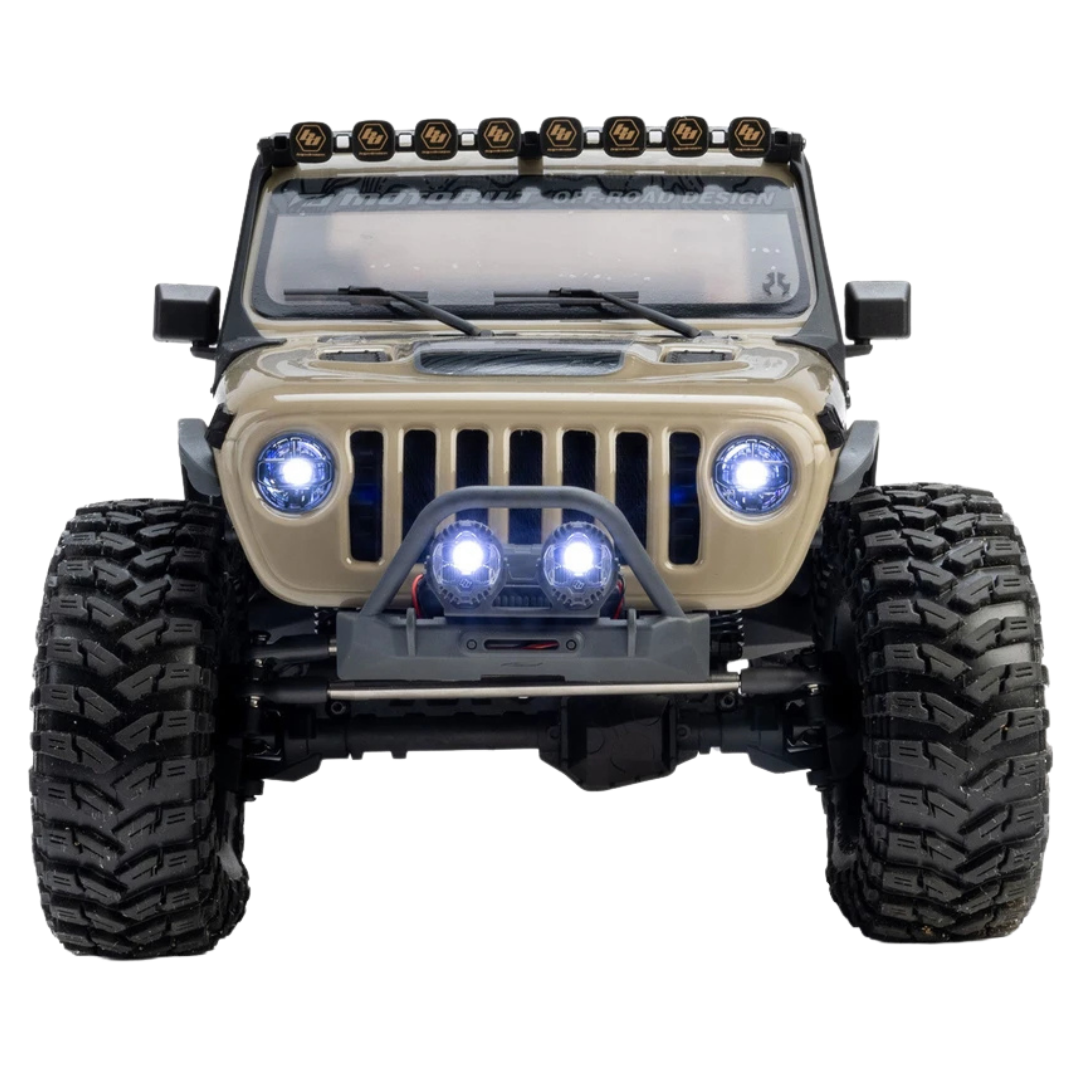

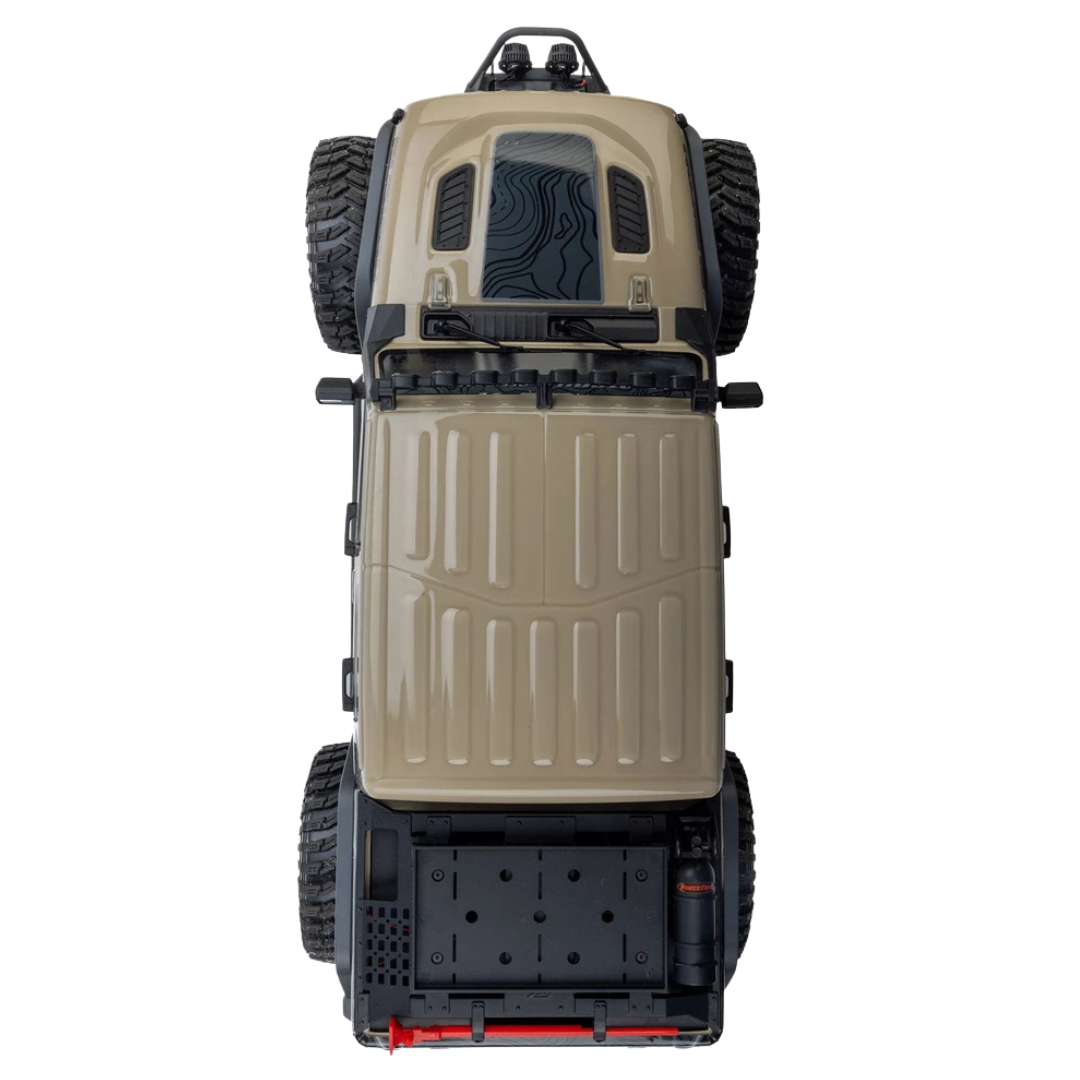

• Scale Body Details: Painted polycarbonate body includes Jeep's 7-slot grille, fender flares, door handles, hood vents, side mirrors and inner fender wells

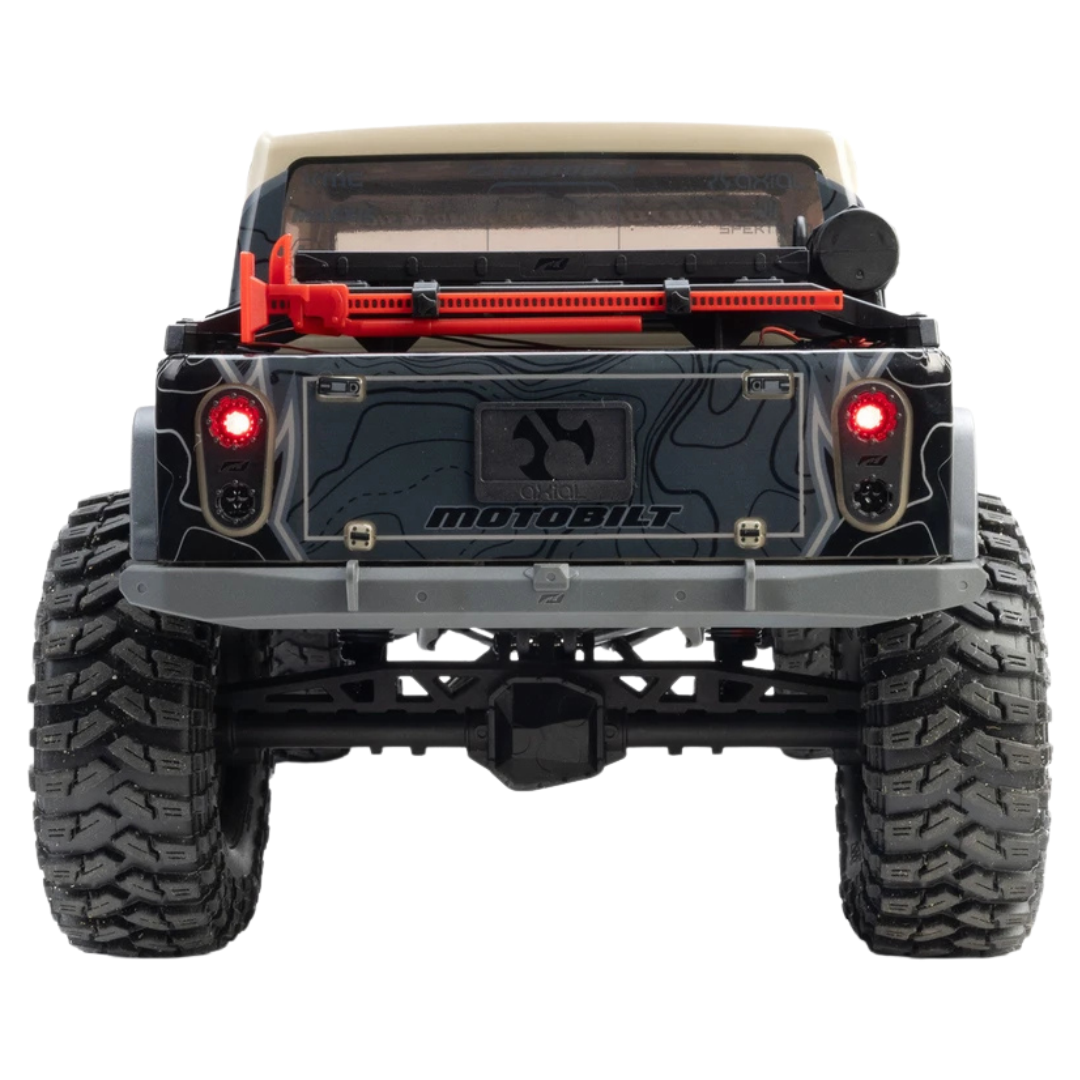

• Motobilt Accessories: Features scale Motobilt front and rear bumpers, CO2 tank and Hi-Lift jack details

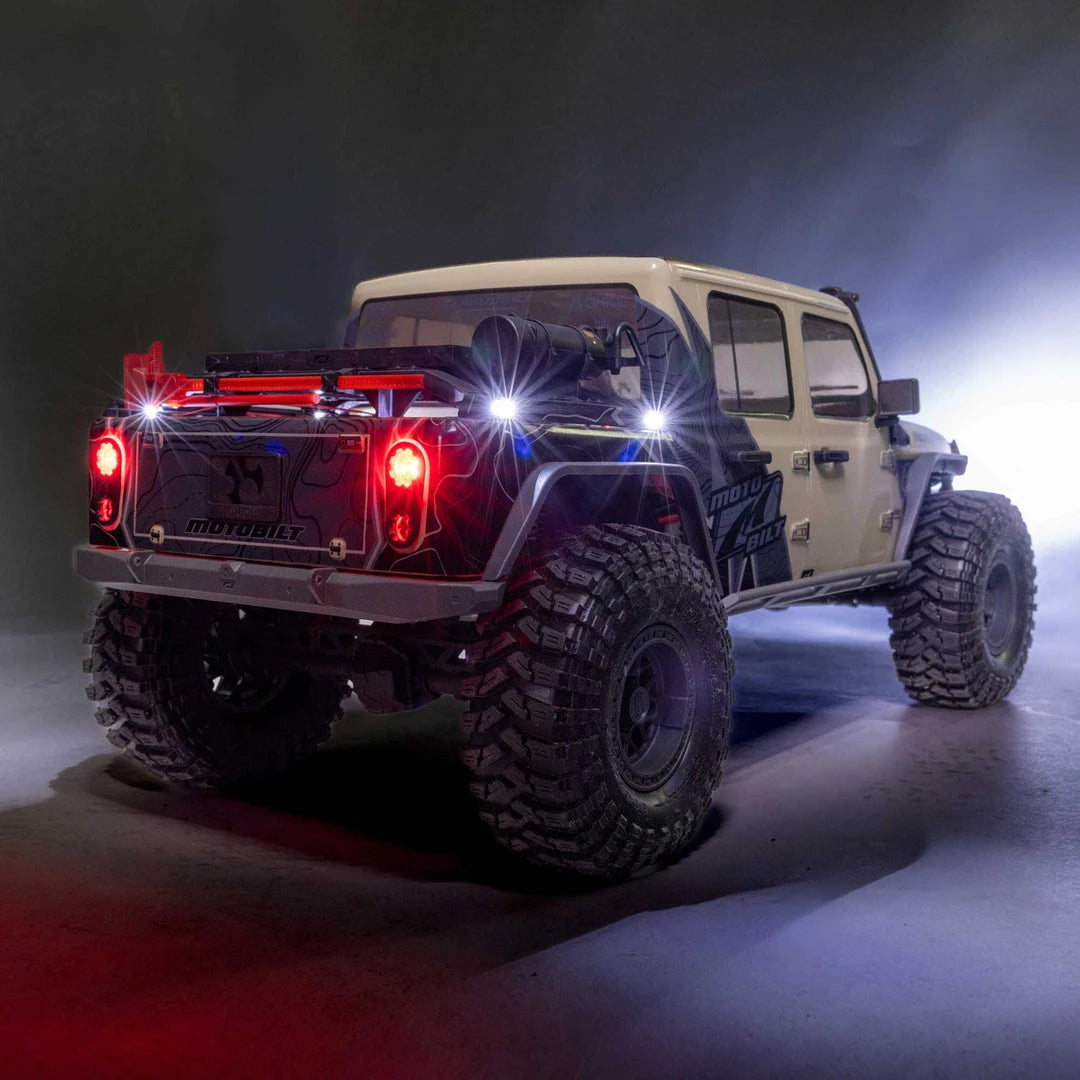

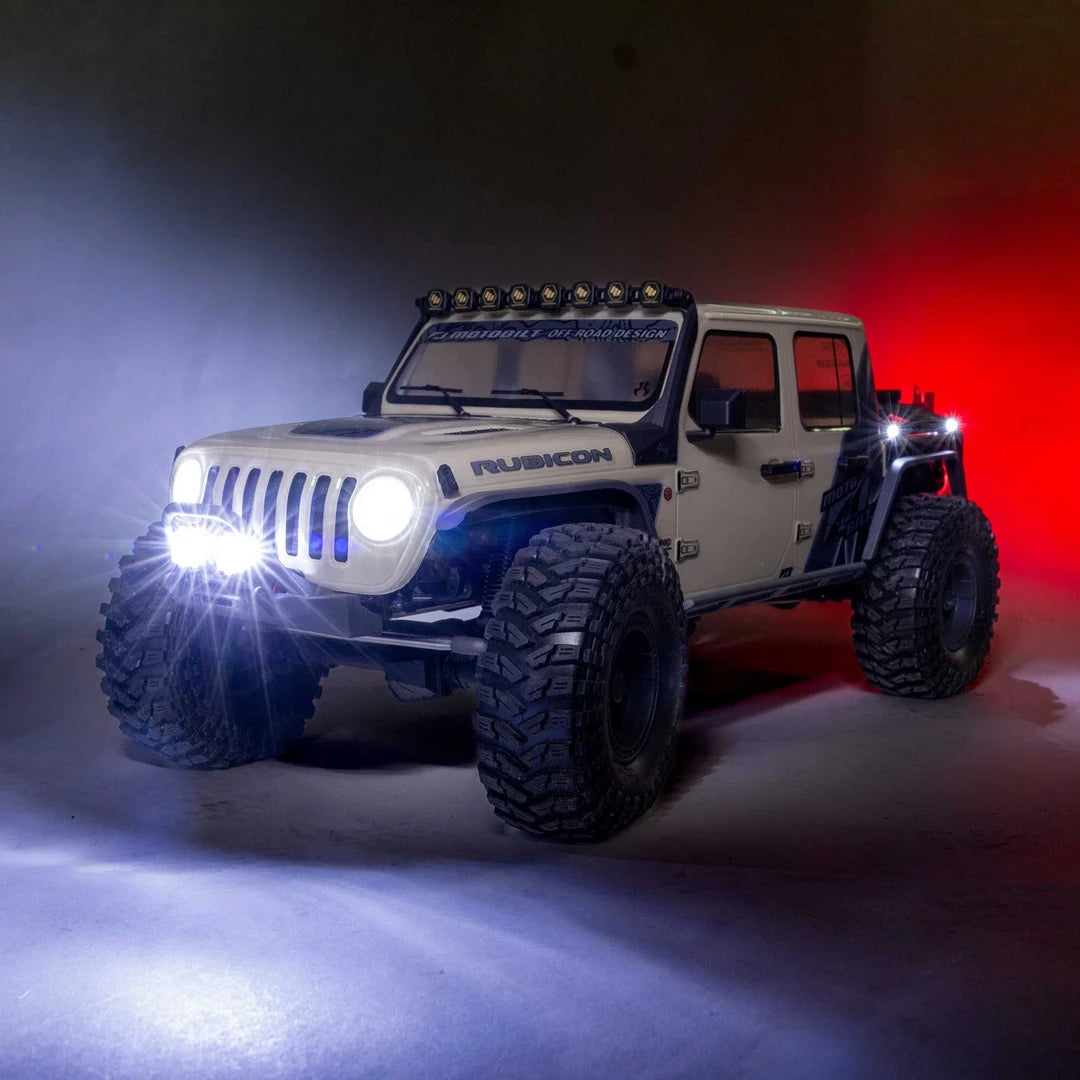

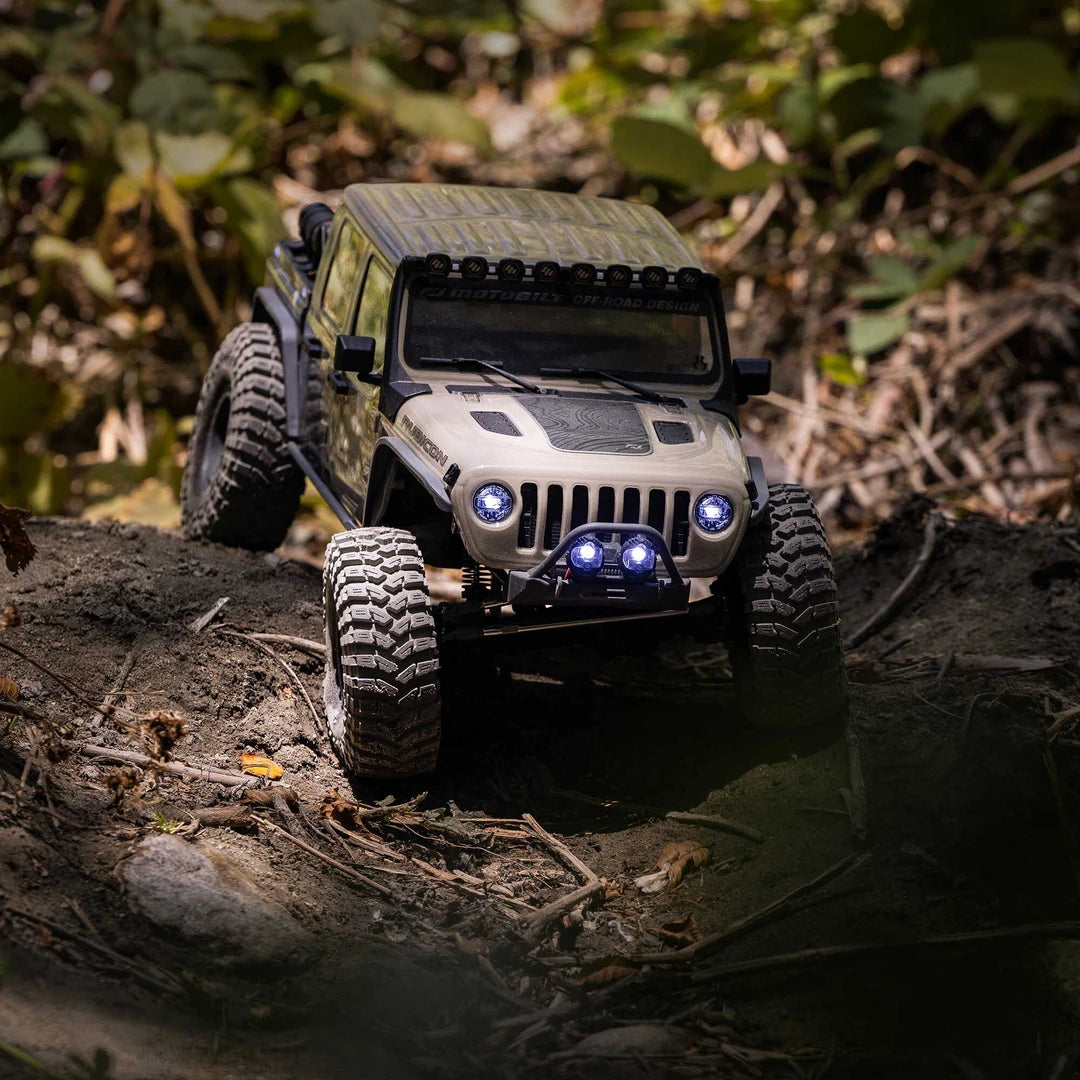

• LED Lighting: Functional lighting is fitted to the bumper, headlights, tail lights and bed rack for improved visibility and scale detail
• KMC Beadlock Wheels: Officially licensed KMC Grenade beadlock wheels allow the tyres to be retained mechanically without tyre glue
• Maxxis Trepador Tyres: Licensed Maxxis Trepador tyres use Axial's soft compound for trail and rock crawling traction
• AR45 Straight Axles: Includes a driver-offset differential housing at the front for realistic crawler layout and ground clearance

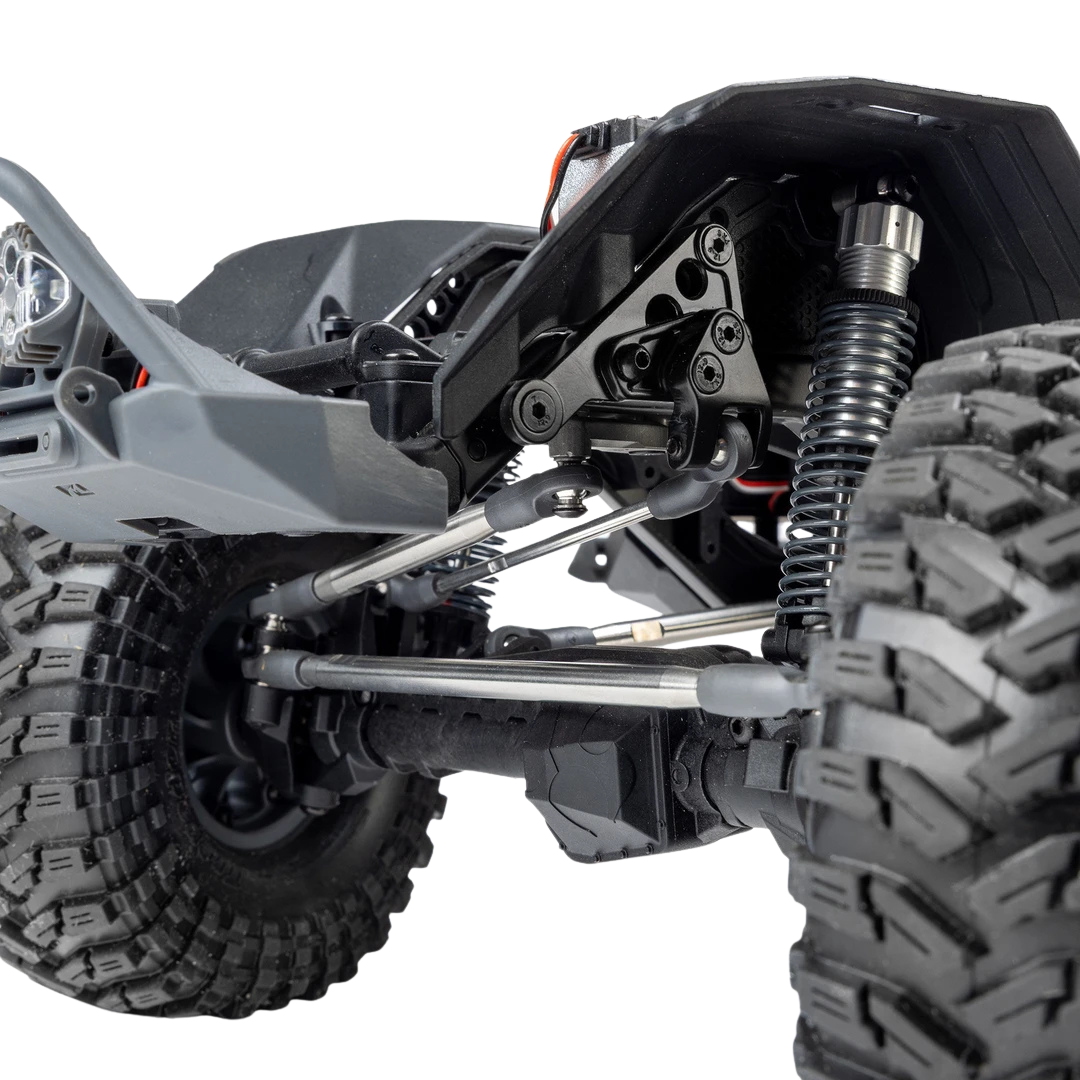

• Adjustable Suspension: Oil-filled aluminium threaded-body shocks work with a front 3-link and rear 4-link suspension system
• Stainless Steel Links: 6mm stainless steel suspension links and stainless steel pivot balls provide a durable trail setup

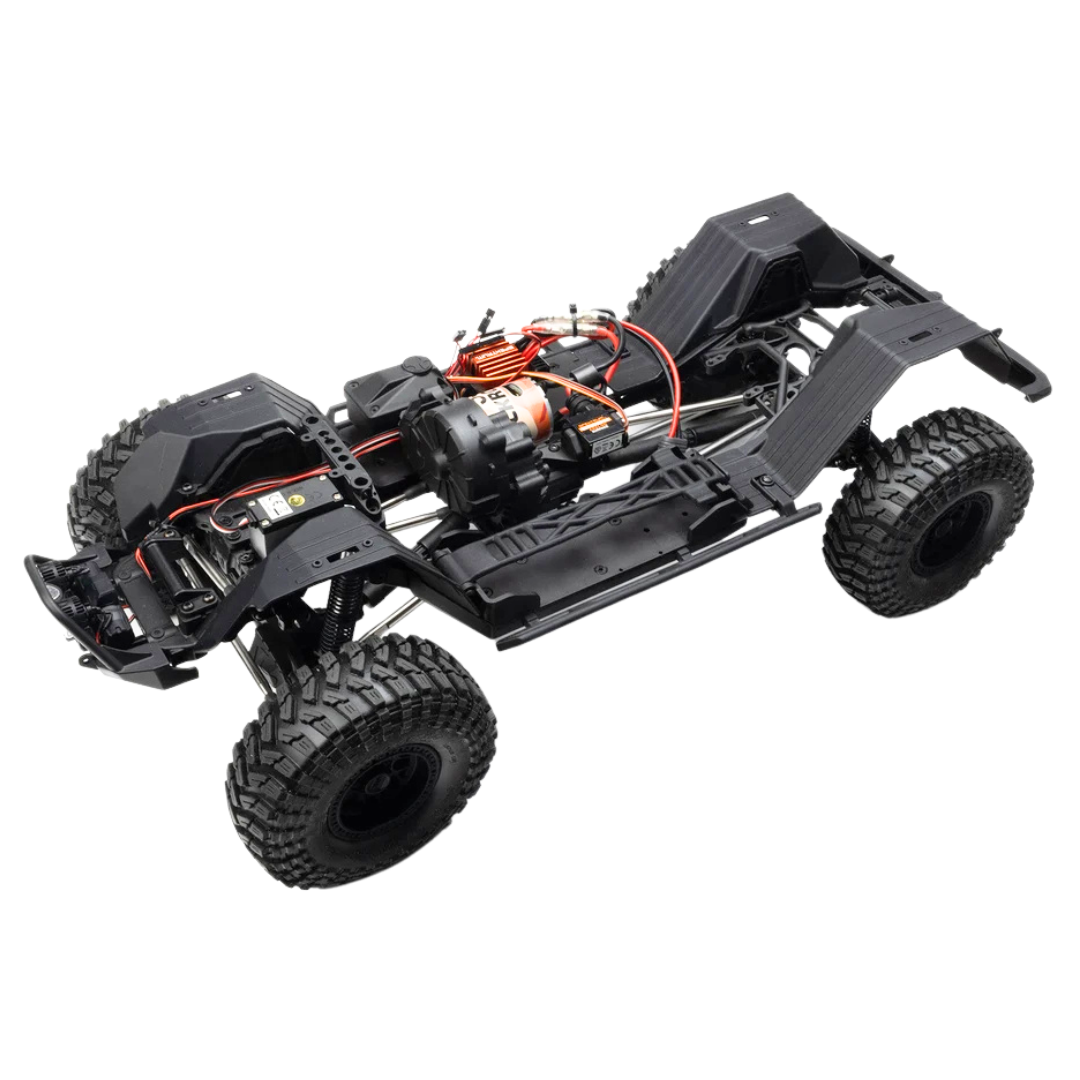

• Steel C-Channel Chassis: Expandable steel chassis rails support the extended 13.9-inch wheelbase while reducing unwanted frame flex
• All-Metal Transmission Gears: SCX10 III transmission uses metal internal gears and full ball bearings
• Factory Dig Function: Third-channel control can lock the rear drivetrain so the front wheels pull the crawler through tighter technical turns
• Adjustable Link Geometry: Multiple upper-link positions in the skid plate allow suspension geometry and anti-squat to be tuned

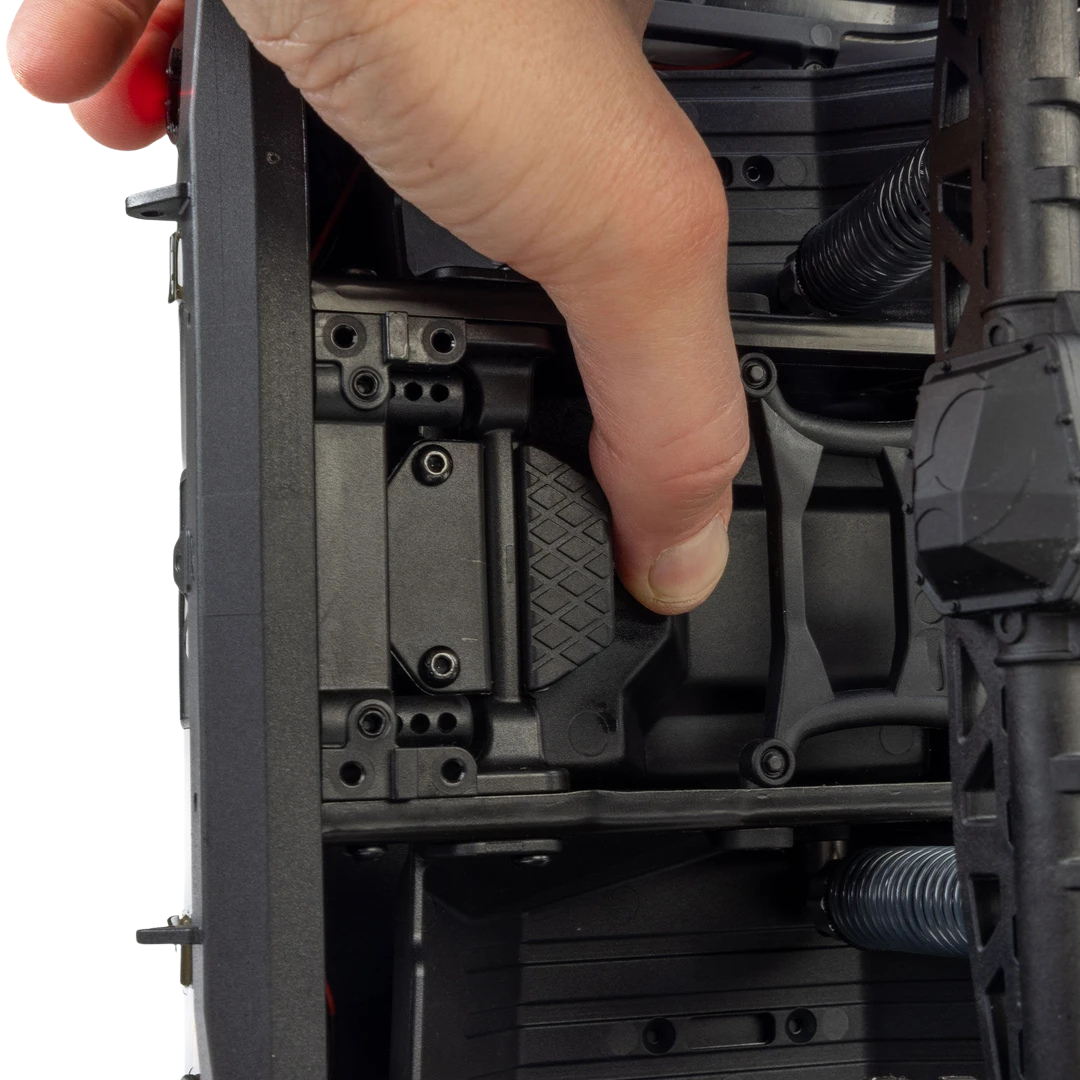

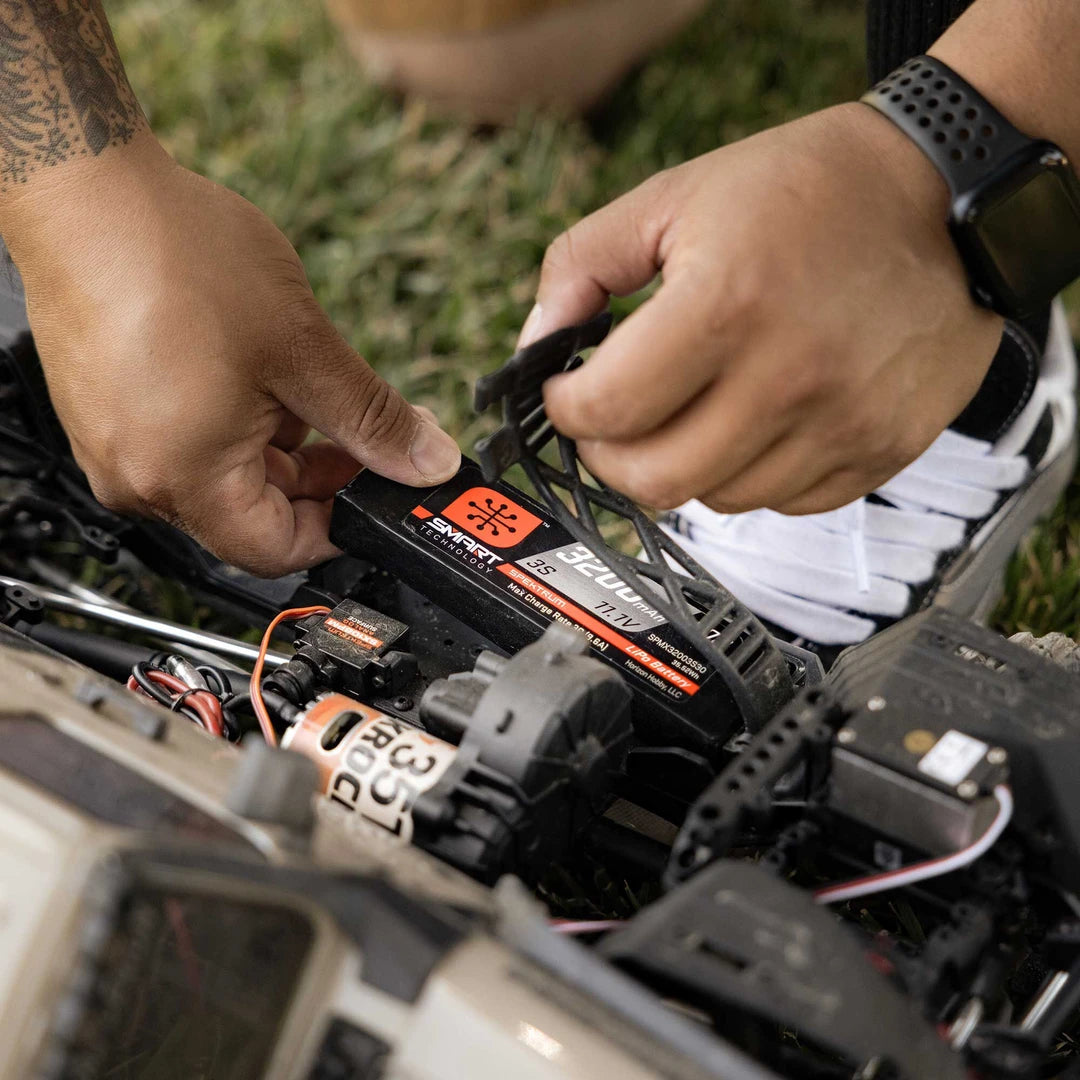

• Battery Mounting System: Silicone elastomer straps provide convenient battery access and support standard or shorty battery packs

Specifications

• Brand: Axial
• Model: SCX10 III Motobilt Waypoint Jeep JT Gladiator
• Manufacturer Part Number: AXI-2443T1
• UPC: 660132633516
• Product Type: RC Rock Crawler
• Scale: 1/10
• Completion Level: RTR Ready-To-Run
• Drivetrain: 4WD
• Colour: Tan
• Power Type: Electric

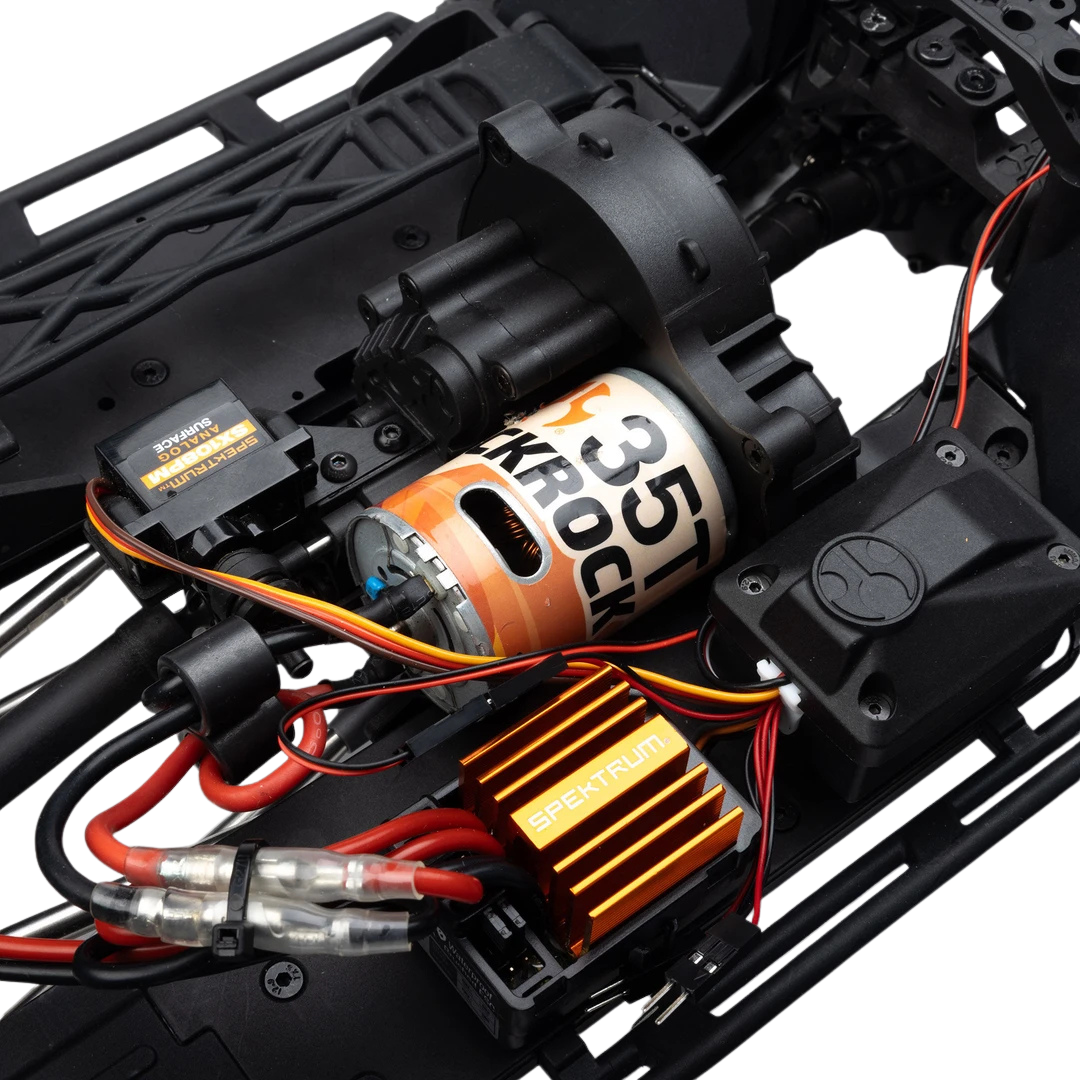

• Motor: Axial Slick Rock 35-Turn 540 brushed motor
• ESC: Spektrum Firma 40A brushed waterproof ESC
• Radio: Spektrum SLT3 3-channel transmitter
• Receiver: Spektrum SR515
• Steering Servo: Spektrum S683 with 25T steel output gear
• Dig Servo: Spektrum SX108 micro servo
• Transmission: SCX10 III with all-metal internal gears and full ball bearings
• Dig Function: Factory installed and transmitter operated
• Axles: AR45 straight axles
• Suspension: Front 3-link and rear 4-link
• Shocks: Oil-filled aluminium threaded-body shocks
• Chassis: Expandable steel C-channel rails
• Wheelbase: 13.9 in
• Wheels: Officially licensed KMC Grenade beadlock wheels
• Tyres: Maxxis Trepador soft-compound tyres
• Wheel Hex: 12mm
• Pinion Gear: 14T
• Spur Gear: 56T
• Internal Gear Ratio: 11.80:1
• Final Drive Ratio: 47.20:1
• Battery Compatibility: 2S or 3S LiPo
• Battery Connector: IC3
• Maximum Battery Dimensions: 138 x 46 x 35mm
• Length: 551mm
• Width: 251mm
• Height: 234mm
• Weight: 3.02kg without battery
• Body: Painted and assembled polycarbonate Jeep JT Gladiator

Includes

• 1 x Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4X4 RTR Rock Crawler in Tan
• 1 x Spektrum SLT3 3-channel transmitter
• 1 x Spektrum SR515 receiver
• 1 x Spektrum Firma 40A brushed waterproof ESC
• 1 x Axial Slick Rock 35-Turn brushed motor
• 1 x Spektrum S683 steering servo with steel output gear
• 1 x Spektrum SX108 Dig micro servo
• 1 x Product manual
• 4 x AA transmitter batteries

FAQ

Does the Axial SCX10 III Motobilt Jeep JT Gladiator include a battery and charger? No. A suitable 2S or 3S LiPo battery with an IC3 connection and a compatible LiPo charger are required separately.

What does the Dig function do? The factory-installed Dig system locks the rear drivetrain while allowing the front wheels to drive, helping the crawler make tighter turns and reposition itself on technical terrain.

Is assembly required? No. The AXI-2443T1 is supplied Ready-To-Run with the body, radio system and electronics installed; only a suitable drive battery and charger are required before operation.

Can this SCX10 III use both standard and shorty battery packs? Yes. The adjustable battery mounting system supports standard and shorty packs within the specified maximum battery dimensions.

Important Notes

• Drive battery and charger are not included and must be purchased separately
• The vehicle is compatible with 2S and 3S LiPo batteries using an IC3 connection
• Maximum supported battery dimensions are 138 x 46 x 35mm
• Axial specifically recommends an 11.1V 3200mAh 3S 30C Smart G2 LiPo battery with IC3 as a completion option
