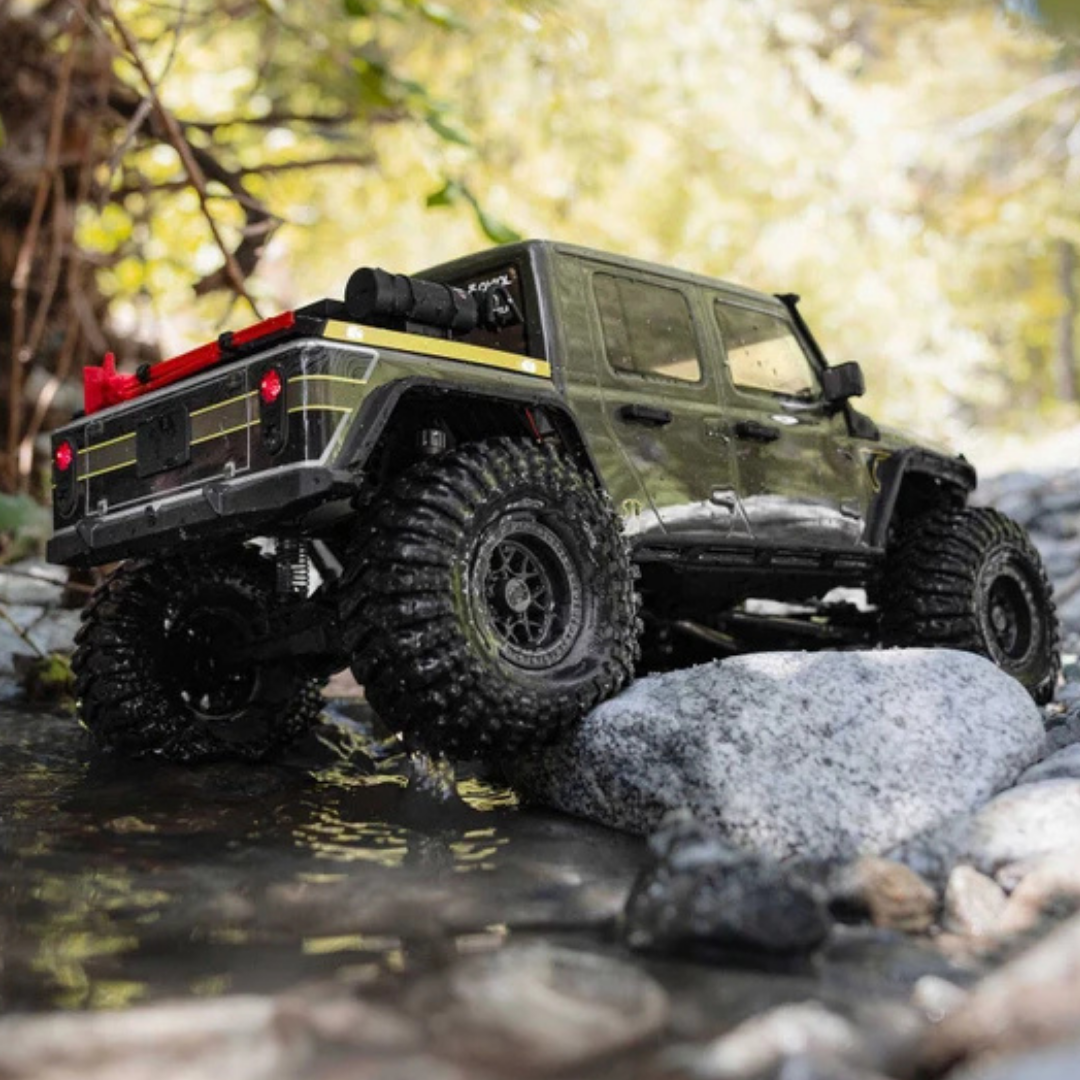

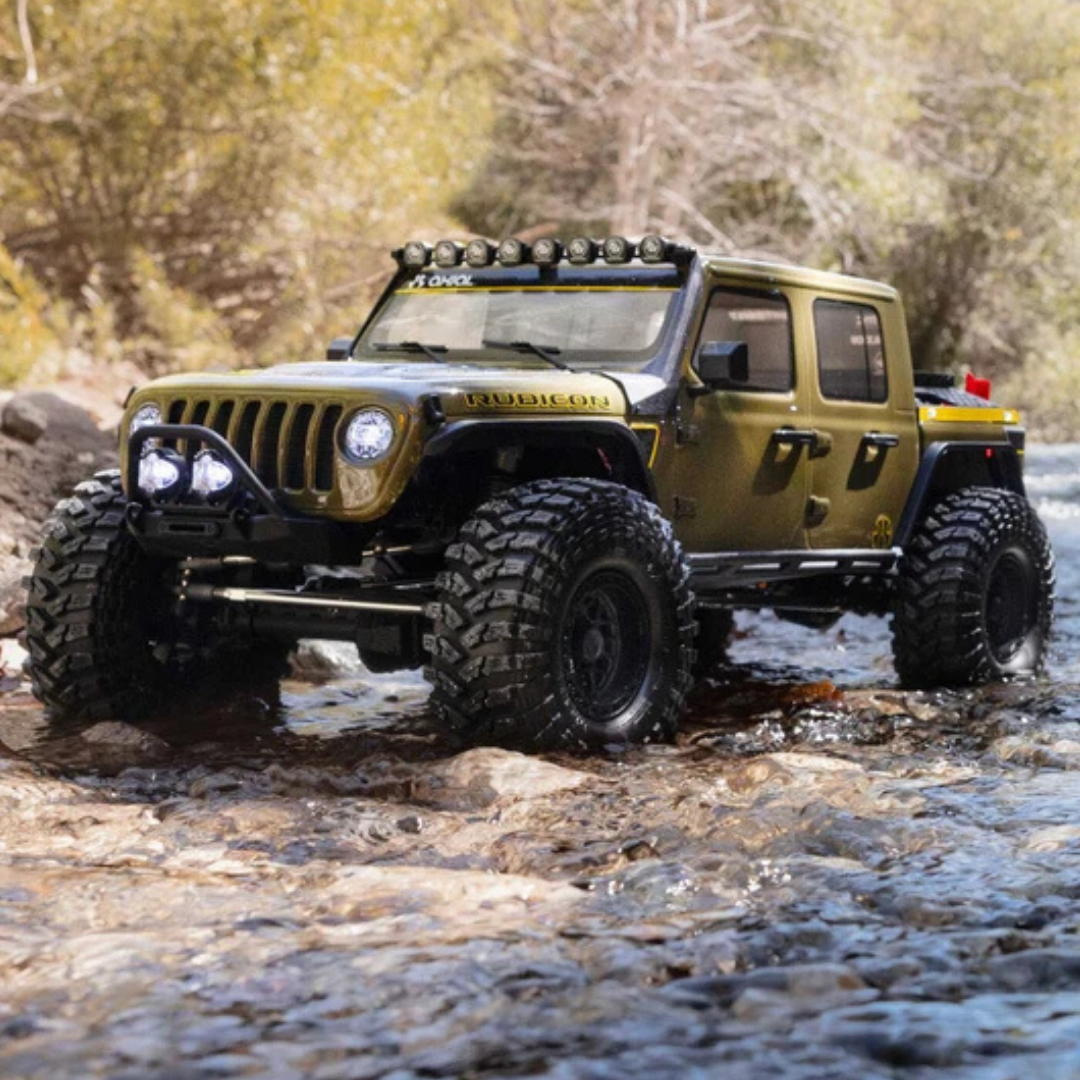

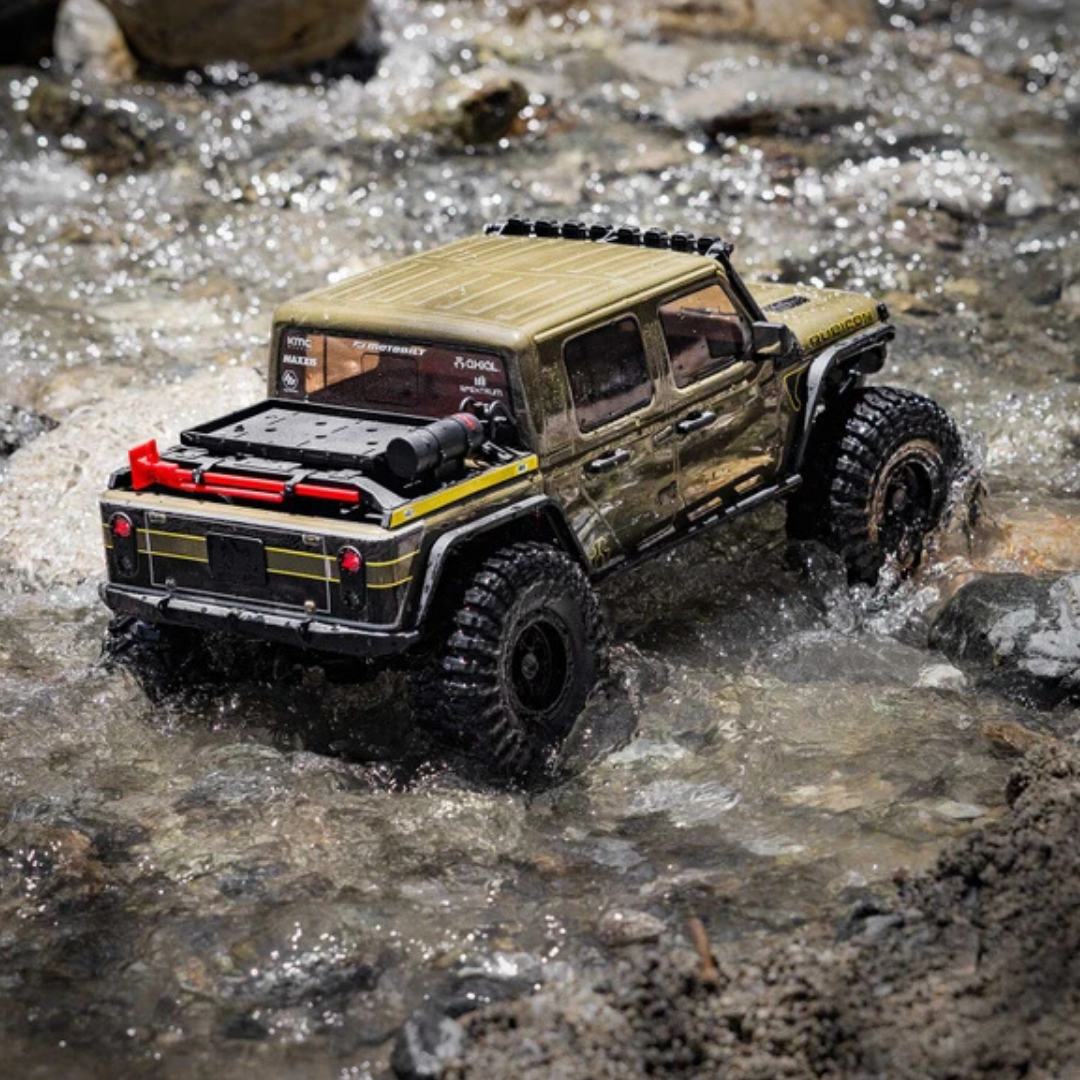

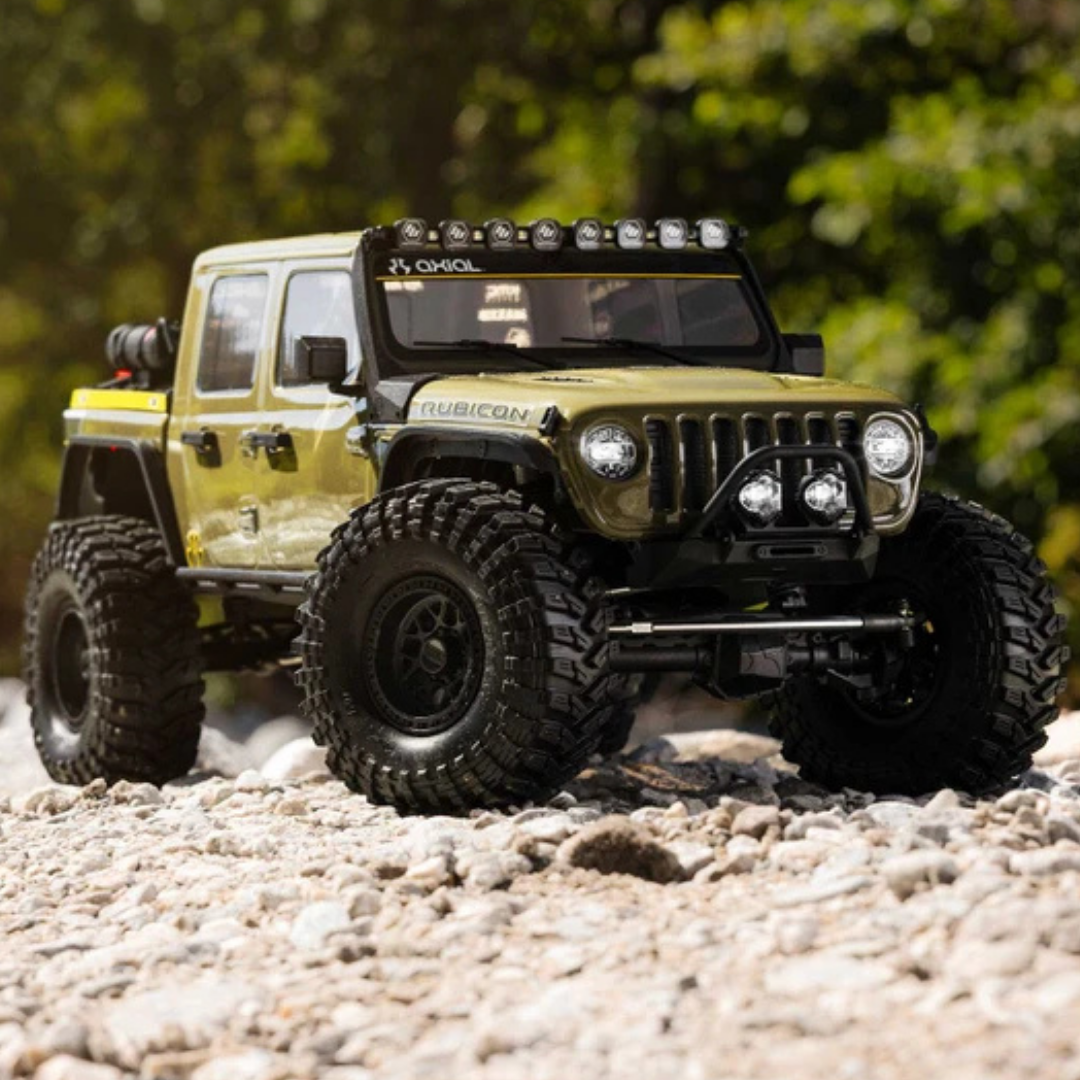

Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 1/10 4WD RTR Rock Crawler – Green AXI-2443T2

Take your scale RC adventures to the next level with the Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 1/10 Scale 4WD RTR Rock Crawler in Green. Inspired by Motobilt's extreme full-size Jeep Gladiator build, this officially licensed trail truck combines outstanding scale realism with the proven crawling performance of Axial's SCX10 III platform.

Featuring a detailed Jeep JT Gladiator polycarbonate body, custom Motobilt Waypoint accessories, a bobbed rear bed and authentic green paintwork, this ready-to-run crawler captures the rugged appearance of a serious off-road expedition vehicle.

Underneath the body, the SCX10 III platform delivers a durable steel C-channel chassis, AR45 straight axles, oil-filled aluminium-bodied shocks, stainless steel suspension links and an all-metal internal transmission. A factory-installed DIG system allows the rear drivetrain to be locked using the transmitter's third channel, helping the vehicle make tighter turns on technical terrain.

Power comes from an Axial Slick Rock 35-turn brushed 540-size motor paired with a Spektrum Firma 40A waterproof brushed ESC. The included Spektrum SLT3 3-channel radio, SR515 receiver, S683 steering servo and SX108 DIG servo provide the control needed for serious trail crawling.

Officially licensed KMC Grenade beadlock wheels, soft-compound Maxxis Trepador tyres and working LED lights complete this highly detailed 1/10 scale crawler.

Ready-to-Run: The vehicle arrives assembled with its radio and electronics installed. A compatible 2S or 3S LiPo battery and suitable charger are required separately. Four AA transmitter batteries are included.

Key Features

• Officially Licensed Jeep JT Gladiator – Detailed replica of Motobilt's Waypoint off-road build
• Green Factory-Painted Body – Authentic Jeep-inspired finish with realistic accessories
• 1/10 Scale SCX10 III Platform – Proven trail and rock crawling design
• Full-Time 4WD – Four-wheel traction for technical off-road terrain
• Motobilt Waypoint Styling – Custom bumpers, bobbed bed and detailed scale accessories
• Factory-Installed DIG System – Lock the rear drivetrain for tighter manoeuvres
• Spektrum SLT3 3-Channel Radio – Controls steering, throttle and DIG operation
• Axial Slick Rock 35T Brushed Motor – Smooth low-speed crawling power
• Spektrum Firma 40A Waterproof ESC – Factory-installed brushed speed controller
• Spektrum SR515 Receiver – Five-channel DSMR receiver
• Spektrum S683 Steering Servo – Features a 25T steel output gear
• Spektrum SX108 Micro DIG Servo – Factory-installed DIG actuation
• Steel C-Channel Chassis – Strong, realistic frame construction
• AR45 Straight Axles – Scale axle design with offset front differential housing
• All-Metal Internal Transmission Gears – Durable drivetrain construction
• Oil-Filled Aluminium-Bodied Shocks – Adjustable suspension damping and spring preload
• Stainless Steel Suspension Links – 6mm links and stainless steel pivot balls
• Improved Panhard Bar Mount – Two-piece design with double-shear support
• Adjustable Skid Plate Link Mounting – Multiple positions for suspension tuning
• KMC Grenade Beadlock Wheels – Officially licensed scale wheels
• Maxxis Trepador Tyres – Licensed soft-compound crawling tyres
• Functional LED Lighting – Headlights, taillights, bumper and bed rack lights
• Flexible Battery Mounting – Silicone elastomer straps for standard or shorty packs
• 2S/3S LiPo Compatible – IC3 battery connector
• Four AA Transmitter Batteries Included – Battery and charger for the vehicle sold separately

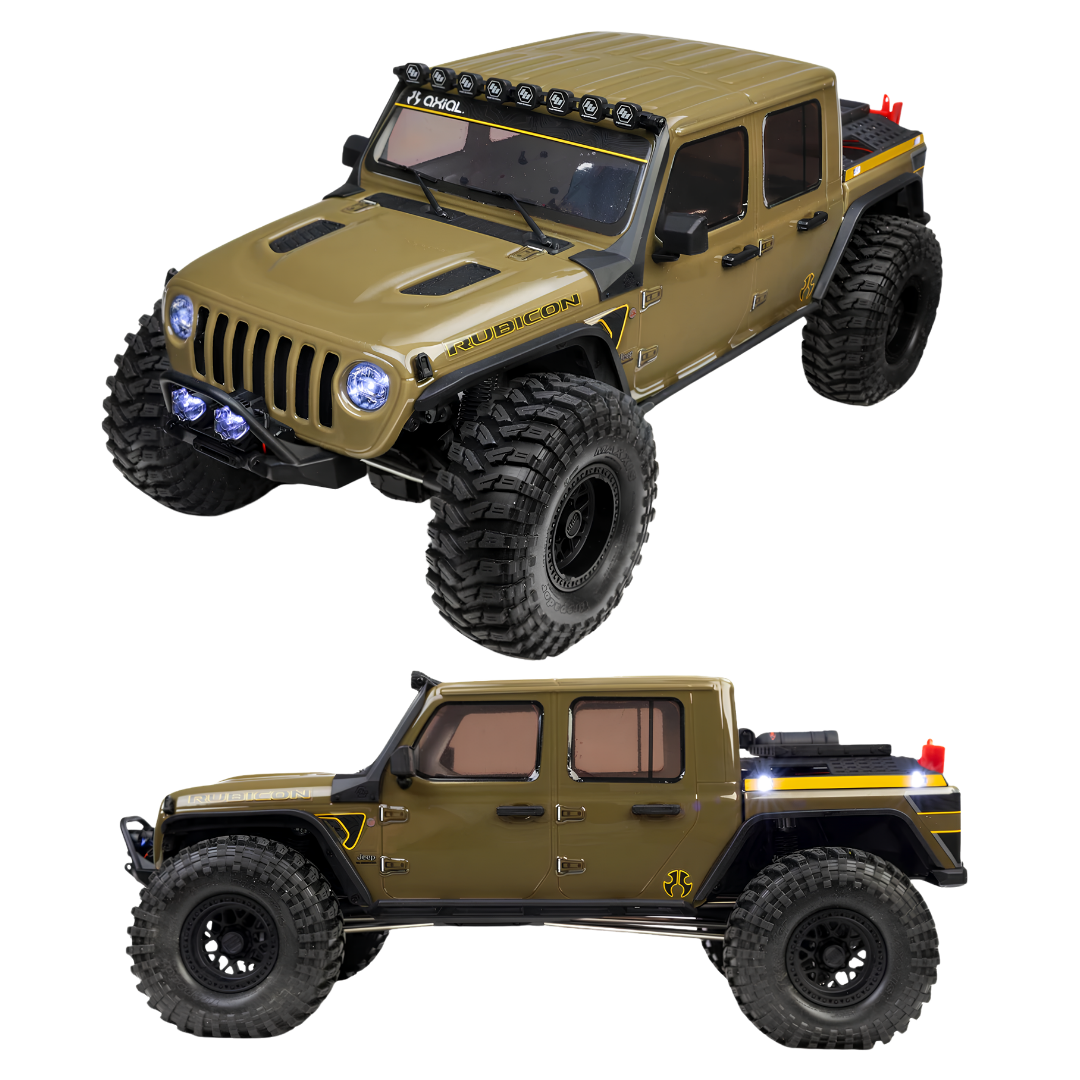

Officially Licensed Motobilt Waypoint Jeep Gladiator

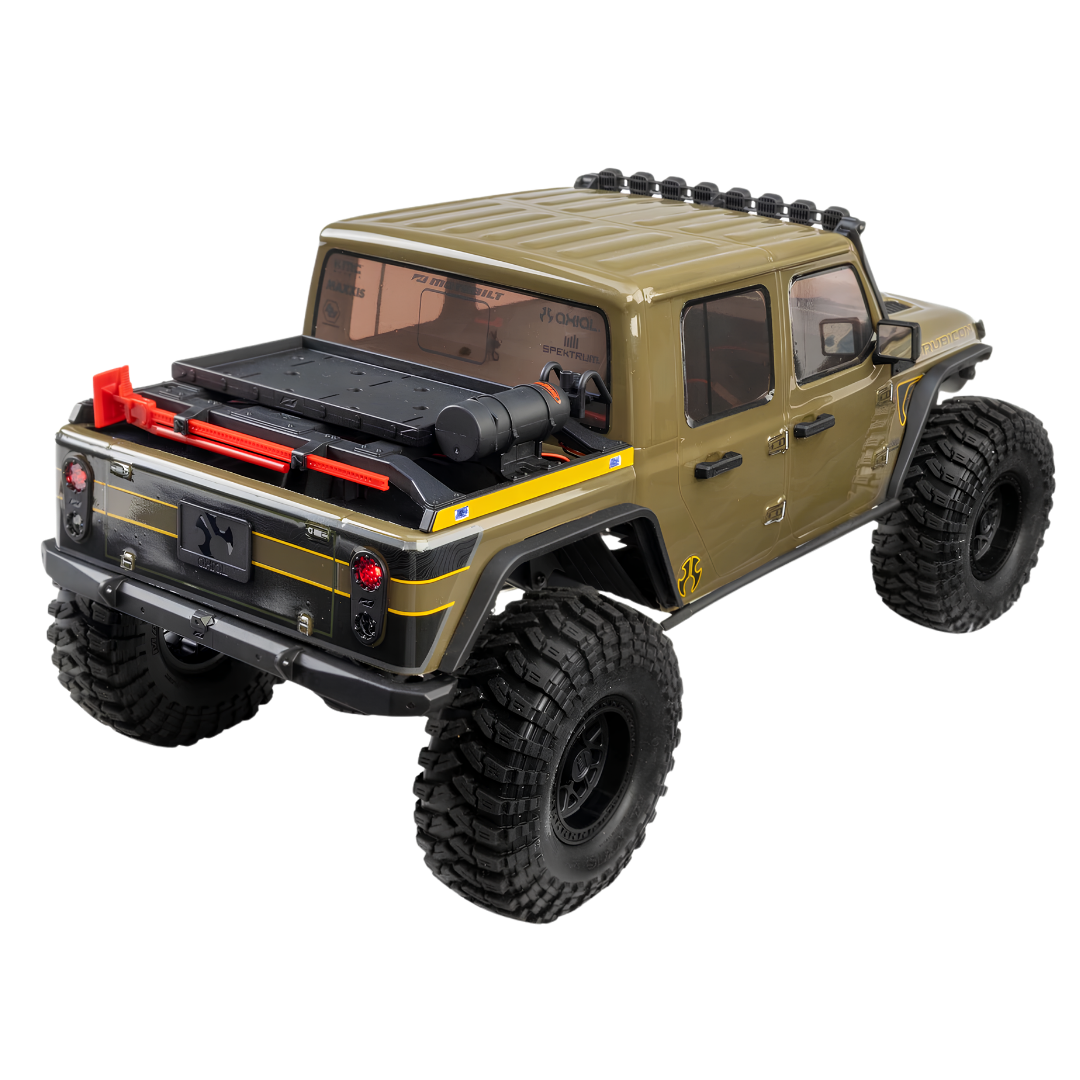

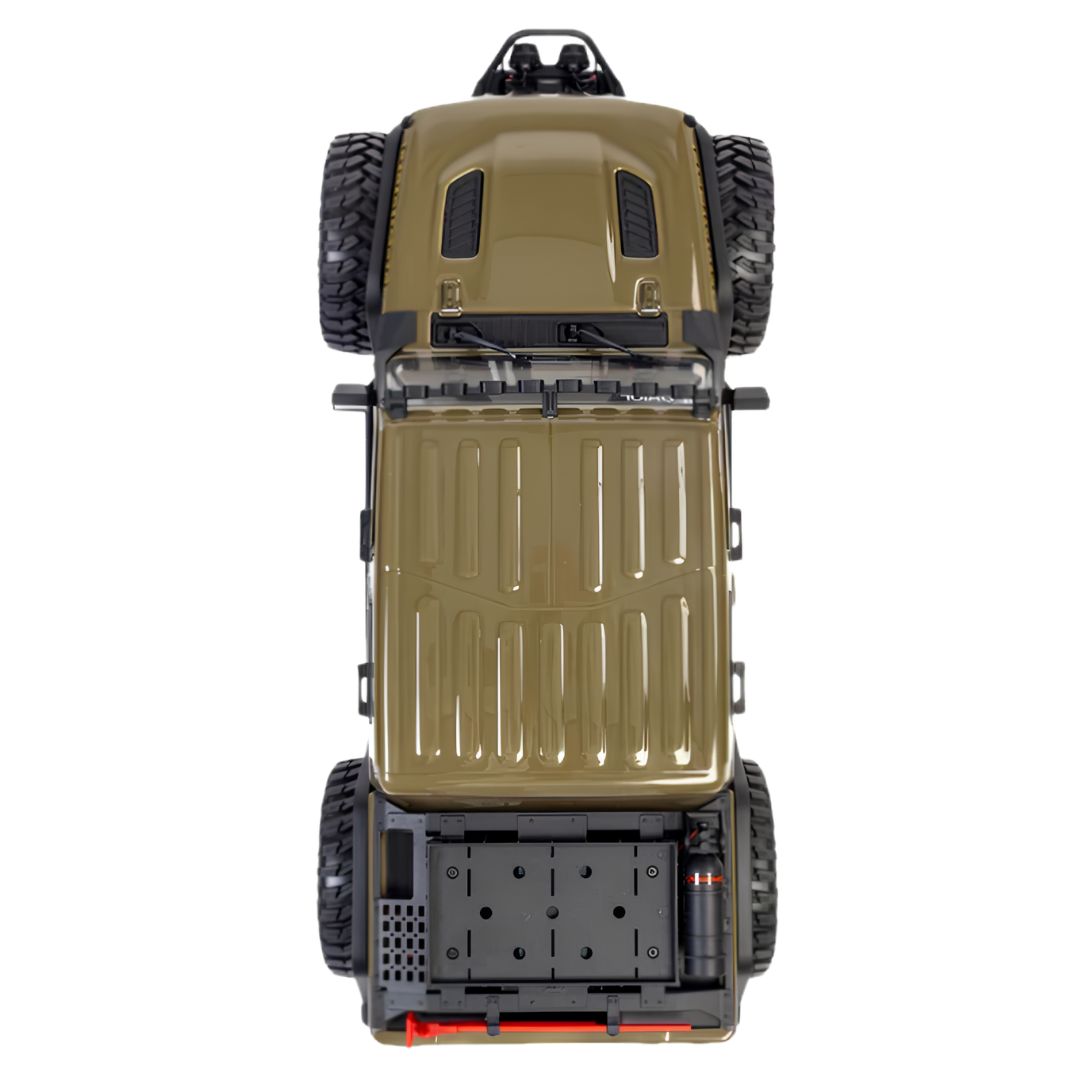

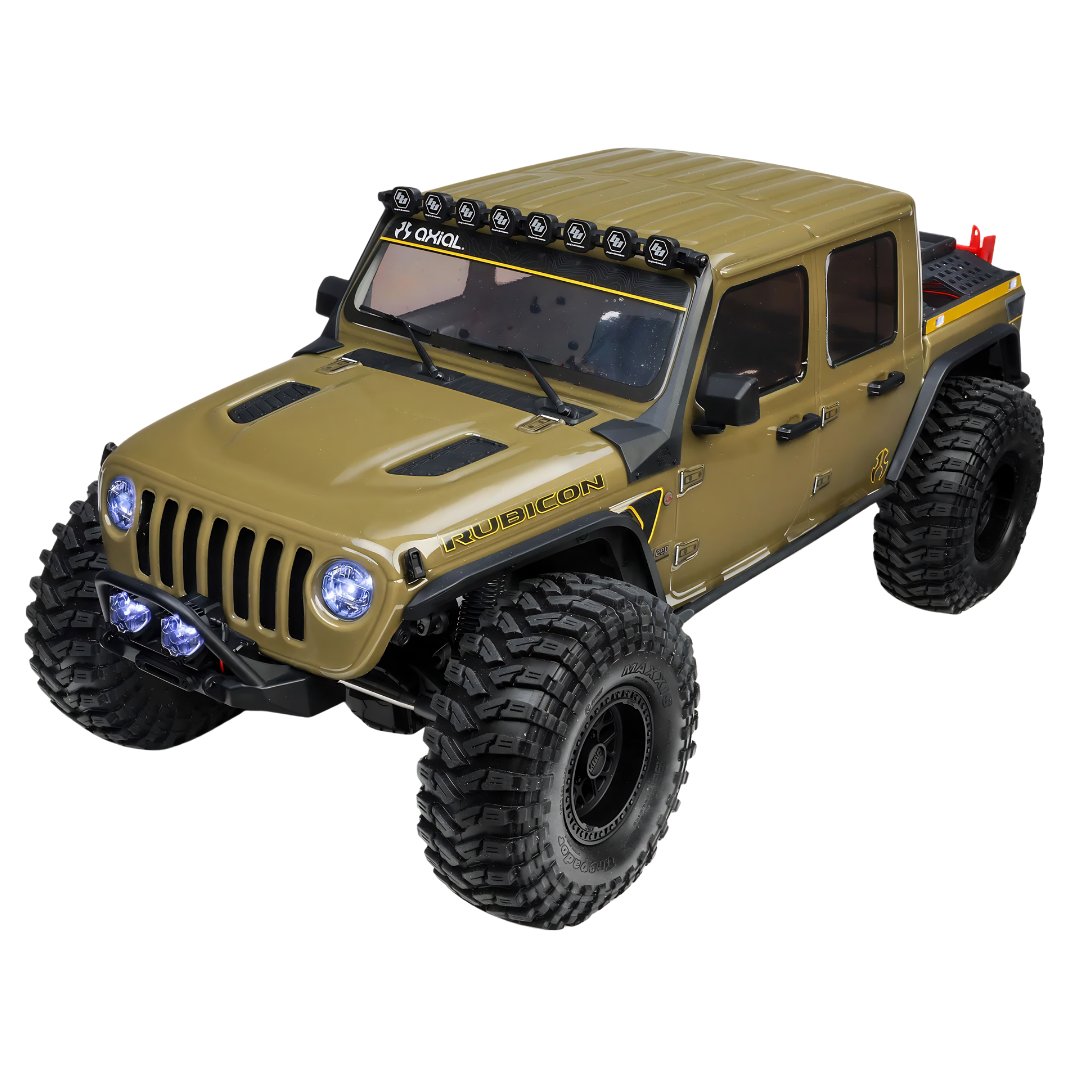

The SCX10 III Motobilt Waypoint Jeep JT Gladiator recreates a highly modified full-size Jeep with a detailed polycarbonate body and authentic off-road accessories.

Its scale features include Jeep's distinctive seven-slot grille, moulded fender flares, door handles, hood vents, side mirrors, custom Motobilt bumpers and a shortened rear cargo bed.

The Waypoint-inspired body also includes Baja Designs-style lighting details, a scale CO2 tank and Hi-Lift jack in the bed, making the vehicle equally impressive on the trail or displayed on a shelf.

Factory-Installed DIG System for Technical Crawling

One of the SCX10 III Gladiator's standout features is its factory-installed DIG system. Operated using the third channel of the Spektrum SLT3 transmitter, DIG locks the rear drivetrain while the front wheels remain powered.

This helps the crawler pivot around the rear axle and perform tighter turns when navigating narrow trails, steep rock formations and technical obstacles.

The DIG system includes its own Spektrum SX108 micro servo, installed at the factory.

Durable Steel C-Channel Chassis

The SCX10 III chassis uses expandable steel C-channel frame rails with a long 353mm wheelbase, providing a strong foundation for scale trail driving.

The chassis also features an improved two-piece Panhard bar mount with double-shear support, plus a skid plate with multiple upper-link mounting positions for suspension tuning.

AR45 Straight Axles and Stainless Steel Links

AR45 straight axles provide realistic solid-axle construction, with an offset front differential housing that reflects the layout of a full-size off-road vehicle.

The suspension uses a front three-link arrangement and rear four-link design, supported by 6mm stainless steel suspension links and stainless steel pivot balls.

This combination provides controlled articulation and durability for trail crawling.

Adjustable Oil-Filled Aluminium Shocks

Threaded aluminium-bodied, oil-filled shocks provide adjustable spring preload and tunable damping. The suspension can be fine-tuned to suit different terrain, vehicle weight and driving preferences.

Axial Slick Rock 35T Brushed Power System

The factory-installed Axial Slick Rock 35-turn brushed motor provides smooth, controlled power suited to technical rock crawling.

It is paired with a Spektrum Firma 40A waterproof brushed ESC that supports compatible 2S and 3S LiPo battery packs.

The vehicle uses an IC3 battery connector and accepts suitable standard or shorty battery packs within the specified battery compartment dimensions.

Licensed KMC Beadlock Wheels and Maxxis Tyres

Officially licensed KMC Grenade beadlock wheels provide authentic off-road styling and support the soft-compound Maxxis Trepador tyres.

The tyres are designed for traction on rocks, dirt and uneven trails, while the beadlock-style wheels provide a realistic appearance and allow tyre servicing without conventional glue-on mounting.

Functional LED Lighting

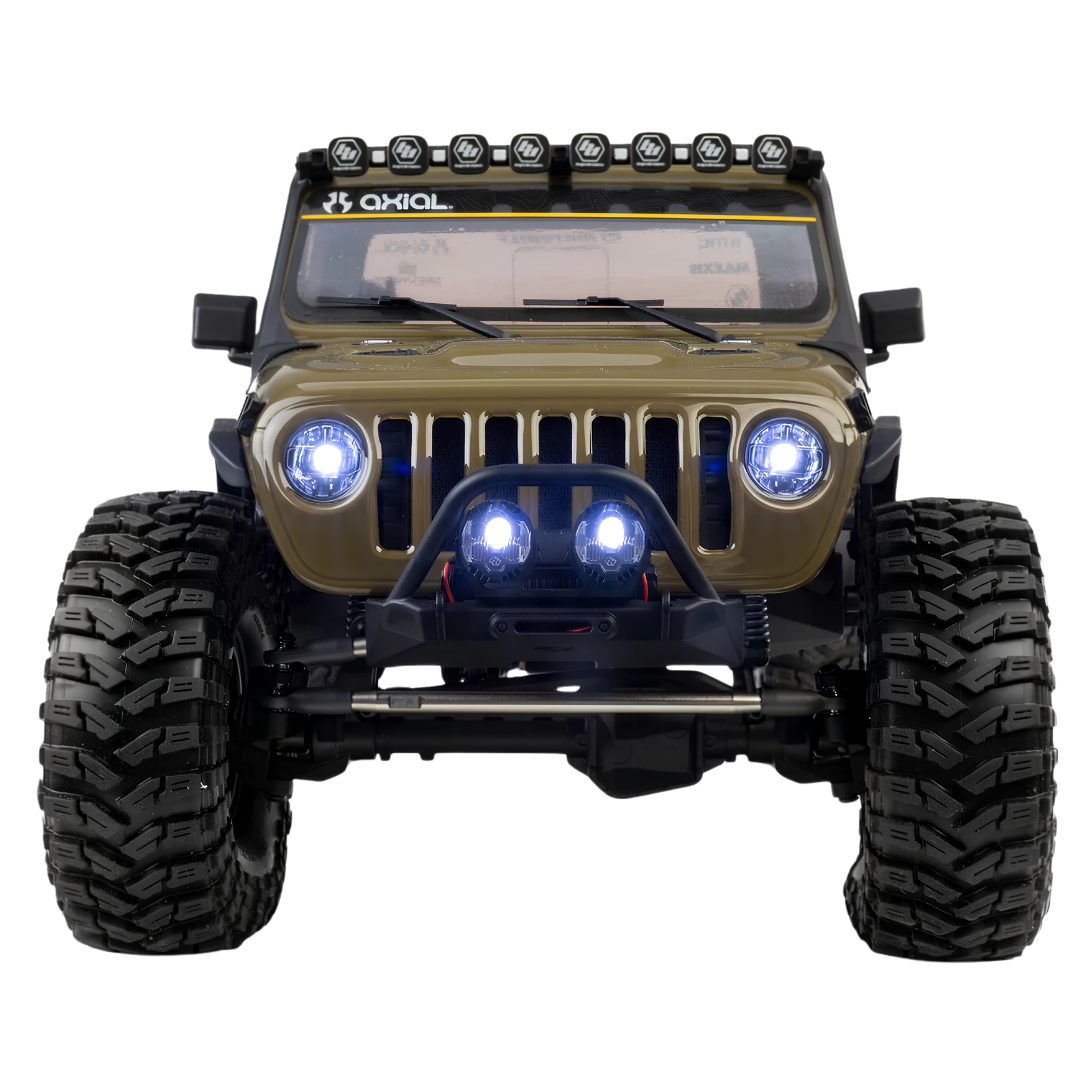

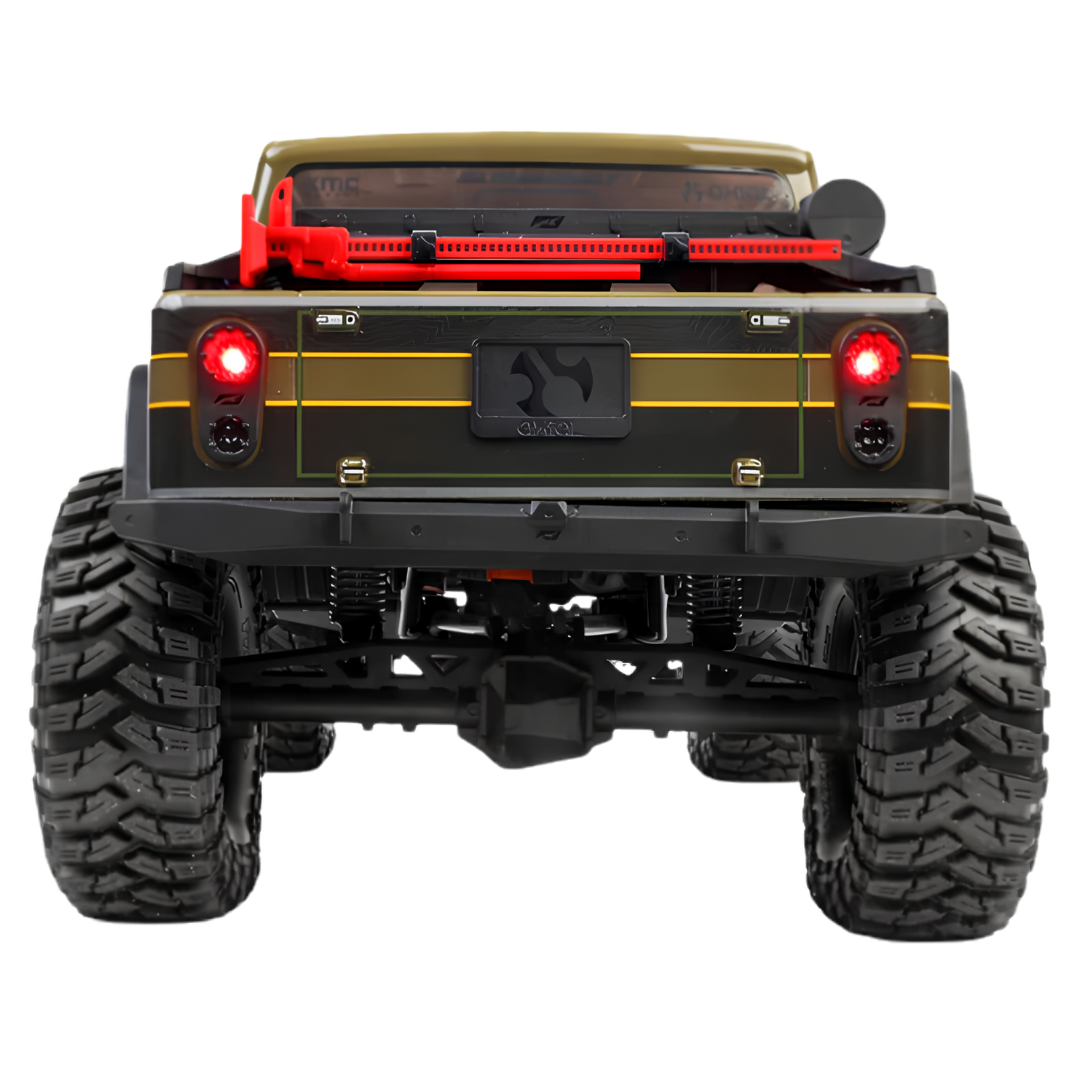

The SCX10 III Motobilt Waypoint Jeep Gladiator features functional LED lighting in the headlights, taillights, bumpers and bed rack.

These lights improve scale realism and make the crawler particularly appealing for dusk and low-light trail driving.

Technical Specifications

• Brand: Axial Adventure
• Manufacturer Part Number: AXI-2443T2
• Summit Racing SKU: AXI-AXI-2443T2
• UPC / EAN: 660132633509
• Model: SCX10 III Motobilt Waypoint Jeep JT Gladiator
• Colour: Green
• Scale: 1/10
• Vehicle Type: Rock Crawler / Scale Trail Truck
• Completion Level: Ready-to-Run (RTR)
• Power Type: Electric
• Drivetrain: 4WD
• Motor: Axial Slick Rock 35T Brushed
• Motor Size: 540
• ESC: Spektrum Firma 40A Waterproof Brushed
• Receiver: Spektrum SR515 DSMR
• Transmitter: Spektrum SLT3 2.4GHz 3-Channel
• Steering Servo: Spektrum S683 with 25T Steel Output Gear
• DIG Servo: Spektrum SX108 Micro Servo
• DIG System: Factory Installed, Radio Controlled
• Chassis: Expandable Steel C-Channel
• Axles: AR45 Straight Axles
• Transmission: All-Metal Internal Gears
• Differentials: Spool / Locked
• Front Suspension: 3-Link
• Rear Suspension: 4-Link
• Suspension Links: 6mm Stainless Steel
• Shock Type: Oil-Filled, Threaded Aluminium Bodies
• Factory Shock Oil Specification: 35wt
• Tyres: Licensed Maxxis Trepador, Soft Compound
• Wheels: Licensed KMC Grenade Beadlock
• Wheel Hex: 12mm
• Lighting: Functional LED
• Battery Compatibility: 2S or 3S LiPo
• Battery Connector: IC3
• Maximum Battery Dimensions: 138 x 46 x 35mm
• Battery Mounting: Silicone Elastomer Straps
• Pinion Gear: 14T
• Spur Gear: 56T
• Internal Gear Ratio: 11.80:1
• Final Drive Ratio: 47.20:1
• Product Length: 551mm
• Product Width: 251mm
• Product Height: 234mm
• Wheelbase: 353mm (13.9 inches)
• Product Weight: Approximately 3.02kg Without Battery
• Body Material: Painted Polycarbonate
• Assembly Required: No

What's Included?

• 1 x Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4WD RTR – Green
• 1 x Spektrum SLT3 3-Channel Transmitter
• 1 x Spektrum SR515 Receiver (Installed)
• 1 x Spektrum Firma 40A Waterproof Brushed ESC (Installed)
• 1 x Axial Slick Rock 35T Brushed Motor (Installed)
• 1 x Spektrum S683 Steering Servo (Installed)
• 1 x Spektrum SX108 DIG Micro Servo (Installed)
• 1 x Factory-Installed DIG System
• 1 x Factory-Painted Jeep JT Gladiator Body with Scale Accessories
• 1 x Factory-Installed LED Lighting System
• 4 x AA Transmitter Batteries
• 1 x Product Manual

Required to Complete

• 1 x Compatible 2S or 3S LiPo Battery with IC3 Connector
• 1 x Suitable LiPo Balance Charger

Axial recommends a Spektrum Smart G2 3200mAh 3S 30C LiPo battery with IC3 connector and a Spektrum S2200 G2 AC Smart Charger. These are recommended accessories, not the only compatible options.

Important: The driving battery and charger are not included. Four AA transmitter batteries are included.

Frequently Asked Questions

What is Axial AXI-2443T2? It is the green Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 1/10 scale 4WD RTR brushed rock crawler.

Is AXI-2443T2 the green version? Yes. AXI-2443T2 is the green colour variant.

Is this a genuine licensed Jeep? Yes. It features an officially licensed Jeep JT Gladiator body styled after Motobilt's Waypoint build.

Is the crawler ready to run? Yes, it arrives assembled with radio and electronics installed. You must purchase a compatible driving battery and charger separately.

Does the package include a LiPo battery? No. The vehicle battery is sold separately.

Does it include a charger? No. A suitable LiPo charger is required separately.

Are transmitter batteries included? Yes. Four AA batteries are included.

Is the SCX10 III Gladiator brushless? No. It uses a 35-turn brushed 540-size motor.

What ESC is installed? A Spektrum Firma 40A waterproof brushed ESC.

Can it run on a 2S LiPo? Yes. The factory electronics support compatible 2S LiPo batteries.

Can it run on a 3S LiPo? Yes. The manufacturer specifies compatibility with suitable 3S LiPo batteries.

What battery connector does it use? An IC3 connector.

What size battery will fit? The published maximum battery dimensions are 138 x 46 x 35mm. Always check pack fitment and cable clearance.

What is the DIG feature? DIG locks the rear drivetrain while allowing the front wheels to remain powered, helping the vehicle make tighter turns on technical obstacles.

Is DIG installed from the factory? Yes. The DIG mechanism and its SX108 micro servo are factory installed.

How is DIG controlled? Using the third channel of the included Spektrum SLT3 transmitter.

Does the Jeep have portal axles? No. This Motobilt Waypoint version uses AR45 straight axles.

Does it have oil-filled shocks? Yes. It uses oil-filled shocks with threaded aluminium bodies.

What suspension layout does it use? A three-link front suspension and four-link rear suspension.

Are the differential gears open or locked? The vehicle uses spool-style locked differential arrangements suited to crawling.

Are the transmission gears metal? Yes. The manufacturer specifies all-metal internal transmission gears.

Does it have working lights? Yes. LED lights are fitted to the headlights, taillights, bumpers and bed rack.

Are the wheels beadlock? Yes. The vehicle uses licensed KMC Grenade beadlock wheels.

What tyres are included? Licensed Maxxis Trepador soft-compound crawler tyres.

Can I use other 1.9-inch crawler tyres? Potentially, provided the tyre and wheel dimensions are suitable. Check body clearance and wheel compatibility before purchasing.

Can I use shorty batteries? Yes. The battery mounting system accommodates compatible standard and shorty packs within the available space.

Is the entire vehicle waterproof? Do not assume the complete vehicle is waterproof. The ESC is specified as waterproof, but other components have their own operating limits.

Is it suitable for beginners? Yes. The RTR format and brushed crawling power system make it approachable, although its size and technical features also appeal to experienced hobbyists.

Can it be upgraded? Yes. The SCX10 III platform supports a range of replacement and upgrade parts. Verify compatibility with this specific Gladiator version.

What is the wheelbase? Approximately 353mm, or 13.9 inches.

How much does it weigh? The published weight is approximately 3.02kg without the driving battery.

Will it fit every SCX10 III body? Not automatically. The long 353mm wheelbase and body mounting arrangement must be considered when fitting aftermarket bodies.

Important Notes

• This listing is for the green AXI-2443T2 variant
• Complete RTR vehicle with radio and electronics installed
• Driving battery and charger are sold separately
• Four AA transmitter batteries are included
• Factory electronics support compatible 2S and 3S LiPo batteries
• IC3 battery connector fitted
• Maximum battery dimensions are approximately 138 x 46 x 35mm
• Factory DIG system and DIG servo are included
• Uses AR45 straight axles, not portal axles
• ESC is specified as waterproof; do not assume the entire vehicle is waterproof
• Scale body details and accessories can be damaged by heavy impacts
• Check tyre clearance before fitting larger aftermarket tyres
• Follow all LiPo charging and storage safety instructions
• Check local trail access rules before driving outdoors
