EcoPower WP173-X24 Micro Servo Direct Fit For Axial SCX24 Waterproof ECP-173-X24

ETA unavailable
SKU: ECP-173-X24
$99.00

Need some help? call us! ph: 07 3265 4547

The EcoPower WP173-X24 Micro Servo is a powerful high-voltage upgrade for Axial SCX24 rigs, offering direct axle mounting, extreme torque, and waterproof reliability. Engineered for demanding conditions, it delivers precise steering and unmatched durability.

Features

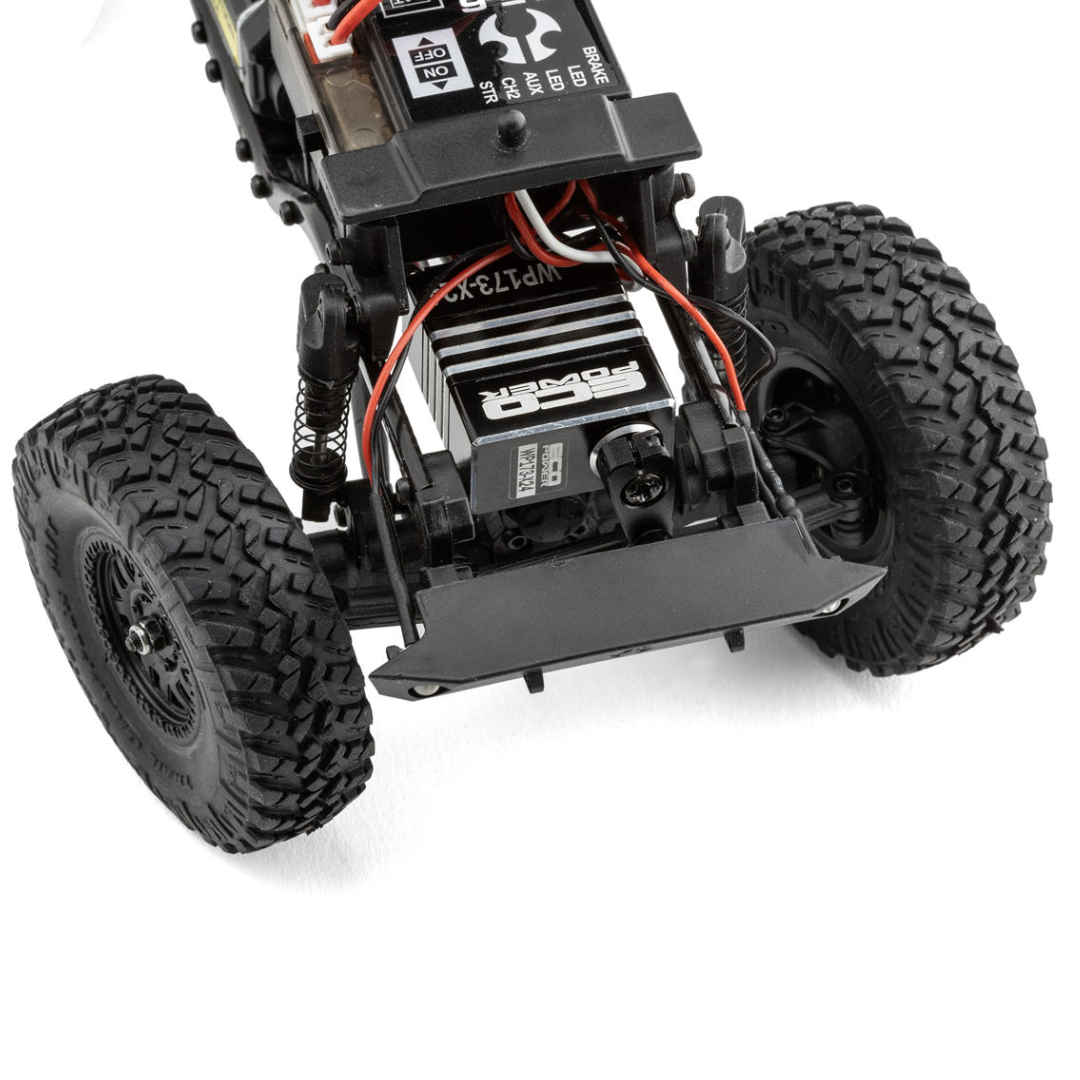

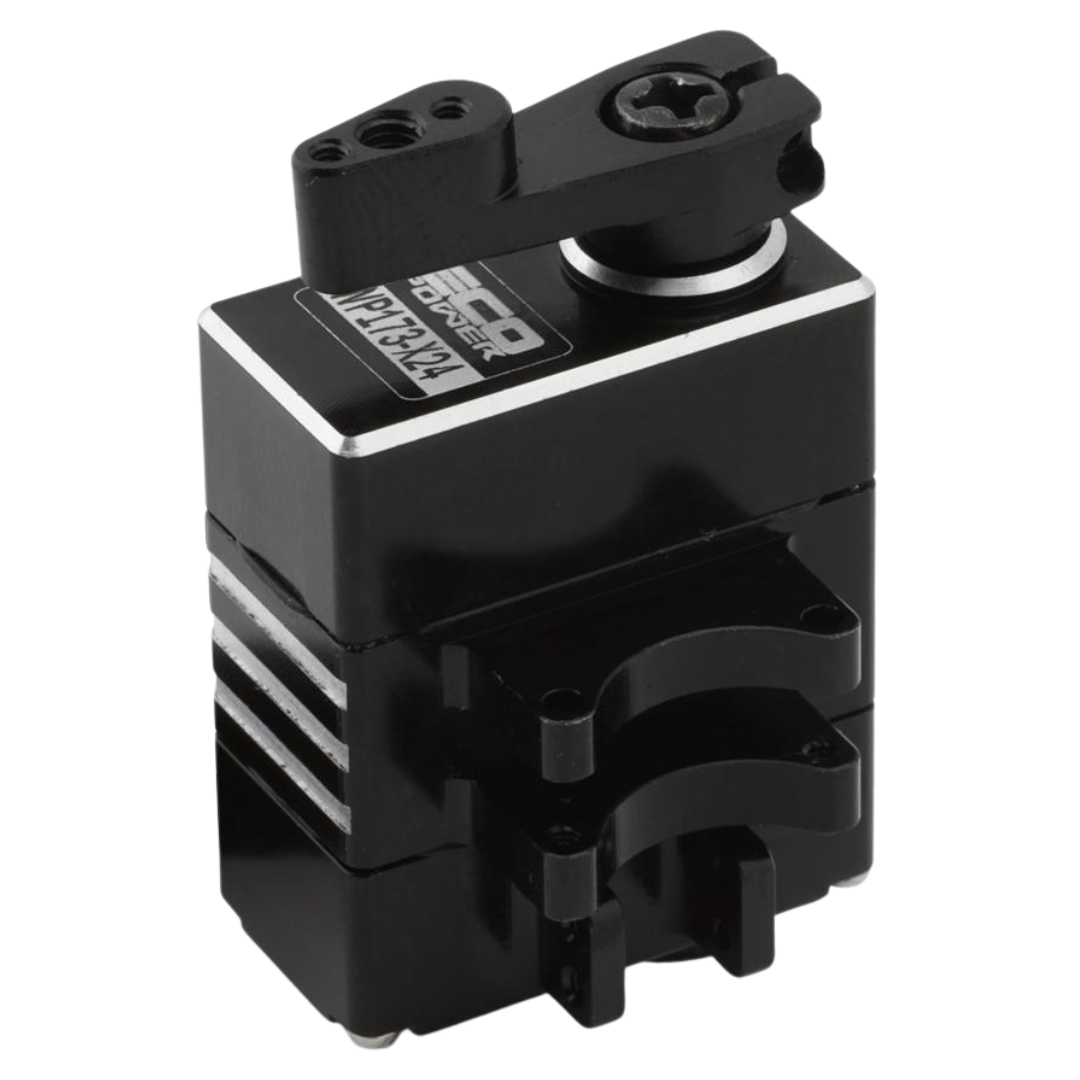

  • Direct fit for Axial SCX24 with built-in axle and link mount
  • No need for separate servo mount—simplified and rigid installation
  • Extreme torque: up to 173oz.in (12.5Kg-cm) at 8.4V
  • Fast response speed: 0.07 sec/60° at 8.4V
  • Heavy-duty all-metal gears and output shaft
  • CNC-machined aluminium case with cooling fins
  • Includes aluminium 25T servo horn with multiple mounting options
  • Waterproof and high-voltage capable (up to 8.4V)
  • Ideal for comp crawling, trail runs, and heavy builds

Specifications

  • Application: 1/24 & 1/18 scale
  • Input Voltage: 6V–8.4V
  • Speed: 0.09 sec/60° @6.0V | 0.07 sec/60° @8.4V
  • Torque: 123oz.in @6.0V | 173oz.in @8.4V
  • Motor Type: Digital coreless
  • Output Shaft: Mini 25T
  • Gear Material: Metal
  • Dimensions: 23 × 12 × 31.75 mm
  • Weight: 16g

Includes

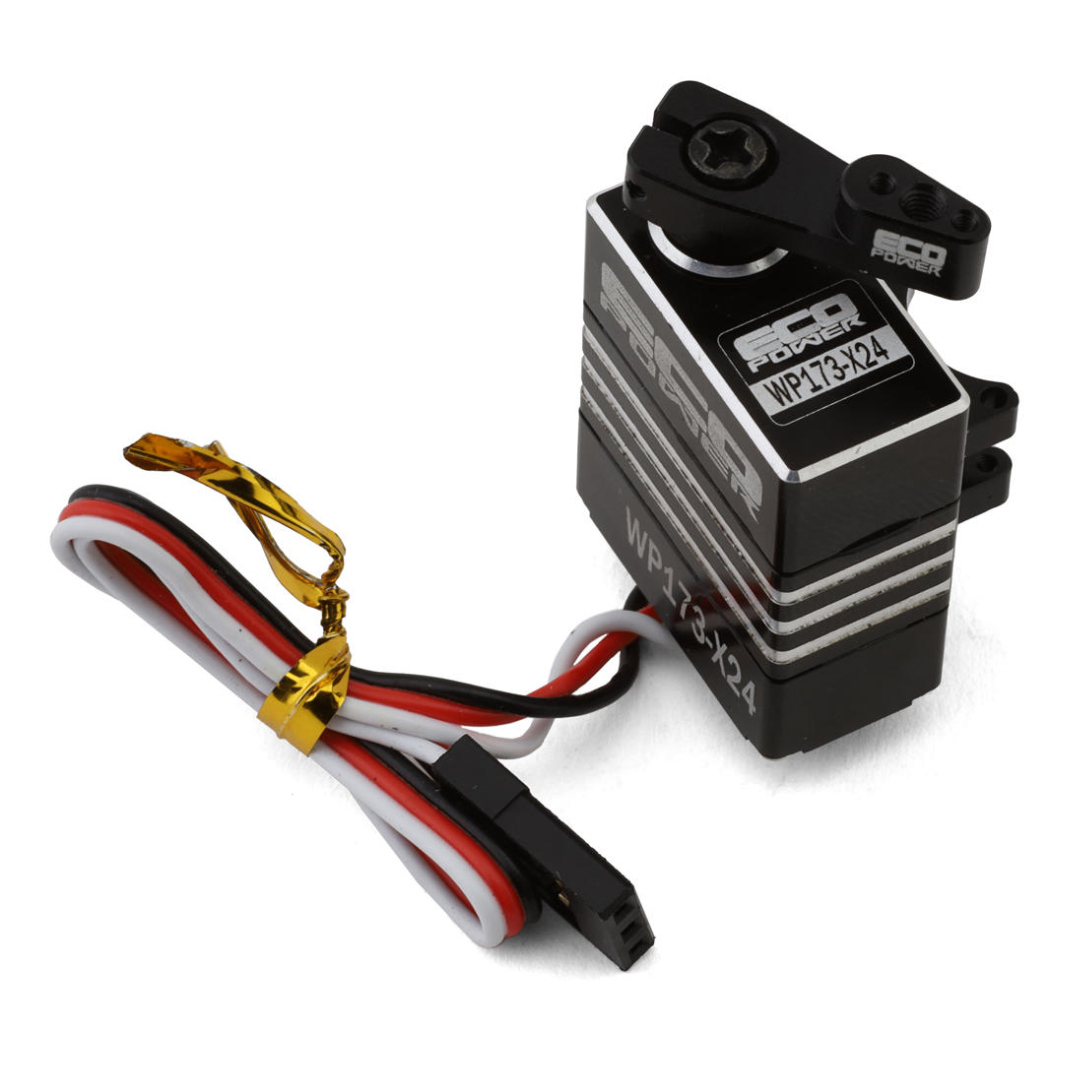

  • EcoPower WP173-X24 Aluminium Digital Micro Servo (1 pc)
  • Aluminium servo horn (1 pc)
  • Composite servo horns (2 pcs)
