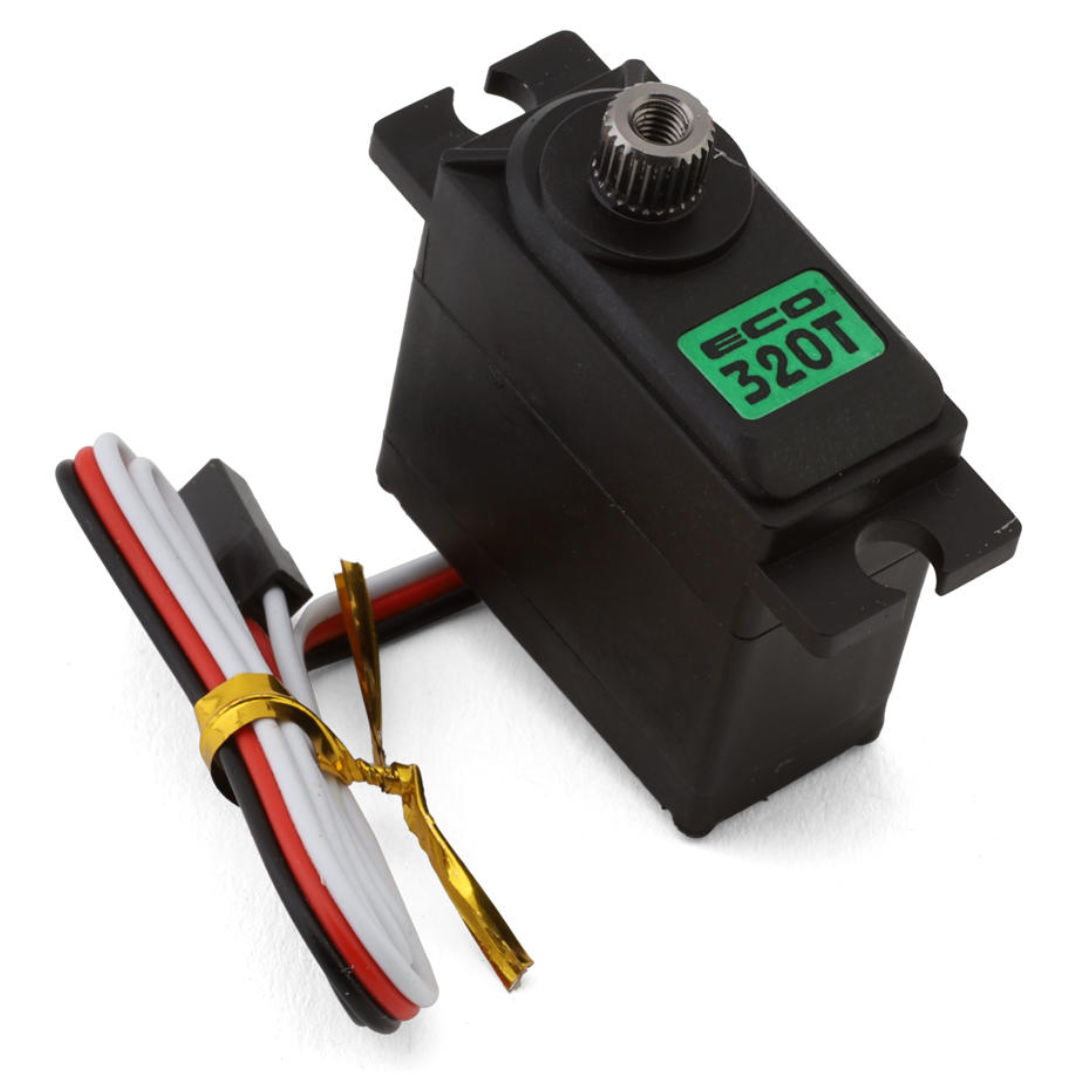

EcoPower WP320T Waterproof Mini Servo 1/16 Traxxas ECP-320T

EcoPower ECP-320T WP320T is a high-voltage waterproof digital mini servo designed as a direct-fit replacement or upgrade for compatible 1/16 Traxxas vehicles. It combines metal gears, up to 6.8kg-cm of torque at 8.4V and an included 25T aluminium clamping servo horn for a complete steering-servo replacement solution.

Features

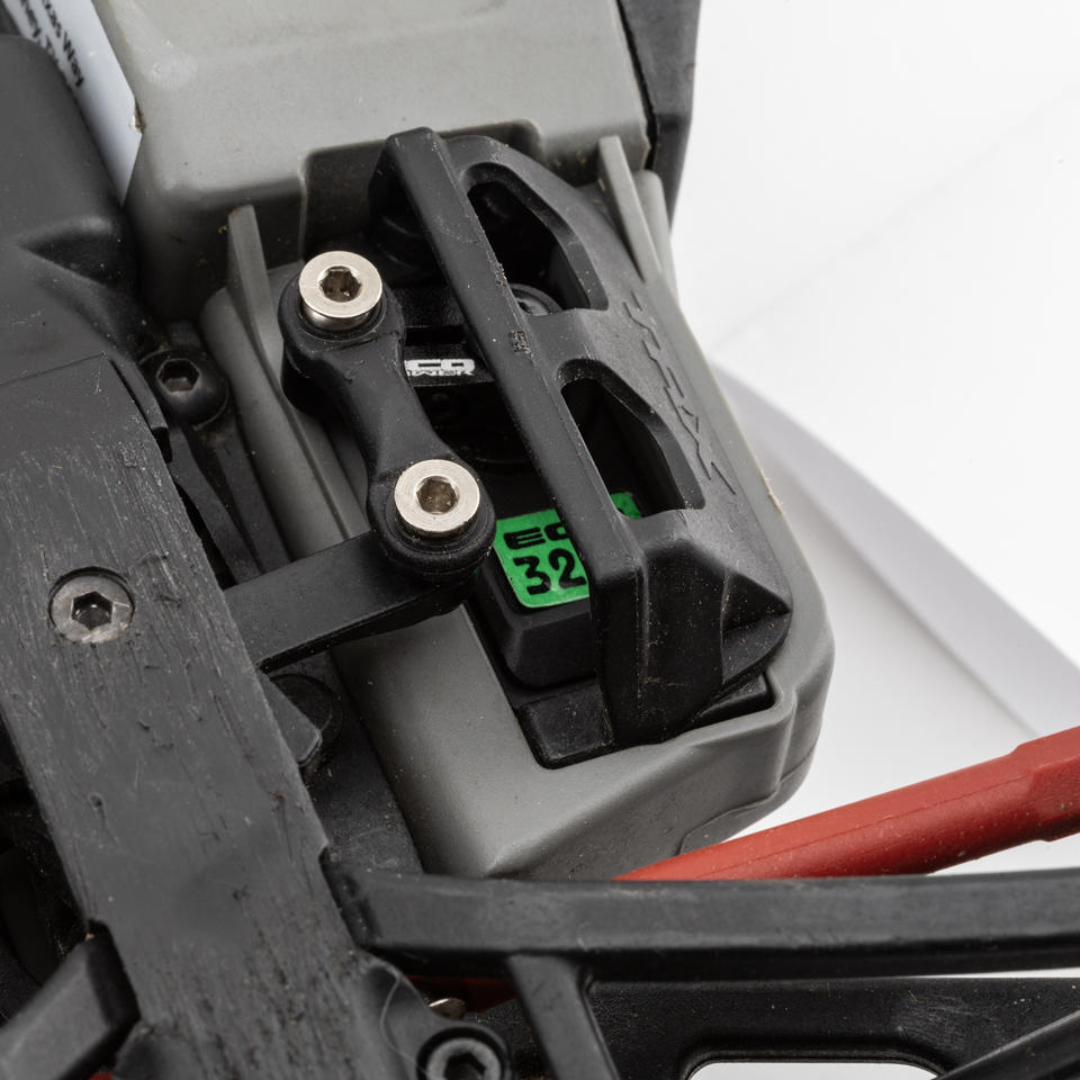

• 1/16 Traxxas Fitment: Designed specifically for compatible Traxxas 1/16 chassis
• High-Voltage Operation: Supports an operating voltage range from 6.0V to 8.4V
• High Torque: Produces up to 94.4oz-in / 6.8kg-cm of torque at 8.4V
• Digital Control: Digital servo electronics provide responsive steering control
• Metal Gears: Metal gear train provides increased durability for steering applications
• Waterproof Construction: Manufacturer specification rates the servo waterproof to a depth of 1 metre
• Aluminium Clamping Horn: Includes a matching aluminium clamping servo horn
• 25T Output Spline: Included horn and replacement horn documentation identify the WP320T output as 25T
• Compact Mini Size: 29.5 x 14 x 36.8mm dimensions suit the intended 1/16 Traxxas installation

Specifications

• Brand: EcoPower
• Model: WP320T
• Product Type: Digital Mini Servo
• Application: 1/16 Traxxas Vehicles
• Gear Type: Metal
• Output Spline: 25T
• Voltage Range: 6.0V to 8.4V
• Speed at 6.0V: 0.14 sec/60°
• Speed at 8.4V: 0.12 sec/60°
• Torque at 6.0V: 78oz-in / 5.6kg-cm
• Torque at 8.4V: 94.4oz-in / 6.8kg-cm
• Waterproof Rating: Waterproof to 1 Metre
• Dimensions: 29.5 x 14 x 36.8mm
• Height from Base to Mount: 23.5mm
• Weight: 21g
• Manufacturer Part Number: ECP-320T
• Product Code / GTIN: 694485081618

Compatibility

• Traxxas 1/16 E-Revo
• Traxxas 1/16 Slash
• Traxxas 1/16 Summit
• Compatible Traxxas 1/16 chassis using the applicable mini servo installation

Includes

• 1 x EcoPower WP320T Digital Waterproof Metal Gear Mini Servo
• 1 x 25T Aluminium Clamping Servo Horn

FAQ

What Traxxas models does the EcoPower WP320T fit? Documented applications include the Traxxas 1/16 E-Revo, 1/16 Slash and 1/16 Summit.

How much torque does the WP320T produce? EcoPower specifies 78oz-in / 5.6kg-cm at 6.0V and 94.4oz-in / 6.8kg-cm at 8.4V.

Can the EcoPower WP320T operate at 8.4V? Yes. The WP320T is a high-voltage servo with a specified operating range of 6.0V to 8.4V. The vehicle's receiver and power system must also be suitable for the selected voltage.

Is the EcoPower WP320T waterproof? Yes. Product documentation specifies the WP320T as waterproof to a depth of 1 metre. Normal RC waterproofing precautions should still be followed, particularly around other electronics that may have different water-resistance ratings.

Does the WP320T have metal gears? Yes. The WP320T uses a metal gear train and is supplied with an aluminium clamping servo horn.

What spline does the WP320T use? Replacement-horn documentation identifies the EcoPower WP320T servo output as 25T. A matching 25T aluminium clamping horn is included with the servo.

Is a servo horn included? Yes. One aluminium clamping servo horn is included, so a separate horn is not normally required for the intended Traxxas 1/16 installation.

Important Notes

• Confirm the vehicle and servo mounting configuration before purchase
• Operating voltage must remain within the specified 6.0V to 8.4V range
• Ensure the receiver, BEC and other connected electronics support the selected operating voltage
• Servo waterproofing does not make other vehicle electronics waterproof
• Servo linkage should be correctly centred and adjusted during installation to prevent binding
