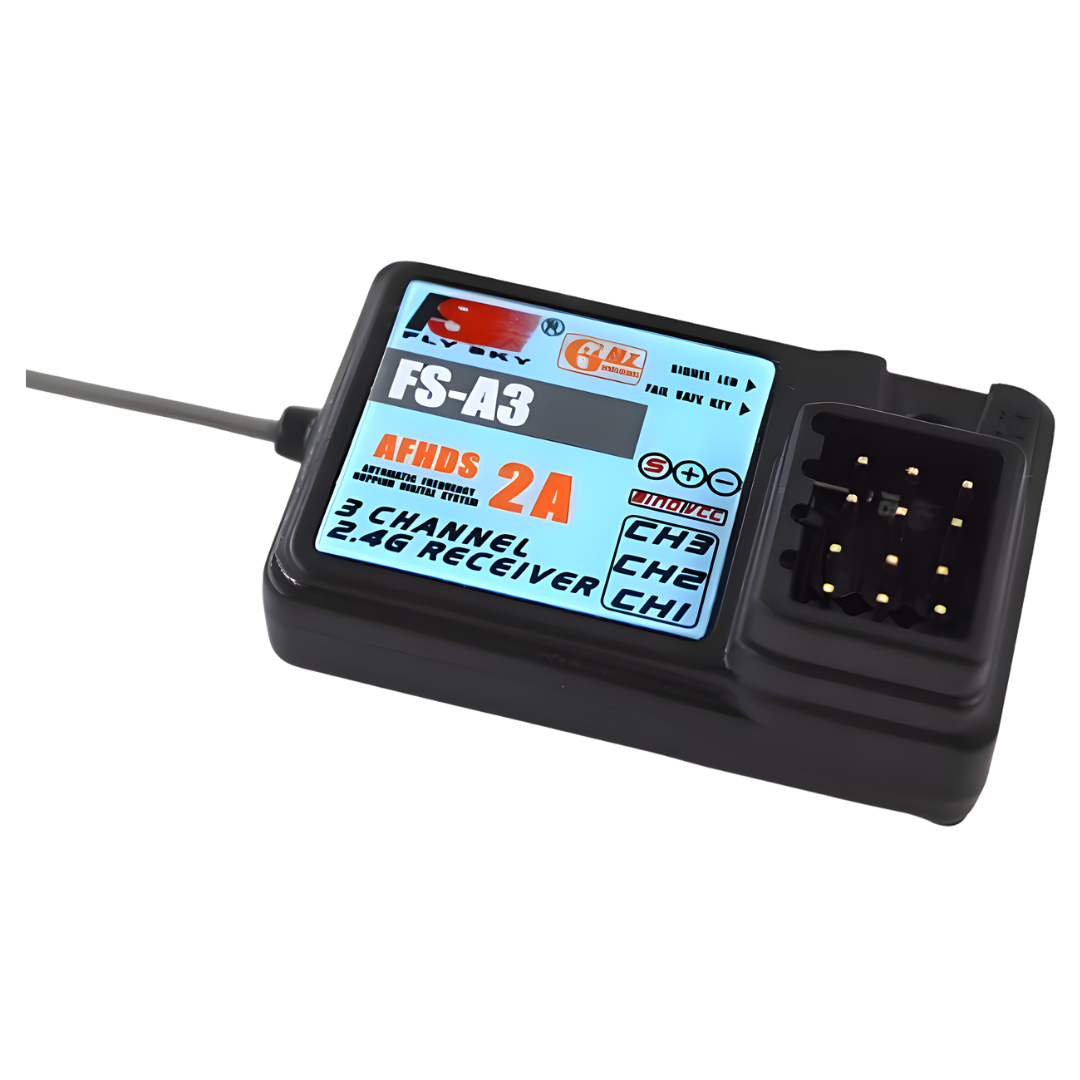

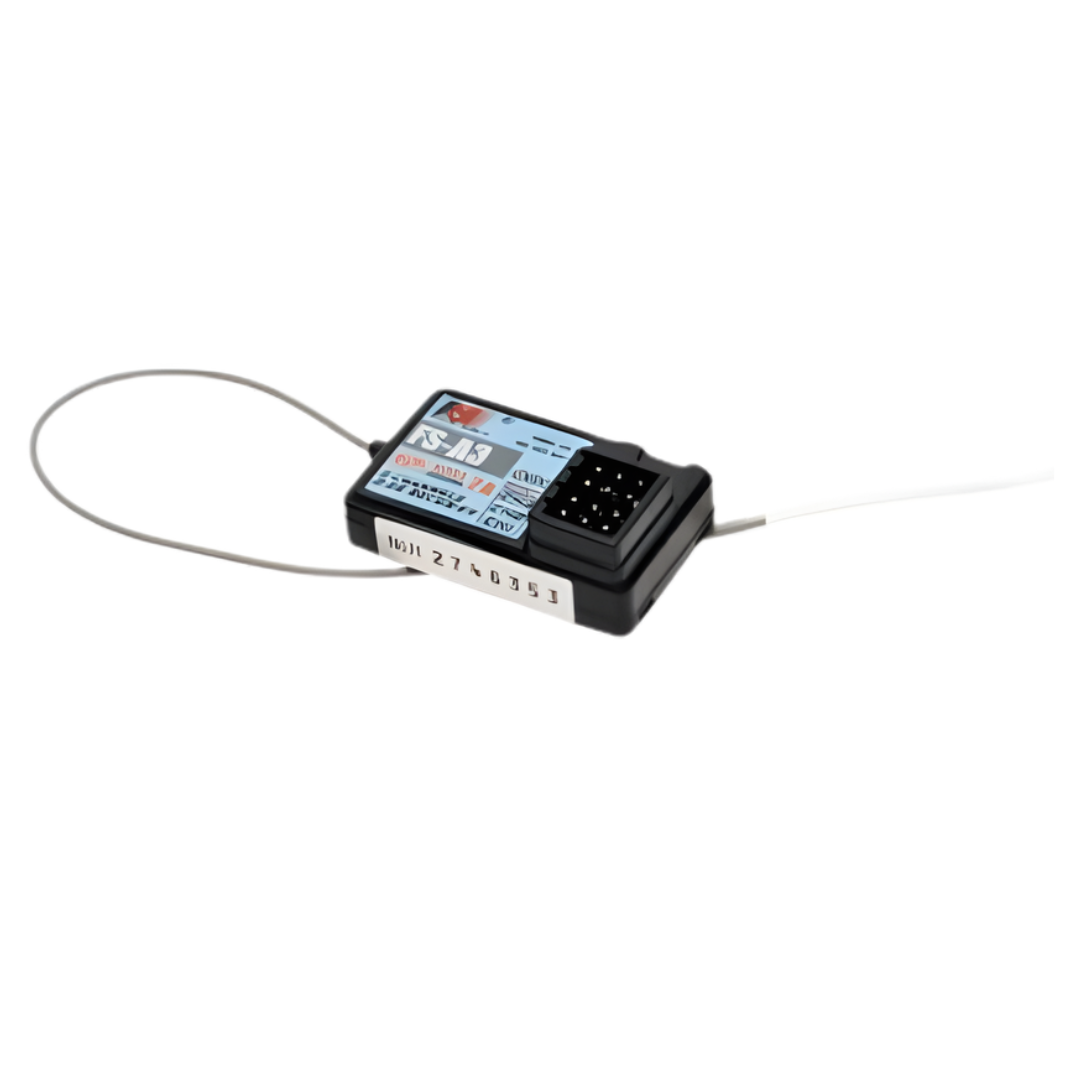

Flysky FS-A3 AFHDS 2A 3-Channel Surface Receiver FS-A3

The Flysky FS-A3 is a compact 3-channel AFHDS 2A receiver for compatible RC cars and boats, providing standard PWM outputs in a lightweight case and direct compatibility with Flysky surface transmitters such as the FS-GT2F

Features

• 3-channel surface receiver
• Flysky AFHDS 2A 2.4GHz protocol
• Designed for RC cars and boats
• Standard PWM channel outputs
• Compact lightweight receiver case
• Single external antenna
• 4.0V to 6.5V operating voltage
• CE IC and RCM certified

Specifications

• Brand: Flysky
• Model: FS-A3
• Product Type: Surface Receiver
• Channels: 3
• Wireless Frequency: 2.4GHz
• Wireless Protocol: AFHDS 2A
• Data Output: PWM
• RSSI: Not Supported
• Input Voltage: 4.0V to 6.5V
• Antenna Type: Single External Antenna
• Antenna Length: 150mm
• Operating Temperature: 0°C to +60°C
• Operating Humidity: 20% to 95%
• Online Firmware Update: No
• Dimensions: 35 x 22 x 12mm
• Weight: 6g
• Barcode: 8793000014895
• Manufacturer Part Number: FS-A3

Compatibility

• Flysky FS-GT2F
• Flysky FS-GT2E radio systems supplied with the FS-A3 receiver
• Other compatible Flysky AFHDS 2A surface transmitters that support the FS-A3

Includes

• 1 x Flysky FS-A3 3-Channel AFHDS 2A Receiver

FAQ

Does the FS-A3 work with the Flysky GT2F? Yes, the GT2F uses the AFHDS 2A protocol and Flysky documentation supports the FS-A3 as a compatible receiver for this surface radio family

How many channels does the FS-A3 provide? The receiver provides three standard PWM channels

Does the FS-A3 support telemetry? No, Flysky lists RSSI as unsupported and the receiver provides standard PWM outputs rather than telemetry or serial data functions

Can the FS-A3 firmware be updated? No, Flysky lists online firmware updating as unsupported for this receiver

Important Notes

• Use only with compatible AFHDS 2A transmitters
• Confirm receiver supply voltage remains within the 4.0V to 6.5V operating range
• The supplied Team Magic THOR GT2E-GR2E reference should not be treated as proof that every Team Magic-branded transmitter will bind with the FS-A3
