FlySky GT5 2.4GHz 6ch Radio w BS6 Receiver Gyro Failsafe FS-GT5

The FlySky GT5 is a 6-channel 2.4GHz surface radio system for RC cars crawlers and boats, supplied with the FS-BS6 receiver featuring a built-in gyro for SVC stability control and programmable failsafe functions

Features

• 6-channel pistol-grip radio system for RC cars crawlers and boats
• AFHDS 2A 2.4GHz protocol for reliable frequency-hopping control
• Includes FS-BS6 6-channel receiver with built-in gyroscope
• SVC stability control function assists steering and throttle response
• Programmable failsafe settings help place channels in preset positions if signal is lost
• 4096-step channel resolution for precise control
• Less than 15ms channel delay specification
• Four selectable crawler control modes
• ABS braking function for adjustable throttle-channel braking behaviour
• 20-model memory for managing multiple RC vehicles
• LCD display with menu-based adjustment
• Haptic vibration feedback
• Foldable external antenna

Transmitter Specifications

• Brand: FlySky
• Model: FS-GT5
• Channels: 6
• Application: RC Cars and Boats
• Frequency: 2.4GHz
• Protocol: AFHDS 2A
• RF Power: Less Than 20dBm
• Channel Resolution: 4096 Steps
• Channel Delay: Less Than 15ms
• Ground Range: Approximately 100 to 300m under suitable conditions
• Display: NTN Segment LCD
• Display Area: 52.5 x 34mm
• Transmitter Power: 4 x AA Batteries or Compatible 2S Lithium Battery
• Charging Port: None
• Dimensions: 158 x 95 x 243mm
• Weight: Approximately 296g
• Part Number: FS-GT5

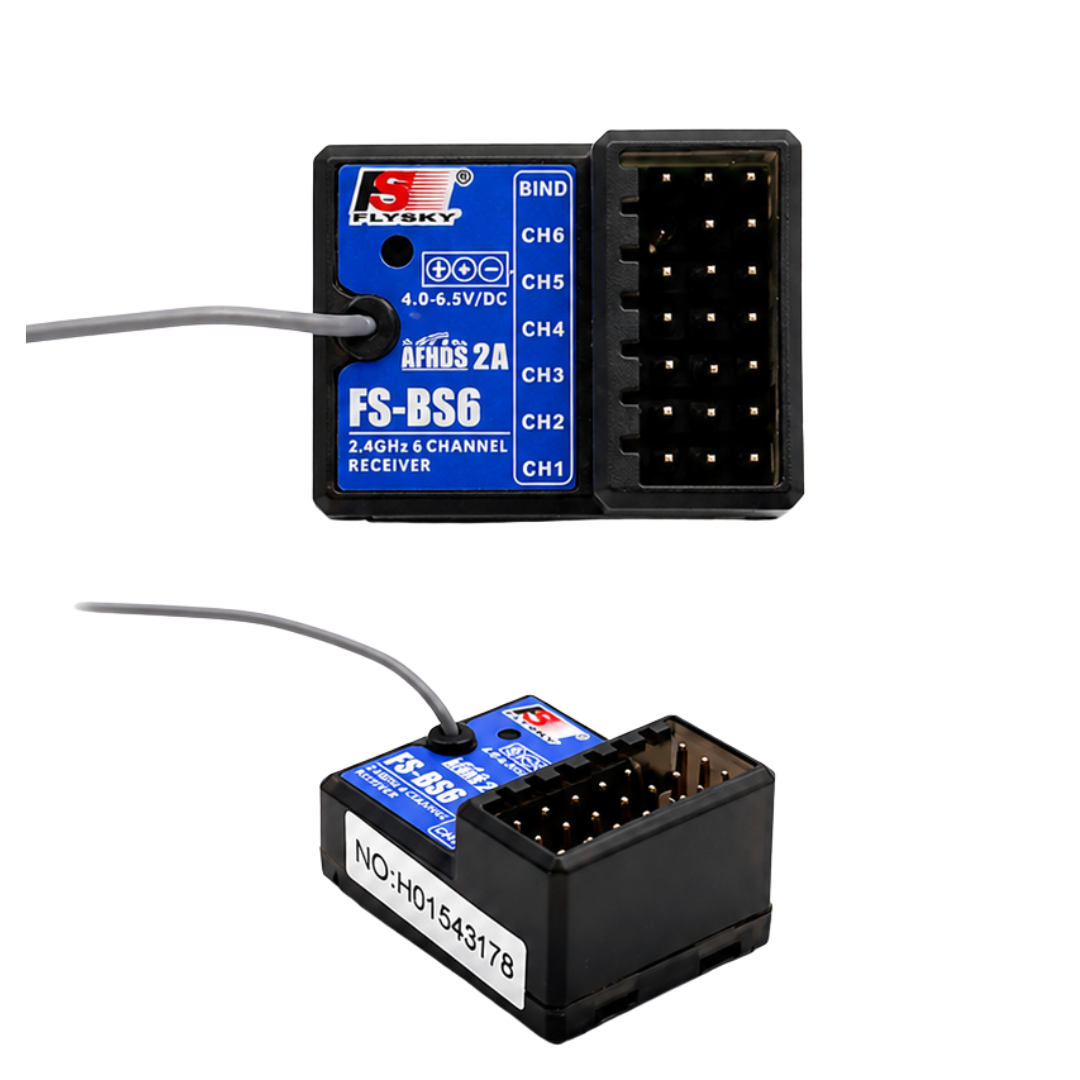

Receiver Specifications

• Receiver Model: FS-BS6
• Channels: 6 PWM
• Frequency: 2.4GHz
• Protocol: AFHDS 2A
• Built-In Gyro: Yes
• Failsafe: Supported
• RSSI: Supported
• Receiver Power: 4.0 to 6.5V
• Dimensions: 29 x 22 x 16.2mm
• Weight: Approximately 7.6g

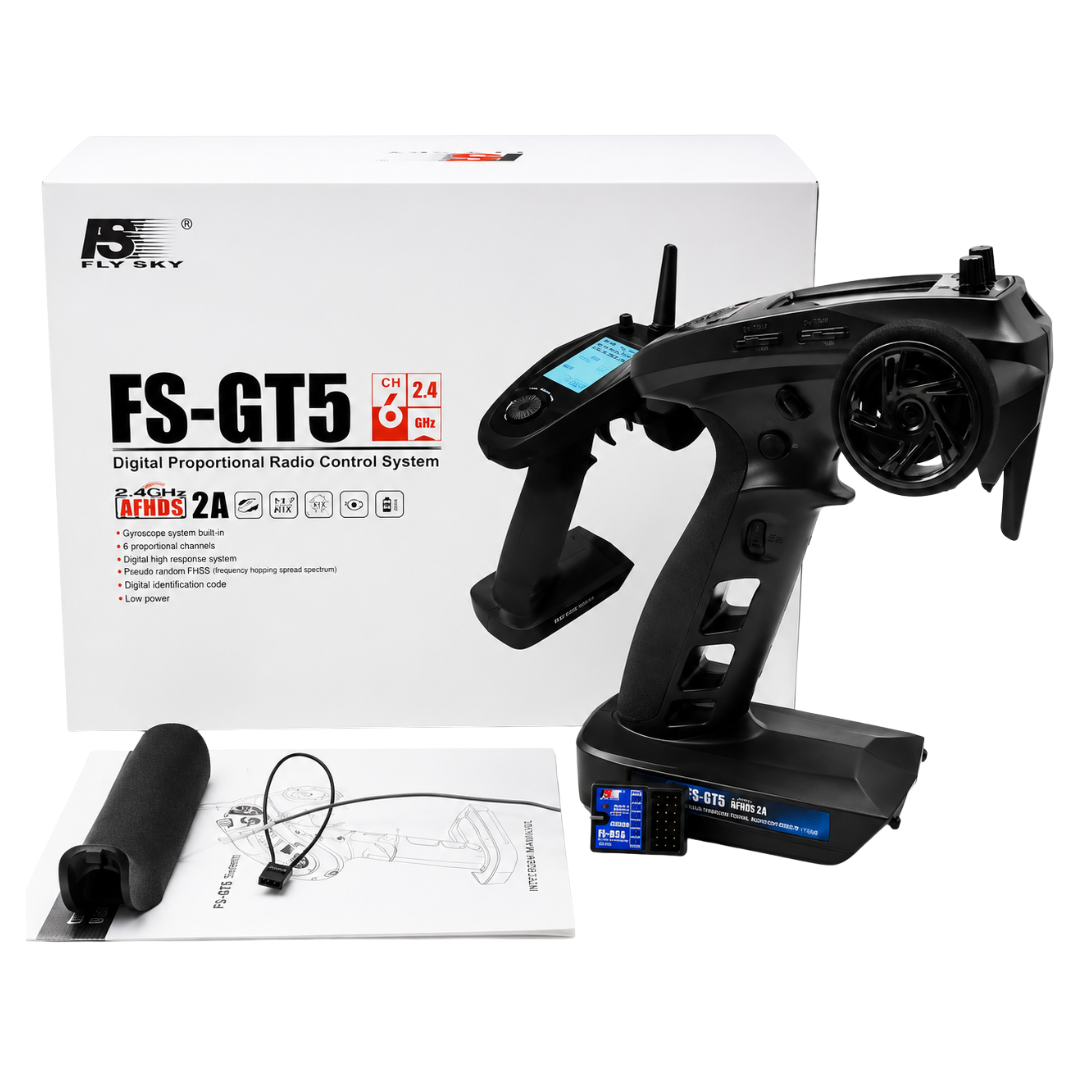

Includes

• 1 x FlySky FS-GT5 6-Channel Transmitter
• 1 x FlySky FS-BS6 6-Channel Gyro Receiver
• 1 x Bind Plug
• 1 x User Manual

FAQ

Does the FlySky GT5 include a gyro receiver? Yes, the supplied FS-BS6 receiver has a built-in gyroscope used with the GT5 SVC stability control system

Does the FlySky GT5 support failsafe? Yes, the GT5 system supports programmable failsafe positions so channels can move to preset values if the receiver loses the transmitter signal

What receivers are compatible with the FlySky GT5? The GT5 uses the AFHDS 2A protocol and FlySky documentation lists compatible receivers including the BS6 BS4 iA10B iA6B iA4B iA10 iA6 iA4C A6 A3 and X6B

Can the FlySky GT5 be used for crawlers? Yes, the GT5 includes four crawler modes for different front and rear steering configurations including front steering rear steering coordinated steering and counter steering

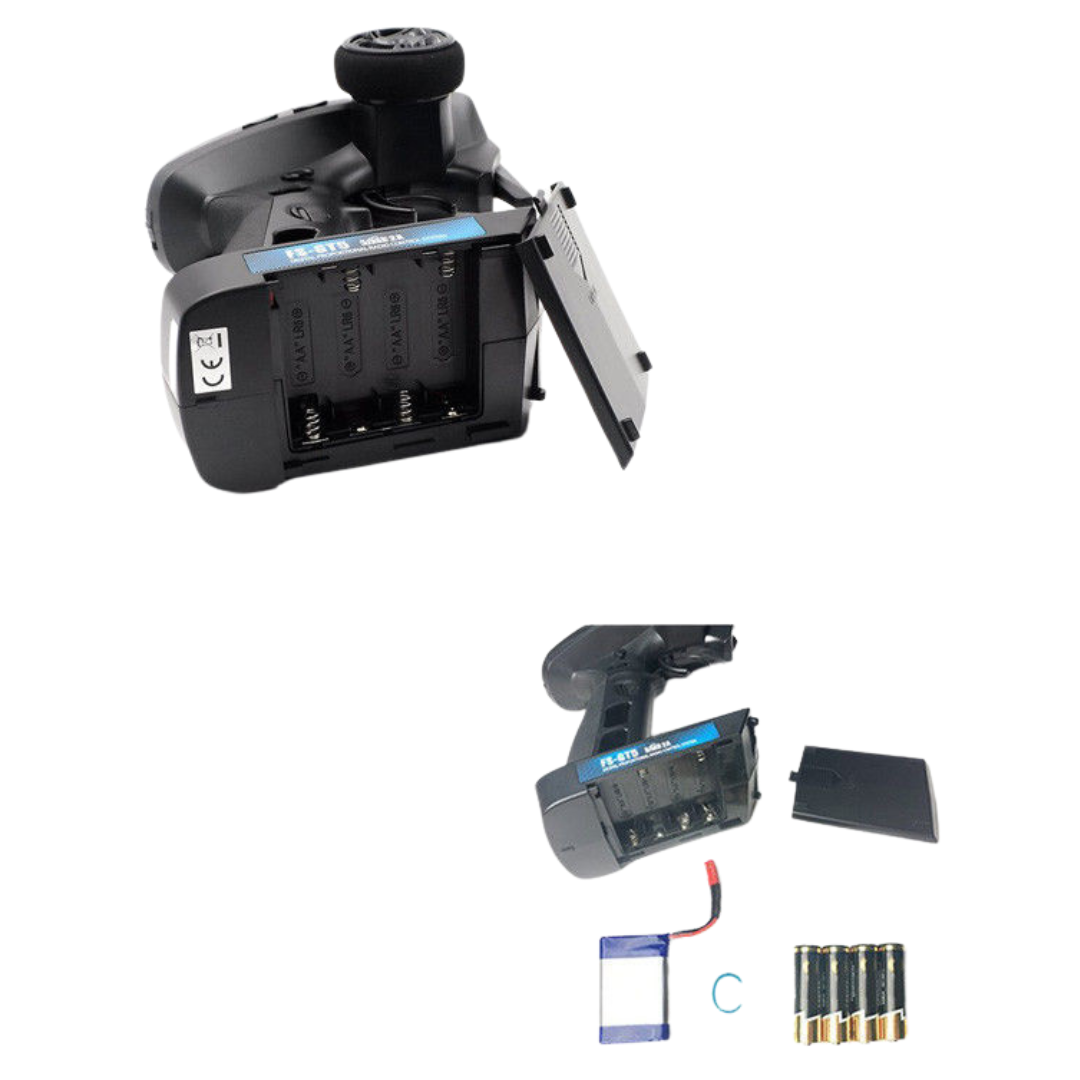

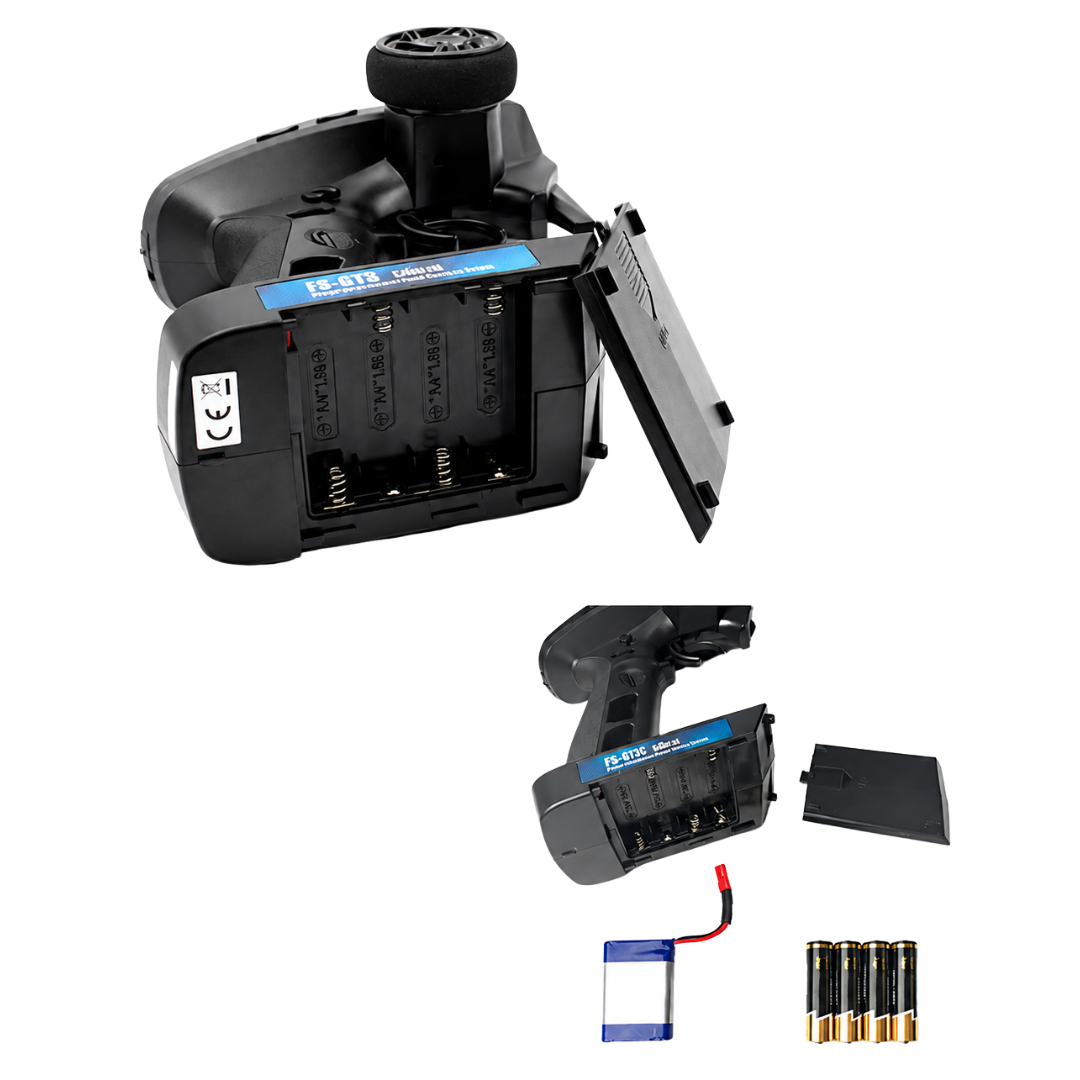

What batteries does the FlySky GT5 use? The transmitter can operate from four AA batteries or a compatible 2S lithium battery and does not have a built-in charging port

Important Notes

• Transmitter batteries are not included
• Confirm receiver voltage and servo compatibility before installation
• Operating range varies with terrain interference antenna placement and installation conditions
• Configure and test the failsafe before operating the model
