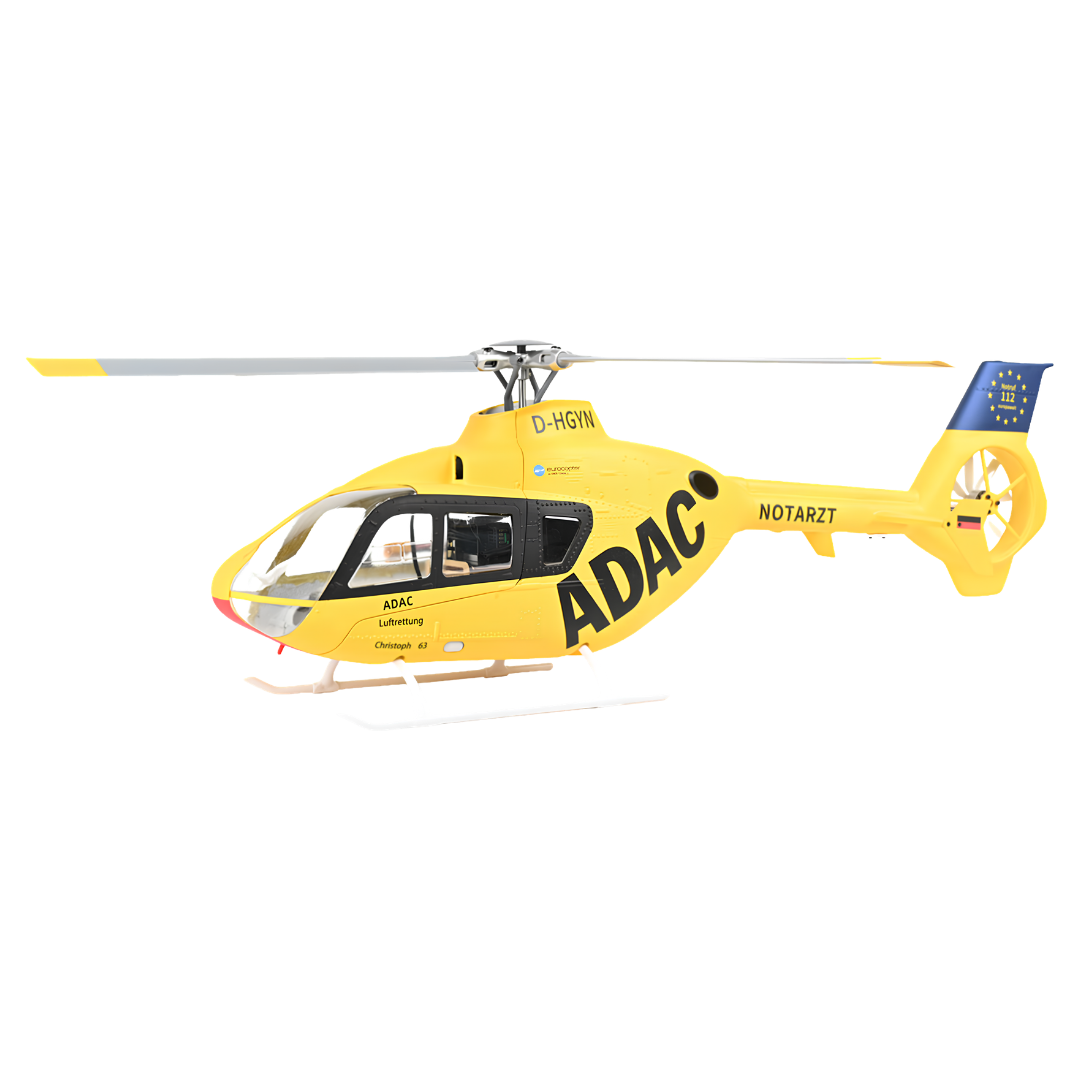

Flywing EC135 ADAC GPS RC Helicopter 470 Class RTF Yellow FW-EC135-YELLOW

The Flywing EC135 is a 470-class 6-channel scale RC helicopter finished in yellow ADAC air-rescue livery, combining a four-blade rotor system, ACE flight controller with M10N multi-constellation positioning and an RTF package designed for stable GPS-assisted scale flight.

Features

• EC135 Scale Design: Detailed fuselage recreates the distinctive Eurocopter EC135 in yellow ADAC air-rescue styling
• ACE Flight Controller: Integrated flight control system provides GPS-assisted stabilisation and multiple selectable flight modes
• M10N Positioning: Supports GPS, GLONASS and BeiDou satellite positioning for accurate outdoor position hold
• GPS Position Hold: Helps maintain position and altitude when a suitable satellite lock is available
• ATT Self-Levelling Mode: Stabilised attitude mode assists with controlled scale flying
• Manual Flight Mode: Experienced pilots can access more direct manual control beyond GPS-assisted flight
• Return-to-Home: One-key return function can command the helicopter back towards its recorded take-off position
• Automatic Safety Return: Flight controller supports automatic return functions for low battery and loss of radio signal
• Four-Blade Rotor Head: Quick-detachable four-blade rotor system provides scale appearance and simplifies transport or maintenance
• Brushless Power System: 3508 brushless main motor is paired with a 60A 32-bit dual brushless speed controller
• Long Flight Duration: Included 4S 5000mAh LiPo provides approximately 20+ minutes of flight time under suitable conditions
• 10-Channel Transmitter: RTF package includes a pre-configured transmitter with approximately 1km quoted control range
• SBUS Support: Flight controller can also support suitable third-party 9-channel or higher SBUS radio systems

Specifications

• Brand: Flywing
• Model: EC135
• Product Type: GPS RC Helicopter
• Size Class: 470 Class
• Completion Level: Ready-To-Fly / RTF
• Colour / Livery: Yellow ADAC Air Rescue
• Control Channels: 6CH
• Radio Frequency: 2.4GHz
• Included Transmitter: 10-Channel
• Flight Controller: Flywing ACE
• Positioning Module: M10N
• Satellite Systems: GPS / GLONASS / BeiDou
• Flight Modes: GPS Position Hold / ATT Self-Levelling / Manual Flight
• Main Motor: 3508 Brushless
• Tail Motor: 2008 Brushless
• ESC: 60A 32-Bit Dual Brushless Speed Controller
• Main Rotor: 4-Blade
• Main Rotor Diameter: Approximately 810mm
• Tail Rotor Diameter: Approximately 125mm
• Fuselage Length: Approximately 795mm Without Main Blades
• Fuselage Width: Approximately 265mm
• Fuselage Height: Approximately 150mm
• Published Weight Without Battery: Approximately 738g
• Published Assembled Weight with Battery: Approximately 2600g
• Battery: 4S 5000mAh LiPo
• Typical Flight Time: Approximately 20+ Minutes
• Quoted Control Range: Approximately 1km
• Manufacturer / Supplier SKU: FW-EC135-YELLOW
• Australian Variant Reference: EC-135 ADAC RTF-AU

Includes

• 1 x Flywing EC135 Yellow ADAC RC Helicopter
• 1 x Flywing 10-Channel 2.4GHz Transmitter
• 1 x Flywing ACE Flight Controller and M10N Positioning System Installed
• 1 x 4S 5000mAh LiPo Battery
• 1 x Compatible Battery Charger
• 1 x Four-Blade Main Rotor Set
• 1 x User Manual

FAQ

Is the Flywing EC135 FW-EC135-YELLOW ready to fly? Yes. This is the RTF version and is supplied with the helicopter, pre-configured radio system, 4S 5000mAh LiPo battery and compatible charger. Normal pre-flight checks and GPS acquisition are still required before flight.

What does the GPS system do on the Flywing EC135? The ACE flight controller uses M10N GPS, GLONASS and BeiDou positioning to provide functions including outdoor position hold, assisted hovering and return-to-home when sufficient satellite reception is available.

How long does the Flywing EC135 fly on one battery? Published specifications quote approximately 20+ minutes from the supplied 4S 5000mAh LiPo. Actual flight time varies with flying style, wind, battery condition and use of higher-power manoeuvres.

Can I use my own transmitter with the Flywing EC135? The supplied RTF version includes a 10-channel transmitter. Flywing also supports suitable third-party radio systems using SBUS with nine or more channels, although correct setup and configuration are required.

Does return-to-home avoid trees or other obstacles? No. Return-to-home should not be treated as an obstacle-avoidance system. Flywing's operating guidance warns that the helicopter does not automatically avoid obstacles while returning, so it should be flown in a clear open area with an unobstructed return path.

Does the EC135 need GPS before take-off? GPS-assisted functions require suitable satellite reception. For GPS flying, use an open outdoor area away from buildings, trees and other sources of signal interference, and confirm the required positioning status before take-off.

Important Notes

• This is a large, powerful hobby-grade RC helicopter and should be operated in a suitable open flying area away from people, animals, vehicles and property
• GPS and return-to-home functions depend on satellite reception and should not replace normal pilot awareness and control
• Automatic return-to-home does not provide obstacle avoidance
• Confirm GPS lock and the recorded home position before relying on return-to-home functions
• Flight time and radio range are approximate and vary with conditions, installation, battery state and local radio environment
• Published weight figures vary by measurement method; supplier listings quote approximately 738g without battery and approximately 2600g for the assembled configuration with battery
• Always balance-charge the included LiPo battery using a compatible charger and follow LiPo charging and storage precautions
