Flywing UH-1 Huey 4-Blade GPS RC Helicopter RTF Grey FW-UH1-GRAY-4BLADES

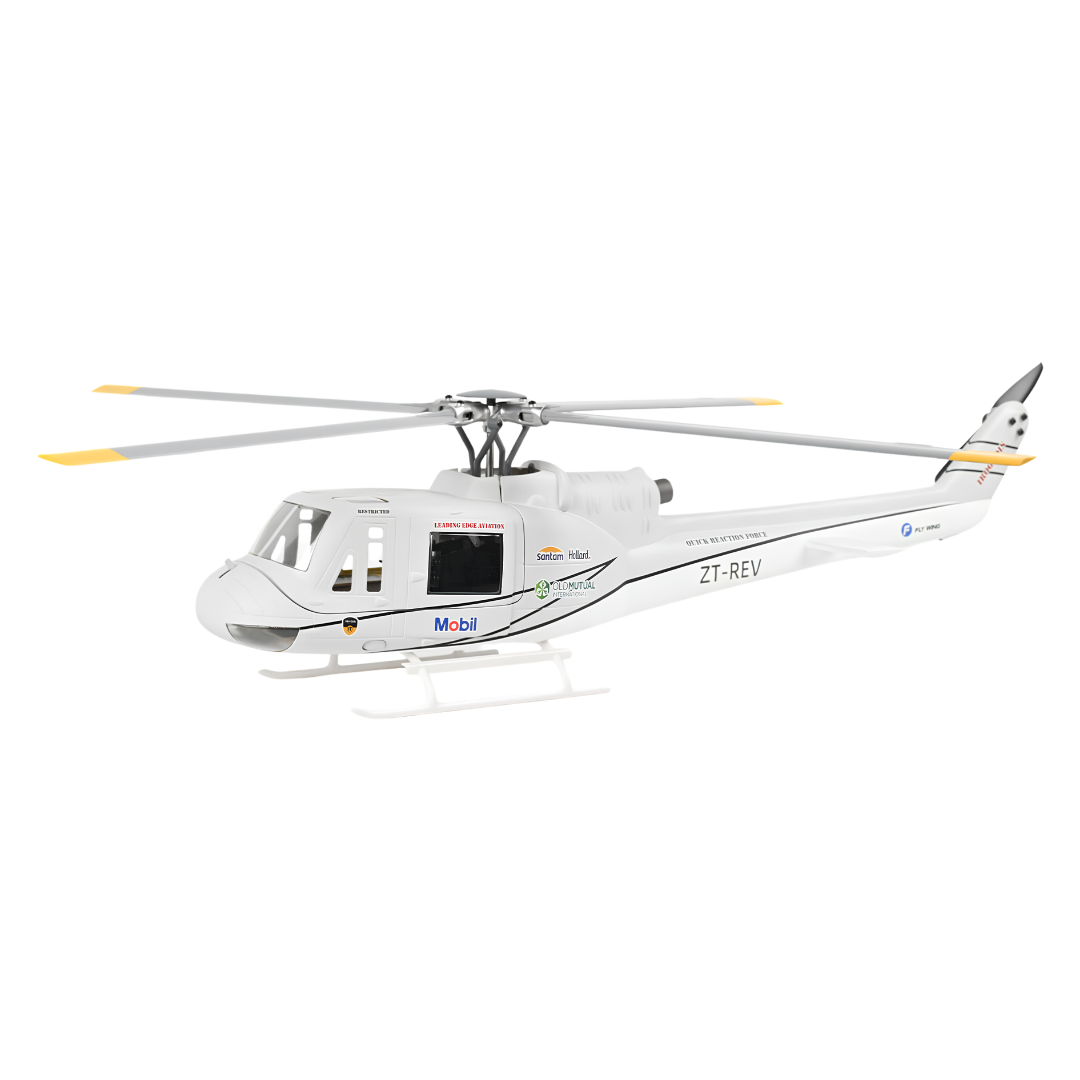

The Flywing UH-1 Huey is a 470-class GPS-stabilised scale RC helicopter supplied ready-to-fly in a grey and white livery, combining a four-blade rotor system, ACE flight controller, M10N satellite positioning and a 4S brushless power system for stable scale flight with GPS-assisted and manual control modes.

Features

• UH-1 Huey Scale Design: Recreates the distinctive Bell UH-1 Iroquois utility helicopter with detailed panel lines, transparent cockpit sections and scale exterior details
• Four-Blade Rotor System: Scale-style four-blade rotor provides an authentic appearance and is matched to the dedicated four-blade flight configuration
• ACE Flight Controller: Integrated stabilisation system provides GPS-assisted flight, ATT self-levelling and manual flight modes
• M10N Satellite Positioning: GPS and GLONASS positioning supports outdoor position hold, stable hovering and return functions
• GPS Position Hold: Helps maintain the helicopter's horizontal position and altitude when adequate satellite reception is available
• Return-to-Home: One-key return function can command the helicopter back towards its recorded take-off position
• Automatic Safety Functions: Supports automatic return for low battery and loss of transmitter signal
• Automatic Flight Patterns: Supports assisted circular and figure-eight flight patterns
• Brushless Power System: 3508 brushless main motor and brushless tail motor provide efficient power for the 470-class airframe
• 60A ESC: High-current brushless speed controller is matched to the power system
• High-Torque Servos: Metal-gear servos are rated at approximately 4kg.cm torque with a 0.12sec/60° response specification
• 10-Channel Transmitter: RTF package includes a 2.4GHz 10-channel transmitter with approximately 1km quoted control range under suitable conditions
• SBUS Support: Flight control system supports compatible third-party SBUS radio equipment with sufficient channels when correctly configured
• Scale Lighting: Integrated lighting enhances visibility and the finished scale appearance
• Easy Battery Access: Removable front cabin section provides convenient access to the flight battery compartment

Specifications

• Brand: Flywing
• Model: UH-1 Huey / Iroquois
• Version: V4 Four-Blade
• Product Type: GPS RC Helicopter
• Size Class: 470 Class
• Completion Level: Ready-To-Fly / RTF
• Colour / Livery: Grey and White
• Included Transmitter: 10-Channel 2.4GHz
• Flight Controller: Flywing ACE
• Positioning Module: M10N
• Satellite Positioning: GPS / GLONASS
• Flight Modes: GPS Assisted / ATT Self-Levelling / Manual / Automatic Flight
• Main Motor: 3508 Brushless
• Tail Motor: Brushless
• ESC: 60A Brushless
• Main Rotor: 4-Blade
• Main Rotor Diameter: Approximately 810mm
• Body Length: Approximately 750mm Excluding Main Blades
• Body Width: Approximately 155mm
• Body Height: Approximately 220mm
• Weight Without Battery: Approximately 836g
• Battery: 4S 14.8V 5000mAh LiPo
• Battery Energy: 74Wh
• Typical Four-Blade Flight Time: Approximately 18 Minutes
• Quoted Radio Range: Approximately 1km Under Suitable Unobstructed Conditions
• Manufacturer / Supplier SKU: FW-UH1-GRAY-4BLADES

Includes

• 1 x Flywing UH-1 Huey V4 Grey Four-Blade RC Helicopter
• 1 x Flywing 10-Channel 2.4GHz Transmitter
• 1 x ACE Flight Controller and M10N Positioning System Installed
• 1 x 4S 14.8V 5000mAh 74Wh LiPo Flight Battery
• 1 x Compatible Balance Charger
• 1 x Screwdriver
• 1 x USB Data Cable
• 1 x User / Quick Start Guide

FAQ

Is the Flywing UH-1 FW-UH1-GRAY-4BLADES ready to fly? Yes. This is the RTF configuration with the assembled helicopter, transmitter, 4S flight battery and charger supplied. The transmitter requires four AA batteries separately, and normal charging, inspection and GPS setup are required before flying.

Why is the Flywing UH-1 sometimes described as 6-channel and sometimes 10-channel? Flywing describes the underlying UH-1 flight-control architecture as a 6-channel helicopter system, while the Australian FW-UH1-GRAY-4BLADES RTF package includes a 10-channel transmitter. The additional transmitter channels provide access to flight-controller and auxiliary functions.

How long does the four-blade Flywing UH-1 fly? The exact Australian four-blade specification quotes approximately 18 minutes with the included 4S 5000mAh battery. Other general V4 specifications may quote 20+ minutes, so actual duration depends on rotor configuration, flying style, wind and battery condition.

What happens if the transmitter signal is lost or the battery becomes low? The ACE flight controller supports automatic return functions for loss of radio signal and low flight-battery voltage. These functions depend on correct setup and suitable GPS reception.

Can the Flywing UH-1 perform 3D flight? A manual 3D flight mode is available, but it behaves very differently from GPS-assisted hovering. The self-centring collective position used for GPS flight does not maintain a hover in manual 3D mode, so this mode should only be used by pilots familiar with collective-pitch helicopter control.

Does return-to-home avoid trees or other obstacles? No. Return-to-home is not an obstacle-avoidance system. The helicopter should be operated in a clear open area with an unobstructed route to its recorded home position.

Important Notes

• This is a large and powerful hobby-grade RC helicopter intended for use in a suitable open flying area
• 4 x AA batteries are required separately for the supplied transmitter
• Perform a complete pre-flight inspection of the main blades, rotor head, tail rotor, linkages, landing gear and internal flight-controller/GPS mounting before the first flight and after transport
• Allow the flight controller to establish the required positioning status before using GPS-assisted functions
• GPS and return-to-home functions should not replace normal pilot awareness and control
• Return-to-home does not provide obstacle avoidance
• Manual 3D mode requires significantly more pilot experience than GPS-assisted flight
• The quoted 1km control range represents favourable unobstructed conditions and is not a guaranteed operating distance
• Flight time is approximate and will vary with rotor setup, flying style, weather and battery condition
• Always balance-charge the supplied LiPo battery with a compatible charger and follow appropriate LiPo charging, storage and handling procedures
