FMS FCX18 II Ford F-100 RC Crawler 1/18 4WD RTR Blue White FMS118L01BDBUWH

The FMS FCX18 II Ford F-100 is a 1/18 scale 4WD RTR RC crawler in Blue White, combining an officially licensed hard-shell Ford body with a low-centre-of-gravity chassis two-speed transmission and magnetic quick-release body system for realistic trail driving and technical crawling

Features

• Officially licensed Ford F-100 hard-shell body
• Officially licensed BFGoodrich KO3 tyres
• All-new FCX18 II low-centre-of-gravity chassis
• Full-time 4WD drivetrain
• Solid front and rear axle design
• Two-speed transmission with transmitter-controlled high and low range
• Reverse transmission layout contributes to the low-centre-of-gravity chassis design
• 180-size brushed motor mounted toward the front of the chassis
• FMS-R3D-BS receiver and ESC 2-in-1 unit
• Metal chassis rails gears bearings steering links and shock components
• Four-link suspension system
• Oil-filled shocks with multiple mounting positions

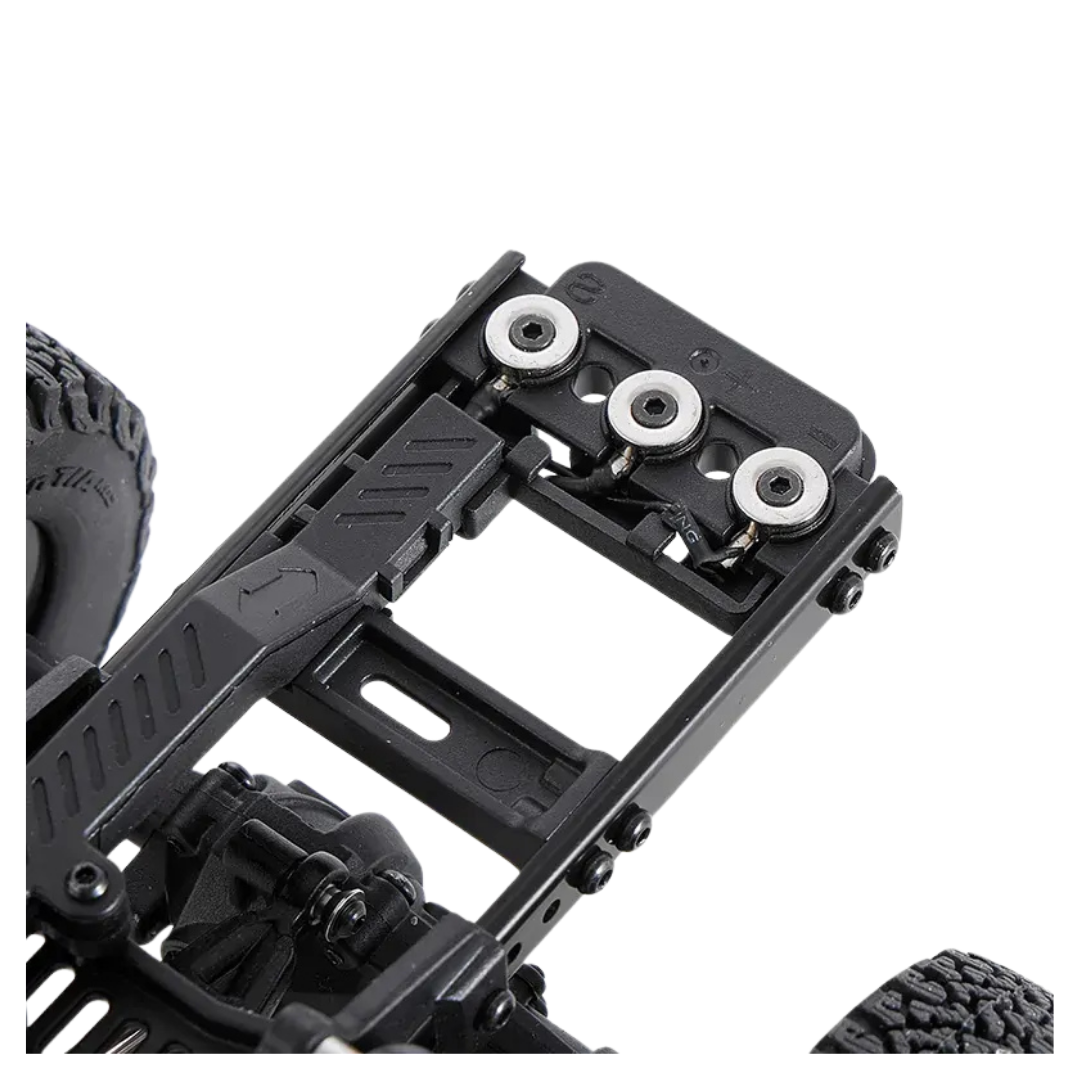

• Magnetic quick-release body system allows fast access without conventional body clips
• Magnetic electrical contacts automatically connect the body-mounted lighting system
• Detailed moulded interior with seats steering wheel and scale exterior components
• Integrated headlights taillights turn signals and roof-mounted spotlights
• Multiple lighting functions controllable from the transmitter
• Extensive FCX18 II upgrade options available separately

Specifications

• Brand: FMS
• Model: FCX18 II Ford F-100
• Product Type: RC Rock Crawler
• Scale: 1/18
• Completion Level: RTR
• Drive: Full-Time 4WD
• Axle Type: Solid Axles
• Chassis: FCX18 II Low Centre of Gravity
• Length: 330mm
• Width: 145mm
• Height: 147mm
• Wheelbase: 199mm
• Ground Clearance: 31mm
• Tyre Size: 58 x 19mm
• Tyres: Licensed BFGoodrich KO3
• Approach Angle: 59°
• Departure Angle: 53°
• Transmission: 2-Speed
• High Gear Ratio: 17.7:1
• Low Gear Ratio: 94.2:1
• Motor: 180 Brushed
• Receiver and ESC: FMS-R3D-BS 2-in-1
• Radio System: FS-MG44 2.4GHz Transmitter
• Radio Range: Approximately 80m
• Battery: 2S 7.4V 900mAh LiPo
• Approximate Run Time: 40 to 60 Minutes
• Body Type: Hard Shell with Moulded Interior
• Colour: Blue White
• Manufacturer Part Number: FMS118L01BDBUWH

Includes

• 1 x FMS FCX18 II Ford F-100 1/18 4WD RTR Crawler Blue White
• 1 x FS-MG44 2.4GHz Transmitter
• 1 x Installed FMS-R3D-BS Receiver and ESC 2-in-1 Unit
• 1 x Installed 180 Brushed Motor
• 1 x 2S 7.4V 900mAh LiPo Battery
• 1 x USB Battery Charger
• 1 x Decal Sheet
• 1 x Surfboard Scale Accessory
• 1 x Livery-Matched Magnetic Badge
• 1 x Product Manual

Required To Complete

• 4 x AAA Batteries for the Transmitter

FAQ

Is the FMS FCX18 II Ford F-100 ready to run? Yes, the vehicle is supplied RTR with the radio system 900mAh LiPo battery and USB charger included and only four AAA transmitter batteries are required separately

Does the FCX18 II Ford F-100 have portal axles? No, the standard FCX18 II Ford F-100 uses solid axles and FMS lists portal-axle assemblies as optional upgrade parts

How does the magnetic body system work? The body is retained by a magnetic quick-release system and integrated electrical contacts automatically connect the body lighting when the shell is fitted

Does the FCX18 II Ford F-100 have a two-speed transmission? Yes, the transmission provides a 94.2:1 low gear for controlled crawling and a 17.7:1 high gear for faster trail driving

Important Notes

• Four AAA batteries for the transmitter are required separately
• The standard vehicle uses solid axles rather than portal axles
• Portal axle assemblies and other FCX18 II upgrades are available separately
