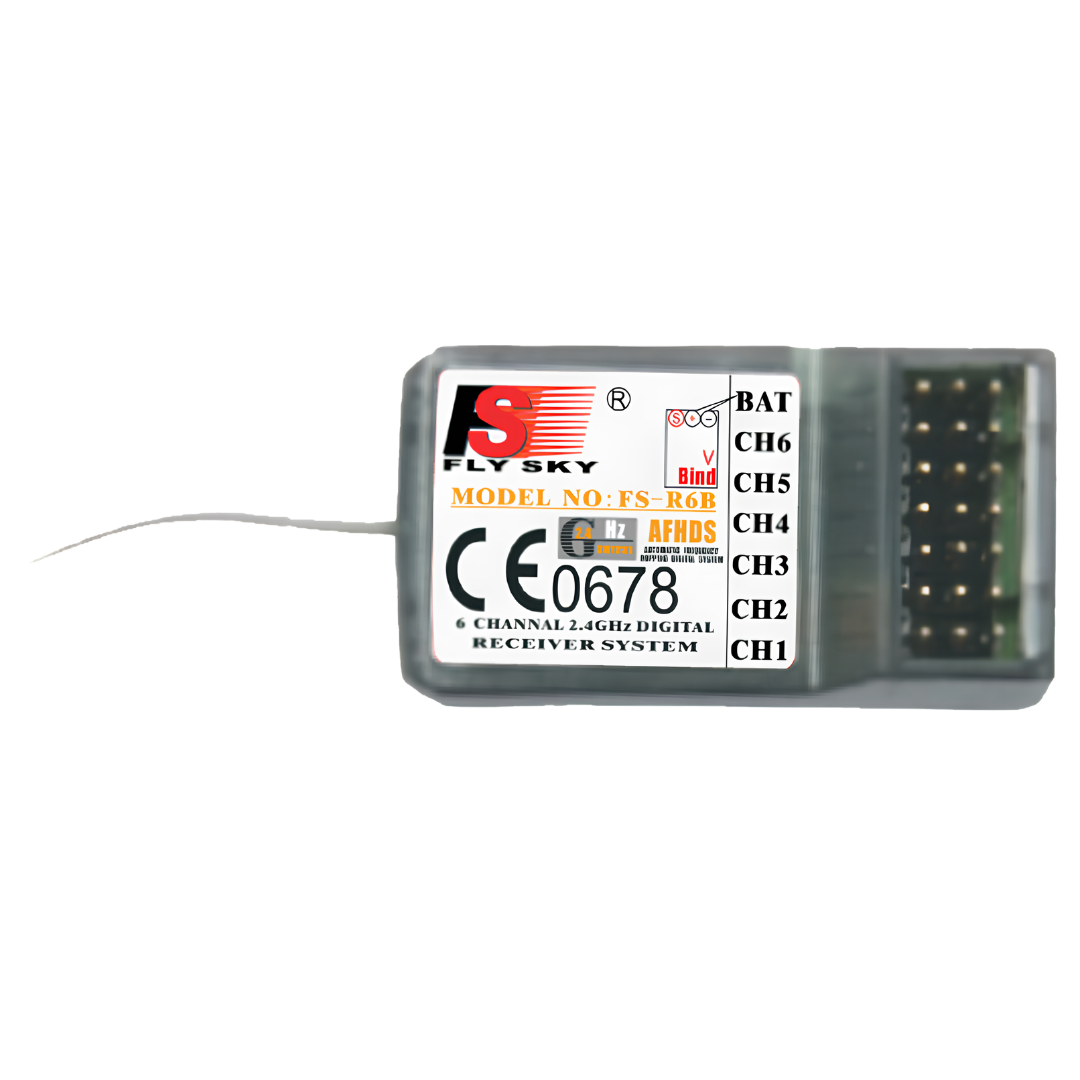

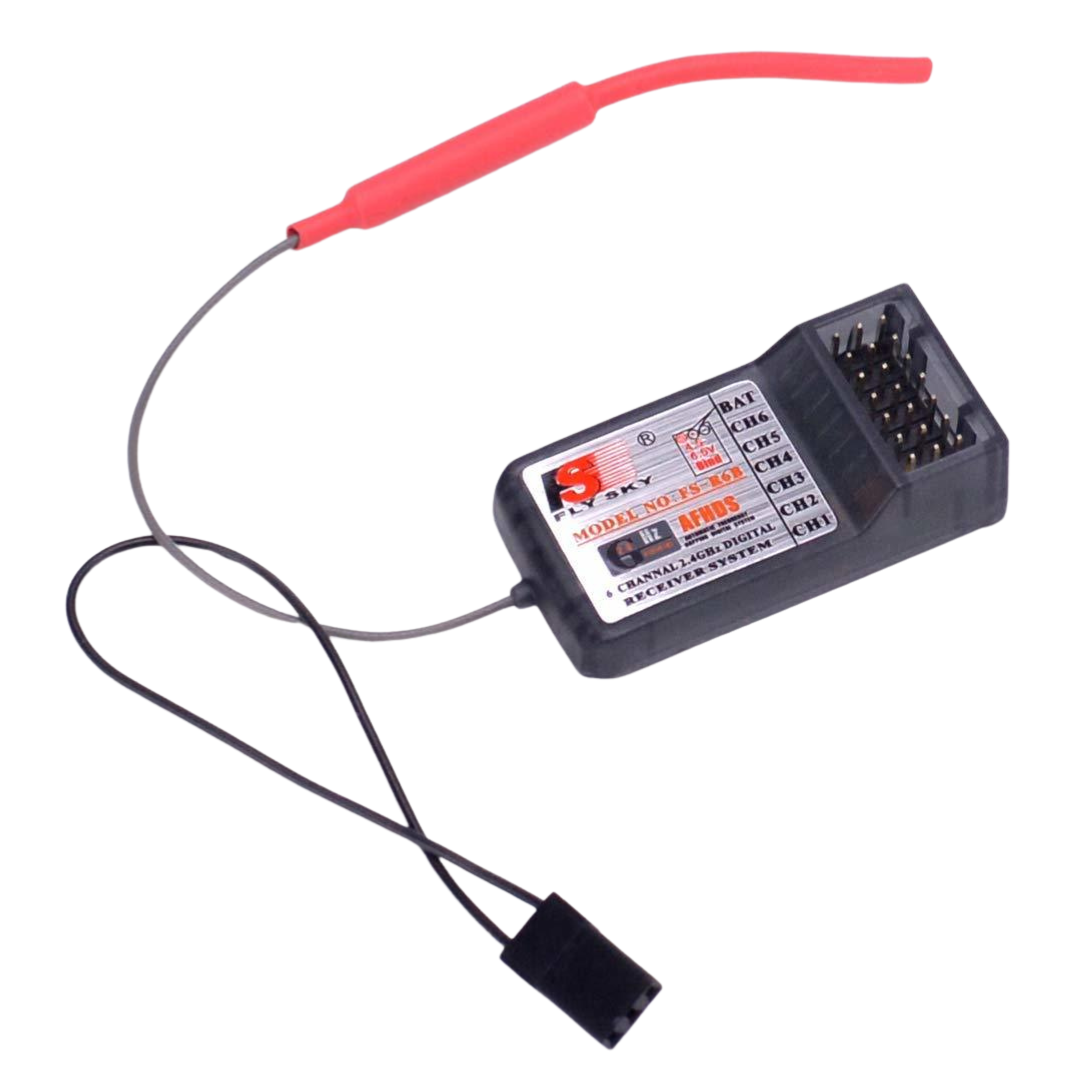

FLYSKY FS-R6B 2.4GHz 6CH AFHDS Receiver T6 Radio FS-R6B

The FLYSKY FS-R6B is a 6-channel 2.4GHz AFHDS receiver for compatible FlySky aircraft radio systems, including T6-style radios, giving RC aircraft users a replacement receiver for PWM servo and ESC control.

This receiver suits compatible RC aircraft, gliders and helicopters using FlySky AFHDS radio gear and standard PWM channel outputs.

Features

• 6-channel receiver for compatible FlySky AFHDS radio systems
• 2.4GHz operation provides modern spread-spectrum radio control
• PWM channel output suits standard RC servos and ESC connections
• Compatible with FlySky T6-style aircraft radio systems using AFHDS protocol
• 4.0V to 6.5V DC input range suits common receiver power setups
• Compact receiver body is suitable for aircraft, gliders and helicopter installations with available space
• Useful replacement receiver for repairing or expanding compatible FlySky air radio setups

Specifications

• Brand: FLYSKY
• Model: FS-R6B
• SKU: FS-R6B
• Barcode: 2000000009308
• Product Type: RC receiver
• Channels: 6 PWM channels
• Radio Frequency: 2.4GHz
• Protocol: AFHDS
• Data Output: PWM
• Power Input: 4.0V to 6.5V DC
• RSSI: Not supported
• Online Update: Not supported
• Antenna Type: Single antenna
• Operating Temperature: 0°C to 60°C
• Operating Humidity: 20% to 95%
• Dimensions: 45 x 23 x 13mm
• Weight: 13g
• Certification: CE
• Known Compatibility: FlySky T6-style air radios using AFHDS protocol

Includes

• 1 x FLYSKY FS-R6B 2.4GHz 6-channel AFHDS receiver

FAQ

Does the FLYSKY FS-R6B work with the FlySky T6 air radio? Yes. The FS-R6B is designed for compatible FlySky AFHDS air radio systems, including T6-style radios using the AFHDS protocol.

Does the FS-R6B support i-BUS or SBUS? No. The FlySky FS-R6B is a PWM receiver and is not listed as supporting i-BUS, SBUS or RSSI output.

What voltage does the FS-R6B receiver need? The FS-R6B requires a 4.0V to 6.5V DC power input from a suitable receiver battery, BEC or compatible aircraft power system.

What models does this receiver suit? The FS-R6B suits compatible RC aircraft, gliders and helicopters using FlySky AFHDS transmitters and standard PWM servo connections.

Important Notes

• Confirm your transmitter uses FlySky AFHDS protocol before purchase.
• This receiver is not listed as compatible with newer AFHDS 2A-only transmitters unless the transmitter specifically supports AFHDS mode.
• This receiver uses PWM outputs and is not suitable for setups requiring i-BUS or SBUS receiver output.
• Bind the receiver to the transmitter before use and perform a full range and control check before flying.
• Install the antenna clear of carbon fibre, metal parts and high-current wiring where possible.
