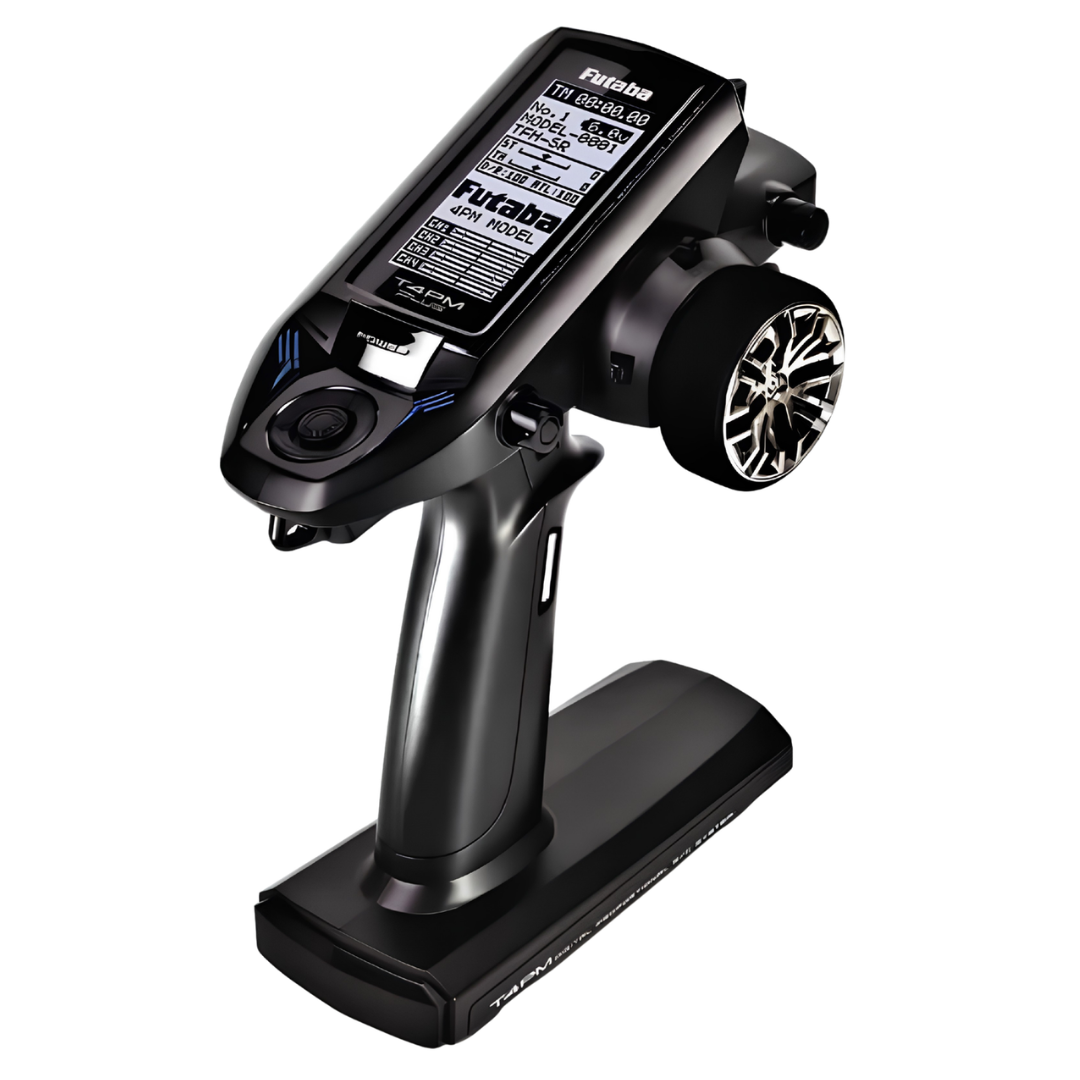

The Futaba 4PM-Plus is a 4-channel 2.4GHz surface radio system supplied with two R334SBS receivers, giving RC car truck crawler and other surface users fast response advanced tuning functions and the convenience of equipping two compatible models from one package

Features

  • 4-channel pistol-grip surface radio system
  • T-FHSS SR high-speed response mode for compatible receivers and servos
  • T-FHSS bidirectional communication with telemetry support
  • S-FHSS compatibility for supported Futaba receivers
  • Includes two R334SBS T-FHSS SR 4-channel receivers
  • 40-model memory with model copy function
  • Steering mixing for independent left and right steering servo adjustment
  • 4WS mixing for compatible crawlers and four-wheel-steering vehicles
  • Dual ESC mixing for compatible multi-motor crawler applications
  • Brake mixing for independently controlled front and rear brakes
  • Gyro mixing for compatible Futaba surface gyros
  • ABS braking function
  • Adjustable steering and throttle speed functions
  • Racing timer with lap timing functions
  • Wireless S.BUS servo parameter adjustment through a compatible R334SBS receiver
  • Adjustable throttle trigger position and steering wheel spring tension

Transmitter Specifications

  • Brand: Futaba
  • Model: T4PM-Plus
  • Product Type: Surface RC Radio System
  • Channels: 4
  • Frequency: 2.4GHz
  • Protocols: T-FHSS SR T-FHSS and S-FHSS
  • Telemetry: Supported in T-FHSS Mode
  • Model Memory: 40 Models
  • Maximum Operating Range: Approximately 100m Under Optimum Conditions
  • RF Power Output: 100mW EIRP
  • Safety Functions: Failsafe Battery Failsafe and ID
  • Transmitter Power: 3 x AA Batteries
  • Transmitter Voltage: 4.5V with Dry Cells
  • Current Drain: 150mA or Less
  • Manufacturer Part Number: FUT07007188-3

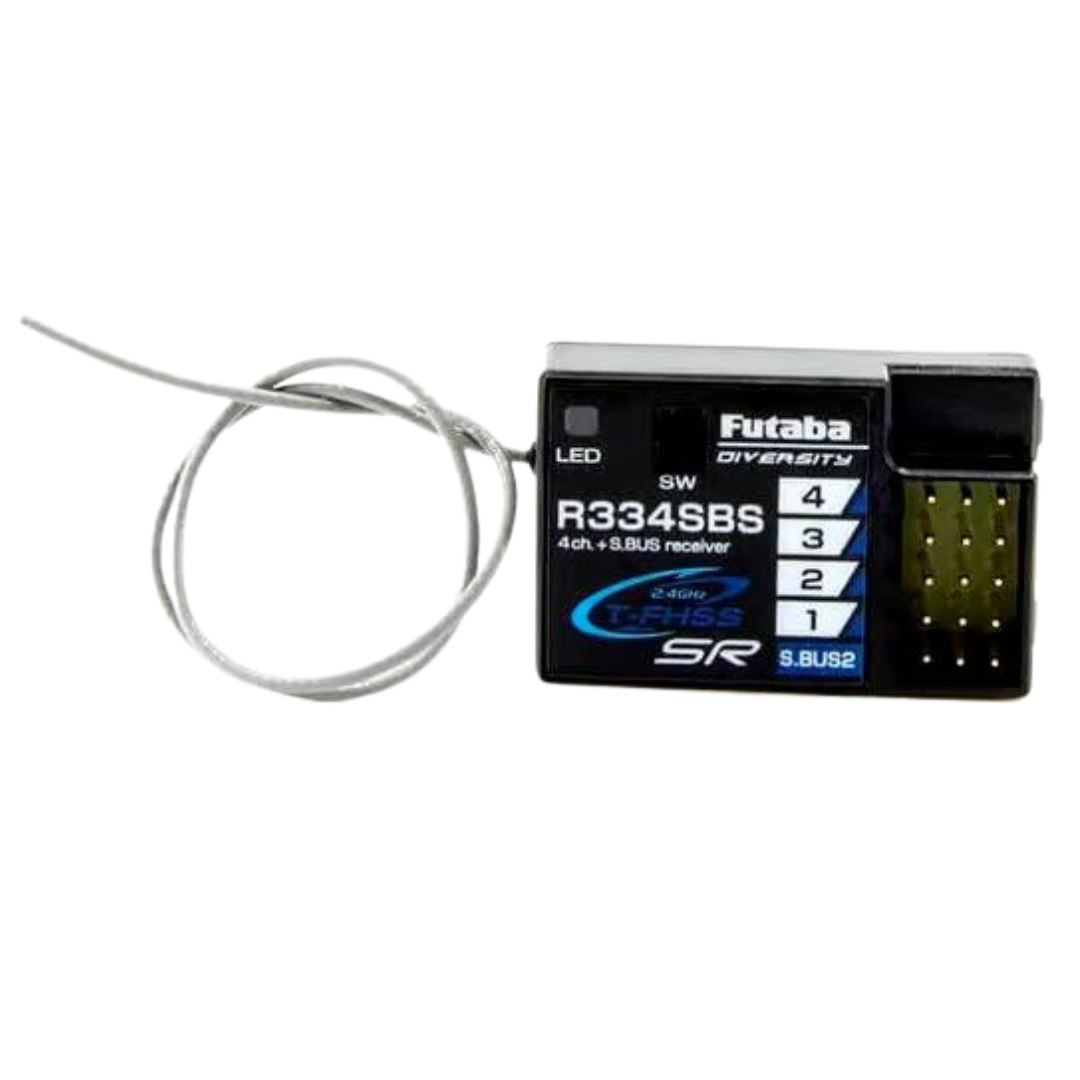

Receiver Specifications

  • Receiver Model: R334SBS
  • Receiver Quantity: 2
  • Channels: 4
  • Protocols: T-FHSS SR and T-FHSS
  • S.BUS2: Supported
  • Telemetry: Supported in T-FHSS Mode
  • Operating Voltage: 3.7V to 7.4V
  • Dimensions: 33.9 x 22.3 x 11.3mm
  • Weight: Approximately 7.5g Each

Includes

  • 1 x Futaba T4PM-Plus 2.4GHz 4-Channel Transmitter
  • 2 x Futaba R334SBS 4-Channel Receivers
  • 1 x Dry Battery Holder
  • 1 x Mini Screwdriver

Required To Complete

  • 3 x AA Batteries for the Transmitter
  • Compatible Servos ESC and Other Vehicle Electronics as Required

FAQ

Does FUT07007188-3 include two R334SBS receivers? Yes, this package includes one Futaba 4PM-Plus transmitter and two R334SBS 4-channel receivers

Does the Futaba 4PM-Plus support telemetry? Yes, telemetry is supported in T-FHSS mode but telemetry is not available while operating in T-FHSS SR mode

Can standard servos be used in T-FHSS SR mode? No, Futaba specifies that SR-compatible servos must be used on channels operating in T-FHSS SR mode

What batteries does the Futaba 4PM-Plus require? The transmitter requires three AA dry-cell batteries which are not included

Important Notes

  • T-FHSS SR mode does not support telemetry
  • Use SR-compatible servos only on channels configured for SR mode
  • Confirm receiver protocol servo voltage and vehicle electronics compatibility before installation
