Futaba 4PM Plus 2.4GHz 4CH Radio with 2 R334SBS-E Receivers FUT07007185-3

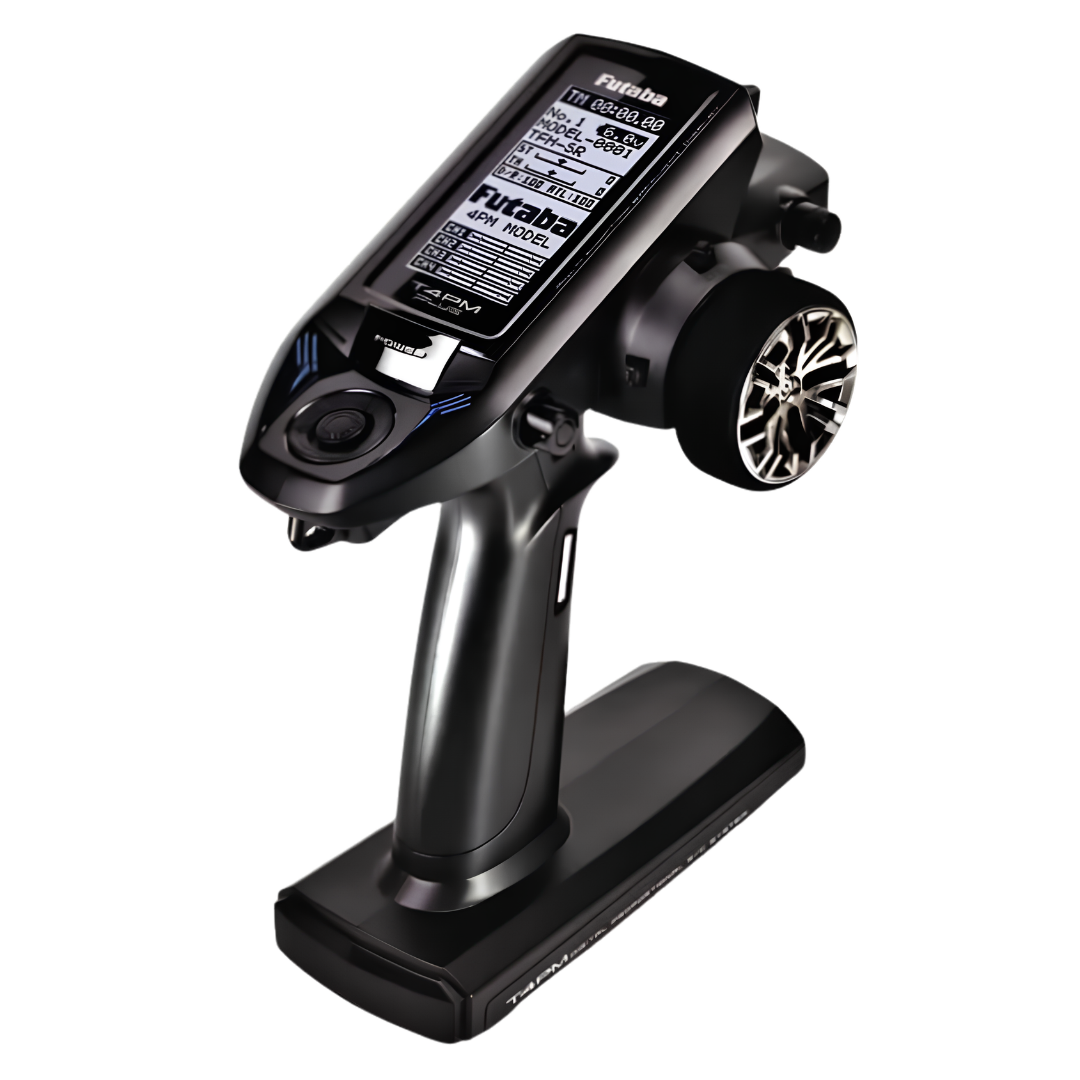

The Futaba 4PM Plus is a 4-channel 2.4GHz wheel-style RC transmitter package supplied with two R334SBS-E receivers for compatible electric RC cars and other suitable surface applications, offering T-FHSS Super Response control, telemetry capability and programmable driving functions for racing and recreational use.

Features

• Two Receivers Included: Supplied with two Futaba R334SBS-E 4-channel receivers, allowing radio equipment to be installed in two compatible electric RC vehicles.
• 4-Channel Digital Proportional Radio: Provides precise steering, throttle and auxiliary channel control for compatible RC surface models.
• T-FHSS SR Super Response: Supports Futaba's high-speed transmission mode when paired with compatible receivers and SR-mode servos.
• T-FHSS Telemetry: Bidirectional communication supports compatible telemetry sensors for monitoring vehicle operating information. Telemetry is unavailable in SR mode.
• Multiple Radio Protocols: Supports T-FHSS SR, T-FHSS and S-FHSS, plus selected Kyosho Mini-Z systems with separately available compatible hardware.
• 40-Model Memory: Stores individual settings for up to 40 models, with model names of up to 10 characters and a model copy function.
• Adjustable Steering and Throttle Response: Programmable steering speed, throttle speed, acceleration and exponential functions allow fine-tuning to driving conditions.
• Built-In ABS Function: Throttle ABS programming provides pulsed braking adjustments for compatible vehicle setups.
• Four-Wheel Steering Mixing: Supports independent front and rear steering control in compatible 4WS RC crawlers.
• Dual ESC Mixing: Allows separate control of front and rear electronic speed controllers in suitable crawler configurations.
• Steering and Brake Mixing: Supports independent steering servos and adjustable front/rear brake mixing for compatible vehicle installations.
• Gyro Mixing: Provides transmitter-based sensitivity adjustment for compatible Futaba steering gyros.
• ESC and S.BUS Servo Programming: Supports selected Futaba electronic speed controller and programmable servo functions.
• Race Timer: Includes lap timing for up to 100 laps, race timing, audible alerts and an up timer.
• Customisable Controls: Four-direction jog button, assignable switches, digital trim controls and adjustable steering wheel and trigger spring tension.
• Adjustable Throttle Trigger: Throttle trigger position and mechanical brake travel can be adjusted for driver comfort.

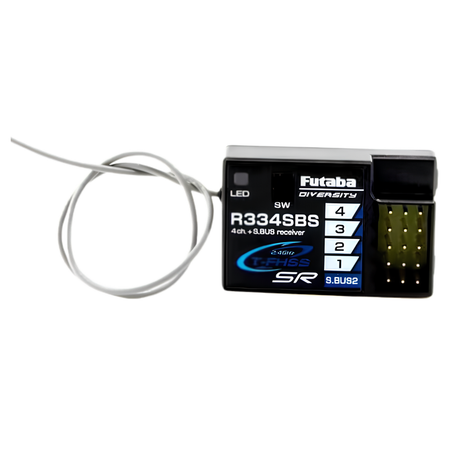

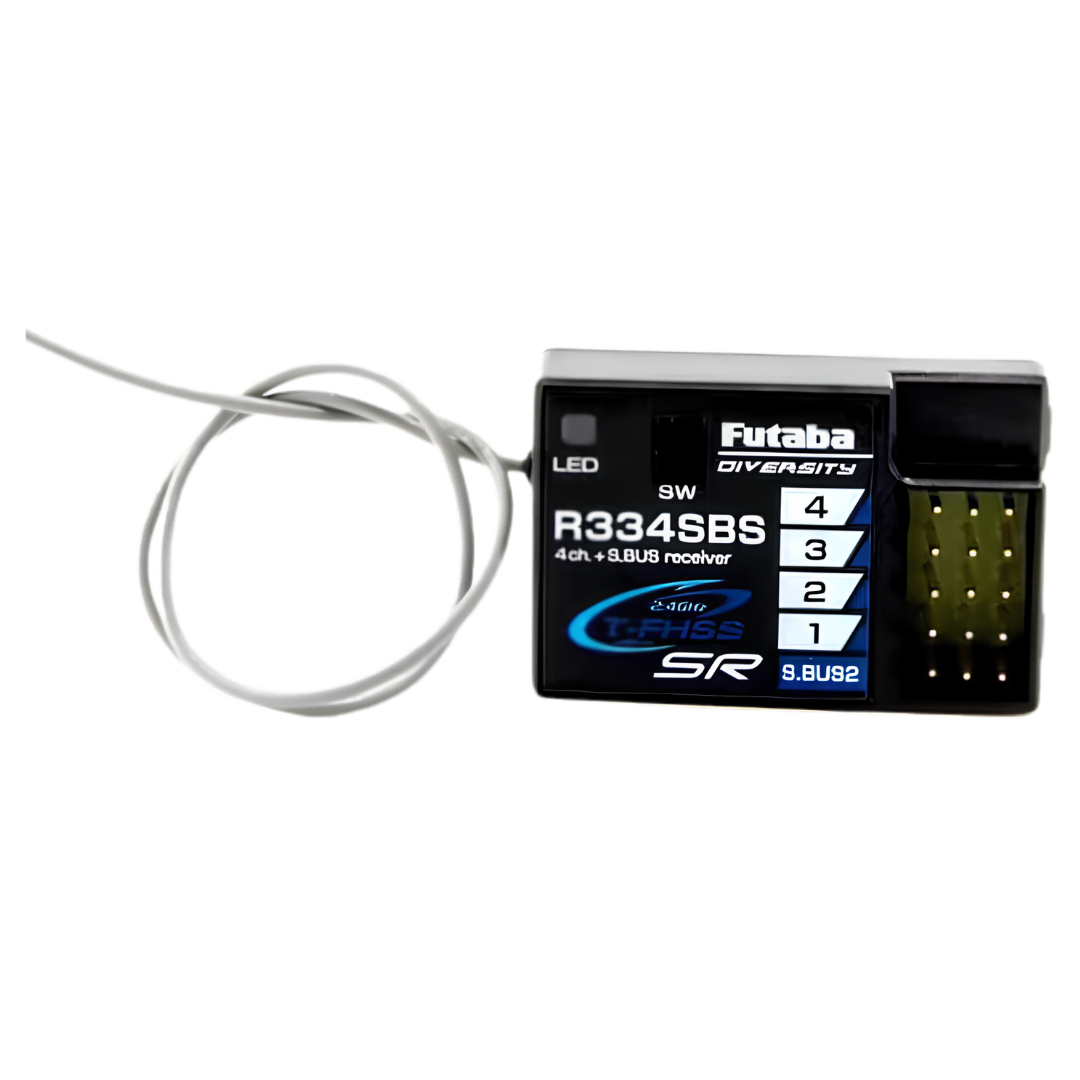

• Compact R334SBS-E Receivers: Each receiver measures approximately 33.9 x 22.3 x 11.3mm and features diversity reception with a short aerial arrangement.
• Failsafe Functions: Supports failsafe and battery failsafe functions subject to the selected radio mode and system setup.

Specifications

• Brand: Futaba
• Transmitter Model: T4PM Plus / 4PM Plus
• Receiver Model: R334SBS-E
• SKU: FUT07007185-3
• Alternative Australian Bundle Reference: FUT4PMPR334SBSE
• Product Type: 4-Channel Surface Radio Transmitter and Receiver Set
• Radio Frequency: 2.4GHz
• Radio Channels: 4
• Transmitter Type: Wheel-Style Digital Proportional
• Supported Radio Systems: T-FHSS SR, T-FHSS and S-FHSS
• Additional Radio Options: Kyosho Mini-Z EVO and selected Mini-Z FH configurations with compatible optional hardware
• Model Memory: 40 Models
• Model Name Length: Up to 10 Characters
• Published Maximum Operating Range: 100m Under Optimum Conditions, Excluding Mini-Z Modes
• Transmitter RF Output: 100mW EIRP
• Transmitter Current Consumption: 150mA or Less
• Transmitter Power: 3 x AA Alkaline Batteries with Standard Battery Holder
• Receiver Model: R334SBS-E
• Receiver Quantity: 2
• Receiver Channels: 4 Each
• Receiver Protocols: T-FHSS SR and T-FHSS
• Receiver Rated Voltage: 3.7–7.4V DC
• Receiver Dimensions: 33.9 x 22.3 x 11.3mm Each
• Receiver Weight: Approximately 7.2–7.5g Each
• Receiver Aerial: Diversity Short Aerial Design
• Receiver Interface: S.BUS2 in Supported T-FHSS Modes
• Telemetry: Available in T-FHSS Mode with Compatible Sensors
• SR Mode Telemetry: Not Supported
• Receiver Application: Electric RC Cars
• Transmitter Application: Compatible RC Surface Models

Includes

• 1 x Futaba T4PM Plus 4-Channel 2.4GHz Wheel Transmitter
• 2 x Futaba R334SBS-E 4-Channel T-FHSS SR Receivers
• 1 x Transmitter Dry Battery Holder
• 1 x Mini Screwdriver

FAQ

Can the Futaba 4PM Plus control two RC cars with the included receivers? Yes. This package includes two R334SBS-E receivers that can be installed in two compatible electric RC cars. The transmitter supports 40 individual model memories, allowing separate vehicle settings to be saved. Only one vehicle is controlled at a time.

What is the difference between T-FHSS and T-FHSS SR mode? T-FHSS supports compatible telemetry sensors and standard radio functions, while T-FHSS SR prioritises faster control response with compatible SR servos. Telemetry is not available in SR mode. OZRC recommends selecting the correct mode for the installed receiver, servo and ESC.

Can the included R334SBS-E receivers be used in nitro or petrol RC cars? No. Futaba specifies the R334SBS-E for electric-powered RC cars only. The receivers should not be installed in nitro or petrol vehicles. Choose an appropriate Futaba receiver for combustion-powered applications.

Does the Futaba 4PM Plus work with analogue servos? Yes, compatible analogue servos can be used in the appropriate normal-speed radio mode. High-speed modes require suitable digital servos, while SR channels require compatible Futaba SR servos. Incorrect servo mode selection can damage connected equipment.

Important Notes

• This package includes two R334SBS-E receivers. Other 4PM Plus packages may contain one receiver or a different receiver model.
• The supplied R334SBS-E receivers are designed for electric-powered RC cars only and must not be used in nitro or petrol vehicles.
• Telemetry and S.BUS2 functions are unavailable in T-FHSS SR mode.
• Use Futaba SR-compatible servos on channels configured for SR operation. Analogue servos must not be operated in high-speed or SR modes.
• The standard 4PM Plus transmitter battery holder uses three AA alkaline batteries. Batteries are not listed as included.
• Additional Kyosho Mini-Z receiver or module hardware is required separately for supported Mini-Z operating modes.
• Telemetry sensors, steering servos, ESCs, vehicle batteries and RC vehicles are not included.
• Check the receiver supply voltage, servo compatibility and failsafe settings before operating the vehicle.
