Futaba 4YWD 2.4GHz 4CH Radio R214GF-E Receiver FUT4YWDR214GFE
Couldn't load pickup availability
The Futaba 4YWD is a 4-channel 2.4GHz FHSS stick radio system with an R214GF-E receiver, designed for RC trucks tractors tanks and other surface models that benefit from four self-centring control channels
Features
- 4-channel stick radio system for surface RC models
- 2.4GHz Futaba FHSS transmission system
- Suitable for trucks tractors tanks 4WD models and other compatible surface applications
- All four channels use spring-loaded self-centring controls
- Well suited to compatible multifunction units requiring self-neutral controls
- Mechanical trim adjustment for all four channels
- Servo reversing function for every channel
- Supplied with shift gate plate for compatible 4WD and multifunction applications
- Built-in transmitter antenna
- Includes compact R214GF-E 4-channel receiver with built-in antenna

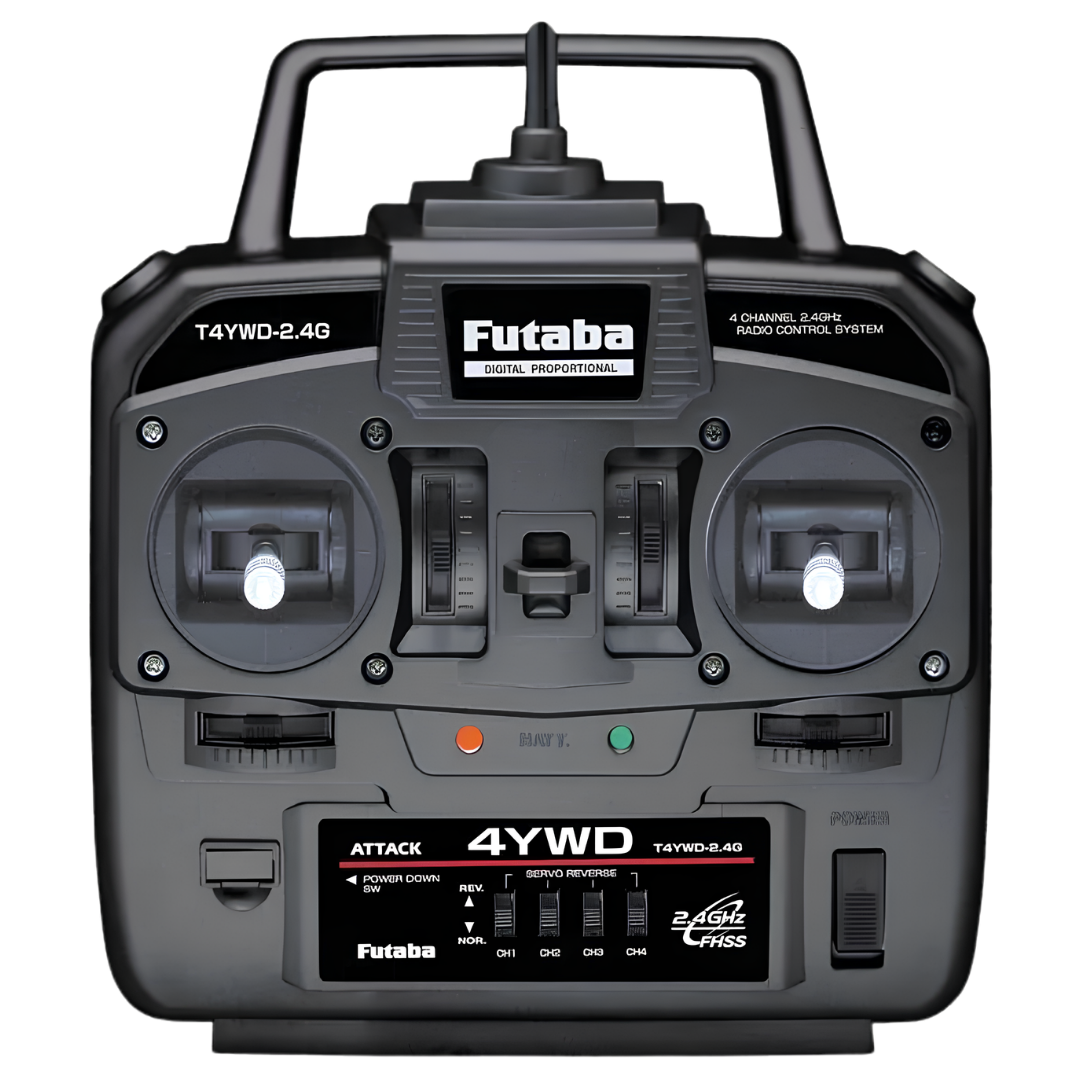

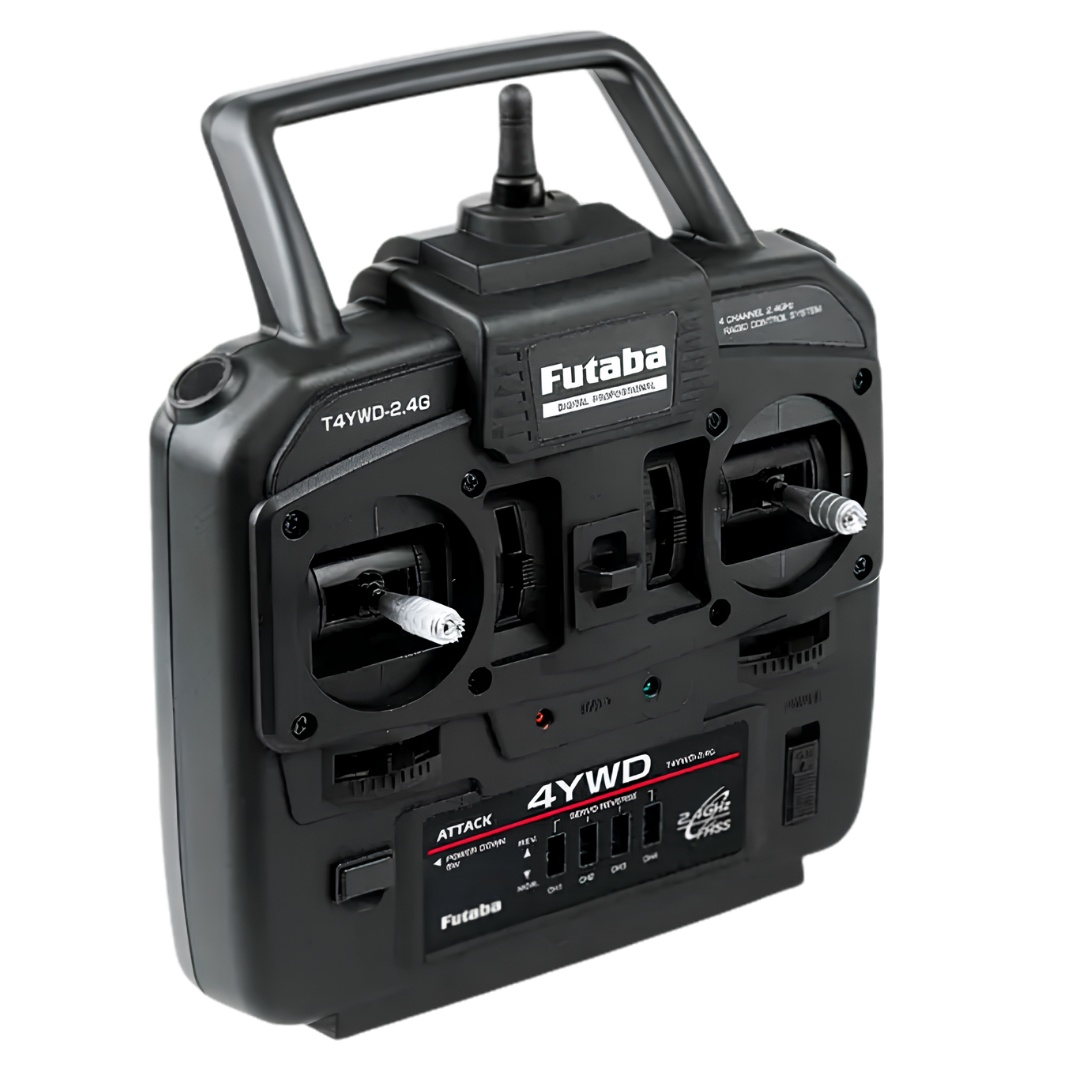

Transmitter Specifications
- Brand: Futaba
- Model: T4YWD
- Product Type: Surface RC Radio System
- Channels: 4
- Control Type: Twin Stick
- Frequency: 2.4GHz
- Protocol: FHSS
- Communication: One-Way
- Maximum Operating Range: Approximately 80m Under Optimum Conditions
- Transmitter Power: 4 x AA Batteries
- Transmitter Voltage: 6V with Dry Cells
- Current Drain: 100mA or Less
- Colour: Black
- Manufacturer Part Number: FUT07006960-3
Receiver Specifications

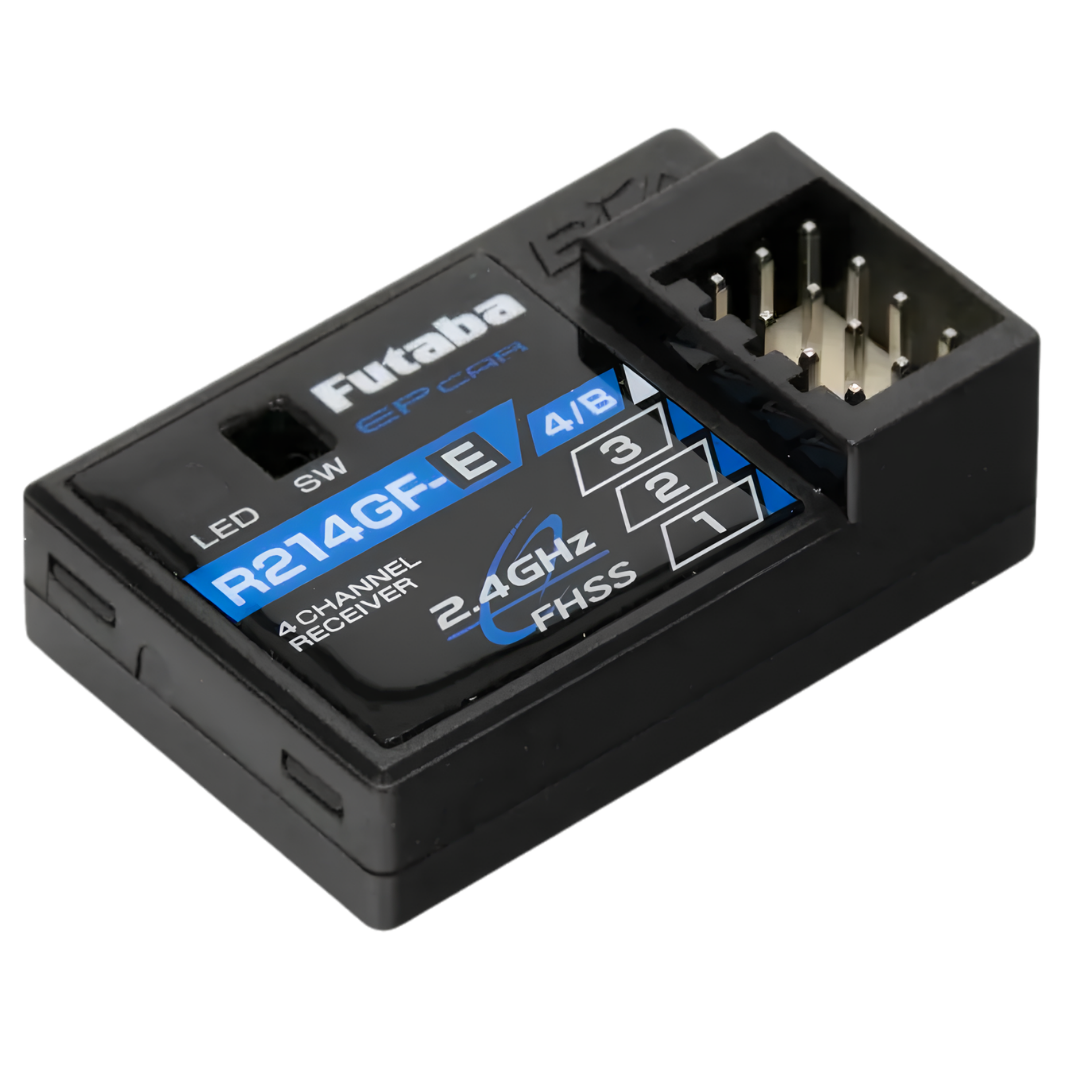

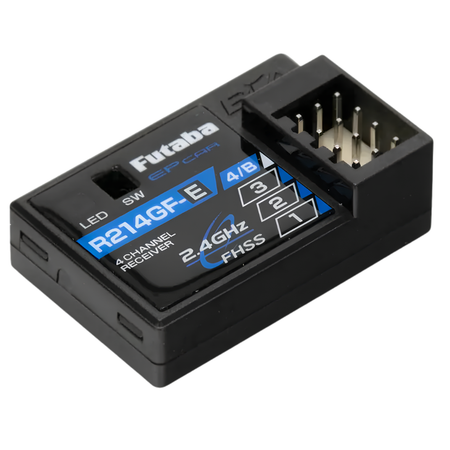

- Receiver Model: R214GF-E
- Channels: 4
- Compatible Protocols: FHSS and S-FHSS
- Application: Electric Surface RC Models
- Operating Voltage: 4.8V to 7.4V
- Dimensions: 35.1 x 23.2 x 9mm
- Weight: Approximately 6g
- Antenna: Built-In
Includes
- 1 x Futaba T4YWD 2.4GHz 4-Channel Transmitter
- 1 x Futaba R214GF-E 4-Channel Receiver
- 1 x Shift Gate Plate
- 1 x Instruction Manual
Required To Complete
- 4 x AA Batteries for the Transmitter
- Compatible Servos ESC and Other Model Electronics as Required
FAQ
What types of RC models is the Futaba 4YWD designed for? The Futaba 4YWD is designed for surface RC applications including trucks tractors tanks and other models that require up to four proportional channels
Are all four transmitter channels self-centring? Yes, all four channels are spring-loaded to return to neutral which makes the radio useful with compatible multifunction truck tank and 4WD systems
Is the R214GF-E compatible with Futaba FASST transmitters? No, Futaba states that the 4YWD FHSS system and R214GF-E are not compatible with Futaba FASST systems
What batteries does the transmitter require? The T4YWD transmitter requires four AA dry-cell batteries which are not included
Important Notes
- The R214GF-E is specified by Futaba for electric surface RC models
- Futaba FHSS and FASST systems are not cross-compatible
- Maximum operating range depends on installation interference and environmental conditions
- Confirm receiver voltage servo requirements and multifunction unit compatibility before installation
