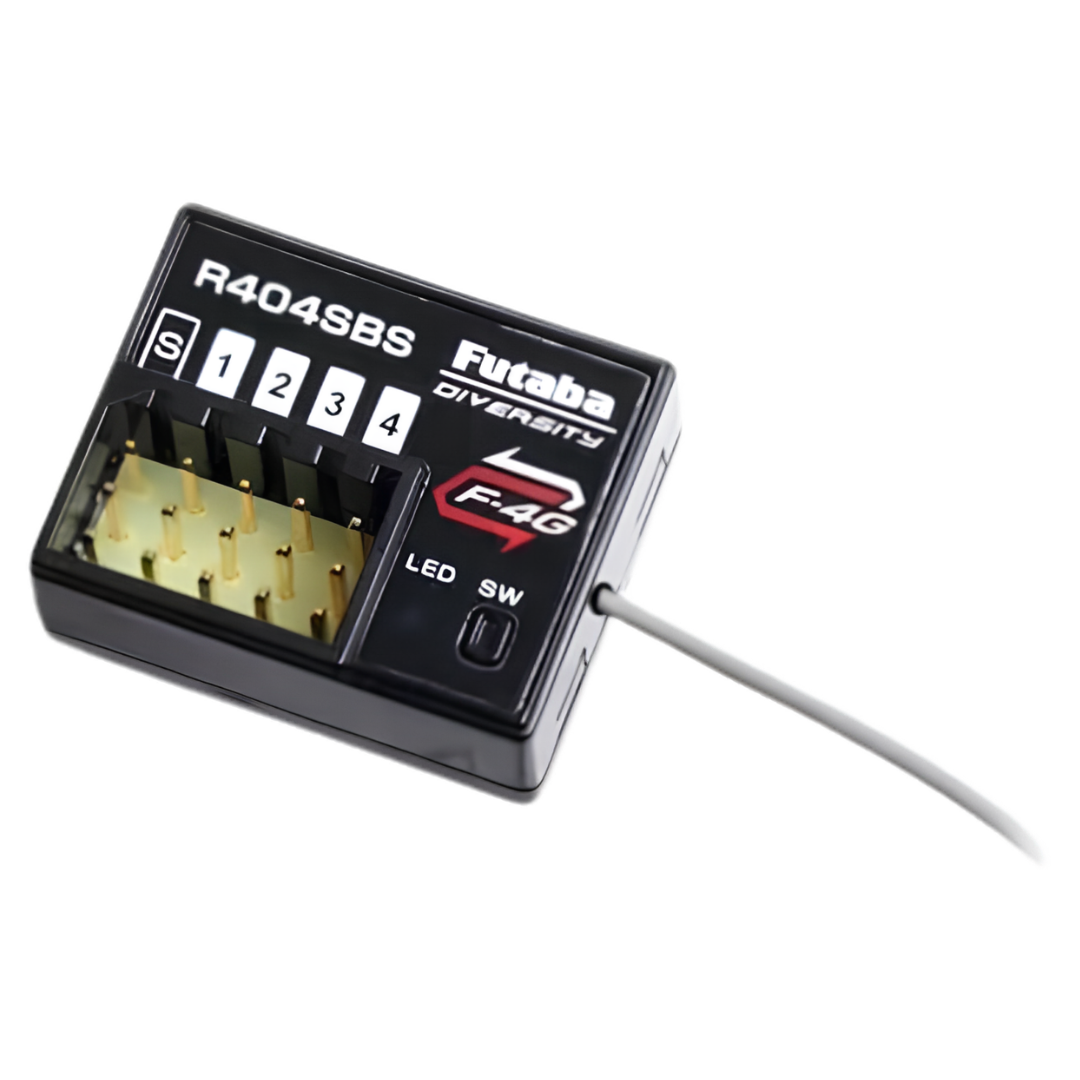

Futaba R404SBS F-4G 2.4GHz 4CH S.BUS2 Telemetry Receiver FUT07102109-3

The Futaba R404SBS is a compact 2.4GHz F-4G telemetry receiver designed for compatible Futaba surface radio systems in RC cars, providing four conventional control channels, up to 10 channels through S.BUS2 and high-speed response for precise steering and throttle control.

Features

• Futaba F-4G Radio System: Designed specifically for compatible Futaba F-4G transmitters, combining responsive control with bidirectional telemetry communication.
• 4-Channel PWM Operation: Provides four conventional receiver channel outputs for steering, throttle and compatible auxiliary functions.
• 10-Channel S.BUS2 Support: Allows up to 10-channel operation with compatible Futaba transmitters and S.BUS2 equipment.
• High-Speed Response: Supports Futaba's high-speed servo response functions for compatible racing applications.
• Telemetry Capability: S.BUS2 connection supports optional Futaba telemetry sensors for monitoring vehicle operating information on a compatible transmitter.
• Diversity Aerial System: Combines internal and external aerial reception for reliable radio signal reception when installed correctly.
• Compact Receiver Housing: Measures just 25.5 x 20.7 x 10.6mm for installation in space-limited RC chassis and receiver boxes.
• Lightweight Design: Weighs approximately 5.7g, making it suitable for competition RC cars where electronics weight and placement are important.
• High-Voltage Compatibility: Supports receiver power supplies from 3.7V to 7.4V DC.
• Integrated Link Button: Allows the receiver to be paired with a compatible Futaba F-4G transmitter.
• LED Status Indicator: Provides visual confirmation of radio signal reception and receiver operating status.
• Configurable Failsafe: Supports failsafe and battery failsafe functions configured through the compatible Futaba transmitter.
• SR Servo Compatibility: Supports Futaba Super Response servo operation when the transmitter and connected servos are correctly configured.
• Flexible RC Installation: Suitable for compatible electric and engine-powered RC car applications when installed according to Futaba's instructions.

Specifications

• Brand: Futaba
• Model: R404SBS
• Australian Product Reference: FUTR404SBS
• SKU: FUT07102109-3
• Product Type: F-4G Telemetry Surface Receiver
• Radio Frequency: 2.4GHz
• Radio Protocol: Futaba F-4G
• Conventional PWM Channels: 4
• Maximum S.BUS2 Channels: 10 with Compatible Equipment
• Receiver Output Protocols: PWM and S.BUS2
• Telemetry: Supported via S.BUS2
• Receiver Operating Voltage: 3.7–7.4V DC
• Receiver Dimensions: 25.5 x 20.7 x 10.6mm
• Receiver Weight: Approximately 5.7g
• Aerial Configuration: Diversity System with Internal and External Aerials
• Binding Method: Integrated Link Button
• Status Indicator: LED
• Failsafe: Supported, Configured Through Compatible Transmitter
• Battery Failsafe: Supported, Transmitter-Configurable
• Servo Response: Compatible with Supported Futaba SR Operating Modes
• Compatible Radio System: Futaba F-4G Surface Transmitters
• Application: RC Cars and Compatible Surface Racing Vehicles

Includes

• 1 x Futaba R404SBS 2.4GHz F-4G S.BUS2 Telemetry Receiver

FAQ

Which Futaba transmitters are compatible with the R404SBS? The Futaba R404SBS requires a transmitter supporting the Futaba F-4G radio system, such as a compatible Futaba 10PX. The transmitter must be configured to F-4G mode before linking. The receiver is not compatible with T-FHSS, T-FHSS SR, S-FHSS or FASST transmission modes.

Is the Futaba R404SBS a 4-channel or 10-channel receiver? The Futaba R404SBS provides four conventional PWM channels for standard servo and ESC connections. Up to 10 channels are available through S.BUS2 when used with a compatible Futaba transmitter and suitable S.BUS2 equipment.

Does the Futaba R404SBS support telemetry? Yes. The R404SBS supports bidirectional telemetry through Futaba's F-4G radio system. Compatible S.BUS2 telemetry sensors can be connected to monitor parameters such as temperature, voltage and motor speed. Sensors are sold separately.

Can the R404SBS be used in a nitro or petrol RC car? Yes. Futaba specifies the R404SBS for RC car applications without the electric-only restriction applied to the R404SBS-E version. OZRC recommends protecting the receiver from vibration, moisture and engine heat when installing it in a nitro or petrol vehicle.

Important Notes

• The R404SBS operates with Futaba F-4G transmitters only. It cannot be linked using T-FHSS, T-FHSS SR, S-FHSS, FHSS, FASST or FASSTest radio modes.
• The R404SBS is different from the R404SBS-E. The R404SBS-E is restricted to electric RC car applications.
• The receiver provides four conventional PWM outputs. Channels 5–10 require compatible S.BUS2 equipment.
• Futaba SR mode must only be used with compatible SR servos. Connecting an unsuitable servo to an SR-enabled channel can damage the equipment.
• Operating voltage must remain within 3.7–7.4V DC. Connected servos and electronics must also support the selected supply voltage.
• Do not use dry-cell batteries as a direct receiver power supply.
• The receiver is not waterproof. Protect it from water, excessive vibration and physical damage.
• Position the external aerial correctly and avoid covering the receiver's internal aerial area with conductive materials.
• After linking, restart the receiver and verify steering, throttle and failsafe operation before driving.
• Compatible transmitter, servos, ESC, receiver power supply and telemetry sensors are not included.
