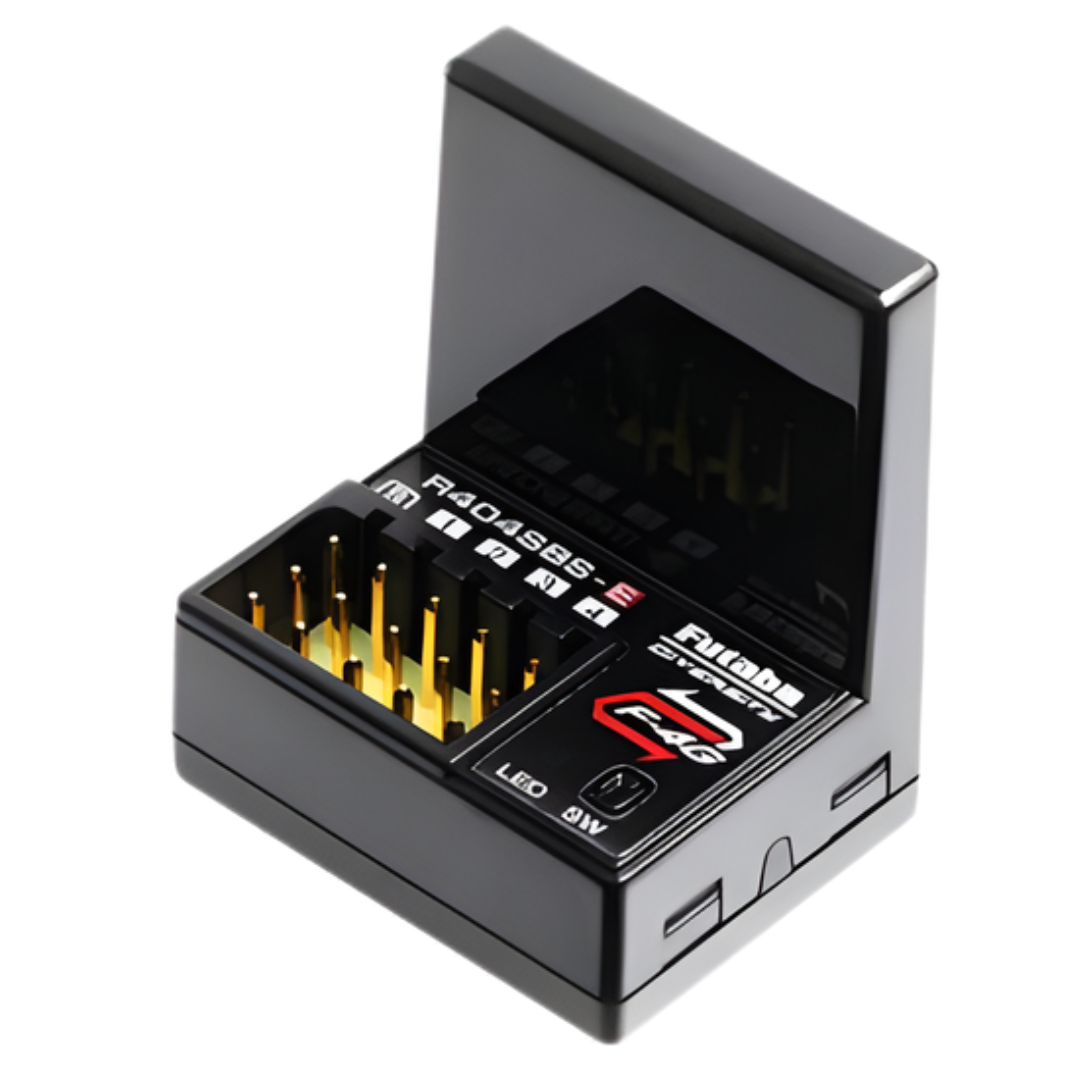

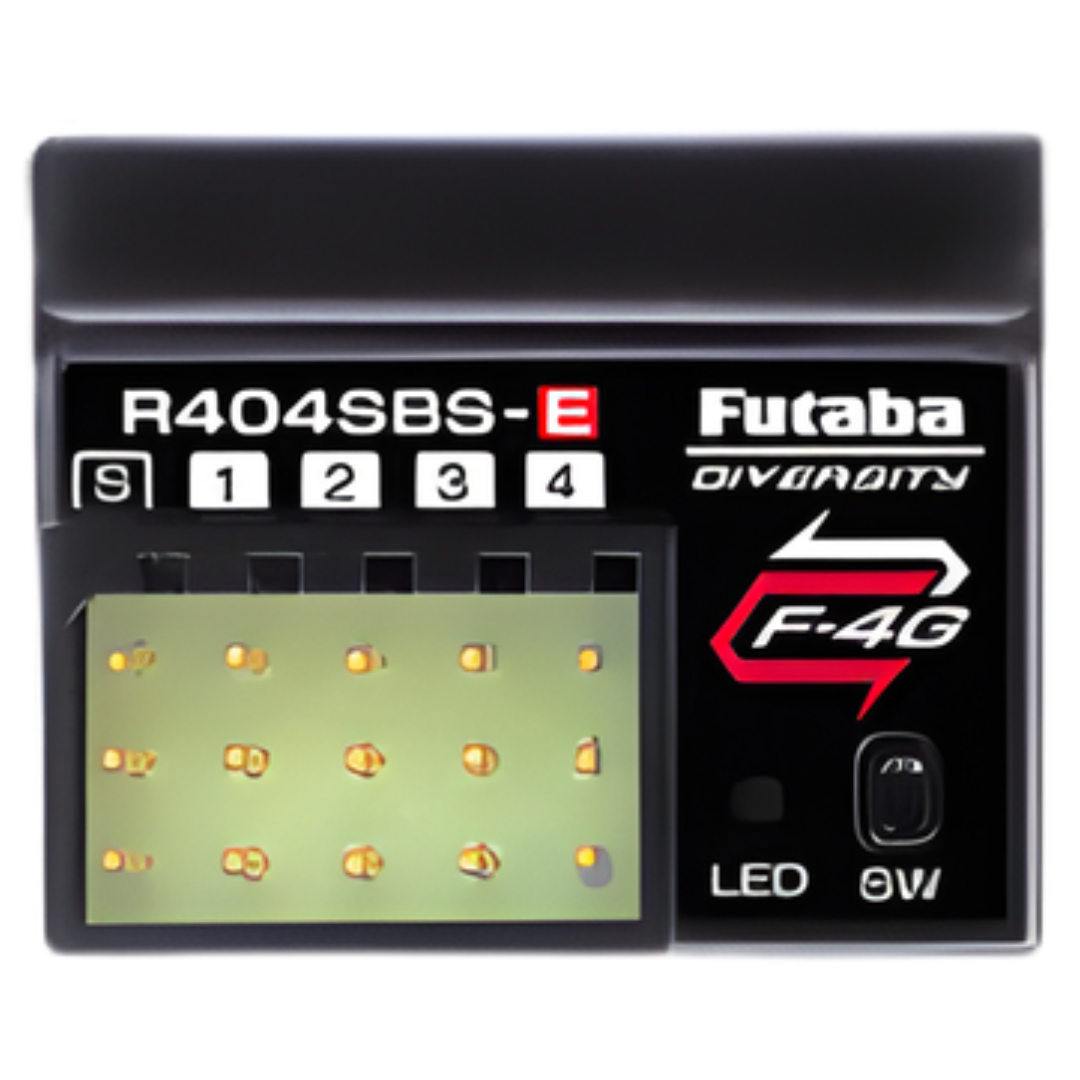

Futaba R404SBS-E F-4G Telemetry Receiver 6PV 10PX EP FUTR404SBSE

The Futaba R404SBS-E is a compact F-4G telemetry receiver for electric RC cars using compatible Futaba 6PV and 10PX transmitters, giving racers high-speed response, S.BUS2 telemetry support and SR mode capability in tight EP chassis layouts.

This receiver is designed for electric-powered surface models where fast steering response, compact installation and Futaba F-4G system integration are required. The R404SBS-E supports PWM channels and S.BUS2 telemetry functions, making it suitable for competitive EP touring, drift and indoor race builds using compatible Futaba radio equipment.

Features

• F-4G Receiver System: Designed for Futaba F-4G compatible transmitters including T10PX and T6PV systems
• Electric Car Optimised: Built for EP surface models and compact electric racing applications
• SR Mode Support: Enables high-speed response when used with compatible SR-mode servos
• S.BUS2 Telemetry Support: Allows telemetry data display through compatible Futaba transmitters and optional S.BUS2 sensors
• Compact Installation Size: Small receiver case suits tight EP chassis, touring car, drift and indoor race layouts
• Lightweight Design: Listed at 5.7g for reduced installation weight in performance-focused RC cars
• Diversity Antenna System: Designed to support stable 2.4GHz F-4G reception when installed correctly
• Fail-Safe Support: F/S and battery F/S settings are configured through the compatible Futaba transmitter

Specifications

• Brand: Futaba
• Model: R404SBS-E
• SKU: FUTR404SBSE
• Product Type: F-4G telemetry receiver
• Compatible Transmitters: Futaba T10PX and T6PV F-4G systems
• System: Futaba F-4G 2.4GHz
• Receiver Type: S.BUS2 receiver for EP car models
• Channel Format: PWM 4-channel and S.BUS2 10-channel receiver
• Telemetry: S.BUS2 telemetry compatible with optional sensors
• Operating Voltage: DC 3.7V to 7.4V
• Dimensions: 25.5 x 20.7 x 10.6mm
• Weight: 5.7g, supplier listed
• Application: Electric-powered RC car models only
• Intended Use: EP racing, drift, touring and indoor surface RC applications

Includes

• 1 x Futaba R404SBS-E F-4G telemetry receiver
• 1 x User manual

FAQ

Does the Futaba R404SBS-E work with the Futaba 10PX and 6PV? Yes. The R404SBS-E is designed for Futaba F-4G transmitters and is listed for use with Futaba T10PX and T6PV systems.

Can this receiver be used in nitro or petrol RC cars? No. The Futaba R404SBS-E is designed for EP electric car models only and should not be used in GP engine-powered cars.

Can normal servos be used in SR mode? No. SR mode must only be used with SR-compatible servos. Using a non-compatible servo in SR mode can cause malfunction or damage.

Does this receiver support telemetry? Yes. The R404SBS-E supports S.BUS2 telemetry when used with compatible Futaba transmitters and optional S.BUS2 sensors.

Important Notes

• For electric-powered RC car models only.
• Do not use this receiver in GP, petrol or nitro engine-powered RC cars.
• SR mode requires SR-compatible servos only.
• Set the compatible Futaba transmitter receiver type to F-4G before linking.
• Futaba F-4G is not compatible with T-FHSS, S-FHSS, FHSS, FASSTest, FASST or T-FHSS Air systems.
• Use a suitable 3.7V to 7.4V receiver power source. Dry batteries should not be used.
• Do not cover the antenna area with conductive material, stickers or double-sided tape.
• Protect the receiver from water, excessive vibration and moving parts during installation.
