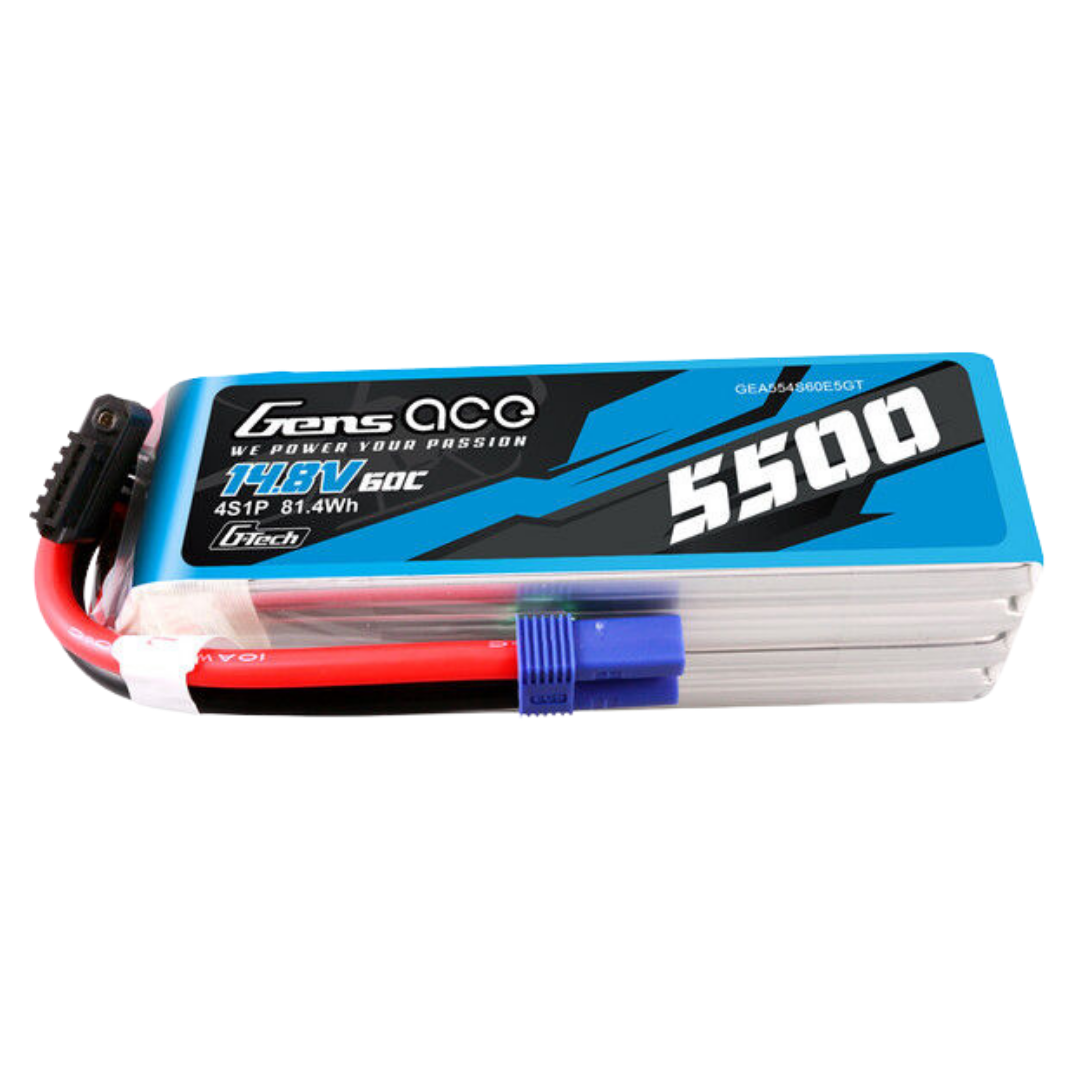

Gens Ace G-Tech 4S 5500mAh 60C LiPo Battery EC5 GEA554S60E5GT
Couldn't load pickup availability
The Gens Ace G-Tech 5500mAh 4S LiPo is a 14.8V 60C battery pack for compatible high-power RC applications, combining G-Tech smart identification, an EC5 power connector and a compact 4S format for vehicles requiring strong current delivery
Features
- Integrated G-Tech chip allows automatic battery identification with compatible G-Tech Eco Smart chargers
- Can also be charged using a compatible conventional LiPo balance charger
- 5500mAh capacity provides useful runtime for high-power RC applications
- 60C continuous discharge rating
- 4S 14.8V configuration
- EC5 main power connector
- G-Tech 5-pin balance and communication connector
- 10 AWG discharge wiring supports high-current applications
- Compact dimensions suit compatible 1/8 scale and other high-power RC platforms
- Stable cell matching and automated production processes support consistent pack performance
Specifications
- Brand: Gens Ace
- Series: G-Tech
- Product Type: LiPo Battery
- Manufacturer Part Number: GA-B-60C-5500-4S1P-EC5-GT
- SKU: GEA554S60E5GT
- Barcode: 889551118408
- Battery Chemistry: LiPo
- Configuration: 4S1P
- Cell Count: 4S
- Nominal Voltage: 14.8V
- Capacity: 5500mAh
- Continuous Discharge Rate: 60C
- Main Connector: EC5
- Balance Connector: G-Tech 5P
- Discharge Wire Gauge: 10 AWG
- Discharge Wire Length: 120 mm
- Balance Wire Length: 65 mm
- Length: 136.35 mm
- Width: 42.94 mm
- Height: 41.77 mm
- Weight: Approximately 469 g
Includes
- 1 x Gens Ace G-Tech 5500mAh 4S 14.8V 60C LiPo Battery with EC5 connector
FAQ
Do I need a G-Tech charger to charge this battery? No, the GEA554S60E5GT can be charged with a compatible conventional LiPo balance charger, while a G-Tech Eco Smart charger can automatically identify supported battery information through the G-Tech system
What connector does the GEA554S60E5GT battery use? The battery uses an EC5 main discharge connector and a G-Tech 5-pin balance and communication connector
Is this a 60C or 80C battery? Gens Ace identifies GEA554S60E5GT and manufacturer part GA-B-60C-5500-4S1P-EC5-GT as a 60C battery, so OZRC uses 60C as the verified discharge rating despite an inconsistent 80C value appearing in some duplicated specification tables
Will this 4S battery fit my RC vehicle? Fitment depends on the battery tray dimensions, EC5 connector and the vehicle's approved 4S voltage limit, so OZRC recommends checking the 136.35 x 42.94 x 41.77 mm pack dimensions before ordering
Important Notes
- Use only a charger designed for LiPo batteries
- Balance charge the battery and follow Gens Ace LiPo safety instructions
- Confirm your RC vehicle and ESC are approved for 4S 14.8V operation before use
- Confirm the 136.35 x 42.94 x 41.77 mm dimensions and EC5 connector suit your vehicle before installation
- Do not leave a LiPo battery unattended while charging
- Allow the battery to cool before recharging after high-current use
- Store the battery at an appropriate LiPo storage voltage when not in regular use
