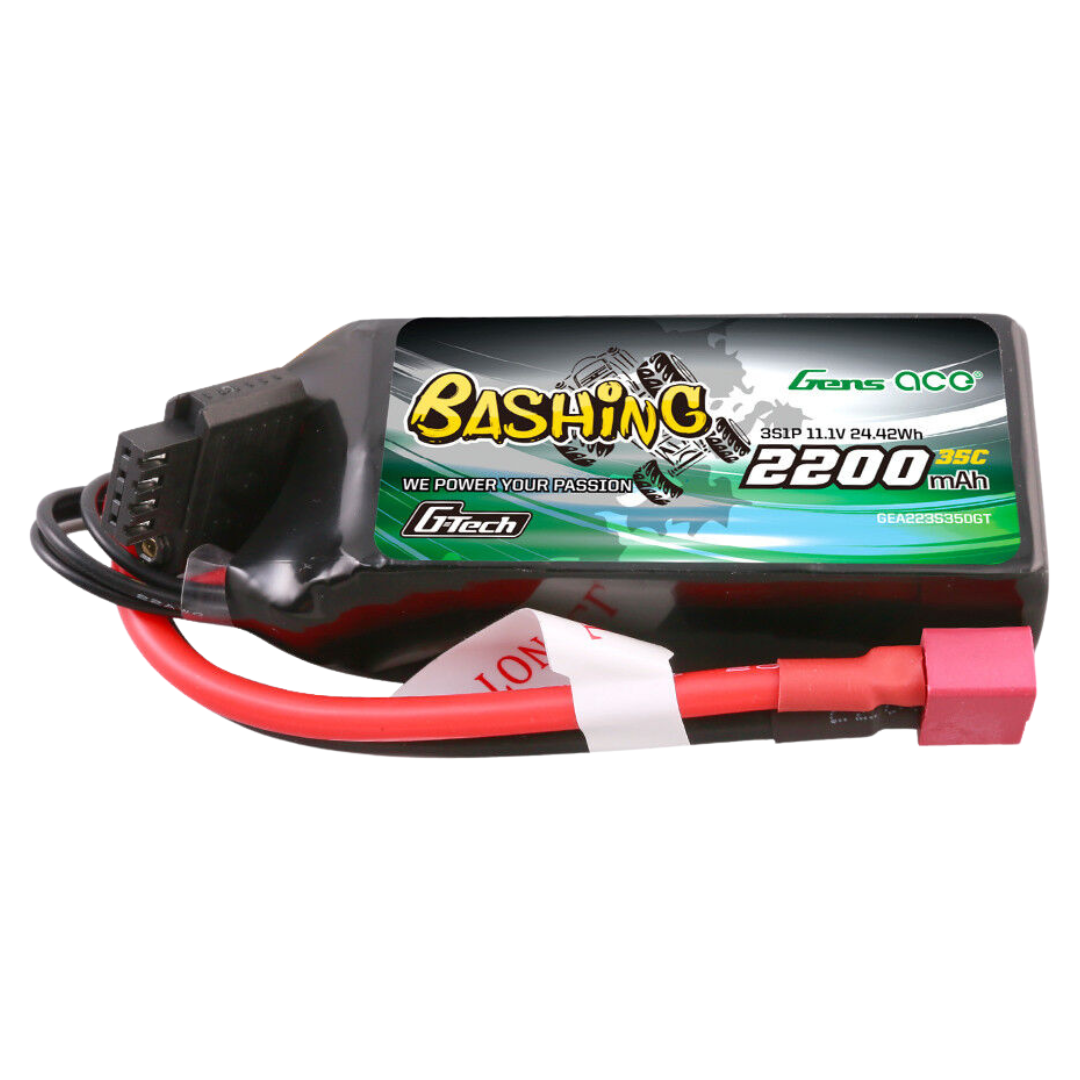

Gens ace G-Tech Smart 2200mAh 3S 35C 11.1V LiPo Battery T-Style GEA223S35DGT
Couldn't load pickup availability
The Gens ace G-Tech Smart 2200mAh 3S 35C LiPo Battery is an 11.1V power pack with a T-Style connector, designed for compatible RC crawlers and other models requiring a compact 3S battery with G-Tech smart charging support.
Features
- 2200mAh Capacity: Provides a practical balance of runtime, weight and compact dimensions for compatible RC applications
- 3S LiPo Power: Three-cell 3S1P configuration provides a nominal voltage of 11.1V
- 35C Continuous Discharge: Designed to provide consistent current delivery for compatible RC power systems
- 70C Maximum Burst Rating: Supports higher short-duration current demand when required by the model
- G-Tech Smart Technology: Built-in G-Tech functionality allows compatible G-Tech chargers to automatically identify battery information and configure charging parameters
- T-Style Connector: Factory-fitted Deans-style power connector suits compatible ESCs and RC electrical systems
- G-Tech 4P Balance Connector: Provides balance charging and smart communication with compatible G-Tech charging equipment
- Crawler Suitable: Gens ace specifically lists this battery for compatible RC crawler applications
- Compact Pack: Measures approximately 74.7 x 33.5 x 25.4mm for installation in compatible battery trays
Specifications
- Brand: Gens ace
- Range: G-Tech Bashing
- Product Type: RC LiPo Battery
- Battery Chemistry: Lithium Polymer
- Minimum Capacity: 2200mAh
- Voltage: 11.1V
- Cell Count: 3S / 3 Cell
- Cell Configuration: 3S1P
- Continuous Discharge Rating: 35C
- Maximum Burst Discharge Rating: 70C
- Discharge Connector: T-Style / Deans
- Balance Connector: G-Tech 4P
- Discharge Wire Gauge: 12AWG
- Discharge Wire Length: Approximately 65mm
- Dimensions: 74.7 x 33.5 x 25.4mm
- Weight: Approximately 143g
- Manufacturer Part Number: GA-B-35C-2200-3S1P-Deans-GT
- SKU: GEA223S35DGT
- Barcode / UPC: 889551117449
Includes
- 1 x Gens ace G-Tech 2200mAh 11.1V 3S 35C LiPo Battery with T-Style Connector
FAQ
What connector does GEA223S35DGT use? GEA223S35DGT uses a T-Style, commonly called Deans-style, discharge connector and a separate G-Tech 4P balance and communication connector.
What is the G-Tech connector used for? The G-Tech 4P connection provides balance charging and smart communication, allowing compatible G-Tech chargers to identify the battery and configure charging parameters automatically.
Is GEA223S35DGT suitable for RC crawlers? Yes. Gens ace specifically lists the 2200mAh 3S 35C pack as suitable for RC crawler applications. OZRC recommends confirming the vehicle supports 3S LiPo power and checking the battery dimensions and connector before ordering.
Will this battery fit any RC vehicle that supports 3S LiPo? No. The vehicle must support an 11.1V 3S LiPo battery, a T-Style power connection and a pack measuring approximately 74.7 x 33.5 x 25.4mm.
Important Notes
- Check that the RC vehicle and ESC support an 11.1V 3S LiPo battery before use
- Check the 74.7 x 33.5 x 25.4mm battery dimensions and T-Style connector against the vehicle before ordering
- Use a LiPo-compatible balance charger suitable for 3S battery packs
- Charger is not included
- Do not charge or use a LiPo battery that is swollen, punctured or otherwise damaged
- Always follow the battery and charger manufacturer's LiPo charging, storage and handling instructions
