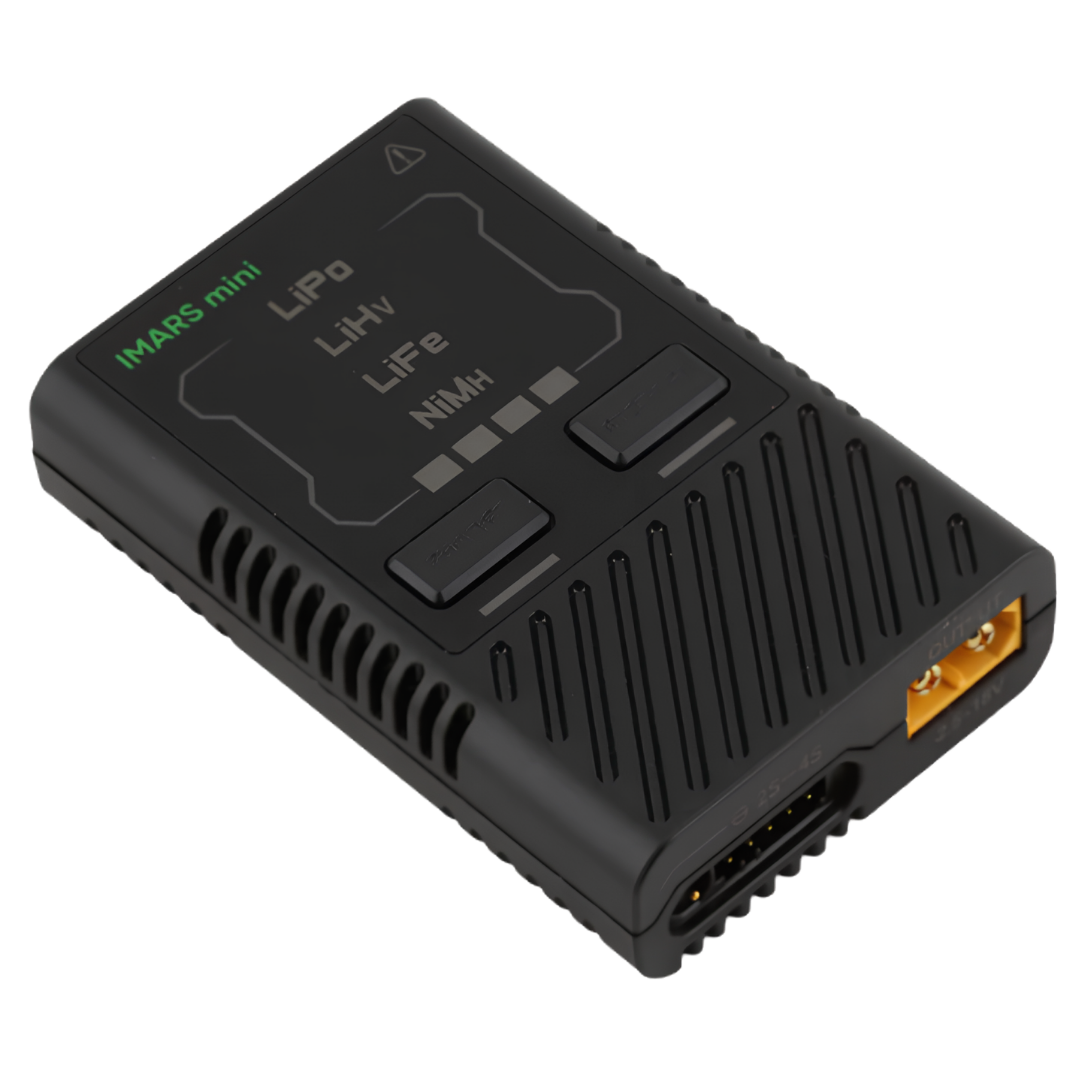

Gens Ace iMars Mini G-Tech 60W Smart RC Battery Charger Eco GEA60WC2

The Gens Ace iMars Mini G-Tech 60W Smart RC Battery Charger GEA60WC2 is a compact USB-C-powered balance charger designed for RC car, truck and hobby batteries. Supporting 2–4S LiPo, LiHV and LiFe batteries plus 2–12-cell NiMH packs, it offers up to 60W charging power and an automatically adjusted charge current of up to 5A. When a compatible Gens Ace G-Tech smart battery is connected, the charger identifies its battery type, voltage and recommended charging current, then automatically starts charging after approximately five seconds. Featuring automatic storage mode, an XT60 output and a lightweight 64g design, the iMars Mini is ideal for hobbyists who want convenient charging at home or on the go. This Eco Friendly version does not include a USB-C power supply adapter.

Features

• 60W Smart RC Charger: Delivers up to 60W of charging power for compatible rechargeable RC batteries
• G-Tech Smart Battery Recognition: Automatically identifies compatible Gens Ace G-Tech battery type, voltage and recommended charging settings
• Automatic Charging Start: Begins charging a recognised G-Tech smart battery after approximately five seconds
• Conventional Battery Support: Also charges compatible non-smart batteries after selecting the appropriate battery type and operating mode
• Multi-Chemistry Compatibility: Supports 2–4S LiPo, LiHV and LiFe batteries plus 2–12-cell NiMH batteries
• Automatic Charge Current Adjustment: Intelligently regulates charging current from 1A to 5A within the charger's power limits
• Automatic Storage Mode: Helps prepare supported lithium batteries for storage when they are not being used
• Storage Charge and Discharge: Supports up to 60W storage charging and 3W storage discharging
• Integrated Balance Charging: Provides cell balancing for compatible lithium battery packs
• XT60 Charging Output: Common RC battery connection with included adapters for EC3 and EC5 battery plugs
• USB-C Power Input: Compatible with supported USB-C power sources, including appropriate USB Power Delivery supplies
• Battery Voltage Warning: Includes an abnormal battery voltage alarm
• Compact and Lightweight: Measures just 85 x 55 x 21mm and weighs approximately 64g
• Portable Design: Small enough for a pit bag, workshop drawer or travelling RC toolkit
• Eco Friendly Package: Supplied without a USB-C wall power adapter for customers who already own a suitable power source

Specifications

• Brand: Gens Ace
• Product Range: iMars Mini G-Tech
• Product Type: Smart RC Battery Balance Charger
• Version: Eco Friendly / No USB-C Power Supply Adapter
• Manufacturer Part Number: GEA60WC2
• Barcode: 889551116787
• Maximum Charge Power: 60W
• Charge Current: 1–5A, Automatically Adjusted
• Maximum Charge Current: 5A
• Maximum Storage Charging Power: 60W
• Maximum Storage Discharging Power: 3W
• Input Voltage: 5–20V DC
• Maximum Input Current: 3A DC
• Power Input: USB-C
• Supported Input Protocols: QC, PD, BC1.2, USB-C V1.4, SDP, CDP, DCP and Apple 5V/2.4A
• Unsupported Input: 5V/1A USB Power Adapter
• Charging Output Connector: XT60
• Included Battery Connector Adapters: XT60 Female to EC3 Male and XT60 Female to EC5 Male
• Supported Lithium Batteries: LiPo, LiHV and LiFe
• Supported Lithium Cell Counts: 2S–4S
• Supported NiMH Batteries: 2–12 Cells
• Balance Current: 0.4A per Cell x 2
• G-Tech Smart Battery Recognition: Yes
• Automatic Storage Function: Yes
• Abnormal Battery Voltage Alarm: Yes
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Length: 85mm
• Width: 55mm
• Height: 21mm
• Weight: Approximately 64g

Includes

• 1 x Gens Ace iMars Mini G-Tech 60W Smart Battery Charger
• 1 x XT60 Female to EC3 Male Adapter
• 1 x XT60 Female to EC5 Male Adapter
• 1 x Product Manual

Required To Complete

• Compatible USB-C Power Supply Adapter, Sold Separately
• Suitable USB-C Power Cable, if Not Already Available
• Compatible Rechargeable RC Battery
• Additional Battery Connector Adapter if Your Battery Does Not Use XT60, EC3 or EC5

FAQ

Does the Gens Ace iMars Mini Eco version include a power adapter? No. The Eco Friendly version GEA60WC2 does not include a USB-C power supply adapter. A compatible USB-C power source must be supplied separately.

What batteries can the iMars Mini charge? It supports 2S–4S LiPo, LiHV and LiFe batteries, plus 2–12-cell NiMH batteries. Always confirm the battery chemistry, cell count, connector and charging requirements before use.

Does the charger only work with Gens Ace G-Tech batteries? No. It supports compatible conventional RC batteries as well. G-Tech batteries enable automatic smart recognition, while non-smart batteries require the appropriate battery type and operating mode to be selected.

Does charging start automatically with a G-Tech battery? Yes. When a compatible G-Tech smart battery is connected, the charger recognises its information and starts charging automatically after approximately five seconds.

How powerful is the Gens Ace iMars Mini? It provides up to 60W charging power with an automatically adjusted charge current of up to 5A. Actual charging power depends on the USB-C power source, battery voltage and charging conditions.

Can I use a normal USB phone charger? Only if it provides a supported voltage, current and charging protocol. The manufacturer specifically states that 5V/1A adapters are not supported. A suitable USB-C PD power supply is recommended for higher charging performance.

Can the iMars Mini balance charge LiPo batteries? Yes. The charger supports balance charging of compatible 2S–4S lithium battery packs. Connect the battery according to the manufacturer's instructions, including the appropriate balance connection.

Does the iMars Mini have a LiPo storage mode? Yes. It supports automatic storage functionality with up to 60W storage charging power and 3W storage discharging power.

Can I manually set the charging current? The iMars Mini automatically adjusts its charging current based on the connected battery and charging conditions. The manufacturer advises that manual charge-current selection is not available in the usual way.

Does the charger support XT60, EC3 and EC5 batteries? Yes. The charger uses an XT60 output and includes XT60-to-EC3 and XT60-to-EC5 adapters. Other connector types may require a suitable additional adapter.

Can this charger charge 1S or 6S LiPo batteries? No. The specified lithium battery range is 2S–4S. It is not rated for 1S or 6S lithium battery charging.

Is the iMars Mini suitable for travelling? Its compact 85 x 55 x 21mm body and approximately 64g weight make it convenient to carry in an RC toolkit or pit bag. A suitable USB-C power source is still required.

Important Notes

• This is the Eco Friendly version GEA60WC2 without a USB-C power supply adapter
• A compatible USB-C power source is required separately
• A suitable USB-C cable may also be required; check the supplied package contents
• Maximum 60W output requires an appropriately rated input power source and suitable battery
• 5V/1A USB power adapters are not supported
• Only charge compatible 2S–4S lithium or 2–12-cell NiMH batteries
• Check battery chemistry, cell count, polarity and connector compatibility before charging
• Follow the manufacturer's instructions for connecting conventional battery balance leads
• Never leave rechargeable batteries charging unattended
• Do not charge damaged, swollen or excessively hot batteries
• Use suitable LiPo fire-safety precautions when charging lithium batteries
