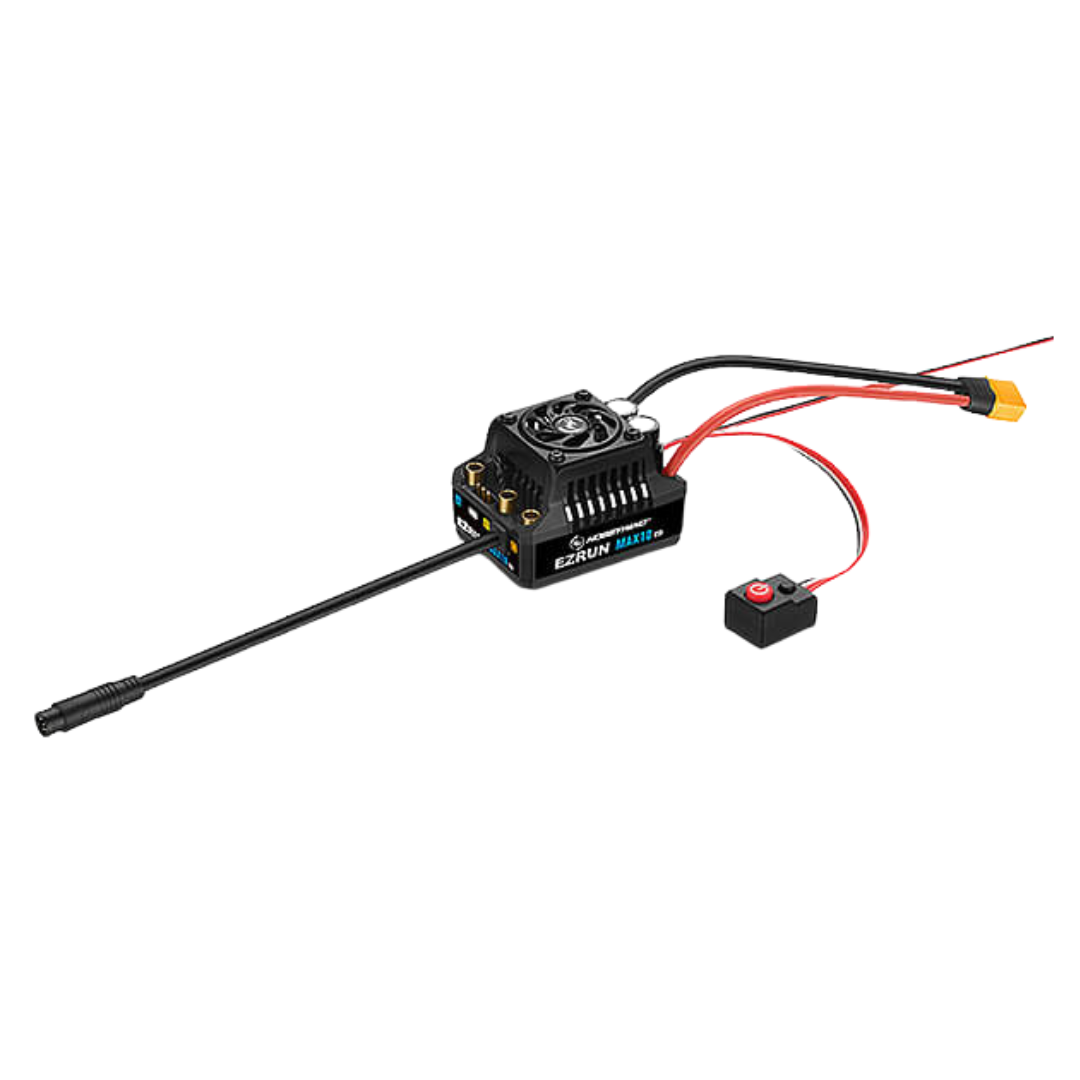

Hobbywing EZRUN MAX10 G2 140A Waterproof Brushless ESC 2-4S 30102603

The Hobbywing EZRUN MAX10 G2 140A Brushless ESC is a high-performance electronic speed controller designed for demanding 1/10 scale RC vehicles. Supporting both sensored and sensorless brushless motors, it delivers exceptionally smooth throttle response, powerful acceleration and reliable all-weather performance. With 2–4S LiPo compatibility, adjustable BEC output and advanced programming options, the MAX10 G2 is an excellent upgrade for monster trucks, short course trucks, stadium trucks and other high-performance RC vehicles.

Features

• 140A continuous current rating with 880A peak output
• Compatible with both sensored and sensorless brushless motors
• Supports 2S to 4S LiPo battery operation
• Fully waterproof design for all-weather driving
• Adjustable high-power BEC output (6.0V or 7.4V / 5A)
• Smooth throttle response with excellent low-speed control
• Advanced programmable parameters via LED Program Box, LCD Program Box or OTA Programmer
• Firmware upgrade support for future feature enhancements
• High-efficiency cooling system with pre-installed 30mm cooling fan
• Factory fitted XT60 battery connector

Specifications

• Brand: Hobbywing
• Manufacturer Part Number: 30102603
• Product Type: Brushless Electronic Speed Controller (ESC)
• Scale: 1/10
• Motor Compatibility: Sensored and sensorless brushless motors
• Continuous Current: 140A
• Peak Current: 880A
• Input Voltage: 2S–4S LiPo
• BEC Output: 6.0V or 7.4V / 5A
• Battery Connector: XT60
• Motor Connectors: 4.0mm Gold Female
• Wire Gauge: 12AWG
• Cooling Fan Size: 30 × 30 × 10mm
• Dimensions: 53 × 39.5 × 37.2mm
• Weight: 120g (including wires)
• Waterproof: Yes

Includes

• 1 × Hobbywing EZRUN MAX10 G2 140A Brushless ESC
• 1 × Pre-installed Cooling Fan

FAQ

What motors is this ESC compatible with? The MAX10 G2 supports both sensored and sensorless brushless motors, providing excellent performance with a wide range of Hobbywing and compatible brushless motors.

Can I use this ESC in wet conditions? Yes. The waterproof design allows operation in wet and muddy conditions. After use, clean and dry the ESC to maximise its service life.

Can I adjust the BEC voltage? Yes. The internal BEC can be set to either 6.0V or 7.4V at up to 5A, making it suitable for standard and many high-voltage servos.

How do I program the ESC? The ESC supports programming using the Hobbywing LED Program Box, LCD Program Box or OTA Bluetooth Programmer (sold separately).

Can the firmware be updated? Yes. The MAX10 G2 supports firmware upgrades, allowing access to future performance improvements and additional features.

Important Notes

• Designed for 1/10 scale RC vehicles using compatible brushless motors.
• Programming devices and OTA Programmer are sold separately.
• Ensure your motor KV rating is suitable for your chosen 2S, 3S or 4S LiPo battery configuration.
• Always provide adequate airflow around the cooling fan during operation.
• Verify your vehicle has sufficient space for installation before purchasing.
• Follow Hobbywing's gearing recommendations to prevent overheating and maximise performance.
