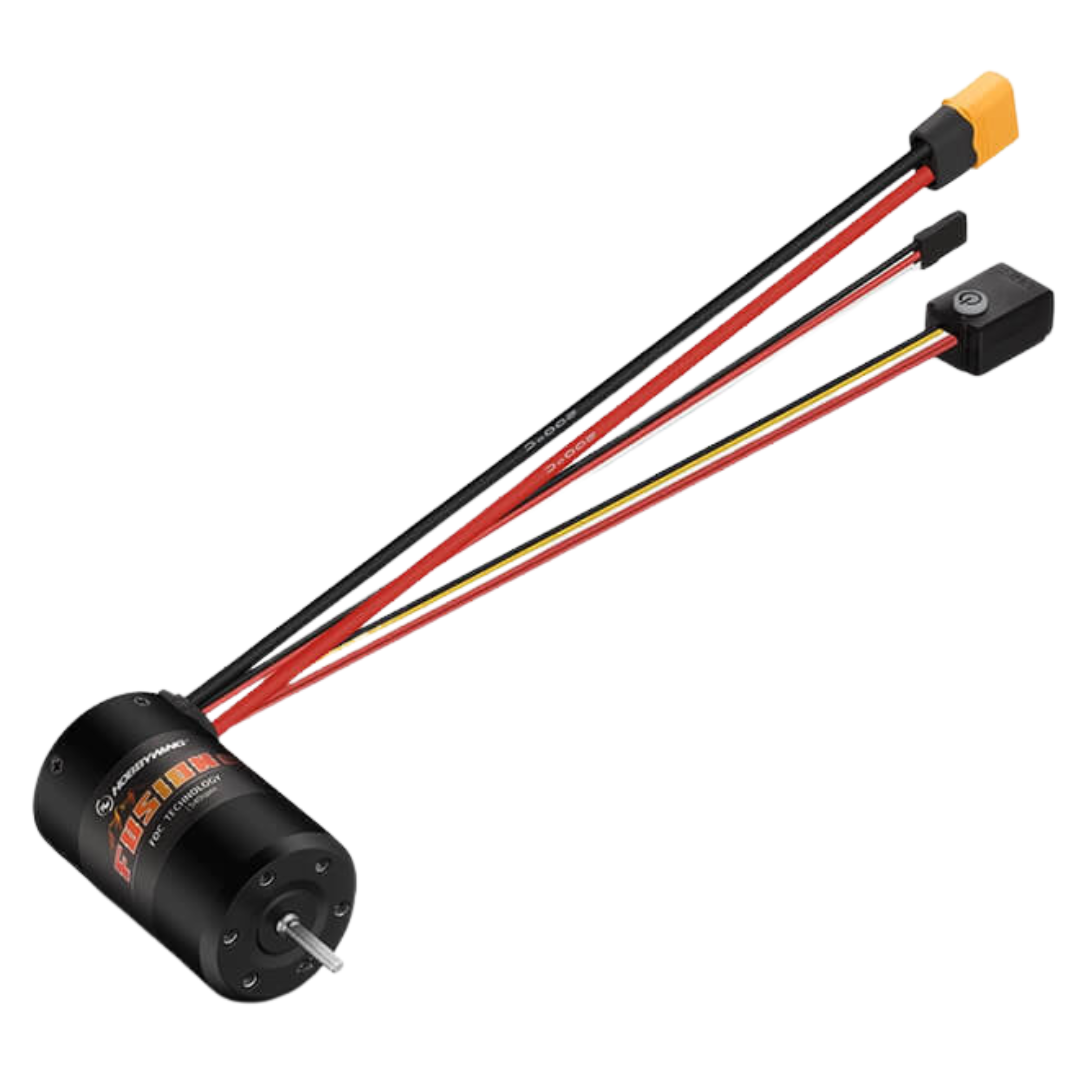

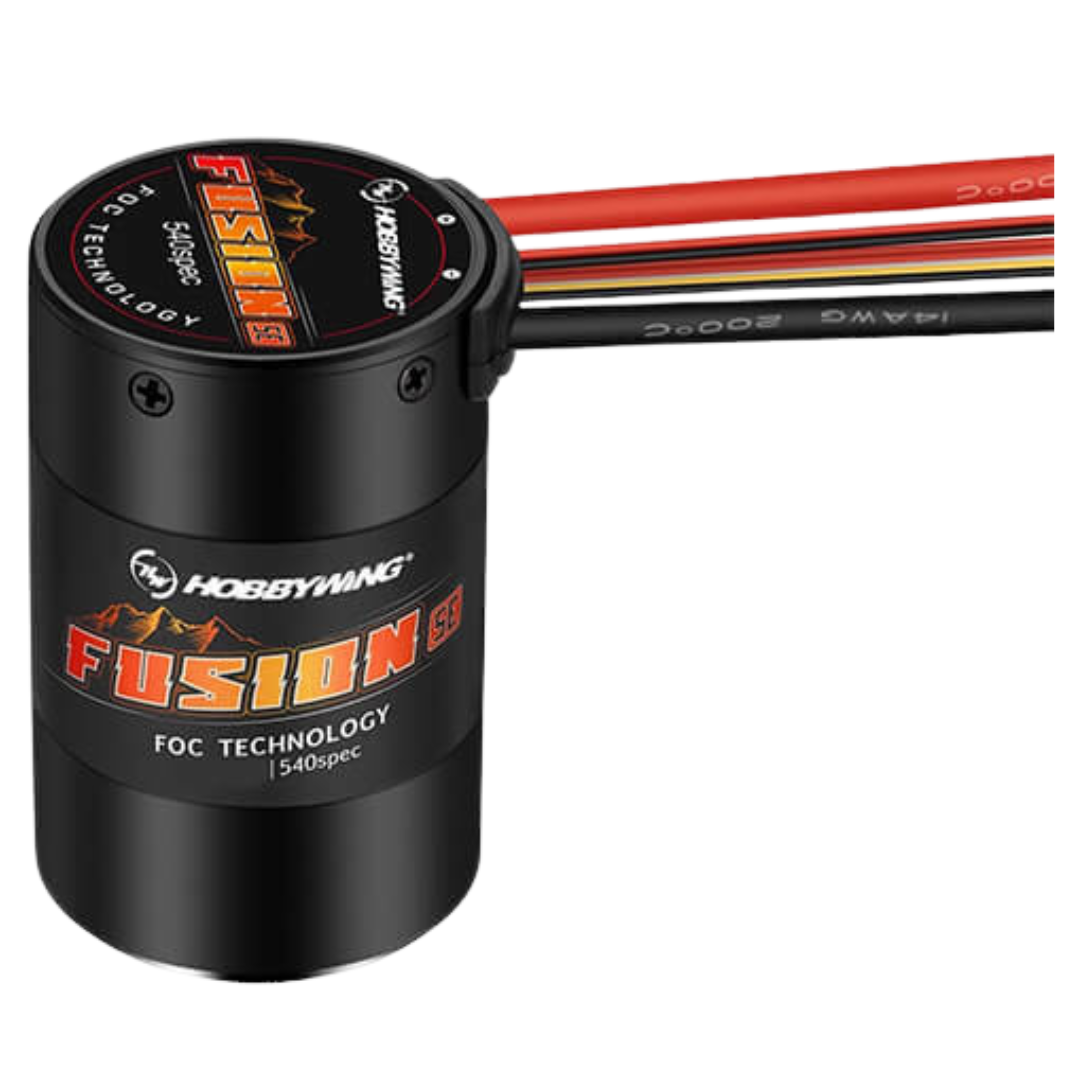

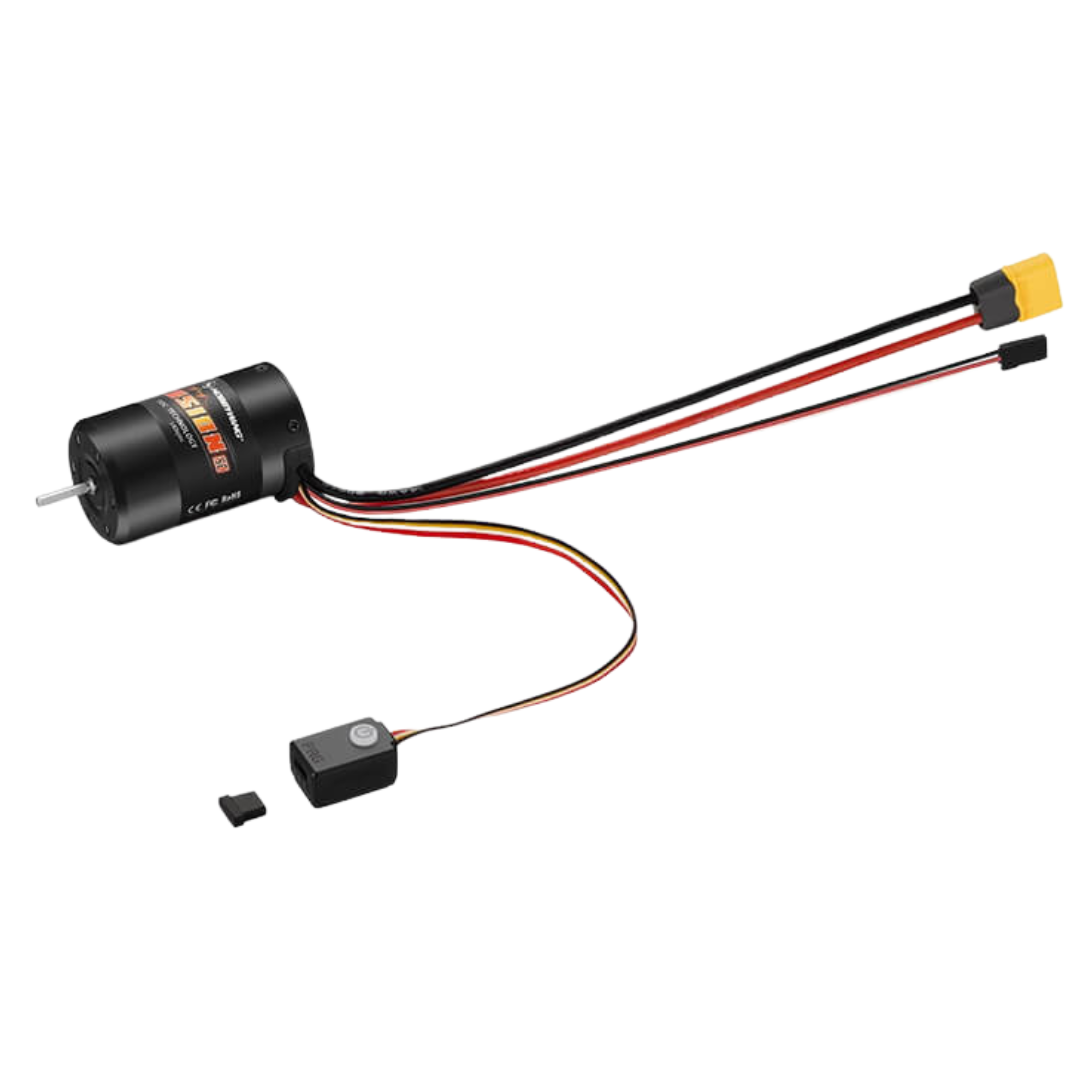

HOBBYWING QUICRUN Fusion SE 1200KV 2in1 Crawler 1/10 540spec HW30404318

The Hobbywing QuicRun Fusion SE 1200KV is an integrated brushless motor and ESC system for 1/10 RC rock crawlers, suited to trail drivers wanting smooth low-speed control, simplified wiring and strong hill-holding performance.

This compact 2-in-1 crawler power system combines the motor and ESC inside a 540-size style unit, reducing wiring clutter and saving chassis space. FOC control, sine wave drive, active drag brake adjustment and IP67-rated protection make it a practical upgrade for technical crawling, scale trail driving and steep terrain control.

Features

• Integrated 2-In-1 Design: Combines the brushless motor and ESC into one compact crawler power system
• 1200KV Crawler Tune: Lower KV option suits controlled crawling, technical trails and torque-focused setups
• FOC Control Technology: Field Oriented Control supports smooth low-speed throttle response and intelligent torque output
• Quiet Sine Wave Drive: Helps reduce motor noise while improving smoothness and efficiency
• Active Drag Brake: Adjustable drag brake helps hold the vehicle on climbs and descents
• Closed-Loop Speed Control: Helps maintain controlled wheel speed when climbing or descending under load
• IP67 Protection: Designed for normal wet, muddy, sandy, snowy and dusty crawler conditions
• Compact 58.1mm Length: Shorter size helps fit more 1/10 crawler chassis than larger integrated systems
• Adjustable BEC Output: Switchable 6V or 7.4V output supports compatible standard and high-voltage servos
• LED Program Box Compatible: ESC parameters can be adjusted using a compatible Hobbywing LED Program Box, sold separately
• Multiple Protection Functions: Includes low-voltage, overheat, throttle signal loss and motor lock-up protection

Specifications

• Brand: Hobbywing
• Model: QuicRun Fusion SE 1200KV
• SKU: HW30404318
• Manufacturer Part Number: 30404318
• Product Type: Integrated brushless motor and ESC crawler system
• Application: 1/10 scale RC rock crawlers
• Motor KV: 1200KV
• Motor Type: Brushless sensored crawler system with integrated ESC and FOC control
• Motor Poles: 4
• Continuous Current: 40A
• Peak Current: 120A
• Battery Compatibility: 2S to 3S LiPo or 6 to 9 cell NiMH
• BEC Output: 6V or 7.4V adjustable, 4A continuous and 6A peak
• BEC Voltage Note: 7.4V output is available only when using 3S LiPo
• Motor Diameter: 36mm
• Motor Length: 58.1mm
• Shaft Diameter: 3.175mm
• Exposed Shaft Length: 16.5mm
• Input Wires: 14AWG, 200mm red and black wires
• Battery Connector: XT60
• Waterproof Rating: IP67
• Programming: Compatible Hobbywing LED Program Box, sold separately
• SET Button Programming: Not supported
• LCD Program Box: Not supported
• OTA Programmer: Not supported
• Firmware Upgrade: Not supported
• Weight: 201g including wires and connectors

Includes

• 1 x Hobbywing QuicRun Fusion SE 1200KV 2-in-1 crawler motor and ESC unit
• 1 x Pre-installed XT60 input connector and wiring
• 1 x User manual

FAQ

What scale does the Hobbywing Fusion SE 1200KV suit? The Hobbywing Fusion SE 1200KV is designed for 1/10 scale RC rock crawlers and scale trail trucks.

Does this system need a separate ESC? No. The Hobbywing Fusion SE combines the brushless motor and ESC into one integrated unit.

Can the Fusion SE 1200KV be programmed? Yes. The Fusion SE can be programmed with a compatible Hobbywing LED Program Box, sold separately.

Is the firmware upgradeable? No. Hobbywing lists firmware upgrades as not supported for the QuicRun Fusion SE.

Important Notes

• Designed for compatible 1/10 RC rock crawler applications.
• Check motor space, shaft diameter, pinion fitment, battery connector, gearing and vehicle clearance before installation.
• Use only with compatible 2S to 3S LiPo or 6 to 9 cell NiMH battery setups.
• 7.4V BEC output is available only when using a 3S LiPo battery.
• IP67 protection is for normal wet and dusty RC use; do not soak or fully submerge the unit for extended periods.
• Firmware upgrades are not supported.
• LED Program Box, battery, charger, receiver, servo, pinion gear, tools and vehicle are not included unless shown separately.
