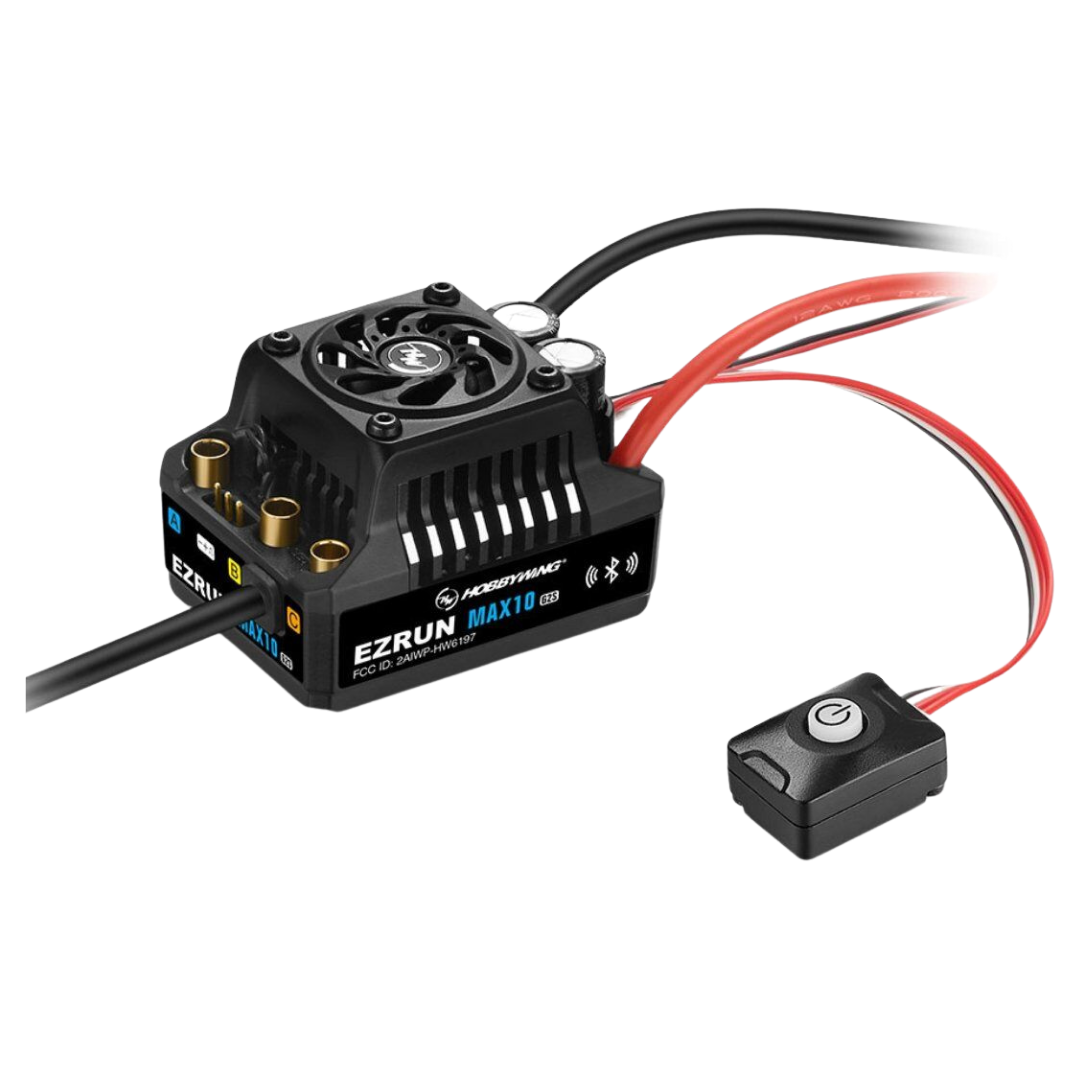

Hobbywing EZRUN MAX10 G2S 140A Sensored Brushless ESC 2-4S HW30102500

The Hobbywing EZRUN MAX10 G2S 140A is a 1/10 sensored brushless ESC for short course trucks trucks and monster trucks, combining 2S to 4S LiPo support, integrated Bluetooth programming, onboard data logging and an adjustable high-output BEC in an IP67-rated package

Features

• 140A continuous and 880A peak current rating
• Supports 2S to 4S LiPo batteries
• Sensored brushless operation for smooth linear throttle response across the full speed range
• Integrated Bluetooth module built into the power switch
• Direct HW LINK app programming without an external Bluetooth module
• Built-in historical data logging records up to the latest 10 minutes of runtime data
• Adjustable 6.0V 7.4V or 8.4V BEC output
• 5A rated BEC with up to 10A maximum output
• Frameless cooling fan with intelligent temperature-controlled operation
• Integrated heatsink housing for efficient thermal management
• Turbo timing adjustable up to 32 degrees
• Up to approximately 25 percent higher maximum motor RPM with compatible Hobbywing EzRun G3 sensored motors
• IP67-rated water and dust protection
• Built-in capacitor overheat protection
• Firmware upgrade support
• Separate programming port

Specifications

• Brand: Hobbywing
• Model: EZRUN MAX10 G2S 140A
• Product Type: Sensored Brushless ESC
• Scale: 1/10
• Continuous Current: 140A
• Peak Current: 880A
• Input Voltage: 2S to 4S LiPo
• BEC Voltage: 6.0V 7.4V or 8.4V Adjustable
• BEC Rated Current: 5A
• BEC Maximum Current: Up to 10A
• Motor Type: Sensored Brushless
• Turbo Timing: Up to 32 Degrees
• Battery Connector: XT60
• Motor Connectors: 4.0mm Female Gold Bullet Sockets
• Input Wire: 12AWG
• Programming: HW LINK Bluetooth App LCD G2 Program Box LCD Program Box Pro or OTA Programmer
• Built-In Bluetooth: Yes
• Built-In Historical Data Logging: Yes
• Firmware Upgrade: Supported
• Protection Rating: IP67
• Dimensions: 53 x 39.5 x 37.2mm
• Weight: 125g Including Wires
• Barcode: 6938994405614
• Manufacturer Part Number: HW30102500

Motor Limits

• 2S LiPo: Up to 6000KV with 3652 Size Motor
• 3S LiPo: Up to 4000KV with 3665 Size Motor
• 4S LiPo: Up to 2600KV with 4268 Size Motor

Compatibility

• 1/10 Short Course Trucks
• 1/10 Trucks
• 1/10 Monster Trucks
• Compatible Hobbywing sensored brushless motors within the published voltage size and KV limits

Includes

• 1 x Hobbywing EZRUN MAX10 G2S 140A Sensored Brushless ESC

FAQ

Does the MAX10 G2S need a separate Bluetooth module? No, Bluetooth is integrated into the power switch so compatible programming data review and firmware updates can be handled directly through the HW LINK app

How much runtime data can the ESC store? Hobbywing states that the built-in historical logging function can record up to the latest 10 minutes of runtime data for later graphical review in the HW LINK app

Can the BEC run an 8.4V high-voltage servo? Yes, the BEC can be set to 8.4V but Hobbywing states that stable 7.4V or 8.4V BEC output requires a 3S or higher drive battery

Is the MAX10 G2S waterproof? Hobbywing rates the ESC to IP67 for strong water and dust resistance, although normal RC maintenance and connector protection are still recommended after wet use

Can I program the ESC with the SET button or basic LED program box? No, Hobbywing lists SET-button and LED program-box programming as unsupported on the MAX10 G2S while LCD G2 LCD Pro OTA and integrated Bluetooth programming are supported

Does Turbo timing work with every brushless motor? The ESC supports up to 32 degrees of Turbo timing, but the advertised up-to-25-percent RPM increase is specifically stated with compatible Hobbywing EzRun 3652 or 3665 G3 sensored motors

Important Notes

• Stable 7.4V and 8.4V BEC output requires a 3S or higher drive battery
• Observe Hobbywing's published motor size and KV limits for the battery voltage being used
• Bluetooth operating range is approximately 5m due to the intended short-range setup and data-review function
• Use compatible sensored equipment where full sensored operation Turbo-related features and supported motor protection functions are required
