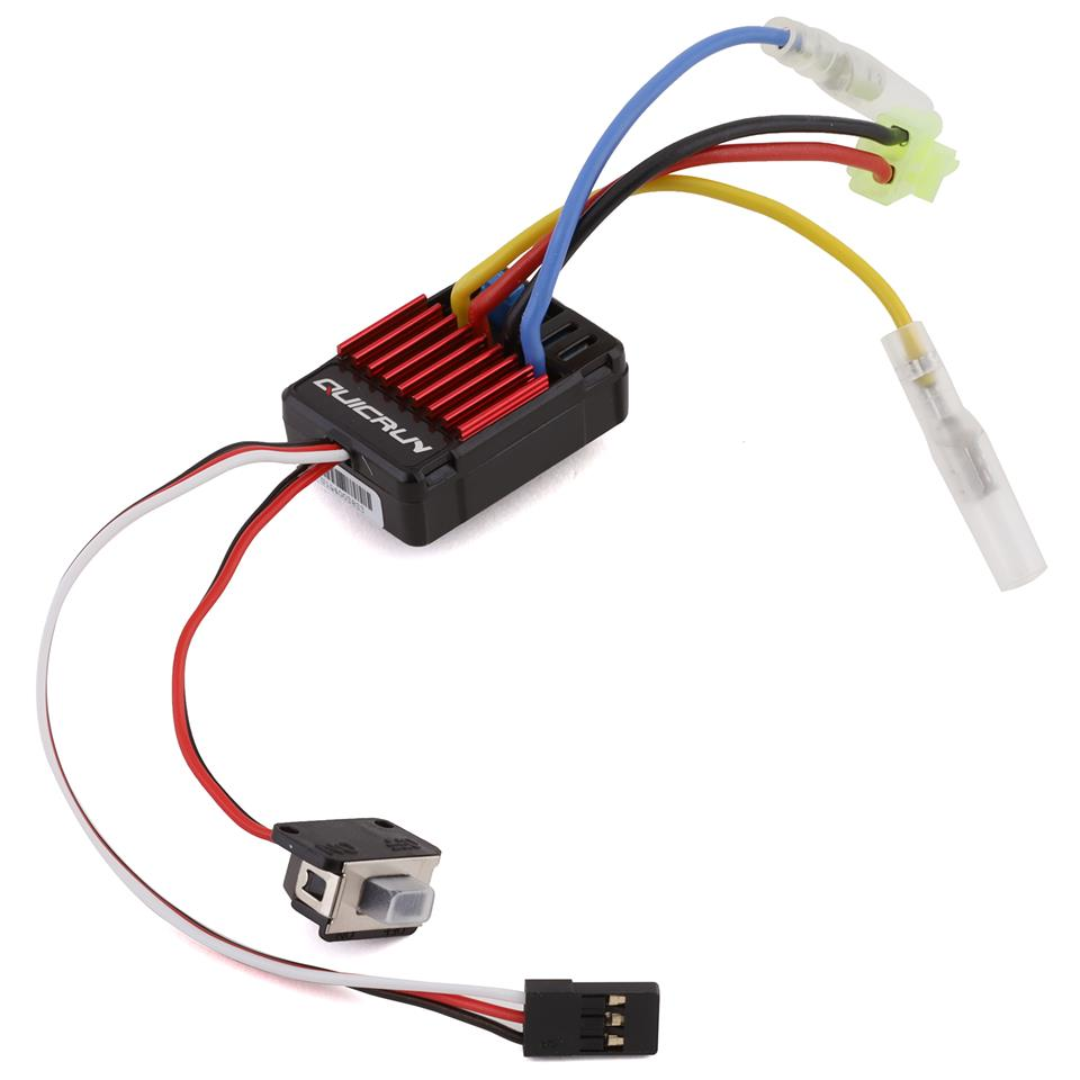

Hobbywing Quicrun 1625 1/18 Scale Brushed ESC Waterproof 30120000

The Hobbywing Quicrun 1625 Brushed ESC is designed for 1/18 and 1/16 scale RC vehicles, providing reliable and efficient control. Its waterproof and dustproof construction allows for use in all weather conditions, while the compact size with a built-in capacitor module makes it easy to install. Ideal for RC enthusiasts seeking durability and versatility in their brushed motor setups.

Features

• Waterproof and Dustproof: Suitable for all-weather racing
• Compact Design: Built-in capacitor module for space-saving installation
• Versatile Running Modes: Forward/Reverse/Brake (Fwd/Rev/Br) for various vehicle types
• High Current Endurance: Supports continuous 25A and peak 100A current
• Built-in BEC: 1A/5V output in linear mode
• Easy Configuration: ESC parameters adjustable via jumpers
• Multiple Protections: Over-voltage, low voltage cut-off, over-heating, and throttle signal loss protection
• Risk-Free Warranty: Manufacturer's limited warranty for peace of mind

Specifications

• Continuous/Peak Current: 25A/100A
• Resistance: 0.003Ω
• Supported Motor Type: Brushed Motor
• Car Compatibility: 1/16 & 1/18 On-road, Off-road, Buggy, Monster
• Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
• Brushed Motor Limit:
  • 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM < 30000 @7.2V
  • 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM < 20000 @7.2V
• BEC Output: 1A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Dimensions: 34 x 24 x 14 mm
• Weight: 23.5 g
• Running Modes: Forward/Reverse/Brake

Includes

• 1 x Hobbywing Quicrun 1625 Brushed ESC
