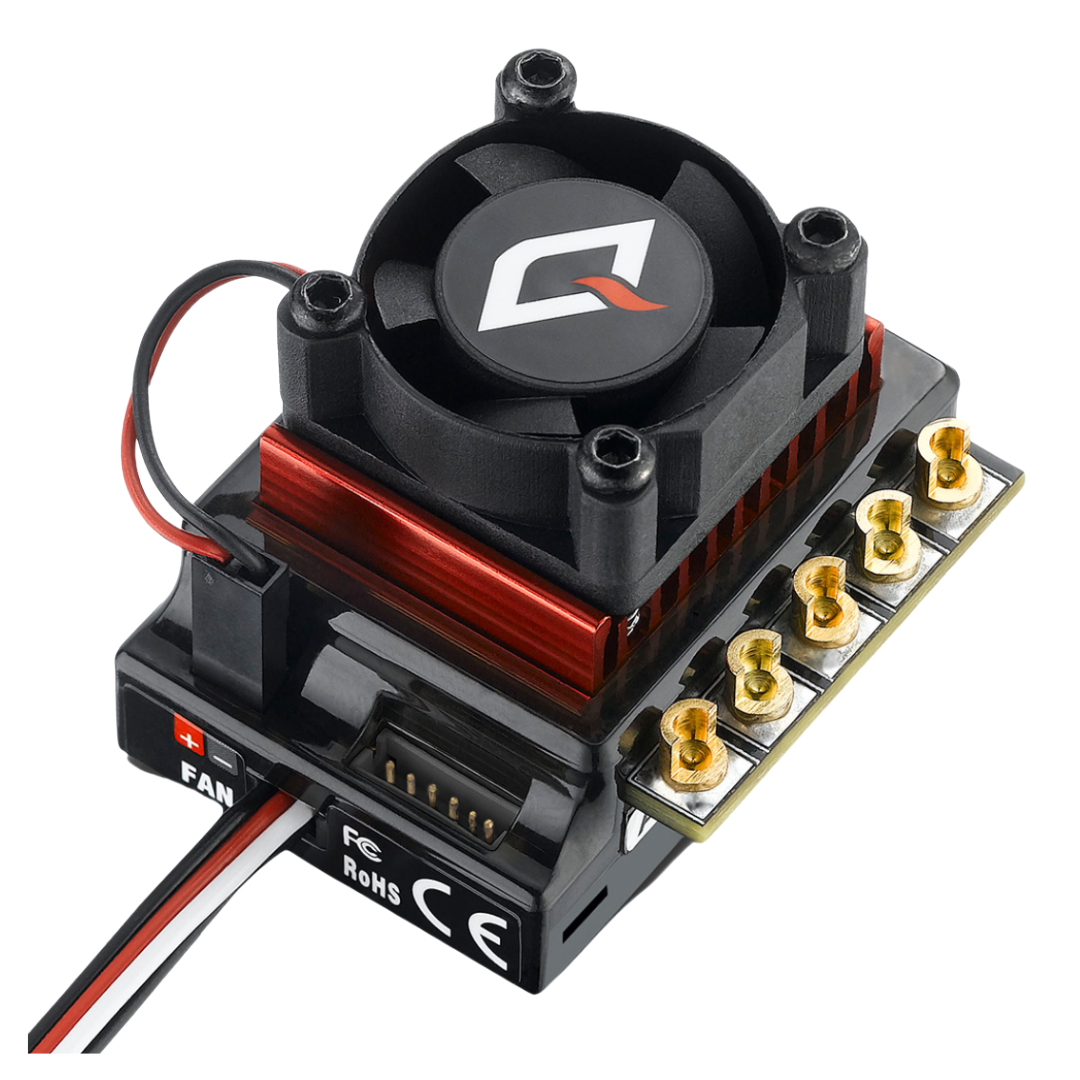

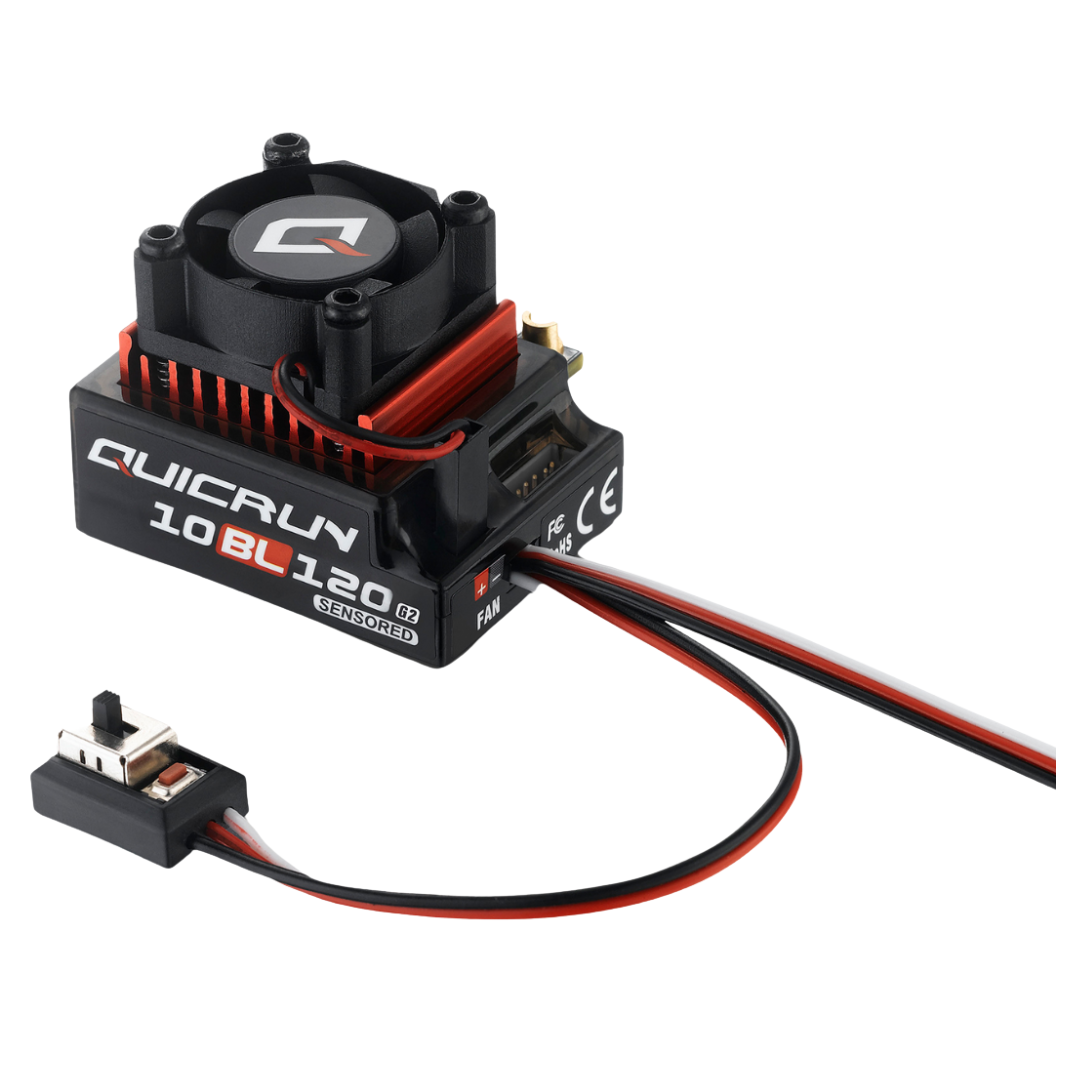

Hobbywing QuicRun WP 10BL120 G2 Sensored Brushless ESC 30125002

The Hobbywing QuicRun WP 10BL120 G2 is a waterproof 120A brushless ESC designed for 1/10 scale RC trucks needing sensored control, strong BEC output, and adjustable performance tuning.

Features

• Sensored Brushless Control: Supports sensored brushless motors and sensorless brushless operation
• Intelligent Freewheeling Technology: Improves ESC efficiency while helping reduce operating temperatures
• Waterproof Protection: IP67 rated design provides protection against water and dust during RC use
• High Output BEC: Built-in switchable BEC supports demanding steering servo setups

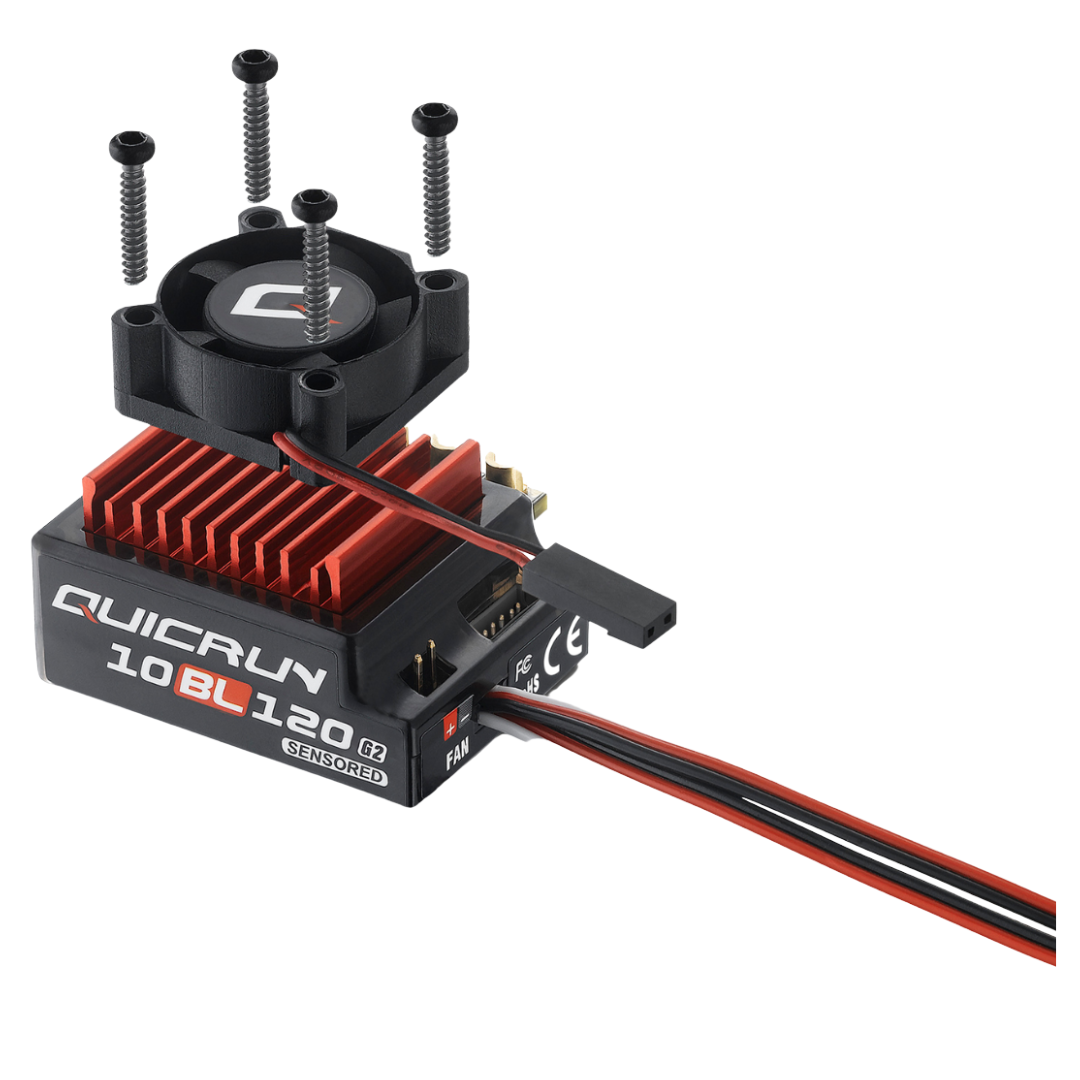

• Efficient Cooling System: Integrated heatsink and cooling fan help manage ESC temperature
• Built-In Capacitor: Internal 1640uF capacitor removes the need for an external capacitor in typical 1/10 applications
• Capacitor Thermal Protection: Helps protect the ESC from damage caused by capacitor overheating
• Multiple Programming Options: Compatible with Hobbywing LED Program Box, LCD G2 Program Box, and OTA Programmer

Specifications

• Brand: Hobbywing
• Model: QuicRun WP 10BL120 G2
• SKU: HW30125002
• Barcode: 6938994413206
• Product Type: Electronic Speed Controller (ESC)
• Scale: 1/10
• Motor Type: Brushless
• Motor Compatibility: Sensored and sensorless brushless motors
• Continuous Current: 120A
• Peak Current: 760A
• Input Voltage: 2S to 4S LiPo
• BEC Output: 6V / 7.4V @ 5A
• Waterproof Rating: IP67
• Input Wires: Black 14AWG 200mm x 2
• Output Connectors: 4mm gold female connectors
• Programming: LED Program Box, LCD G2 Program Box, OTA Programmer supported
• Firmware Upgrade: Not supported
• Dimensions: 52.9 x 39.8 x 38.2mm
• Weight: 119g including wires and connectors
• Recommended Applications: 1/10 short course trucks and monster trucks
• Motor Size Compatibility: 3652 and 3660 size brushless motors

Includes

• 1 x Hobbywing QuicRun WP 10BL120 G2 Sensored Brushless ESC

FAQ

Is the Hobbywing QuicRun WP 10BL120 G2 waterproof? Yes. The Hobbywing QuicRun WP 10BL120 G2 has an IP67 waterproof and dustproof rating for suitable RC conditions.

Can this ESC run sensored brushless motors? Yes. This ESC supports sensored brushless motors and sensorless brushless operation.

What vehicles does the QuicRun WP 10BL120 G2 suit? OZRC recommends this ESC for compatible 1/10 scale RC short course trucks and monster trucks using suitable brushless motor setups.

Important Notes

• Confirm your motor, battery voltage, gearing, and vehicle setup are within Hobbywing specifications before use
• Sensored brushless motors operate in sensorless mode only where specified by Hobbywing compatibility requirements
• Programming accessories such as LED Program Box, LCD G2 Program Box, and OTA Programmer are supported but sold separately
