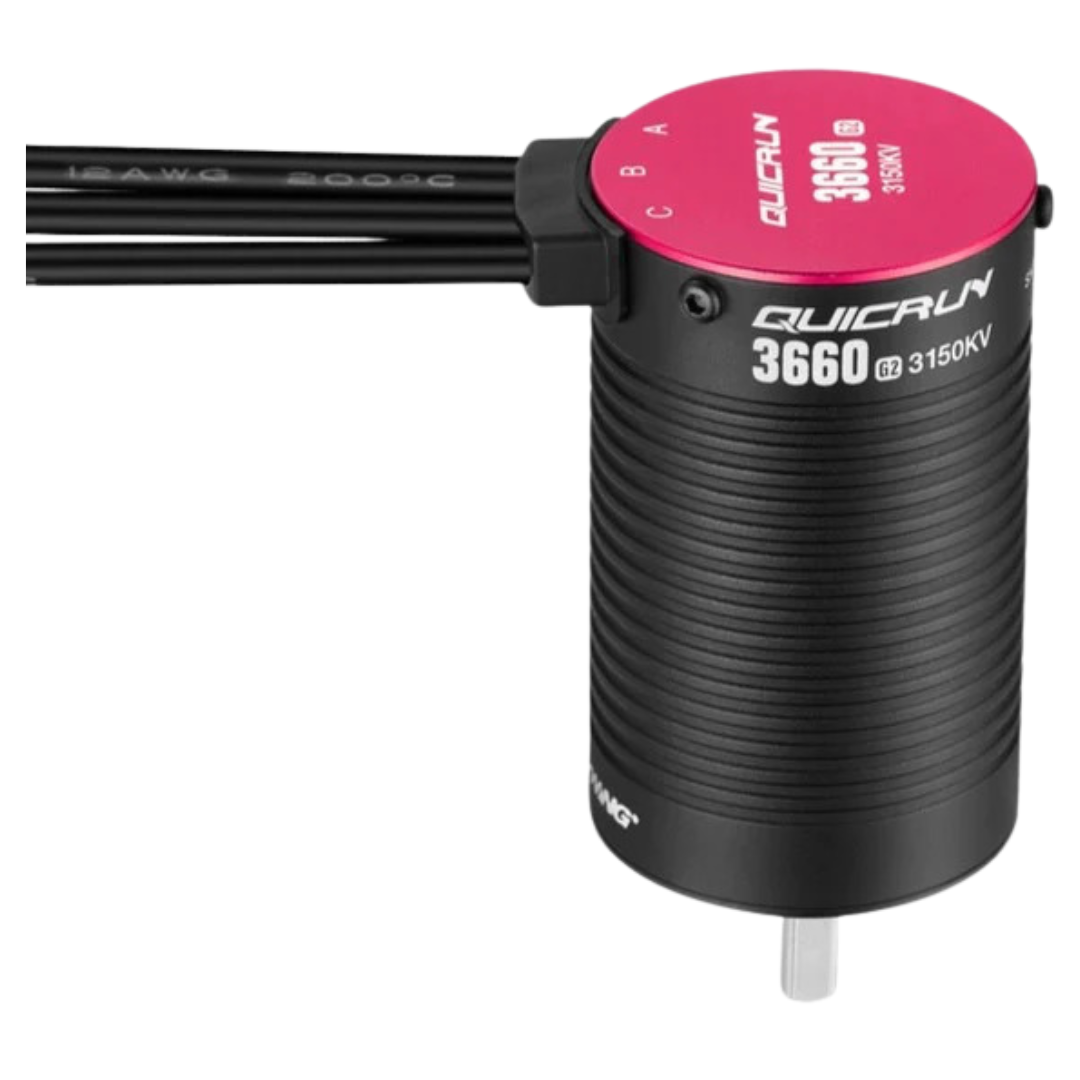

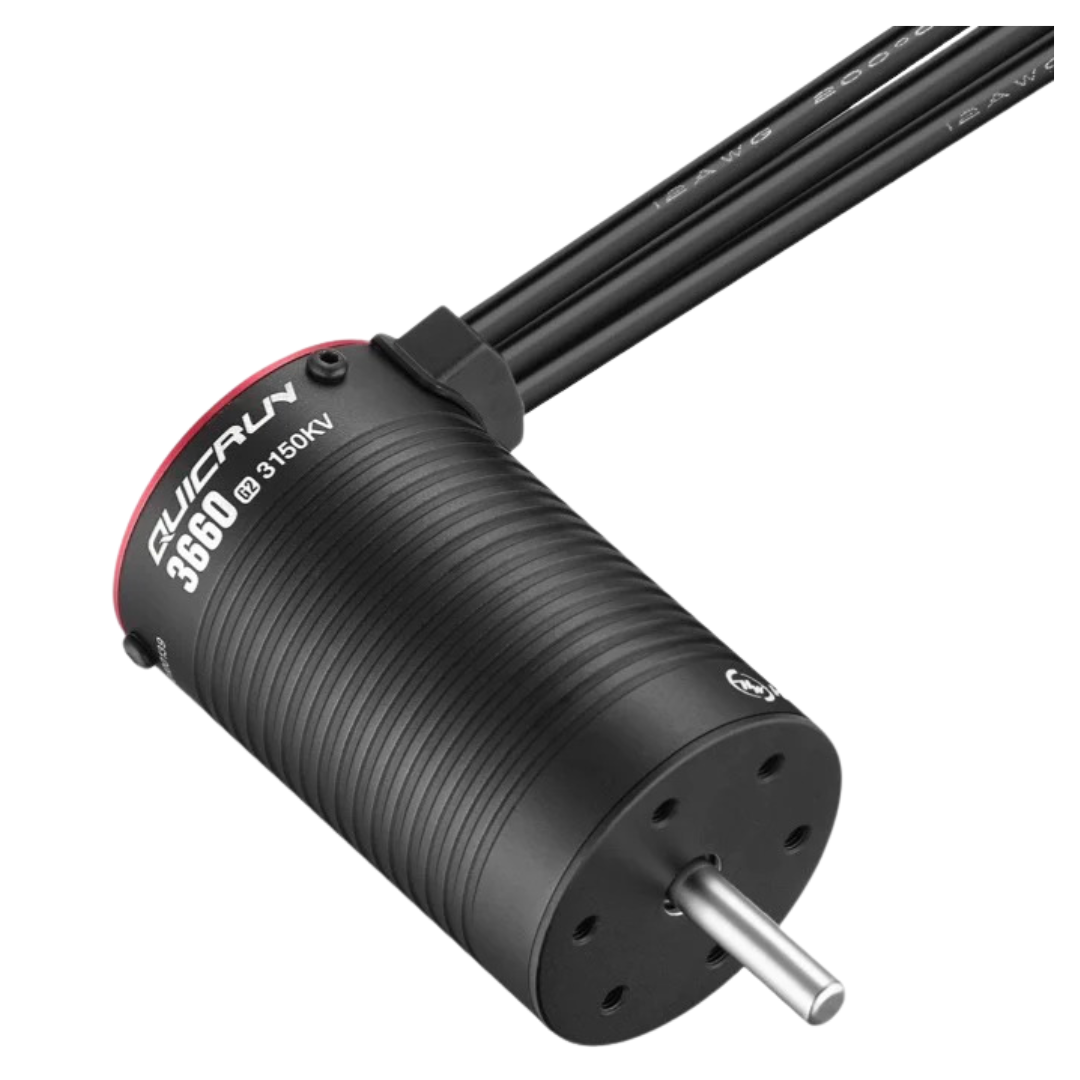

HOBBYWING QuicRun 3660SL G2 3150kV Brushless Motor HW30404500
Couldn't load pickup availability
The HOBBYWING QuicRun 3660SL G2 3150kV is a sensorless brushless motor designed for 1/10 scale on-road and off-road RC vehicles requiring strong 2S or 3S performance, efficient operation and a durable 5 mm output shaft.
Features
- 3150kV motor rating suited to performance-focused 1/10 scale RC applications
- Compatible with 2S and 3S LiPo power systems
- Four-pole sensorless brushless design for responsive power delivery
- HOBBYWING G2 design delivers increased maximum output compared with equivalent earlier specifications
- Improved motor efficiency helps reduce operating temperature under comparable loads
- Reinforced rotor with aluminium front and rear end plates for improved balance and strength
- High-strength rotor wrapping helps protect the internal rotating assembly at high speed
- CNC-machined aluminium end cover and high-hardness aluminium motor housing
- 0.2 mm low-loss silicon steel laminations support efficient operation
- High-precision bearings and 200°C heat-resistant enamelled winding wire
- Detachable modular construction supports cleaning and motor maintenance
- Suitable for on-road cars, buggies, trucks, short course trucks and monster trucks where dimensions and gearing are compatible
Specifications
- Brand: HOBBYWING
- Series: QuicRun
- Model: 3660SL G2
- Manufacturer Part Number: HW30404500
- Barcode: 6938994419932
- Motor Type: Sensorless brushless
- Motor Rating: 3150kV
- Motor Poles: 4
- Compatible Battery: 2S–3S LiPo
- Motor Diameter: 36 mm
- Motor Length: 60 mm
- Shaft Diameter: 5 mm
- Shaft Length: 18.5 mm
- No-Load Current: 5.4A
- Weight: Approximately 273 g
- Typical Application: 1/10 scale on-road and off-road RC vehicles
Includes
- 1 × HOBBYWING QuicRun 3660SL G2 3150kV sensorless brushless motor
- 1 × Motor instruction manual
FAQ
Can the HOBBYWING 3660SL 3150kV motor run on 3S LiPo? Yes. The HW30404500 motor is rated for use with 2S or 3S LiPo batteries when paired with a suitable brushless ESC and correctly geared vehicle.
What size pinion fits this motor? The motor has a 5 mm output shaft, so a pinion with a matching 5 mm bore is required. The tooth count and gear pitch must also match the vehicle and spur gear.
Does this motor include an ESC? No. This listing includes the motor and instruction manual only. A compatible sensorless brushless ESC is required separately.
Is the motor sensored? No. The QuicRun 3660SL G2 is a sensorless brushless motor and must be connected to an ESC that supports sensorless operation.
Important Notes
- Confirm motor dimensions, mounting pattern, shaft size and available chassis clearance before installation
- Use a compatible sensorless brushless ESC rated for the selected battery voltage and vehicle load
- Select conservative gearing initially and monitor motor temperature after short test runs
- Keep the motor case below 100°C to reduce the risk of magnet, winding or electronic damage
- Do not operate the motor at full throttle without a pinion or drivetrain load, as excessive unloaded RPM may damage the motor
- Secure all motor wires and connectors to prevent intermittent operation caused by vibration
- ESC, pinion gear, mounting screws and other installation components are not included unless stated separately
