Hobbywing QuicRun Outer 3530SL 2200Kv Motor 30404852
Couldn't load pickup availability

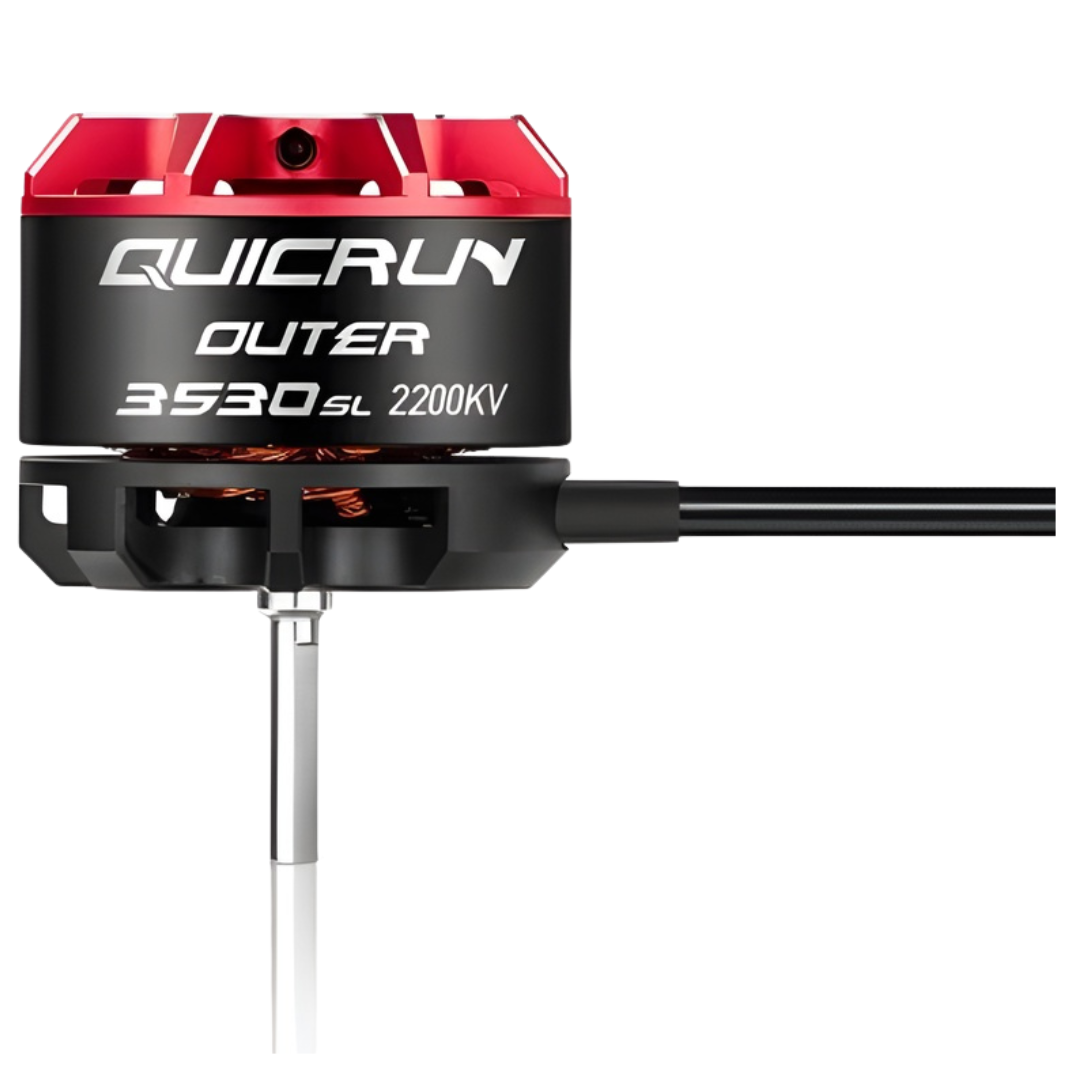

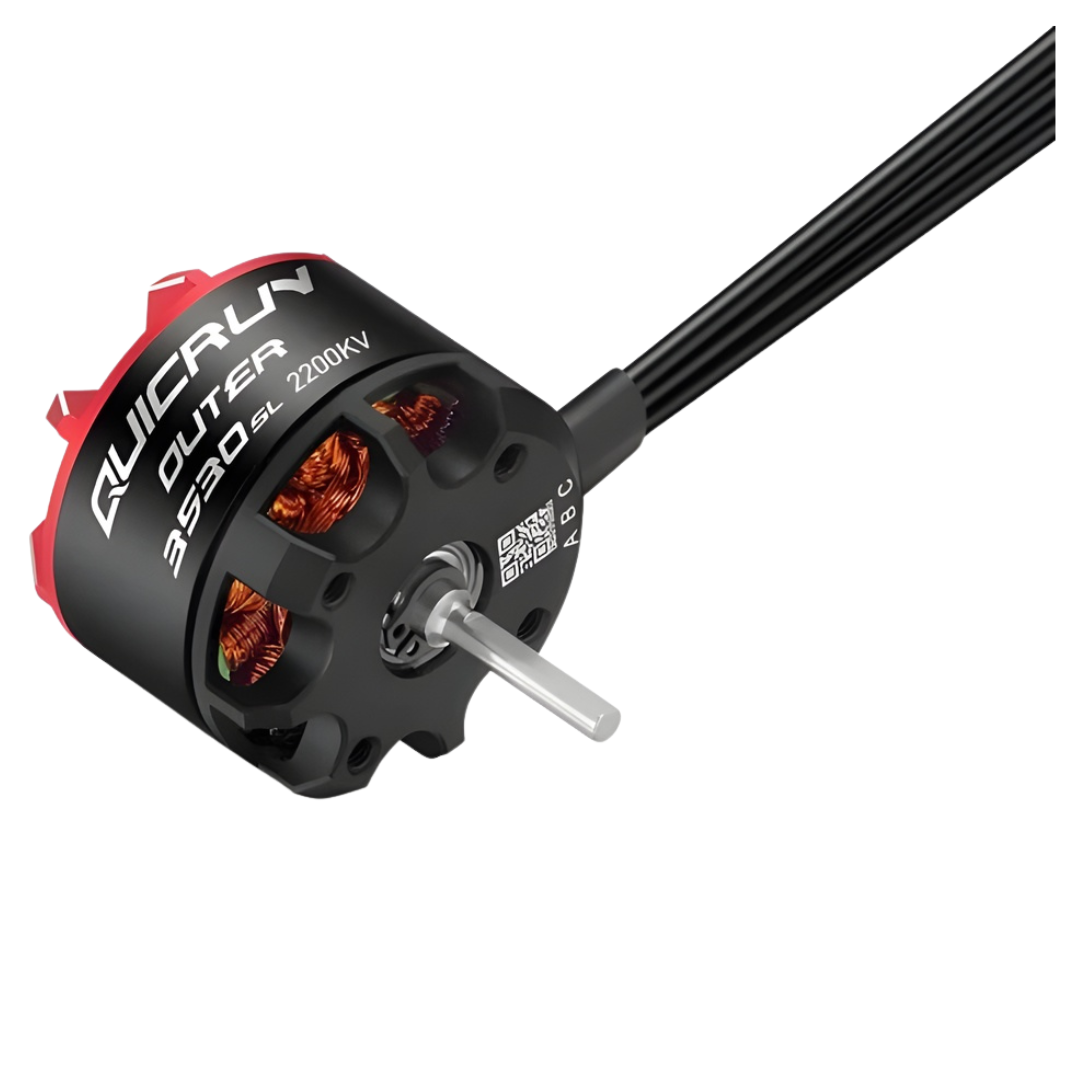

The Hobbywing QuicRun Outer 3530SL 2200Kv HW30404852 is a sensorless brushless outrunner motor for 1/10 and 1/12 scale RC crawlers, designed to deliver smooth low-speed control and efficient trail performance with a compatible crawler ESC.
Features
- Outrunner Crawler Motor: Designed for smooth, controlled brushless performance in 1/10 and 1/12 scale RC crawlers
- 2200Kv Rating: Provides a balanced speed and torque option for compatible crawler builds
- Sensorless Brushless Design: Low-maintenance brushless construction with sensorless operation
- 14 Pole Rotor: High pole count supports strong low-speed control for technical crawling
- Low Cogging Performance: Designed to reduce cogging and torque ripple for smoother throttle feel at low speeds
- 2S to 4S LiPo Compatible: Suitable for crawler setups running within the supported voltage range
- Compact 3530 Size: 35mm outer diameter and 30mm length suit many compact crawler chassis layouts
- QuicRun WP 10BL80 Pairing: Designed to work with the Hobbywing QuicRun WP 10BL80 Crawler ESC

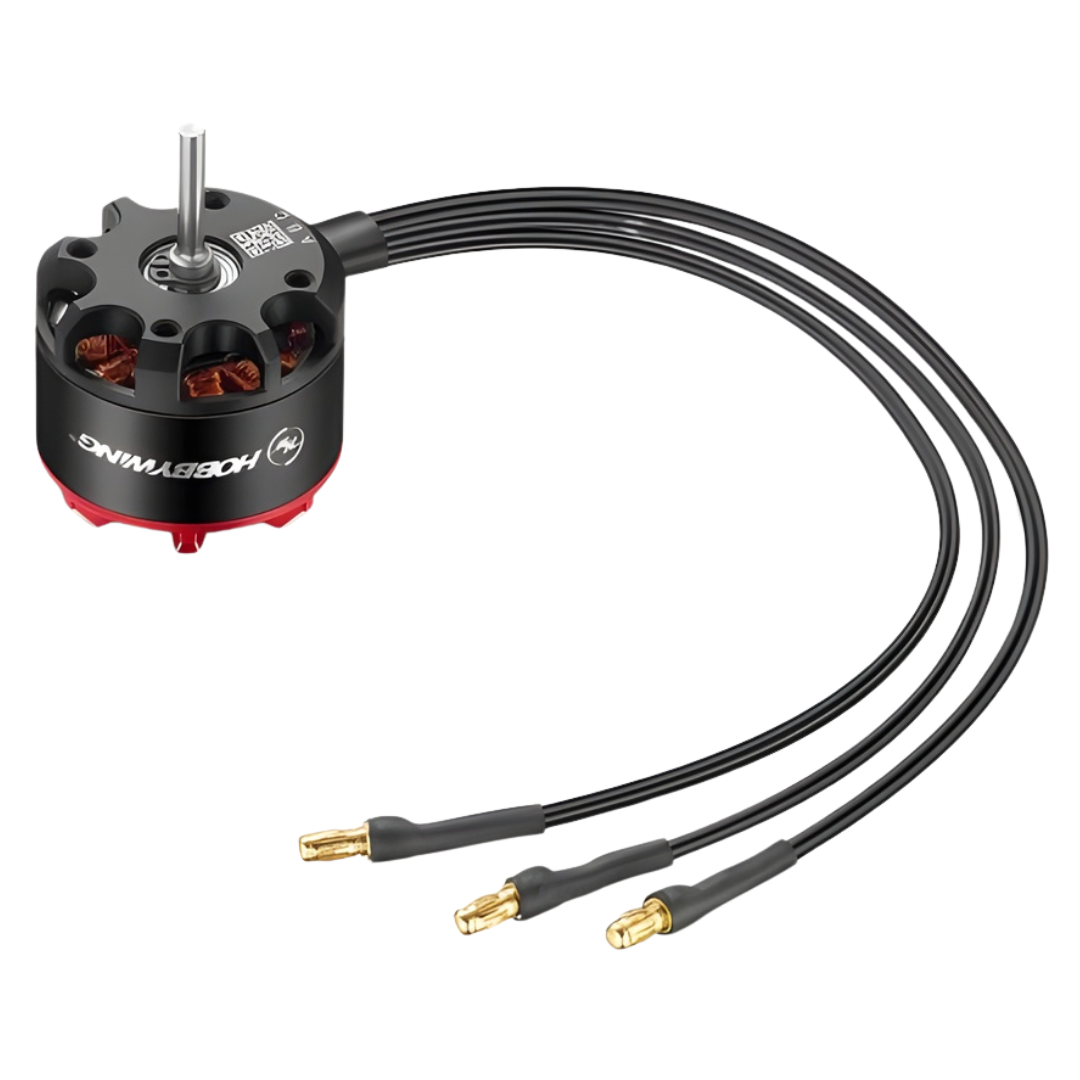

- 3.5mm Bullet Connectors: Supplied with 3.5mm motor connectors for convenient connection to compatible ESCs

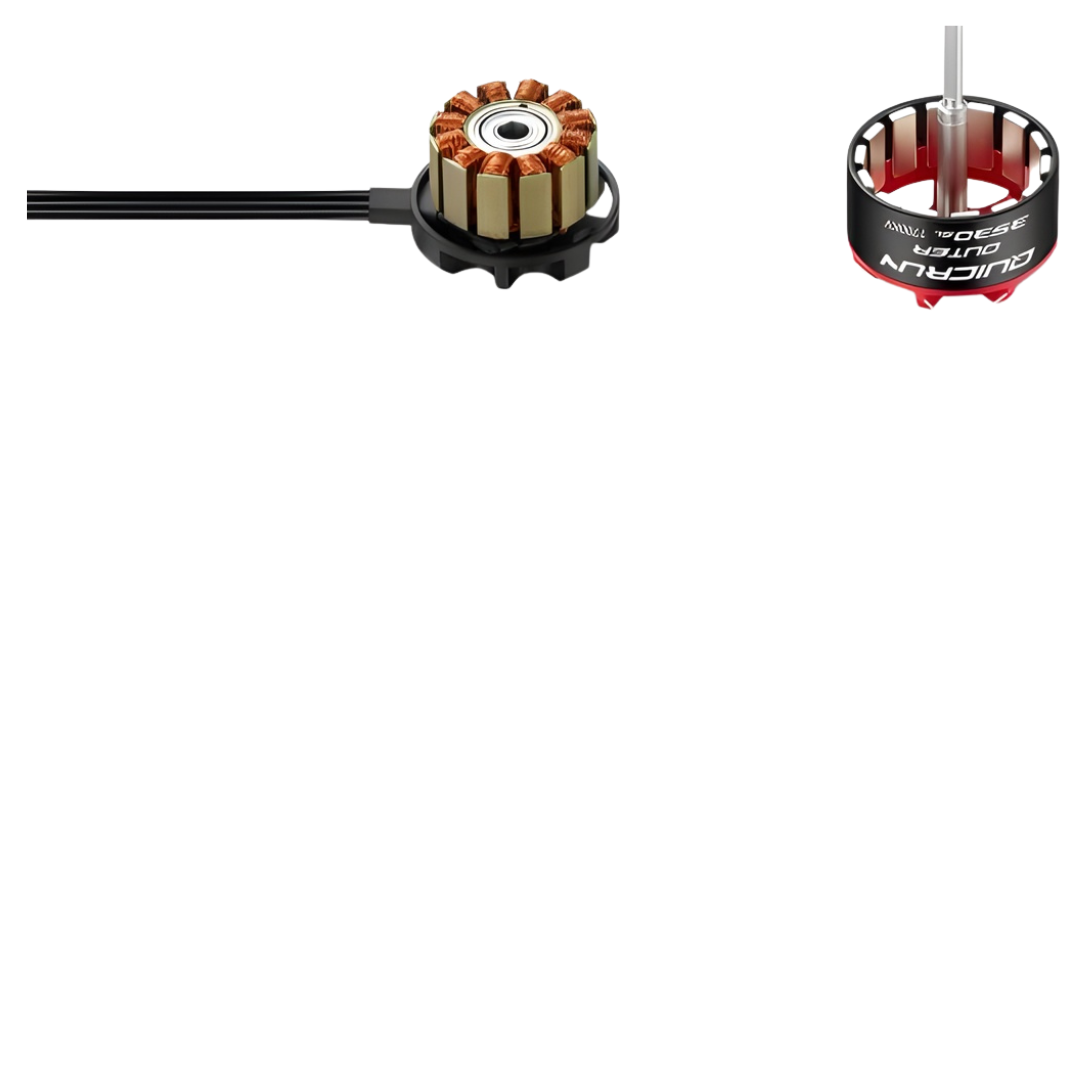

- Modular Construction: Removable design supports routine cleaning and maintenance
Specifications
- Brand: Hobbywing
- Model: QuicRun Outer 3530SL 2200Kv
- SKU: HW30404852
- Manufacturer Part Number: 30404852
- Product Type: Brushless crawler motor
- Motor Design: Outrunner
- Motor Type: Brushless
- Sensor Type: Sensorless
- Scale: 1/10 and 1/12
- Vehicle Application: RC crawlers
- Kv Rating: 2200Kv
- LiPo Compatibility: 2S to 4S
- No-Load Current: 4A
- Pole Count: 14
- Recommended ESC: Hobbywing QuicRun WP 10BL80 Crawler
- Outer Diameter: 35mm
- Length: 30mm
- Shaft Diameter: 3.175mm
- Weight: 102g
Includes
- 1 x Hobbywing QuicRun Outer 3530SL 2200Kv brushless crawler motor
FAQ
What ESC suits the Hobbywing QuicRun Outer 3530SL 2200Kv motor? Hobbywing lists the QuicRun WP 10BL80 Crawler ESC as the recommended ESC for the QuicRun Outer 3530SL 2200Kv motor.
Is this motor brushed or brushless? The Hobbywing QuicRun Outer 3530SL 2200Kv is a sensorless brushless outrunner motor.
What vehicles is this motor designed for? The QuicRun Outer 3530SL 2200Kv is designed for 1/10 and 1/12 scale RC crawlers.
What LiPo cell count can this motor use? The Hobbywing QuicRun Outer 3530SL 2200Kv is listed for 2S to 4S LiPo use with a compatible ESC and suitable gearing.
Important Notes
- Requires a compatible sensorless brushless ESC, sold separately unless supplied in a combo
- Confirm motor mount, shaft size, gearing, ESC compatibility and battery setup before installation
- Motor direction, throttle feel and braking behaviour are controlled by the ESC setup
- ESC, pinion gear, mounting screws, battery and vehicle are not listed as included
