Hobbywing QuicRun Fusion Pro Elite 2300KV 2-in-1 Crawler System 30120500
Couldn't load pickup availability

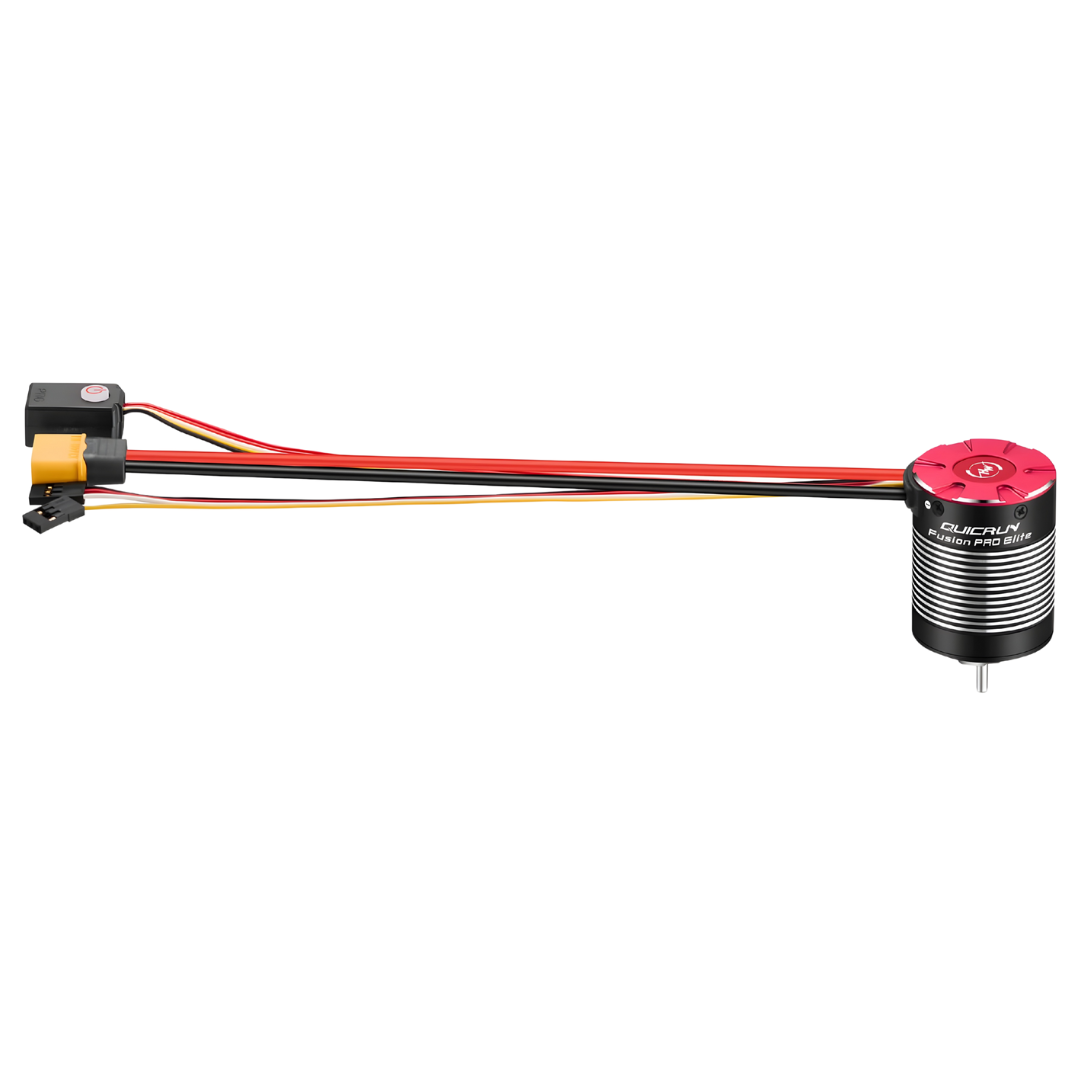

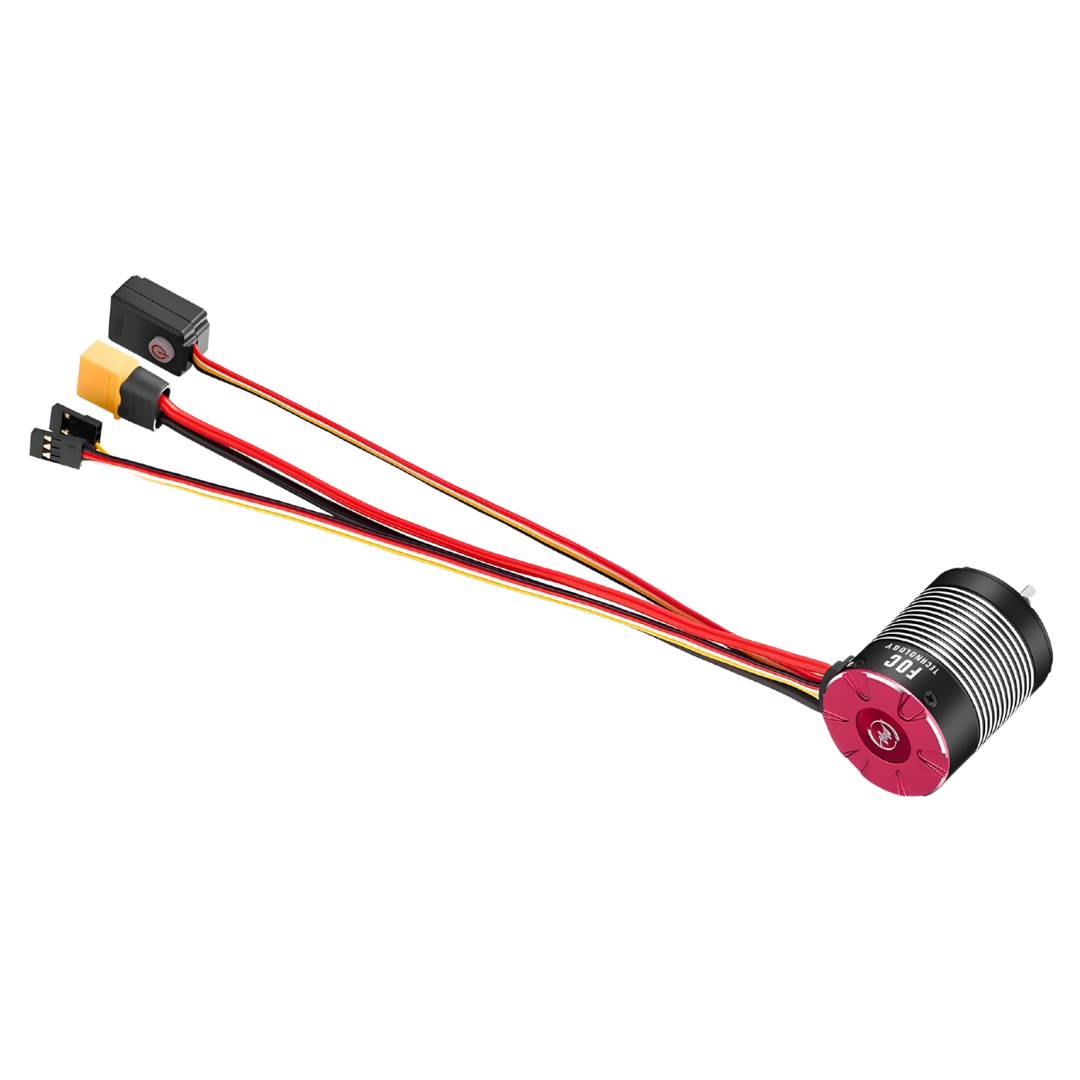

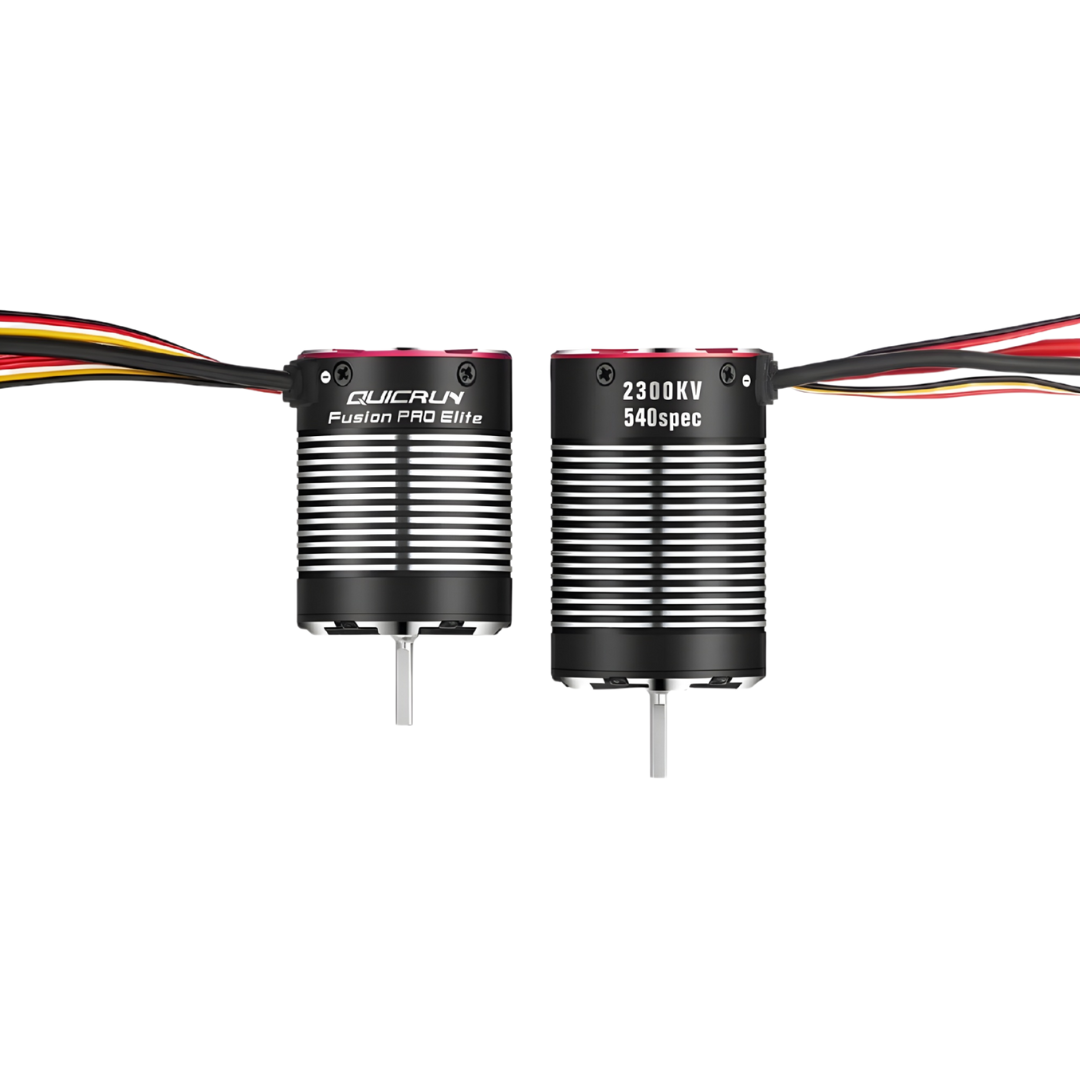

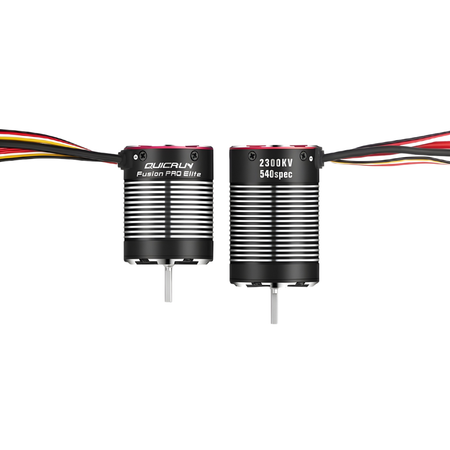

The Hobbywing QuicRun Fusion Pro Elite is a compact 2-in-1 sensored brushless motor and ESC system for 1/10 RC crawlers, combining a 2300KV motor with FOC control for smooth low-speed response strong torque and simplified installation
Features
- Integrated 2-in-1 brushless motor and ESC design
- 2300KV sensored motor for 1/10 crawler applications
- FOC drive technology for smooth quiet and linear low-speed control
- Closed-loop torque and speed control automatically adapts output to changing terrain
- AUX channel function allows selected ESC parameters such as drag brake force to be adjusted from a compatible transmitter channel
- IP67 waterproof and dustproof protection under normal operating conditions
- 50A continuous and 150A peak ESC current rating
- Built-in BEC with selectable 6V 7.4V or 8.4V output
- BEC rated at 5A continuous with up to 10A maximum output
- Five selectable running modes for different crawling setups
- 14 adjustable ESC parameters for detailed drivetrain tuning
- Supports Hobbywing LED Program Box LCD G2 Program Box and LCD Program Box Pro
- XT60 battery connector fitted as standard
Specifications
- Brand: Hobbywing
- Series: QuicRun Fusion Pro Elite
- Product Type: Integrated Motor and ESC System
- Scale: 1/10
- Application: RC Crawlers
- Motor Type: Sensored Brushless
- KV Rating: 2300KV
- Motor Poles: 4
- ESC Continuous Current: 50A
- ESC Peak Current: 150A
- LiPo Input: 2S to 4S
- NiMH Input: 6 to 12 Cells
- BEC Voltage: 6V 7.4V or 8.4V Selectable
- BEC Continuous Current: 5A
- BEC Maximum Current: 10A
- Waterproof Rating: IP67
- Battery Connector: XT60
- Power Wires: 14AWG
- Motor Diameter: 37mm
- Motor Length: 48.5mm
- Shaft Diameter: 3.175mm
- Exposed Shaft Length: 16mm
- Weight: Approximately 178.5g including wires and connector
- Adjustable Parameters: 14
- Manufacturer Part Number: 30120500
Includes
- 1 x Hobbywing QuicRun Fusion Pro Elite 2300KV 2-in-1 Motor and ESC System
- 1 x AUX and Receiver Signal Cable Assembly
- 1 x Power Switch and Programming Port Assembly
- 1 x User Manual
FAQ
Is the QuicRun Fusion Pro Elite sensored? Yes, Hobbywing officially specifies the Fusion Pro Elite as a sensored brushless 2-in-1 power system
What batteries can the Fusion Pro Elite 2300KV use? Hobbywing specifies 2S to 4S LiPo or 6 to 12-cell NiMH operation
Does the Fusion Pro Elite have a 10A BEC? Hobbywing states a maximum BEC output of 10A while the detailed specification lists 5A continuous current with selectable 6V 7.4V and 8.4V output
Can ESC settings be changed from the transmitter? Yes, the AUX channel function can be connected to a spare receiver channel so selected parameters such as drag brake force can be adjusted in real time from a compatible transmitter
Which programming devices are compatible? Hobbywing specifies support for the LED Program Box LCD G2 Program Box and LCD Program Box Pro while OTA programming and firmware upgrades are not supported
Important Notes
- IP67 protection is intended for normal splash water and dust exposure and is not designed for prolonged submersion
- Waterproof performance can decrease over time due to wear and ageing
- Confirm motor dimensions shaft size gearing battery voltage and vehicle compatibility before installation
- Use the correct BEC voltage for the installed servo receiver lighting and accessories
