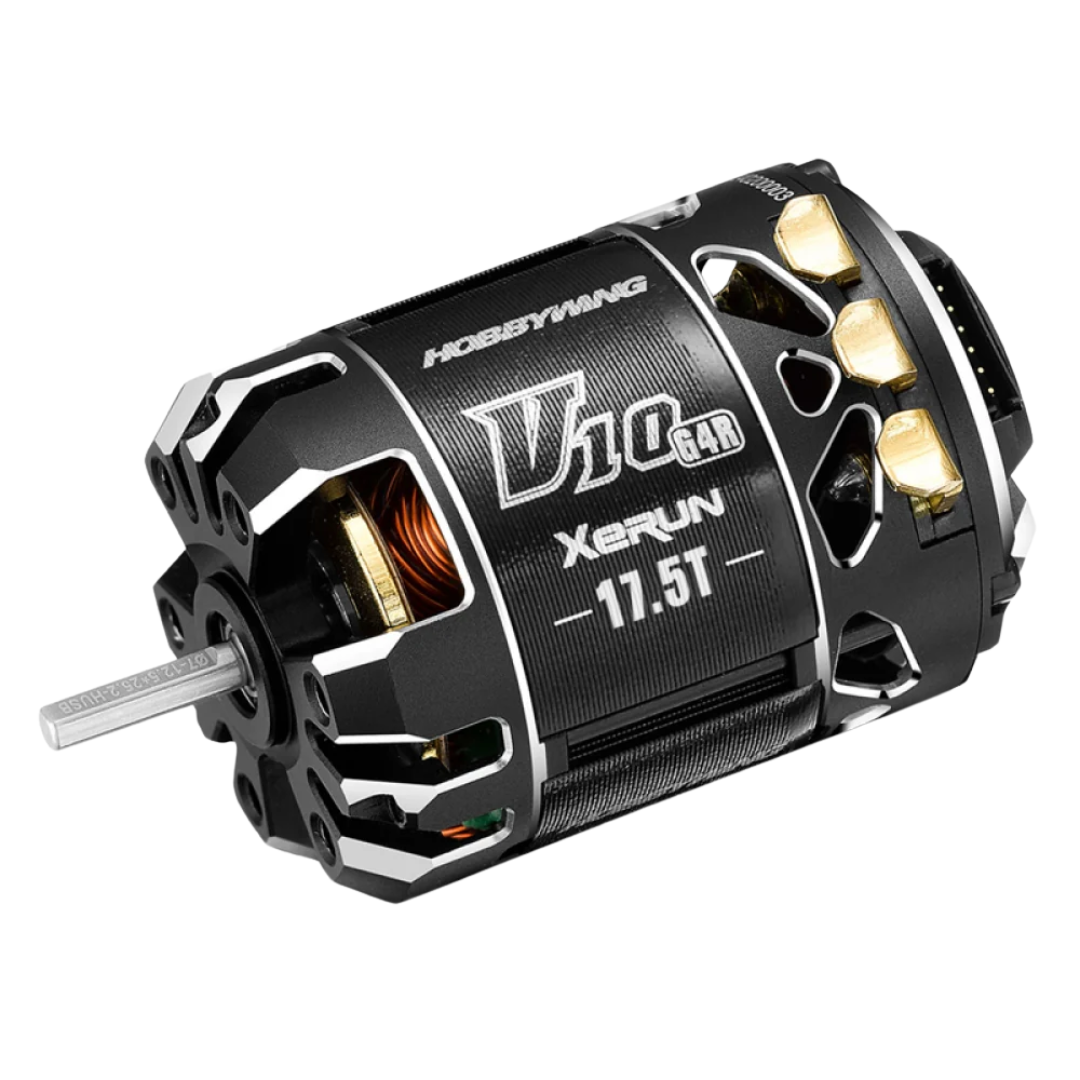

Hobbywing XeRun V10 17.5T G4R Black Brushless Motor 30401748

The Hobbywing XeRun V10 17.5T G4R Black Brushless Motor is designed for high-performance 1/10 and 1/12 stock class racing. With advanced heat dissipation, precision components, and optimized power delivery, this motor ensures exceptional speed, efficiency, and durability.

Features

• Optimized for 1/10 and 1/12 stock class racing
• Designed to pair with the Hobbywing XR10 Stock Spec G2 ESC
• Innovative stator core design maximizes heat dissipation
• Rear-end cooling structure enhances thermal efficiency
• Dual sensor ports for flexible wiring and layout options
• Custom copper bar design with widened spacing for easier soldering
• High-precision Hall sensor and balanced rotor for smooth operation
• 220°C high-temperature-resistant enamelled wire for reliability
• High-strength bearings and copper solder tabs for durability

Specifications

• Scale: 1/10
• Type: Brushless (BL)
• Sensor: Sensored (SD)
• Pole Count: 2
• KV Rating: 3150KV
• LiPo Compatibility: 1-2S
• No-Load Current: 4.6A
• Max Power Output: 213W
• Max Current Draw: 49.4A
• Outer Diameter: 35.8mm
• Length: 51.3mm
• Shaft Diameter: 3.175mm
• Weight: 158g
• Front Bearing: 9x4x4mm
• Rear Bearing: 8x3x4mm

Recommended ESC

• Hobbywing XeRun XR10 G2S

Applications

• 1/10 and 1/12 stock class racing vehicles

Includes

• Hobbywing XeRun V10 17.5T G4R Black Brushless Motor

Upgrade your RC racing setup with the Hobbywing XeRun V10 17.5T G4R Black Brushless Motor and experience top-tier performance and reliability on the track.
