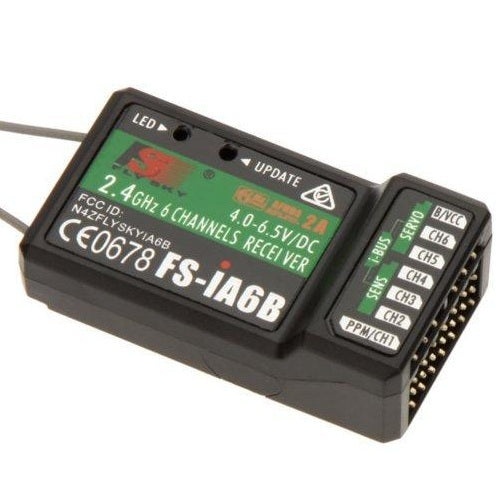

FLYSKY FS-iA6B 2.4GHz 6CH AFHDS 2A Receiver Black FS-IA6B

The FLYSKY FS-iA6B is a 6-channel 2.4GHz AFHDS 2A receiver for compatible FlySky transmitters, giving RC aircraft, glider and helicopter users stable PWM, PPM, i-BUS and S.BUS receiver output options.

This compact dual-antenna receiver is useful for new aircraft builds, receiver replacement, or adding another model to a compatible FlySky AFHDS 2A radio system.

Features

• 6-channel receiver for compatible FlySky AFHDS 2A transmitters
• 2.4GHz AFHDS 2A protocol supports stable radio communication
• Dual antenna design helps improve signal reception and installation flexibility
• PWM outputs suit standard RC servos and ESC connections
• PPM, i-BUS and S.BUS data ports support compatible flight controllers and advanced setups
• RSSI support allows compatible systems to monitor receiver signal strength
• Online update support allows firmware updates when used with suitable FlySky equipment
• Compact 47 x 26.2 x 15mm receiver body suits aircraft, gliders, helicopters and FPV builds with available space
• Compatible with FlySky i4, i6, i10, FS-GT2E and FS-GT2G transmitters using the correct protocol

Specifications

• Brand: FLYSKY
• Model: FS-iA6B
• SKU: FS-IA6B
• Barcode: 2000000009308
• Product Type: RC receiver
• Channels: 6 PWM channels
• Wireless Frequency: 2.4GHz
• Wireless Protocol: AFHDS 2A
• Range: 500 to 1500m in the air
• Data Ports: PWM / PPM / i-BUS / S.BUS
• RSSI: Supported
• Online Update: Supported
• Antenna Type: Dual copper tube antenna
• Input Power: 4.0V to 8.4V DC
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 20% to 95%
• Dimensions: 47 x 26.2 x 15mm
• Weight: 10g
• Colour: Black
• Certification: CE, RCM, FCC
• Known Compatibility: FlySky i4, i6, i10, FS-GT2E and FS-GT2G transmitters using compatible AFHDS 2A operation
• Model Type: Aircraft, glider, helicopter and compatible flight controller applications

Includes

• 1 x FLYSKY FS-iA6B 2.4GHz 6-channel AFHDS 2A receiver
• 1 x Bind plug

FAQ

Does the FLYSKY FS-iA6B work with the FlySky i6 transmitter? Yes. The FS-iA6B is commonly listed as compatible with the FlySky i6 transmitter when the transmitter is using compatible AFHDS 2A operation.

Does the FS-iA6B support i-BUS? Yes. The FlySky FS-iA6B supports i-BUS, along with PWM, PPM and S.BUS output options for compatible setups.

What voltage does the FS-iA6B receiver use? FlySky lists the FS-iA6B receiver input power as 4.0V to 8.4V DC.

What models does this receiver suit? The FS-iA6B suits compatible RC aircraft, gliders, helicopters and flight controller installations using FlySky AFHDS 2A radio equipment.

Important Notes

• Confirm your transmitter supports AFHDS 2A before purchase.
• Bind the receiver to the transmitter before use and perform a full range and control check before flying.
• PPM, i-BUS and S.BUS may need to be enabled or configured in the transmitter or flight controller setup.
• Install the antennas clear of carbon fibre, metal parts and high-current wiring where possible.
• Some older listings quote different antenna, voltage or weight figures; this listing uses current FlySky official specifications where available.
