Incision Drive Shafts For Axial SCX10 II, SCX10, Vanquish VS4-10, VRD, H10 IRC00220

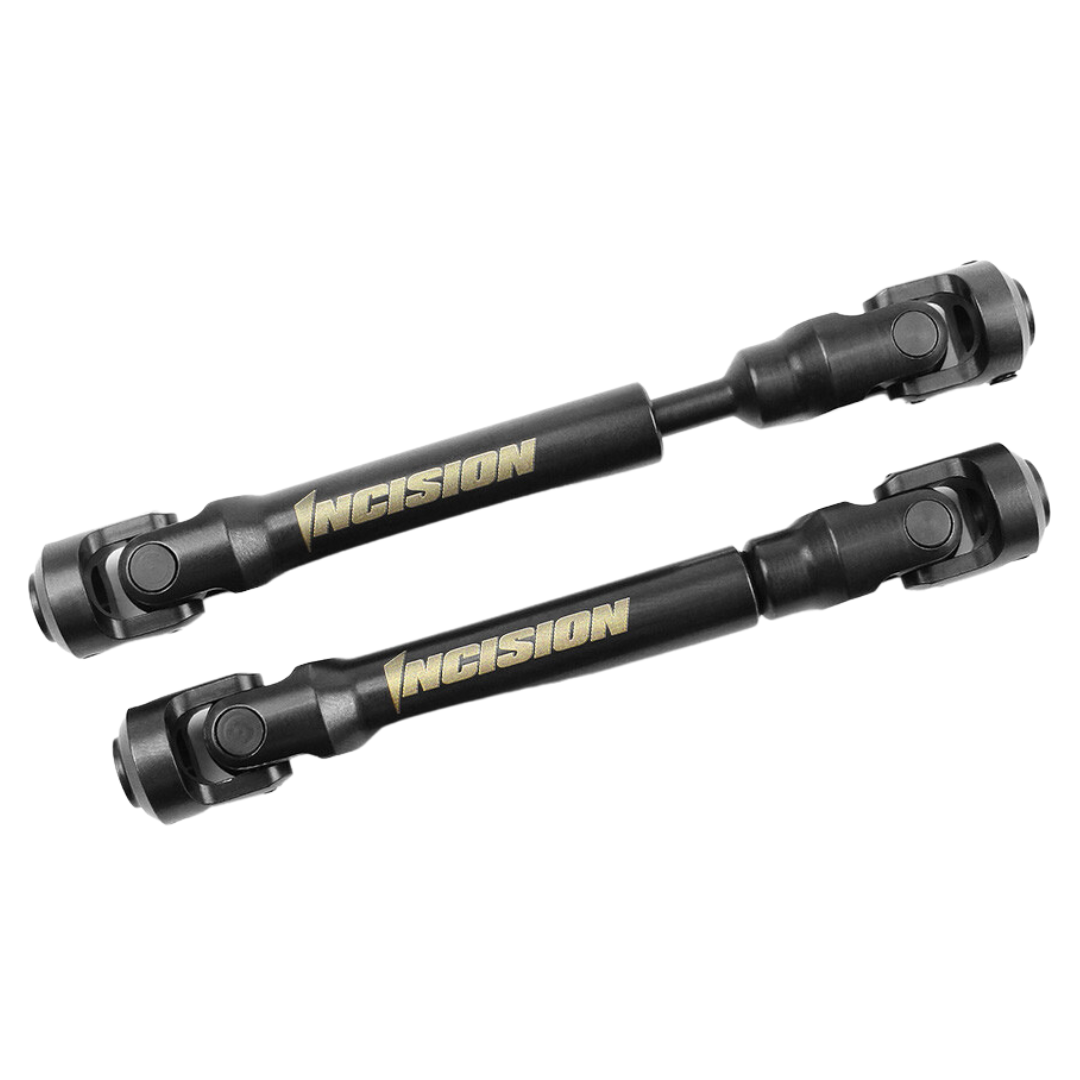

The Incision IRC00220 Driveshaft Set is a hardened steel front and rear driveshaft upgrade for compatible 12.3 inch wheelbase Axial SCX10, SCX10 II and Vanquish crawler platforms, suited to improving drivetrain strength and smooth power transfer.

This Vanquish Incision driveshaft set uses universal-joint style shafts, timed splines and hardened steel construction for trail, crawling and competition builds. The front and rear shafts are sized for standard 3-gear transmission layouts and include 4mm set pins for securing the driveshafts to the transmission and pinion outputs.

Features

• Hardened Steel Construction: Provides a stronger upgrade over basic plastic driveshafts for demanding crawler use
• Universal Joint Style: Supports smooth articulation through suspension movement and driveline angle changes
• Splined Engagement: Telescoping splined design allows the driveshafts to compress and extend with axle movement
• Timed Splines: Splines are timed to help install the driveshafts in phase for smoother driveline operation
• Scale Appearance: Scale joint and spline diameters help maintain a realistic crawler look
• Standard 3-Gear Transmission Compatibility: Designed for compatible crawler platforms using a standard 3-gear transmission layout
• 4mm Set Pins Included: Supplied with set pins to secure the shafts to the pinion and transmission outputs
• Front And Rear Set: Includes one front driveshaft and one rear driveshaft for a complete compatible 12.3 inch wheelbase setup

Specifications

• Brand: Incision by Vanquish Products
• SKU: IRC00220
• Product Type: RC crawler driveshaft set
• Material: Hardened steel
• Vehicle Type: 1/10 RC rock crawler and trail truck
• Recommended Wheelbase: 12.3 inches, approximately 313 mm
• Transmission Compatibility: Standard 3-gear transmission, manufacturer listed
• Front Driveshaft Compressed Length: 87.63 mm, 3.450 inches
• Front Driveshaft Extended Length: 118.11 mm, 4.650 inches
• Rear Driveshaft Compressed Length: 96.52 mm, 3.800 inches
• Rear Driveshaft Extended Length: 127.00 mm, 5.000 inches
• Recommended Maximum Extension: Do not exceed 12.70 mm, 0.500 inch remaining spline engagement
• Mounting Hardware: 4mm set pins included
• Compatible Platforms: Axial SCX10, Axial SCX10 II, Vanquish VS4-10, Vanquish VRD and Vanquish H10, retailer listed

Includes

• 1 x Incision front driveshaft
• 1 x Incision rear driveshaft
• 1 x 4mm set pin hardware set

FAQ

What wheelbase are these driveshafts designed for? The Incision IRC00220 driveshaft set is designed for compatible 12.3 inch wheelbase crawler platforms, approximately 313 mm.

Does this set include front and rear driveshafts? Yes. The Incision IRC00220 set includes one front driveshaft, one rear driveshaft and 4mm set pins for installation.

Will these fit every SCX10 or VS4-10 build? Not automatically. OZRC recommends checking wheelbase, transmission type, axle setup, driveshaft length and spline engagement before ordering.

Why are timed splines useful? Timed splines help the driveshafts stay correctly phased, which can reduce vibration and improve smooth power transfer.

Important Notes

• Check your vehicle wheelbase, transmission output, axle pinion input and driveshaft length requirements before ordering.
• Designed around compatible 12.3 inch wheelbase crawler setups using a standard 3-gear transmission.
• Do not exceed the recommended extended length, as at least 0.500 inch spline engagement should remain.
• Confirm front and rear driveshaft lengths through the full suspension cycle before running the vehicle.
• Use threadlock where appropriate for metal-to-metal set pins, avoiding contact with plastic parts.
• RC crawler, transmission, axles, tools and additional hardware are not included unless shown separately.
