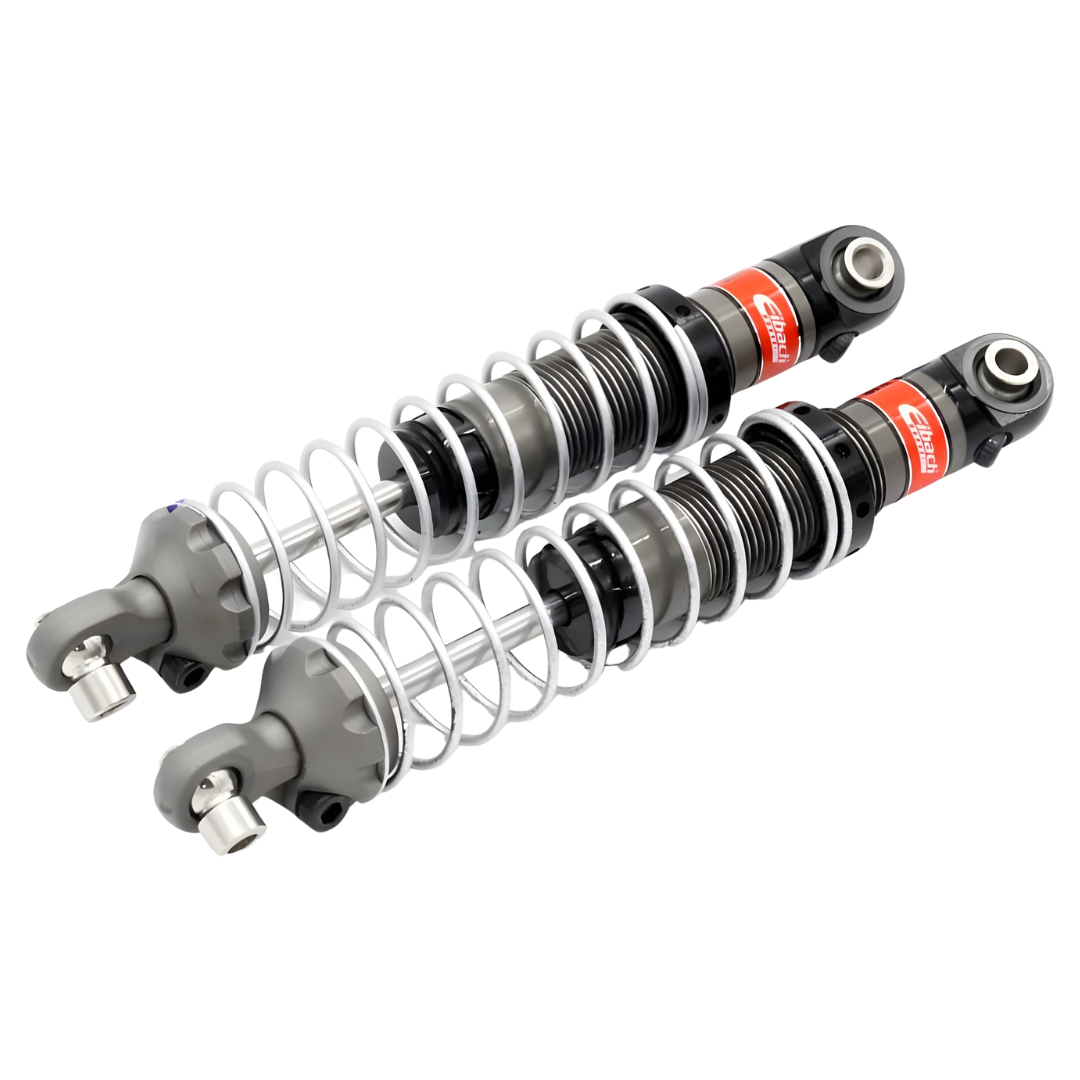

Vanquish Products Eibach S8E 90mm 1/10 Crawler Shocks Grey VPS10351

The Vanquish Products Eibach S8E 90mm 1/10 crawler shocks are a pre-assembled scale shock pair for RC crawlers needing realistic Eibach styling, adjustable preload and smooth oil-filled suspension tuning.

These S8E shocks replicate the look of Eibach PRO-TRUCK Coilover 2.5 shocks while using crawler-focused construction for serviceability and suspension performance. The 90mm eye-to-eye length, 8mm bore and over 26mm of usable travel suit scale crawler builds where articulation, ride height and realistic appearance all matter.

Features

• Eibach Scale Design: Replicates the appearance of Eibach PRO-TRUCK Coilover 2.5 shocks for realistic crawler builds
• 90mm Eye-To-Eye Length: Suits compatible 1/10 scale crawler setups using 90mm shocks
• Over 26mm Usable Travel: Supports suspension flex while helping keep crawler ride height controlled
• 8mm Bore: Provides increased oil volume for smooth damping in scale crawler use
• Machined Aluminium Components: Includes machined top caps, preload collars, shock bodies and lower cartridge caps
• Threaded Shock Bodies: Allow preload adjustment for spring tension and ride height tuning
• Dual O-Ring Seal Pack: Threaded lower cartridge cap helps retain the seal pack and improve serviceability
• Machined Piston Design: Piston is secured with an M2 x 5mm screw instead of E-clips
• Scale Finish: Grey hard-anodised shock bodies, silver-painted springs and laser-engraved Eibach logos add realistic detail
• Pre-Assembled Pair: Supplied assembled from the factory, ready for shock oil filling and installation setup

Specifications

• Brand: Vanquish Products
• Model: Eibach S8E
• Part Number: VPS10351
• Barcode / GTIN: 791512787069
• Product Type: Scale RC crawler shock set
• Scale: 1/10

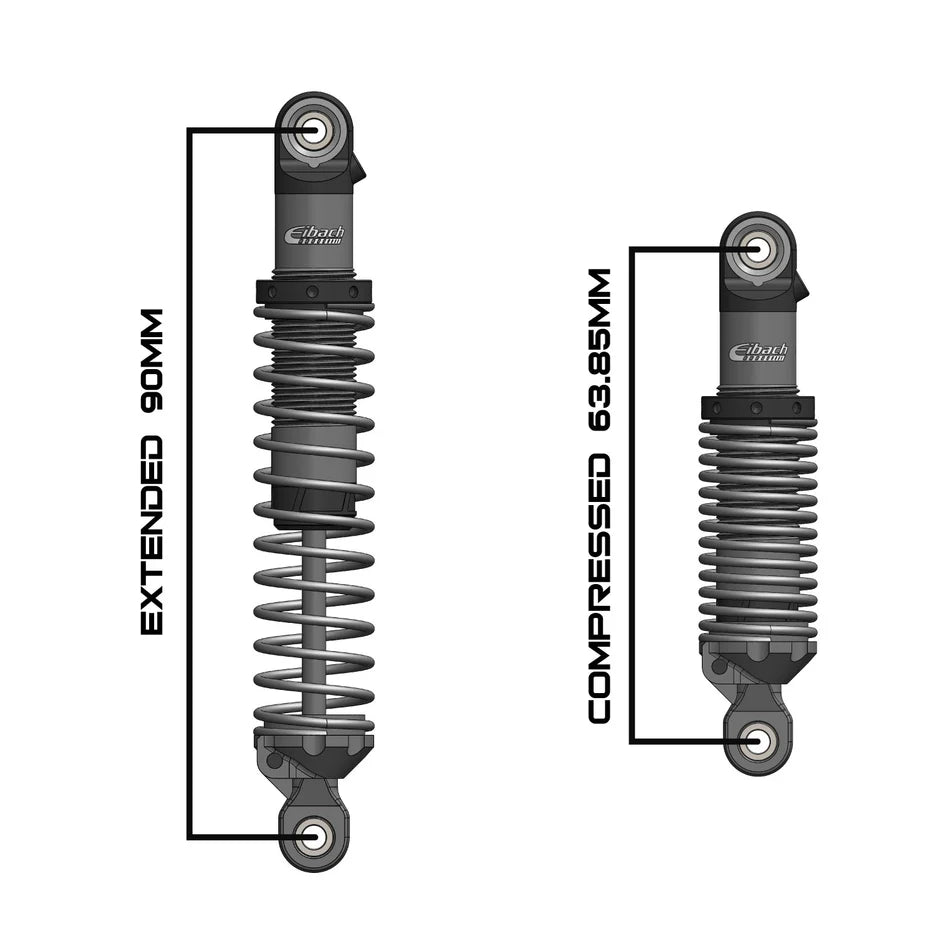

• Length: 90mm eye-to-eye
• Usable Travel: Over 26mm
• Bore: 8mm
• Shock Body Material: Machined aluminium
• Shock Body Finish: Grey hard anodised
• Shaft Material: Polished steel
• Spring Colour: Silver
• Assembly: Pre-assembled from factory
• Recommended Shock Oil: 30–70wt, sold separately
• Quantity: 2 shocks
• Intended Use: Suspension tuning and scale detail for compatible 1/10 RC crawlers

Includes

• 2 x Vanquish Products Eibach S8E 90mm scale crawler shocks grey
• Offset lower pivot balls for Vanquish Products F10 axle applications
• 1 x Eibach decal sheet

FAQ

Are these shocks supplied with shock oil? No. Shock oil is not included. Vanquish recommends 30–70wt shock oil, selected to suit the vehicle weight, spring rate and driving style.

Are the Vanquish Eibach S8E shocks pre-assembled? Yes. The shocks are supplied pre-assembled from the factory, but shock oil is still required before final setup and use.

Do these shocks fit Vanquish F10 axles? Yes. Offset lower pivot balls are included for Vanquish Products F10 axle applications.

Can these shocks be used on non-F10 axle setups? Yes, where the vehicle suits 90mm shocks, but standard width pivot balls are required for non-F10 axle applications.

Important Notes

• Shock oil is not included.
• 30–70wt shock oil is recommended, with final oil choice depending on vehicle weight, spring setup and driving style.
• Standard width pivot balls are required separately for non-F10 axle applications.
• Optional spring rates are available separately under Vanquish part number IRC00513.
• Check your vehicle shock length, mounting clearance and axle setup before installation.
