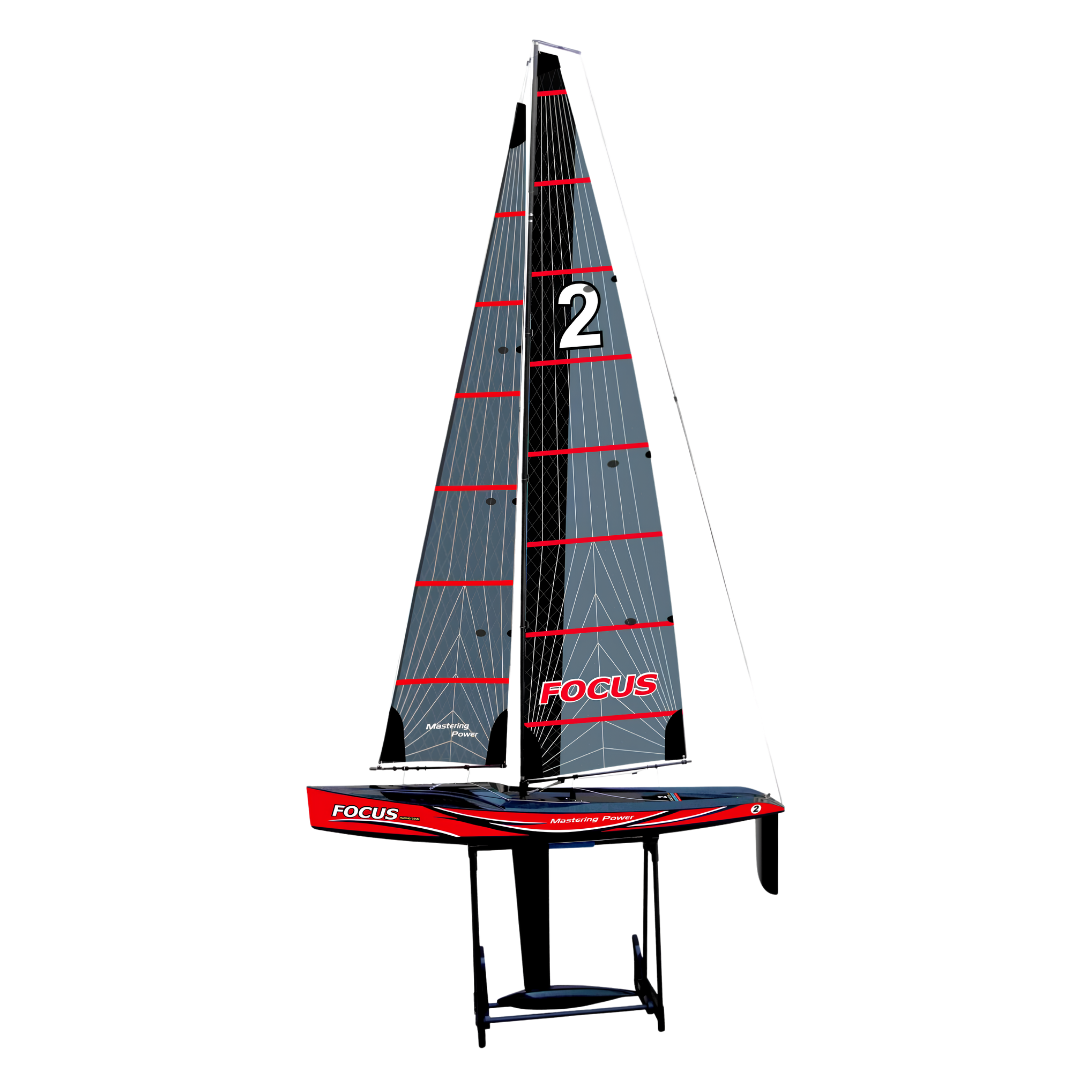

Joysway Focus V3 RC Yacht Sail Boat 995mm Carbon Mast RTR Red JW-8812R

The Joysway Focus V3 is a 995mm one-metre RC sailboat supplied in a factory-finished red colour scheme with carbon fibre mast and booms, rip-stop sails, metal-gear sail and rudder servos, and a 2.4GHz proportional radio system for recreational and club sailing.

Features

• Focus V3 Design: Updated version of Joysway's popular one-metre Focus RC sailing yacht
• Revised V3 Sail Plan: Updated boom length and sail dimensions are designed to improve sailing performance
• Revised Jib Rigging: V3 configuration attaches the top of the jib sail to the mast head crane
• Updated Overall Weight: Revised V3 weight specification forms part of Joysway's updated sailing setup
• Carbon Fibre Rig: Mast and booms use lightweight carbon fibre tube construction
• Rip-Stop Sails: Colourfully printed main and jib sails provide a finished scale appearance and functional sail control
• Metal-Gear Sail Winch: Dedicated high-torque winch servo controls the sail sheets
• Metal-Gear Rudder Servo: Separate steering servo provides proportional rudder control
• 2.4GHz Proportional Radio: Four-channel digital proportional radio system is included with the RTR package
• Zinc Alloy Ballast: Weighted ballast bulb and moulded keel provide stability while sailing
• Factory-Finished Red Hull: Plastic hull is supplied assembled, painted and decorated with graphics
• Display Stand Included: Supplied stand supports the yacht during rigging, storage and display

Specifications

• Brand: Joysway
• Model: Focus V3 Red
• Product Type: RC Sailboat
• Completion Level: Ready-To-Run / RTR
• Colour: Red
• Propulsion: Wind / Sail
• Radio System: 2.4GHz 4-Channel Digital Proportional
• Australian Radio Reference: J4C05
• Sail Servo: Metal-Gear Sail Winch
• Rudder Servo: Metal-Gear
• Total Length: 995mm
• Width / Beam: 170mm
• Mast Height: 1578mm
• Overall Height: 2046mm
• RTR Weight: Approximately 2930g
• Main Sail Area: 3420cm²
• Jib Sail Area: 2128cm²
• Total Sail Area: 5548cm²
• Hull Material: Moulded Plastic with Painted Finish
• Mast Material: Carbon Fibre Tube
• Boom Material: Carbon Fibre Tube
• Ballast Material: Zinc Alloy
• Keel Material: Moulded Plastic
• Manufacturer Model Number: 8812V3R
• Alternative Retailer Part Number: JW8812V3R
• Supplier SKU: JW-8812R
• Barcode / EAN: 6949762281002

Includes

• 1 x Joysway Focus V3 Red 995mm RC Sailboat Hull with Factory Graphics
• 1 x Carbon Fibre Mast and Boom Set
• 1 x Rip-Stop Printed Main Sail
• 1 x Rip-Stop Printed Jib Sail

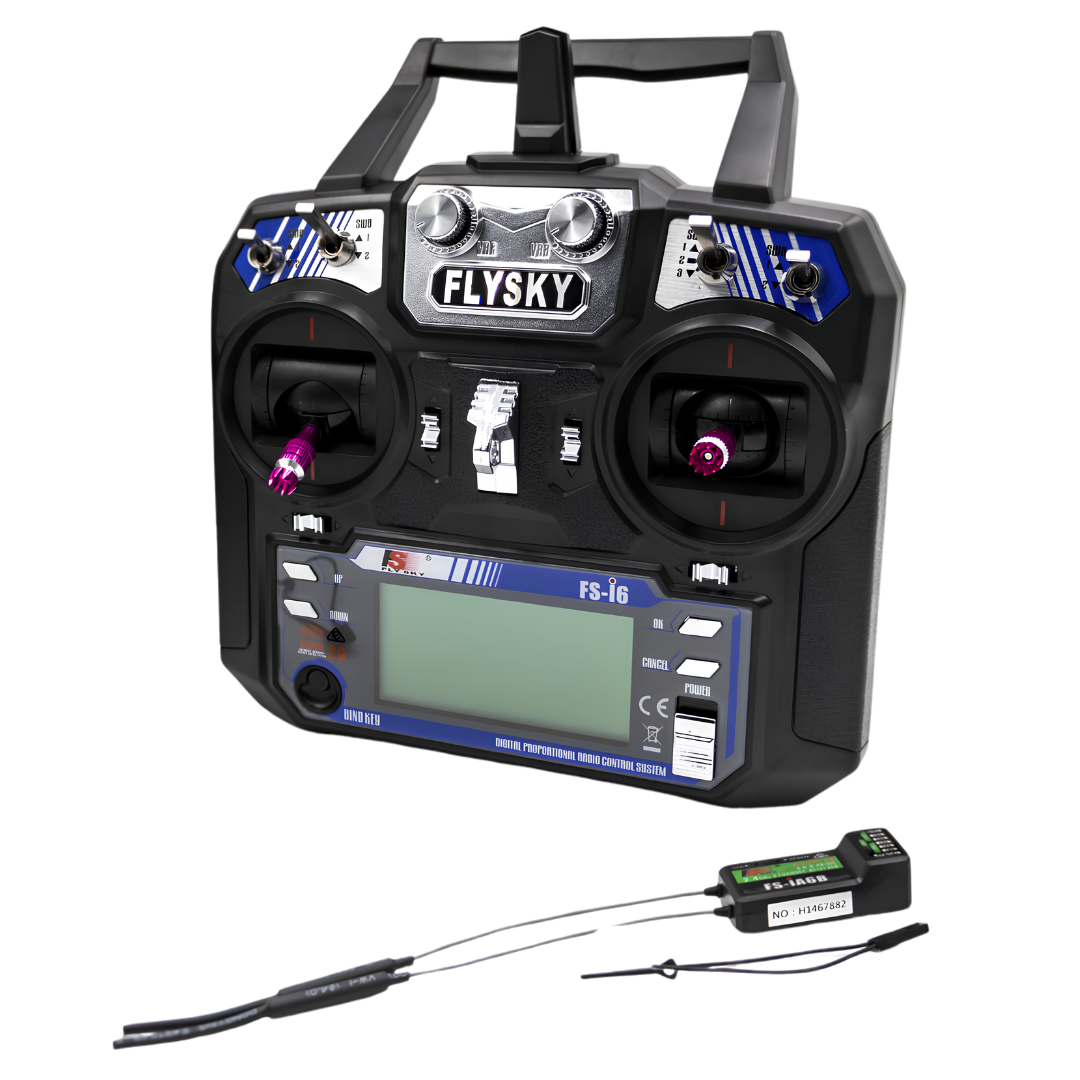

• 1 x 2.4GHz 4-Channel Digital Proportional Transmitter
• 1 x Receiver
• 1 x Metal-Gear Sail Winch Servo
• 1 x Metal-Gear Rudder Servo
• 1 x Zinc Alloy Ballast and Moulded Keel Assembly
• 1 x Receiver Battery Box with On / Off Switch
• 1 x Display Boat Stand with Lay-Down Upgrade Kit

FAQ

Is the Joysway Focus V3 JW-8812R completely ready to sail? The RTR package includes the radio system and servos, but final mast, keel, sail and rigging assembly and adjustment are required before launching.

What batteries are required for the Focus V3? Four AA alkaline batteries are required for the transmitter and another four AA alkaline batteries are required for the receiver battery box. Eight AA batteries are required in total and are not included.

Does the Joysway Focus V3 use an electric motor? No. The Focus V3 is wind powered. The radio system controls the rudder and sail position while the main and jib sails provide propulsion.

What changed with the Focus V3? Joysway lists revised jib attachment to the mast head crane, adjusted boom length, revised sail sizing and an updated overall weight among the changes from the earlier Focus version.

What is the difference between JW-8812R and 8812V3R? JW-8812R is used as a supplier SKU for the red Focus V3, while Joysway identifies the current manufacturer model as 8812V3R. Both references describe the red V3 version.

Important Notes

• Requires 8 x AA alkaline batteries in total: 4 for the transmitter and 4 for the receiver
• Final mast, keel, sail and rigging assembly is required before first use
• Check rigging tension, rudder movement, sail winch operation and receiver power before launching
• This is a wind-powered RC sailboat and does not include an electric propulsion motor
• Always operate where the boat can be safely retrieved if the wind drops, radio control is lost or the yacht becomes disabled
