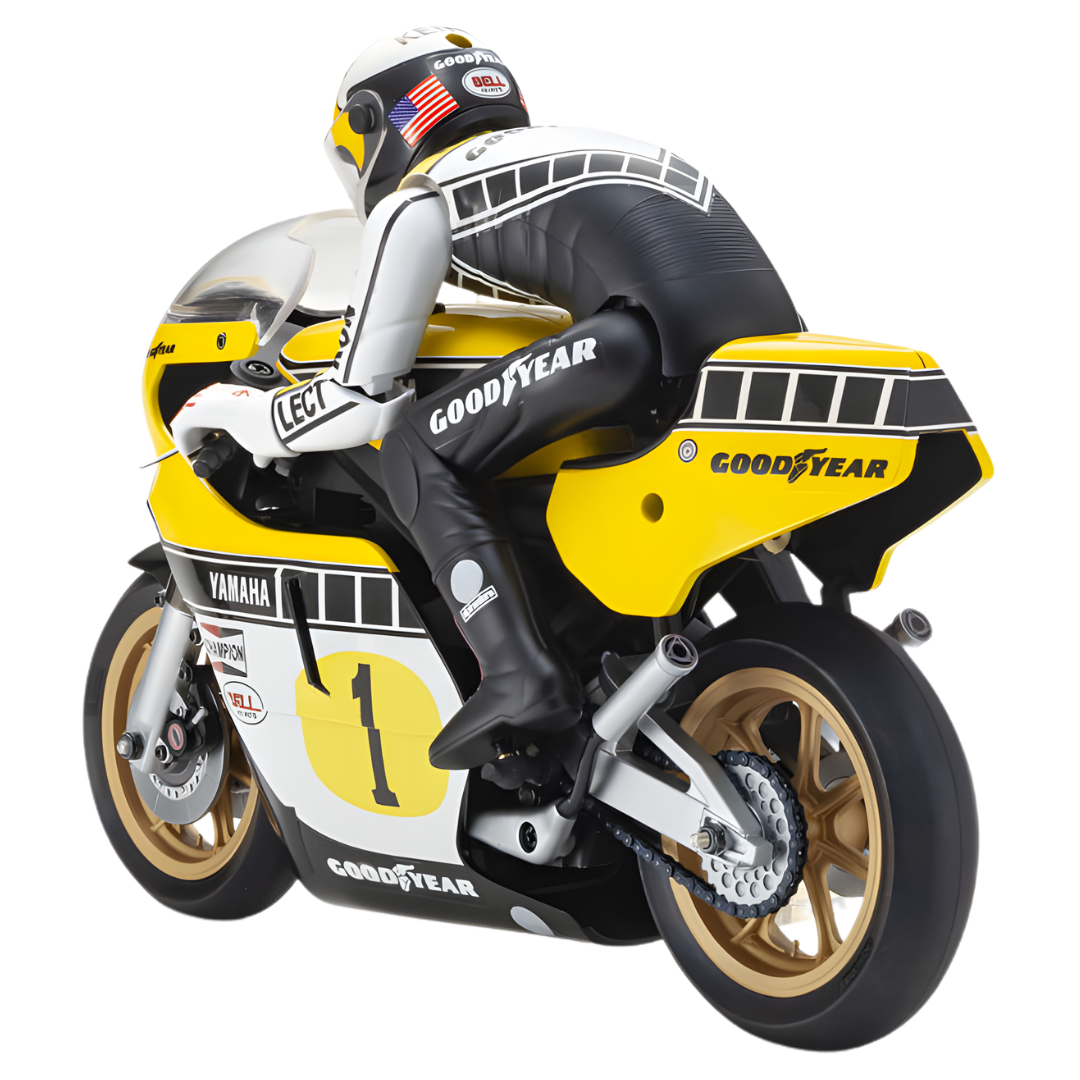

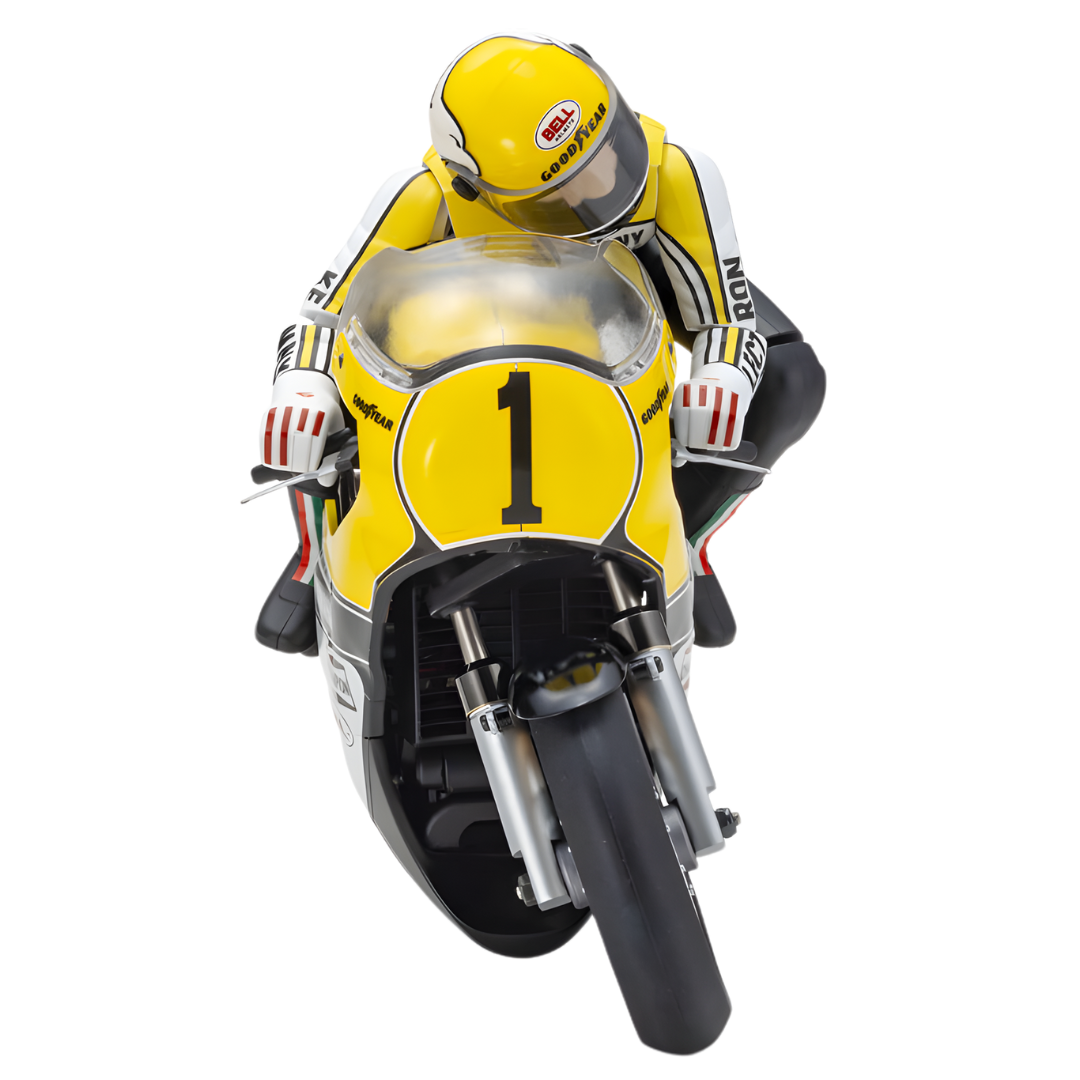

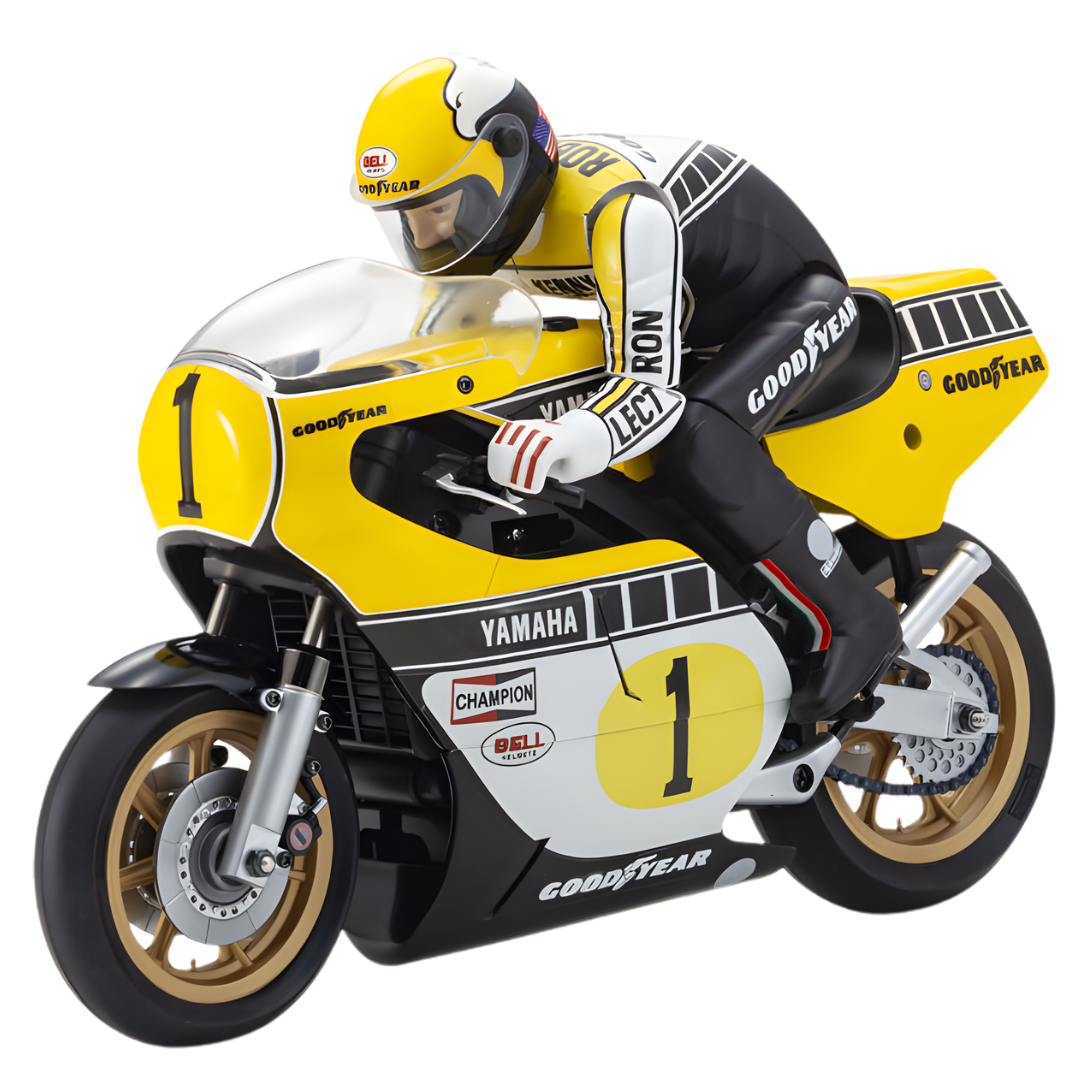

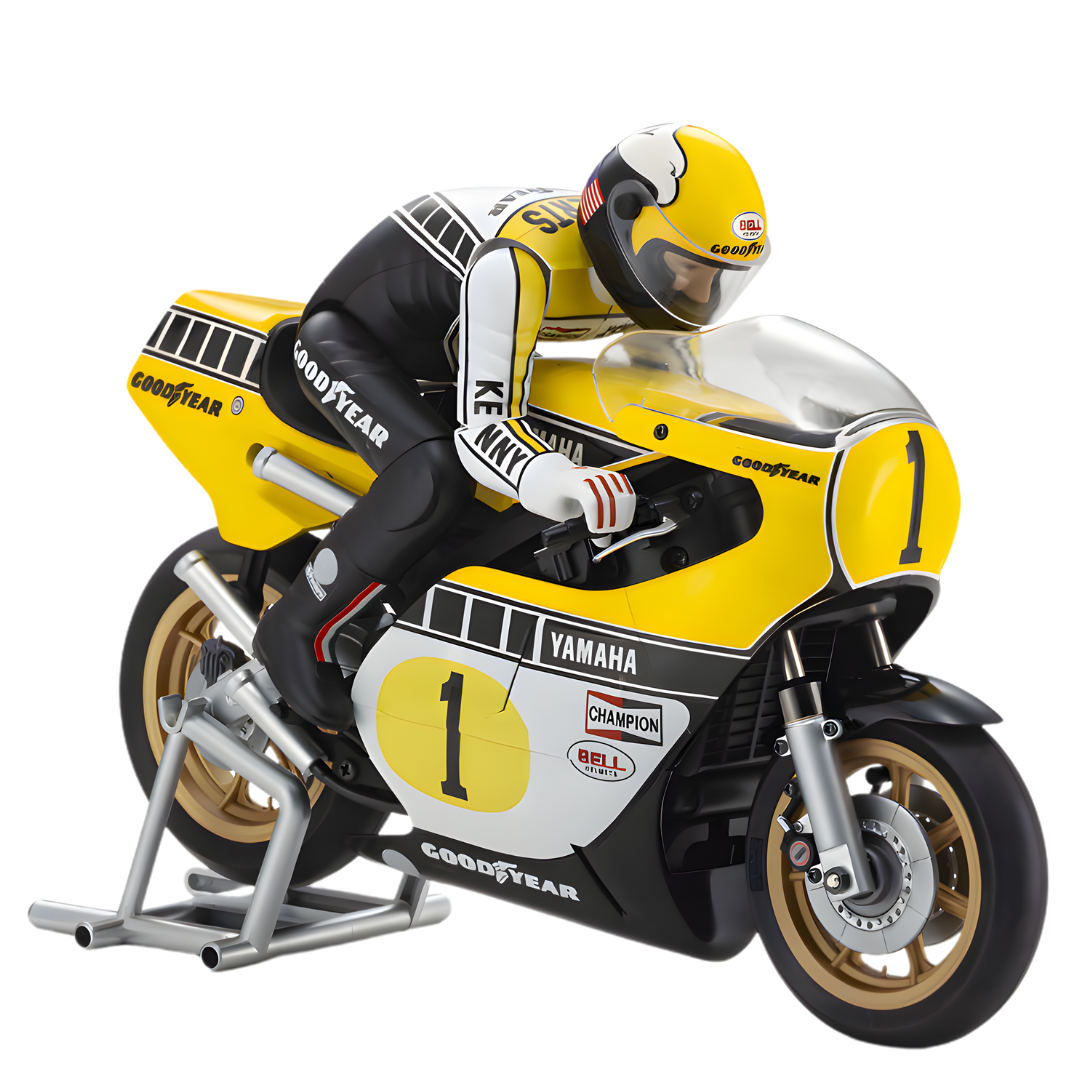

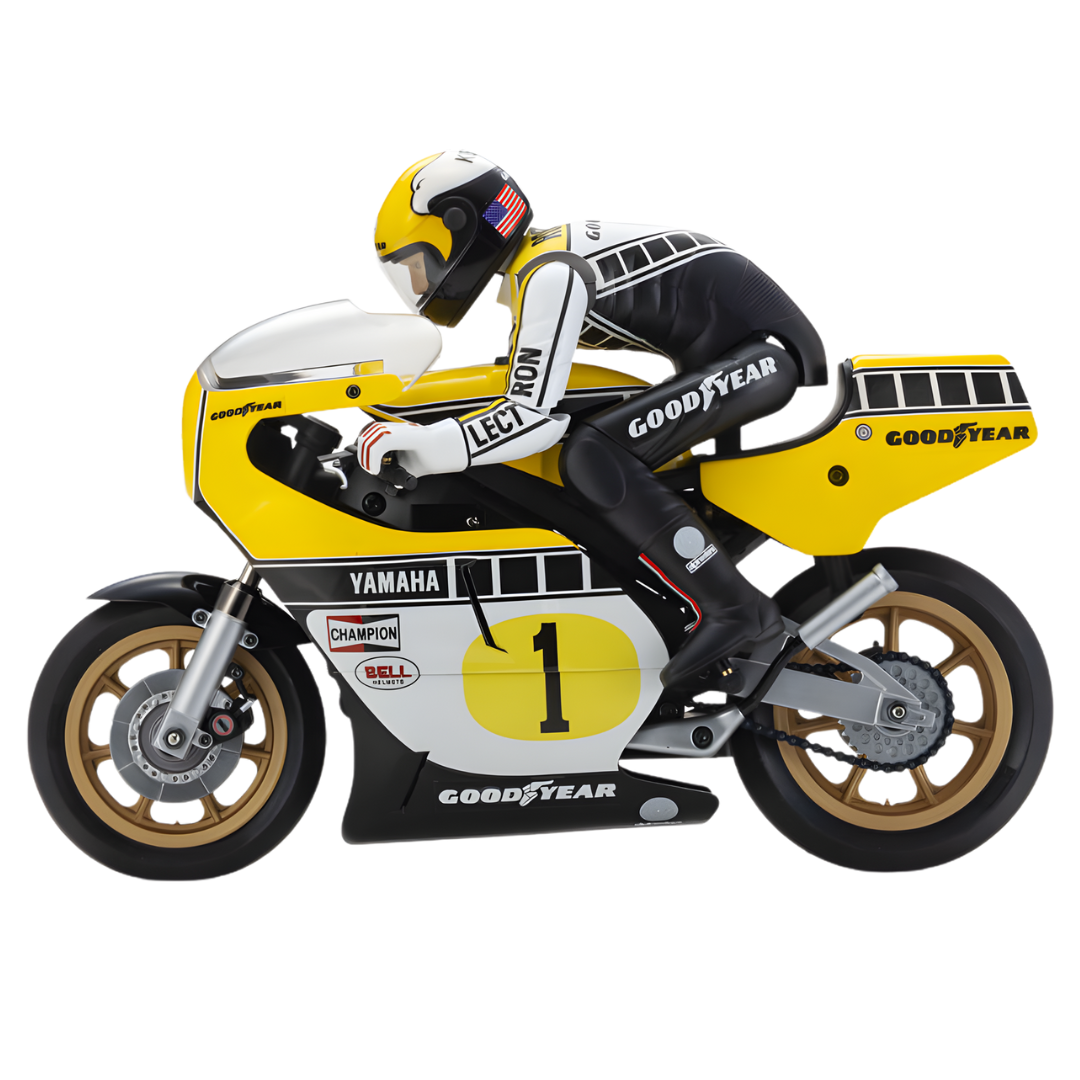

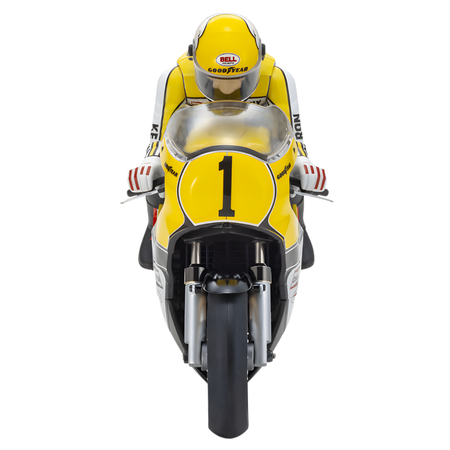

Kyosho Yamaha YZR500 1978 Hanging On Racer Kit 1/8 KYO-34936T1

The Kyosho Yamaha YZR500 1978 Hanging On Racer Kit is a 1/8 scale electric RC motorcycle kit for classic Grand Prix fans and RC builders, recreating the famous Kenny Roberts championship-era Yamaha with realistic lean angle, rider movement and two-wheel handling.

Part of Kyosho’s iconic Hanging On Racer Series, this assembly kit uses S.D.S.S. Semi-Direct Steering System technology for stable self-supporting riding and full-lean cornering. The kit includes a Le Mans DM20 motor, chain and sprocket drivetrain, articulated rider figure, detailed Yamaha YZR500 bodywork and multiple pinion gears for setup tuning.

Features

• 1/8 Scale RC Motorcycle Kit: Classic Kyosho electric Hanging On Racer model for RC bike enthusiasts and collectors
• Yamaha YZR500 1978 Styling: Recreates the Yamaha machine associated with Kenny Roberts’ 1978 World Grand Prix 500cc championship season
• S.D.S.S. Steering System: Semi-Direct Steering System supports realistic self-supporting riding and smooth full-lean cornering

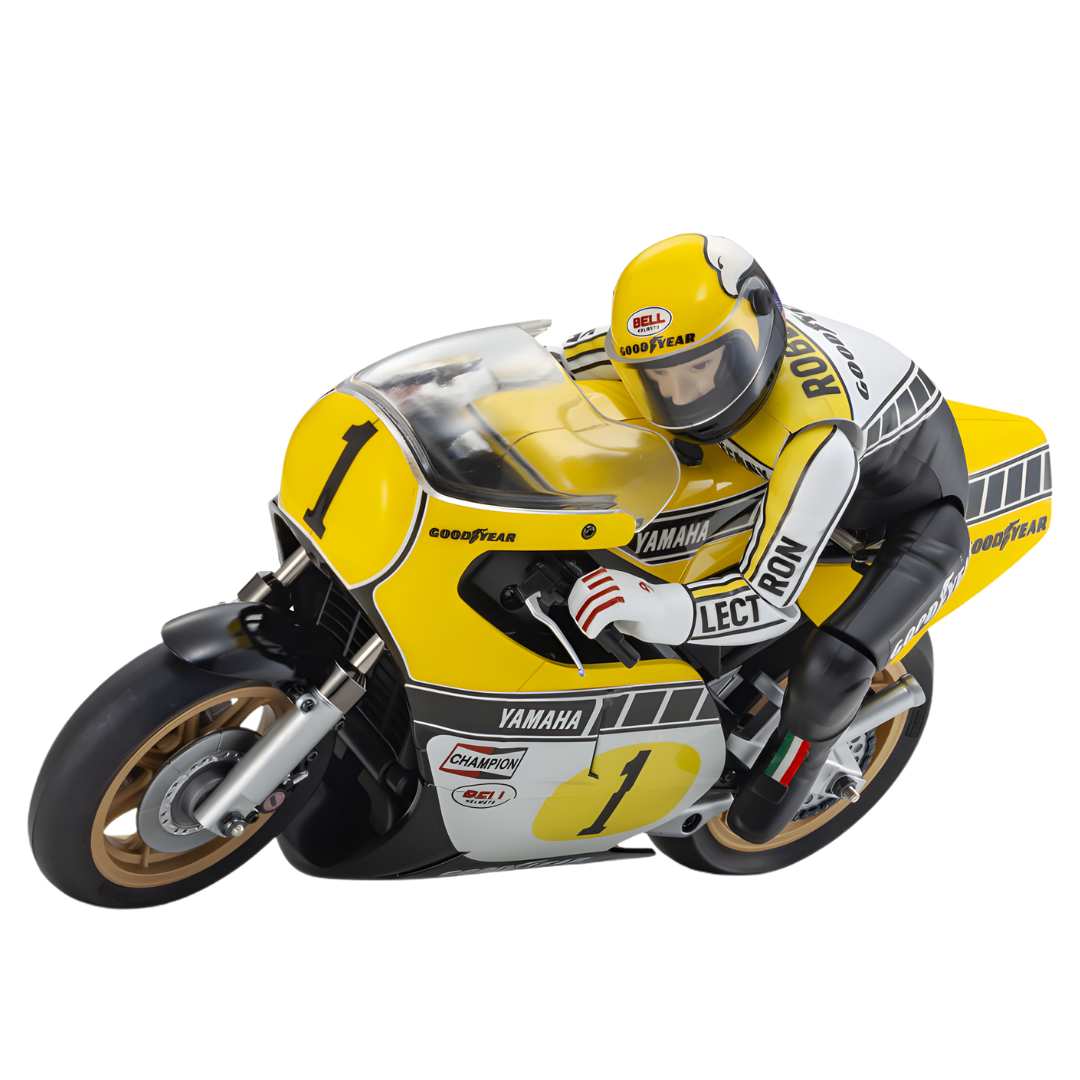

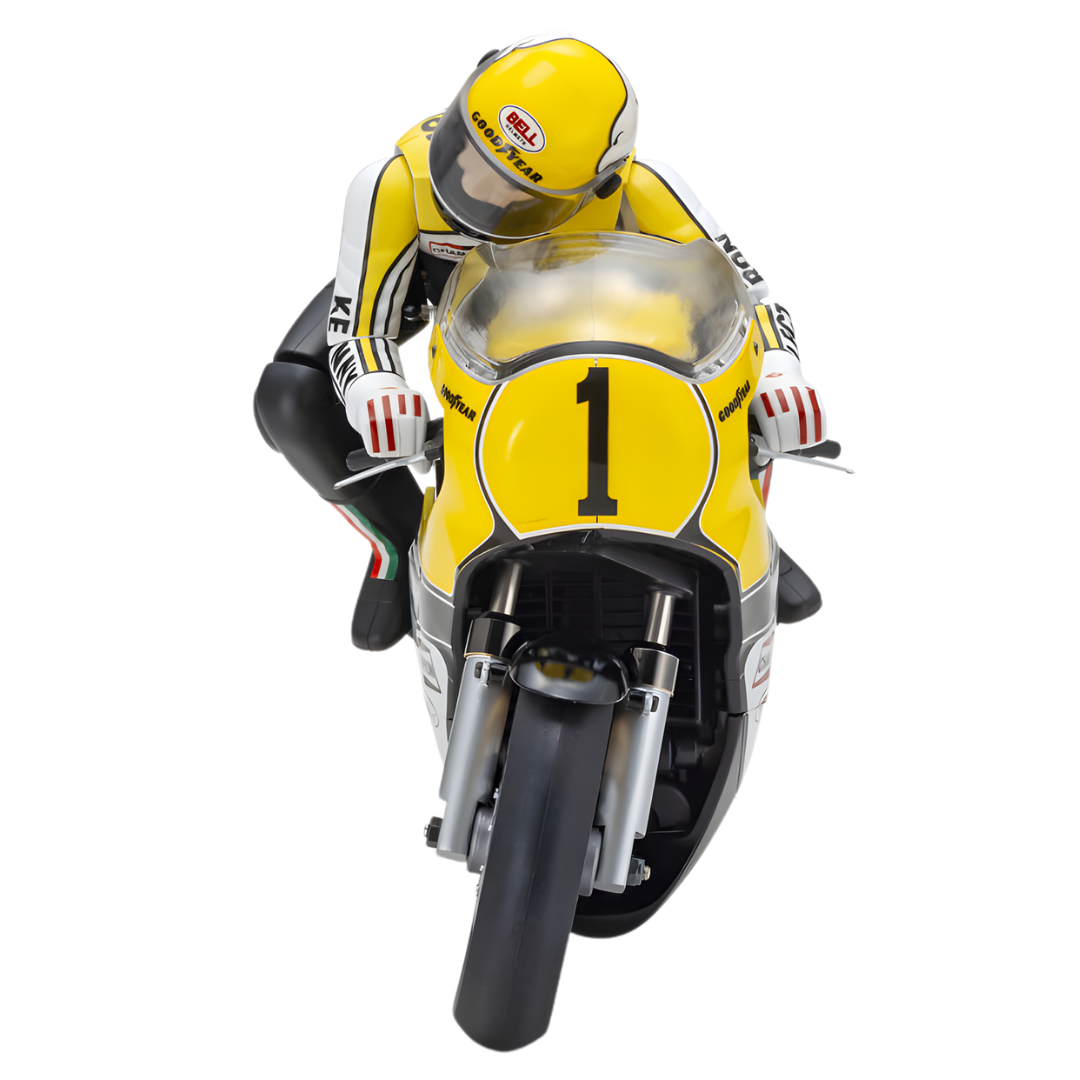

• Articulated Rider Figure: Rider movement is linked with steering for a realistic hang-on cornering posture
• Le Mans DM20 Motor Included: Supplied with Kyosho’s Le Mans DM20 brushed motor as standard

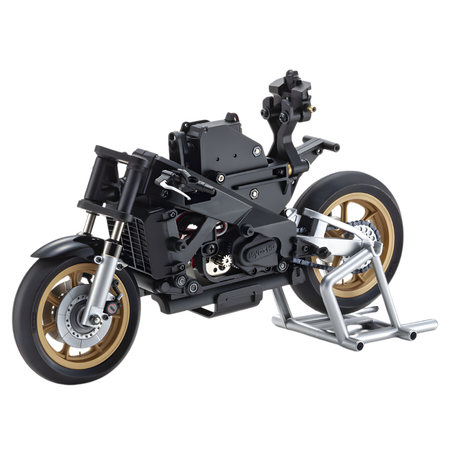

• Chain And Sprocket Drive: Mini chain drive layout faithfully replicates the real motorcycle drivetrain style
• Realistic Suspension Layout: Upright front fork and rear friction-damper monoshock with asymmetrical swingarm
• Detailed Scale Parts: Brake discs, calipers, wheels, rider gear and Yamaha-style body details create a display-worthy finish
• Metal Pinion Gears Included: Supplied with 10T, 12T and 14T pinions for gearing adjustment
• Build And Customise Kit: Assembly kit format lets builders install preferred radio gear, ESC, battery and paint finish

Specifications

• Brand: Kyosho
• Model: Yamaha YZR500 1978 Hanging On Racer
• Part Number: 34936T1
• OZRC / Supplier SKU: KYO-34936T1
• Barcode / JAN: 4548565505234
• Product Type: Electric RC motorcycle kit
• Scale: 1/8
• Completion Level: Unassembled kit
• Power Type: Electric
• Motor: Le Mans DM20 brushed motor included
• Drive Type: Rear wheel drive motorcycle layout
• Drivetrain: Chain and sprocket
• Steering System: S.D.S.S. Semi-Direct Steering System
• Front Suspension: Upright front fork
• Rear Suspension: Friction-damper monoshock with asymmetrical swingarm
• Length: 270mm
• Width: 98mm
• Height: 190mm
• Wheelbase: 185mm
• Front Tyre Size: 78 x 18mm
• Rear Tyre Size: 86 x 23mm
• Gear Ratio Range: 13.80:1 to 19.30:1
• Approximate Weight: 750g
• Recommended Battery: 7.2V 1600mAh Ni-MH stick pack, sold separately
• Intended Use: Scale RC motorcycle building, collecting and driving

Includes

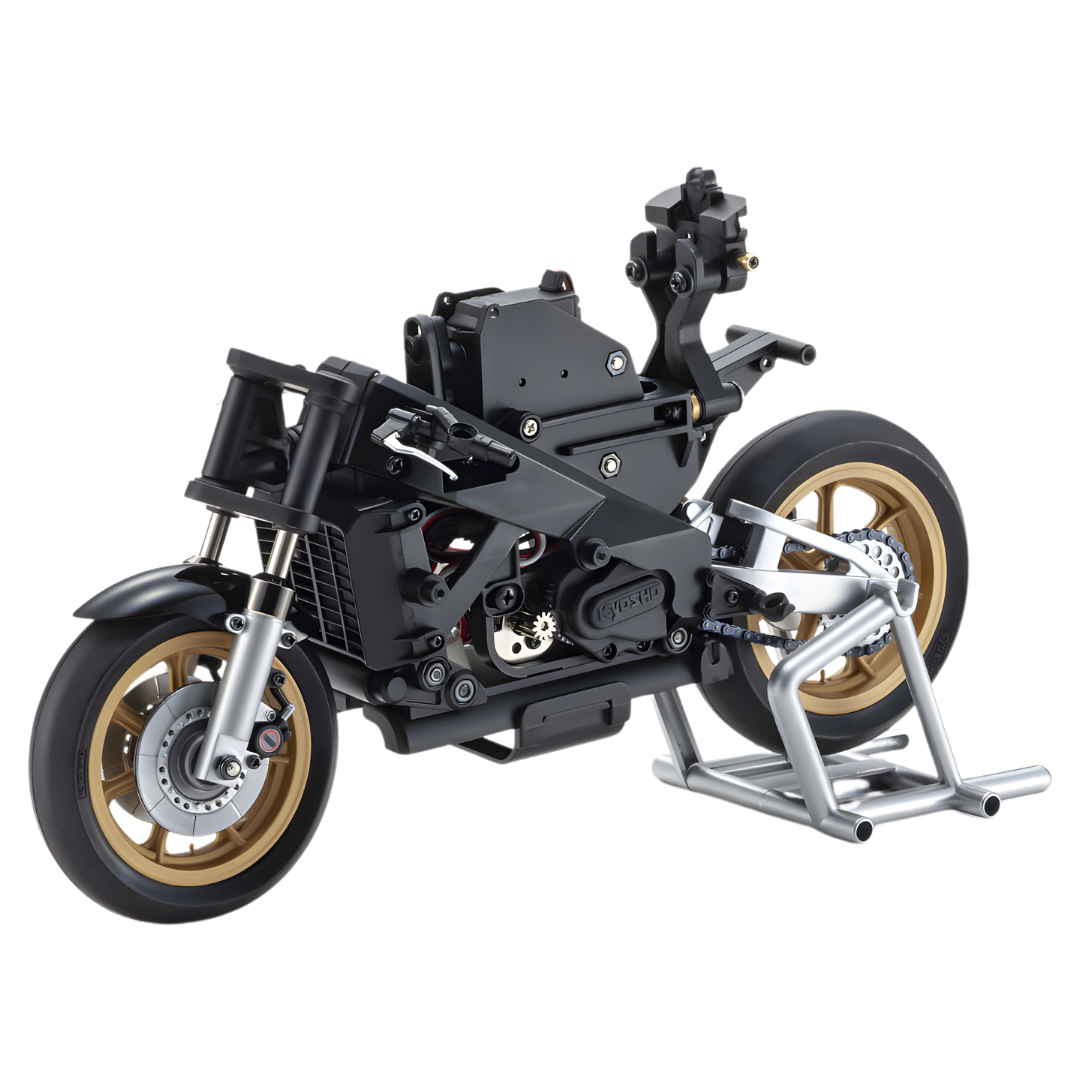

• 1 x Kyosho Yamaha YZR500 1978 Hanging On Racer chassis kit
• 1 x Le Mans DM20 brushed motor
• 1 x Articulated Kenny Roberts rider figure

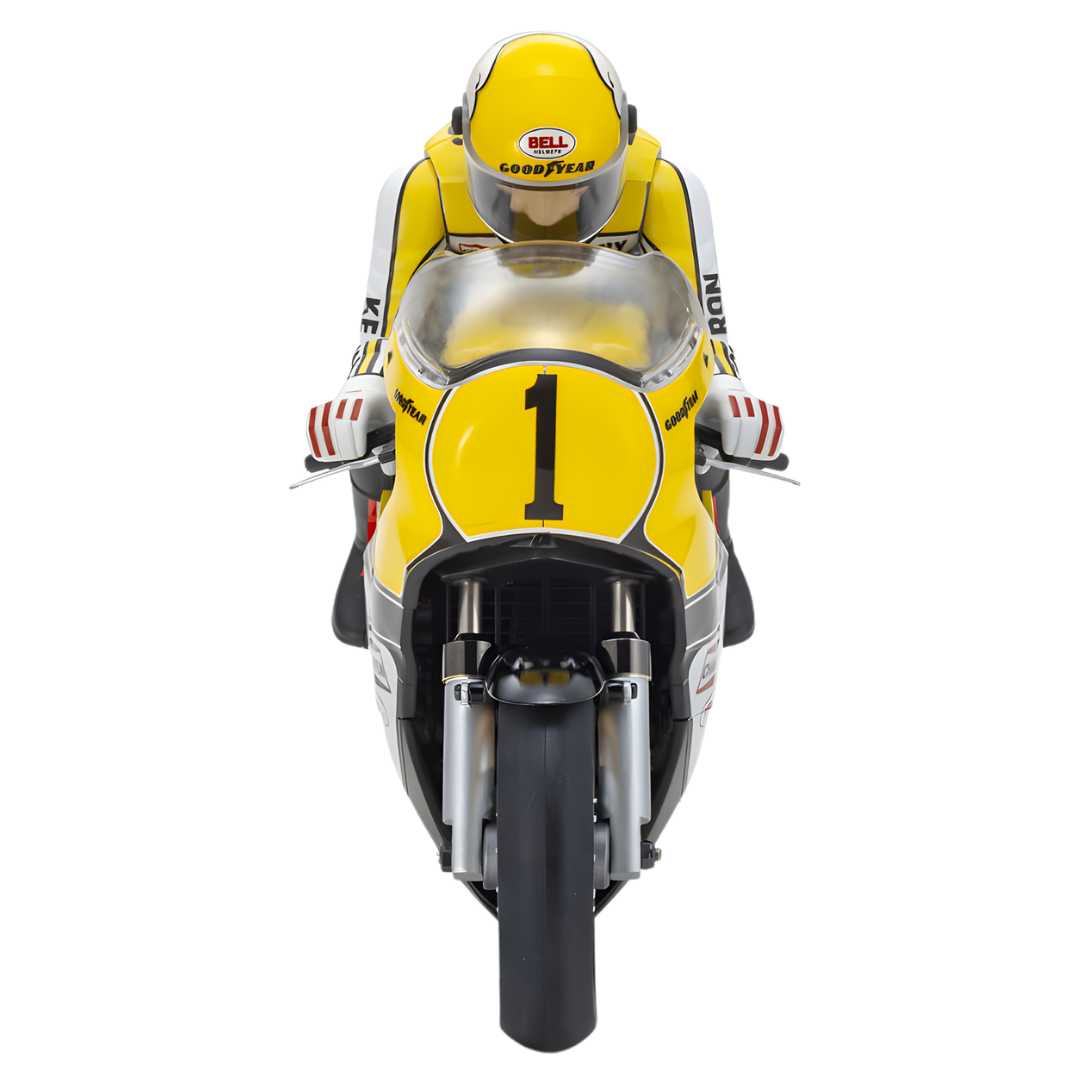

• Detailed Yamaha YZR500 bodywork and decals
• 1 x 10T pinion gear
• 1 x 12T pinion gear
• 1 x 14T pinion gear
• Assembly instructions and kit hardware as supplied by Kyosho

FAQ

Is the Kyosho Yamaha YZR500 1978 Hanging On Racer ready to run? No. This is an unassembled kit and requires electronics, battery, charger, paint, grease and tools before it can be driven.

Does this kit include a motor? Yes. Kyosho includes the Le Mans DM20 brushed motor with the kit.

What electronics are required? A 2-channel radio system, one steering servo and one ESC are required. Kyosho recommends compatible Hanging On Racer electronics such as GPW21 servo and GPW17 ESC.

What battery is required? Kyosho lists a 7.2V 1600mAh Ni-MH chassis battery as the recommended battery type.

Does the body come painted? Paint is listed as a required item by Kyosho, so OZRC recommends treating this as a kit that requires body finishing and decal application.

What makes the Hanging On Racer different from a normal RC bike? The Kyosho S.D.S.S. steering system and articulated rider allow the bike and rider to lean realistically through corners while maintaining stable running.

Important Notes

• This is an unassembled RC motorcycle kit, not an RTR model.
• Requires a 2-channel radio system, transmitter batteries, steering servo, ESC, 7.2V 1600mAh Ni-MH battery, charger, charger adapter, grease, paint and tools.
• Battery, charger, ESC, servo and radio system are not included unless listed separately.
• Paint and finishing supplies are required to complete the body appearance.
• Use electronics and batteries that fit the Hanging On Racer chassis space and Kyosho’s recommended setup.
• RC motorcycles require practice and open space, especially during starting, turning and low-speed handling.
