Kyosho Mini-Z Volkswagen 1300 Beetle 1966 Bahama Blue RWD MR-04 Readyset 32374BBL

The Kyosho Mini-Z Volkswagen 1300 Beetle 1966 Model combines one of the world's most recognisable classic cars with the latest MR-04 rear-wheel-drive Mini-Z platform. Finished in period-inspired Bahama Blue, this Readyset delivers detailed display-quality styling together with responsive indoor RC performance.

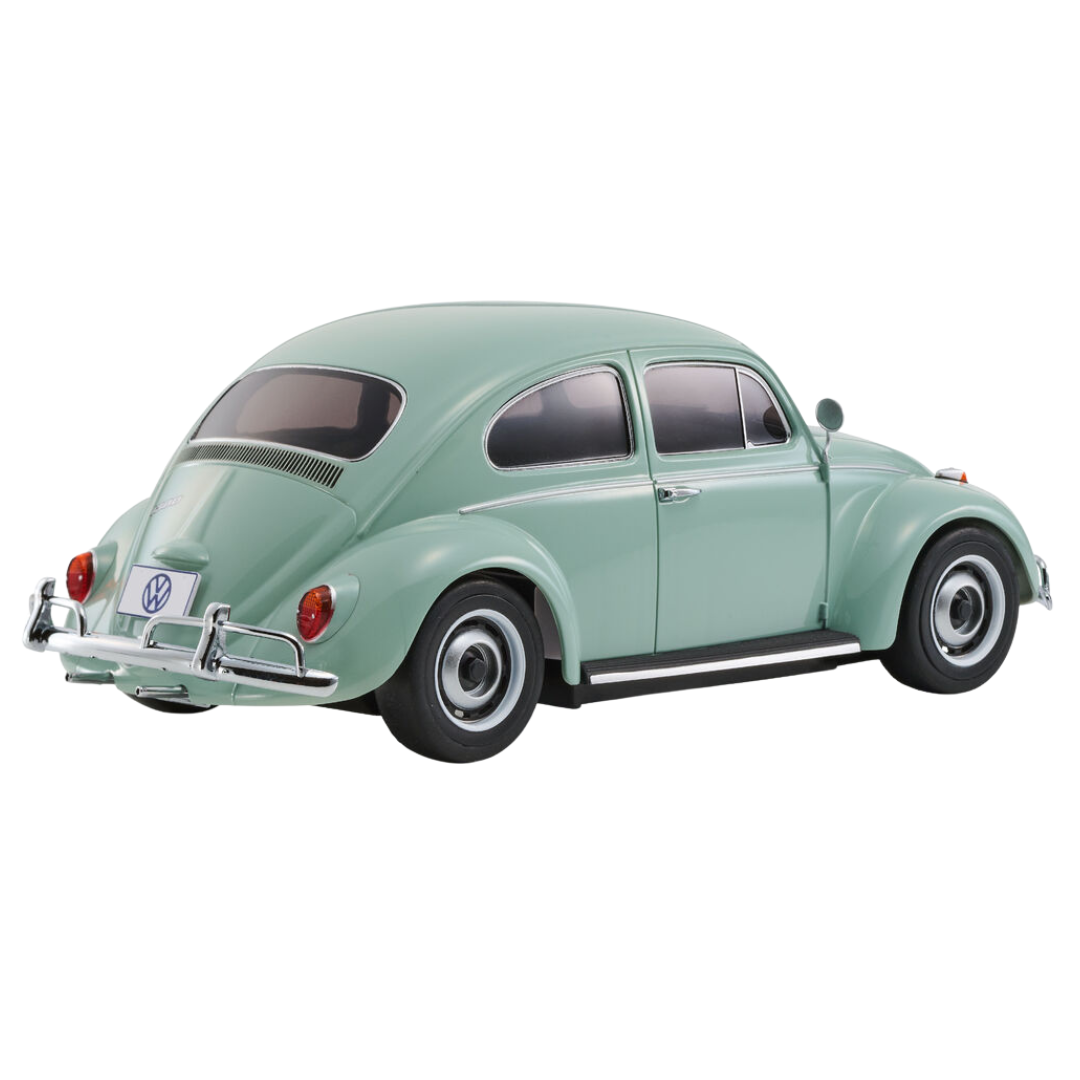

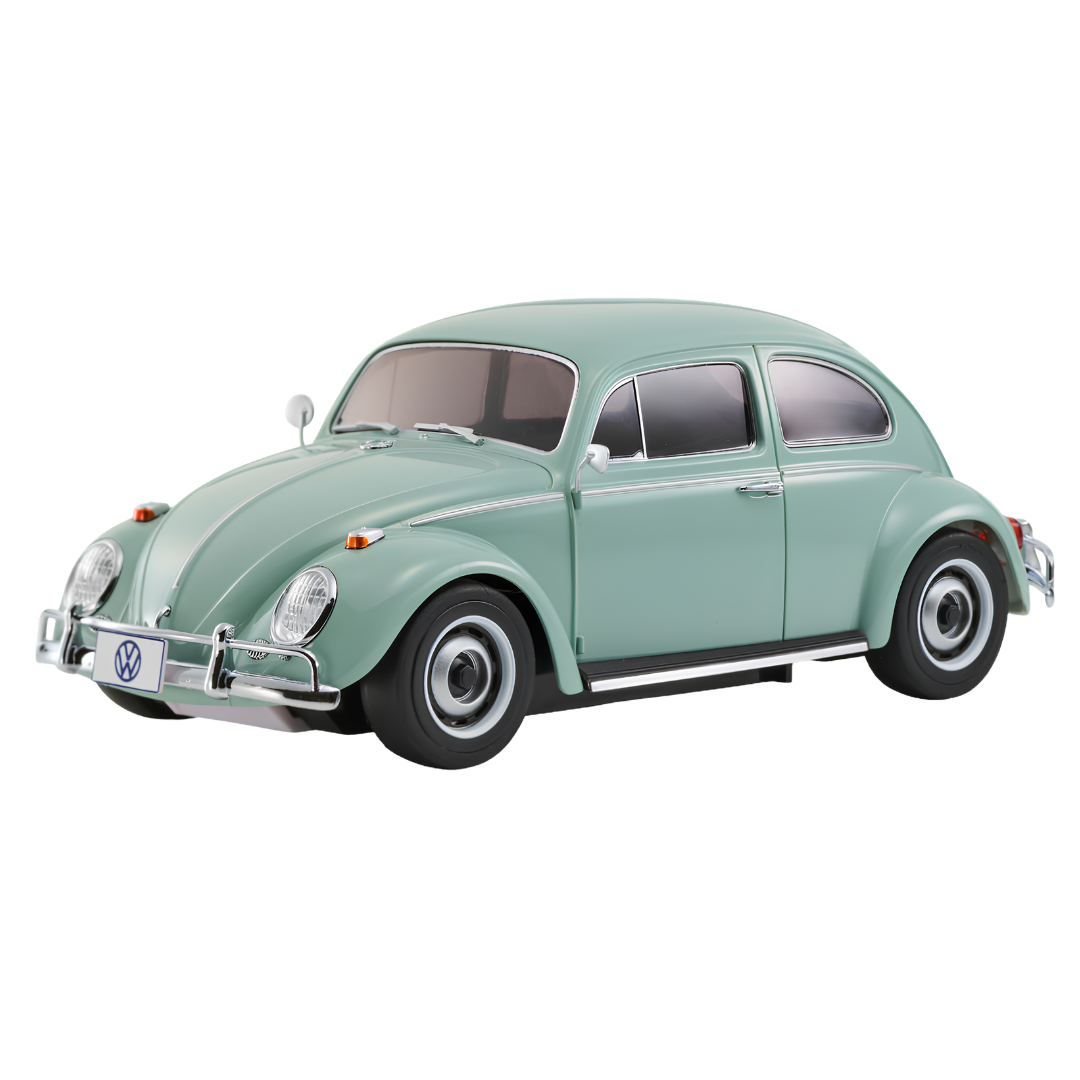

The factory-finished body recreates the distinctive rounded shape of the 1966 Volkswagen 1300 Beetle, a milestone model that introduced an enlarged 1.3-litre engine to the legendary Volkswagen design. The detailed body arrives painted with markings applied, making it ready for display or driving straight from the box once batteries are installed.

Underneath is Kyosho's fourth-generation MR-04 chassis in MR-04N-MM2 configuration. Compared with the previous MR-03 platform, the MR-04 places the batteries lower in the chassis and incorporates revised front steering and suspension geometry for improved stability and more linear steering response. A 130-class brushed motor, gear differential and full ball bearings are standard equipment.

Features

• Official Volkswagen 1300 Beetle 1966 Model body
• Factory-finished Bahama Blue colour scheme
• Detailed painted body with markings already applied
• Kyosho MR-04N-MM2 rear-wheel-drive chassis
• Fourth-generation MR-04 design developed from the proven MR-03 platform
• Lower battery position reduces the chassis centre of gravity
• Improved chassis layout supports stable cornering and straight-line handling
• New front suspension designed for zero-offset wheels
• Integrated-kingpin front knuckles reduce scrub compared with the MR-03 design
• Revised front suspension geometry dynamically adjusts camber through suspension movement
• Revised caster geometry provides responsive steering characteristics
• Gear differential provides smooth differential action through corners
• Full ball-bearing specification reduces rotational resistance
• 130-class brushed motor provides accessible indoor RC performance
• T-bar rear suspension allows the complete motor and rear axle pod to move with the suspension
• Rear coil spring damper helps absorb surface irregularities
• Compatible with optional rear oil-filled shock upgrades
• Optional gyro compatible for additional driving assistance
• Gyro sensitivity can be adjusted from the chassis when a compatible gyro is installed

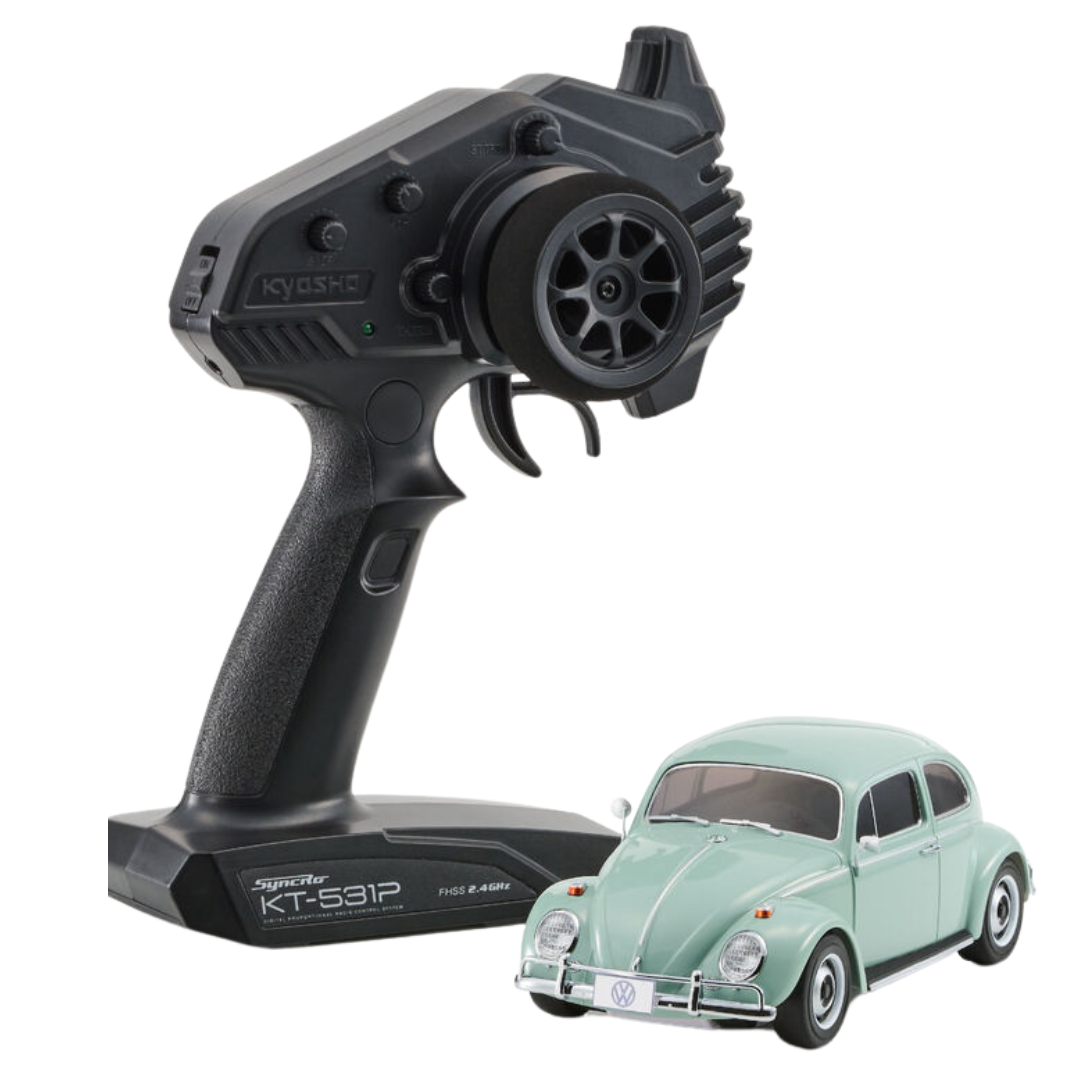

• Syncro KT-531P 2.4GHz pistol-grip transmitter included
• Steering and throttle trim adjustments
• Steering dual-rate adjustment
• Training mode reduces vehicle speed for new drivers
• Multiple pinion gears included for gearing adjustment
• Front tread adjustment components included for compatible alternative Mini-Z bodies
• Compatible with a wide range of Mini-Z Racer optional tuning parts
• Compatible with optional Kyosho MZW429R LED light unit

Specifications

• Brand: Kyosho
• Model: Mini-Z Volkswagen 1300 Beetle 1966 Model
• Manufacturer Part Number: 32374BBL
• SKU: KYO-32374BBL
• JAN / Barcode: 4548565519163
• Product Type: Mini RC On-Road Car
• Series: Mini-Z RWD
• Completion Level: Readyset
• Drive System: Rear-Wheel Drive / RWD
• Chassis: MR-04N-MM2
• Motor: 130-Class Brushed
• Differential: Gear Differential
• Bearings: Full Ball Bearings
• Radio System: Syncro KT-531P 2.4GHz
• Length: 161mm
• Width: 69mm
• Height: 58mm
• Wheelbase: 94mm / L
• Front Tread: 56.5mm
• Rear Tread: 56.5mm
• Front Wheels: Narrow
• Front Wheel Offset: ±0mm
• Rear Wheels: Narrow
• Rear Wheel Offset: ±0mm
• Weight: 161.2g
• Body: Volkswagen 1300 Beetle 1966 Model
• Colour: Bahama Blue
• Release Date: July 2026

Includes

• 1 × Kyosho Mini-Z MR-04N-MM2 Factory-Assembled RWD Chassis
• 1 × Factory-Painted Volkswagen 1300 Beetle 1966 Bahama Blue Body with Markings
• 1 × Syncro KT-531P 2.4GHz Transmitter
• 1 × 130-Class Brushed Motor Installed
• 1 × Front Tread Adjustment Parts Set
• 1 × 6T Pinion Gear
• 1 × 7T Pinion Gear
• 1 × 8T Pinion Gear
• 1 × 9T Pinion Gear
• Spare Nuts
• 1 × Wheel Wrench
• 1 × Pinion Gear Tool
• Wheels and Tyres

Needed to Complete

• 4 × AAA Alkaline Batteries for Chassis
• 4 × AAA Alkaline or Compatible NiMH Batteries for Transmitter

FAQ

Is the Kyosho Mini-Z Volkswagen Beetle 32374BBL Ready-to-Run? It is supplied as a Readyset with the assembled chassis, finished body and KT-531P transmitter included. Four AAA batteries are required for the car and another four AAA batteries are required for the transmitter.

Is this an MR-03 or MR-04 Mini-Z? This version uses Kyosho's newer fourth-generation MR-04 chassis. The specific chassis configuration for the Volkswagen Beetle is MR-04N-MM2.

Is the Mini-Z Volkswagen Beetle rear-wheel drive? Yes. The 32374BBL is part of Kyosho's Mini-Z RWD range and drives the rear wheels.

What is the wheelbase? The Volkswagen Beetle uses a 94mm wheelbase, identified by Kyosho as the L wheelbase configuration.

Is the Volkswagen Beetle body already painted? Yes. The body is factory painted in Bahama Blue with its markings already applied.

What wheel offset does the Beetle use? This configuration uses narrow wheels with ±0mm offset at both the front and rear.

Does it have ball bearings? Yes. The MR-04 chassis is equipped with full ball bearings as standard.

Does it use a differential? Yes. A geared differential is fitted to provide smooth differential action while cornering.

Can a gyro be installed? Yes. The MR-04 chassis supports a compatible optional gyro unit. Gyro sensitivity can then be adjusted using the adjustment control on the chassis.

Does the transmitter have a beginner mode? Yes. The included KT-531P features a training mode that reduces vehicle speed. Kyosho supplies the transmitter with training mode selected by default.

Can I install lights in the Volkswagen Beetle? Yes. Kyosho specifically confirms that the optional MZW429R LED light unit set can be installed on the Volkswagen 1300 Beetle 1966 Model.

Can other Mini-Z bodies be fitted? The MR-04 platform supports other compatible Mini-Z Racer bodies, but the wheelbase, tread, wheel offset, motor case and differential configuration must be matched to the selected body.

Important Notes

• AAA batteries are not included
• Four AAA alkaline batteries are required for the chassis
• Four AAA alkaline or compatible NiMH batteries are required for the transmitter
• This listing is specifically for the Bahama Blue 32374BBL version
• Chassis configuration is MR-04N-MM2 with a 94mm L wheelbase
• Front and rear wheels are narrow with ±0mm offset
• Optional gyro unit is sold separately
• Optional MZW429R LED light unit is sold separately
• When changing bodies, confirm the required wheelbase, tread, wheel offset, motor case and differential configuration
• Observe correct battery polarity when installing AAA batteries
