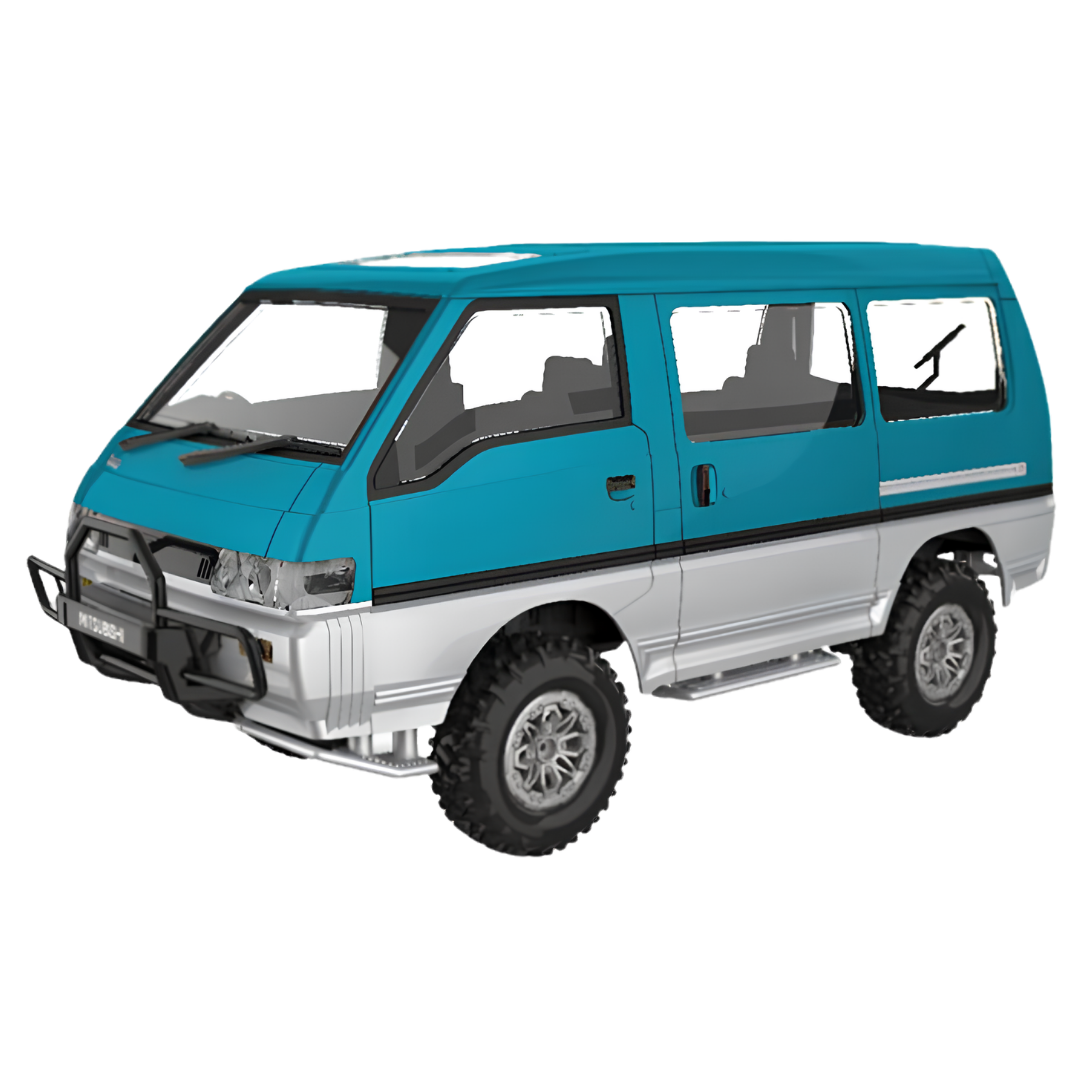

LDRC Mitsubishi Delica L300 1/12 4WD RC Van RTR Blue LDRC-1296B

The LDRC 1296B is an officially licensed 1/12 Mitsubishi Delica L300 4WD RTR RC van in Blue, combining detailed scale styling with a 380 brushed motor, metal-geared 2-speed transmission and mixed independent-front and solid-rear-axle suspension for realistic trail and light off-road driving

Features

• Officially licensed Mitsubishi Delica L300 scale body
• 1/12 scale ready-to-run RC van
• Full-time 4WD drivetrain
• 380 brushed motor
• Remote-operated dual-speed transmission
• Metal transmission gears
• Front independent suspension with rear solid axle
• Rear 4-link suspension layout
• 17g proportional steering servo
• 2.4GHz 3-channel radio system
• Transmitter control for steering throttle and lighting functions
• Scale rubber tyres
• Detailed exterior and interior styling
• Low-voltage and ESC overvoltage protection
• ABS nylon and metal construction
• Approximately 15km/h maximum speed
• Approximately 30 minutes or more runtime per charge

Specifications

• Brand: LDRC
• Model: LD1296 Mitsubishi Delica L300
• Product Type: RC Scale Van
• Scale: 1/12
• Completion Level: RTR
• Colour: Blue
• Drivetrain: 4WD
• Transmission: 2-Speed
• Motor: 380 Brushed
• ESC: 10A
• Steering Servo: 17g
• Radio: 2.4GHz 3-Channel
• Vehicle Battery: 7.4V 1200mAh Li-Ion
• Battery Connector: SM3P
• Charge Time: Approximately 120 Minutes
• Runtime: Approximately 25 to 30+ Minutes
• Maximum Speed: Approximately 15km/h
• Control Range: Approximately 20m
• Approach Angle: Approximately 40 Degrees
• Departure Angle: Approximately 35 Degrees
• Maximum Climbing Angle: Approximately 45 Degrees
• Ground Clearance: Approximately 30mm
• Tyre Size: Approximately 65 x 24mm
• Wheel Diameter: Approximately 36mm
• Length: Approximately 380mm
• Width: Approximately 150mm
• Height: Approximately 176mm
• Weight: Approximately 1.7kg
• Material: ABS Nylon and Metal
• Manufacturer Part Number: LDRC-1296B

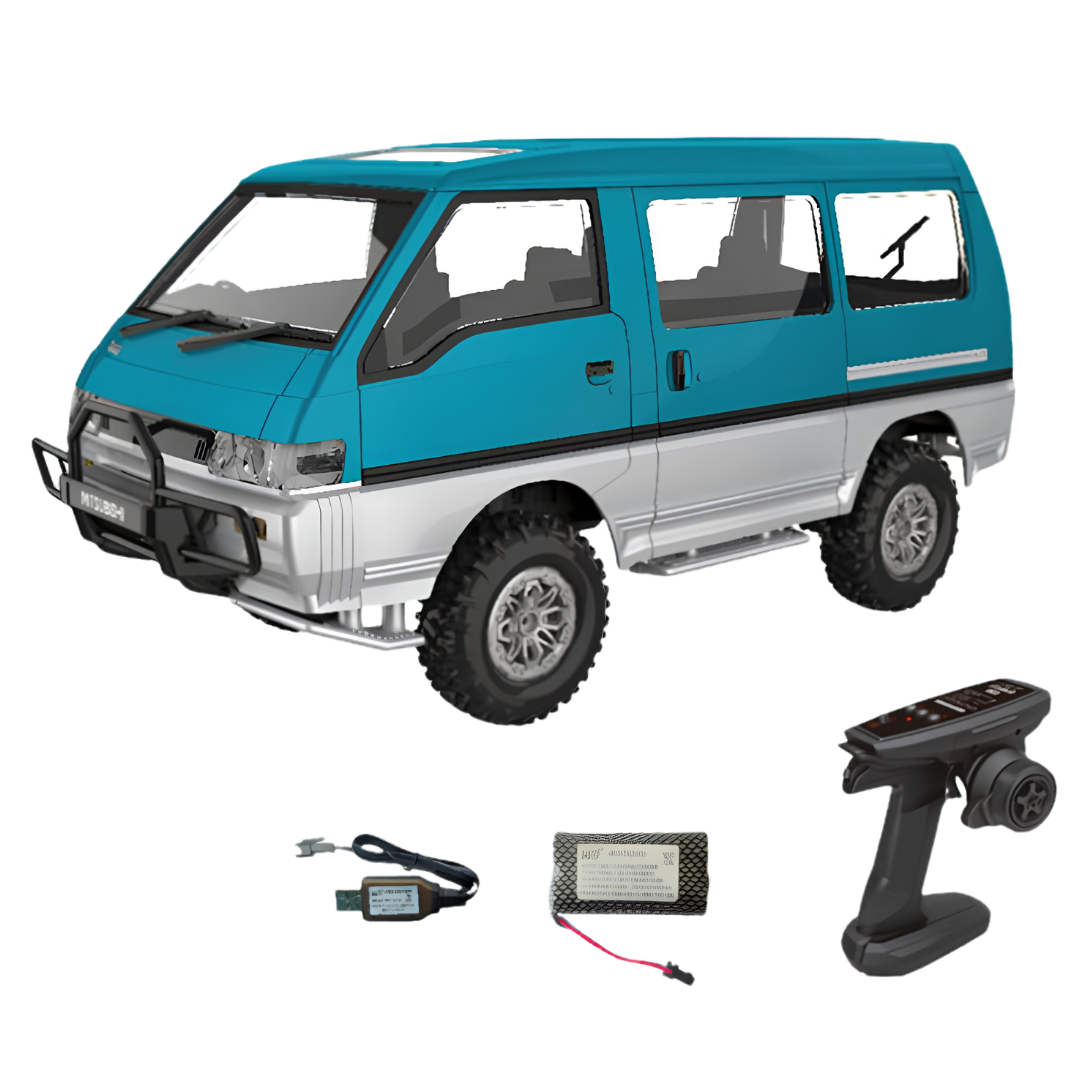

Includes

• 1 x LDRC LD1296 Mitsubishi Delica 1/12 RC Van Blue
• 1 x 2.4GHz Transmitter
• 1 x 7.4V 1200mAh Rechargeable Li-Ion Battery
• 1 x USB Charging Cable 800mA
• 1 x User Manual

Required To Complete

• 2 x AA Batteries for the Transmitter
• Suitable USB Power Source for Charging

FAQ

Is the LDRC 1296B officially licensed by Mitsubishi? Yes, current Australian and international retailer listings identify the LD1296 as an officially licensed Mitsubishi Delica L300 RC model

Does the LDRC LD1296 have a 2-speed gearbox? Yes, the vehicle uses a remotely operated dual-speed transmission with metal gearing for low-speed driving and a faster high-range setting

What battery is included? The Blue RTR package includes a 7.4V 1200mAh rechargeable Li-Ion battery with an SM3P connector

How long does the LD1296 run? Published figures range from approximately 25 to more than 30 minutes depending on driving style terrain lighting use and battery condition

How many batteries does the transmitter require? The included transmitter requires two AA batteries which are not included

Important Notes

• Use the supplied or manufacturer-compatible battery and charger system
• Allow the motor and electronics to cool after demanding runs
• Runtime speed and control range vary with terrain battery condition and operating environment
• Production revisions may use matched receiver and transmitter electronics that are not interchangeable between every LD1296 batch
