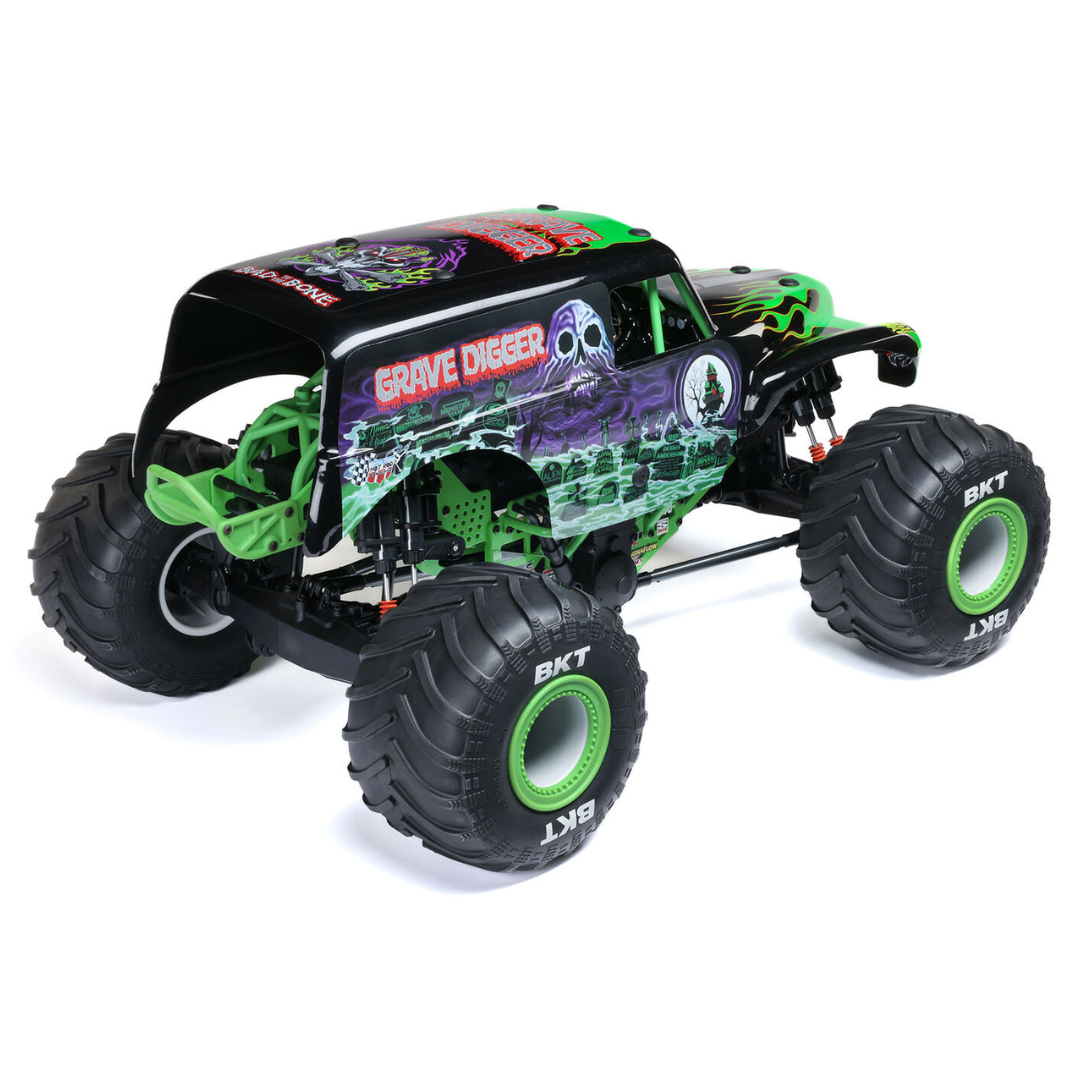

Losi LMT 2.0 Grave Digger RC Monster Truck 1/8 4WD RTR Green LOS04028T1

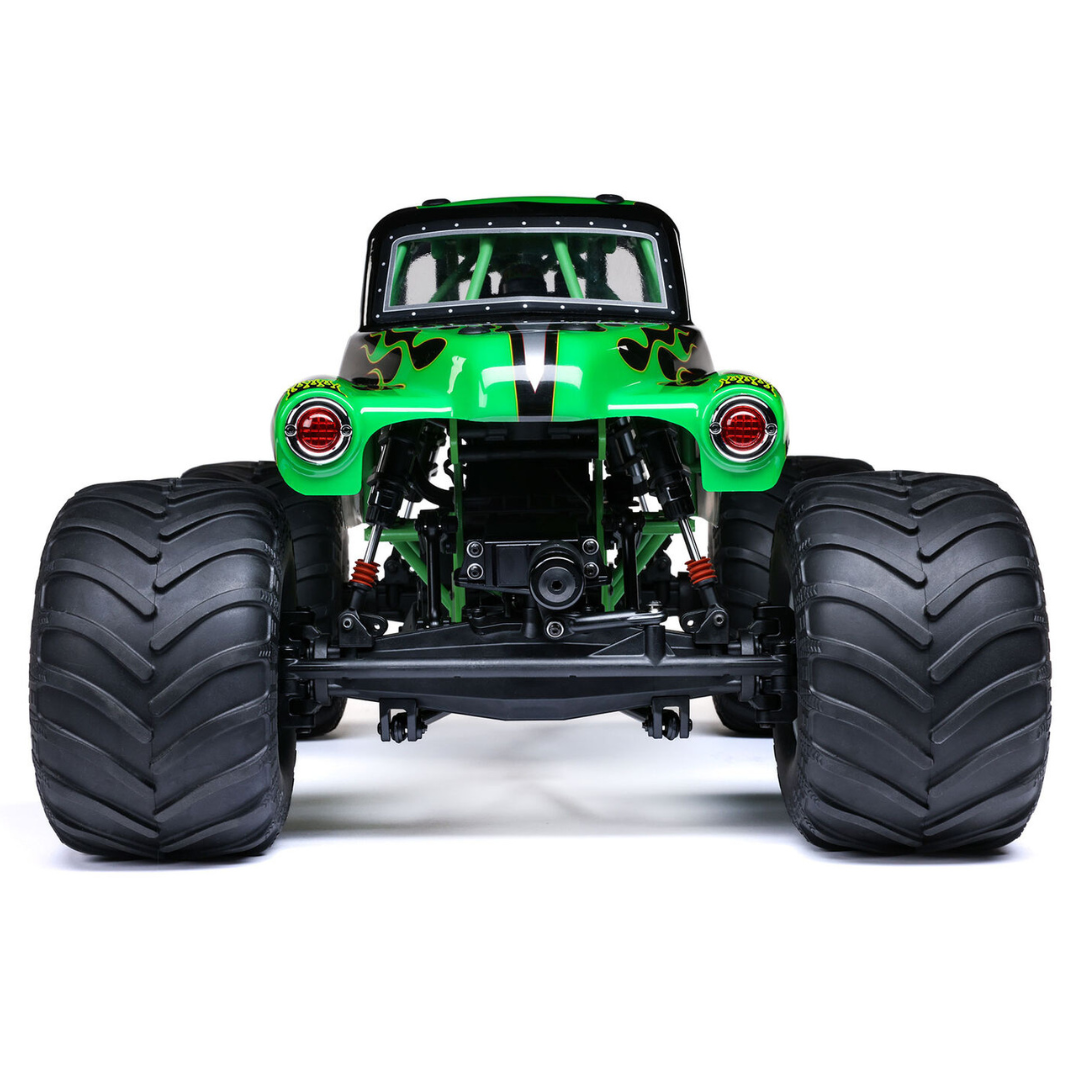

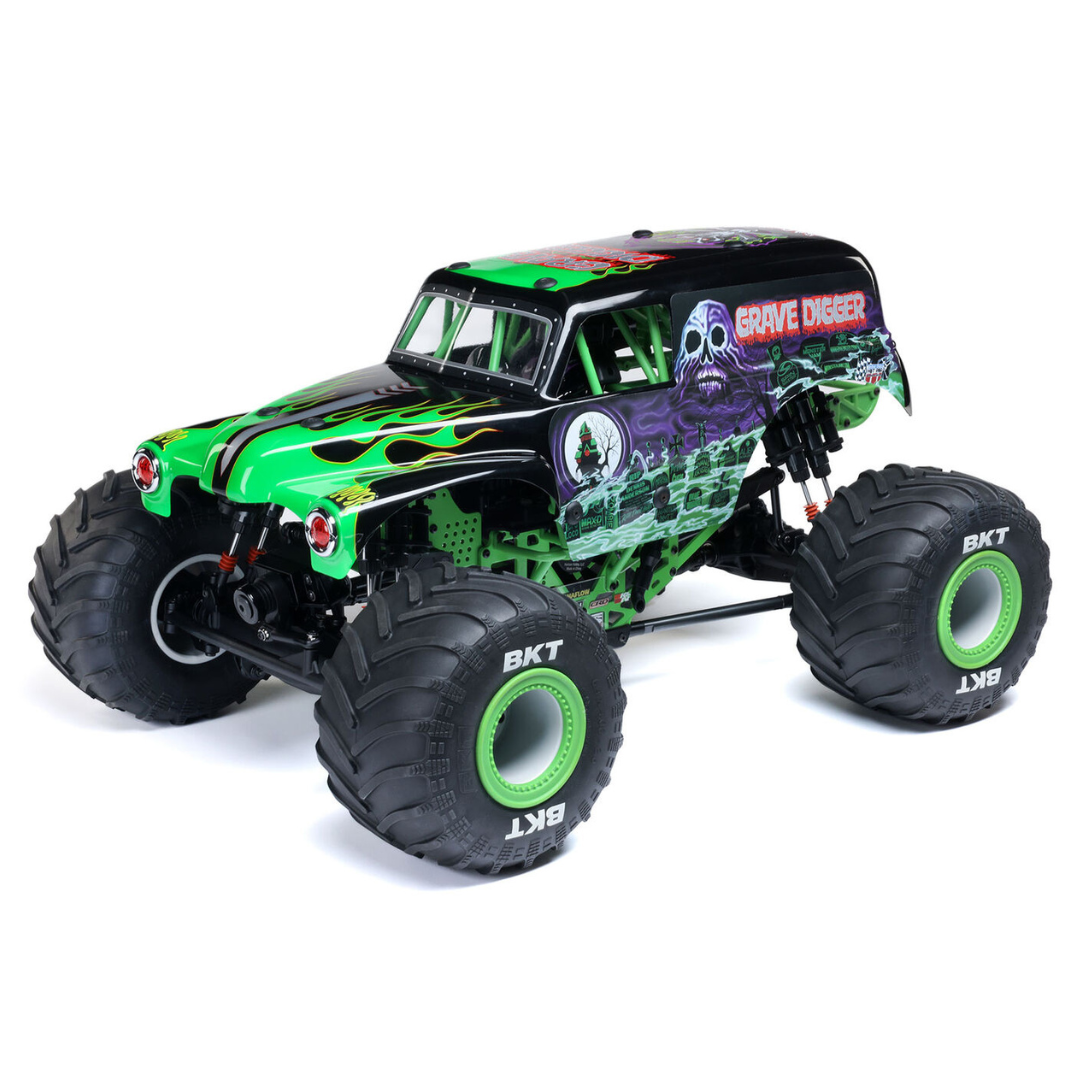

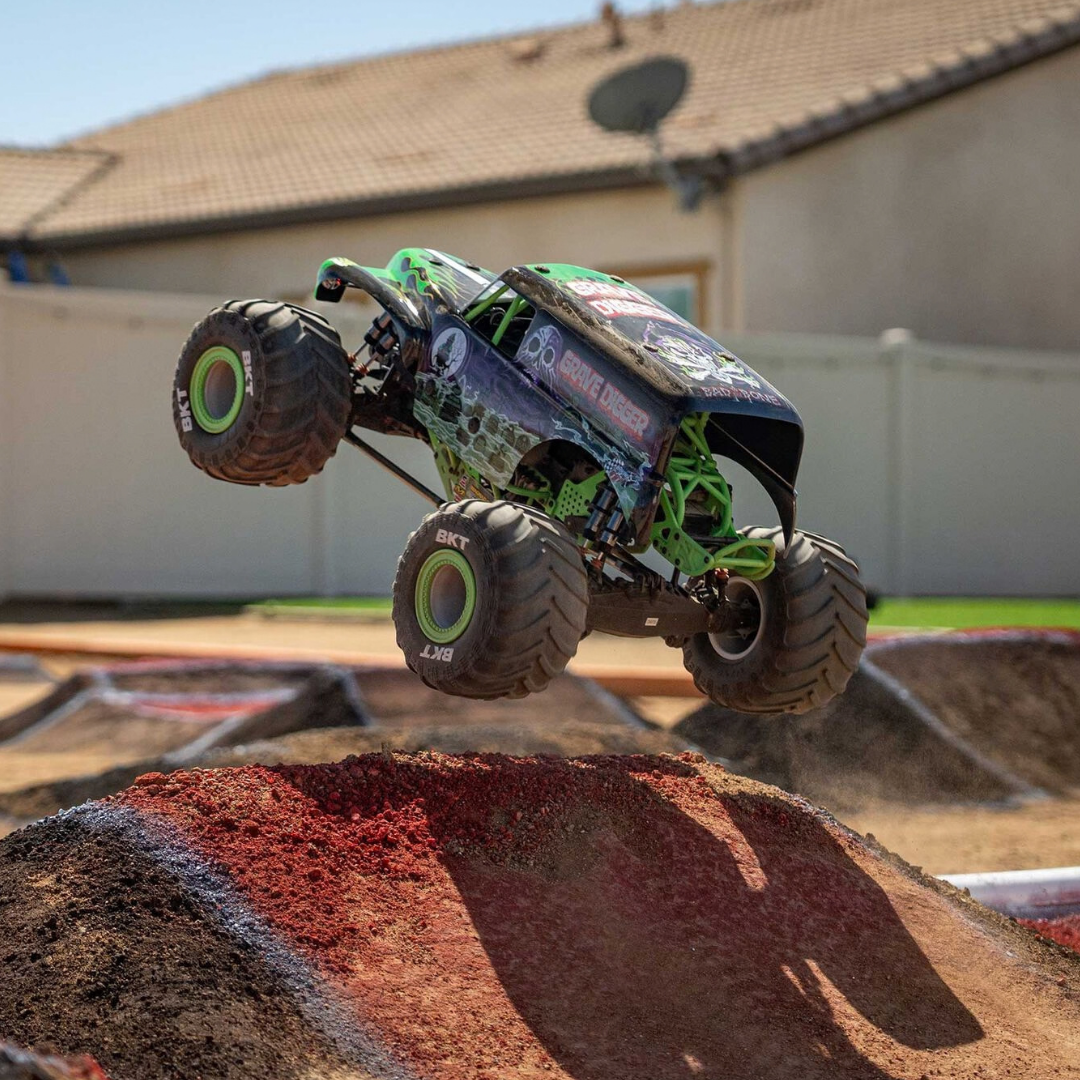

The Losi LMT 2.0 Grave Digger is a 1/8 scale 4WD RTR brushless RC monster truck designed for bashing and freestyle driving, combining solid axles, Spektrum DRIVE Technology and an officially licensed Monster Jam Grave Digger body.

Spektrum DRIVE Technology uses a dedicated 6-channel receiver to provide selectable driving modes that assist with manoeuvres such as extended wheelies, stoppies and two-wheel bicycle driving. The included DX3 Smart transmitter allows the modes to be selected while driving and also provides 50% and 75% throttle limiting for drivers who want to reduce maximum power while learning the truck.

A Spektrum Firma 3668 2800Kv 4-pole brushless motor and Firma 130A Black Edition Smart ESC provide 2S, 3S and 4S LiPo compatibility. On a suitable 4S setup, Losi rates the LMT 2.0 for speeds of 45+ mph.

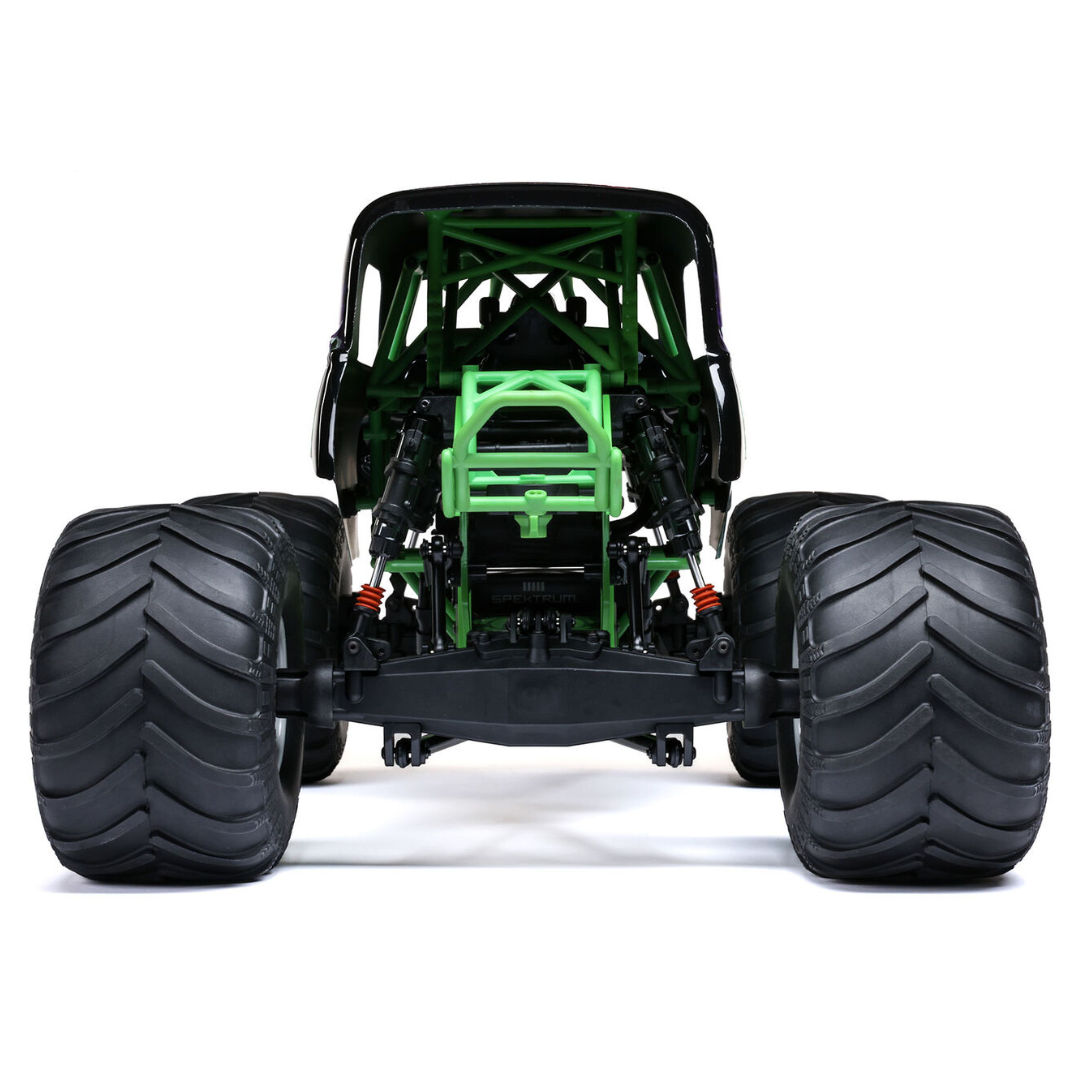

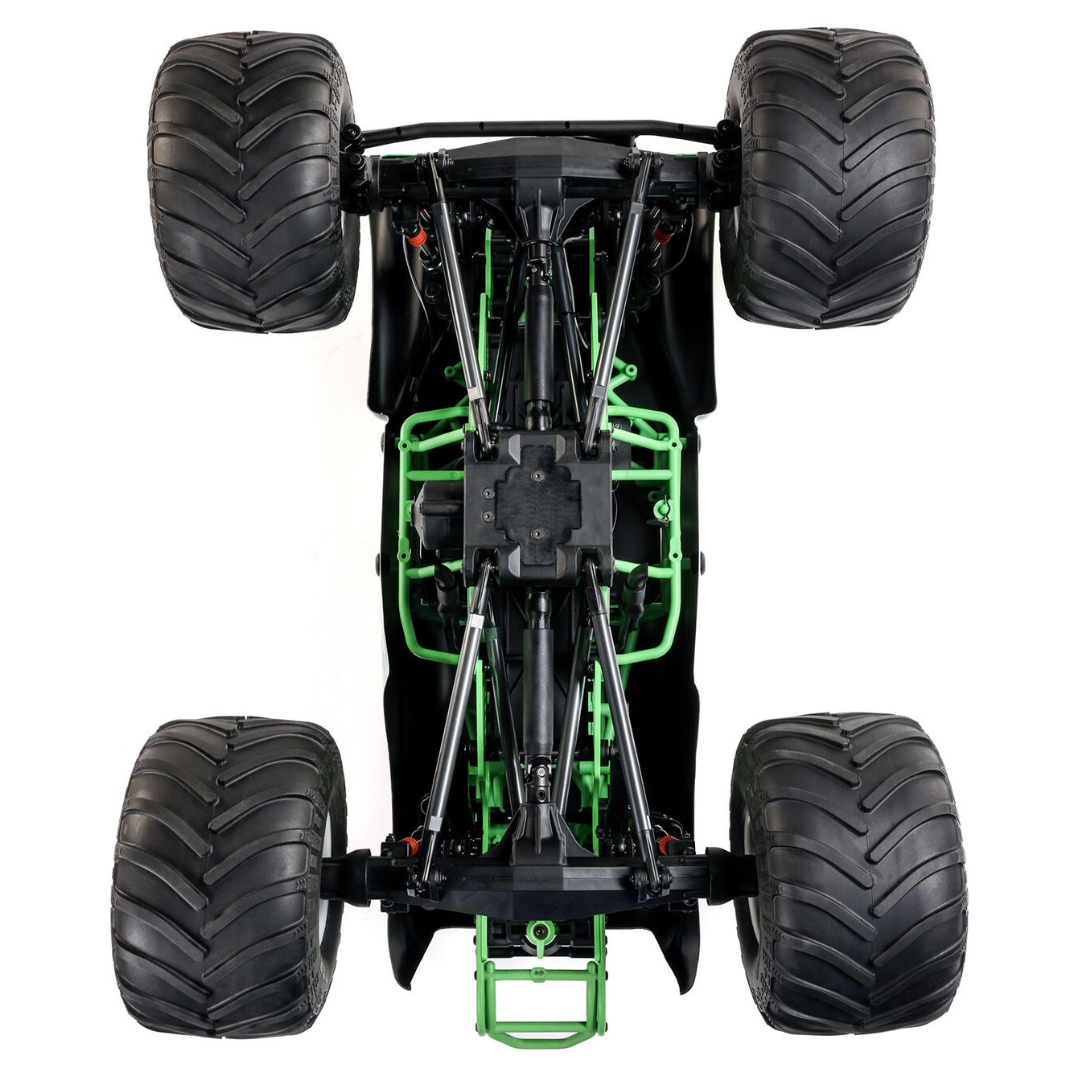

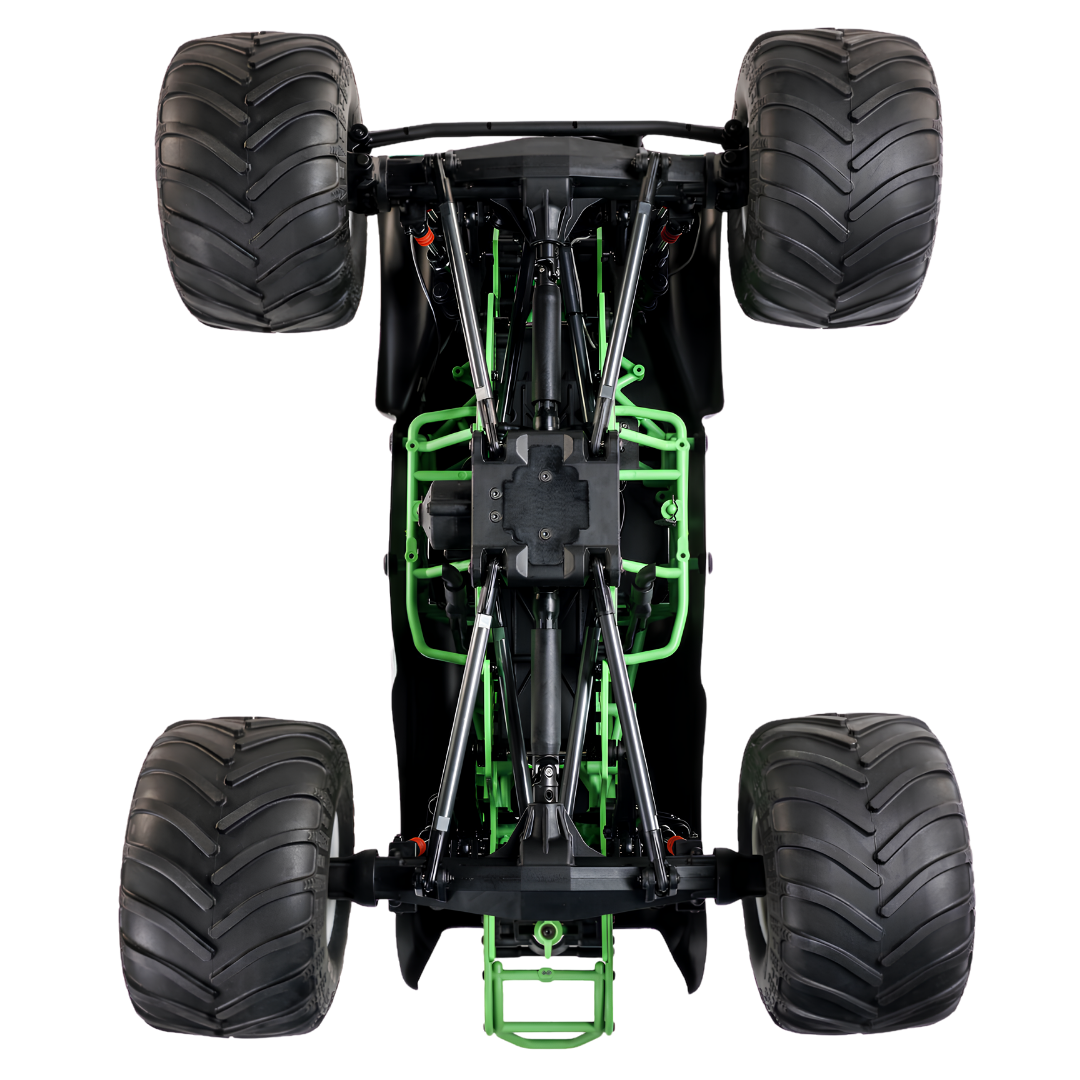

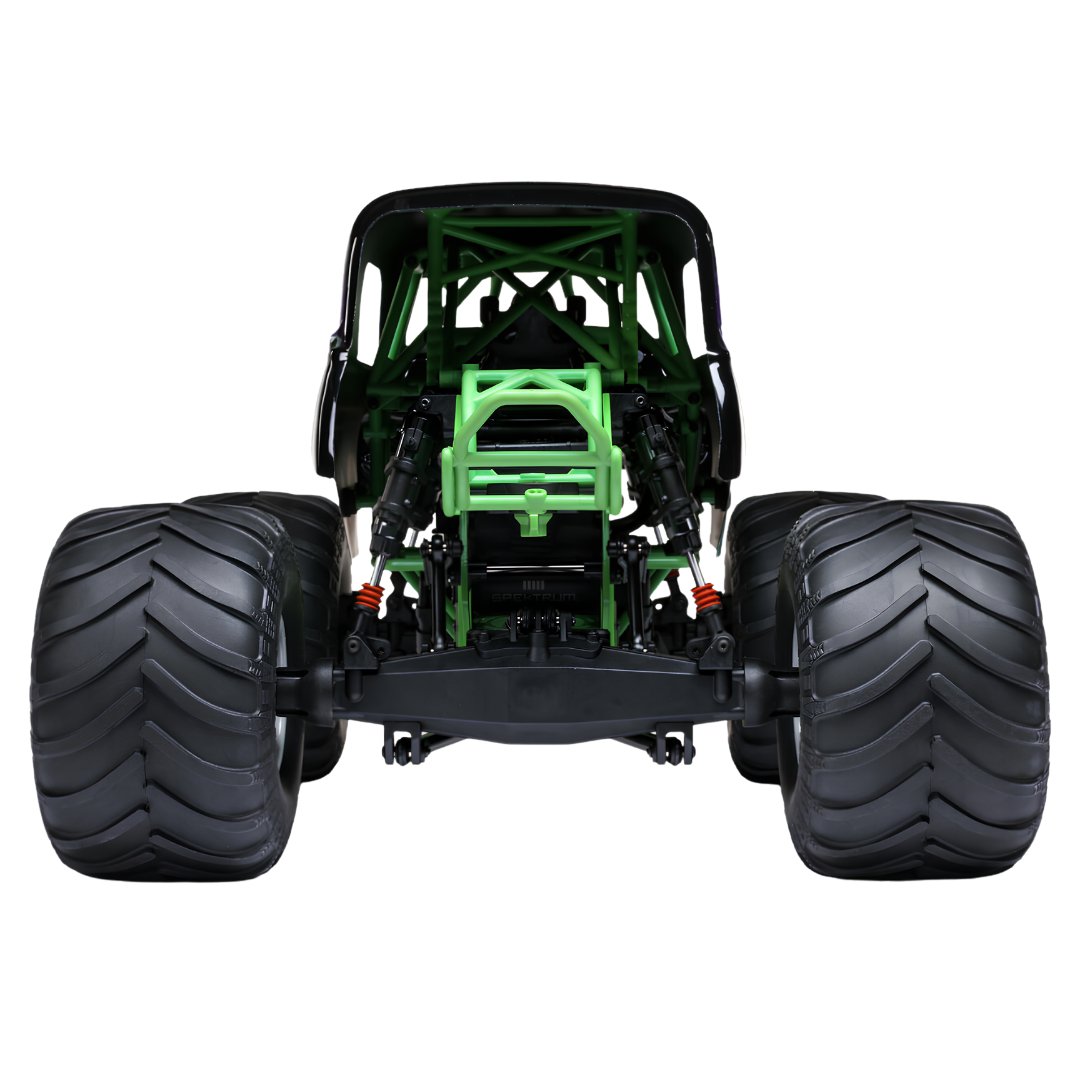

The 6061-T6 aluminium twin vertical plate chassis supports solid front and rear axles with 4-link suspension. Eight oil-filled shocks use internal springs and moulded replica reservoirs for scale Monster Jam styling, while redesigned two-piece axle housings, heavy-duty differentials and a centre differential with Cush Drive improve drivetrain durability.

Features

• Spektrum DRIVE Technology with selectable driving modes

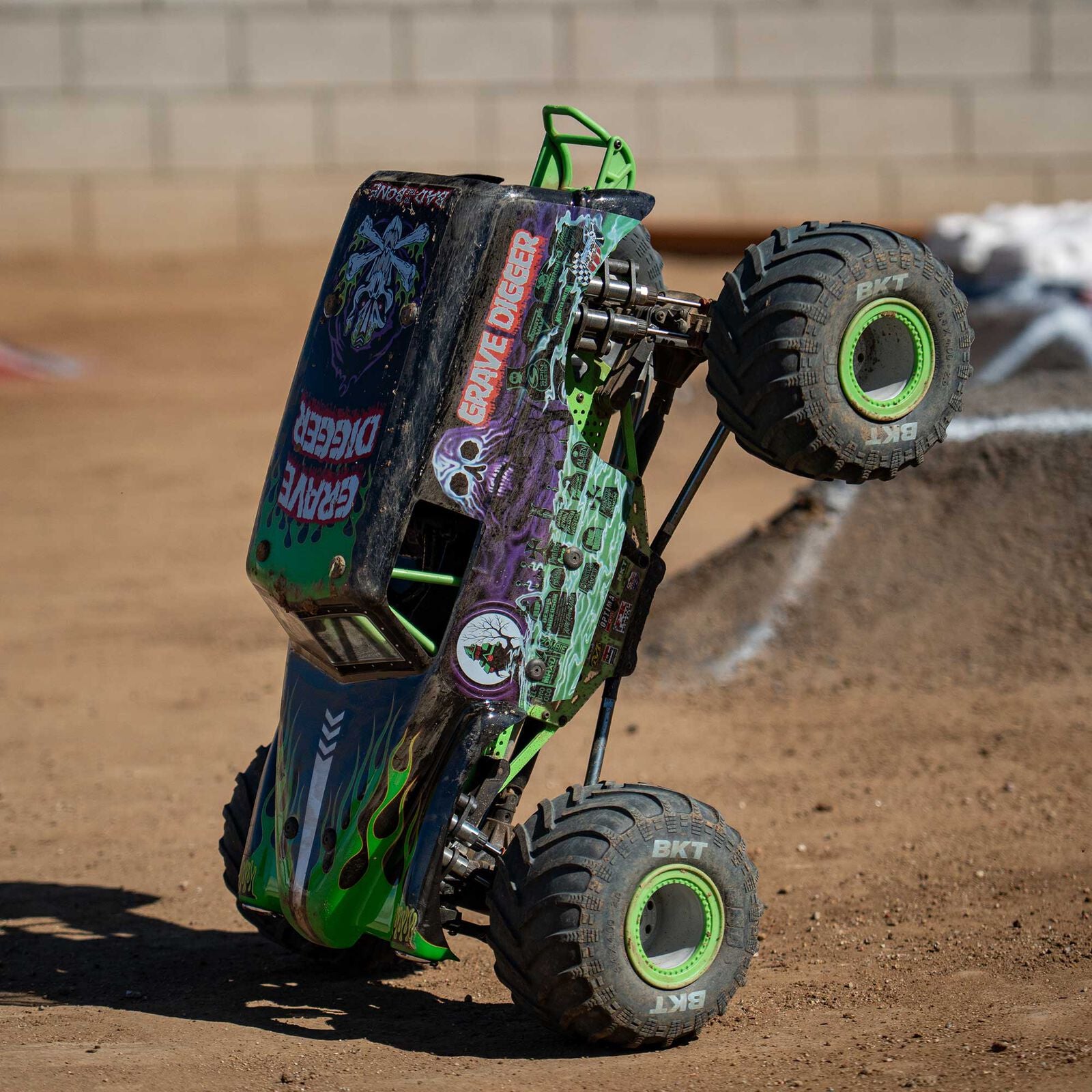

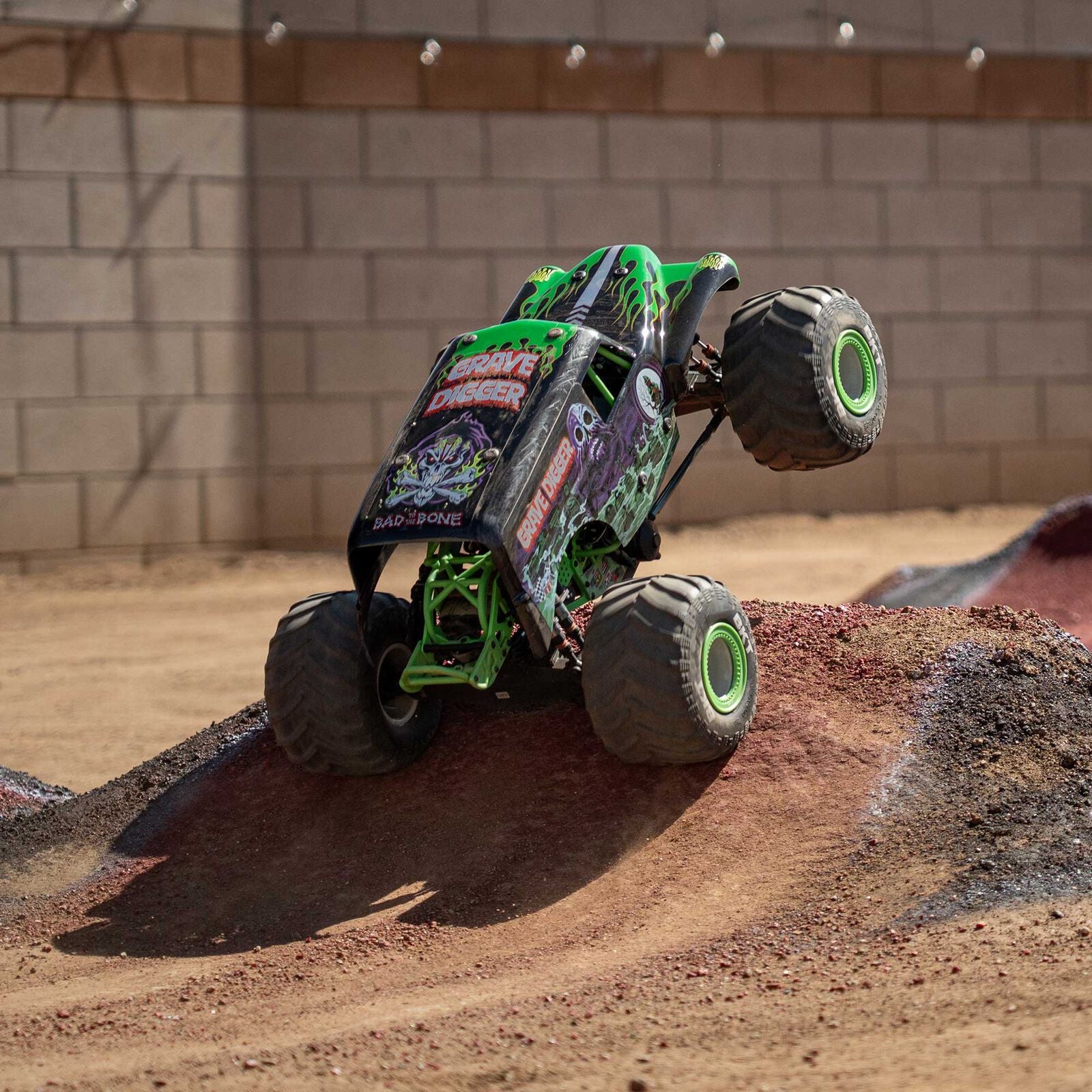

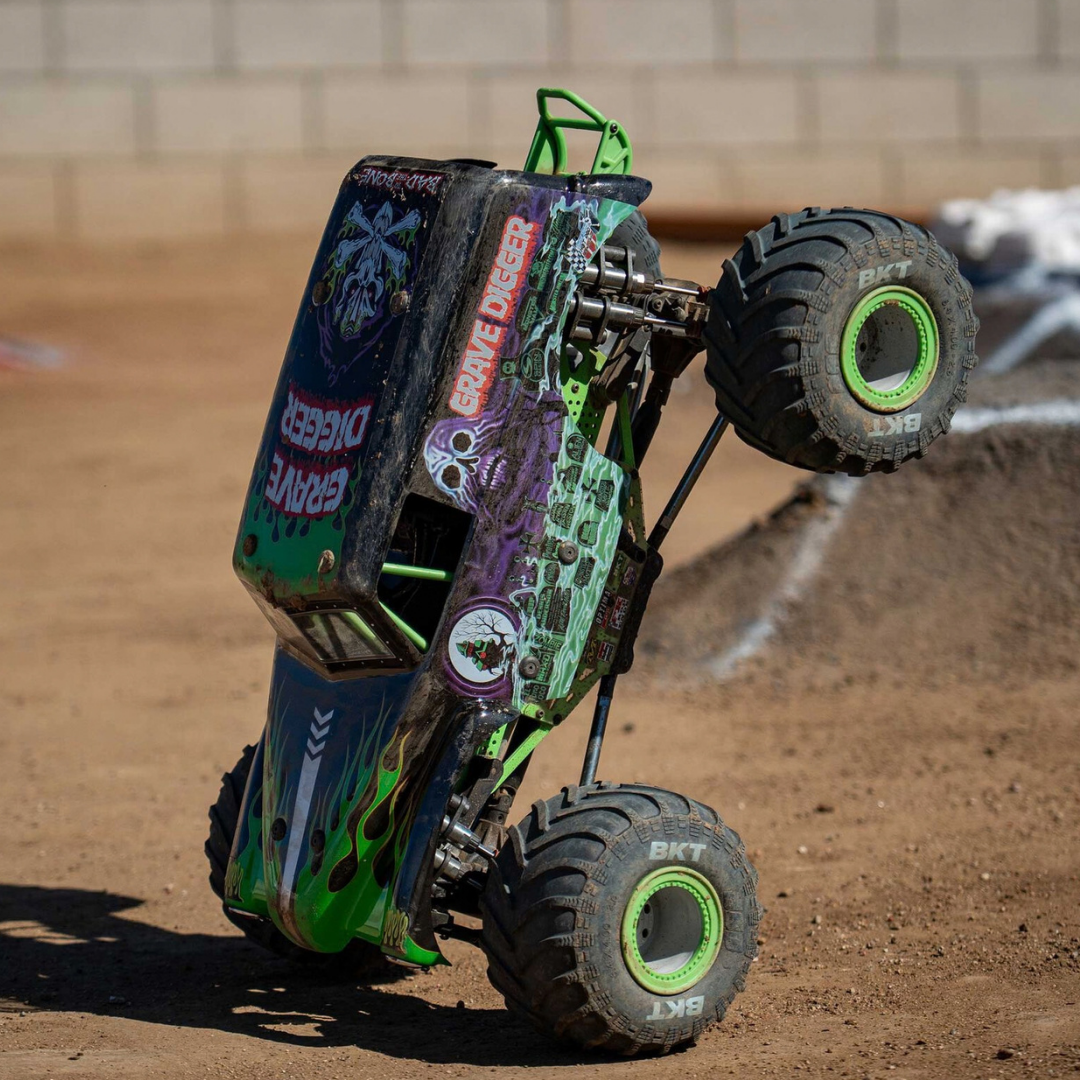

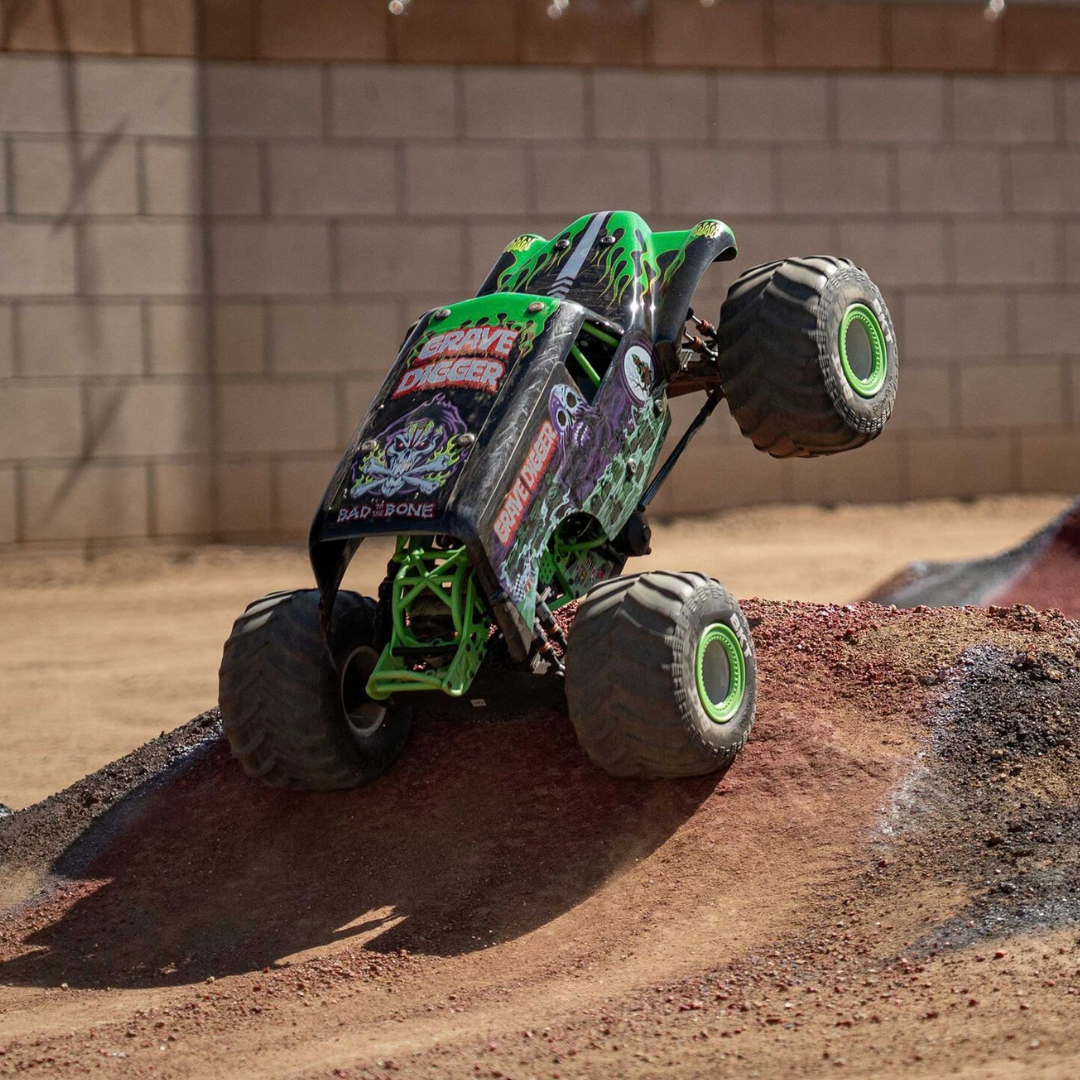

• Freestyle Mode assists with wheelies, stoppies and two-wheel bicycle manoeuvres
• Spektrum Firma 3668 2800Kv 4-pole brushless motor with 5 mm shaft
• Spektrum Firma 130A Black Edition Smart brushless ESC
• 2S, 3S and 4S LiPo compatibility
• 45+ mph capability on a suitable 4S setup
• 4WD solid axle drivetrain

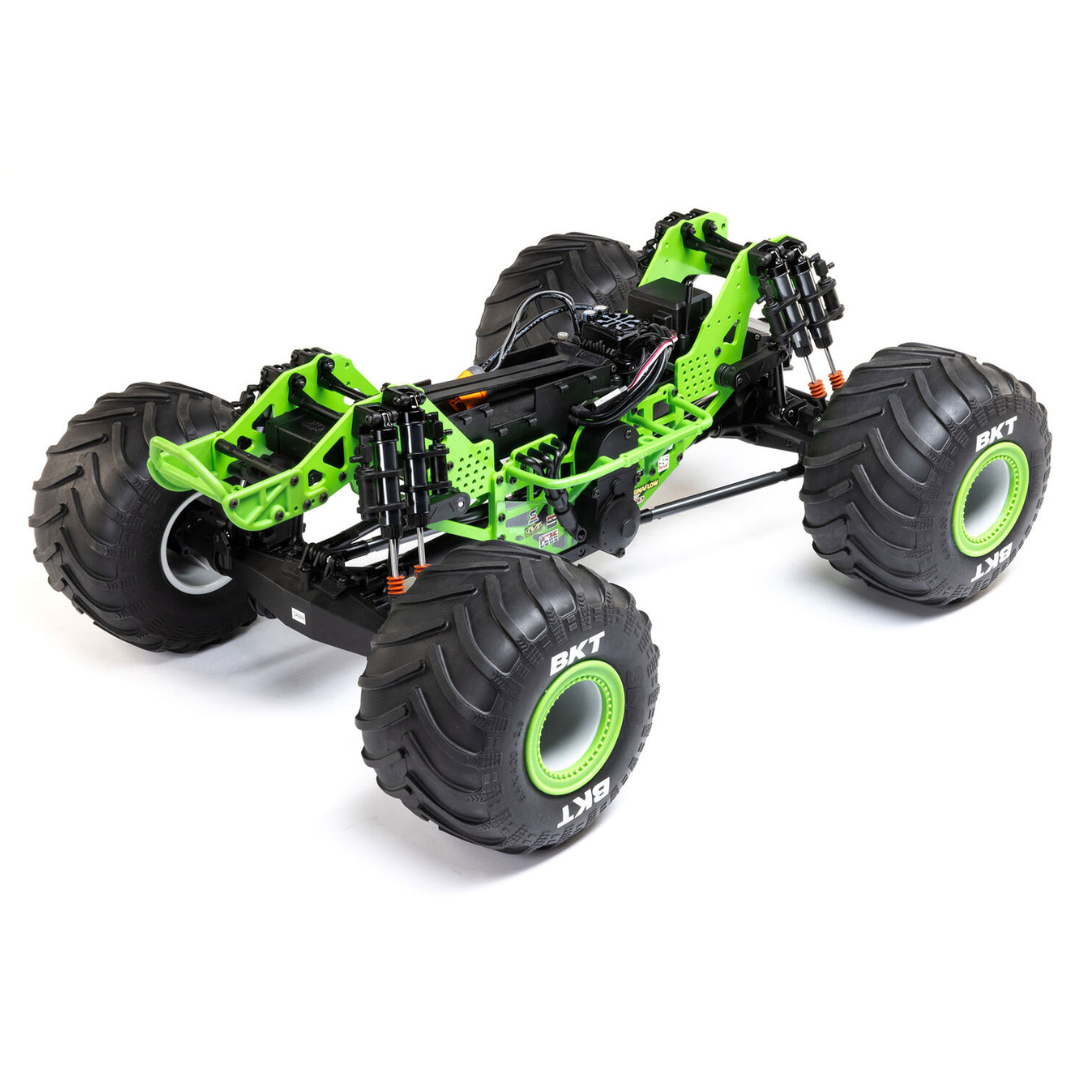

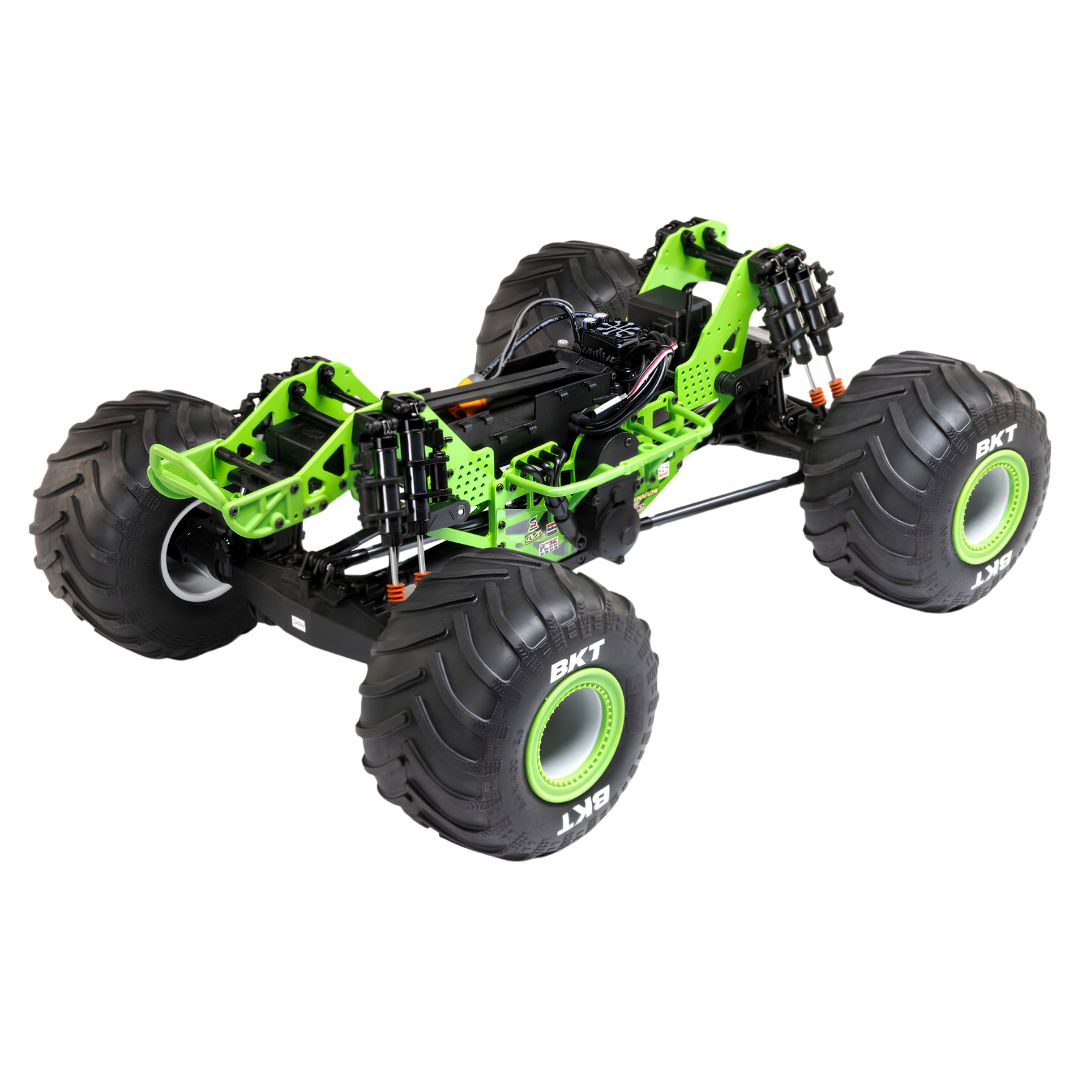

• 6061-T6 aluminium twin vertical plate chassis
• Green powder-coated chassis plates for the Grave Digger version
• Eight oil-filled shocks with internal springs
• Moulded replica shock reservoirs
• Redesigned two-piece solid front and rear axle housings
• Heavy-duty 1/8 scale differentials

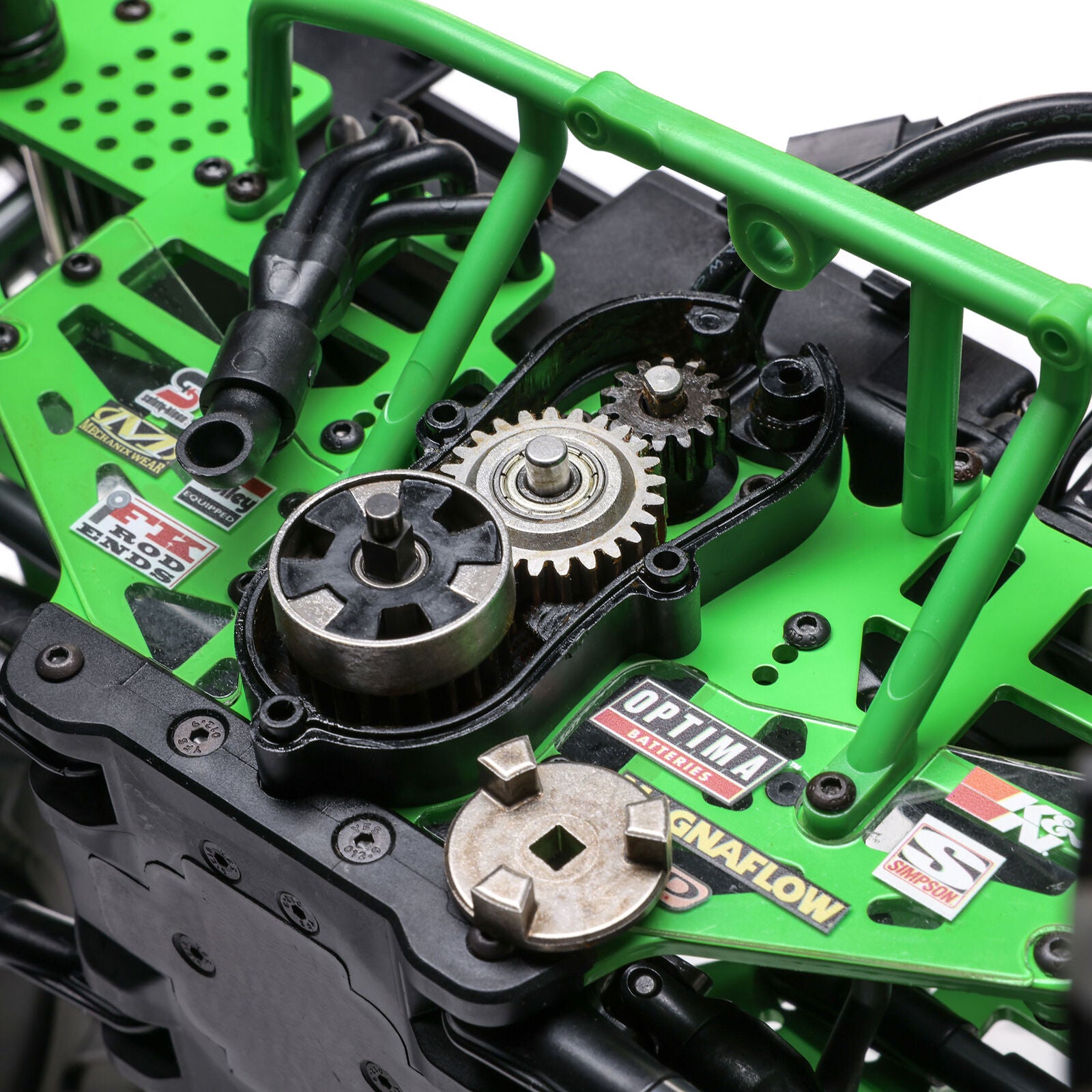

• Centre differential with torque-dampening Cush Drive

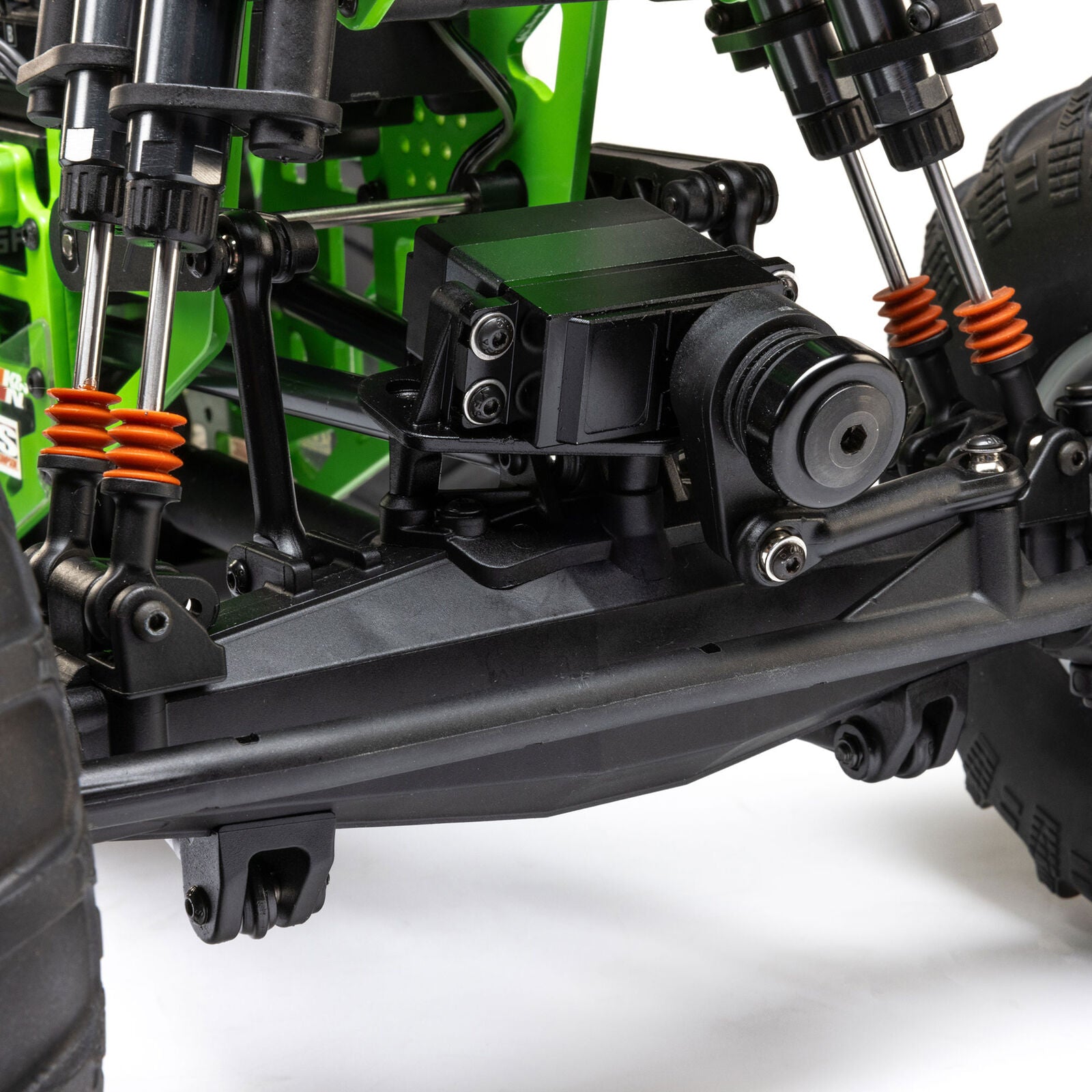

• Spektrum S680 high-torque metal-top steel-geared steering servo
• Dual-step helical servo saver design
• 2.6-inch wheels with removable replica beadlock details
• Officially licensed BKT all-terrain monster truck tyres

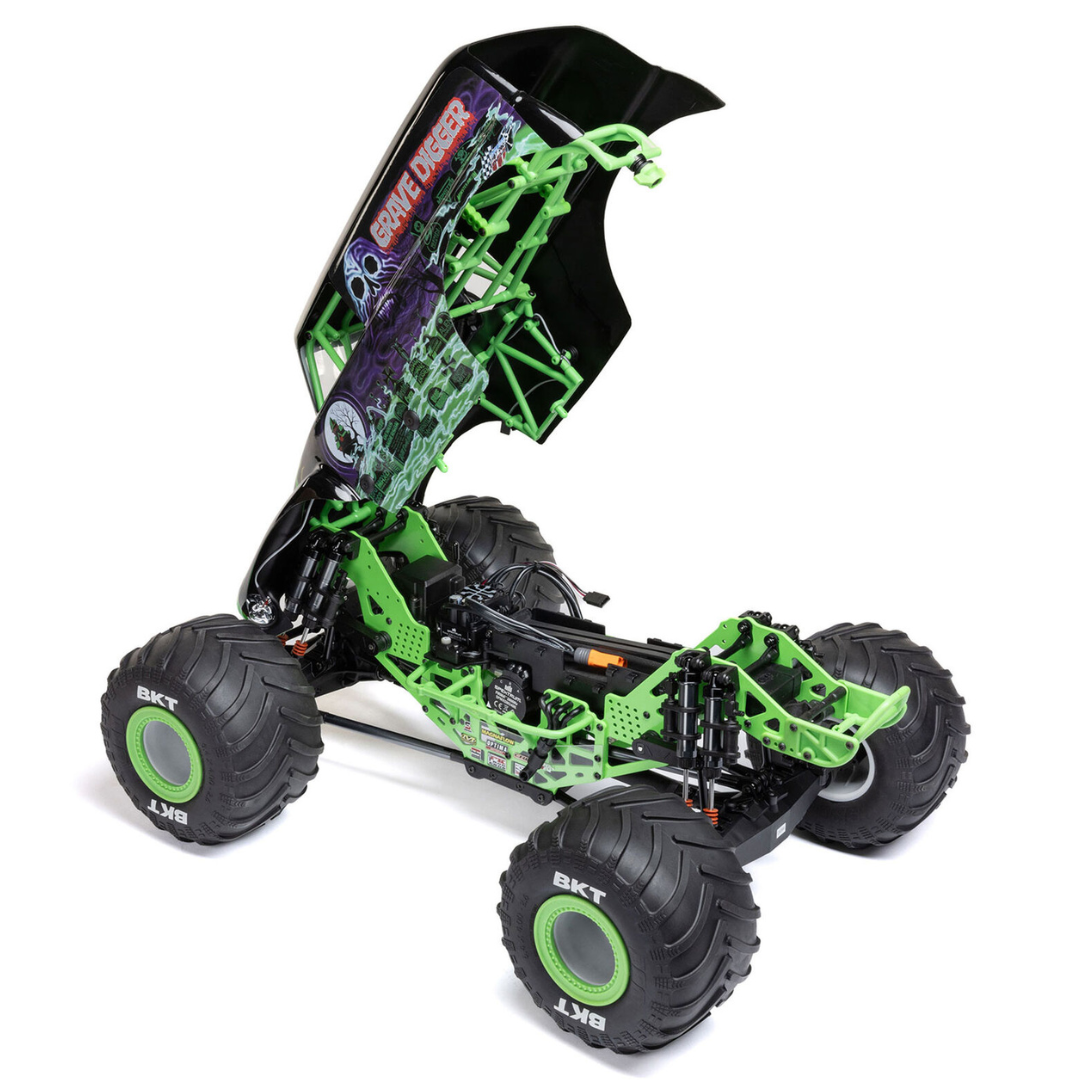

• Flip-forward cage with twist-lock retention
• High-clearance wheelie bump with provision for a flag mount

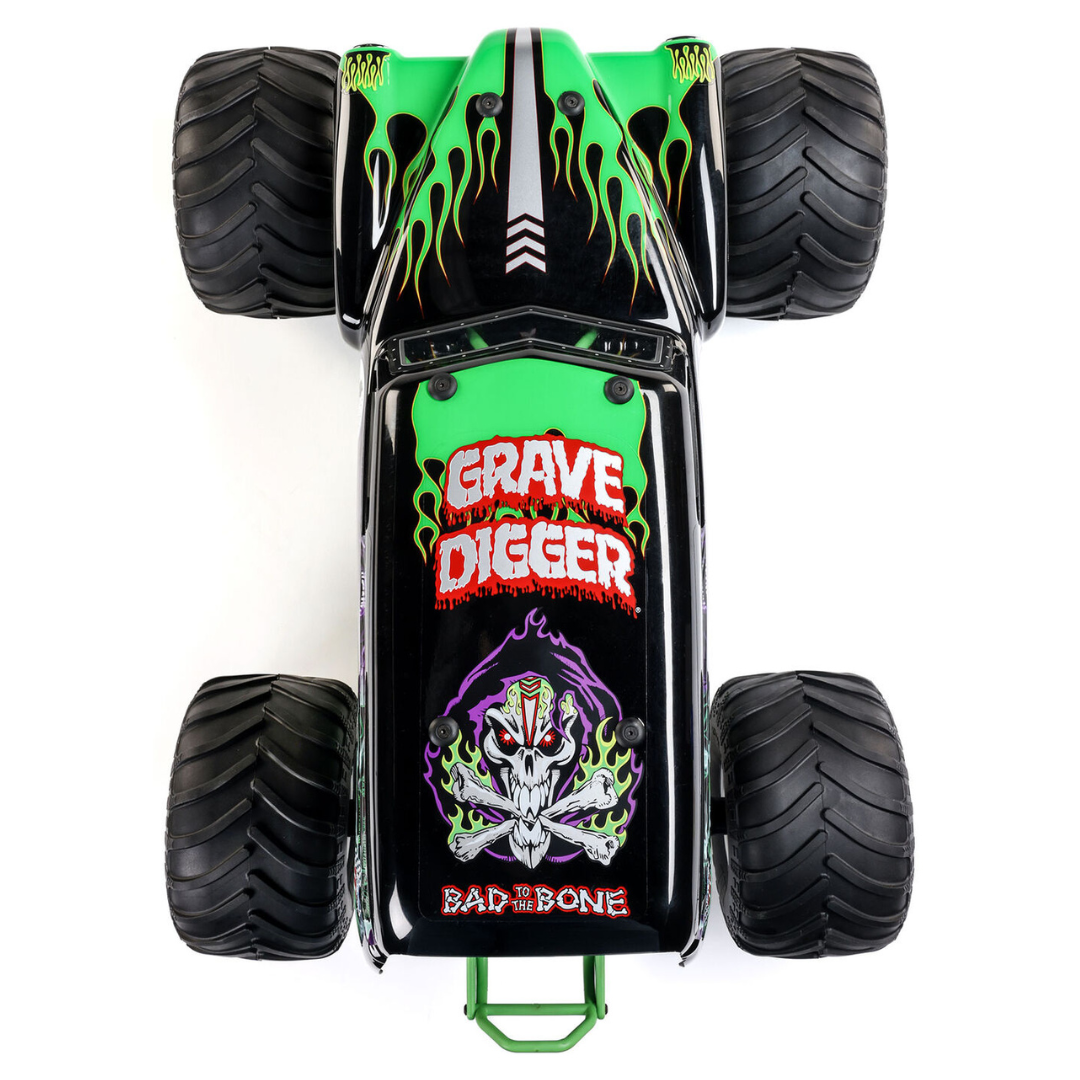

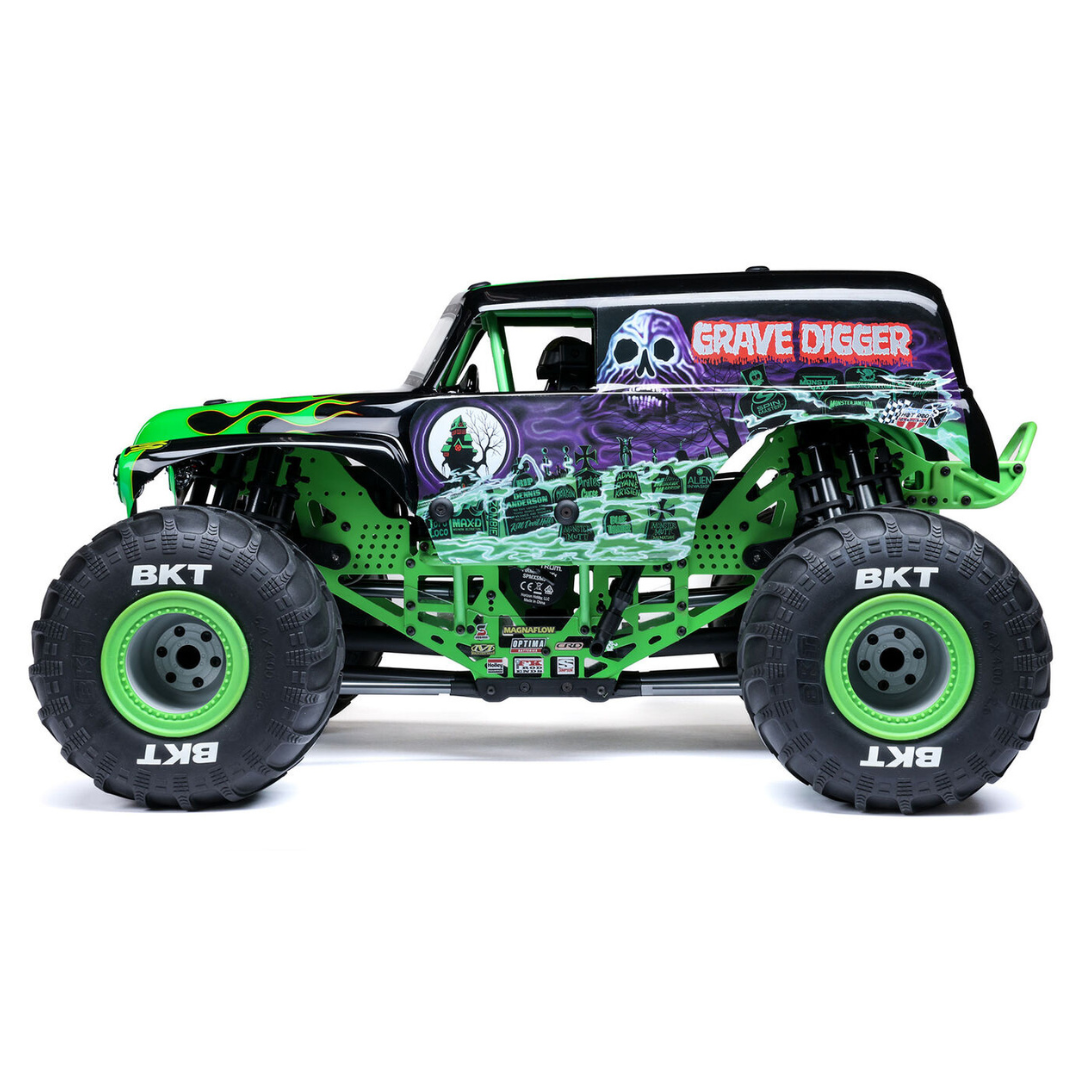

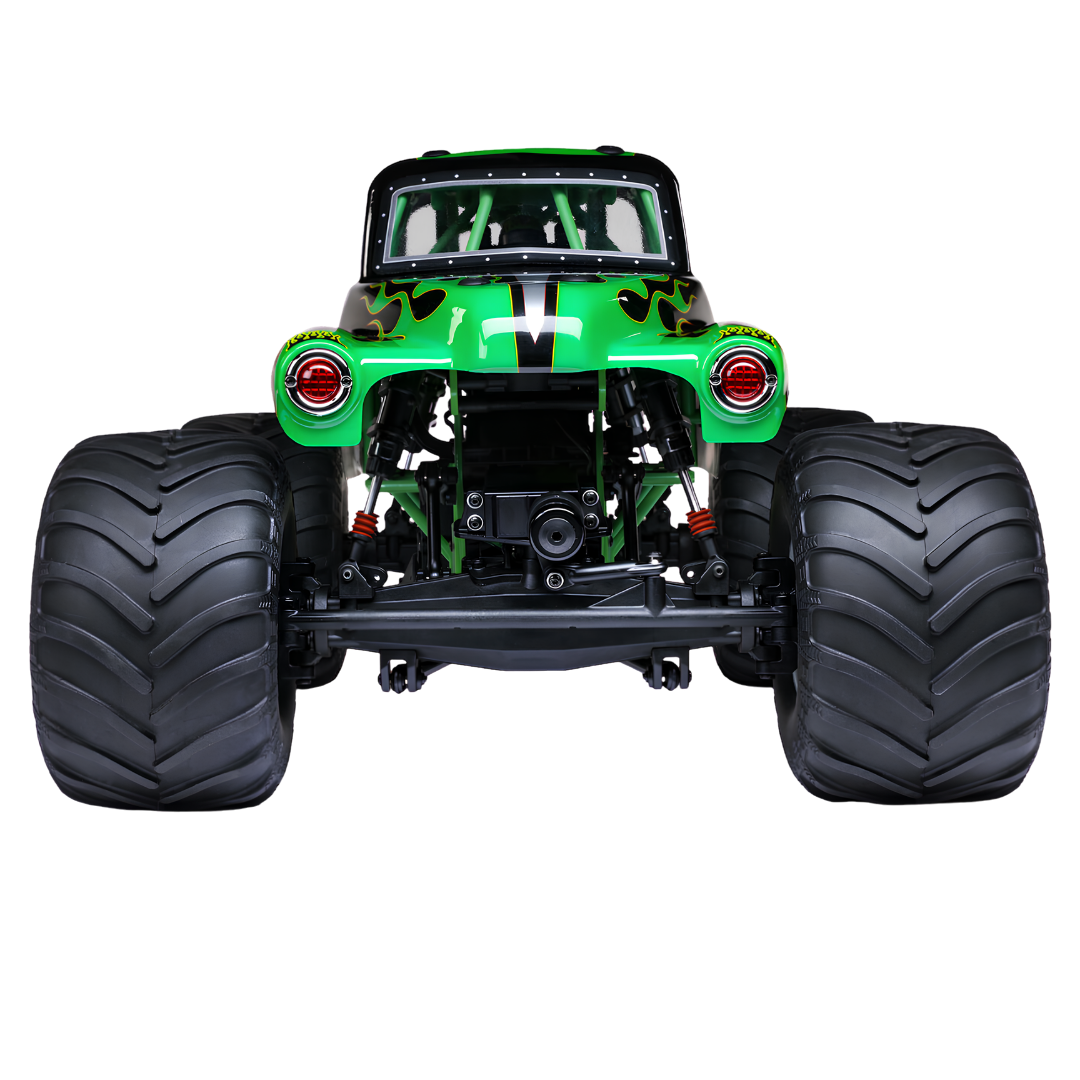

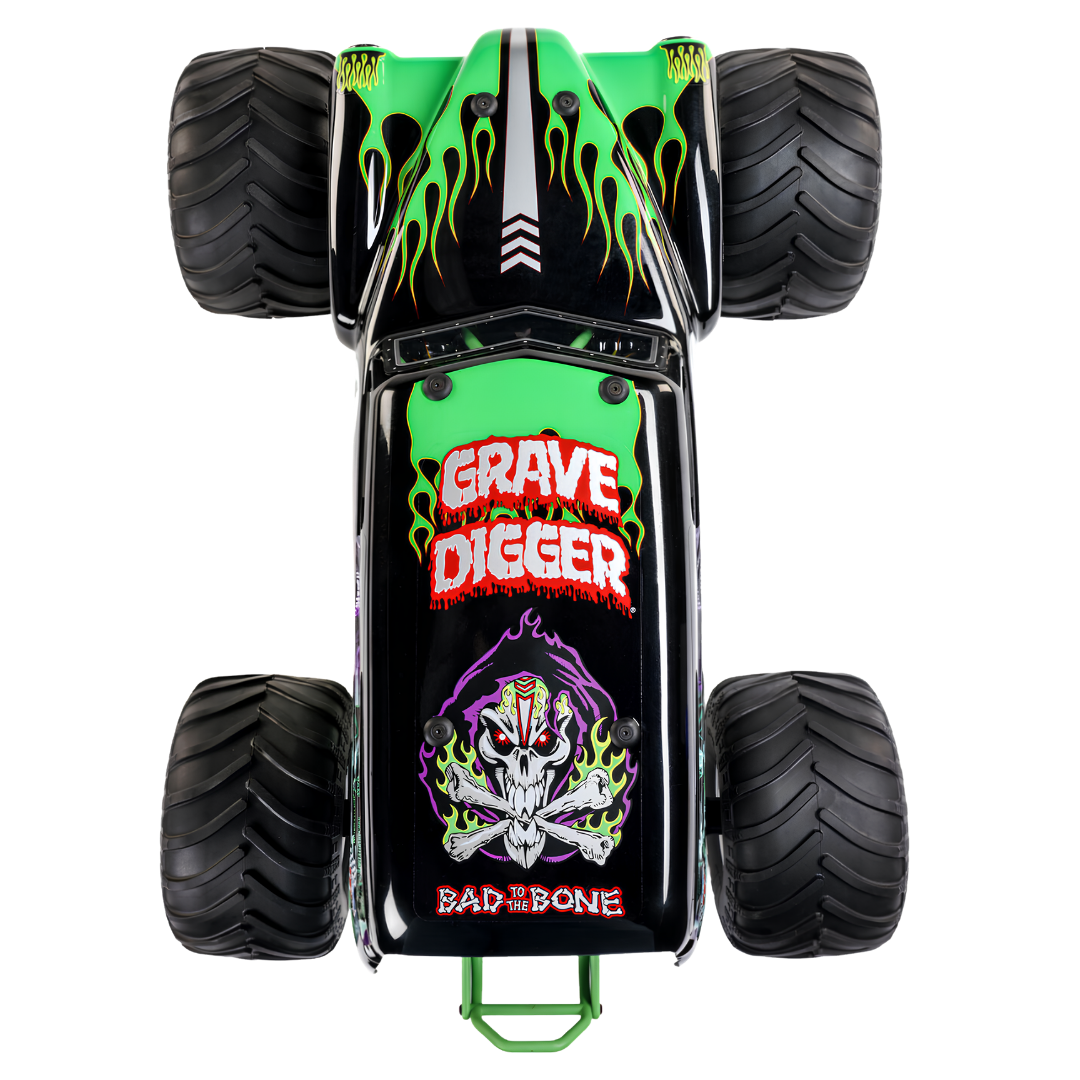

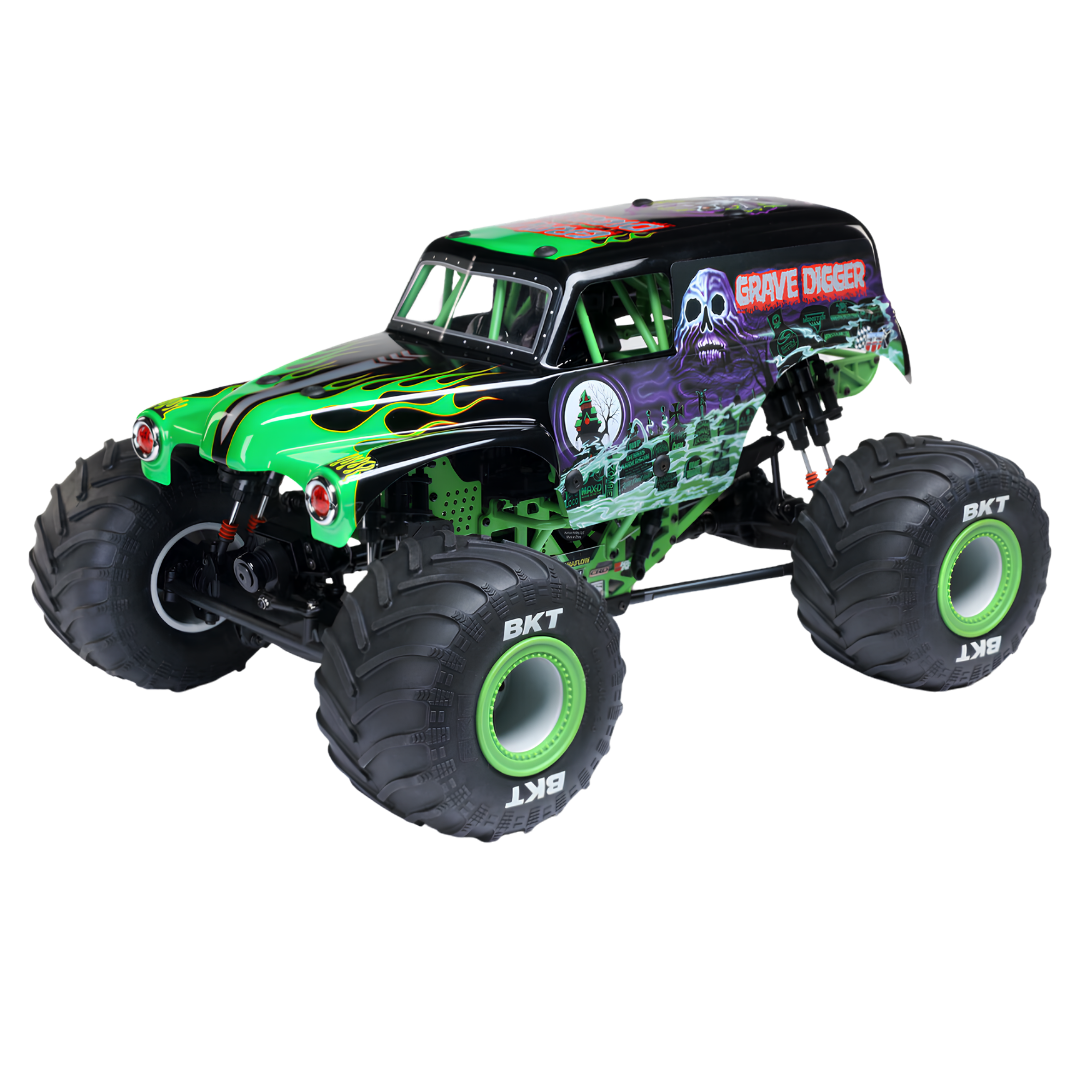

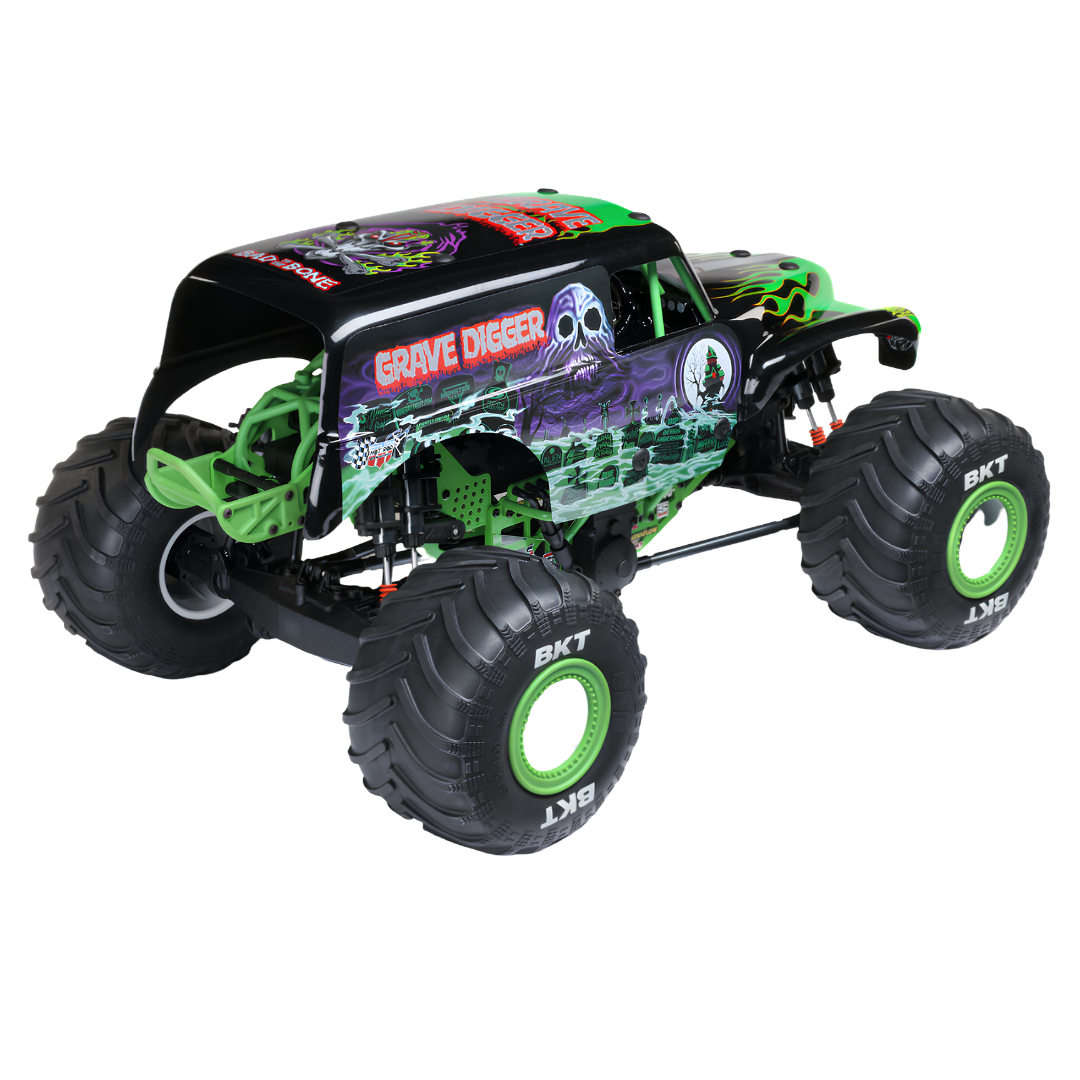

• Officially licensed Monster Jam Grave Digger body

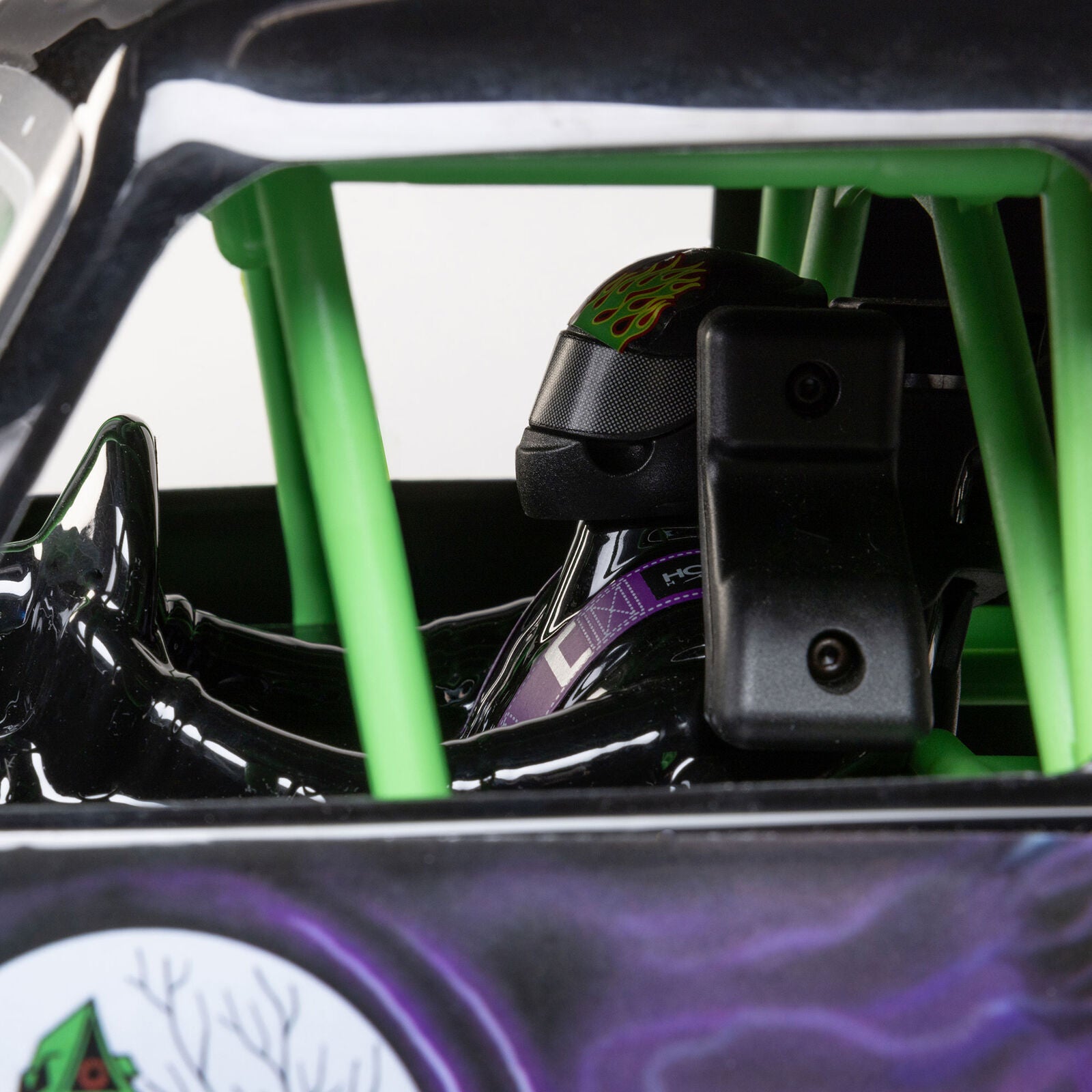

• Scale exhaust headers, LED headlights, driver figure and sponsor panels

Specifications

• Brand: Losi
• Model: LMT 2.0 Grave Digger
• Manufacturer Part Number: LOS04028T1
• Scale: 1/8
• Vehicle Type: RC Monster Truck
• Completion Level: Ready-To-Run
• Drivetrain: 4WD
• Suspension: Solid axle 4-link
• Power Type: Brushless electric
• Motor: Spektrum Firma 3668 2800Kv 4-pole brushless
• ESC: Spektrum Firma 130A Black Edition Smart brushless 2S-4S
• Steering Servo: Spektrum S680 high-torque metal-top steel-geared 25T
• Receiver: Spektrum 6-channel DRIVE receiver
• Transmitter: Spektrum DX3 Smart DSMR
• Battery Compatibility: 2S, 3S or 4S LiPo
• Battery Connector: IC5
• Top Speed: 45+ mph on a suitable 4S setup
• Length: 561 mm
• Width: 411 mm
• Height: 310 mm
• Wheelbase: 381 mm
• Weight: 5,080 g
• Chassis: 6061-T6 aluminium twin vertical plate
• Gear Pitch: Mod-1
• Pinion Gear: 14T
• Internal Gear Ratio: 10.16:1
• Final Drive Ratio: 18.76:1
• Differential Type: Gear
• Shock Type: Oil-filled with internal springs
• Wheel Size: 2.6 inch
• Wheel Hex: 17 mm
• Tyres: Officially licensed BKT chevron all-terrain
• Drive Functions: Forward, brake and reverse
• Technology: Spektrum Smart and DRIVE
• Colour: Green Grave Digger

Includes

• 1 x Losi LMT 2.0 Grave Digger 1/8 4WD RTR RC Monster Truck
• 1 x Spektrum DX3 Smart DSMR LMT 2.0 transmitter
• 1 x Spektrum 6-channel DRIVE receiver
• 1 x Spektrum Firma 130A Black Edition Smart brushless ESC
• 1 x Spektrum Firma 3668 2800Kv 4-pole brushless motor
• 1 x Spektrum S680 high-torque metal-top steel-geared steering servo
• 4 x AA transmitter batteries
• Miscellaneous tools
• Instruction manual

FAQ

What does Freestyle Mode do on the Losi LMT 2.0? Freestyle Mode uses Spektrum DRIVE Technology to electronically assist the truck while holding wheelies, balancing stoppies and driving on two wheels in a bicycle manoeuvre.

Can the Losi LMT 2.0 run on 2S, 3S and 4S batteries? Yes. The installed Spektrum Firma brushless system supports 2S, 3S and 4S LiPo batteries with an IC5 connection.

Does the Losi LMT 2.0 include a battery and charger? No. A compatible 2S to 4S LiPo battery with IC5 connector and a suitable LiPo charger are required separately.

Is the Grave Digger body officially licensed? Yes. LOS04028T1 uses an officially licensed Monster Jam Grave Digger body with scale details including exhaust headers, LED headlights, a driver figure and chassis sponsor panels.

Important Notes

• Drive battery is not included.
• LiPo battery charger is not included.
• 45+ mph capability requires a suitable 4S LiPo setup and appropriate running conditions.
• Freestyle manoeuvres depend on drive mode, available traction and driver input.
• Always follow the supplied LiPo charging, storage and operating instructions.
