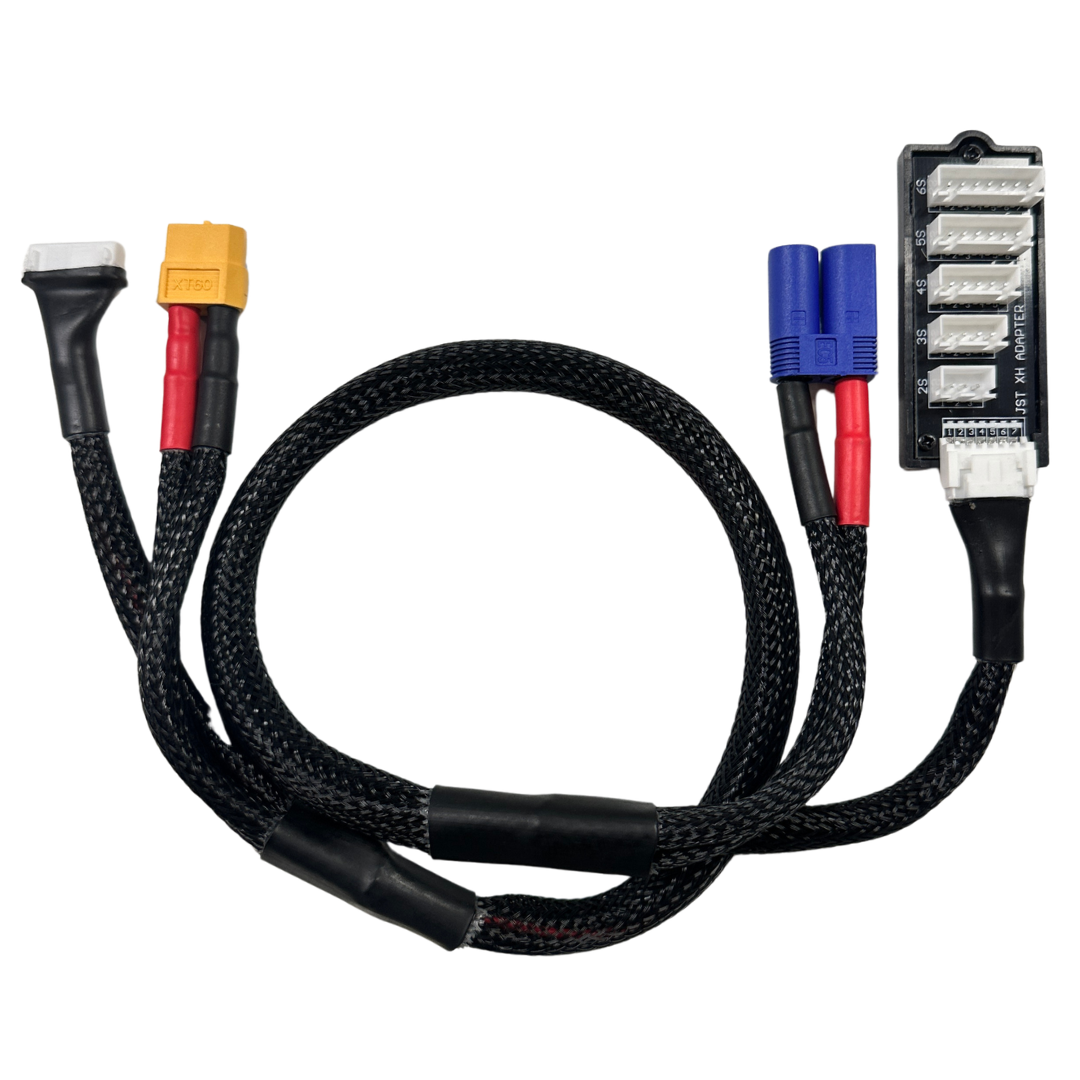

OZRC GD Series: EC5 Charge Lead for XT60 Charger w/ Balance for 2-6s LiPo 60cm

The OZRC GD Series EC5 to XT60 Charge Lead is designed for safely charging larger LiPo batteries while providing greater flexibility and convenience. Featuring a built-in balance board supporting 2S to 6S batteries, this 60cm lead allows batteries to remain securely inside a LiPo safety bag while charging without the hassle of short charger cables. Compatible with both EC5 and IC5 battery connectors, it is ideal for high-capacity RC battery setups.

Features

• 60cm heavy-duty charge lead for increased charging flexibility

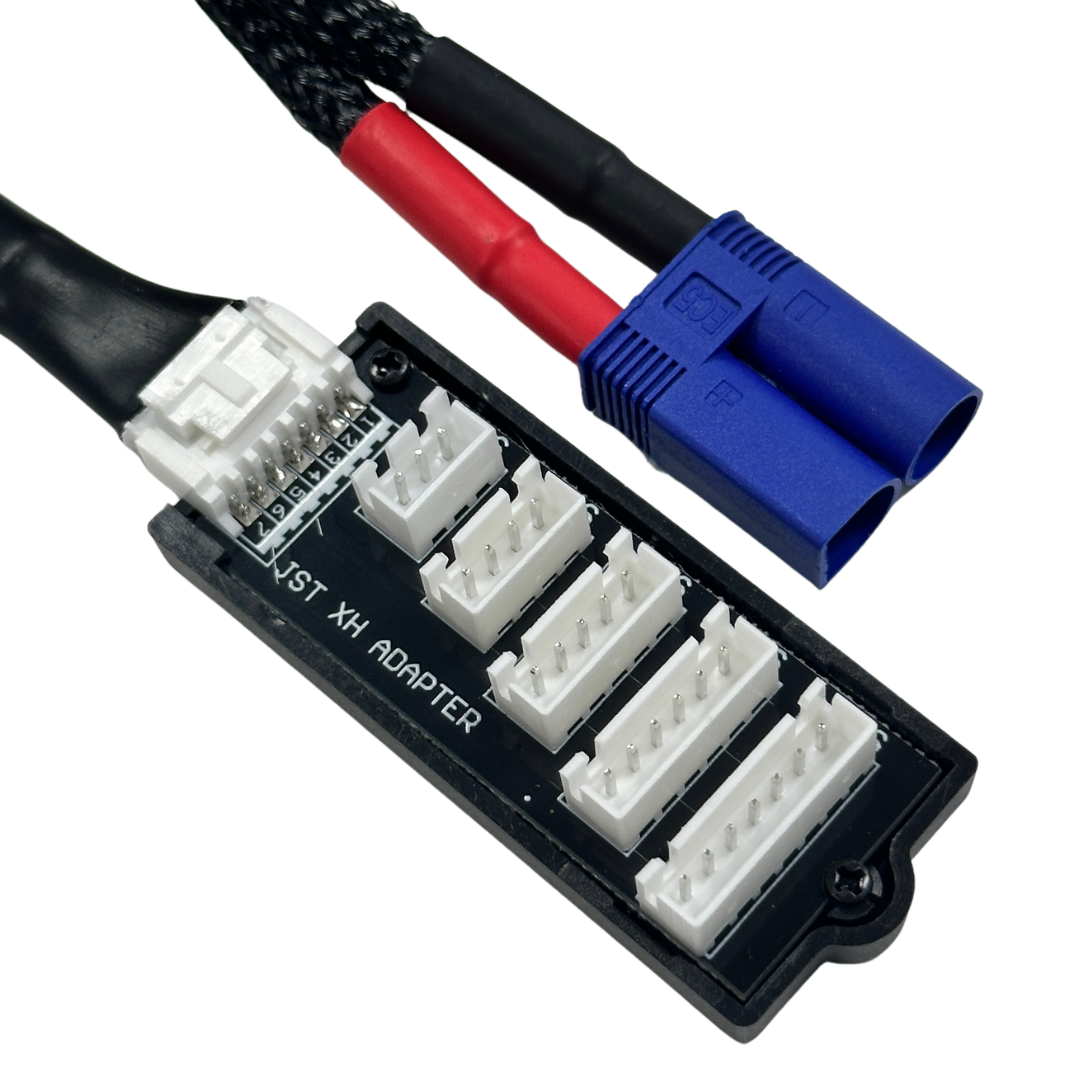

• Built-in balance board supports 2S, 3S, 4S and 6S LiPo batteries
• EC5 male connector compatible with EC5 and IC5 battery plugs

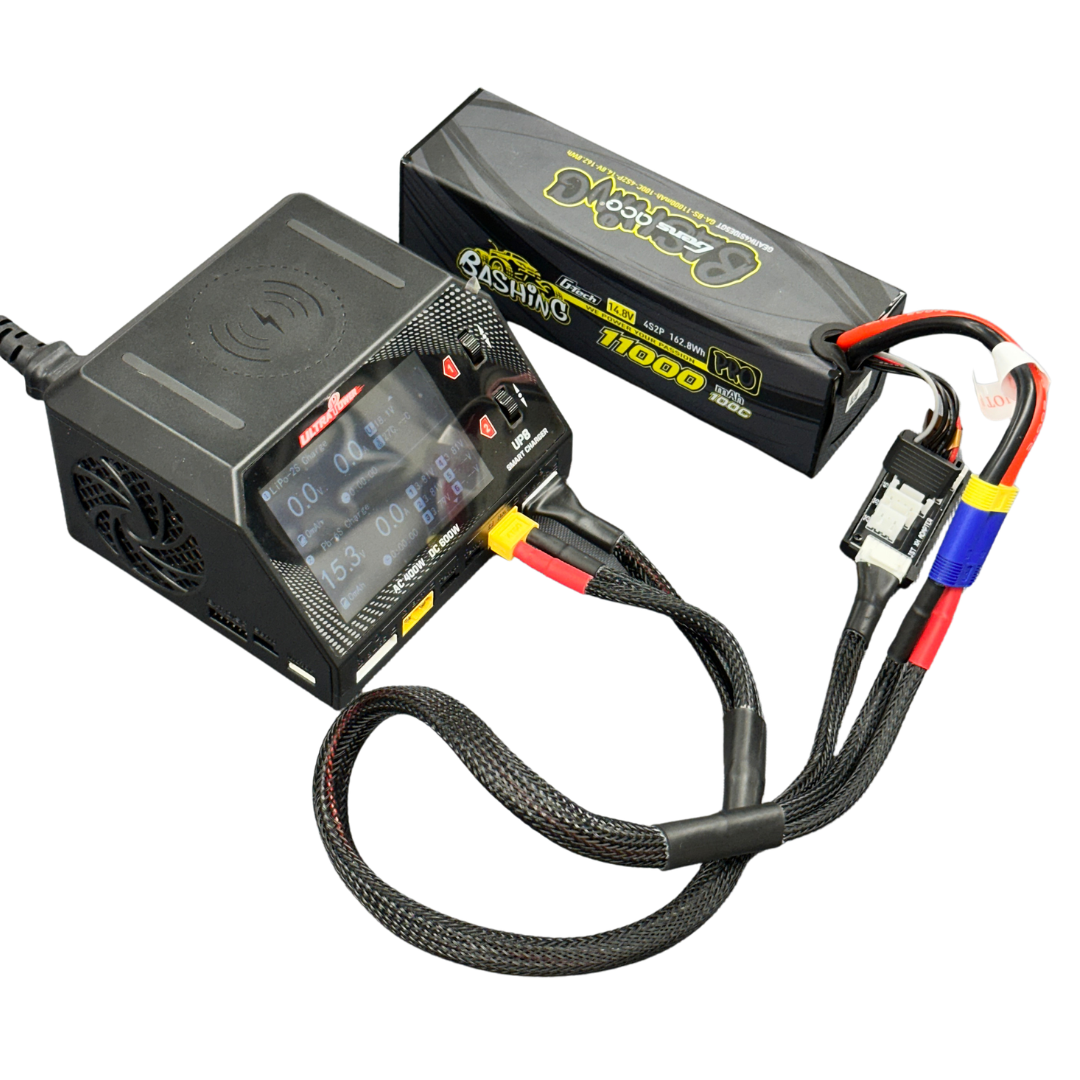

• XT60 female connector suits a wide range of RC battery chargers
• 12AWG high-current silicone wire for efficient power transfer

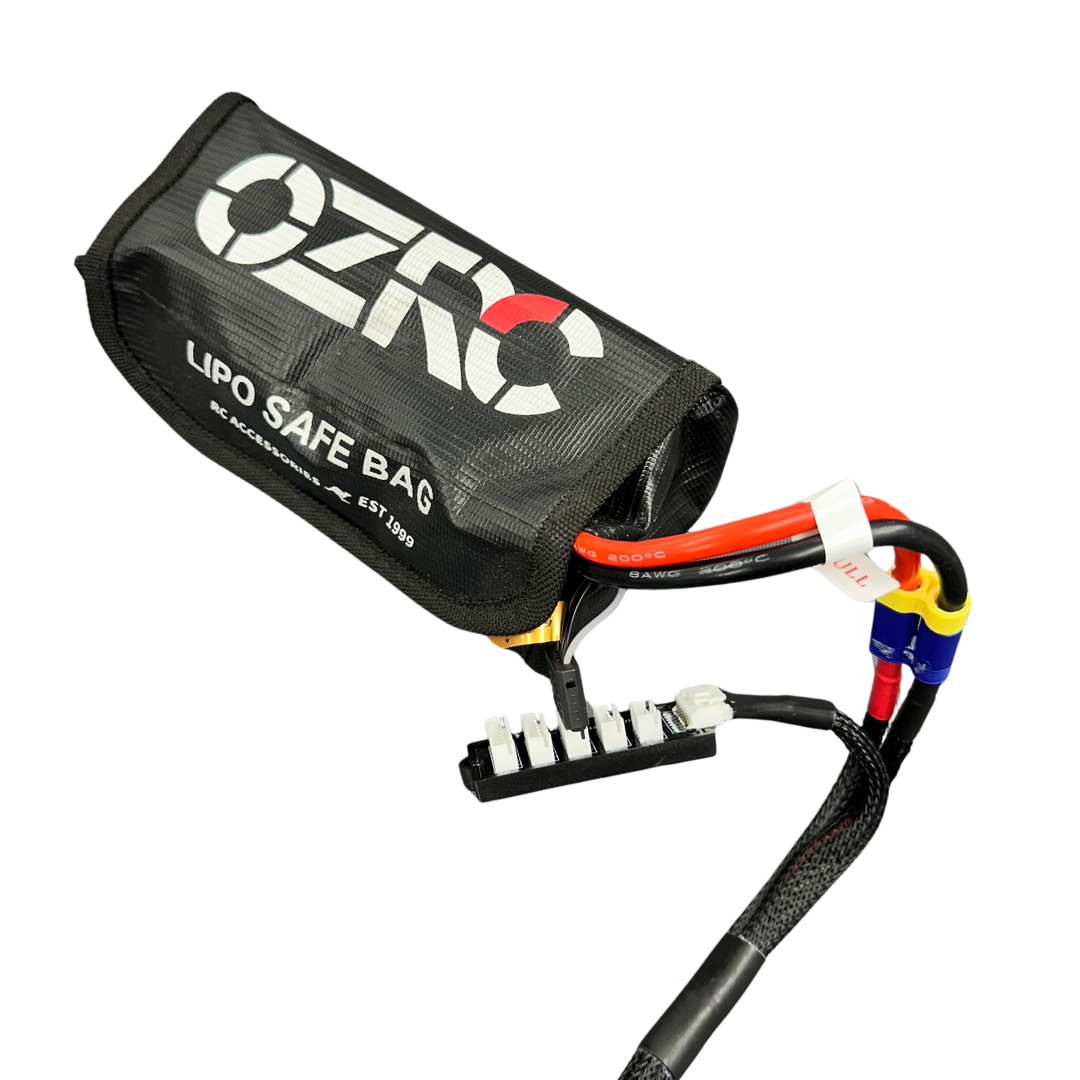

• Ideal for charging batteries safely inside LiPo protection bags
• Suitable for larger high-capacity LiPo battery packs

Specifications

• Brand: OZRC
• Series: GD Series
• Connector 1: EC5 Male
• Connector 2: XT60 Female
• Wire Gauge: 12AWG
• Cable Length: 60cm
• Balance Support: 2S / 3S / 4S / 6S
• Supported Battery Voltages: 7.4V / 11.1V / 14.8V / 22.2V
• Compatible Battery Connectors: EC5 and IC5

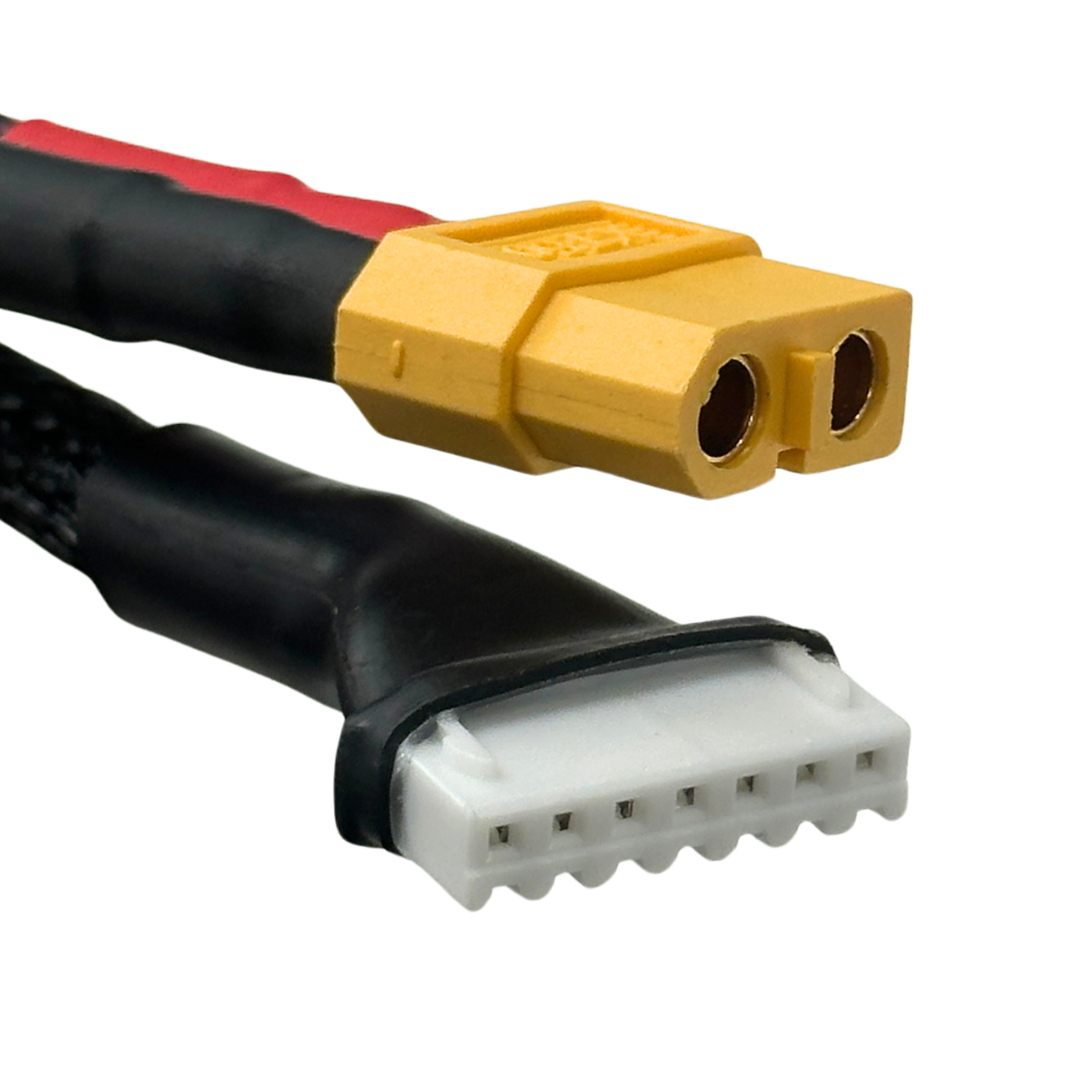

XT60 Connector Specifications

• Continuous Current Rating: Up to 60A
• Peak Current Rating: Up to 100A
• Connector Type: XT60 Female
• Material: Gold-plated brass contacts with nylon housing
• Designed for secure high-current RC charging applications

EC5 Connector Specifications

• Continuous Current Rating: Up to 120A
• Connector Type: EC5 Male
• Compatible With: EC5 and IC5 battery connectors
• 5mm gold-plated bullet connectors for low resistance connection
• High-temperature nylon housing for durability and safety

Includes

• 1x OZRC GD Series EC5 to XT60 Charge Lead 60cm


Important Notes

• Always verify correct polarity before connecting batteries and chargers
• Suitable for LiPo battery charging only
• Use only with compatible balance charging equipment
