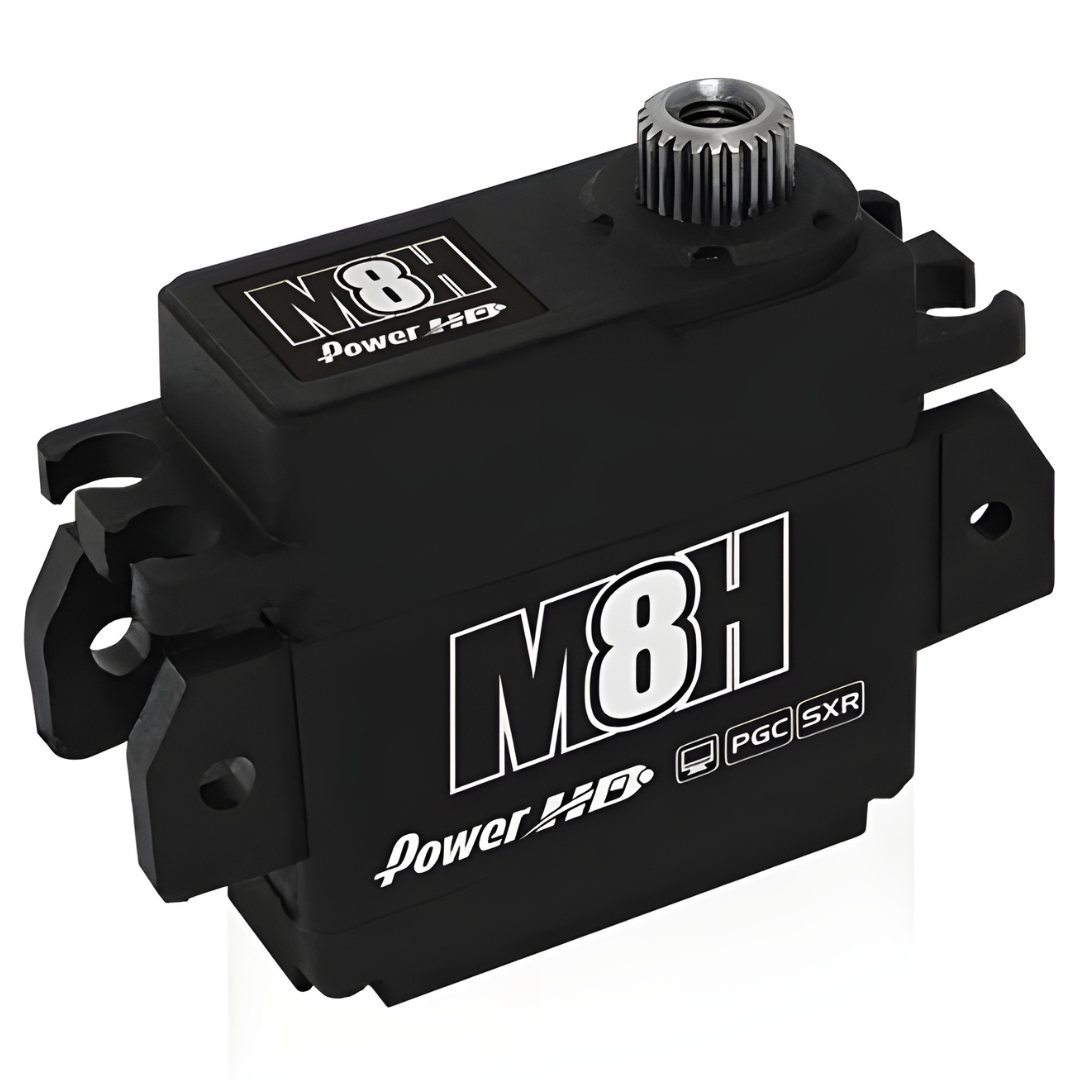

Power HD M8H 1/12 RC Racing Pan Car Servo Coreless 25T PHD-M8H
Couldn't load pickup availability
The Power HD M8H is a premium low-profile digital servo engineered specifically for competitive 1/12 scale RC pan car racing. Featuring a high-performance coreless motor, titanium and steel gears, and support for advanced high-speed radio protocols, the M8H delivers outstanding steering precision, rapid response and exceptional reliability for serious racers.
Features
- Designed specifically for 1/12 scale RC pan car racing
- High-performance coreless motor for smooth, precise steering response
- Titanium and steel gear train for maximum durability
- Supports FlySky i-BUS2 protocol with servo parameter setup, data logging and warning functions
- Compatible with the Power HD PG-CB63 programming box
- Supports high-speed receiver modes for leading radio systems:
- FlySky Noble NB4 Pro: NOR, SR and SFR
- Futaba: NOR, SR and UR
- SANWA: NOR, SHR, SSR, SUR and SXR
- Compact low-profile design ideal for competitive chassis layouts
- Direct fit servo position for the Schumacher Eclipse 5
Specifications
- Brand: Power HD
- Model: M8H
- Manufacturer Part Number: PHD-M8H
- Servo Type: Digital Low Profile
- Motor Type: Coreless
- Gear Material: Titanium / Steel
- Spline: 25 Tooth
- Operating Voltage: 4.8–8.4V DC
- Torque:
- 4.5kg-cm @ 4.8V
- 6.3kg-cm @ 6.0V
- 7.5kg-cm @ 7.4V
- 8.5kg-cm @ 8.4V
- Speed:
- 0.110 sec/60° @ 4.8V
- 0.085 sec/60° @ 6.0V
- 0.073 sec/60° @ 7.4V
- 0.065 sec/60° @ 8.4V
- Dimensions: 27.2 × 12.1 × 28.2mm
- Weight: 18.0g
Includes
- 1 × Power HD M8H Digital Servo
FAQ
What vehicles is the Power HD M8H designed for? The M8H has been developed specifically for competitive 1/12 scale RC pan car racing and is also suitable for other applications requiring a compact, high-speed, low-profile servo.
Does the servo include a servo horn? No. A 25-tooth servo horn is required and must be purchased separately.
Can this servo be programmed? Yes. The M8H supports the Power HD PG-CB63 programming box and FlySky i-BUS2 functions including parameter adjustment, data logging and warning features.
Will it fit the Schumacher Eclipse 5? Yes. The Power HD M8H is a direct fit in the standard servo mounting position of the Schumacher Eclipse 5.
Important Notes
- Requires a 25-tooth servo horn (not included).
- Compatible with the Power HD PG-CB63 programming box.
- Supports high-speed operation with compatible FlySky, Futaba and SANWA radio systems.
- Please confirm your receiver and radio system support the desired high-speed mode before use.
