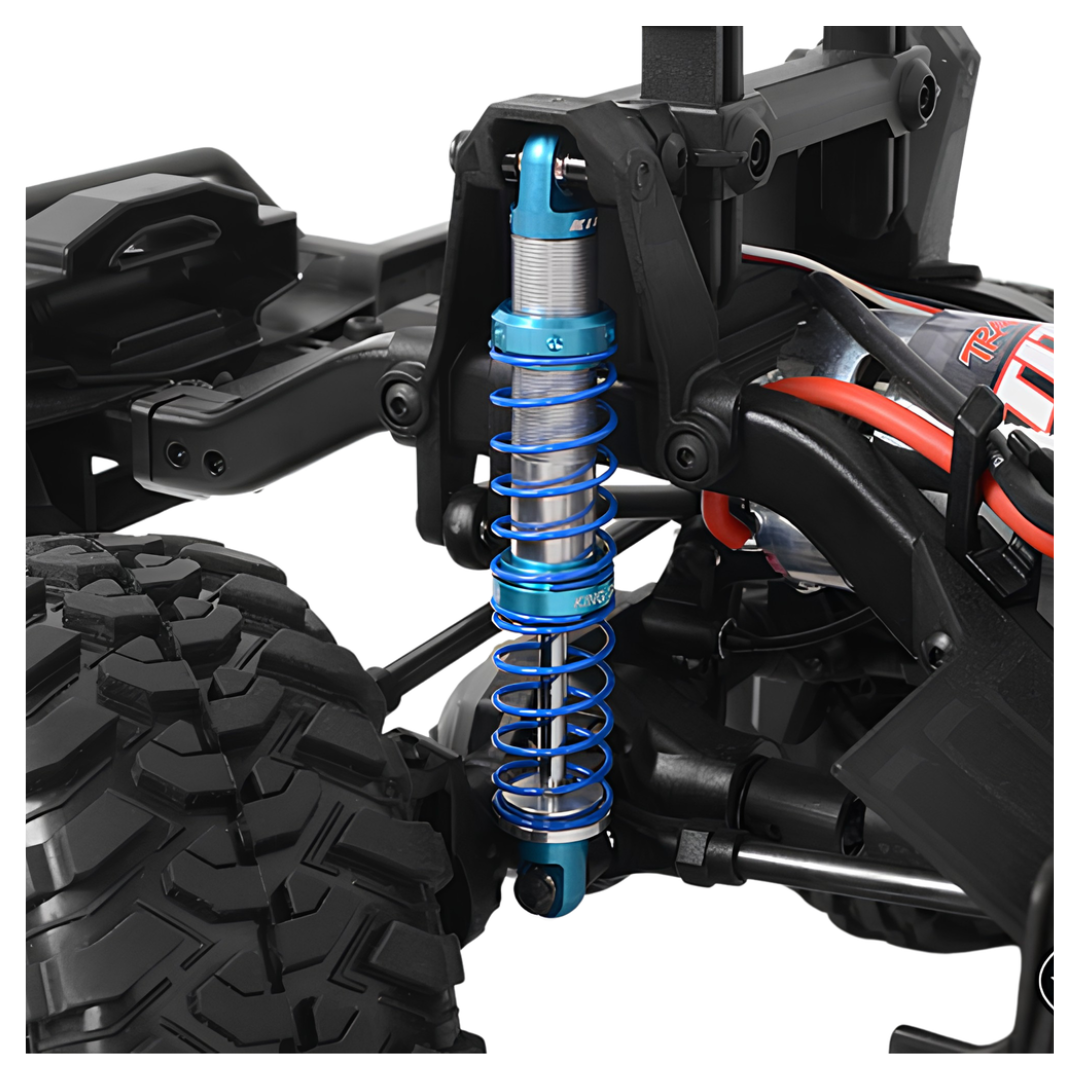

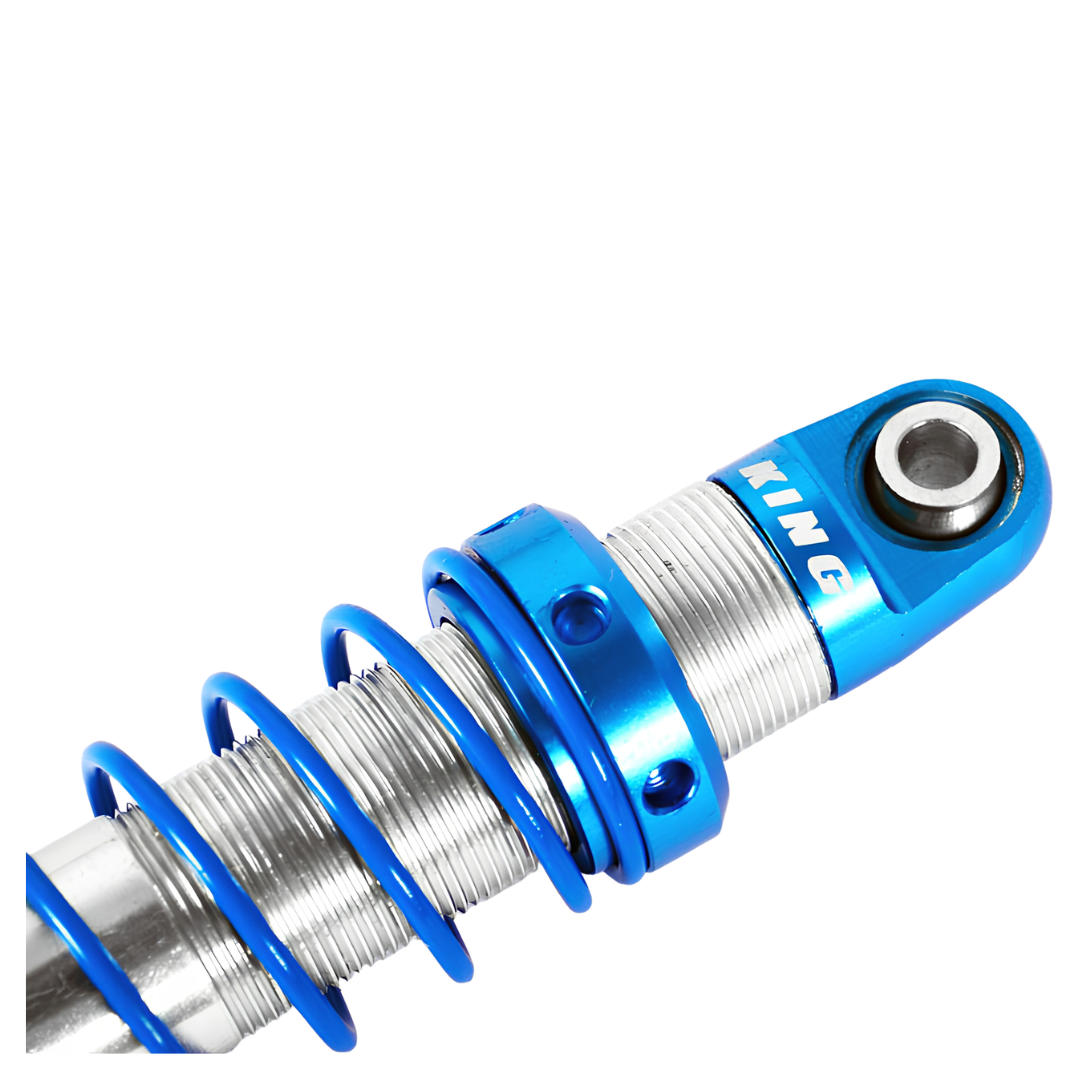

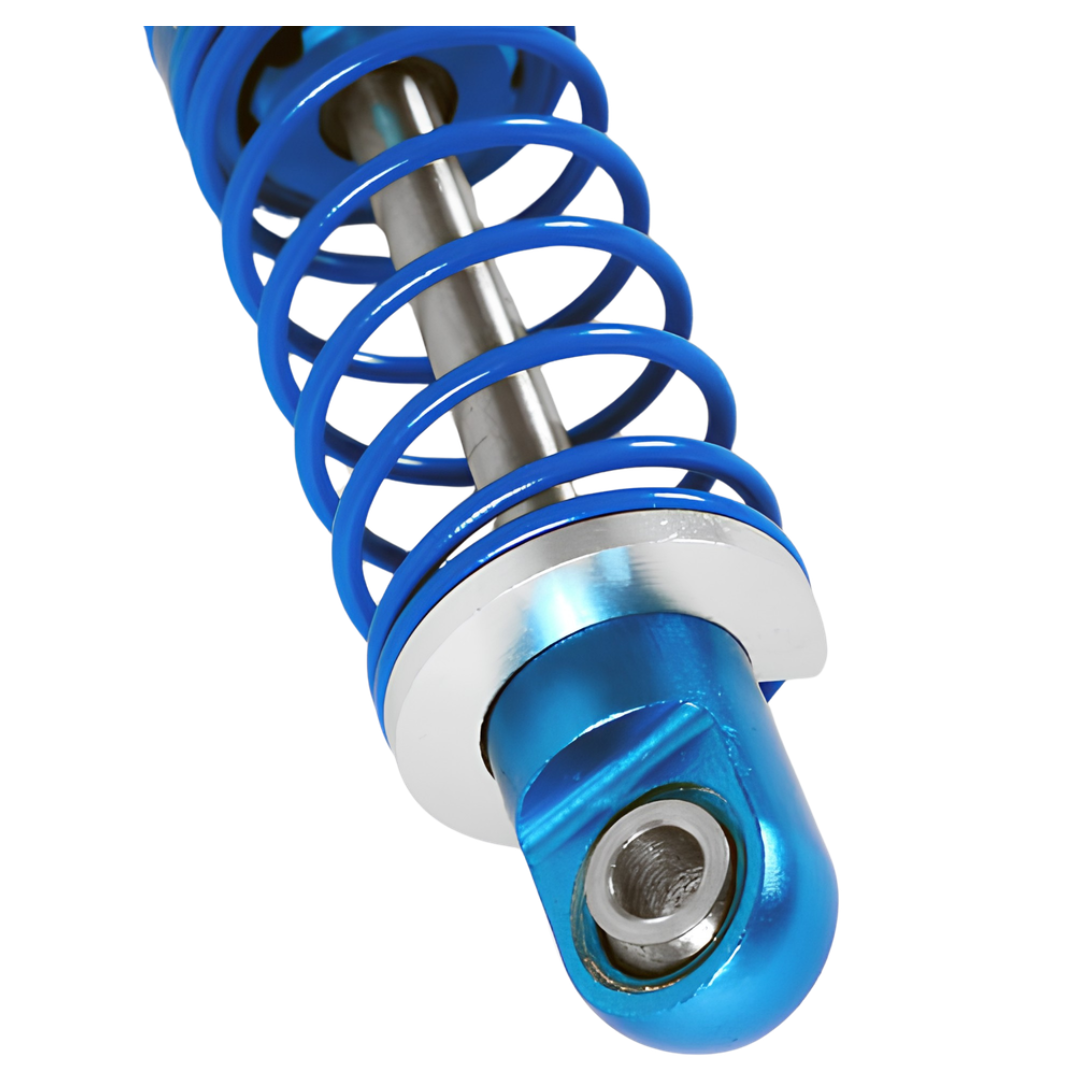

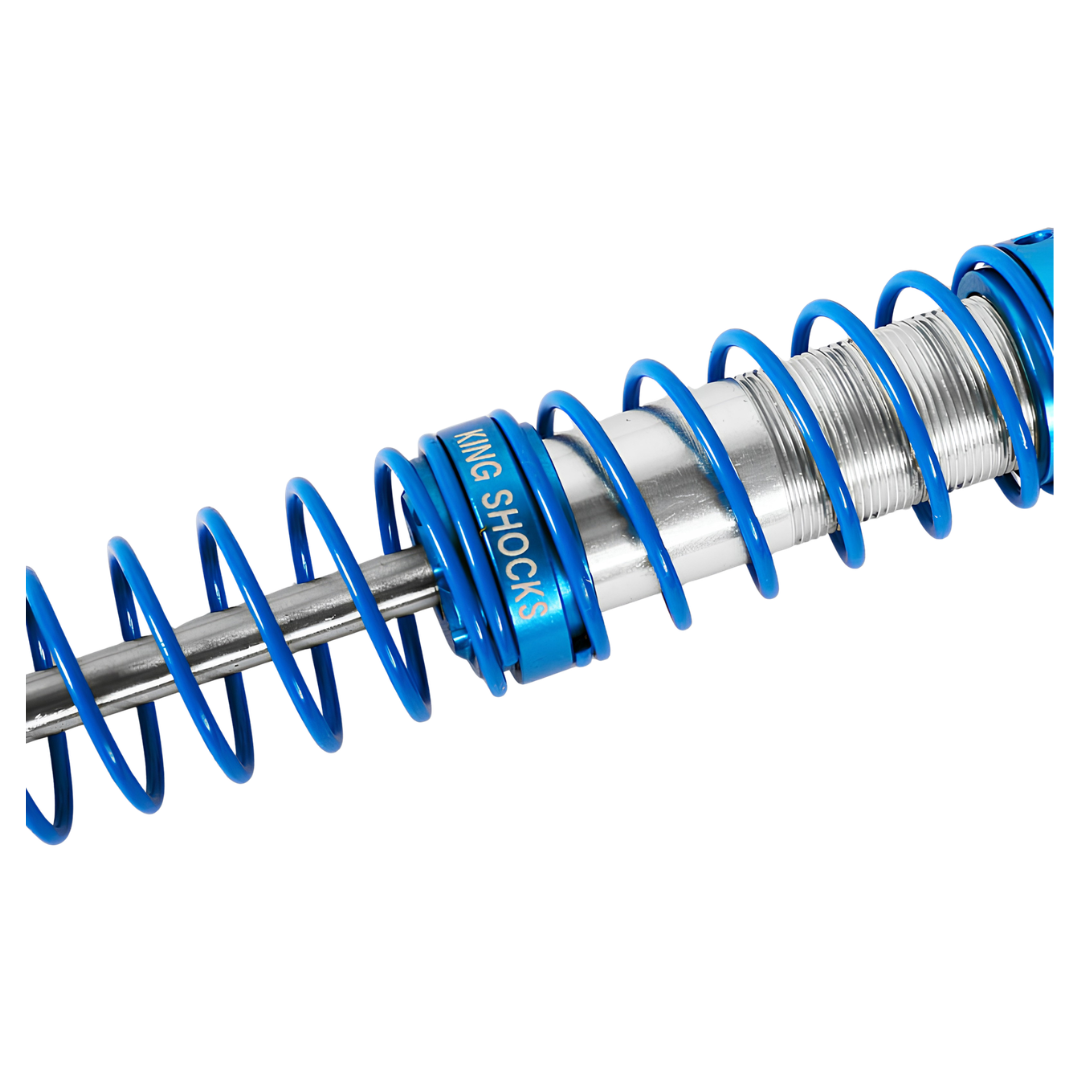

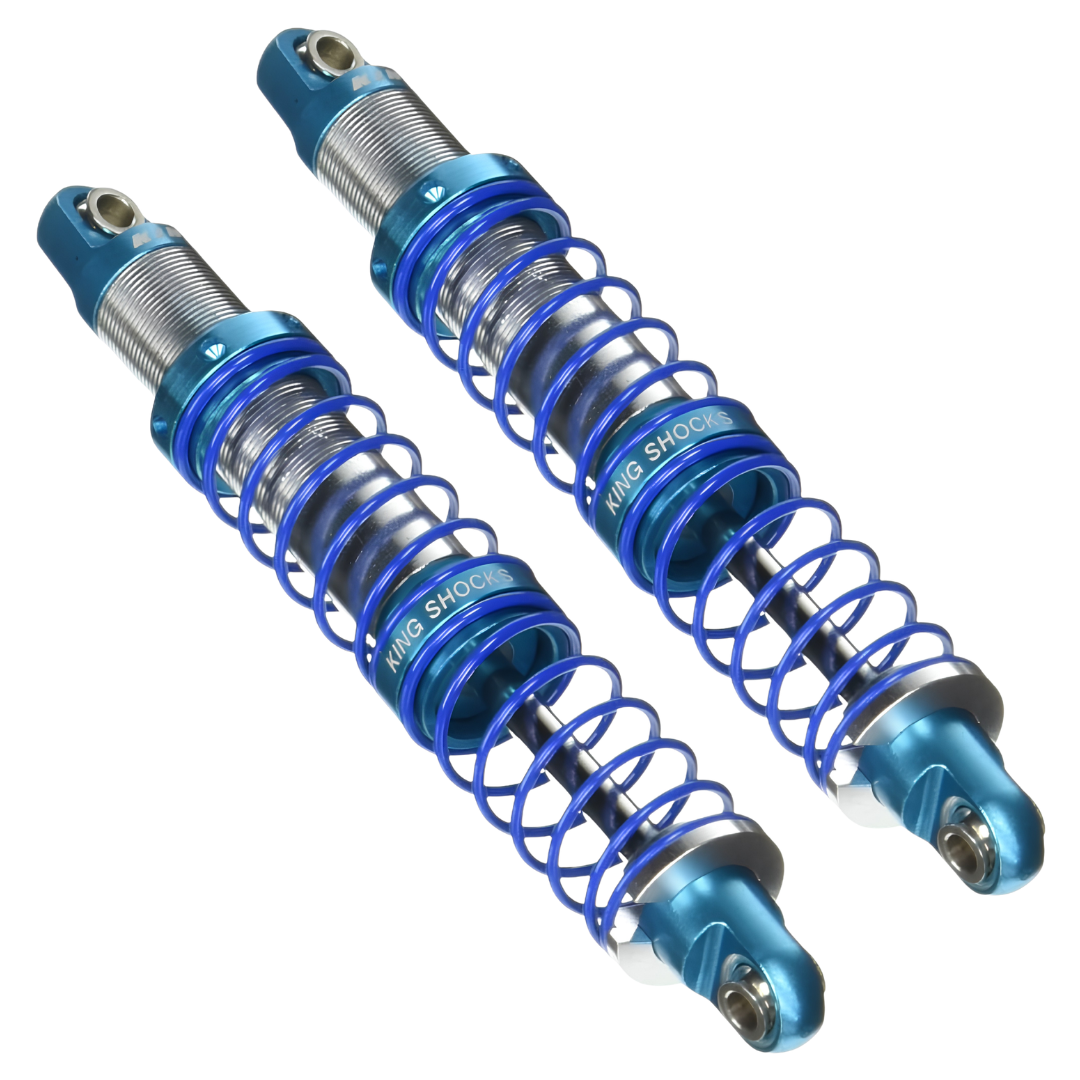

The RC4WD King Off-Road Scale Dual Spring Shocks are officially licensed by King Off-Road Shocks and designed for superior performance in rock crawling and scale builds. With a dual spring design and precision-machined billet aluminium construction, these shocks provide durability and realism for your RC vehicle.
Features
- Officially licensed by King Off-Road Shocks
- Machined billet aluminium construction
- Dual spring design for enhanced performance
- King branding on top and retainer ring
Specifications
- Hole to hole (compressed): 66mm (2.59in)
- Hole to hole (uncompressed): 90mm (3.54in)
- Overall length: 99mm (3.89in)
- Travel length: 24mm (0.94in)
- Shock body outer diameter: 10mm (0.39in)
- Spring body outer diameter: 14.5mm (0.57in)
- Shaft diameter: 3.5mm (0.17in)
- Weight: 26g (0.9oz)
Includes

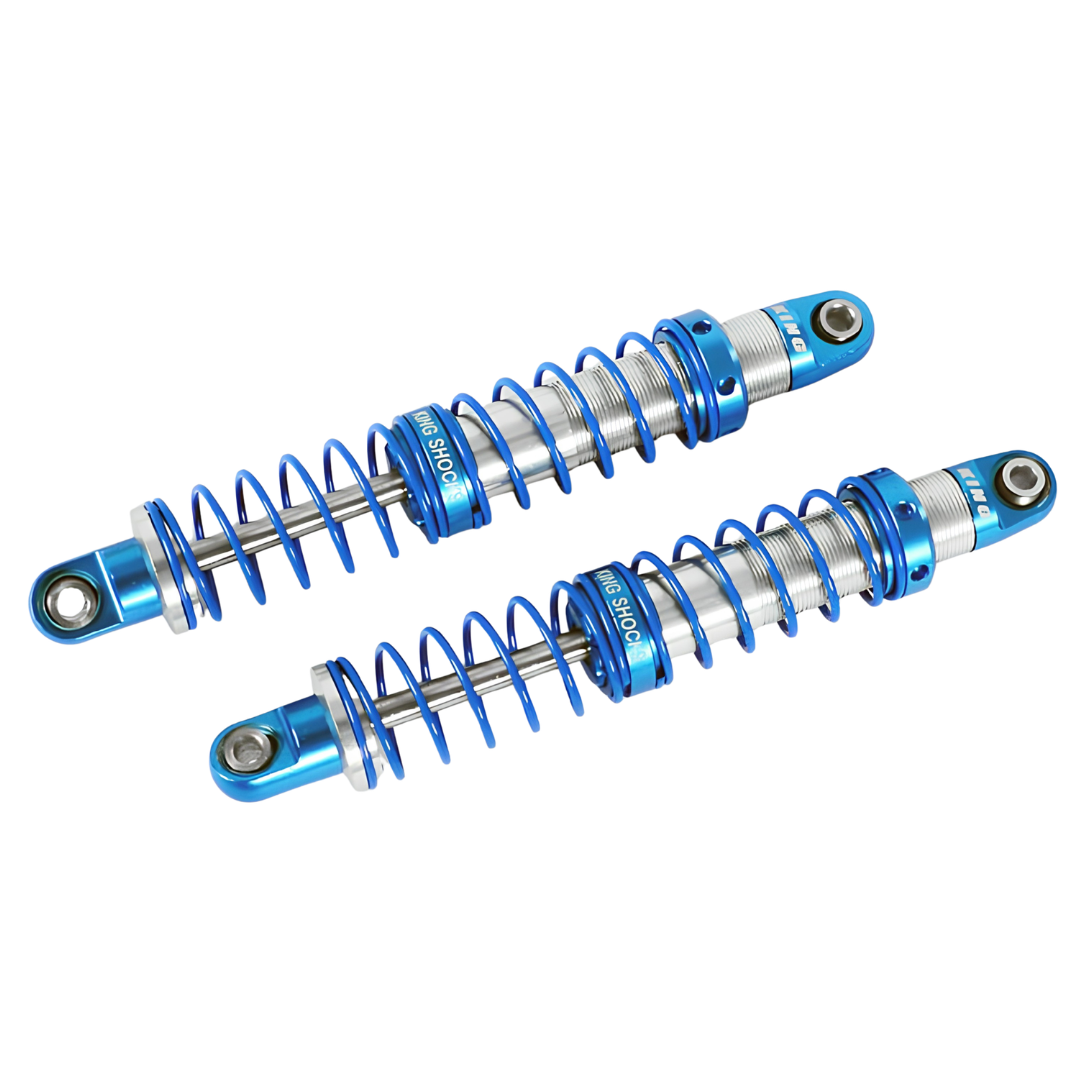

- 2x RC4WD King Off-Road Scale Dual Spring Shocks (90mm)
Replacement Parts
- Center Spring Retainer for King Offroad Shocks (Z-S0706)
- Lower Spring Retainer for King Offroad Shocks (Z-S0707)
- Replacement Shock Shafts for King Shocks 90mm (Z-S0785)
- Shock Cap for Top of King Offroad Shocks (Z-S0866)
- Rebuild Kit for Scale King ARB & Superlift Shocks (Z-S0788)
Optional Parts
- 90mm King Scale Shock Spring Assortment (Z-S1119)
- Shock Cap for Top of King Offroad Shocks (Z-S0866)
Important Notes
- Fits Gmade Sawback
- Fits Traxxas TRX-4 but requires 2mm Black Spacer with M3 Hole (Z-S0600) and 3mm Black Spacer with M3 Hole (Z-S0806)
- Fits front of Traxxas Telluride 4x4 but requires 4x M3 x 14mm BHCS (Z-S0655)
- Fits Traxxas Rustler Front Axle but requires Steel Button Head Cap Screws M3 x 12mm (Z-S0654)
- To fit Axial SCX10 II, a 3mm spacer on the top mounting point is needed (Z-S0806)
- Use blue (medium) thread lock on the bottom shock shaft rod end before installation
- For Axial SCX10-3 installation, use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
