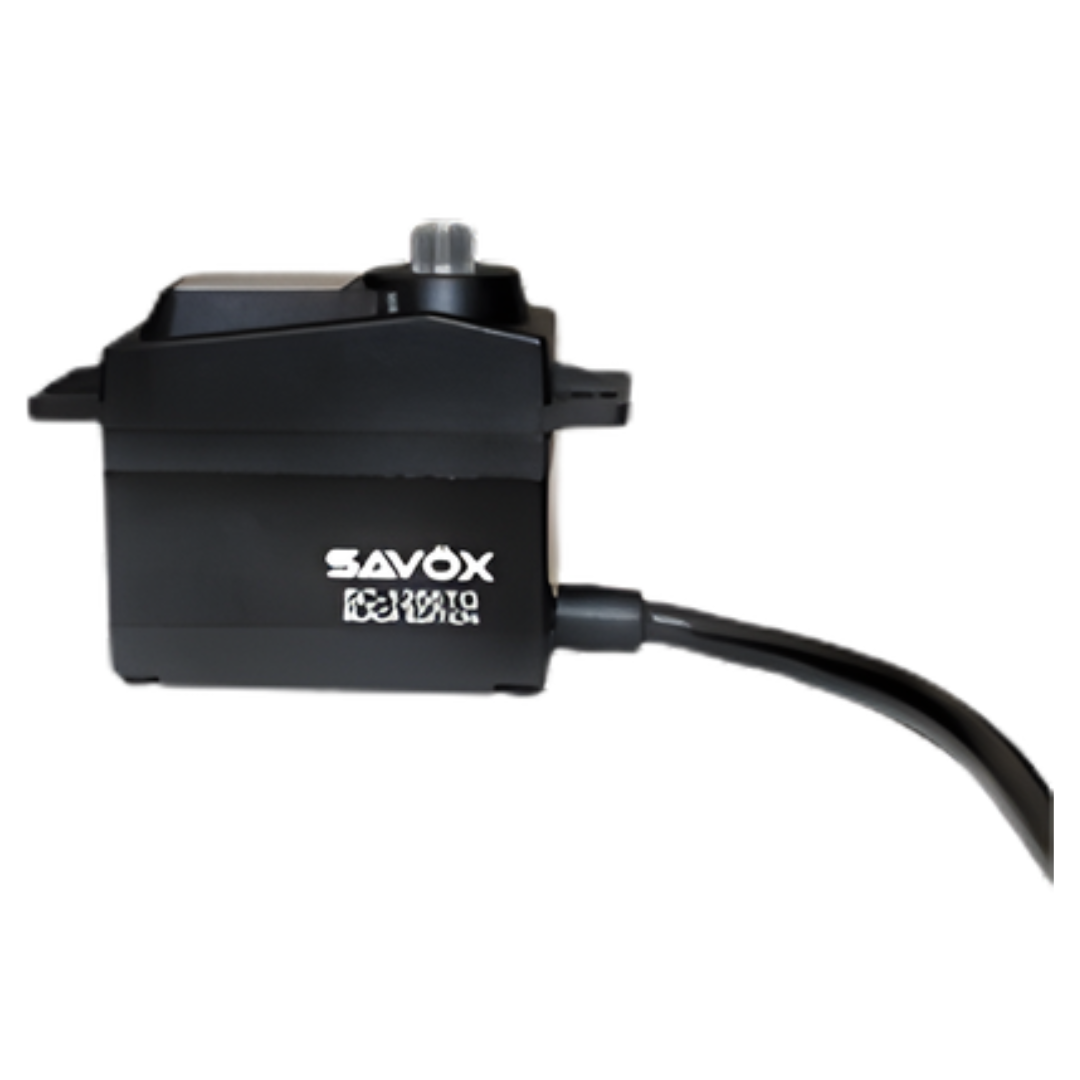

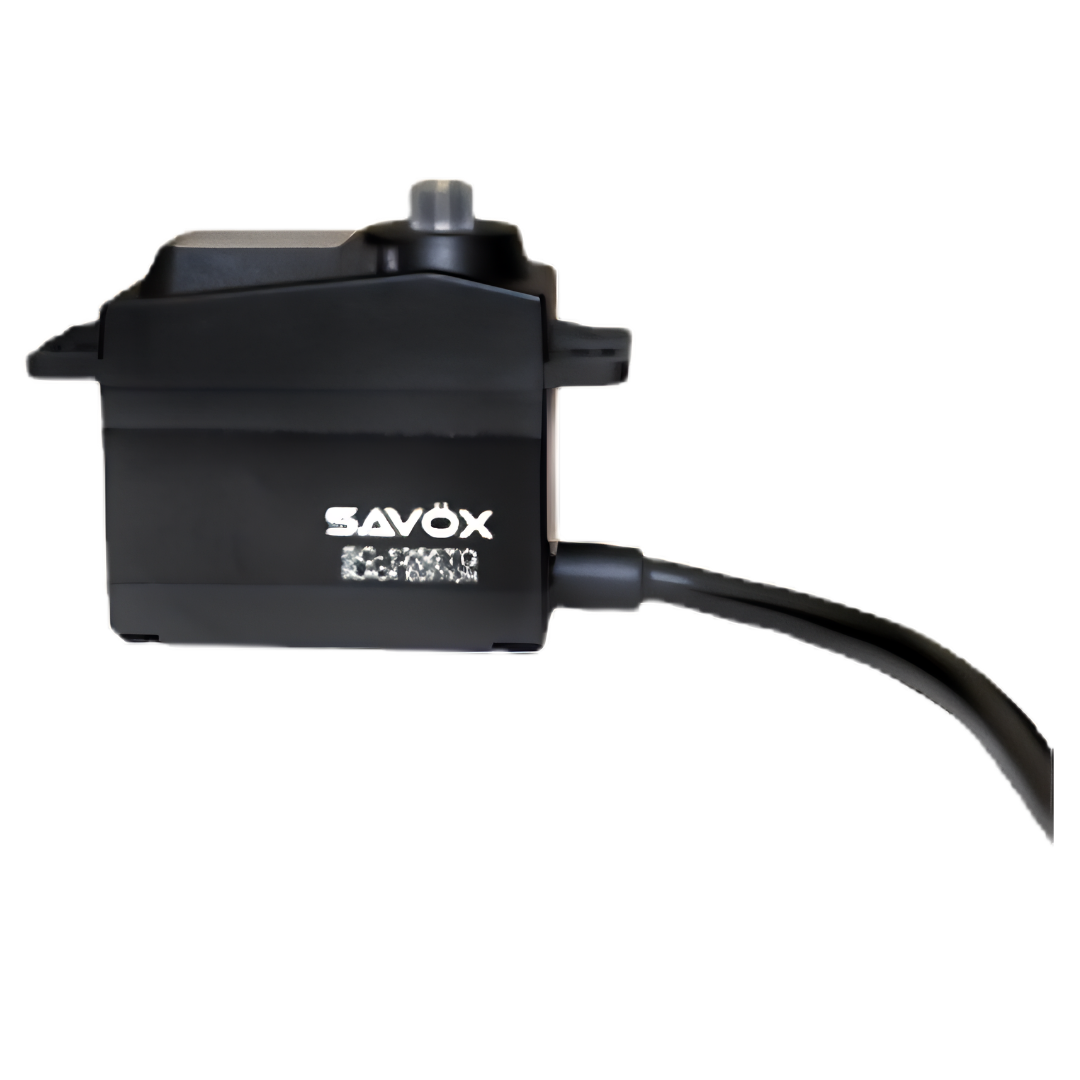

Savox SC-1256TG Black Edition 20kg Titanium Gear Servo SAV-BE-SC1256TG

The Savox SC-1256TG Black Edition is a standard-size digital high-torque servo for RC cars trucks buggies and crawlers, combining up to 20kg-cm torque with a coreless motor titanium gear train and aluminium centre case for strong responsive steering performance

Features

• Black Edition version of the proven Savox SC-1256TG
• Standard-size digital servo
• Up to 20kg-cm torque at 6.0V
• Coreless motor for smooth responsive operation
• Titanium and aluminium gear train
• Dual ball bearing support
• Aluminium centre case helps dissipate heat
• 25T output spline
• Suitable for steering applications in compatible RC cars trucks buggies and crawlers

Specifications

• Brand: Savox
• Model: SC-1256TG Black Edition
• Product Type: Digital High-Torque Servo
• Servo Size: Standard
• Operating Voltage: 4.8V to 6.0V
• Torque at 4.8V: 16.0kg-cm
• Torque at 6.0V: 20.0kg-cm
• Speed at 4.8V: 0.18 sec/60°
• Speed at 6.0V: 0.15 sec/60°
• Motor Type: Coreless
• Gear Type: Titanium and Aluminium
• Bearings: Dual Ball Bearing
• Output Spline: 25T
• Case: Aluminium Centre with Composite Sections
• Dimensions: Approximately 40.3 x 20.2 x 37.2mm
• Weight: Approximately 52.4g Excluding Lead and Horn
• Barcode: 4710006993218
• Manufacturer Part Number: SAV-BE-SC1256TG

Includes

• 1 x Savox SC-1256TG Black Edition Digital Servo
• Servo Horn and Mounting Hardware as Supplied by Savox

FAQ

Is the Savox SC-1256TG Black Edition a high-voltage servo? No, the SC-1256TG Black Edition is specified for 4.8V to 6.0V operation and should not be treated as a 7.4V or 8.4V high-voltage servo

How much torque does the SC-1256TG produce? The servo produces 16.0kg-cm at 4.8V and up to 20.0kg-cm at 6.0V

What servo horn spline does it use? The SC-1256TG uses a 25T output spline with an approximately 6mm output shaft

Is the SC-1256TG waterproof? No, current Black Edition retailer specifications do not rate this servo as waterproof so it should not be treated as suitable for submerged operation

Important Notes

• Maximum 20kg-cm torque is achieved at 6.0V
• Do not supply the servo with 7.4V or 8.4V unless using a different Savox model specifically rated for high-voltage operation
• Confirm servo dimensions spline type and receiver or BEC voltage before installation
