Savox Black Edition SC1267SG 21kg High Torque Digital Servo SAV-BE-SC1267SG

Only 2 left
SKU: SAV-BE-SC1267SG
(0)
$109.95
Checking status...

CALL US EMAIL US
Ask the experts Staff

More from Savox

Savox SW0241MG 1/5 Waterproof Servo 40KG High Voltage Metal Gear
Savox SW0241MG 1/5 Waterproof Servo 40KG High Voltage Metal Gear $129.95
Savox Black Edition Servo 10kg High Speed Titanium
Savox Black Edition Servo 10kg High Speed Titanium $115.00
Savox High Voltage Micro Tail Servo Soft Start 111.1oz 7.4V SV1250MGP
Savox High Voltage Micro Tail Servo Soft Start 111.1oz 7.4V SV1250MGP $109.00
View All Savox

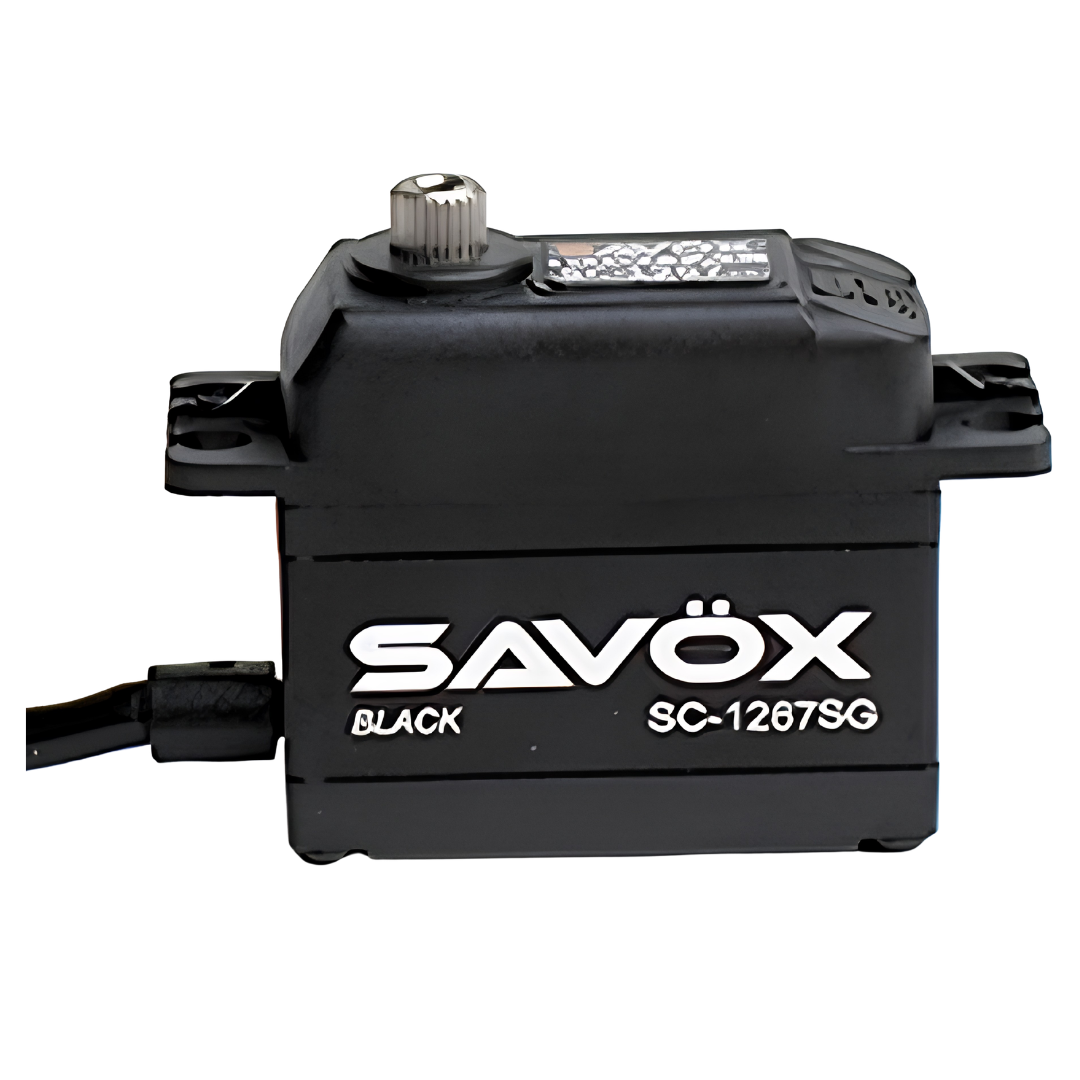

The Savox Black Edition SC1267SG High Torque Digital Servo combines premium performance, lightweight construction and exceptional durability for demanding RC applications. Featuring a coreless motor, titanium geartrain and black aluminium centre case, this high-performance servo delivers impressive speed, precision and up to 21kg-cm of torque, making it ideal for crawlers, racers, drift cars and large-scale RC vehicles.

Features

  • Black Edition Design: Premium black aluminium centre case with matching black wiring
  • High Torque Performance: Delivers up to 21kg-cm torque at 7.4V
  • Coreless Motor Technology: Provides high speed, smooth operation and excellent efficiency
  • Titanium Geartrain: Engineered for exceptional durability and long service life
  • 12-Bit Resolution: Offers precise control with 4096-step digital positioning accuracy
  • Dual Ball Bearings: Enhances smooth operation and reduces drivetrain wear
  • Lightweight Construction: Designed to maximise performance without unnecessary weight
  • Aluminium Case Cooling: Improves heat dissipation during extended operation
  • Short 200mm Black Lead: Clean installation for modern RC builds

Specifications

  • Brand: Savox
  • Model: SC1267SG Black Edition
  • SKU: SAV-BE-SC1267SG
  • Barcode: 4710006993249
  • Motor Type: Coreless
  • Gear Type: Titanium
  • Bearing Type: Dual Ball Bearing (2BB)
  • Case Material: Aluminium
  • Spline Count: 25 Tooth
  • Dimensions: 40.3 x 20.2 x 37.2mm
  • Weight: 62g
  • Lead Length: 200mm

Performance

  • 4.8V Speed: 0.13 sec/60°
  • 4.8V Torque: 130 oz-in
  • 6.0V Speed: 0.11 sec/60°
  • 6.0V Torque: 180.5 oz-in
  • 7.4V Speed: 0.09 sec/60°
  • 7.4V Torque: 277.7 oz-in (approximately 21kg-cm)

Includes

  • 1 x Savox Black Edition SC1267SG Digital Servo

Important Notes

  • Compatible with 25T servo horns
  • Suitable for a wide range of RC vehicle applications including crawlers, touring cars, drift cars and off-road vehicles
  • Ensure your receiver and power system can support high-performance digital servos
