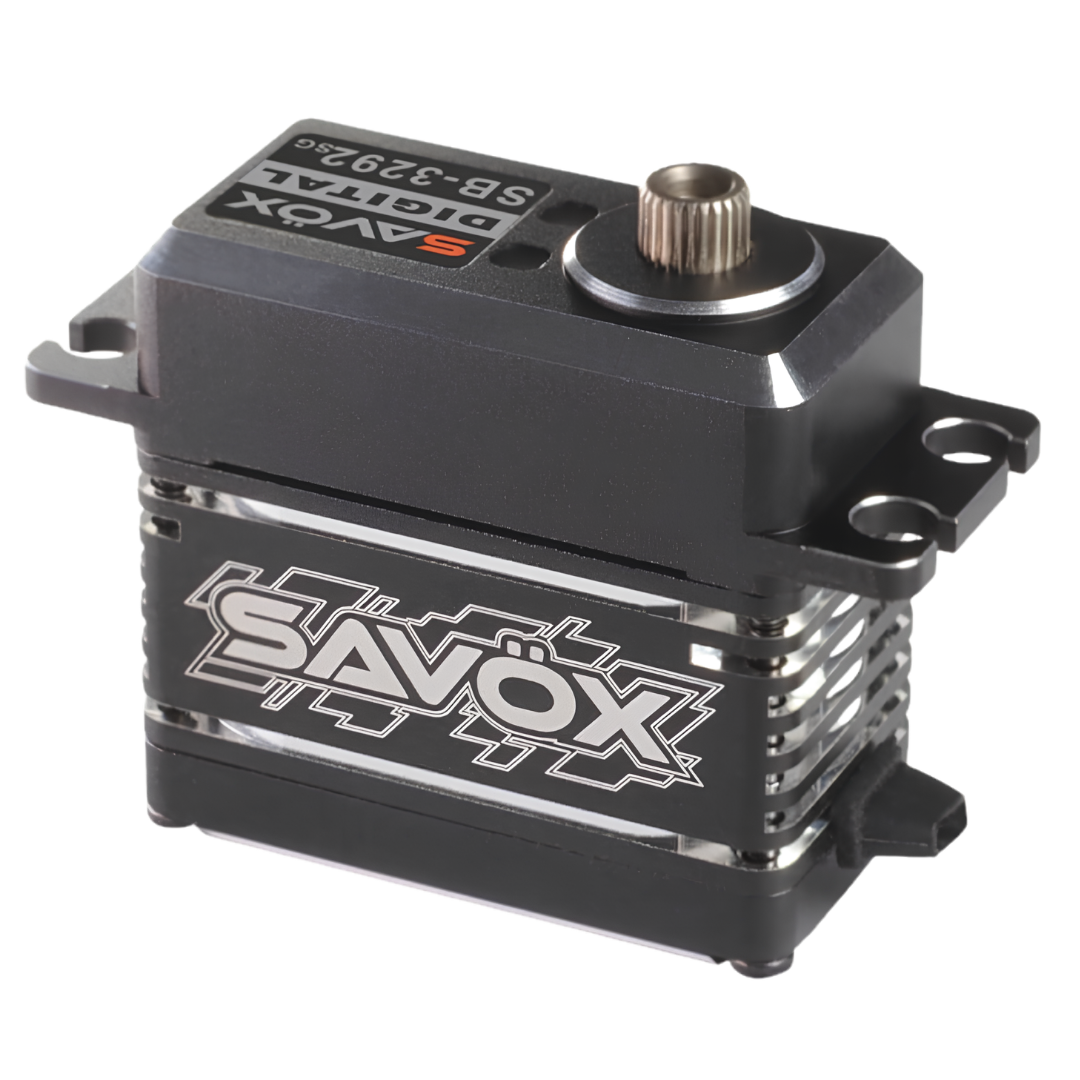

Savox SB-3292SG Monster Torque HV Brushless Servo Black SAV-SB3292SG

The Savox SB-3292SG is a standard-size high-voltage digital brushless RC servo designed for high-load steering and control applications, delivering up to 55kg/cm torque and 0.055 sec/60° speed at 8.4V with specialised steel gears and a full aluminium case.

Features

• Monster Line Performance: Designed for demanding car and aircraft applications requiring high torque and fast response
• High-Voltage Operation: Supports 6.0V to 8.4V input for use with compatible HV receiver and BEC systems
• Brushless Motor: Patented lightweight brushless motor provides strong output and efficient operation
• Up to 55kg/cm Torque: Delivers 55kg/cm torque at 8.4V for demanding steering and control loads
• 0.055 Sec/60° Speed: Fast 8.4V response suits applications requiring rapid and precise servo movement
• Specialised Steel Gears: Heavy-duty gear train provides strength for high-load RC use
• Full Aluminium Case: Rigid alloy housing improves durability and assists heat dissipation
• Three Ball Bearings: Triple bearing support provides smooth and stable output shaft operation
• 12-Bit Digital Control: High-resolution electronics provide precise positioning and consistent response
• Soft Start: Progressive start-up movement helps reduce sudden servo movement when the system is powered on
• Advanced Radio Compatibility: Supports Sanwa SUR and SSR plus Futaba UR and SR response modes
• Water-Resistant Construction: Designed to provide additional protection in demanding RC environments
• 25T Output Spline: Uses a 6.0mm 25-tooth spline for compatible servo horns

Specifications

• Brand: Savox
• Model: SB-3292SG
• Range: Monster Line
• Product Type: Digital High-Voltage RC Servo
• Servo Size: Standard
• Applications: RC Car and Aircraft
• Operating Voltage: 6.0V to 8.4V
• Motor: Patented Lightweight Brushless
• Controller: Digital
• PCB Resolution: 12-Bit
• Gear Type: Specialised Steel
• Case: Aluminium
• Protection: Water Resistant
• Bearings: 3 x Ball Bearings
• Output Spline: 25T / 6.0mm
• Speed at 6.0V: 0.085 sec/60°
• Torque at 6.0V: 32kg/cm
• Speed at 7.4V: 0.07 sec/60°
• Torque at 7.4V: 40kg/cm
• Speed at 8.4V: 0.055 sec/60°
• Torque at 8.4V: 55kg/cm
• Stall Current at 6.0V: 8A
• Stall Current at 7.4V: 10A
• Stall Current at 8.4V: 12A
• Frequency Range: 50 to 360Hz
• Maximum Travel: Approximately 130°
• Operating Travel: 100°
• Connector: JR
• Cable: 22AWG
• Cable Length: 300 ±5mm
• Dimensions: 40.3 x 20.2 x 38.7mm
• Weight: Approximately 70g
• SKU: SAV-SB3292SG

Includes

• 1 x Savox SB-3292SG High-Voltage Brushless Digital Servo
• Servo mounting hardware and standard accessories

FAQ

How much torque does the Savox SB-3292SG produce? The SB-3292SG produces 32kg/cm at 6.0V, 40kg/cm at 7.4V and up to 55kg/cm at 8.4V.

Can the Savox SB-3292SG run at 8.4V? Yes. The SB-3292SG is rated for 6.0V to 8.4V operation, but the receiver, ESC BEC or external BEC supplying the servo must also support the selected voltage and current demand.

What servo horn fits the Savox SB-3292SG? The SB-3292SG uses a 25T 6.0mm output spline, so a compatible 25-tooth servo horn is required.

Is the Savox SB-3292SG compatible with Sanwa SSR mode? Yes. Savox specifies compatibility with Sanwa SUR and SSR modes as well as Futaba UR and SR systems.

Important Notes

• Use an HV-compatible receiver, ESC BEC or external BEC when operating above standard receiver voltage
• Stall current can reach 12A at 8.4V, so the power supply must be capable of supporting the servo under heavy load
• Savox currently specifies dimensions of 40.3 x 20.2 x 38.7mm and an approximate weight of 70g; some older distributor specifications may show slightly different measurements
• Water-resistant does not mean the servo should be deliberately submerged
• Check mounting dimensions and 25T spline compatibility before installation
