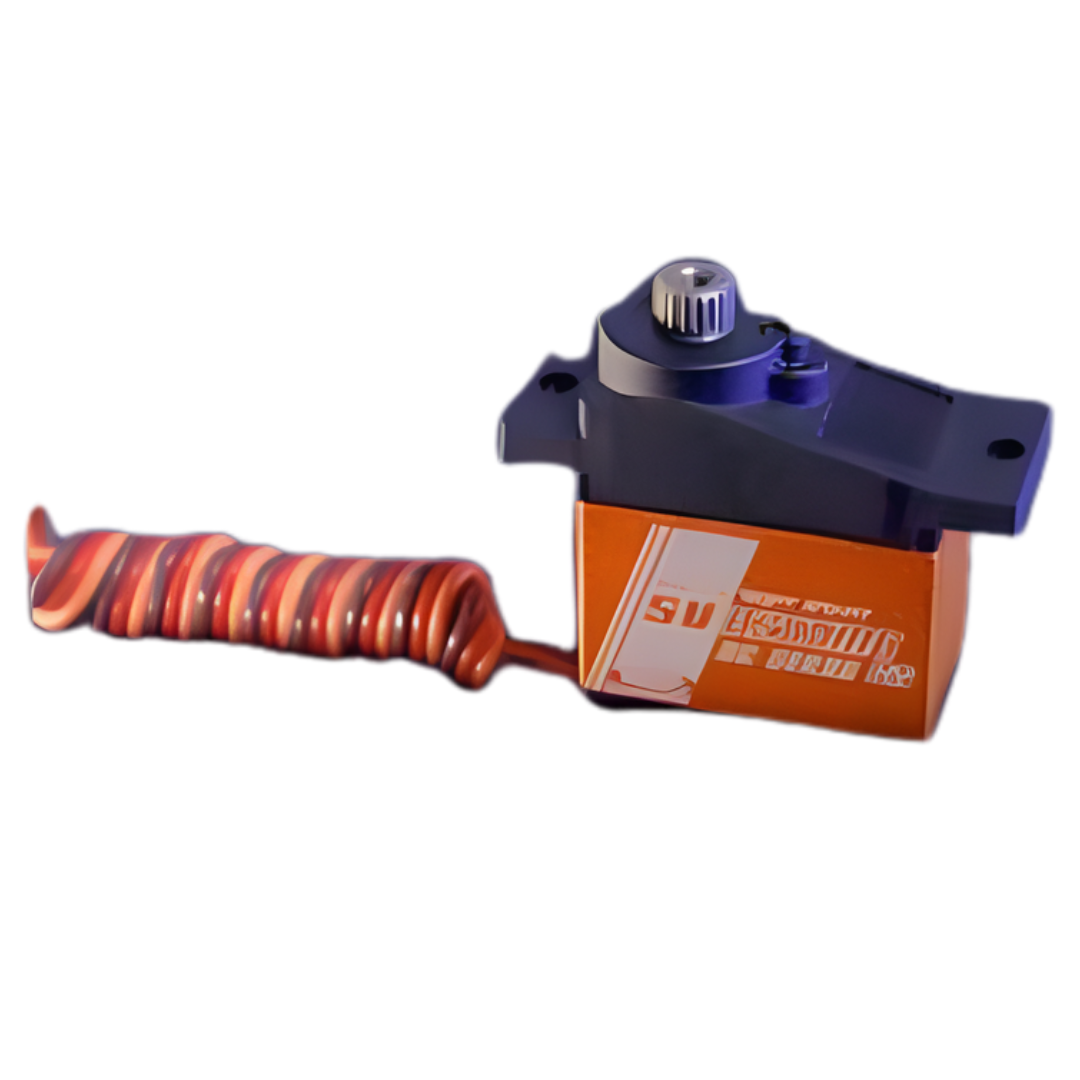

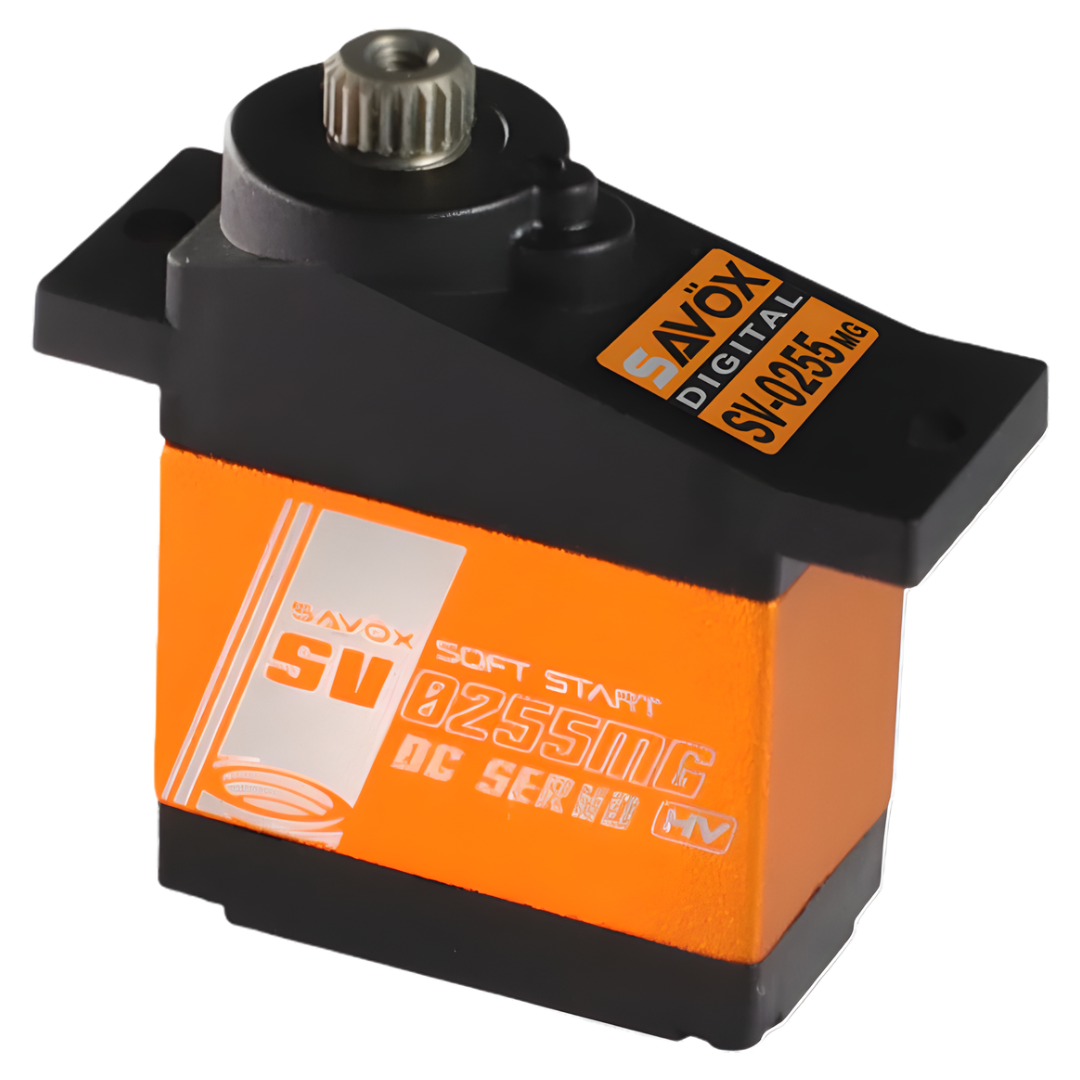

Savox SV-0255MG Micro Digital Servo 4.5kg 7.4V Metal Gears SAV-SV0255MG

Only 1 left
SKU: SAV-SV0255MG
$39.95

Need some help? call us! ph: 07 3265 4547

The Savox SV-0255MG is a high-voltage micro digital servo featuring durable metal gears, a brushed motor, and a compact aluminium case. With up to 4.5kg of torque at 7.4V, it's ideal for applications requiring strong, precise performance in a small form factor.

Features

  • High torque output of 4.5kg/cm at 7.4V
  • Metal geartrain for added durability
  • Digital signal for precision control
  • Aluminium casing for improved heat dissipation
  • Micro size fits compact RC models and robotics
  • Brushed motor design with reliable performance

Specifications

  • Type: Micro digital servo
  • Signal Type: Digital
  • Drive Motor: Brushed
  • Gear Material: Metal
  • Case Material: Aluminium
  • Waterproof: No
  • Spline Count: 21-tooth
  • Rotation Angle: 90°
  • Input Voltage Range: 6.0V–7.4V
  • Torque @ 6.0V: 3.5kg/cm
  • Torque @ 7.4V: 4.5kg/cm
  • Speed @ 6.0V: 0.16 sec/60°
  • Speed @ 7.4V: 0.13 sec/60°

Dimensions

  • Total Length: 32.4mm
  • Body Length: 22.8mm
  • Total Width: 12mm
  • Total Height: 32.3mm
  • Bottom to Under Mount: 29.4mm
  • Top to Under Mount: 12mm

Includes

  • 1 x Savox SV-0255MG Micro Digital Servo
