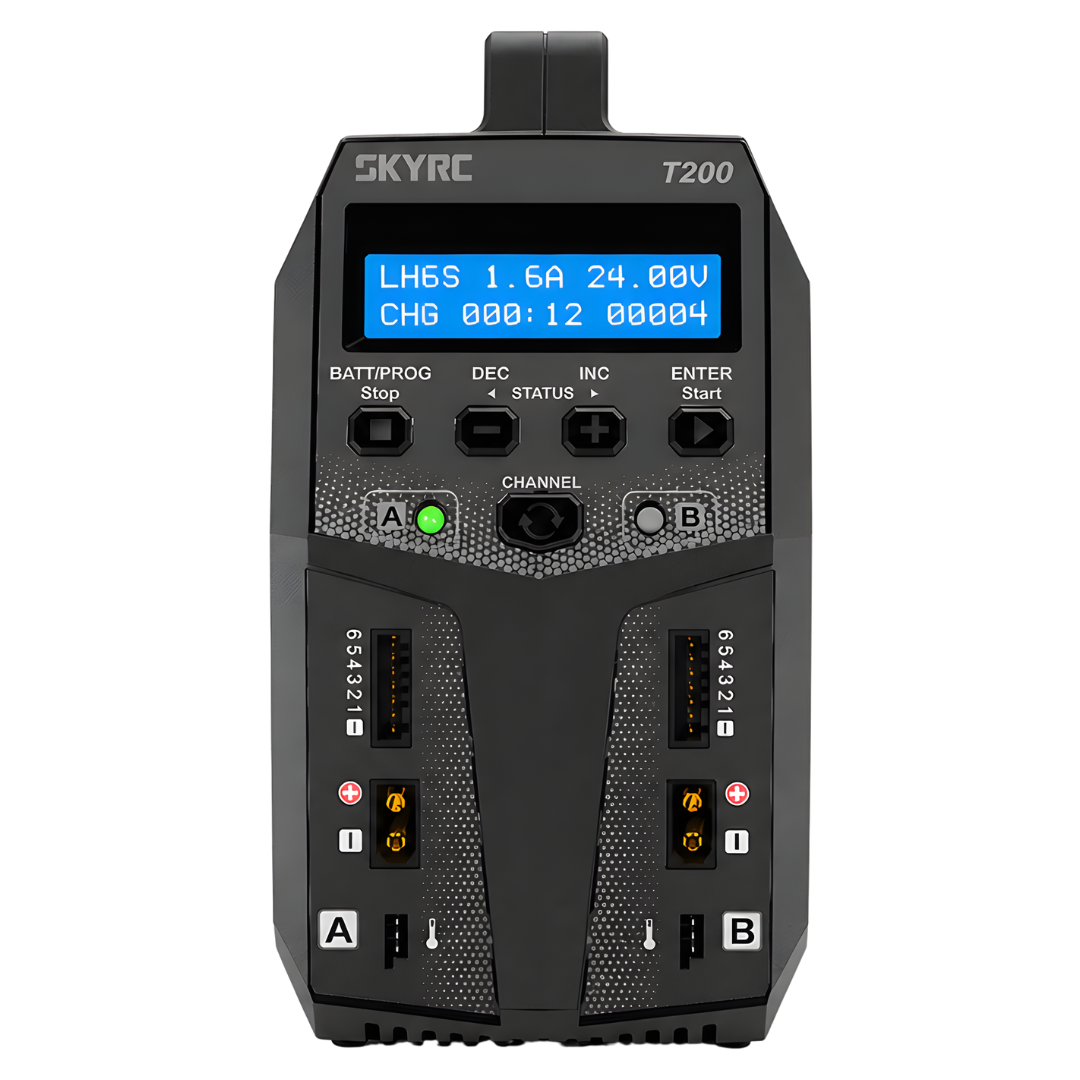

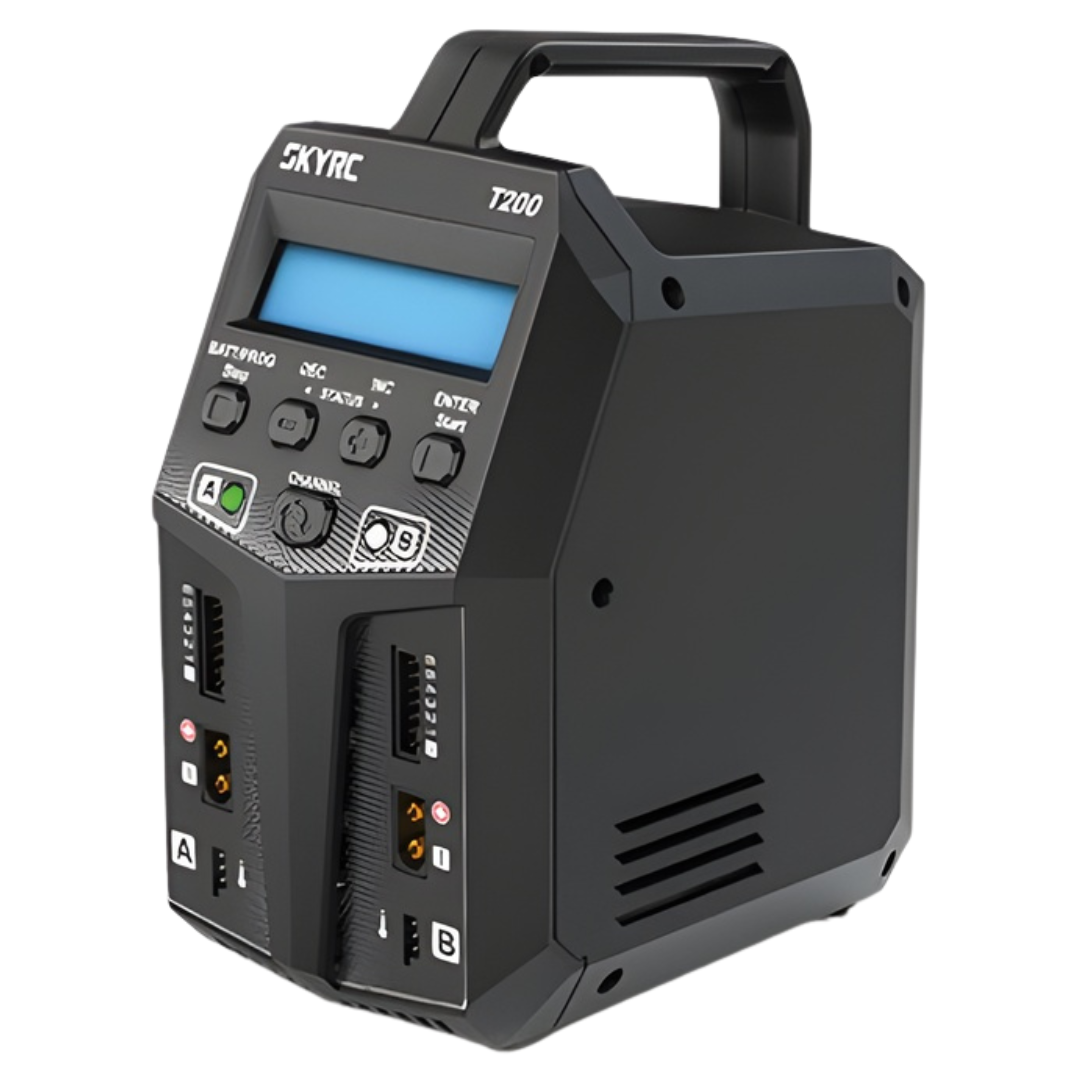

SkyRC T200 AC DC Dual Output Charger 12A Multi Chemistry Balance SK-100155
Couldn't load pickup availability
The SkyRC T200 is a dual-output AC/DC balance charger designed to charge a wide range of RC battery chemistries. Featuring independent 100W charging channels, adjustable charge current and support for lithium, NiMH, NiCd and Pb batteries, it provides versatile charging performance in a compact and portable design.
Features
- Dual Output Charging: Two independent 100W charging channels allow simultaneous charging of compatible battery packs
- Multi-Chemistry Support: Compatible with LiPo, LiHV, LiFe, LiIon, NiMH, NiCd and Pb batteries
- Wide Charge Range: Adjustable charging current from 0.1A to 12.0A
- Balance Charging: Supports balance charging for 2S to 6S lithium batteries
- AC and DC Operation: Suitable for home use or field charging from a compatible DC power source
- Compact Design: Space-saving enclosure for convenient transport and bench use
- Memory Function: Stores up to 10 charging profiles for quick recall
- Comprehensive Safety Features: Includes temperature cut-off, safety timer and voltage protection
Specifications
- Brand: SkyRC
- Model: T200 Dual Output Charger
- Part Number: SK-100155
- Barcode: 6930460005960
- Product Type: Dual-output balance battery charger
- AC Input Voltage: 100V–240V
- DC Input Voltage: 11V–18V
- Charge Power: 100W per channel (200W total)
- Discharge Power: 10W
- Charge Current: 0.1A–12.0A
- Discharge Current: 0.1A–2.0A
- Battery Types: LiPo, LiHV, LiFe, LiIon, NiMH, NiCd and Pb
- Battery Compatibility: Li 1–6S, NiMH/NiCd 1–15 cells, Pb 2V–20V
- Balance Current: 500mA per cell
- Display: LCD with blue backlight
- Dimensions: 178 x 135 x 96mm
- Weight: 850g
Includes
- 1 x SkyRC T200 AC/DC Dual Output Charger
FAQ
Can the SkyRC T200 charge two batteries at the same time? Yes. The T200 features two independent 100W charging channels, allowing two compatible batteries to be charged simultaneously.
What battery types are supported? The SkyRC T200 supports LiPo, LiHV, LiFe, LiIon, NiMH, NiCd and Pb batteries within the specified cell count and voltage ranges.
Can the charger be powered from both AC and DC? Yes. The charger operates from 100–240V AC mains power or an 11–18V DC power source, making it suitable for home or field charging.
Important Notes
- Charge leads and balance boards are not included.
- Compatible charging accessories are recommended for full functionality.
- Always select the correct battery chemistry and cell count before charging.
