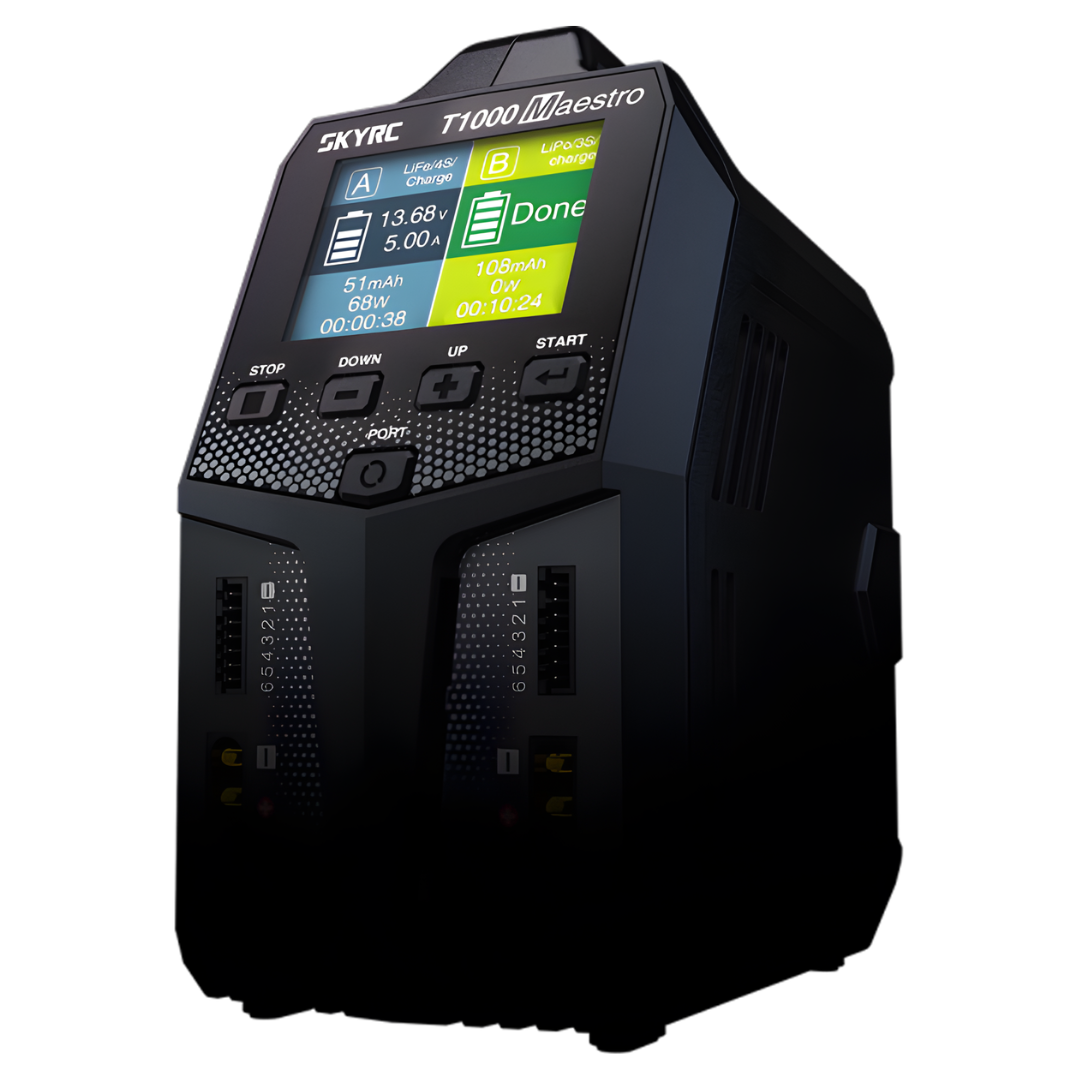

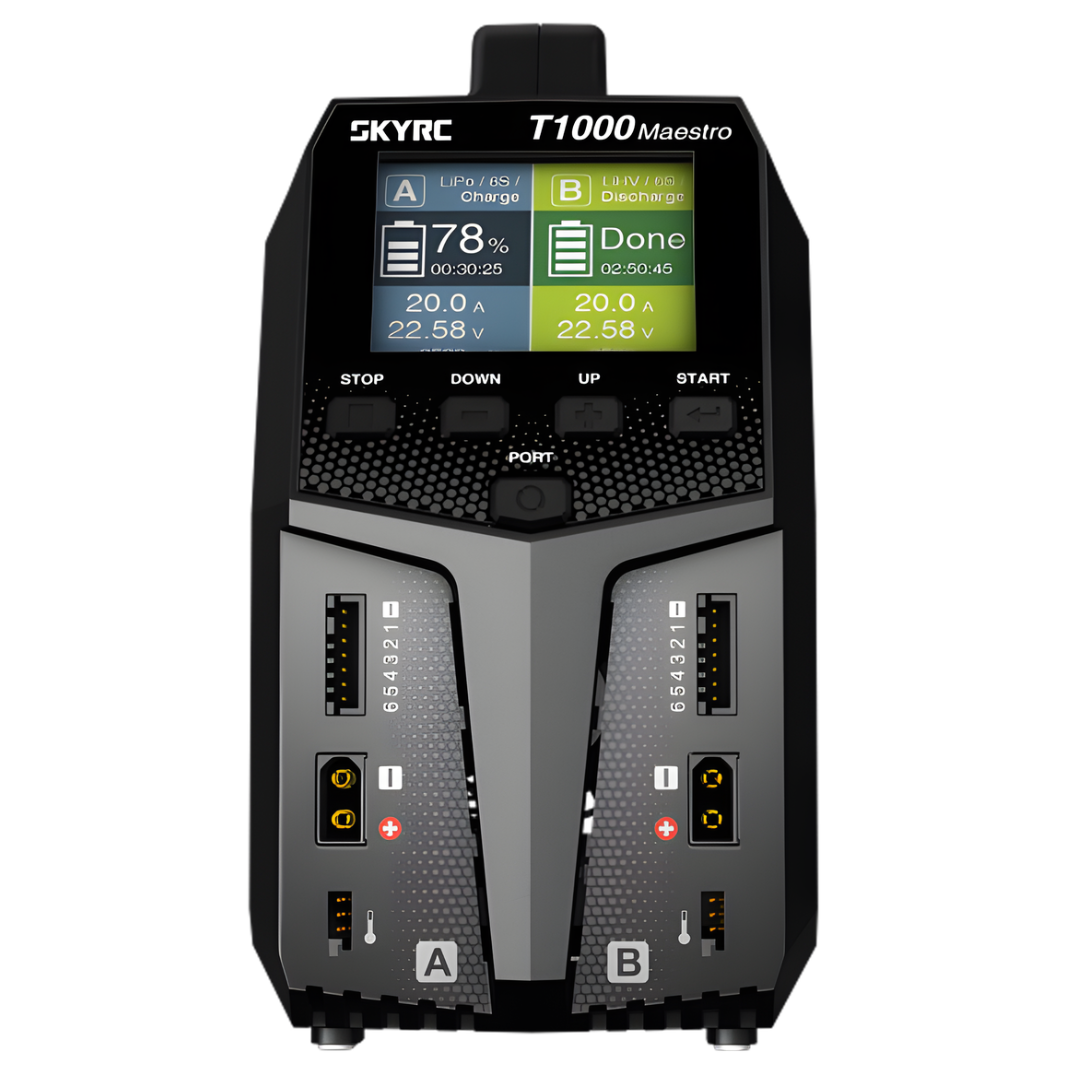

SKYRC T1000 Maestro AC/DC Duo Charger 20A 1000W Black SK-100182

The SkyRC T1000 Maestro is a high-performance dual-channel charger offering up to 1000W DC and 450W AC power. Designed for serious RC enthusiasts, it features a 32-bit processor, intuitive ColourX interface, and advanced smart charging capabilities for unmatched efficiency and flexibility.

Features

• Dual AC/DC input for versatile charging scenarios
• Up to 1000W DC and 450W AC power output
• 20A per port with smart dynamic power distribution
• Acts as a digital power supply (5–27V / 1–15A)
• Advanced 32-bit ARM MCU with Hyperboost and PID control
• Oversampling technology enhances ADC resolution to 16-bit
• Smart fan system with adaptive cooling
• ColourX display with responsive UI for intuitive navigation
• Sleek tower design with ergonomic carry handle

Specifications

• Input Voltage: AC 100–240V / DC 10–30V
• Charge Power: 450W (AC) / 1000W (DC)
• Input Current: Max 35A
• Charge Current: 0.1–20.0A (parallel: up to 35.0A)
• Discharge Power: 10W (main), 37W (balance), 350W (external)
• Discharge Current: 0.1–2.0A / up to 40.0A (external with BD350)
• Balance Current: Max 1.5A
• Battery Types Supported: LiPo/LiFe/LiIon/LiHV (1–6S), NiMH/NiCd (4–15S), Pb (3S/6S/12S)
• DC Output: 5–27V adjustable, 1.0–15.0A
• Dimensions: 190.3 x 153.5 x 100mm
• Weight: 1370g

Includes

• SkyRC T1000 Maestro charger
• AC power cord
• User manual
